JMC T12 User Manual

Page 1
USER MANUAL
Please ensure that you read the complete user manual
carefully before using any part of the product.
- Keep this copy safe for future reference in case of operational difficulties.
-

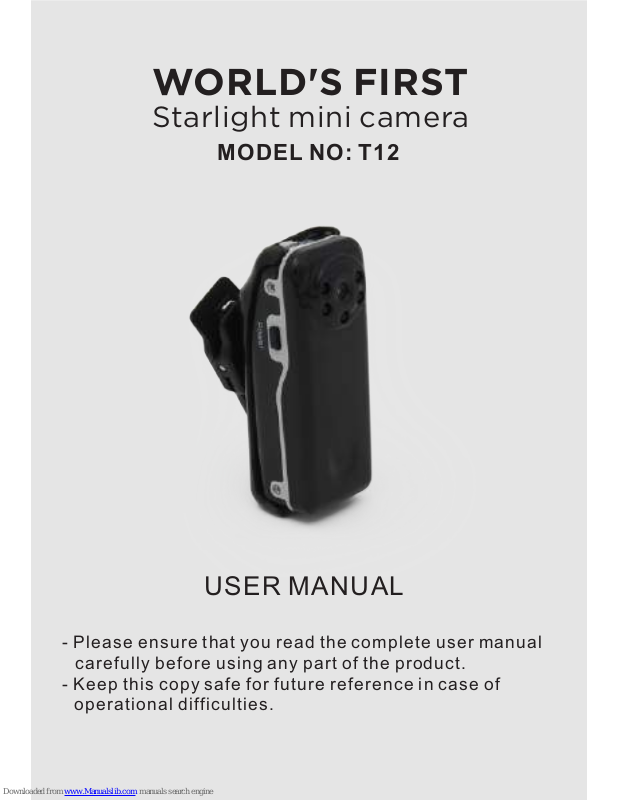

MODEL NO: T12
Starlight mini camera
Page 2
Safety Instructions
2
Please read the following instructions before using the camera:
- Ensure that the camera is tested for the first time use and confirm that it suits the intended purpose.
- We are not responsible for any missing video information due to wrong operation,Micro-SD malfunctioning or camera angle limit etc.
- The camera should be used for legal purpose only. Check and follow the laws provided in your country regarding the use of camera and other video recording devices.
By following the above safety instructions, we hope that it will be enjoyable to own and use this product!
Page 3
MINI SECURITY CAMERA
USER M ANUAL
Plea se ens ure t hat yo u rea d the co mpl ete us er man ual
care full y bef ore us ing a ny par t of th e prod uct.
- Keep t his c opy sa fe fo r futu re re fere nce in c ase o f oper atio nal d iffi cult ies.
-
MODE L NO: T12
It is important to note that:
If there is anything missing in your product package and it is not included in the above list of accessories, contact us as soon as possible
Product accessories
Camera
bracket 1
bracket 3
USB cable
Manual
bracket 2
3
Neck lanyard
Card reader
Page 4
Product structure
4
Lens
Power on button
USB Port
Micro phone
Record (video/photo /save)
Status indicator
Modesound control/ motion detection)
Micro-SD slot
Reset
5pcs invisible Led light
Page 5
How to insert and take out Micro-SD card
Important notice:
- The camera has the ability to record video only when Micro-SD is inserted.
- Please avoid by all means to insert or remove Micro-SD when the camera is either powered ON or connected to the computer. This can possibly cause damage to Micro-SD or the entire camera.
- Please ensure that minimal effort is applied to the Micro-SD when inserting it in or out of the camera. Use of force can easily damage the Micro-SD or the product parts.
- Before using the product for the first time, ensure that the Micro-SD is formatted. Please check for any saved data in the Micro-SD to avoid unexpected loss. We are not liable or responsible for malfunctions that result from failure to follow the above guidelines.
Take Micro-SD outInsert Micro-SD card
5
Page 6
Operation Guide
6
1.Charge
Pls charge the camera before your first time use. Recommended charging time is 1-2 hours for a fully charged.
A)You can charge the camera by connecting it with a PC usb port or a usb 5v1A charge adaptor.Pls make sure the camera is power off for charging.
Yellow indicator
Indicator Status: Yellow indicator is always on,it will be off when fully charged
Page 7
7
Operation Guide
C)When you connect the camera to your usb charge adaptor and power on it,this means that your camera is in recording standby mode.You could choose different mode to record according to the function of this camera.(Micro sd card is required to be inserted for recording while charging by adaptor)
Indicator Status: Power off the camera, yellow indicator is always on.
Power on the camera, yellow and blue indicator is always on.
Yellow Blue
B)When you power on the camera and connect it to your pc usb port,this means that your camera is in Mass storage mode and PC camera mode.
Indicator Status:Yellow and blue indicator are always on and red indicator flash slowly.
Yellow Blue
Red
Page 8
Operation Guide
Important Note:
1.During all the above three method,camera is in charging.
2.When camera can not be powered on,pls charge the camera.
3.If your computer can not recognize the camera after 30 seconds.Pls reboot your computer and using a card reader to format the micro sd card and try it again.
4.It is recommended that you can copy the video clips to your computer to get a smooth playback.
5.If you want to use the camera as a pc camera,pls download Ecap driver from internet to run it on Win 7 above.
2.Manually recording
8
Power on the camera: Hold on the power button for 2 seconds,the camera will get into standby mode.
Manually Record: Short press on the top record button,the camera will start to record videos with 10 minutes clip each.The camera will automatically detect the environment and switch itself to day or night vision recording. Indicator Status: The blue indicator flash 3 times and goes off.Then the camera start to record manually.
Indicator Status:The blue indicator will be on.
Page 9
9
Operation Guide
Important Note:
-.When the camera is in recording,powwer and
mode buttons are both no effective.Pls short press the top record button back to standby mode and then continue to operate the camera.
-
.Manually record will produce 10 minutes video clips
for file protection purpose.
B indicatorlue
3.Sound activated recording
1)Switch to sound activated recording mode: When the camera is in standby status (blue indicator is on).Short press the mode button,the camera will get into the sound activated recording mode.
Saving videos: Short press the top record button again to save the video.Afterwards,the camera will be back to standby mode.
Indicator Status: The blue indicator is on.
Page 10
10
Operation Guide
Red indicator
2)Start recording: When the environmental sound volume is over 60dB (normal speak volume),the camera will automatically start to record;The recording file will be saved and get into the next sound activated recording standby status when the evironment becomes silent after 2 minutes. Every 2 minutes,the camera will automatically detect the environment and switch itself into night vision,day time or recording,standby status.
Sound activated recording will produce 2 minutes video clips.
Indicator status:The red indicator flash 3 times and goes off.
Page 11
11
Operation Guide
3)Exit from sound activated recording mode:
Short press the top record button or mode button while it is in recording.The camera will save the video and get back to the standby status.(Blue indicator is on)
Blue indicator
4.Motion detection recording
1)Switch to motion detection recording mode: When the camera is in standby status(blue indicator is on).Hold on mode button for 2 seconds,the camera will get into motion detection recording mode.
Indicator Status: Green indicator flash 3 times and goes off.
Page 12
Operation Guide
3)Exit from motion detection recording mode: Short press the top record button or mode button while it is in recording.The camera will save the video and get back to the standby status.(Blue indicator is on)
Blue indicator
12
2)Start recording: When a subject is moving in front of the camera lens, it will detect and start to record automatically.If there's no more motion in 2 minutes,the video will be save and the camera turn itself into the next motion detection standby status.Every 2 minutes,the camera will automatically detect the environment and switch itself into night vision,day time or recording,standby status. Motion detection recording will produce 2 minutes video clips.
Indicator status:The green indicator flash 3 times and goes off
Page 13
13
2.Open the SETTIME.TXT file and amend some of the number according to your required time, but do not amend any other data or file format.
3.after finishing the amendment, please click the upward right side file in the dialog box, and then click “ save”.
SETTIME.TXT
fil e Edit Fo rmat Vi ew H elp
File name
yyyy-mm-dd hh/mm/ss
2015-03-23 23:15:12
New
Ope n
Sav e
Sav e as
Pag e setti ngs
Pri nt
Exi t
fil e
Edi t Forma t View He lp
1
2
Operation Guide
SETTIME.TXT
the time will be synchronized when camera disconnects to computer and then restart the camera.
5.time modification
It will automatically create a time file named as SETTIME document after the camera is switched on. The time will be amended to the current time when you open the document and save it. Exit the portable disk and restart the camera and record, new recording videos will automatically synchronize with the current time.
SETTIME.TXT
1.Open the portable disk, you will find the SETTIME.TXT file.
Page 14
Operation Guide
14
4.When you find your camera power off automatically, there're two reasons for that:
1)The power is too low,you need to recharge the camera.
2)In standby status without any operation for 1 minute.
Important Note:
1.If you didn't find the SETTIMETXT file when you open the micro sd card from your computer,Pls record a video clip using the camera to activate the card and then try to set the date and time again.
2.The amended date and time will not change unless the battery is running out for long time.
3.When your camera is malfunction or wrong operation,pls using a toothpick to hold on the reset hole to reset the camera.
Page 15
Detailed parameters
15
ParameterItem
Video Format Video compression
Playback software on PC
OS supported
Camera Lens Focal distance
Memory extension supported USB port
LED TYPE Resolution Record time water mark
Battery type Charging voltage USB port Operation temperature Operating humidity
Dimensions
AVI M-JPEG
Windows media player or others windows xp/Vistar/7; Mac os
10.4 or above Color-pinhole
2.8mm Up to 32G
USB2.0 940nm, 5 pcs only
1280*720@30FPS with audio
Available
Rechargeable Li-battery DC5V /1A
Mini 5 pin USB
-10-50℃
20%-80% 57*23*20.5mm
Electronic currency 210-230mAh without night vision Night vision electronic currency 430-550mAh
Battery size 420mAh Continuously recording time 2.5 hours
Night vision continuously recording time
0-60 minute
Page 16
Indicator Status and their meanings
16
Starting up with SD card
Starting up without SD card
Record mode
Sound control stand-by
Sound control recording
Motion detection stand-by
Motion detection recording
PC charging
USB charging
Fully-charge
Removable disk
Camera lens
Charging and recording
Blue light always on
Blue light flashes 10 seconds and shut down
Light off
Red light always on
Light off
Green light always on
Light off
Yellow light always on
Yellow light always on
Yellow light off
Blue and yellow light always on, red light off
Blue and yellow light always on, red light off
Yellow light on, red, blue and green light on
