JMC SC500 EC User Manual

1

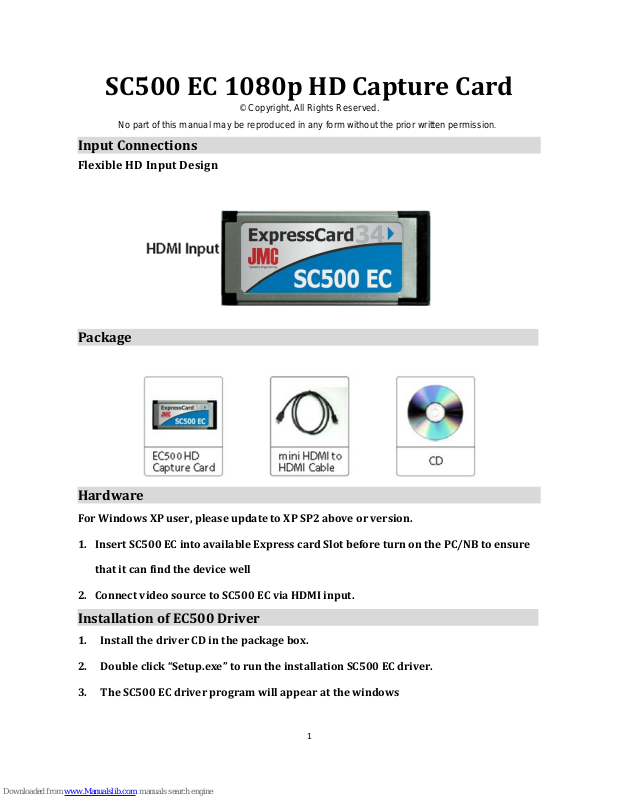

SC500 EC 1080p HD Capture Card

© Copyright, All Rights Reserved.

No part of this manual may be reproduced in any form without the prior written permission.

Input Connections

Flexible HD Input Design

Package

Hardware

For Windows XP user, please update to XP SP2 above or version.

1. Insert SC500 EC into available Express card Slot before turn on the PC/NB to ensure

that it can find the device well

2. Connect video source to SC500 EC via HDMI input.

Installation of EC500 Driver

1. Install the driver CD in the package box.

2. Double click “Setup.exe” to run the installation SC500 EC driver.

3. The SC500 EC driver program will appear at the windows

2

Installation of Stream Catcher Software (Optional)

1. Install the Stream Catcher Application with Software from the same CD.

2. Completing the Stream Catcher Installation, you will find the Stream Catcher sign on

your PC desktop.

Connection Diagram

Remark: SC500 EC complies with Macrovision copy protection.

System Requirements

 OS Support: Windows XP/ Vista/Windows 7 (32 Bits and 64 Bits)
 Memory: 512 MB
 CPU(Display): Intel Core2 Duo E2200 2.2GHz
 CPU(Recording): Intel Core2 Quad Q9400 2.66GHz
 VGA: 1024x768, DirectX 9.0 Compatible Graphic Card
