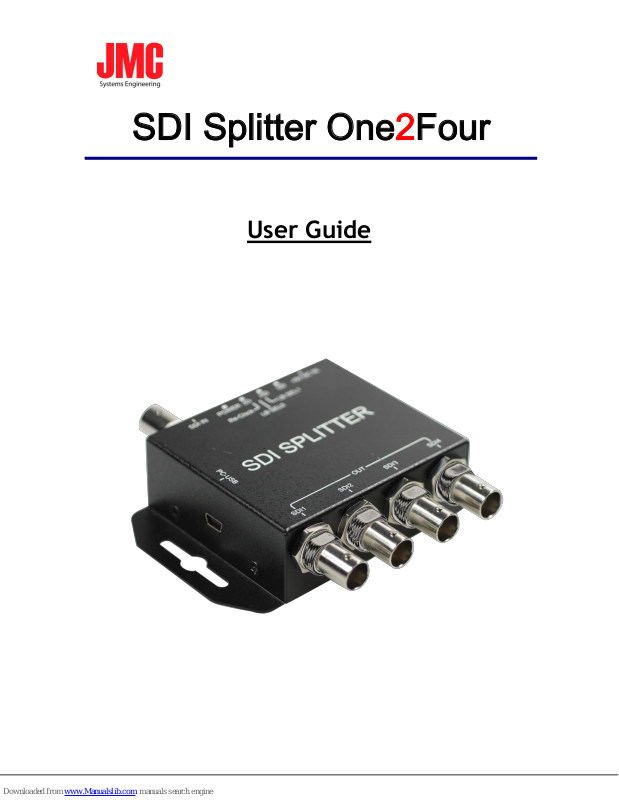

Page 1
SDI Splitter One2Four
User Guide
Page 2
JMC Systems Engineering AB info@jmc.se
Index
Feature ................................................................................... 3
Front Panel ............................................................................... 4
Rear Panel ................................................................................ 4
Dip Switch ................................................................................ 5
Specifications ............................................................................ 6
Firmware Upload ........................................................................ 7
Page 3
JMC Systems Engineering AB info@jmc.se
Feature
The SDI Splitter Distribution Amplifier allows a single SDI, HD-SDI or 3G-SDI video
source to be distributed to (without loss of signal) four HD SDI/HDSDI/3GSDI devices
at the same time.
Easily distribute one 3G-SDI source to four 3G-SDI devices.
Our separately buffered outputs.
Transmitter Rate LED indication
Lock LED indication
Pass all ancillary data.
Easy installation
Page 4
JMC Systems Engineering AB info@jmc.se
Front Panel
1 2 3 4
1. 3G/HD/SD-SDI Output 1
2. 3G/HD/SD-SDI Output 2
3. 3G/HD/SD-SDI Output 3
4. 3G/HD/SD-SDI Output 4
Rear Panel
1 2 3 4
1. Power (+6V ~ + 15V)
2. 3G/HD/SD/Power LED indicator
3. Dip Switch:
Pin On (↑): Enable
Pin OFF (↓): Disable
a. Re-Clock
b. LB SEL0
c. LB SEL1
4. SDI Input
Page 5
JMC Systems Engineering AB info@jmc.se
Dip Switch
Re-clock: Receives a signal and retransmits it at a higher level and/or
higher power, or onto the other side of an obstruction, so that the signal
can cover longer distances.
SB SEL0: (N/A)
SB SEL1: (N/A)
Page 6
JMC Systems Engineering AB info@jmc.se
Specifications
DESCRIPTION
Support Video Resolution
SD – 720 x 480 i / 720 x 576 i
HD– 1280 x 720 p
1920 x 1080 50i/60i
1920 x 1080 24p/30p
3G– 1920 x 1080 50p/60p
2K– 2048 x 1080 24p/30p
SDI format
SD-SDI(SMPTE 259M)
HD-SDI(SMPTE 292M)
3G-SDI (SMPTE 494M/495M)
Audio Support
7.1ch/5.1ch/Stereo
Re-clock Function
Yes (Dip Switch)
Coaxial Cable Type
RG6/RG59(75Ω)
Cable Equalization
3G: 140m of RG6
100m of RG59
HD: 200m of RG6
140m of RG59
SD: 400m of RG6
280m of RG59
Input
1 x BNC [SDI]
Output
4 x BNC [SDI]
BNC Connector
3G 75 Ω inter-locked socket
DIP Switch
3-pin [Re-clock / LED mode / NA]
Housing
SECC
Dimension
L:104mm x W:63.3mm xH:26mm
Power Source
Power Adapter: AC 100 ~ 240 V/DC (+6 ~ 15 V)
Operation Temperature
0~50°C [32~114°F]
Storage Temperature
-20~+60°C
Page 7
JMC Systems Engineering AB info@jmc.se
Firmware Upload
Firmware is upgradable in the field using the integrated USB port
How to Firmware upgrade:
Step 1.Open Upload Firmware Program tools.exe and connect USB and PC
Step 2.Plug and Play AC power
Step 3.Push Connect Button and Select Firmware File (Bin File)
Step 4.Push Start Button
Page 8
JMC Systems Engineering AB info@jmc.se
Step 5.Close Upload Firmware Program tools
