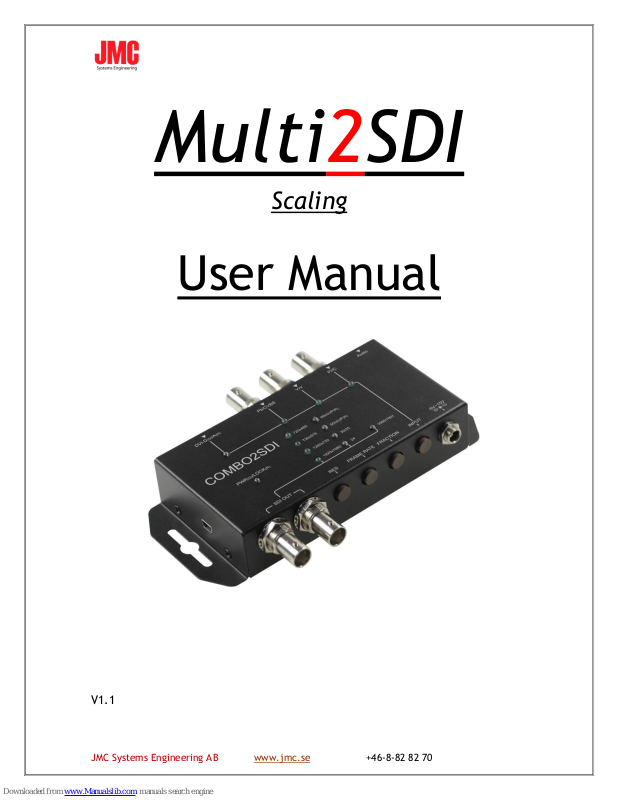

JMC Multi2SDI User Manual

Page 1
Multi2SDI
Scaling
User Manual
JMC Systems Engineering AB www.jmc.se +46-8-82 82 70
Page 2
Content
Feature ................................................................................... 3
Front Panel ............................................................................... 4
Rear Panel ................................................................................ 4
Top Panel ................................................................................. 5
Side Panel ................................................................................ 5
Button/LED Indicate .................................................................... 6
Installation ............................................................................. 11
Package Contents ..................................................................... 11
Specifications .......................................................................... 12
Appendix Table A ..................................................................... 13
JMC Systems Engineering AB www.jmc.se +46-8-82 82 70
Page 3
SDI Supports HD formats :
720p50 & 60 1080i50 & 60
1080p24, 25, 30, 50 & 60 SDI Support 525i & 625i SD D1 format Auto 3G/HD/SD-SDI detection Can be split one 3G-SDI displays simultaneously. Frame rate conversion(1.000/1.001) External Button Configuration Firmware is upgradable in the field using the integrated USB port The converter is Plug-and-Play
Support DVI-D, DVI-A, Component, CVBS and S-Video Input
Feature
JMC Systems Engineering AB www.jmc.se +46-8-82 82 70
Page 4
NO
Component
Function
1
SDI Output Port
From your SDI Display Device plug into this ports
2
Mode Buttons
Select Format/Output Port
3
Power Jack
The Power adapter plug into here
NO
Component
Function
1
Phone Jack
Form you Audio Device plug into this port
2
Component/CVBS/S-Video
Input Port
From your YPbPr/CVBS/S-Video Device plug into this port
3
DVI-D/DVI-A Input Port
From your DVI-D/DIV-A Device plug into this port
1
3
1
3
2
2
Front Panel
Rear Panel
JMC Systems Engineering AB www.jmc.se +46-8-82 82 70
Page 5
NO
Component
Function
1
Input Source LED
The LEDs are indicate Input source
2
Power and Lock LED
The LEDs is indicate power and signal locked.
3
Main Format LED
The LEDS are indicate output format
NO
Component
Function 1 USB Port
Upgrade firmware/Control Box From PC
1
1
2
3
Top Panel
Side Panel
JMC Systems Engineering AB www.jmc.se +46-8-82 82 70
Page 6
Hold on the 1 and 2 button, the display is showed firmware version on display of left upper.
FIRMWARE VERSION
0.1.0.1
Push all button (1, 2 and 3) at same time, the box auto reset to default.
Push all button 2 to setting audio Mode..
DVI-D Embadded Audio (Default)
External Audio
Mute
DVI-A
Mute YPbPr
Composite
External Audio SVIdeo
1. Firmware Mode:
2. Default Mode:
Button/LED Indicate
3. Audio Mode
JMC Systems Engineering AB www.jmc.se +46-8-82 82 70
Page 7
Push button 1 change to format mode, frame rate and Fraction by button 2 and 3.
Button 1
Button 2
Button 3
720x480
59.94i
720x576
50i
1280x720
60p
59.94p
50p
30p
25p
1920x1080
60i
59.94i
50i 60p
59.94p
50p
30p
29.97p
25p
24p
23.98p
Push button 4 change to input source mode. The button 3 and 4 can be switch output source.
DVI-D/DVI-A
Pb/CVBS
Y/Y
Pr/C
DVI-D
● ○ ○
DVI-A
● ○ ○
YPbPr
○ ● ●
CVBS
○ ● ○
S-VIDEO
○ ○ ●
1
2
3
4. Output Format Mode:
5. Input Source Mode:
JMC Systems Engineering AB www.jmc.se +46-8-82 82 70
Page 8
DVI-D + L/R Audio
DVI-A + L/R Audio
1. DVI-D + L/R Audio:
2. DVI-A+ L/R Audio:
JMC Systems Engineering AB www.jmc.se +46-8-82 82 70
Page 9
YPbPr + L/R Audio
Composite(CVBS) + L/R Audio
3. YPbPr + L/R Audio:
4. Composite (CVBS) + L/R Audio:
5. S-VIDEO + L/R Audio
JMC Systems Engineering AB www.jmc.se +46-8-82 82 70
Page 10
Composite(CVBS) + L/R Audio
3. Pattern Genertor Mode:
input signal is plug out, the Box auto change to Pattern Genertor mode.
It is proivded the 13 of Mode
JMC Systems Engineering AB www.jmc.se +46-8-82 82 70
Page 11
Button 2
Format
Button 3
BLUE
GREEN
RED
DIAGONAL
WV RAMP
WH RAMP
H RAMP
WINDOW
GRAY
COLOR BAR
HATCH
CROSS
WHITE
Installation
Combo2SDI installation consists of the following:
1. Disconnect +12DC adaptor to converter.
2. Connect Video Source to the Input Connector.
3. Connect Display Equipment to the output’s connector
4. Connect the +12DC adaptor to the converter.
Package Contents
The HD2SDI-S package contains the following items:
User Manual x 1
+12 DC Adapter x 1
Combo2SDI Converter x 1
JMC Systems Engineering AB www.jmc.se +46-8-82 82 70
Page 12
DESCRIPTION
SDI Format
SD-SDI, HD-SDI & 3G-SDI
SDI Transition Rate
2.970Gb/s, 10485Gb/s and 270Mb/s
Audio Support
8-Channel (L/R Audio only 2 channel splitter to 8 channel)
Re-Sample Clock
Auto Resample audio clock to 48Khz
Coaxial Cable Type
RG6/RG59(75Ω)
Cable Equalization
3G: 120m of RG6/ 100m of RG59 HD: 200m of RG6/ 140m of RG59 SD: 400m of RG6/ 280m of RG59
*1 RG6: CANARE L-5CFB Cable / RG59: Belden 9275 Cable
*2 Cable Length Performance: Depending on SDI Signal and Cable Quality
Input Format Support
Appendix Table A
Output Format Support
Appendix Table A
Firmware Updates
Via Mini-USB
Output Connector
1 x BNC [SDI]
Input Connector
1 x BNC [SDI] 1 x DVI-I [DVI-D + DVI-A] 3 x BNC [YPbPr or YC + CVBS ] 1 x Phone Jack
BNC Connector
3G 75 Ω inter-locked socket
USB Connector
Mini-USB
Bottom
Output Format/Audio Source/TV Ratio
Housing
SECC
Dimension
L:104mm x W:63.3mm xH:26mm
Power Source
Power Adapter: AC 100 ~ 240 V/DC (+6 ~ 15 V)
Operation Temperature
0~50°C [32~114°F]
Storage Temperature
-20~+60°C
Specifications
JMC Systems Engineering AB www.jmc.se +46-8-82 82 70
Page 13
720x480i60
720x576i50
720x480 p60
720x576 p50
1280x720p60
1280x720p50
1920x1080i60
1920x1080i50
1920x1080p24
1920x1080p25
1920x1080p30
1920x1080p60
1920x1080p50
640x350p85
640x400p85
720x400p85
640x480p60
640x480p72
640x480p75
640x480p85
800x600p56
800x600p60
800x600p72
800x600p75
800x600p85
848x480p60
1024x768p50
1024x768p59
1024x768p60
1024x768p70
1024x768p75
1024x768p85
1152x864p70
1152x864p75
1280x768pRB
1280x768p60
1280x768p75
1280x768p85
1280x800p60
1280x800p75
1280x800p85
1280x960p60
1280x960p75
1280x960p85
1280x1024p60
1280x1024p75
1280x1024p85
1360x768p60
1366x768p50
1366x768p60
1400x1050p50
1400x1050p59
1400x1050p60
1400x1050p75
1440x900p60
1440x900p75
1440x900p85
1600x1200p50
1600x1200p59
1600x1200p60
1600x1200pRB
1680x1050pRB
1680x1050p60
1920x1200pRB
2048x1052p60
2048x1080p50
2048x1080p59
2048x1080p60
HDMI Mode
720x480 i60
720x480 i59.94
720x576 i50
1280x720 p60
1280x720 p59.94
1280x720 p50
1920x1080 i60
1920x1080 i59.94
1920x1080 i50
1920x1080 p60
1920x1080 p59.94
1920x1080 p50
1920x1080 p30
1920x1080 p29.97
1920x1080 p25
1920 x 1080 p24
1920 x 1080 p23.98
Support Input Format:
Appendix
Support Output Format:
JMC Systems Engineering AB www.jmc.se +46-8-82 82 70
Page 14
JMC Systems Engineering AB www.jmc.se +46-8-82 82 70
