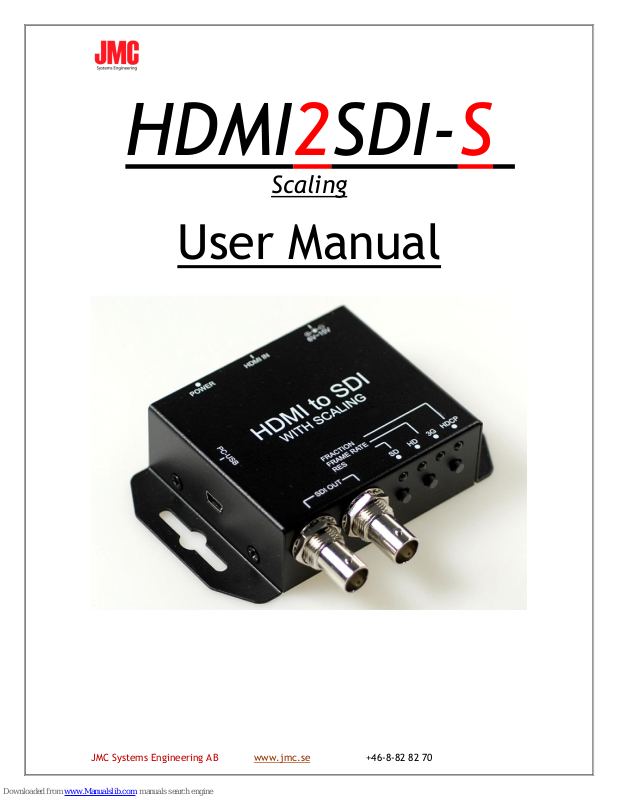

JMC HDMI2SDI-S User Manual
HDMI2SDI-S
Scaling
User Manual
JMC Systems Engineering AB www.jmc.se +46-8-82 82 70
Content
Feature ................................................................................... 3
Front Panel ............................................................................... 4
Rear Panel ................................................................................ 4
Side Panel ................................................................................ 5
Button/LED Indicate .................................................................... 6
Installation ............................................................................... 9
Package Contents ....................................................................... 9
Specifications .......................................................................... 10
Firmware Upload ...................................................................... 12
JMC Systems Engineering AB www.jmc.se +46-8-82 82 70
SDI Supports HD formats :
720p50 & 60
1080i50 & 60
1080p24, 25, 30, 50 & 60
SDI Support 525i & 625i SD D1 format
Auto 3G/HD/SD-SDI detection
One HDMI input source can split to two 3G-SDI displays simultaneously.
Frame rate conversion(1.000/1.001)
External Button Configuration
Firmware is upgradable in the field using the integrated USB port
The converter is Plug-and-Play
Support VESA Mode
Feature
JMC Systems Engineering AB www.jmc.se +46-8-82 82 70
NO
Component
Function
1
SDI Output Port
From your SDI Display Device plug into
these ports ( Pass Through)
2
LEDs indicate
The LEDs is indicate Output Format
(SD/HD/3G/HDCP)
3
Mode Buttons
Select Format/TV Wall/TV Ratio
NO
Component
Function
1
Power Jack
The Power adapter plug into here.
2
HDMI Input Port
From your HDMI Source plug into these
ports
3
Power/Locked LED
The LEDs is indicate Signal indicate
1
2
3
1
2
3
Front Panel
Rear Panel
JMC Systems Engineering AB www.jmc.se +46-8-82 82 70
