Product Instructions

MCG-CC

Hand Compression Tool

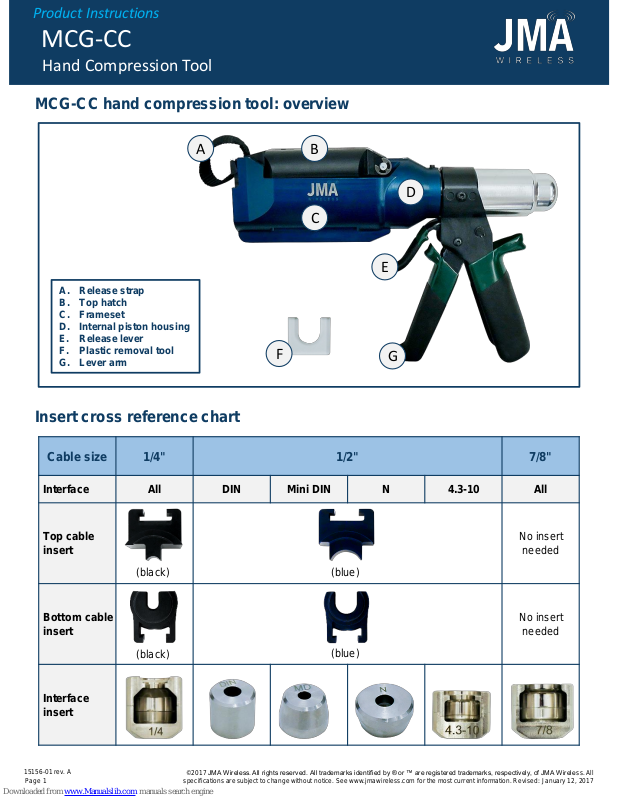

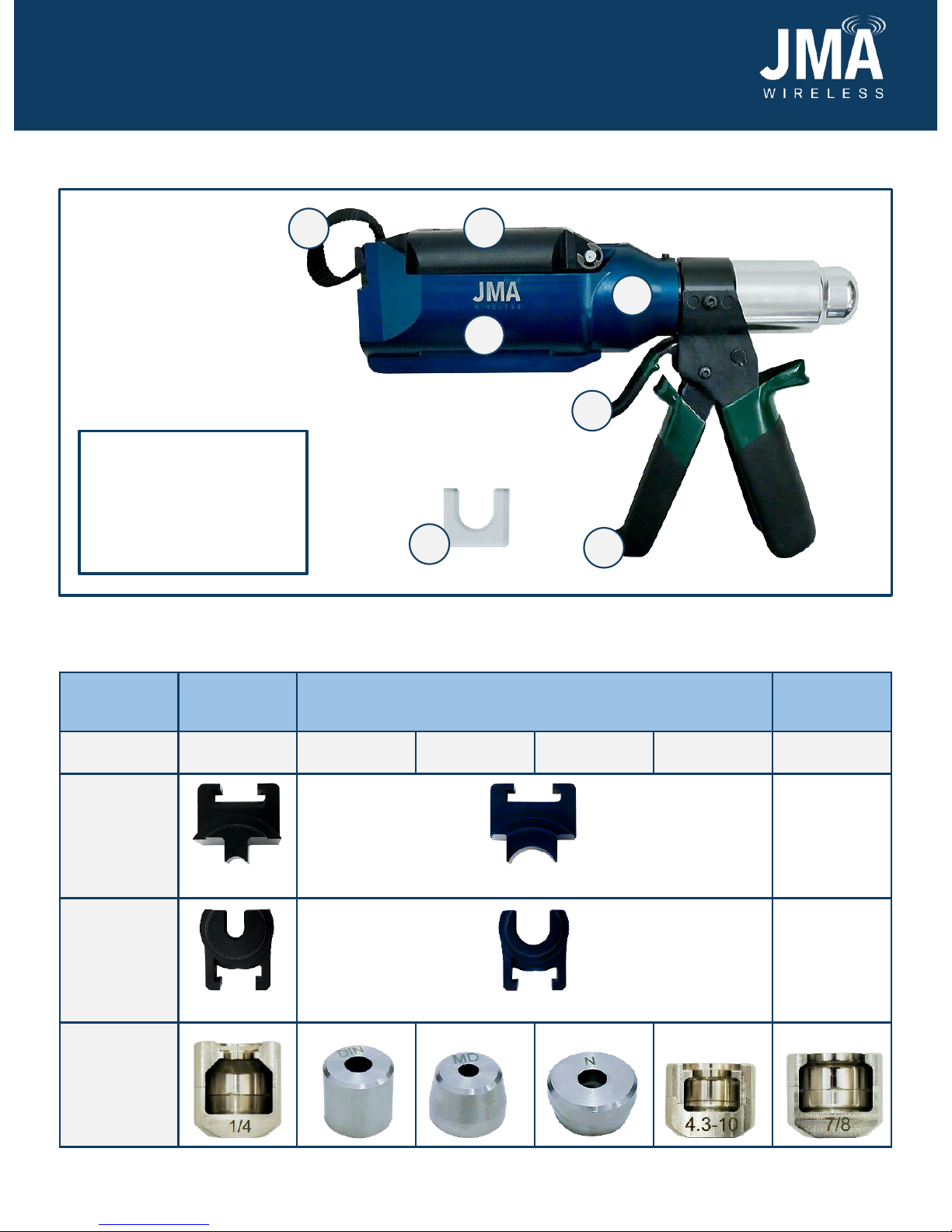

MCG-CC hand compression tool: overview

A. Release strap B. Top hatch C. Frameset D. Internal piston housing E. Release lever F. Plastic removal tool G. Lever arm

Cable size 1/4" 1/2" 7/8"

Interface

All DIN Mini DIN N 4.3-10 All

Top

cable

insert

No insert

needed

Bottom cable insert

No insert

needed

Interface insert

Insert cross reference chart

(black)

(blue)

Page 2

15156-01 rev. A

specifications are subject to change without notice. See www.jmawireless.com for the most current information. Revised: January 12, 2017

Page 2

Product Instructions

MCG-CC

Hand Compression Tool

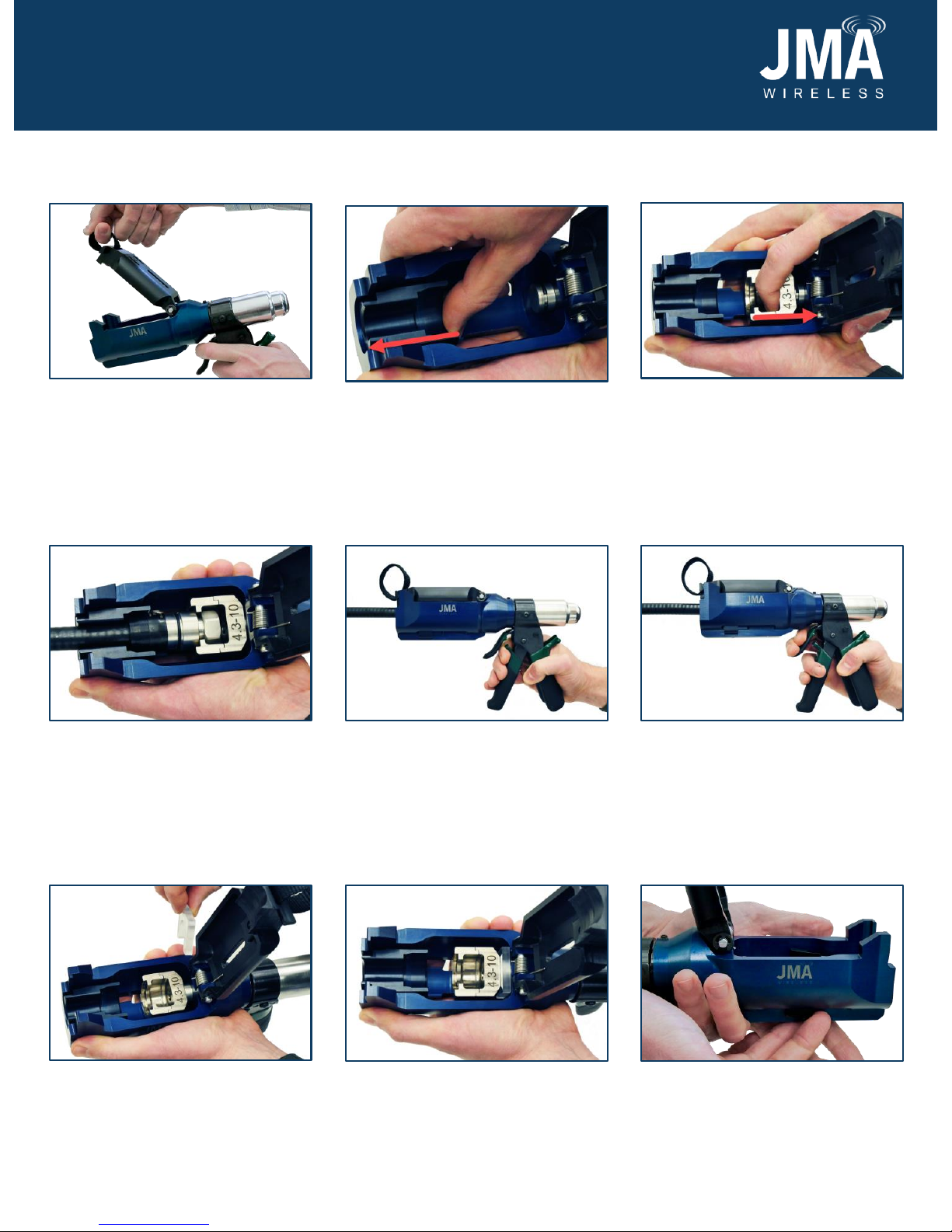

Step 1: Preparation

Open the top hatch by pulling upward on the release strap.

Install the bottom cable insert into the front of the frame as shown. Repeat this step with the top cable insert inside the hatch.

Place the interface insert into the rear of the frame. Press firmly toward the back of the unit.

Step 2: Compressing a connector

Insert the cable and connector into the frame and close the top

hatch. Follow the supplied

connector installation instructions.

Squeeze the lever arm. Repeat

until you hear an audible “pop.”

This means the connector is fully compressed.

Squeeze the release lever as shown. Open the hatch and remove the compressed connector.

Step 3: Removing the inserts

Squeeze the lever arm until there is enough space to insert the plastic removal tool.

Press the plastic removal tool behind the adapter. Squeeze the release lever and remove the adapter.

Slide the bottom cable insert backward until it can be removed. Repeat this step with

the top cable insert inside the

hatch.
