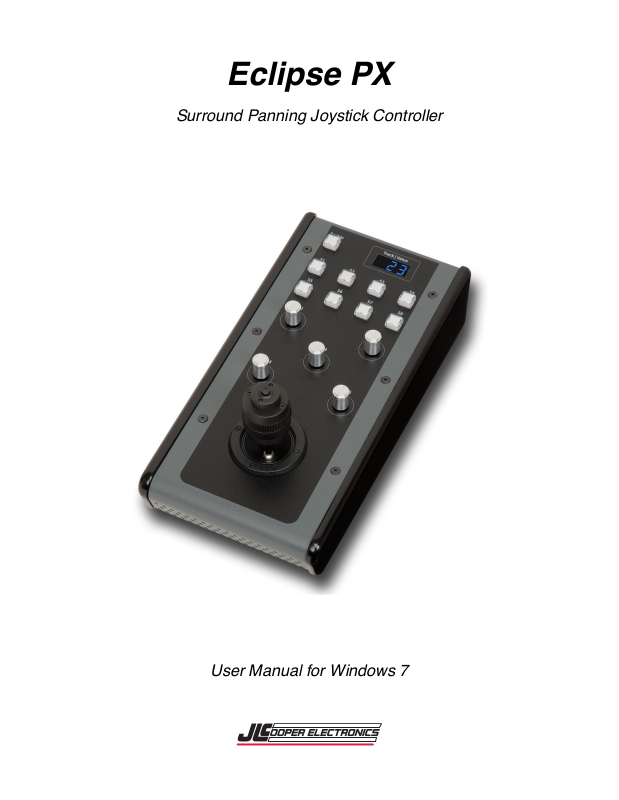

Eclipse PX!
Surround Panning Joystick Controller!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
User Manual for Windows 7!
"
Eclipse PX User Manual
"
Page 2
Eclipse PX User Manual for Microsoft Windows!
May 1, 2014!
!
Part Number 932134-WIN!
!
©2014 JLCooper Electronics!
142 Arena St, El Segundo, CA, 90245, USA!
!
Phone: +1 (310) 322-9990! ! ! Fax:! +1 (310) 335-0110!
web: ! www.jlcooper.com! ! ! email:! info@jlcooper.com!
!
Nuage Panner and Eclipse PX are trademarks of JLCooper Electronics.!
All other brand names are property of their respective owners.!
Eclipse PX User Manual
Table Of Contents
Introduction! 4!.........................................................................................
Configuring the Hardware! 5!...................................................................
Installing the software! 6!.........................................................................
Installing the MIDI Driver!

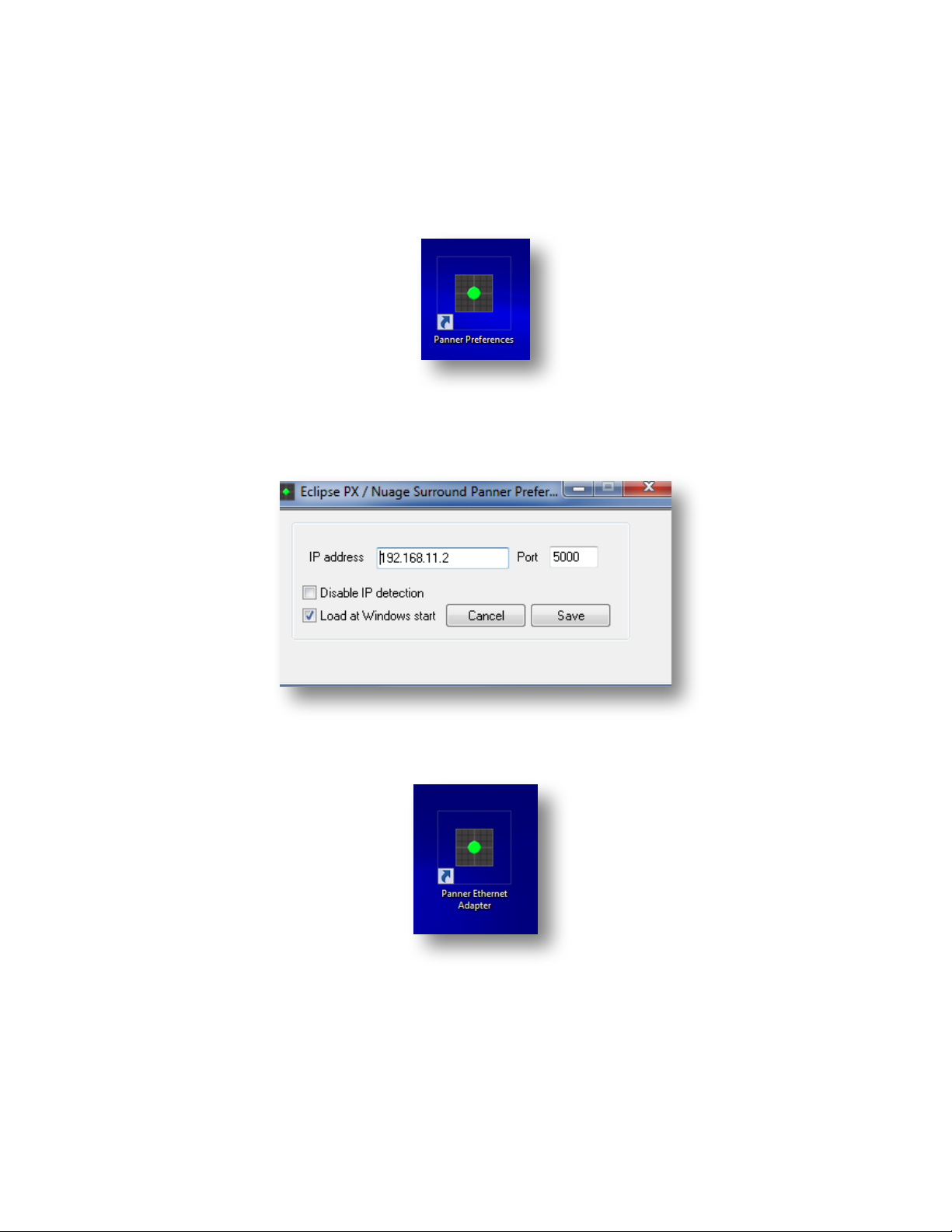

Configuring the MIDI Driver!

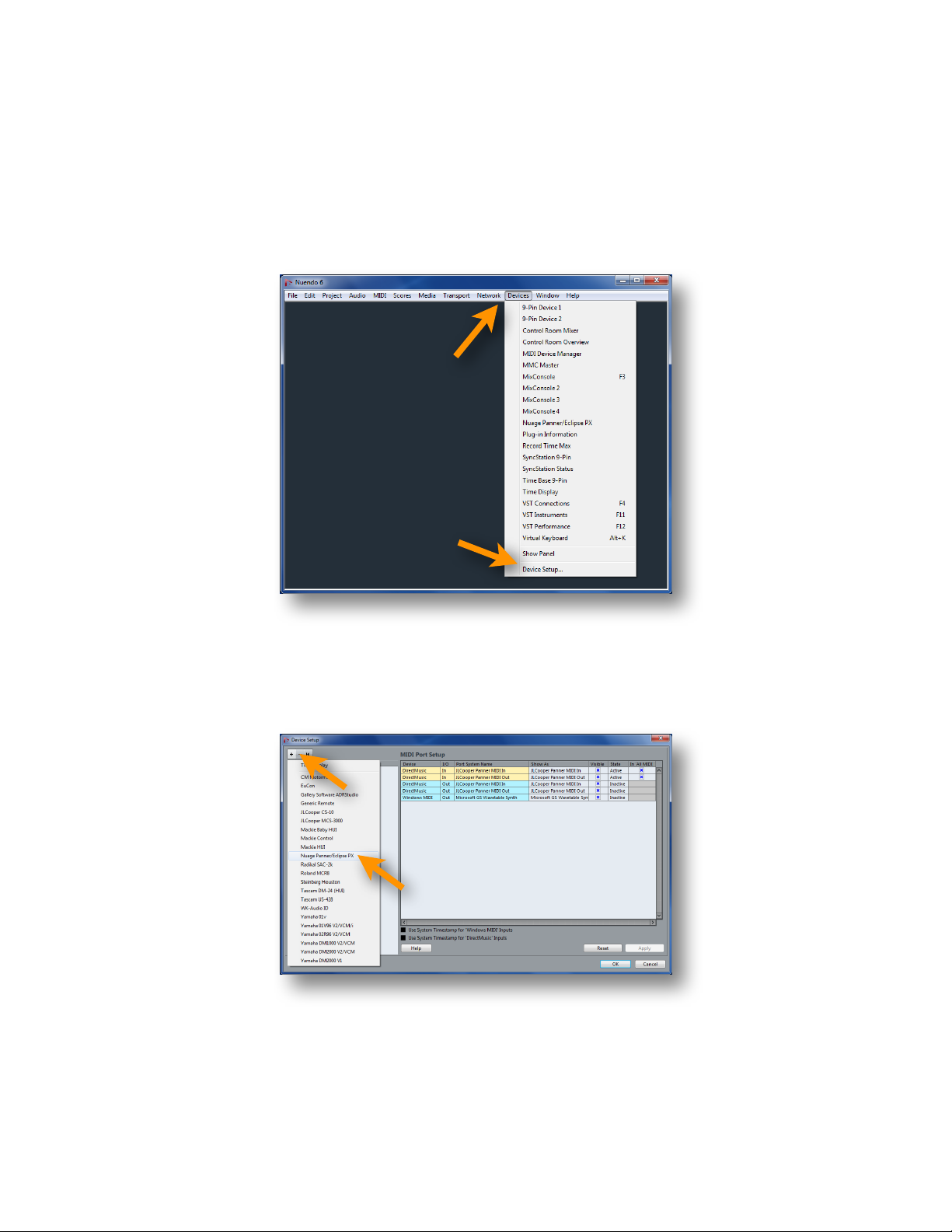

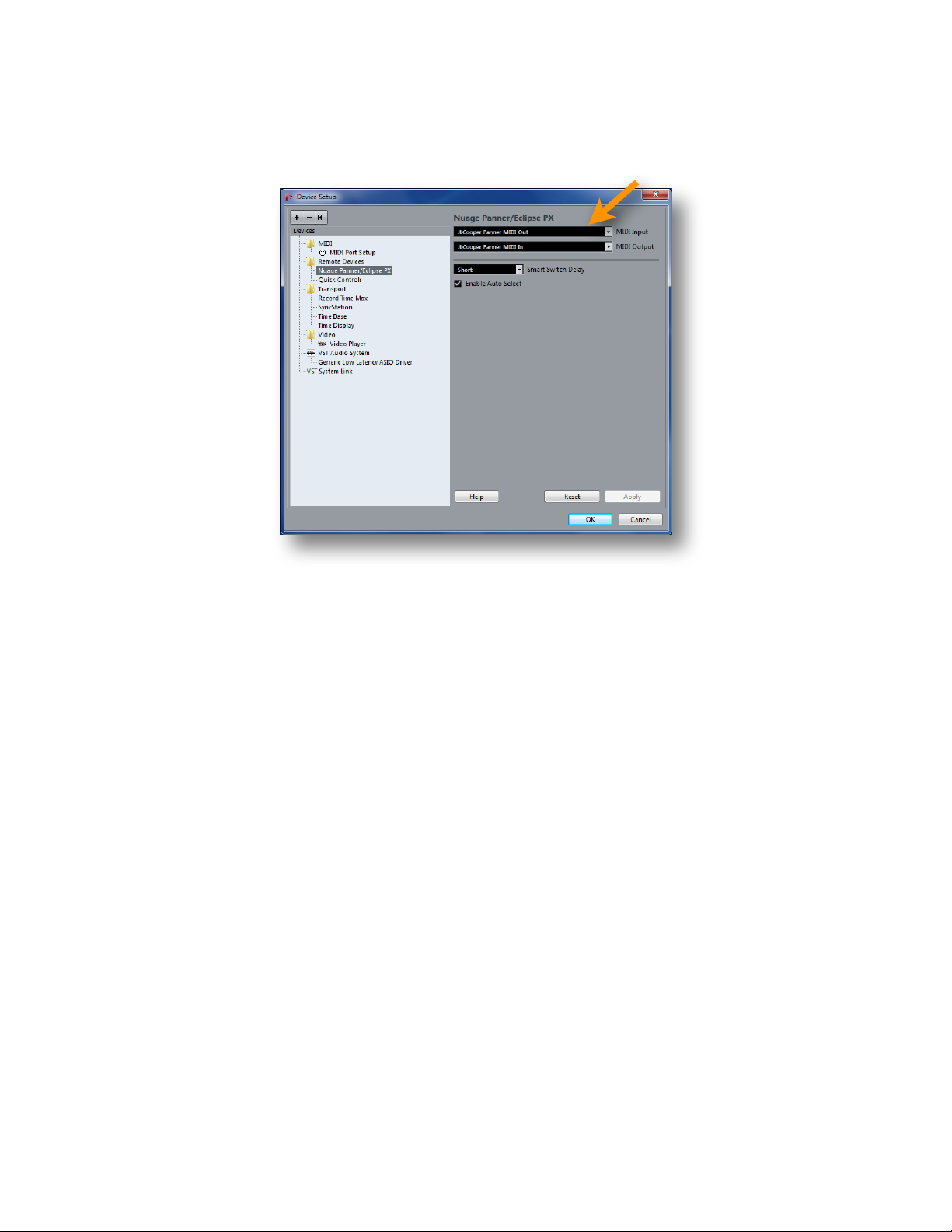

Configuring the Nuendo Plug-In!

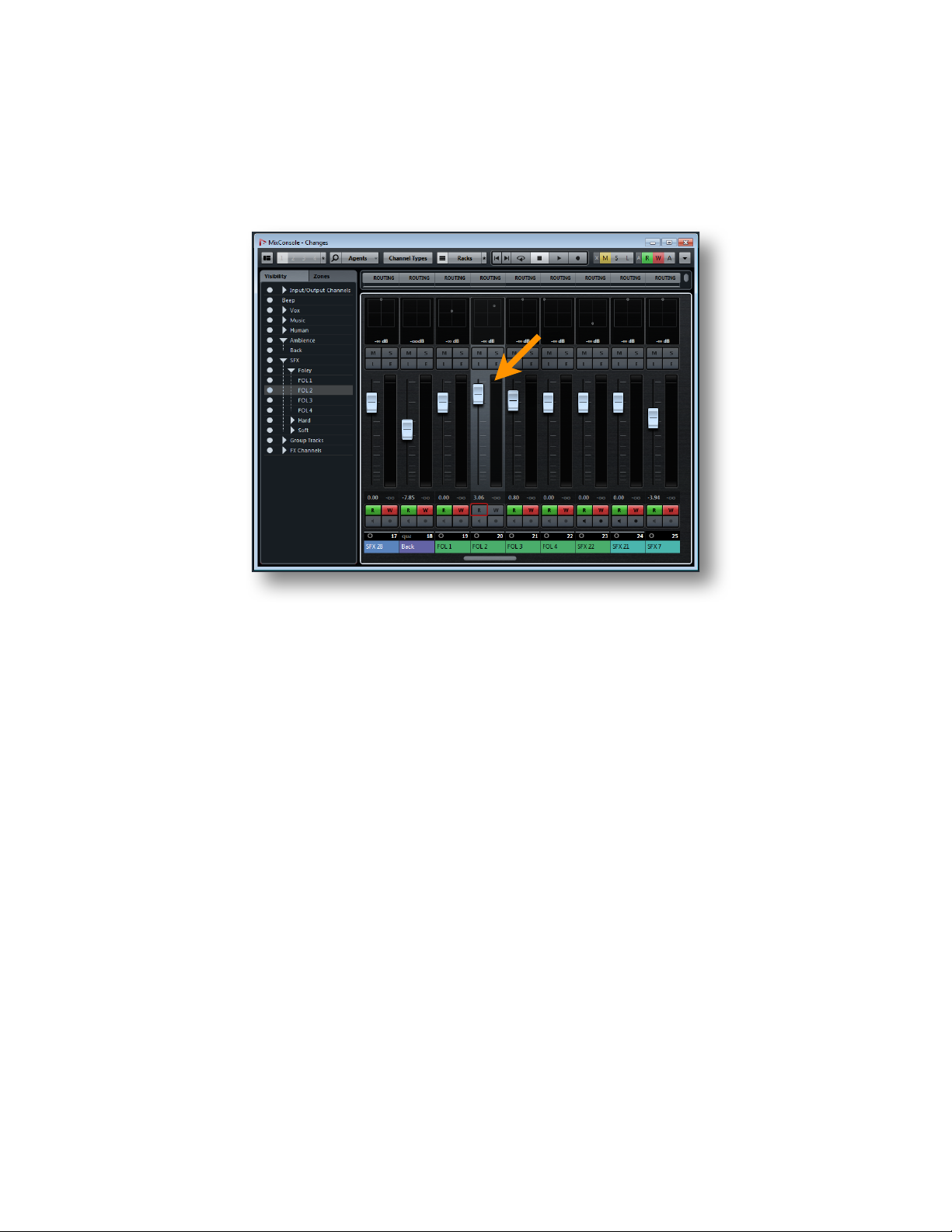

Using the Eclipse PX in Nuendo!

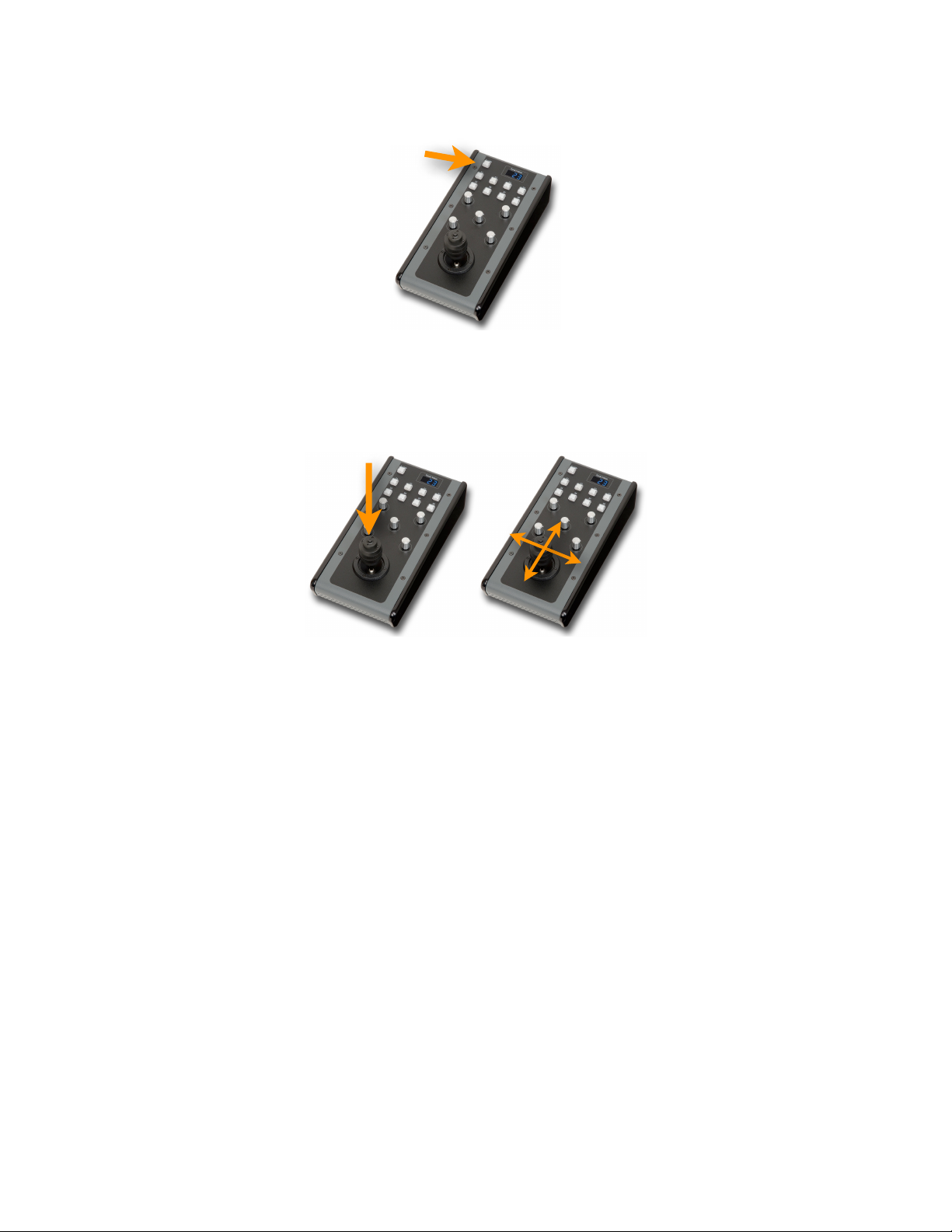

Panner Operation in Nuendo!
The Display!
JLCooper Limited Warranty! 19..............................................................
Page 3
Eclipse PX User Manual
Introduction!
The Nuage Panner and the Eclipse PX are identical functionally. !
The Nuage Panner’s form factor is intended to fit into a Yamaha/Steinberg Nuage
Console System. The labels for its various controls reflect the function of those controls
when used with Steinberg Nuendo software.!
The Eclipse PX is designed to sit on a desktop, and its labels reflect its use as a general
purpose device.!
However, from a software standpoint, they are completely interchangeable.
Consequently, the term “panner” will often be used in this guide to refer to either one.!
Page 4
Eclipse PX User Manual
Configuring the Hardware!
The unit has an Ethernet Interface that can be configured directly from the front panel of
the unit.!
To configure the Ethernet Interface from the front panel of the unit, do the following:!
1. Turn unit off or remove power plug.!
2. Press and hold the Enable and S1 (⟷) buttons.!
3. Turn unit on or insert power plug.!
4. Release the buttons.!
5. The unit will display the firmware version for a few seconds.!
6. After that, the display shows the first number of the IP address.!
7. To show or modify the first number of the IP address, press the S1 (⟷)
button.!
8. To show or modify the second number of the IP address, press the S2 (↕)
button.!
9. To show or modify the third number of the IP address, press the S3 (⤢)
button.!
10. To show or modify the last number of the IP address, press the S4 (⤡) button.!
11. Turn the encoder labelled E1 or FrontDivergence/Width to adjust the IP
address.!
12. To store the IP address, press the Enable button.!
13. To load the new IP address, power cycle the unit.!
!
Page 5
Eclipse PX User Manual
Installing the software!

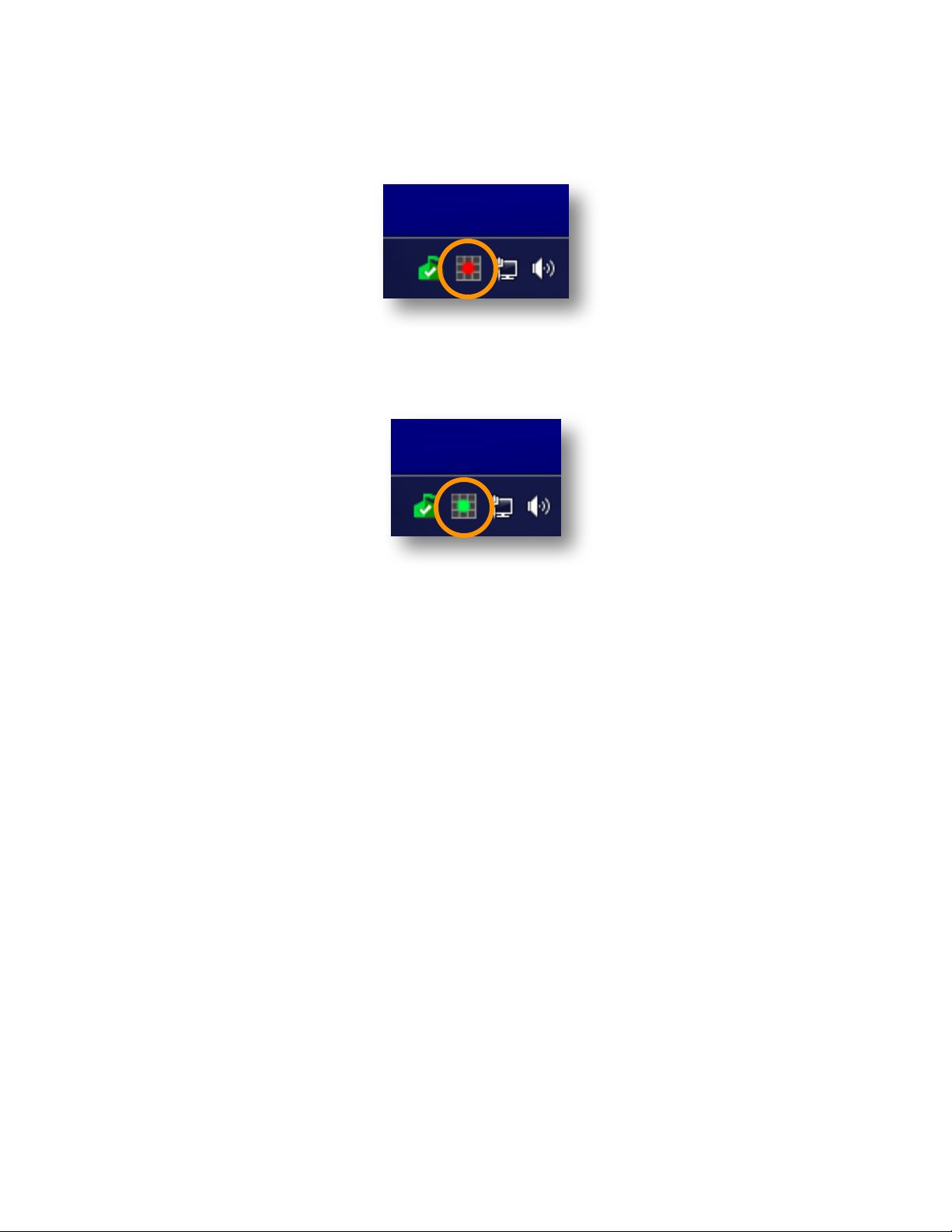

Installing the MIDI Driver!

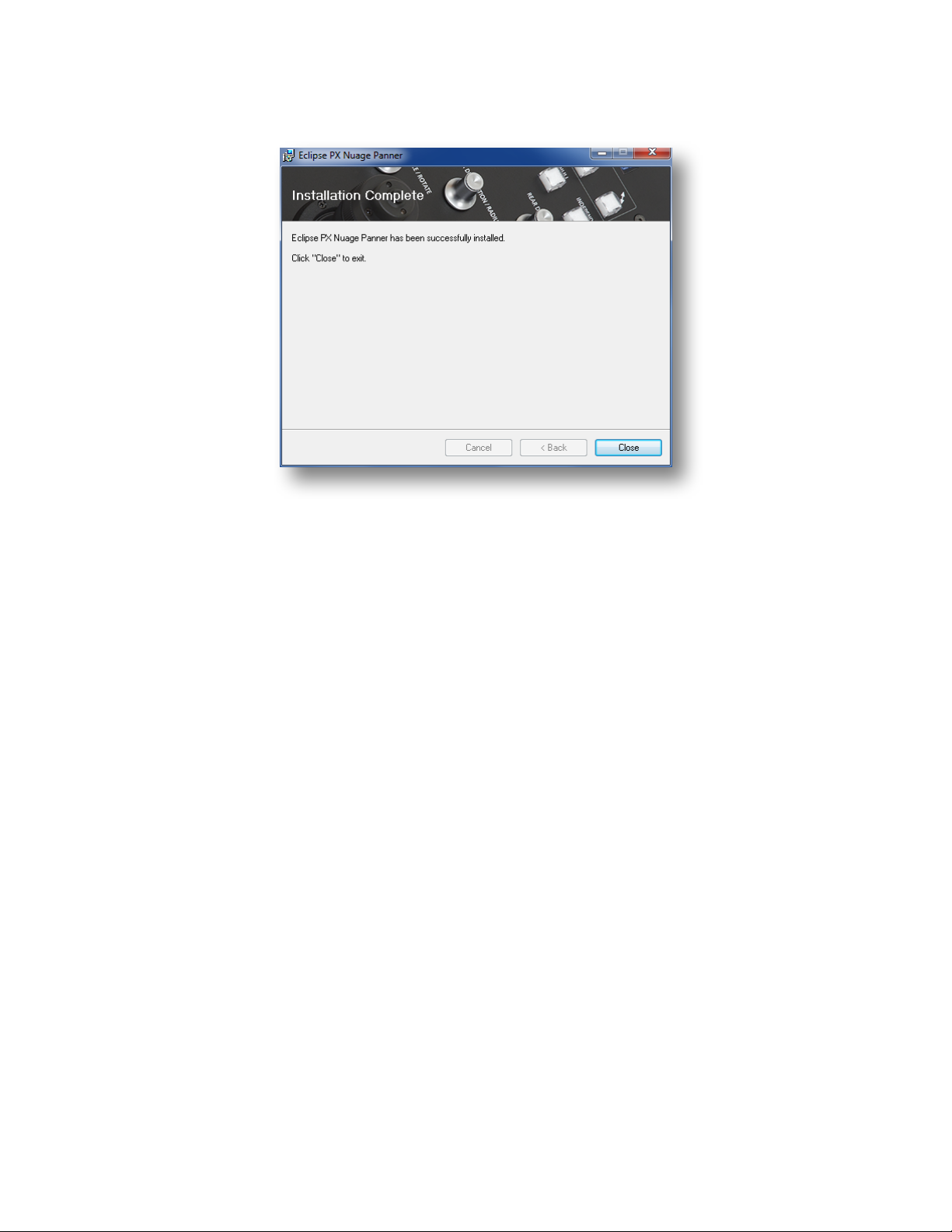

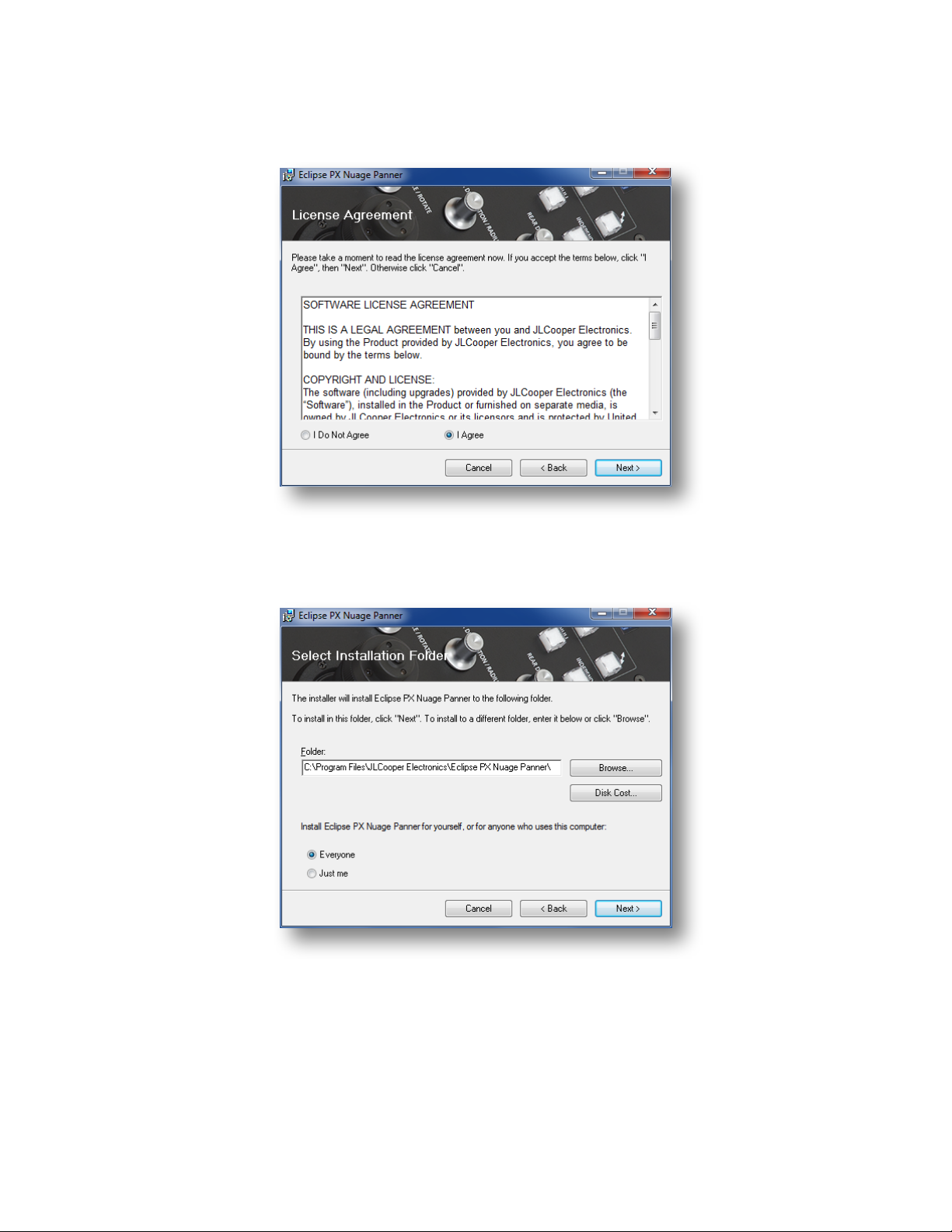

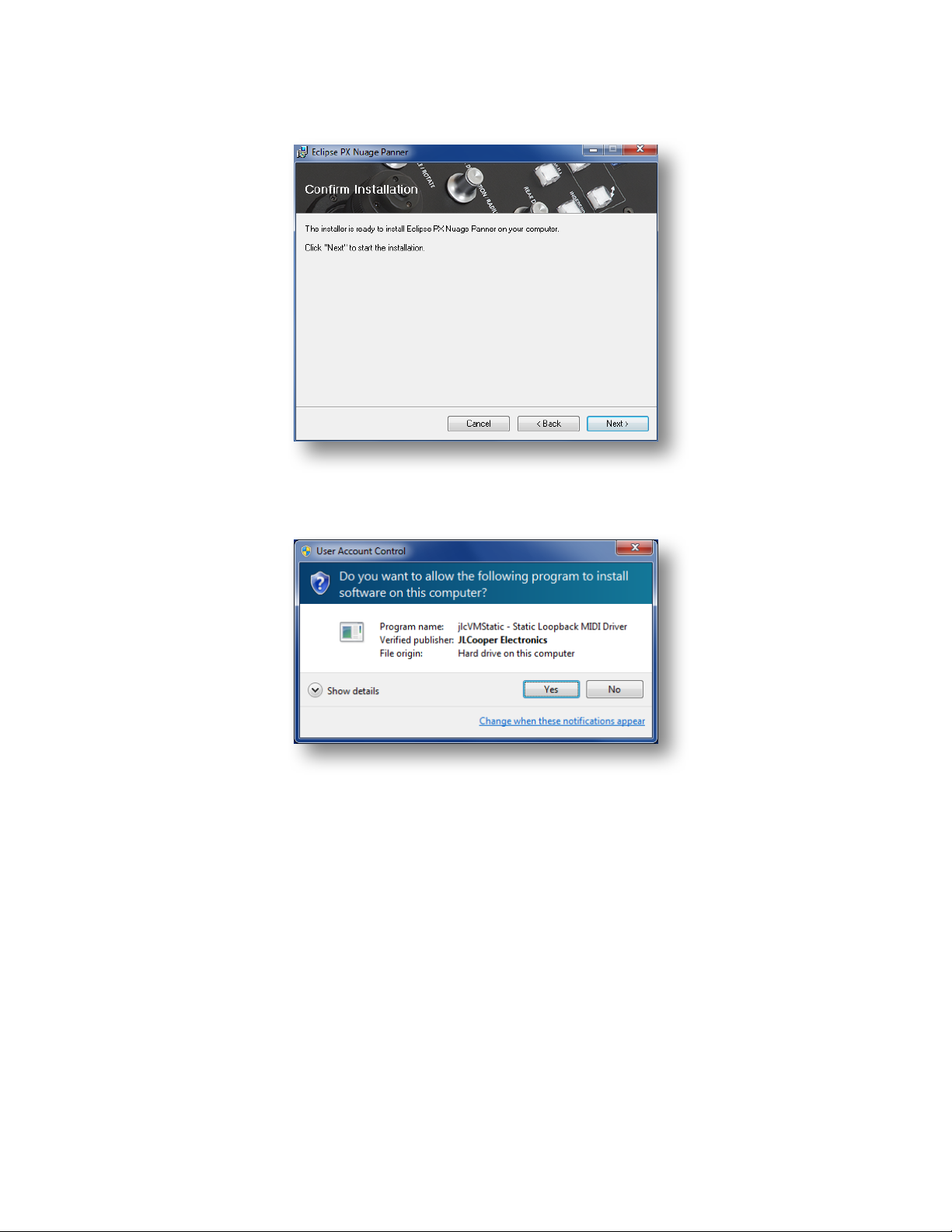

To install the MIDI Driver and Nuendo Plug-In:!
1. Launch the installer by double clicking on the appropriate installer.#
If you are using a 32-bit version of Windows, use
EclipsePXNuageSetupx32.exe.#
If you are using a 64-bit version of Windows, use EclipsePXSetupx64.exe.!

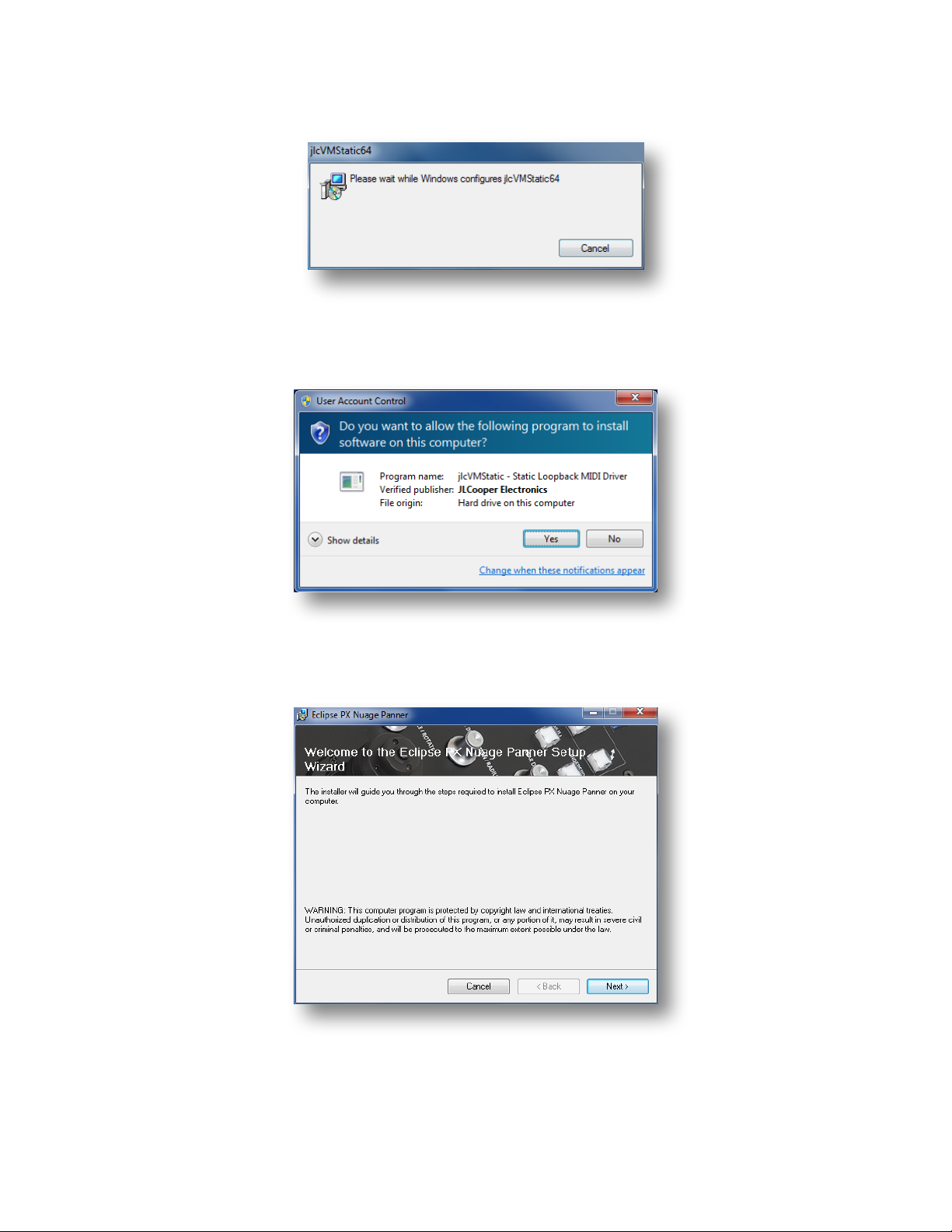

2. A dialog box will open indicating that the publisher could not be verified. Are
you sure you want to run this software? Click Run.!
!
