JLCooper Eclipse Ethernet 2.6 User Manual

Eclipse Ethernet Software 2.6 for OSX

JLCooper makes no warranties, express or implied, regarding this software’s ﬁtness for a particular purpose, and in no event shall JLCooper Electronics be liable for incidental or consequential damages, loss of proﬁts, loss of data or data being rendered inaccurate, or losses sustained by third parties even if JLCooper Electronics has been advised of the possibility of such damages.

.....................................................................................................INSTALLATION! 1

....................................................................................................UNINSTALLING! 6

...........................INTRODUCTION TO THE ECLIPSE HARDWARE MODULES! 7

..........................................................................................HARDWARE SETUP! 10

DETERMINING THE MAC’S IP ADDRESS............................................................................! 10

DHCP (AUTOMATICALLY ASSIGNED IP ADDRESS ................................................)! 11

MANUALLY ASSIGNED IP ADDRESS......................................................................! 11

CREATING AN IP ADDRESS FOR THE ECLIPSE...................................................................! 12

ASSIGNING AN IP ADDRESS TO THE ECLIPSE CX AND ECLIPSE CX MIDNIGHT ....................! 12

ASSIGNING AN IP ADDRESS TO THE ECLIPSE SX MIDNIGHT ..............................................! 13

ASSIGNING AN IP ADDRESS TO THE ECLIPSE .......................................................MX-SA! 14

IF THE MX HAS NEVER BEEN CONFIGURED BEFORE...............................................! 14

IF THE MX HAS PREVIOUSLY BEEN CONFIGURED ...................................................! 18

..................................................................SYSTEM AND SOFTWARE SETUP! 19

.........................INTRODUCTION TO THE ECLIPSE ETHERNET SOFTWARE! 22

KEYSETS .......................................................................................................................! 22

............................................................................................EDITING KEYSETS! 23

...............................................................................THE INSPECTOR WINDOW! 25

....................................................................................................ACTION TABS! 28

KEYSTROKES TAB..........................................................................................................! 28

MOUSE TAB...................................................................................................................! 33

MIDI TAB.......................................................................................................................! 38

EMULATION TAB.............................................................................................................! 42

SPECIAL TAB..................................................................................................................! 49

BUILT IN ACTIONS TAB....................................................................................................! 52

...........................................................................................................DISPLAYS! 53

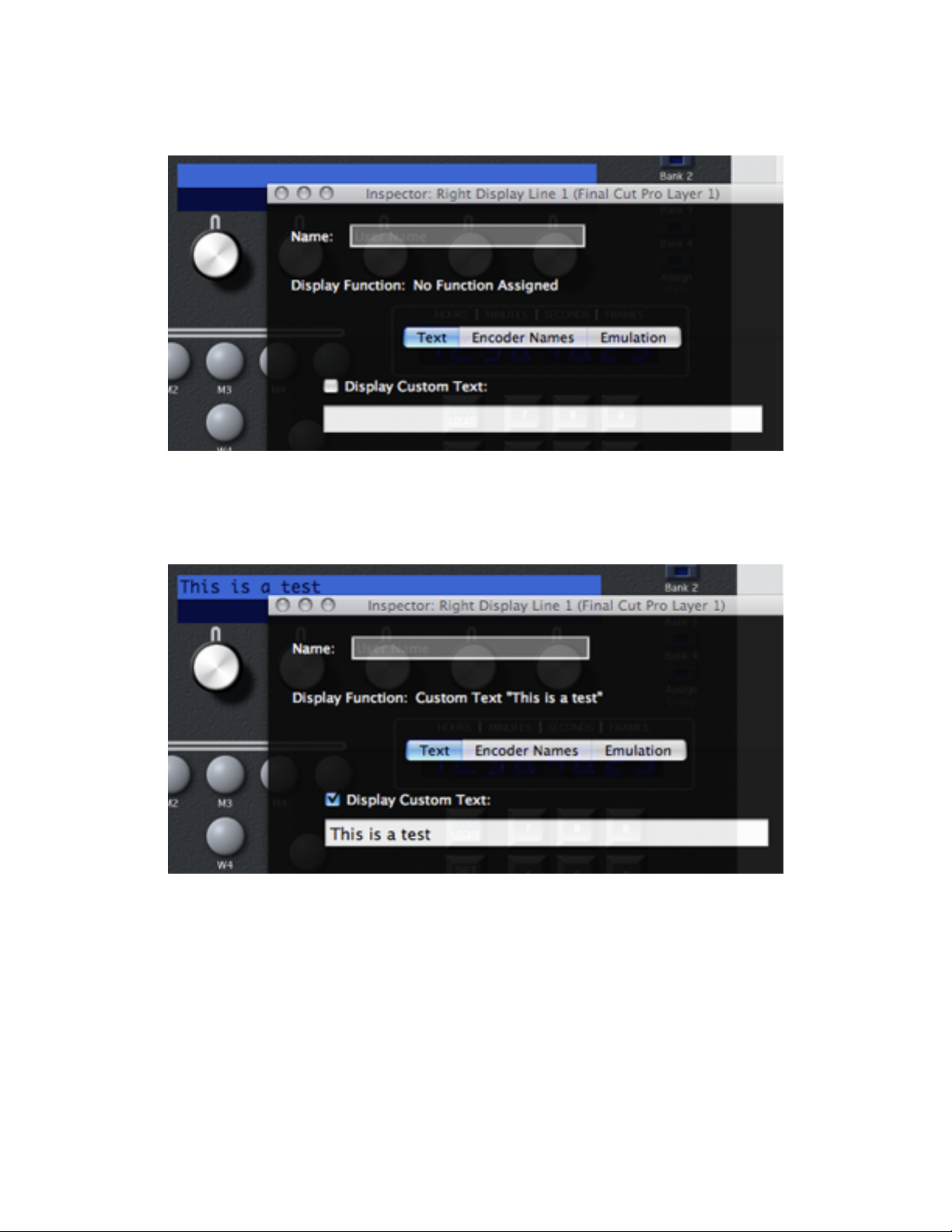

DISPLAY TEXT TAB.........................................................................................................! 54

DISPLAY ENCODER NAMES TAB.......................................................................................! 55

DISPLAY EMULATION TAB................................................................................................! 56

TIMECODE DISPLAY........................................................................................................! 57

........................................REVERSE MESSAGES FROM R AND B BUTTONS! 57

......................................................................................ECLIPSE MX WINDOW! 58

..........................................................................KEYSET SUMMARY WINDOW! 62

.......................................................................................FINAL CUT PRO™ SUPPORT! 64

FINAL CUT PRO™ AND CONTROL SURFACES ...................................................................! 64

FINAL CUT PRO™ SHUTTLE............................................................................................! 64

USING THE ECLIPSE WITH FINAL CUT PRO.......................................................................! 64

USING THE ECLIPSE WITH THE FINAL CUT PRO COLOR CORRECTOR 3-WAY.......................! 65

THE ECLIPSE FINAL CUT PRO KEYSET ............................................................................! 66

....................................................................................FINAL CUT PRO X™ SUPPORT! 73

Eclipse Ethernet Software

.........................................................................................COLOR™ SUPPORT! 76

SETUP...........................................................................................................................! 76

COLOR 1.0 SETUP..............................................................................................! 77

COLOR 1.5 SETUP..............................................................................................! 78

THE ECLIPSE COLOR KEYSETS .......................................................................................! 79

THE COLOR 1.0 KEYSET.....................................................................................! 79

THE COLOR 1.5 KEYSET.....................................................................................! 87

ECLIPSE PLUGIN BUTTON MAPPINGS ..............................................................................! 87

ECLIPSE PLUGIN ENCODER MAPPINGS..........................................................................! 110

..................................................................SOUNDTRACK PRO™ SUPPORT! 115

THE SOUNDTRACK PRO KEYSET ...................................................................................! 115

......................................................................................MOTION™ SUPPORT! 118

THE MOTION KEYSET ...................................................................................................! 121

................................................................................LOGIC PRO™ SUPPORT! 124

THE LOGIC PRO KEYSET ..............................................................................................! 124

........................................................NUENDO™ AND CUBASE™ SUPPORT! 129

Eclipse Ethernet Software

Installation

Follow the hardware setup instructions for the Eclipse Series modules in your system. Hardware manuals are available in the Help menu of the Eclipse Ethernet application. The most up to date hardware manuals are located on the JLCooper website JLCooper

Manuals page.

Note: if you have previously installed a version of Eclipse Ethernet Software earlier than

2.5, you must uninstall it before installing this version.

After downloading and double-clicking the Install_Eclipse_2.6.dmg ﬁle, you should see the following window:

Drag the icon labeled Eclipse Ethernet Software over the icon labeled Applications alias then release the mouse. This will cause the Finder to copy the Eclipse software to your Applications folder.

Eclipse Ethernet Software

Once the copy is complete, open the /Applications/Eclipse Ethernet Software/ folder and double-click on the Eclipse Ethernet 2.6 application.

If this is the ﬁrst time you are installing this software, or if you are installing a newer version, an installation dialog will appear. Click on Continue to ﬁnish the installation, or Cancel if you want to ﬁnish it the next time you run the Eclipse Ethernet 2.6 application. The installation must be completed before the Eclipse software will be fully functional.

Eclipse Ethernet Software

Once all the software components have been installed, click on the Finish button.

This will take you to the initial setup dialog.

Eclipse Ethernet Software

Here you set the Eclipse IP address, port and and information about your hardware setup. These settings are identical to the ones found in the Preferences dialog. Please see the section on the Preferences dialog for more details.

The setup dialog also includes a Help display to guide you through the setup process. Click on any of the help topics for more information.

Eclipse Ethernet Software

After you have changed the settings to match your Eclipse hardware, click on Apply. You can also click on Setup Later. In this case you can adjust these settings in the Preferences dialog.

Once you have clicked on Apply, a connection will be established between the Eclipse Ethernet Software and the Eclipse, and you can start working with the software.

Eclipse Ethernet Software

Uninstalling

To uninstall run the Eclipse Uninstaller located in the /Applications folder. Click on the Uninstall button to begin. When the uninstall is ﬁnished, click on the Quit button.

If there are multiple user accounts on this Mac, there may be multiple installations of the Eclipse software, one for each user. Each user shares the Eclipse Ethernet application and the Eclipse uninstaller, but other software components are installed separately for each user account. For this reason, the uninstaller does not remove itself or the Eclipse Ethernet Software folder. Before deleting either of these, please make sure that the software has been uninstalled from all user accounts.

After uninstalling, you may notice that the Eclipse driver still appears in the Audio/MIDI Setup ( /Applications/Utilities/ ) MIDI window. This is because the Mac OS X

tries to remember the state of your MIDI setup, even if there are changes such as removing or powering down equipment or removing drivers.

To remove the driver from Audio/MIDI Setup, disconnect the Eclipse from the Mac and wait for the driver’s icon in Audio/MIDI Setup to be dimmed as in the graphic below.

Click on the Eclipse Ethernet icon to select it, then hit the DELETE key on the Mac keyboard or choose Delete from the Edit menu. Quit Audio/MIDI Setup.

The Eclipse software’s preference ﬁle is not removed by the uninstaller. It takes up relatively little space and has no impact on the operation of other software once the Eclipse software is uninstalled. If you want to remove it, just delete the ﬁle ~/Library/

Preferences/com.jlcooper.EclipseCX.plist.

Eclipse Ethernet Software

Introduction to the Eclipse Hardware Modules

There are several modules in the Eclipse Series. They are all supported by the Eclipse Ethernet Software 2.1. For simplicity’s sake they will all be referred to throughout this document as the Eclipse, unless there is a need to refer to a speciﬁc module.

The Eclipse CX is a complete colorist control surface. It has trackballs, rotary encoders, buttons and displays useful for controlling color grading applications such as Apple Color™. It also has transport controls, a keypad for locating and a time-code display.

Eclipse CX

The Eclipse CX Midnight is functionally similar to the Eclipse CX, except that it has a darker, “Midnight” ﬁnish, and white LEDs and indicators to reduce light emissions and intrusion on colorist’s eyes. It also has Reset buttons next to the six rotary encoders on the left side so you can easily return any parameter to its default setting.

Eclipse CX Midnight

Eclipse Ethernet Software

The Eclipse MX and Eclipse MX Midnight are expanders with eight touch sensitive moving faders and eight sets of Mute, Solo, Aux and Select buttons. Up to four MXs or MX Midnights can be connected to an Eclipse CX or CX Midnight.

The Eclipse MX SA Midnight is a standalone version of the MX Midnight. It has its own ethernet socket and connects directly to your computer. It operates just like an MX connected to a CX.

Eclipse MX and Eclipse MX Midnight

The Eclipse SX Midnight is equivalent to the left half of the Eclipse CX Midnight. Like the CX Midnight, it has Reset buttons next to each of its rotary encoders. When used with the Eclipse Ethernet Software it acts just like the left hand side of an Eclipse CX Midnight.

Eclipse SX Midnight

Eclipse Ethernet Software

The Eclipse TX Midnight has many of the controls from the right hand side of the Eclipse CX Midnight, including transport controls with Jog and Shuttle control, Page/Room selectors, function keys and other miscellaneous buttons. It can be used standalone or as an expander for the Eclipse SX Midnight.

Eclipse SX Midnight with Eclipse TX Midnight

All of the members of the Eclipse family work with the Eclipse Ethernet Software. The keysets supplied by JLCooper (and any that you create yourself) will work with any of these products.

The software’s display does not change depending on the model you are using. If you are using a standalone SX, MX or TX you will only work with the parts of the program that apply to you.

Eclipse Ethernet Software

Hardware Setup

Eclipse Series modules with Ethernet need to have their IP address, subnet mask and port set so that they are able to communicate on your network. Most of the following setup information applies to all Eclipse Series modules that can operate standalone with an Ethernet connection, such as the Eclipse CX, Eclipse CX Midnight, Eclipse SX Midnight, and Eclipse MX-SA. For convenience, Eclipse will be used to refer to any of these modules, except when the setup information is different for a particular module.

First, plug an ethernet cable into the back of the Eclipse then connect the other end of the cable either directly to your Mac or to a router, switch or hub connected to your Mac. If your Mac has two ethernet ports, use the ﬁrst one. Turn on the Eclipse.

Determining the Mac’s IP Address

The IP Address consists of four groups of numbers separated by periods. Each number can be 1 to 3 digits, with a maximum value of 255, as in 192.168.1.6.

On your Mac, open the System Preferences, either from the Dock or from the Apple Menu. Click on the Network icon.

On the left side of the window ﬁnd and select the ethernet port. If your Mac has two ethernet ports the ﬁrst port (which is the one you should be connected to) will probably be referred to as Built-in Ethernet.

Eclipse Ethernet Software

DHCP (Automatically Assigned IP Address)

If your Mac is on a network, and the Eclipse is connected to a router that is connected to the Mac, you should be able to use DCHP to assign the Mac’s IP address automatically. In this case, choose Using DHCP from the Conﬁgure popup menu. The right side of the window will show the IP address and Subnet Mask. Write them down.

Manually Assigned IP Address

If your Mac is not on a network, and the Eclipse is connected directly to the Mac, you should use a manually assigned IP address. If so, choose Manually from the Conﬁgure popup menu on the right side of the window. You will see a display similar to this.

Eclipse Ethernet Software

Enter an IP Address. Anything in the following ranges should work, although other addresses may work also:

10.0.0.0 through 10.255.255.255

172.16.0.0 through 172.31.0.0

192.168.0.0 through 192.168.255.0

Enter a Subnet Mask. A value of 255.255.255.0 should work. Click Apply and write down the IP Address and Subnet Mask.

Creating an IP Address for the Eclipse

Once you have obtained the Mac’s IP address and Subnet Mask you can choose a unique address for the Eclipse. The easiest way to create a unique address for the Eclipse is to use the ﬁrst three number groups from the Mac’s IP Address then pick a different number for the last group. So if the Mac’s address is 192.168.1.2, you could use an address of 192.168.1.250 for the Eclipse. If there are other devices or computers on your network, make sure that the address you have chosen does not conﬂict with their addresses.

Assigning an IP Address to the Eclipse CX and Eclipse CX Midnight

To assign an IP Address to an Eclipse CX or Eclipse CX Midnight, press the Eclipse SHIFT button and the ASSIGN button at the same time. This will display the hardware’s current address. Type in the new unique address using the Eclipse keypad. NOTE: The Eclipse expects IP addresses to be 12 digits, which means you can’t leave out the leading zeros for any group of numbers. So if the address you are using is

192.168.1.250, then you would enter 192.168.001.250.

Once you have entered the address, hit the Eclipse ENTER button. The Eclipse will now display the Gateway Address. You can accept the default value and just hit the ENTER button again. The next screen is for the Subnet Mask. Enter the mask that you obtained from the System Preferences, remembering to insert leading zeroes where needed, as in 255.255.255.000.

Hit the ENTER button again to get to the Port screen. 23 is a good choice. Hit ENTER one more time. You will see a screen telling you to turn off the Eclipse. Do so then turn it back on.

Eclipse Ethernet Software

Assigning an IP Address to the Eclipse SX Midnight

To assign the IP Address on a standalone Eclipse SX Midnight, press the Page 4 and Page 8 buttons at the same time. The display will show:

Press Page 7 to set the IP Address and Port number. The display will show:

Use the knobs below each number to the unique address you created earlier. 23 is a good choice for the port. Press Page 8 when you are done.

To set the IP mask, press Page 4 + Page 8 once again to access the conﬁguration page. The right display will show:

Press Page 6 to set the IP subnet mask of the Eclipse SX Midnight. The displays will show:

Use the knobs below each number to set the mask value you obtained from System Preferences. Press Page 8 when you are done. In order for the new settings to take effect, you must turn the Spectrum off and back on again.

Eclipse Ethernet Software

Assigning an IP Address to the Eclipse MX-SA

Because the MX-SA does not have a display, setting the IP address is slightly more involved. Fortunately, it only needs to be setup once.

This procedure requires the FireFox browser. Safari (through version 4.0.3, which was current at the time this manual was written) will not work.

If the MX has never been conﬁgured before

Open System Preferences either from the Dock or from the Apple menu and click on the Network icon. On the left side of the window ﬁnd and select the ethernet port to which the MX is connected. Write down the IP address, Subnet Mask and Conﬁgure menu’s setting. Set the Conﬁgure menu to Manually.

You will need to temporarily set the Mac’s IP address to 192.168.200.xxx (where xxx is any number other than 114 from 1-255 that doesn’t conﬂict with other addresses on your network). A possible choice would be 192.168.200.1/ Set the subnet Mask to

255.255.255.0 then click Apply.

Open FireFox and type 192.168.200.114 into the address ﬁeld. You may be asked for a user name and password. Leave both ﬁelds blank and hit OK.

A web page will open that appears similar to this:

Eclipse Ethernet Software

Click on the NETWORK link on the left hand side. In the web page that appears, choose Use the Following IP conﬁguration. Fill in the unique IP address you created (see Creating an IP Address for the Eclipse above) and the Mac’s Subnet mask that you wrote down. Put in 0.0.0.0 for the Default Gateway and DNS Server. Make sure that under Ethernet Conﬁguration, Auto Negotiate is checked. Click OK.

Eclipse Ethernet Software

Next, click on the Serial Settings link on the left side of the page. Setup the web page that appears to match the following settings then click on OK.

Eclipse Ethernet Software

Click on the Connection link on the left side of the page and setup the resulting page to match the following. You can choose a different Local Port if you want, but 10001 works well. Click OK.

Click on the Apply Settings link on the left side of the page and wait for the MX to reboot. Quit Firefox.

Now go back to System Prefs, click on the Network icon and restore the settings that you wrote down at the beginning of this process. The one-time setup is now ﬁnished.

Eclipse Ethernet Software

If the MX has previously been conﬁgured

If you need to change the IP address, subnet mask or port on a previously conﬁgured Eclipse MX, open FireFox and type the MX’s current IP address into the address ﬁeld. You may be asked for a user name and password. Leave both ﬁelds blank and hit OK.

In the web page that appears, click on the NETWORK link on the left side if you want to change either the IP address or Subnet mask. The resulting page has ﬁelds for both these parameters. After making changes, click on OK.

If you need to change the port, click on the Connection link on the left side of the page. This brings up the Connection Settings page. Halfway down the page, under Endpoint Conﬁguration is the ﬁeld Local Port. Change this to the new port you want to use. Click OK.

Click on the Apply Settings link on the left side of the page and wait for the MX to reboot. Quit Firefox.

Eclipse Ethernet Software

System and Software Setup

The Eclipse software relies on Apple’s Universal Access to perform mouse emulation. In order for the Eclipse software to work correctly, you must open System Preferences and go to the Universal Access pane. Make sure “Enable access for assistive devices” is checked then quit System Preferences.

Eclipse Ethernet Software

If you chose Setup Later during the installation process, there is an additional one time step to perform. Open the application “Eclipse Ethernet 2.6”. It is located in /

Applications/Eclipse Ethernet Software/. Choose Preferences… from the Eclipse Ethernet 2.6 menu.

Set the IP address and port to match those that you entered on the Eclipse hardware (see the Eclipse User Guide or the section of this manual entitled Hardware Setup). This allows the Eclipse driver to communicate with the hardware.

The setting for Midnight or Silver Finish lets you choose the appearance of the Eclipse 2.1 Ethernet application. Also, if you choose Midnight Finish the six Reset buttons which are available on the Eclipse CX Midnight and Eclipse SX Midnight will be displayed.

Eclipse Ethernet Software

There are two versions of the Eclipse MX Eight Channel Expander - one that connects to an Eclipse CX, and a standalone version, known as the MX-SA. If you are using an Eclipse MX-SA, you need to click on the Using Standalone Eclipse MX (MX-SA) checkbox.

Click on Apply to accept your changes. At this point, the Eclipse should be communicating with your Mac, and moving controls on the Eclipse should highlight the onscreen version of those controls in the Eclipse software. A small icon in the menu bar to the right of the Help Menu will be green if a successful connection has been established. It will be gray if there is no connection or the connection has been lost.

If the connection is lost for some reason (ethernet cable unplugged, MCS-3000 power cable dislodged), the software will attempt to re-establish the connection on its own. If it is unsuccessful, clicking on the gray icon and choosing reconnect will usually restore the connection.

Eclipse Ethernet Software

Introduction to the Eclipse Ethernet Software

The Eclipse Software extends the Eclipse hardware’s ability to control various applications running on your Macintosh™. It does this by communicating with applications via MIDI, Ethernet and other messaging protocols built into the Mac OS. It can also simulate mouse clicking and dragging, keystrokes and can even emulate other control surfaces if necessary.

Keysets

The Eclipse software uses “keysets” which are sets of various actions that are taken when Eclipse controls are pressed or turned. Different keysets can be applied to different applications, and the Eclipse will choose the correct keyset for whichever application is in the foreground. If no keyset has been created for the current foreground application, the Eclipse will use a built in keyset called the “Default” keyset.

To create or edit Eclipse keysets, open the application, “Eclipse Ethernet 2.1”. To create a new keyset, choose New Keyset in the File menu and navigate to the application that will use the new keyset. You can also use Import Keyset from the File Menu to get an existing keyset. Keysets that ship with the Eclipse are located at /

Applications/Eclipse Ethernet Software/keysets/. You only need to use New Keyset or Import Keyset once for a given application. After that, keysets are

stored with the Eclipse software’s preferences.

Each application’s keyset can have up to 4 layers, thus quadrupling the number of physical controls on the Eclipse. To choose which layer to edit, click on one of the Layer buttons at the bottom of the main window.

You can use Export Keyset from the File Menu to save a copy of a keyset so it can be transported to another Mac or archived for safekeeping. You don’t need to use Export in your daily use of the Eclipse. As previously pointed out, your changes are added to the Eclipse software’s preferences ﬁle automatically.

Eclipse Ethernet Software

There are several sample keysets included in this package, including ones for Final Cut Pro™ and Color™.

Editing Keysets

The application presents a graphical representation of the Eclipse front panel. When you click on an on-screen control (or move a control on the Eclipse itself), that control is selected and information about it appears in the ﬂoating Inspector window.

There is also a window representing the Eclipse MX 8 Channel Expander. This window can be opened from the Window > Peripherals menu.

Eclipse Ethernet Software

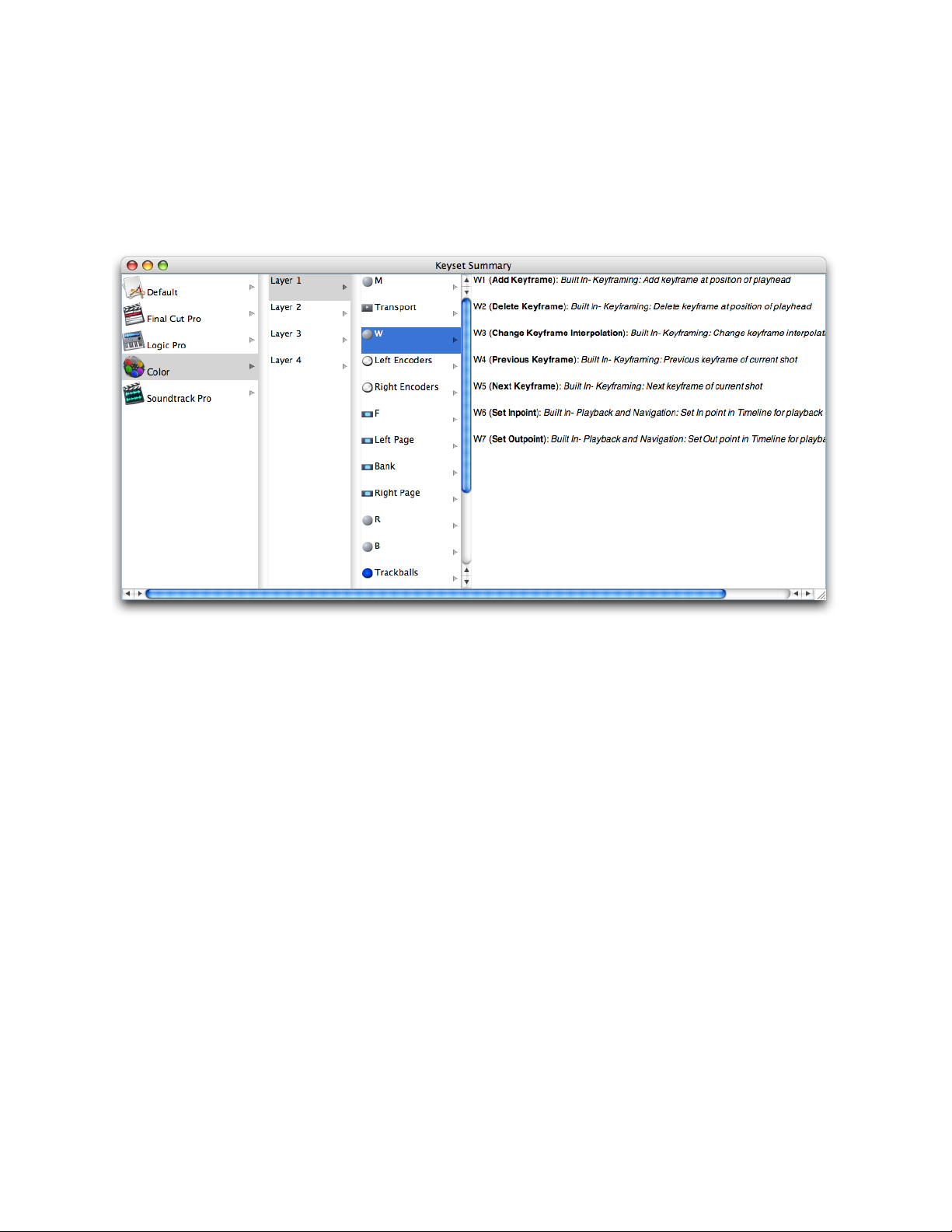

You can choose which keyset to edit within the Eclipse Ethernet 2.1 application using the Keysets menu. The menu lists all keysets that you have created or imported. The name of the currently selected keyset will be displayed at the bottom of the main window.

Eclipse Ethernet Software

The Inspector Window

The Inspector window is where all your work takes place. It displays information about the currently selected control and contains the facilities for editing that information.

The Name text box allows you to give a control a more descriptive name than “M1”, “W3” or “F7”. In the example above, the “Page 5” button has been assigned an action that opens the Final Cut Pro Browser window, so naming the button “Browser” conveys more information than “Page 5”.

Immediately below the Name are editing controls that vary depending on what kind of Eclipse control is being edited. If the control is a button, you will see a “Latched” checkbox that lets you choose between a momentary (pressing the button turns it “on”, releasing it turns it “off”) or latched (pressing and releasing it turns it “on” and pressing and releasing it a second time turns it “off”) behavior.

Eclipse Ethernet Software

If the control is a trackball, there will be controls that let you set its color and brightness. Other types of Eclipse controls don’t have any special editing controls here.

Next is a description of the action that is to take place when the selected Eclipse control is pressed or turned while the target application is active. Below that is the area where this action can be edited. There are a series of tabs representing the different kinds of actions that can be performed and clicking on one of these tabs will display controls for editing its kind of action. The available actions are Built In, Keystrokes, Mouse, MIDI, Special and Emulation.

Any changes made in one of these tabs are immediately applied to the selected control. The Eclipse software allows multiple levels of Undo, so you can easily get back to any starting point.

At the bottom of the Inspector window is the Apply Changes to all Layers checkbox. If it is checked while you are making changes, those changes will be applied to the selected control in all layers. Some controls, such as the Transport controls, should probably perform the same function in every layer. The Apply Changes to al Layers checkbox will save you having to make changes in every layer in cases like this.

Eclipse Ethernet Software

Also at the bottom of the Inspector window is the Delete Action button. When pressed it will delete the action currently assigned to the selected control. This is also undoable.

Eclipse Ethernet Software

Action Tabs

Keystrokes Tab

The Eclipse controls can be assigned to send a sequence of keystrokes to an application just as if they were keys on the Mac keyboard. These assignments are set up in the Keystrokes Tab.

Select a control to edit, place the cursor in the Keystroke ﬁeld and type a key. If you hold down any modiﬁer keys (command, shift, option or control) while typing this key, the modiﬁer checkboxes will be set up accordingly. You can also manually change the modiﬁer checkboxes by clicking on them.

Eclipse Ethernet Software

Some key/modiﬁer combinations may be intercepted by the operating system before they reach the Inspector window. If this happens, just type the key without any modiﬁers, then click on the appropriate checkboxes to add the desired modiﬁers.

To add more keystrokes to the sequence, click on the Next Keystroke button and repeat the above procedure. You can move forwards or backwards in the sequence with the Next Keystroke and Previous Keystroke buttons. The Delete Keystroke button will remove the currently displayed keystroke from the sequence.

If Repeat while pressed is checked, the keystroke (or sequence) will repeat as long as the Eclipse control is held down. The speed of the repeat is controlled by the Repeat/ Typing Speed slider. This slider also determines how much time there is between keystrokes if the sequence is more than one keystroke.

If the key sequence in the example below was assigned to the W5 button, pressing and holding W5 would be the equivalent of repeatedly typing the word “mark” until W5 was released.

The Keystrokes tab can vary depending on the type of Eclipse control selected. For rotary encoders and the Jog Wheel, different key sequences can be assigned to each direction. Click on the Counter Clockwise or Clockwise radio button to choose which direction’s sequence to edit.

Eclipse Ethernet Software

In the example below, a counter clockwise turn would send a “-” and a clockwise turn would send a “+”.

Eclipse Ethernet Software

Trackballs can have a different key sequence for Up, Down, Left and Right movements. In the example below, the trackball would send a corresponding Arrow key for each direction.

Eclipse Ethernet Software

The Shuttle Ring can have a key sequence assigned not only to its counter clockwise and clockwise directions, but also to it’s center detent. The example below implements JKL shuttling which is used by several nonlinear video editors. In other words, the shuttle will send a “j” when being turned counter clockwise, an “l” when being turned clockwise and a “k” when it is returned to the center position.

Eclipse Ethernet Software

Mouse Tab

The controls on the Eclipse can be made to emulate the Macintosh mouse. Buttons can perform clicks, rotary encoders, the Jog Wheel and the Shuttle Ring can perform horizontal and vertical moves and drags, and trackballs can perform 360° moves and drags.

Eclipse Ethernet Software

The Mouse Action popup lists the actions available for the selected control. For

Option

When Destination Window is

Resized or Moved

Relative to Window Top Left

The start point will stay the same distance from the top left corner of the window.

Relative to Window Top Right

The start point will stay the same distance from the top right corner of the window.

Relative to Window Top Percentage of Width

The start point will stay the same distance from the top of the window, but it’s horizontal position will be a percentage of the window’s width..

example, if the Jog Wheel is selected the popup would look like this:

The Starting Location popup lets you choose where the click, move or drag will originate.

If you choose Don’t Capture, the mouse action will always begin at the current location of the Mouse pointer. If you choose any other option, you will be prompted to pick a point in one of the target application’s windows. The options in this menu determine how the Eclipse will ﬁnd that point in the event that the destination window has been resized or moved.

Eclipse Ethernet Software

Option

When Destination Window is

Resized or Moved

Relative to Window Bottom Left

The start point will stay the same distance from the bottom left corner of the window.

Relative to Window Bottom Right

The start point will stay the same distance from the bottom right corner of the window.

Relative to Window Bottom Percentage of Width

The start point will stay the same distance from the bottom of the window, but it’s horizontal position will be a percentage of the window’s width..

Relative to Screen Top Left

The start point will stay the same distance from the top left corner of the screen, no matter what the size or position of the window.

For example, let’s say that a particular application has an onscreen shuttle slider in the lower right hand corner of it’s Timeline window, and the center of that slider is 100 pixels from the right of the window and 20 pixels from the bottom of the window. When the window is resized, the slider stays at 100 pixels from the right and 20 pixels from the bottom of the window.

Suppose the only way to access this program’s shuttle function is by dragging this slider left or right. You could program the Eclipse Shuttle Ring to do a horizontal drag starting at 100, 20 Relative to Window Bottom Right.

Eclipse Ethernet Software

Once you have chosen from the Starting Location popup, you will be prompted to actually pick the starting point.

Make Sure the target application is open in the background, and that the destination window is visible. Hit the Capture button then position the mouse pointer over the desired starting point and type <COMMAND K>.

Eclipse Ethernet Software

The Inspector window will be updated to show the window name and coordinates where the click, drag or move should take place.

From now on, whenever you are in the target application and use the assigned control, it will move the destination window to the front, then click, move or drag at the selected location.

Once a window name and mouse location has been captured, you have the option of using a partial window name. This is useful in applications like Final Cut Pro, where the Canvas Window’s title always starts with the word "Canvas" but the rest of the window title changes depending on what you're editing. Normally, the Eclipse tries to ﬁnd a window with the exact name as the window where the click was ﬁrst captured, but if the window name has changed, it will fail. You can choose the have the Eclipse just look for the word Canvas in Final Cut Pro and it would always ﬁnd the Canvas Window, even if the exact name of the Canvas Window changed since the click was captured.

To use the partial name feature, click on the Partial Window Name checkbox. In the text box on the right, change the full window name to the partial name you want the Eclipse to use.

Eclipse Ethernet Software

MIDI Tab

None

No MIDI message for the selected control. If some other type of action has already been assigned, the None button will be selected. Clicking on the None button will delete the currently assigned action.

Native MIDI

Native MIDI actions send and respond to the Eclipse hardware’s built in MIDI protocol. You would typically use this setting with an application which directly supports the Eclipse (or MCS-3000 / MCS-Spectrum) protocol. It could also be used with an application that has a MIDI “Learn” feature.

For convenience, choosing Set all Controls to Native MIDI in the Actions menu will assign Native MIDI actions to all of the Eclipse controls on all layers in the current keyset.

Custom MIDI

Custom MIDI actions send and respond to user deﬁned MIDI messages.

An Eclipse can be made to appear as a MIDI device to MIDI applications. Any Eclipse control can be programmed to send and respond to a MIDI message.

There are three radio buttons for choosing the type of MIDI message to assign.

Eclipse Ethernet Software

When Custom MIDI is chosen, more controls will become visible for editing the custom messages.

The MIDI Message Type popup lets you choose any of the basic MIDI messages except for system exclusive and MIDI Time Code.

The ﬁrst group of messages in the popup include a MIDI channel. If you choose one of these message types, a channel editor appears. You can either type or use the up and down arrows to set the channel. This editor accepts values from 1 through 16.

Eclipse Ethernet Software

All MIDI messages except for system exclusive are either one, two or three bytes long. The ﬁrst byte always is the message type, called the status byte. If there is a MIDI channel, it is embedded in the status byte. The bytes following the status byte, if any, are referred to as data bytes and contain additional information such as note numbers, velocities, control values, etc...

If you choose a message type that is more than one byte long the 1st Data Byte ( and possibly the 2nd Data Byte) editor appears. You can set the data byte’s value by typing or using the up/down arrows. The editor accepts values from 0 through 127.

Instead of setting an absolute value for a data byte, you can check the Follows Control’s Value box. In this case, the value of that data byte is determined by the state of the Eclipse hardware control this message is assigned to. In other words, if you assigned a Custom MIDI Message to the Jog Wheel and the 2nd data byte was set to Follows Control’s Value, a number representing the position of the Jog Wheel would be inserted as the 2nd data byte of the custom message. For Eclipse buttons, a value of 127 will be inserted for button presses, and 0 for button releases.

Following are some samples of the MIDI Tab’s appearance for various message types.

Eclipse Ethernet Software

When assigning Custom MIDI messages to a trackball, you set different messages for each axis of the trackball. You can also set either axis to None.

To access the Eclipse’s MIDI messages in your MIDI application, connect your application’s MIDI input and output ports to the ports labeled “Eclipse”. Depending on the application, the ports may be labeled “Eclipse Ethernet”. The exact method for connecting to MIDI ports varies from application to application. Consult the manuals of the MIDI applications you are using to learn how to do this.

Eclipse Ethernet Software

Emulation Tab

The Eclipse software has the ability to emulate other MIDI based control surfaces. This feature is useful if you are using the Eclipse with an application which doesn’t directly support the Eclipse, but which supports one of these other controls surfaces.

You can set any control on the Eclipse to emulate a control on one of these control surfaces using the Emulation Tab. The Emulation Tab is not available until you turn on Emulation in the Emulation Menu. Here you can choose None, Mode A, or Mode B. Mode A and B represent two different control surfaces. Which one you choose depends on the application you are using with the Eclipse. More on this later.

The contents of the Emulation Tab varies depending on the type of Eclipse control that is selected. This is what you will see at ﬁrst if you select a button.

The Control Group popup lists the basic categories of controls that can be emulated by the selected Eclipse control. Checking Emulate this control: or choosing from the Control Group popup will assign an Emulation action to the selected control. It will also

Eclipse Ethernet Software

display either a second popup or a numerical editor for choosing which control in the group to emulate.

For some control categories, such as Transport, the individual controls in that category have names, such as Rewind, Fast Forward, Stop, Play and Record. For these categories a second popup will list the control names.

For other categories, such as F-Keys, the controls are just numbered. For these categories a numerical editor will appear. This allows you to either type or use up/down arrows to set the control number.

For rotary encoders and trackball rings, the available categories are Pots, Faders and Display Scroll.

Since the emulated control surfaces have wider displays than the Eclipse, text meant to be shown on one of these displays will not ﬁt on the Eclipse display. If you assign Display Scroll to a knob on the Eclipse, you can use that knob to scroll the display left

Eclipse Ethernet Software

and right so you can see all of the text.

Eclipse Control

Assignment

Emulation- smpte/beats

Emulation- global view: global view on/off

Emulation- global view: inputs

Emulation- global view: audio tracks

Emulation- global view: aux

Rewind

Emulation- transport: rewind

Fast Forward

Emulation- transport: fast forward

Stop

Emulation- transport: stop

Play

Emulation- transport: play

Record

Emulation- transport: record

Jog

Emulation- jog

The Jog Wheel only has one choice, Emulate Jog Wheel.

You cannot assign Emulation actions to the Shuttle Ring or Trackballs because none of the emulated control surfaces have these functions.

For convenience, choosing Set all Controls to Emulation in the Actions menu will assign Emulation Actions to many of the Eclipse controls on all layers in the current keyset. Some Eclipse controls do not correspond to any controls on the emulated control surfaces, so those controls are left unassigned.

The following assignments are made when Set all Controls to Emulation is chosen. Notice that the controls in the eighth “channel strip” are assigned to channel 9. This is because these control surface protocols use channel 9 as the Master Fader.

Eclipse Ethernet Software

Eclipse Control

Assignment

Emulation- automation: read/ offW2Emulation- automation: write

Emulation- automation: trim

Emulation- automation: touch

Emulation- automation: latch

Right Encoder 1

Emulation- pot: 1

Right Encoder 2

Emulation- pot: 2

Right Encoder 3

Emulation- pot: 3

Right Encoder 4

Emulation- pot: 4

Right Encoder 5

Emulation- display scroll

Emulation- fkey: 1

Emulation- fkey: 2

Emulation- fkey: 3

Emulation- fkey: 4

Emulation- fkey: 5

Emulation- fkey: 6

Emulation- fkey: 7

Emulation- fkey: 8

Bank 1

Emulation- bank_change: bank left

Bank 2

Emulation- bank_change: bank right

Bank 3

Emulation- bank_change: channel left

Bank 4

Emulation- bank_change: channel right

Right Page 1

Emulation- mute: 1

Eclipse Ethernet Software

Eclipse Control

Assignment

Right Page 2

Emulation- mute: 2

Right Page 3

Emulation- mute: 3

Right Page 4

Emulation- mute: 4

Right Page 5

Emulation- solo: 1

Right Page 6

Emulation- solo: 2

Right Page 7

Emulation- solo: 3

Right Page 8

Emulation- solo: 4

Enter

Emulation- utilities: enter

Clear/Cancel

Emulation- utilities: cancel

Emulation- cursor: up

Right

Emulation- cursor: right

Down

Emulation- cursor: down

Left

Emulation- cursor: left

Shift

Emulation- modiﬁers: shift

Mute 1

Emulation- mute: 1

Mute 2

Emulation- mute: 2

Mute 3

Emulation- mute: 3

Mute 4

Emulation- mute: 4

Mute 5

Emulation- mute: 5

Mute 6

Emulation- mute: 6

Mute 7

Emulation- mute: 7

Solo 1

Emulation- solo: 1

Solo 2

Emulation- solo: 2

Solo 3

Emulation- solo: 3

Solo 4

Emulation- solo: 4

Eclipse Ethernet Software

Eclipse Control

Assignment

Solo 5

Emulation- solo: 5

Solo 6

Emulation- solo: 6

Solo 7

Emulation- solo: 7

Aux 1

Emulation- pot switch: 1

Aux 2

Emulation- pot switch: 2

Aux 3

Emulation- pot switch: 3

Aux 4

Emulation- pot switch: 4

Aux 5

Emulation- pot switch: 5

Aux 6

Emulation- pot switch: 6

Aux 7

Emulation- pot switch: 7

Select 1

Emulation- select: 1

Select 2

Emulation- select: 2

Select 3

Emulation- select: 3

Select 4

Emulation- select: 4

Select 5

Emulation- select: 5

Select 6

Emulation- select: 6

Select 7

Emulation- select: 7

Fader Touch 1

Emulation- touch sensor: 1

Fader Touch 2

Emulation- touch sensor: 2

Fader Touch 3

Emulation- touch sensor: 3

Fader Touch 4

Emulation- touch sensor: 4

Fader Touch 5

Emulation- touch sensor: 5

Fader Touch 6

Emulation- touch sensor: 6

Fader Touch 7

Emulation- touch sensor: 7

Fader Touch 8

Emulation- touch sensor: 9 (master)

Eclipse Ethernet Software

Eclipse Control

Assignment

Fader 1

Emulation- fader: 1

Fader 2

Emulation- fader: 2

Fader 3

Emulation- fader: 3

Fader 4

Emulation- fader: 4

Fader 5

Emulation- fader: 5

Fader 6

Emulation- fader: 6

Fader 7

Emulation- fader: 7

Fader 8

Emulation- fader: 9 (master)

Eclipse Ethernet Software

Special Tab

None

No Special Action for the selected control. If some other type of action has already been assigned, the None button will be selected. Clicking on the None button will delete the currently assigned action.

Layer Selectors

When assigned to an Eclipse button, that button can be used to switch between layers. When a Layer Selector Special Action is assigned to an Eclipse button, that assignment is automatically copied to that button on all layers.

Trackball Sensitivity

When assigned to an Eclipse rotary encoder, that encoder can be used to control the responsiveness of the Eclipse trackballs.

Developer Mode

This is intended for use with applications which directly support the Eclipse. This action uses messaging protocols built into Mac OS X to communicate with these applications.

You normally wouldn’t use this mode unless you knew that an application you were using supported it. 3rd party developers who support this mode would typically ship Eclipse keysets along with their applications.

For convenience, choosing Set all Controls to Developer Mode in the Actions menu will assign Developer Mode Special Actions to all of the Eclipse controls on all layers in the current keyset.

The Special Tab is a collection of actions that don’t easily ﬁt into other categories.

The choices are:

Eclipse Ethernet Software

Raw Ethernet

Some applications such as Apple Color™ can communicate directly with the Eclipse over Ethernet. You should create keysets for these applications and assign Raw Ethernet Special Actions to every control in these keysets.

For convenience, choosing Set all Controls to Raw Ethernet in the Actions menu will assign Raw Ethernet Special Actions to all of the Eclipse controls on all layers in the current keyset.

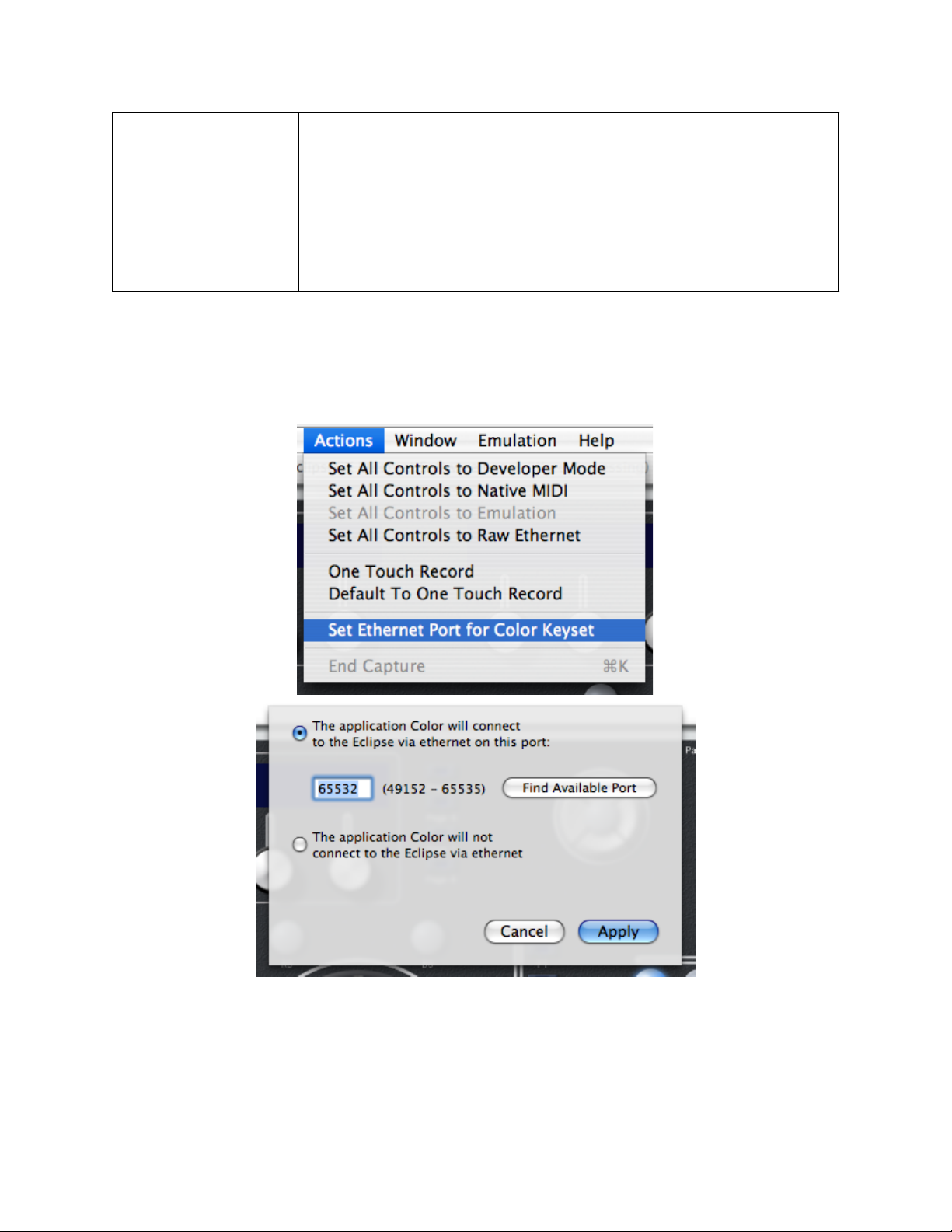

There is one additional step you must take if you are using Raw Ethernet Mode. Choose Set Ethernet Port for <keyset name> Keyset from the Actions menu. In the dialog box that opens, choose a port number, or click on The application <application name> will not communicate with the Eclipse via ethernet radio button.

The port number should be in the range 49152 - 65535. Some ports are reserved for speciﬁc purposes such as email, http, etc..., but the ports in this range are available for any application to use as it sees ﬁt. However, some of these ports are used by Mac OS X, and their usage can vary with different models of the Mac and versions of the OS.

Eclipse Ethernet Software

Clicking on the Find Available Port button will locate a port that you can use and place it in the Port text box.

Any application such as Apple Color™ that communicates with the Eclipse over ethernet will have a preference setting for the IP address and the port. You should always set the port to match the port you set in that application’s keyset and the IP address should either be 127.0.0.1, 0.0.0.0 or the word “localhost” (no quotes). All three work equally well. Do not use the address that you set on the Eclipse hardware itself.

If you are using Color 1.5, there is a new plugin for Color created by JLCooper that handles the interaction between Color and the Eclipse. When Color is launched, the EclipsePlugin will detect if the Eclipse driver is running, and automatically use the correct Address and Port.

Also note that the Eclipse uses the same communication protocol as the JLCooper MCS-3000 and MCS-Spectrum control surfaces. If an application’s control surface preferences only list the MCS-3000/Spectrum and not the Eclipse, then choose the MCS-3000/Spectrum as your control surface.

Eclipse Ethernet Software

Built In Actions Tab

The built in actions are actions that are predeﬁned for speciﬁc applications. When you choose a keyset, the built in actions appropriate to that keyset’s application are displayed. If no built in actions have been deﬁned for the current application, the display will be blank.

The built in actions are presented in two columns. The left hand column lists basic categories and the right hand column lists the actual actions. Clicking on a category in the left hand column will change the list of actions displayed on the right. Double-click an action name to assign it to the selected Eclipse control.

Most of the categories and actions correspond to the keyboard shortcuts listed in the target application's manual. However, there are also actions deﬁned by JLCooper that are not simple keyboard shortcuts. These actions will always appear at the beginning of the list, and there will be a separator line between them and other built in actions.

Eclipse Ethernet Software

Displays

The Eclipse has three displays, referred to in the software as the Left, Center and Right displays, and a Timecode display. The Left, Center and Right displays are each have two lines. Each line is treated like a separate display. You can assign functions to these displays in much the same way as you assign actions to controls.

NOTE: If you are using an application that communicates with the Eclipse via MIDI, Developer Mode or Raw Ethernet, you should probably not assign any functions to the displays in the keyset for that application. The application will probably be writing its own information to the displays.

When you click on a display to select it, information about it appears in the Inspector window. This information includes an assigned Name, a description of the function assigned to the display and Tabs which contain controls for editing the display’s function.

For the Left, Center and Right displays, the available Tabs are Text, Encoder Names and Emulation.

Eclipse Ethernet Software

Display Text Tab

If you check the Display Custom Text box or type into the text box below it and hit the ENTER key, the text you type will be shown on the selected display line whenever the target application is in front.

Un-checking the Display Custom Text box will delete any function assigned to the currently selected display line.

Eclipse Ethernet Software

Display Encoder Names Tab

If you check the Display Names Above Encoders box the Names of the encoders below the selected display will be shown on the selected line whenever the target application is in front.

The display will update whenever the name of one of the encoders changes. If an encoder does not have a name assigned, then the display directly above it will be blank.

Un-checking the Display Names Above Encoders box will delete any function assigned to the currently selected display line.

Eclipse Ethernet Software

Display Emulation Tab

If you have enabled Emulation in the current keyset, you can have any display on the Eclipse show the same information that the target application would display on the emulated control surface.

Click on the Emulate Mode X Display checkbox to enable display emulation. Click on None to delete the current display line’s function. You can choose to emulate line one of the display, line 2 of the display or to display the values of the pots directly below the display (not currently implemented).

The Eclipse software’s on-screen display will read “LCD Display Line 1” or “LCD Display Line 2”, but when you are using the target application, the Eclipse CX display will show text sent to it by that application.

Eclipse Ethernet Software

Timecode Display

For the Timecode Display, the only option is Emulation.

Reverse Messages from R and B Buttons

Above each trackball is a button labeled Rx and Bx. The R stands for Ring and the B stands for Ball. These buttons are typically used in color correction applications as reset buttons. The R button resets changes made by turning the ring below it, and the B button resets changes made using the trackball below it.

Some color correction applications, such as Apple’s Color have the color wheel (which is controlled by the trackball) on the left and the contrast slider (which is controlled by the ring) on the right. This leaves the R button on the left resetting the contrast slider which is on the right and the B button on the right resetting resetting the color wheel which is on the left.

This potentially confusing situation can be dealt with by choosing Reverse Messages from R and B Buttons from the Actions menu. When this is set, each R button will send the message normally sent by its corresponding B button and vice versa. So, when used with Color, the R button will now reset the color wheel and the B button will reset the contrast slider.

This setting affects R and B buttons that have been assigned Native MIDI, Developer Mode, or Raw Ethernet messages. It has no effect on Built-In, Keystroke, Mouse, Custom MIDI, or Emulation Messages.

Eclipse Ethernet Software

Eclipse MX Window

If there is an Eclipse MX or Eclipse MX-SA connected to your system, you can edit its control assignments from the Eclipse MX window. It is opened from the Windows menu.

Eclipse Ethernet Software

As with the Eclipse CX Main Window, selecting a control in this window, or moving a corresponding hardware control, causes information about that control to appear in the Inspector Window.

There are eight vertical “channel strips” shown at a time. If you have more than 1 Eclipse MX in your system, you can view a different bank of eight channels by clicking on one of the Channels buttons at the bottom of the window.

Eclipse Ethernet Software

You may notice that there are more controls pictured in this window than actually appear on the Eclipse MX hardware. The little button above each fader represents that fader’s touch sensor, which is treated like a separate control.

The Faders can be assigned Native and Custom MIDI Actions, Developer and Raw Ethernet Actions, and Fader Emulation Actions. For Emulation Actions, you can assign a channel.

Eclipse Ethernet Software

All of the buttons can be assigned the same actions that can be assigned to buttons in the rest of the system. The same goes for the rotary encoders.

Eclipse Ethernet Software

Keyset Summary Window

The Keyset Summary Window displays information about several controls at once, making it easier to tell at a glance how a particular keyset is set up. You choose the Keyset Summary from the Windows menu.

The window has four columns. The ﬁrst column lists the currently active keysets. These are the same keysets that appear in the Keysets Menu. Clicking on a keyset in this column will change the selected keyset, just as if you had chosen a keyset from the Keysets Menu. Conversely, choosing a new keyset from the Keysets Menu will cause that keyset to be selected in the Keyset Summary Window.

The second column shows the selected keyset’s layers. Clicking on a layer in this column has the same effect as clicking on one of the layer buttons at the bottom of the main Eclipse CX Window. Clicking on a layer button in the main window will cause that layer to be selected in the Summary Window.

Eclipse Ethernet Software

The third column lists controls grouped by function, such as Transport, Trackballs, Encoders, etc. Selecting one of these groups will cause the fourth column to display all of the controls in that group. Each control name is followed by its assigned Name, if any, and a description of its assigned function. Clicking on a control in this column will cause that control to be selected in the main window and its information to be displayed in the Inspector Window for editing. In the case of trackballs, the descriptions are shown in the trackballs’ assigned colors.

Eclipse Ethernet Software

Final Cut Pro™ Support

Final Cut Pro™ and Control Surfaces

With FCP version 5 some support for MIDI control surfaces was added. Unfortunately, only audio parameters and transport functions are controllable via MIDI. Fortunately, the Eclipse software not only emulates the supported control surfaces, it also can control many other parameters in FCP.

The Eclipse has a large advantage over other control surfaces when used with Final Cut Pro because it is not limited to just the functions included in Final Cut’s MIDI control surface support. With its built in functions and the ability to emulate the mouse and keyboard coupled with FCP’s control surface support, virtually every function in Final Cut Pro can be controlled with the Eclipse.

Final Cut Pro™ Shuttle

The FCP Built In Shuttle command works equally well in the Timeline, Canvas, Viewer and Log and Capture windows.

Using the Eclipse with Final Cut Pro

To use the Eclipse with FCP, ﬁrst run the Eclipse Ethernet 2.1 application and import the Final Cut keyset provided by JLCooper. Now run Final Cut and open the Control Surfaces dialog from the Tools menu. Click on the “+” button to add a control surface and choose Mackie Control. Then choose Eclipse Ethernet - Eclipse for the input connection and output connections. Click OK to exit the dialog.

Final Cut requires the Audio Mixer (Tools Menu) to be open in order for control surface support to be active. You might want to save a window layout that has the Audio Mixer open.

Eclipse Ethernet Software

Using the Eclipse with the Final Cut Pro Color Corrector 3-way

To use the Eclipse for color correction in Final Cut, Color Corrector 3-way must be applied to a clip, that clip must be open in the Viewer, and the Color-Corrector 3-way tab must be open in the Viewer. You can not drag the Color Corrector 3-way tab out of the Viewer window.

Assign the various color correction related built in actions to appropriate Eclipse controls (this has already been done in the JLCooper supplied FCP keyset).

There are two sets of color correction related actions in the FCP built in commands list, Color Corrector 3-way actions and Color Corrector 3-way w/Effect Limits actions. The ﬁrst set is to be used when the Limit Effect controls at the bottom of the window are hidden. The second set of actions should be used when the Limit Effect controls are visible.

Using the Color Corrector 3-way w/Effect Limits actions when the Limit Effect controls are hidden and vice versa will not work in most cases.

Eclipse Ethernet Software

The Limit Effect controls can be shown and hidden by clicking on the small triangle in

Eclipse

Layer 1

FCP

Eclipse

Layer 2

FCP

Left Page 1

Layer 1 Selector

Left Page 1

Layer 1 Selector

Left Page 2

Layer 2 Selector

Left Page 2

Layer 2 Selector

Left Page 3

Layer 3 Selector

Left Page 3

Layer 3 Selector

the bottom left corner of the Viewer/Color Corrector 3-way window.

In the JLCooper-supplied Final Cut keyset, the Color Corrector 3-way actions are assigned to controls in layer 1 and the Color Corrector 3-way w/Effect Limits actions are assigned to controls in layer 2. The left hand Page 1 and Page 2 buttons can be used to switch between layers 1 and 2.

The Eclipse Final Cut Pro Keyset

The Eclipse Final Cut Pro keyset uses a combination of emulated controls, mouse emulation, keystrokes and built-in commands. It is fully customizable using the techniques presented in this manual, so you can easily adapt it to your working style.

Here are the control assignments in the current version of the FCP keyset:

Eclipse Ethernet Software

Eclipse

Layer 1

FCP

Eclipse

Layer 2

FCP

Left Page 4

Layer 4 Selector

Left Page 4

Layer 4 Selector

Left Encoder 1

Color Corrector 3-way Saturation

Left Encoder 1

Color Corrector 3-way w/effect limits Saturation

Left Encoder 2

Color Corrector 3-way w/effect limits Color Gradient

Left Encoder 3

Color Corrector 3-way w/effect limits Saturation Gradient

Left Encoder 4

Color Corrector 3-way w/effect limits Luma Gradient

Left Encoder 5

Color Corrector 3-way w/effect limits Edge Thinning

Left Encoder 6

Trackball Sensitivity

Left Encoder 6

Color Corrector 3-way w/effect limits Softening

Color Corrector 3-way Reset Black Level

Color Corrector 3-way w/effect limits Reset Black Level

Color Corrector 3-way Reset Black Balance

Color Corrector 3-way w/effect limits Reset Black Balance

Color Corrector 3-way Reset Mid Level

Color Corrector 3-way w/effect limits Reset Mid Level

Color Corrector 3-way Reset Mid Balance

Color Corrector 3-way w/effect limits Reset Mid Balance

Color Corrector 3-way Reset White Level

Color Corrector 3-way w/effect limits Reset White Level

Eclipse Ethernet Software

Eclipse

Layer 1

FCP

Eclipse

Layer 2

FCP

Color Corrector 3-way Reset White Balance

Color Corrector 3-way w/effect limits Reset White Balance

Trackball 1

Color Corrector 3-way Balance Wheel Blacks

Trackball 1

Color Corrector 3-way w/effect limits Balance Wheel Blacks

Trackball 2

Color Corrector 3-way Balance Wheel Mids

Trackball 2

Color Corrector 3-way w/effect limits Balance Wheel Mids

Trackball 3

Color Corrector 3-way Balance Wheel Whites

Trackball 3

Color Corrector 3-way w/effect limits Balance Wheel Whites

Trackball Ring 1

Color Corrector 3-way Black Levels

Trackball Ring 1

Color Corrector 3-way w/effect limits Black Levels

Trackball Ring 2

Color Corrector 3-way Mid Levels

Trackball Ring 2

Color Corrector 3-way w/effect limits Mid Levels

Trackball Ring 3

Color Corrector 3-way White Levels

Trackball Ring 3

Color Corrector 3-way w/effect limits White Levels

Goto Beginning

Down

Goto End

Down

Goto End

Left

Left Arrow Key

Left

Zoom Out

Right

Right Arrow Key

Right

Zoom In

F1 - F8

Right Page 1 - Right Page 4

Mute 1 - Mute 4 Right Page 5

Show Browser

Right Page 5

Show Browser

Right Page 6

Show Viewer

Right Page 6

Show Viewer

Right Page 7

Show Timeline

Right Page 7

Show Timeline

Eclipse Ethernet Software

Eclipse

Layer 1

FCP

Eclipse

Layer 2

FCP

Right Page 8

Show Canvas

Right Page 8

Show Canvas

Right Encoder 1 Right Encoder 4

Pan Channel 1 Pan Channel 4

Right Encoder 5

Display Scroll

Bank 1

Bank Left

Bank 1

Bank Left

Bank 2

Bank Right

Bank 2

Bank Right

Mark IN

Mark OUT

Goto INPOINT

Goto OUTPOINT

Add Marker

Goto Previous Marker

Goto Next Marker

Keypad 0 - 9

Timecode Entry 0 - 9

Keypad 0 - 9

Timecode Entry 0 - 9

Keypad ENTER

ENTER

Keypad ENTER

ENTER

Keypad CLEAR/ CANCEL

CANCEL

Keypad CLEAR/ CANCEL

CANCEL Shuttle Ring

Shuttle

Shuttle Ring

Shuttle

Jog Wheel

JOG

Jog Wheel

JOG

Rewind

Fast Forward

Stop

Play

Record

Left Display Line 2

Encoder Names

Left Display Line 2

Encoder Names

Eclipse Ethernet Software

Eclipse

Layer 1

FCP

Eclipse

Layer 2

FCP

Center Display Line 2

Encoder Names

Center Display Line 2

Encoder Names

Right Display Line 1

Emulated LCD Display Line 1

Right Display Line 1

Emulated LCD Display Line 1

Right Display Line 2

Encoder Names

Eclipse MX Faders 1 - 7

Channel Volume 1 - 7

Faders 1 - 7

Channel Volume 1 - 7

Eclipse MX Fader 8

Master Volume

Fader 8

Master Volume

Eclipse MX Fader Touch Sensors 1 - 7

Fader Touch 1 - 7

Fader Touch Sensors 1 - 7

Fader Touch 1 - 7

Eclipse MX Fader Touch Sensor 8

Master Touch

Fader Touch Sensor 8

Master Touch

Eclipse MX Mutes 1 - 7

Mute 1 - Mute 7

Mutes 1 - 7

Mute 1 - Mute 7 Eclipse MX Mute 8

Master Mute

Mute 8

Master Mute

Eclipse MX Solos 1 - 7

Solo 1 - Solo 7

Solos 1 - 7

Solo 1 - Solo 7

Eclipse

Layer 3

FCP

Eclipse

Layer 4

FCP

Left Page 1

Layer 1 Selector

Left Page 1

Layer 1 Selector

Left Page 2

Layer 2 Selector

Left Page 2

Layer 2 Selector

Left Page 3

Layer 3 Selector

Left Page 3

Layer 3 Selector

Left Page 4

Layer 4 Selector

Left Page 4

Layer 4 Selector

Goto Beginning

Down

Goto End

Down

Goto End

F1 - F8

Right Page 1 - Right Page 4

Mute 1 - Mute 4

Eclipse Ethernet Software

Eclipse

Layer 3

FCP

Eclipse

Layer 4

FCP

Right Page 5

Show Browser

Right Page 5

Show Browser

Right Page 6

Show Viewer

Right Page 6

Show Viewer

Right Page 7

Show Timeline

Right Page 7

Show Timeline

Right Page 8

Show Canvas

Right Page 8

Show Canvas

Right Encoder 1 Right Encoder 4

Pan Channel 1 Pan Channel 4

Right Encoder 5

Display Scroll

Bank 1

Bank Left

Bank 1

Bank Left

Bank 2

Bank Right

Bank 2

Bank Right

Mark IN

Mark OUT

Goto INPOINT

Goto OUTPOINT

Add Marker

Goto Previous Marker

Goto Next Marker

Keypad 0 - 9

Timecode Entry 0 - 9

Keypad 0 - 9

Timecode Entry 0 - 9

Keypad ENTER

ENTER

Keypad ENTER

ENTER

Keypad CLEAR/ CANCEL

CANCEL

Keypad CLEAR/ CANCEL

CANCEL Shuttle Ring

Shuttle

Shuttle Ring

Shuttle

Jog Wheel

JOG

Jog Wheel

JOG

Rewind

Fast Forward

Stop

Eclipse Ethernet Software

Eclipse

Layer 3

FCP

Eclipse

Layer 4

FCP

Play

Record

Eclipse MX Faders 1 - 7

Channel Volume 1 - 7

Faders 1 - 7

Channel Volume 1 - 7

Eclipse MX Fader 8

Master Volume

Fader 8

Master Volume

Eclipse MX Fader Touch Sensors 1 - 7

Fader Touch 1 - 7

Fader Touch Sensors 1 - 7

Fader Touch 1 - 7

Eclipse MX Fader Touch Sensor 8

Master Touch

Fader Touch Sensor 8

Master Touch

Eclipse MX Mutes 1 - 7

Mute 1 - Mute 7

Mutes 1 - 7

Mute 1 - Mute 7 Eclipse MX Mute 8

Master Mute

Mute 8

Master Mute

Eclipse MX Solos 1 - 7

Solo 1 - Solo 7

Solos 1 - 7

Solo 1 - Solo 7

Eclipse Ethernet Software

Final Cut Pro X™ Support

Eclipse Layer 1

FCP X

Eclipse Layer 2

FCP X

Arrow Tool

M1M2Blade Tool

M2M3Crop Tool

M3M4Hand Tool

M4M5Trim Tool

Rewind

Play Reverse

Rewind

Play Reverse

Fast Forward

Play Forward

Fast Forward

Play Forward

Stop

Play

Jog

Shuttle

Set Selection Start

Select Clip

Set Selection End

Previous Clip

Add Marker

Next Clip

Delete Marker

W4W5Go To Previous Marker

W5W6Go To Next Marker

Right Encoder 1

Zoom

Right Encoder 1

Bank 1

Select Layer 1

Bank 1

Select Layer 1

Bank 2

Select Layer 2

Bank 2

Select Layer 2

Bank 3

Select Layer 3

Bank 3

Select Layer 3

Bank 4

Select Layer

Bank 4

Select Layer

Right Page 1

Event Browser

Right Page 1

Color Board

Right Page 2

Timeline

Right Page 2

Project Library

Right Page 3

Viewer

Right Page 3

Timeline Index

Right Page 4

Inspector

Right Page 4

Right Page 5

Event Library

Right Page 5

Histogram

Right Page 6

Audio Enhancements

Right Page 6

Vectorscope

Right Page 7

Audio Meters

Right Page 7

Waveform

Unlike Final Cut Pro 7, FCP X includes no built-in support for control surfaces. However, the Eclipse is still quite useful with FCP X because JLCooper has converted all of the FCP X keyboard shortcuts into Eclipse Built-In Commands.

JLCooper has included a Final Cut Pro X keyset which has assigned Built-In Commands to many of the Eclipse controls, but which still leaves room for customization.

Following is a list of the FCP X keyset assignments.

Eclipse Ethernet Software

Eclipse Layer 1

FCP X

Eclipse Layer 2

FCP X

Right Page 8

Effects Browser

Right Page 8

0 key

1 key

2 key

3 key

4 key

5 key

6 key

7 key

8 key

9 key

Enter

Clear/Cancel

Esc / Cancel

Clear/Cancel

Esc / Cancel

Go To Beginning

Right

Forward Ten Frames

Right

Down

Go To End

Down

Left

Back 10 Frames

Left

Eclipse Layer 3

FCP X

Eclipse Layer 4

FCP X

Rewind

Play Reverse

Rewind

Play Reverse

Fast Forward

Play Forward

Fast Forward

Play Forward

Stop

Play

Bank 1

Select Layer 1

Bank 1

Select Layer 1

Bank 2

Select Layer 2

Bank 2

Select Layer 2

Bank 3

Select Layer 3

Bank 3

Select Layer 3

Bank 4

Select Layer 4

Bank 4

Select Layer 4

Right Page 1

Previous Tab

Right Page 1

Right Page 2

Next Tab

Right Page 2

Right Page 3

Keyword Editor

Right Page 3

0 key

1 key

2 key

3 key

4 key

5 key

6 key

7 key

8 key

9 key

Eclipse Ethernet Software

Eclipse Layer 3

FCP X

Eclipse Layer 4

FCP X

Enter

Clear/Cancel

Esc / Cancel

Clear/Cancel

Esc / Cancel

Eclipse Ethernet Software

Color™ Support

Setup

Apple Color version 1.0 implemented direct support of the Eclipse. Color 1.5 supports control surface plugins that allow control surface manufacturers to ﬁne tune the interaction between Color and their control surfaces. JLCooper has developed such a plugin, the EclipsePlugin, which is installed along with the other Eclipse Ethernet Software components.

Setup will be slightly different depending on which version of Color you are using.

There are a couple of steps that must be taken before the ﬁrst time you use Color with the Eclipse.

Run the Eclipse Ethernet 2.1 application and Import the JLCooper supplied Color keyset. If you are using Color 1.0x, use the Color 1.0 keyset, otherwise use the Color

1.5 keyset. Choose Set Ethernet Port for Color Keyset from the Actions menu. In the dialog box that opens, choose a port number from 49152 to 65535.

Eclipse Ethernet Software

Clicking on the Find Available Port button will locate a port that you can use and place it in the Port text box. Click on Apply to accept your changes.

Color 1.0 Setup

The ﬁrst time you run Color after setting up the Color keyset you need to open the Control Surface Setup dialog. This dialog may open automatically when you launch Color. If not, go to Color’s Setup Room and click on the Show Control Surface Dialog checkbox.

From the Control Surface popup menu choose JLCooper - MCS3000/Spectrum. The Eclipse and the MCS3000/Spectrum use identical communication protocols, so this setting works for both.

Set the IP address to either 127.0.0.1, 0.0.0.0 or the word “localhost” (no quotes). All three work equally well. Do not use the address that you set on the Eclipse hardware itself. Set the port to match the port you set in the Color keyset. Click on the Yes button to continue. Color should now be communicating with the Eclipse.

Eclipse Ethernet Software

Color 1.5 Setup

Support for the Eclipse in Color 1.5 is handled through JLCooper’s EclipsePlugin. The ﬁrst time you run Color after setting up the Color keyset you need to open the Control Surface Setup dialog. This dialog may open automatically when you launch Color. If not, go to the User Prefs tab in Color’s Setup Room and click on the Show Control Surface Dialog checkbox.

From the Control Surface Popup Menu choose JLCooper - Eclipse (MCS3000/ Spectrum). If the driver for the Eclipse Ethernet Software is active, the plugin will detect it and ﬁll in the correct IP Address (it will always be 127.0.0.1) and Port (which will match the port set for the Color keyset in the Eclipse Ethernet 2.1 application). It will also display the name of the active driver (Eclipse or MCS-3000 Series). All you need to do is click on the Yes button. Color should now be communicating with the Eclipse.

Eclipse Ethernet Software

The Eclipse Color Keysets

Eclipse

Color

Right Page 1-8

Room Selector

Remove Key Frame

Add Key Frame

The Color 1.0 Keyset

If you are using Color 1.5x, please skip ahead to the section entitled The Color 1.5 Keyset.

The Eclipse Color 1.0 keyset has most of its controls assigned to Raw Ethernet. This enables Color to communicate directly with the Eclipse. Interaction between Eclipse controls (that have Raw Ethernet assignments) and Color is handled completely by Color itself. The Color manual lists many of the mappings between Eclipse controls and Color functions.

Although the Color manual does not discuss the six rotary encoders on the left side of the Eclipse, Apple has assigned various functions to all of them. The functions vary depending on the current Room and eight page buttons on the left side of the Eclipse. The function of each encoder will be shown in the display above it. Some Rooms use as many as six pages worth of encoder functions while other Rooms don’t use the encoders at all.

Color’s built in support of the Eclipse does not include control over every function. By assigning actions other than Raw Ethernet to some Eclipse controls, the JLCooper Color 1.0 keyset makes it possible to control many more of Color’s functions. Whenever possible, these new functions are assigned to controls that aren’t used by Color. In cases where this isn’t possible, the additional functions are assigned to Layer 3. The Left Page 7 button is the Layer 1 Selector and the Left Page 8 button is the Layer 3 Selector.

To access all of the Apple-deﬁned assignments, make sure you are on Layer 1 (by pressing the Left Page 7 button). When Layer 3 is active the top lines of the two left hand displays will read JLCooper Color Control Surface Extensions.

Following is a list of the assignments built-in to Color itself. To access them, make sure you are using Layer 1 (Spectrum Page 7 button). For more detail, please see the Color User Manual. Note that in any room where moving a trackball has an effect, the trackball lighting will be blue. If a trackball has no effect, it will not be lit.

Eclipse Ethernet Software

Eclipse

Color

Change Key Frame Interpolation

Rewind

Jump to beginning of shot

Fast Forward

Jump to end of shot

Stop

Stop playback

Play

Start Playback

Jog

Playhead Control

Keypad

Navigation Control

Locate

Locate Timecode or Shot ID

Last

Return to last location

Enter

Cue navigation

Speed control

Inch playback

Bank 1

Switch/Copy/Paste Grade Bank 1

Bank 2

Switch/Copy/Paste Grade Bank 2

Bank 3

Switch/Copy/Paste Grade Bank 3

Bank 4

Switch/Copy/Paste Grade Bank 4

Assign

Toggle Switch/Copy/Paste grade. (LCD Display indicates which state you are in)

Reset Shadow Contrast Slider

Eclipse Ethernet Software

Eclipse

Color

Reset Shadow Color Control

Trackball 1

Shadow color control adjustment

Trackball Ring 1

Shadow contrast slider adjustment

Reset Midtone Contrast Slider

Reset Midtone Color Control

Trackball 2

Midtone color control adjustment

Trackball Ring 2

Midtone contrast slider adjustment

Reset Highlight Contrast Slider

Reset Highlight Color Control

Trackball 3

Highlight color control adjustment

Trackball Ring 3

Highlight contrast slider adjustment

Spectrum Page 1 - 6

Encoder Bank Selectors

The encoder assignments depend on the current room and current encoder page.

Room

Page

Eclipse

Color

Primary In

Left Encoder 4

Saturation

Left Encoder 5

Highlight Saturation

Following is a listing of all encoder assignments built into Color. Note that in the Geometry Room, trackball one is used to control position and not color.

Eclipse Ethernet Software

Room

Page

Eclipse

Color

Left Encoder 6

Shadow Saturation

Left Encoder 1

Red Lift

Left Encoder 2

Green Lift

Left Encoder 3

Blue Lift

Left Encoder 4

Red Gamma

Left Encoder 5

Green Gamma

Left Encoder 6

Blue Gamma

Left Encoder 1

Red Gain

Left Encoder 2

Green Gain

Left Encoder 3

Blue Gain

Left Encoder 1

Printer Points Red

Left Encoder 2

Printer Points Green

Left Encoder 3

Printer Points Blue

Secondaries

Left Encoder 1

Key Blur

Left Encoder 3

Global Hue

Left Encoder 4

Saturation

Left Encoder 5

Highlight Saturation

Left Encoder 6

Shadow Saturation

Left Encoder 1

Red Lift

Left Encoder 2

Green Lift

Left Encoder 3

Blue Lift

Left Encoder 4

Red Gamma

Left Encoder 5

Green Gamma

Left Encoder 6

Blue Gamma

Eclipse Ethernet Software

Room

Page

Eclipse

Color

Left Encoder 1

Red Gain

Left Encoder 2

Green Gain

Left Encoder 3

Blue Gain

Left Encoder 1

Hue Center

Left Encoder 2

Hue Range

Left Encoder 3

Hue Tolerance

Left Encoder 4

Saturation Center

Left Encoder 5

Saturation Range

Left Encoder 6

Saturation Tolerance

Left Encoder 1

Lightness Center

Left Encoder 2

Lightness Range

Left Encoder 3

Lightness Tolerance

Left Encoder 1

Angle

Left Encoder 2

Softness

Left Encoder 3

Size

Left Encoder 4

Aspect

Primary Out

Left Encoder 4

Saturation

Left Encoder 5

Highlight Saturation

Left Encoder 6

Shadow Saturation

Left Encoder 1

Red Lift

Left Encoder 2

Green Lift

Left Encoder 3

Blue Lift

Left Encoder 4

Red Gamma

Left Encoder 5

Green Gamma

Eclipse Ethernet Software

Room

Page

Eclipse

Color

Left Encoder 6

Blue Gamma

Left Encoder 1

Red Gain

Left Encoder 2

Green Gain

Left Encoder 3

Blue Gain

Left Encoder 1

Printer Points Red

Left Encoder 2

Printer Points Green

Left Encoder 3

Printer Points Blue

Geometry

Left Encoder 1

Scale

Left Encoder 2

Rotation

Left Encoder 4

Flip

Left Encoder 5

Flop

Trackball 1

Position X and Y

Still Store

Left Encoder 1

Transition

Left Encoder 2

Angle

Following is a listing of all the JLCooper additions to the Apple-deﬁned assignments.

Eclipse

Layer 1

Color

Zoom Out

Down

Zoom In

Left

Back One Frame

Right

Forward One Frame

Center

Toggle Grade On/Off

Enable/Disable Secondaries

Enable/Disable Vignette (Secondaries)

Eclipse Ethernet Software

Eclipse

Layer 1

Color

Enable/Disable Clipping (Primary Out)

Previous Keyframe

Next Keyframe

Set Inpoint

Set Outpoint

Record

Start Render

+/-

Types a Decimal Point

Left Page 7

Layer 1 Selector

Left Page 8

Layer 3 Selector

Right Encoder 4

Trackball Sensitivity

Eclipse

Layer 3

Color

Zoom Out

Down

Zoom In

Left

Back One Frame

Right

Forward One Frame

Center

Toggle Grade On/Off

Enable/Disable Secondaries

Enable/Disable Vignette (Secondaries)

Enable/Disable Clipping (Primary Out)

Save (Primary In, Secondaries, Primary Out, Still Store)

Load (Primary In, Secondaries, Primary Out, Still Store)

Eclipse Ethernet Software

Eclipse

Layer 3

Color

Reset (Primary In, Secondaries, Primary Out)

Reset All Secondaries

Record

Start Render

+/-

Types a Decimal Point

Left Page 7

Layer 1 Selector

Left Page 8

Layer 3 Selector

Left Encoder 1

Master Lift (Primary In, Secondaries, Primary Out)

Left Encoder 2

Master Gain (Primary In, Secondaries, Primary Out)

Left Encoder 3

Master Gamma (Primary In, Secondaries, Primary Out)

Left Encoder 4

Ceiling Red (Primary Out)

Left Encoder 5

Ceiling Green (Primary Out)

Left Encoder 6

Ceiling Blue (Primary Out)

Right Encoder 4

Trackball Sensitivity

Right Page 1 - 8

Tabs 1 - 8 (Secondaries)

Eclipse Ethernet Software

The Color 1.5 Keyset

Room/Button

SHIFT BUTTON Up

SHIFT BUTTON Down

Setup

Change Key Frame F2

Add Key Frame

F3Delete Key Frame W1

Set Player Marker In

Parade Waveform

Set Player Marker Out

Overlay Waveform

Red Channel Waveform

Green Channel Waveform

Blue Channel Waveform

Luma Y Waveform

Histogram Waveform

Toggle Turbo/Normal Mode

Set Scope Resolution 100%

Set Scope Resolution 75%

Set Scope Resolution 50%

Set Scope Resolution 25%

SHIFT

As mentioned earlier, JLCooper has developed a control surface plugin for Color 1.5 that handles almost all of the interaction between the Eclipse and Color. This plugin’s support for the Eclipse is much more extensive than the support that was built into Color

1.0x. In fact, the plugin only relies on the keyset to control one Color function.

About the only Color function that can’t be controlled directly by the plugin is Reset all Secondaries. Fortunately, the Eclipse Ethernet Software is capable of accessing that function. So in the Color 1.5 keyset, the F8 button is assigned the Color built-in action Reset all Secondaries. All other Eclipse controls are handled by the Plugin.

Following is a complete list of the plugin’s mappings. More information about the plugin may be found in the document Eclipse Color PlugIn.

Eclipse PlugIn Button Mappings

Eclipse Ethernet Software

Room/Button

SHIFT BUTTON Up

SHIFT BUTTON Down

LEFT

Inch Playback Reverse RIGHT

Inch Playback Forward UP

To Project Start

DOWN

To Project End

BANK 1

Switch/Copy/Paste Grade 1

BANK 2

Switch/Copy/Paste Grade 2

BANK 3

Switch/Copy/Paste Grade 3

BANK 4

Switch/Copy/Paste Grade 4

ASSIGN

Set As Beauty Grade

RIGHT PAGE 1

Setup

Shots

RIGHT PAGE 2

Primary In

Grades

RIGHT PAGE 3

Secondaries

ProjectSettings

RIGHT PAGE 4

Color FX

Messages

RIGHT PAGE 5

Primary Out

User Prefs

RIGHT PAGE 6

Geometry RIGHT PAGE 7

Still Store RIGHT PAGE 8

Render Queue KEYPAD 0

Enter Timecode digit 0

KEYPAD 1

Enter Timecode digit 1

KEYPAD 2

Enter Timecode digit 2

KEYPAD 3

Enter Timecode digit 3

KEYPAD 4

Enter Timecode digit 4

KEYPAD 5

Enter Timecode digit 5

KEYPAD 6

Enter Timecode digit 6

KEYPAD 7

Enter Timecode digit 7

KEYPAD 8

Enter Timecode digit 8

KEYPAD 9

Enter Timecode digit 9

Eclipse Ethernet Software

Room/Button

SHIFT BUTTON Up

SHIFT BUTTON Down

KEYPAD SIGN

Toggle Sign

KEYPAD ENTER

Enter

KEYPAD LOCATE

Locate

KEYPAD SET LOCATE

Set Locate

KEYPAD CANCEL

Clear Cancel

KEYPAD LAST

Last

REWIND

Previous Edit

FFWD

Next Edit

STOP

Stop Playback

PLAY

Start Playback Forward

Start Playback Reverse

LEFT PAGE 1

Encoder Page 1

LEFT PAGE 2

Encoder Page 2

LEFT PAGE 3

Encoder Page 3

LEFT PAGE 4

Encoder Page 4

LEFT PAGE 5

Encoder Page 5

LEFT PAGE 6

Encoder Page 6

LEFT PAGE 7

Encoder Page 7

LEFT PAGE 8

SHIFT

Primary In

Change Key Frame F2

Add Key Frame

F3Delete Key Frame

F7Reset Grade

W1Set Player Marker In

Parade Waveform

Set Player Marker Out

Overlay Waveform

Red Channel Waveform

Eclipse Ethernet Software

Room/Button

SHIFT BUTTON Up

SHIFT BUTTON Down

Green Channel Waveform

Add Key Frame

Blue Channel Waveform

Delete Key Frame

Luma Y Waveform

Change Key Frame

Histogram Waveform

Toggle Turbo/Normal Mode

Set Scope Resolution 100%

Set Scope Resolution 75%

Toggle Grading

Set Scope Resolution 50%

Set Scope Resolution 25%

SHIFT

LEFT

Inch Playback Reverse RIGHT

Inch Playback Forward UP

To Project Start

DOWN

To Project End

BANK 1

Switch/Copy/Paste Grade 1

BANK 2

Switch/Copy/Paste Grade 2

BANK 3

Switch/Copy/Paste Grade 3

BANK 4

Switch/Copy/Paste Grade 4

ASSIGN

Set As Beauty Grade

RIGHT PAGE 1

Setup

Basic

RIGHT PAGE 2

Primary In

Advanced

RIGHT PAGE 3

Secondaries

RED (if REDCODE plugin is installed)

RIGHT PAGE 4

Color FX RIGHT PAGE 5

Primary Out RIGHT PAGE 6

Geometry RIGHT PAGE 7

Still Store RIGHT PAGE 8

Render Queue

Eclipse Ethernet Software

Room/Button

SHIFT BUTTON Up

SHIFT BUTTON Down

KEYPAD 0

Enter Timecode digit 0

KEYPAD 1

Enter Timecode digit 1

KEYPAD 2

Enter Timecode digit 2

KEYPAD 3

Enter Timecode digit 3

KEYPAD 4

Enter Timecode digit 4

KEYPAD 5

Enter Timecode digit 5

KEYPAD 6

Enter Timecode digit 6

KEYPAD 7

Enter Timecode digit 7

KEYPAD 8

Enter Timecode digit 8

KEYPAD 9

Enter Timecode digit 9

KEYPAD SIGN

Toggle Sign

KEYPAD ENTER

Enter

KEYPAD LOCATE

Locate

KEYPAD SET LOCATE

Set Locate

KEYPAD CANCEL

Clear Cancel

KEYPAD LAST

Last

REWIND

Previous Edit

FFWD

Next Edit

STOP

Stop Playback

PLAY

Start Playback Forward

Start Playback Reverse

LEFT PAGE 1

Encoder Page 1

LEFT PAGE 2

Encoder Page 2

LEFT PAGE 3

Encoder Page 3

LEFT PAGE 4

Encoder Page 4

LEFT PAGE 5

Encoder Page 5

LEFT PAGE 6

Encoder Page 6

LEFT PAGE 7

Encoder Page 7

Eclipse Ethernet Software

Room/Button

SHIFT BUTTON Up

SHIFT BUTTON Down

LEFT PAGE 8

SHIFT

Reset Shadow

Reset Encoder 2

Reset Shadow Luminance

Reset Encoder 1

Reset Midtone

Reset Encoder 4

Reset Midtone Luminance

Reset Encoder 3

Reset Highlight

Reset Encoder 6

Reset Highlight Luminance

Reset Encoder 5

Reset 1

Reset Encoder 1

Reset 2

Reset Encoder 2

Reset 3

Reset Encoder 3

Reset 4

Reset Encoder 4

Reset 5

Reset Encoder 5

Reset 6

Reset Encoder 6

Secondaries

Change Key Frame

Basic

Add Key Frame

Advanced

Delete Key Frame

Preview Tab

Toggle Secondary

Hue Tab

Toggle Secondary Vignette

Saturation Tab

Toggle Secondary In/Out

Luminance Tab

Reset Grade

Reset All Secondaries (Requires Eclipse 2.x Software)

Set Player Marker In

Parade Waveform

Set Player Marker Out

Overlay Waveform

Red Channel Waveform

Green Channel Waveform

Eclipse Ethernet Software

Room/Button

SHIFT BUTTON Up

SHIFT BUTTON Down

Add Key Frame

Blue Channel Waveform

Delete Key Frame

Luma Y Waveform

Change Key Frame

Histogram Waveform

Toggle Turbo/Normal Mode

Set Scope Resolution 100%

Set Scope Resolution 75%

Toggle Grading

Set Scope Resolution 50%

Set Scope Resolution 25%

SHIFT

LEFT

Inch Playback Reverse RIGHT

Inch Playback Forward UP

To Project Start

DOWN

To Project End

BANK 1

Switch/Copy/Paste Grade 1

BANK 2

Switch/Copy/Paste Grade 2

BANK 3

Switch/Copy/Paste Grade 3

BANK 4

Switch/Copy/Paste Grade 4

ASSIGN

Set As Beauty Grade

RIGHT PAGE 1

Setup

Secondary 1

RIGHT PAGE 2

Primary In

Secondary 2

RIGHT PAGE 3

Secondaries

Secondary 3

RIGHT PAGE 4

Color FX

Secondary 4

RIGHT PAGE 5

Primary Out

Secondary 5

RIGHT PAGE 6

Geometry

Secondary 6

RIGHT PAGE 7

Still Store

Secondary 7

RIGHT PAGE 8

Render Queue

Secondary 8

KEYPAD 0

Enter Timecode digit 0

KEYPAD 1

Enter Timecode digit 1

Eclipse Ethernet Software

Room/Button

SHIFT BUTTON Up

SHIFT BUTTON Down

KEYPAD 2

Enter Timecode digit 2

KEYPAD 3

Enter Timecode digit 3

KEYPAD 4

Enter Timecode digit 4

KEYPAD 5

Enter Timecode digit 5

KEYPAD 6

Enter Timecode digit 6

KEYPAD 7

Enter Timecode digit 7

KEYPAD 8

Enter Timecode digit 8

KEYPAD 9

Enter Timecode digit 9

KEYPAD SIGN

Toggle Sign

KEYPAD ENTER

Enter

KEYPAD LOCATE

Locate

KEYPAD SET LOCATE

Set Locate

KEYPAD CANCEL

Clear Cancel

KEYPAD LAST

Last

REWIND

Previous Edit

FFWD

Next Edit

STOP

Stop Playback

PLAY

Start Playback Forward

Start Playback Reverse

LEFT PAGE 1

Encoder Page 1

LEFT PAGE 2

Encoder Page 2

LEFT PAGE 3

Encoder Page 3

LEFT PAGE 4

Encoder Page 4

LEFT PAGE 5

Encoder Page 5

LEFT PAGE 6

Encoder Page 6

LEFT PAGE 7

Encoder Page 7

LEFT PAGE 8

SHIFT

Reset Shadow

Reset Encoder 2

Eclipse Ethernet Software

Room/Button

SHIFT BUTTON Up

SHIFT BUTTON Down

Reset Shadow Luminance

Reset Encoder 1

Reset Midtone

Reset Encoder 4

Reset Midtone Luminance

Reset Encoder 3

Reset Highlight

Reset Encoder 6

Reset Highlight Luminance

Reset Encoder 5

Reset 1

Reset Encoder 1

Reset 2

Reset Encoder 2

Reset 3

Reset Encoder 3

Reset 4

Reset Encoder 4

Reset 5

Reset Encoder 5

Reset 6

Reset Encoder 6

Color FX

Change Key Frame F2

Add Key Frame

F3Delete Key Frame W1

Set Player Marker In

Parade Waveform

Set Player Marker Out

Overlay Waveform

Red Channel Waveform

Green Channel Waveform

Add Key Frame

Blue Channel Waveform

Delete Key Frame

Luma Y Waveform

Change Key Frame

Histogram Waveform

Set Scope Resolution 100%

Set Scope Resolution 75%

Toggle Grading

Set Scope Resolution 50%

Set Scope Resolution 25%

Eclipse Ethernet Software

Room/Button

SHIFT BUTTON Up

SHIFT BUTTON Down

SHIFT

LEFT

Inch Playback Reverse RIGHT

Inch Playback Forward UP

To Project Start

DOWN

To Project End

BANK 1

Switch/Copy/Paste Grade 1

BANK 2

Switch/Copy/Paste Grade 2

BANK 3

Switch/Copy/Paste Grade 3

BANK 4

Switch/Copy/Paste Grade 4

ASSIGN

Set As Beauty Grade

RIGHT PAGE 1

Setup

Parameters

RIGHT PAGE 2

Primary In

Color FX Bin

RIGHT PAGE 3

Secondaries RIGHT PAGE 4

Color FX RIGHT PAGE 5

Primary Out RIGHT PAGE 6

Geometry RIGHT PAGE 7

Still Store RIGHT PAGE 8

Render Queue KEYPAD 0

Enter Timecode digit 0

KEYPAD 1

Enter Timecode digit 1

KEYPAD 2

Enter Timecode digit 2

KEYPAD 3

Enter Timecode digit 3

KEYPAD 4

Enter Timecode digit 4

KEYPAD 5

Enter Timecode digit 5

KEYPAD 6

Enter Timecode digit 6

KEYPAD 7

Enter Timecode digit 7

KEYPAD 8

Enter Timecode digit 8

Eclipse Ethernet Software

Room/Button

SHIFT BUTTON Up

SHIFT BUTTON Down

KEYPAD 9

Enter Timecode digit 9

KEYPAD SIGN

Toggle Sign

KEYPAD ENTER

Enter

KEYPAD LOCATE

Locate

KEYPAD SET LOCATE

Set Locate

KEYPAD CANCEL

Clear Cancel

KEYPAD LAST

Last

REWIND

Previous Edit

FFWD

Next Edit

STOP

Stop Playback

PLAY

Start Playback Forward

Start Playback Reverse

LEFT PAGE 1

Encoder Page 1

LEFT PAGE 2

Encoder Page 2

LEFT PAGE 3

Encoder Page 3

LEFT PAGE 4

Encoder Page 4

LEFT PAGE 5

Encoder Page 5

LEFT PAGE 6

Encoder Page 6

LEFT PAGE 7

Encoder Page 7

LEFT PAGE 8

SHIFT

Reset Encoder 2

Reset Encoder 1

Reset Encoder 4

Reset Encoder 3

Reset Encoder 6

Reset Encoder 5

Reset 1

Reset Encoder 1

Reset 2

Reset Encoder 2

Eclipse Ethernet Software

JLCooper Eclipse Ethernet 2.6 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
