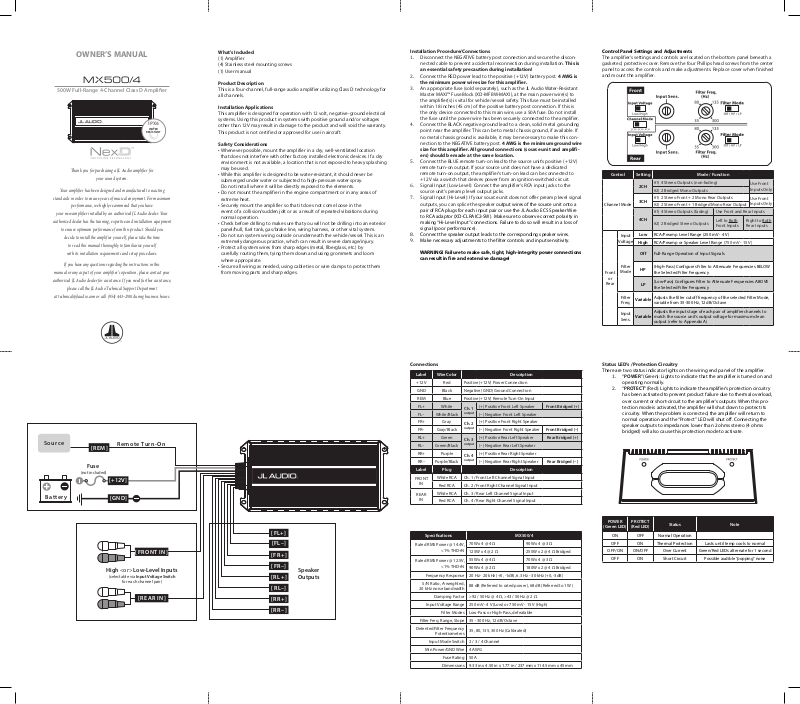

JL Audio MX500/4 User Manual

OWNER’S MANUAL

500W Full-Range 4-Channel Class D Amplier

IPX6

WATE R

RESISTANT

Thank you for purchasing a JL Audio amplifier for

your sound system.

Your amplifier has been designed and manufactured to exacting

standards in order to ensure years of musical enjoyment. For maximum

performance, we highly recommend that you have

your new amplifier installed by an authorized JL Audio dealer. Your

authorized dealer has the training, expertise and installation equipment

to ensure optimum performance from this product. Should you

decide to install the amplifier yourself, please take the time

to read this manual thoroughly to familiarize yourself

with its installation requirements and setup procedures.

If you have any questions regarding the instructions in this

manual or any aspect of your amplifier’s operation, please contact your

authorized JL Audio dealer for assistance. If you need further assistance,

please call the JL Audio Technical Support Department

at technical@jlaudio.com or call (954) 443–1100 during business hours.

What’s Included

(1) Amplifier (4) Stainless steel mounting screws (1) User manual

Product Description

This is a four-channel, full-range audio amplifier utilizing Class D technology for all channels.

Installation Applications

This amplifier is designed for operation with 12 volt, negative-ground electrical systems. Using this product in systems with positive ground and/or voltages other than 12V may result in damage to the product and will void the warranty. This product is not certified or approved for use in aircraft.

Safety Considerations

• Whenever possible, mount the amplifier in a dry, well-ventilated location that does not interfere with other factory installed electronic devices. If a dry environment is not available, a location that is not exposed to heavy splashing may be used.

• While this amplifier is designed to be water-resistant, it should never be submerged under water or subjected to high-pressure water spray. Do not install where it will be directly exposed to the elements.

• Do not mount the amplifier in the engine compartment or in any areas of extreme heat.

• Securely mount the amplifier so that it does not come loose in the event of a collision/sudden jolt or as a result of repeated vibrations during normal operation.

• Check before drilling to make sure that you will not be drilling into an exterior panel/hull, fuel tank, gas/brake line, wiring harness, or other vital system.

• Do not run system wiring outside or underneath the vehicle/vessel. This is an extremely dangerous practice, which can result in severe damage/injury.

• Protect all system wires from sharp edges (metal, fiberglass, etc.) by carefully routing them, tying them down and using grommets and loom where appropriate.

• Secure all wiring as needed, using cable ties or wire clamps to protect them from moving parts and sharp edges.

Installation Procedure/Connections

1. Disconnect the NEGATIVE battery post connection and secure the disconnected cable to prevent accidental reconnection during installation. This is

an essential safety precaution during installation!

2. Connect the RED power lead to the positive (+12V) battery post. 4 AWG is the minimum power wire size for this amplifier.

3. An appropriate fuse (sold separately), such as the JL Audio Water-Resistant Master MAXI™ Fuse Block (XD-MFBW-MAXI), at the main power wire(s) to the amplifier(s) is vital for vehicle/vessel safety. This fuse must be installed within 18 inches (45 cm) of the positive battery post connection. If this is the only device connected to this main wire, use a 50A fuse. Do not install the fuse until the power wire has been securely connected to the amplifier.

4. Connect the BLACK negative ground lead to a clean, solid metal grounding point near the amplifier. This can be to metal chassis ground, if available. If no metal chassis ground is available, it may be necessary to make this connection to the NEGATIVE battery post. 4 AWG is the minimum ground wire

size for this amplifier. All ground connections (source unit and amplifiers) should be made at the same location.

5. Connect the BLUE remote turn-on lead to the source unit’s positive (+12V) remote turn-on output. If your source unit does not have a dedicated remote turn-on output, the amplifier’s turn-on lead can be connected to +12V via a switch that derives power from an ignition-switched circuit.

6. Signal Input (Low-Level): Connect the amplifier’s RCA input jacks to the source unit’s preamp level output jacks.

7. Signal Input (Hi-Level): If your source unit does not offer preamp level signal outputs, you can splice the speaker output wires of the source unit onto a

pair of RCA plugs for each input pair or use the JL Audio ECS Speaker Wire to RCA adaptor (XD-CLRAIC2-SW). Make sure to observe correct polarity in making “Hi-Level Input” connections. Failure to do so will result in a loss of signal (poor performance).

8. Connect the speaker output leads to the corresponding speaker wires.

9. Make necessary adjustments to the filter controls and input sensitivity.

WARNING! Failure to make safe, tight, high-integrity power connections

can result in fire and extensive damage!

Control Panel Settings and Adjustments

The amplifier’s settings and controls are located on the bottom panel beneath a gasketed, protective cover. Remove the four Phillips head screws from the center panel to access the controls and make adjustments. Replace cover when finished and mount the amplifier.

Control Setting Mode / Function

Channel Mode

Input

Voltage

Filter

Mode

Front

Rear

Filter Freq.

Input

Sens.

#1) 4 Stereo Outputs (non-fading)

2CH

#2) 2 Bridged Mono Outputs

#1) 2 Stereo Front + 2 Mono Rear Outputs

3CH

#2) 2 Stereo Front + 1 Bridged Mono Rear Output

#1) 4 Stereo Outputs (fading) Use Front and Rear Inputs

4CH

#2) 2 Bridged Stereo Outputs

Low RCA/Preamp Level Range (250 mV - 4 V)

High RCA/Preamp or Speaker Level Range (750 mV - 15 V)

Off Full-Range Operation of Input Signals

(High-Pass) Configures Filter to Attenuate Frequencies BELOW

the Selected Filter Frequency

(Low-Pass) Configures Filter to Attenuate Frequencies ABOVE

the Selected Filter Frequency

Variable

Adjusts the filter cutoff frequency of the selected Filter Mode, variable from 35-300 Hz, 12 dB/Octave

Adjusts the input stage of each pair of amplifier channels to match the source unit’s output voltage for maximum clean output (refer to Appendix A)

Left to Both Front Inputs

Use Front Inputs Only

Right to Both Rear Inputs

Source

Battery

[REM]

Fuse

(not included)

Remote Turn-On

[+12V]

[GND]

[FL+]

[FL–]

[FRONT IN]

High <or> Low-Level Inputs Speaker

(selectable via Input Voltage Switch

for each channel pair)

[FR+]

[FR–]

[RL+]

Outputs

[RL–]

[REAR IN]

[RR+]

[RR–]

Connections

Label Wire Color Description

+12V Red Positive (+12V) Power Connection

GND Black Negative (GND) Ground Connection

REM Blue Positive (+12V) Remote Turn-On Input

FL+ White

FL– White/Black (–) Negative Front Left Speaker

FR+ Gray

FR– Gray/Black (–) Negative Front Right Speaker Front Bridged (–)

RL+ Green

RL– Green/Black (–) Negative Rear Left Speaker

RR+ Purple

RR– Purple/Black (–) Negative Rear Right Speaker Rear Bridged (–)

Label Plug Description

FRONT

REAR

Rated RMS Power @ 14.4V,

Rated RMS Power @ 12.5V,

20 kHz noise bandwidth

Filter Freq. Range, Slope 35 - 300 Hz, 12 dB/Octave

Detented Filter Frequency

White RCA Ch. 1 / Front Left Channel Signal Input

Red RCA Ch. 2 / Front Right Channel Signal Input

White RCA Ch. 3 / Rear Left Channel Signal Input

Red RCA Ch. 4 / Rear Right Channel Signal Input

Specications MX500/4

<1% THD+N

Frequency Response 20 Hz - 20 kHz (+0, -1dB), 6.3 Hz - 30 kHz (+0, -3dB)

S/N Ratio, A-weighted,

Damping Factor >92 / 50 Hz @ 4 Ω, >43 / 50 Hz @ 2 Ω

Input Voltage Range 250 mV - 4 V (Low) or 750 mV - 15 V (High)

Filter Modes Low-Pass or High-Pass, defeatable

Potentiometers

Input Mode Switch 2 / 3 / 4 Channel

Min Power/GND Wire 4 AWG

Fuse Rating 50A

Dimensions 9.33 in x 4.50 in x 1.77 in / 237 mm x 114.5 mm x 45 mm

(+) Positive Front Left Speaker Front Bridged (+)

Ch. 1

output

(+) Positive Front Right Speaker

Ch. 2

output

(+) Positive Rear Left Speaker Rear Bridged (+)

Ch. 3

output

(+) Positive Rear Right Speaker

Ch. 4

output

70W x 4 @ 4 Ω 90W x 4 @ 3 Ω

125W x 4 @ 2 Ω 250W x 2 @ 4 Ω Bridged

55W x 4 @ 4 Ω 70W x 4 @ 3 Ω

90W x 4 @ 2 Ω 180W x 2 @ 4 Ω Bridged

88 dB (Referred to rated power), 68 dB (Referred to 1 W)

35, 80, 135, 300 Hz (Calibrated)

Status LED’s / Protection Circuitry

There are two status indicator lights on the wiring end panel of the amplifier.

1. “POWER” (Green): Lights to indicate that the amplifier is turned on and

operating normally.

2. “PROTECT” (Red): Lights to indicate the amplifier’s protection circuitry

has been activated to prevent product failure due to thermal overload, over current or short-circuit to the amplifier’s outputs. When this protection mode is activated, the amplifier will shut down to protect its circuitry. When the problem is corrected, the amplifier will return to normal operation and the “Protect” LED will shut off. Connecting the speaker outputs to impedances lower than 2 ohms stereo (4 ohms bridged) will also cause this protection mode to activate.

POWER

(Green LED)

ON OFF Normal Operation

OFF ON Thermal Protection Lasts until temp cools to normal

OFF/ON ON/OFF Over Current Green/Red LEDs alternate for 1 second

OFF ON Short Circuit Possible audible “popping” noise

PROTECT

(Red LED)

Status Note



4 Stereo Outputs (non-fading)

Channel Mode: 2CH Inputs: Use Front Inputs Only RMS Power: 70W x 4 @ 4 Ω (125W x 4 @ 2 Ω)

4 Stereo Outputs (fading)

Channel Mode: 4CH Inputs: Use Front and Rear Inputs RMS Power: 70W x 4 @ 4 Ω (125W x 4 @ 2 Ω)

2 Bridged Mono Outputs

Channel Mode: 2CH Inputs: Use Front Inputs Only

RMS Power: 250W x 2 @ 4 Ω

Amplifier Inputs Speaker Outputs

White

White/Black

[FRONT IN]

Gray

Gray/Black

Front

Green

Source

Rear

(Not Used)

[REAR IN]

Green

Green/Black

Purple

Purple/Black

Amplifier Inputs Speaker Outputs

White

White/Black

[FRONT IN]

Gray

Gray/Black

Front

Green

Source

Rear

[REAR IN]

Green

Green/Black

Purple

Purple/Black

Amplifier Inputs Speaker Outputs

White

White/Black

Source

Front

Rear

(Not Used)

[FRONT IN]

[REAR IN]

Gray

Gray/Black

Green

Green/Black

Purple

Purple/Black

[FL+]

[FL–]

[FR+]

[FR–]

[RL+]

[RL–]

[RR+]

[RR–]

[FL+]

[FL–]

[FR+]

[FR–]

[RL+]

[RL–]

[RR+]

[RR–]

[FL+]

[FL–]

[FR+]

[FR–]

[RL+]

[RL–]

[RR+]

[RR–]

ENGLISH ESPAÑOL FRANCAIS DEUTSCH FL+ White Blanco Blanc Weiß FL– White/Black Blanco/Negro Blanc/Noir Weiß/Schwarz FR+ Gray Gris Gris Grau FR– Gray/Black Gris/Negro Gris/Noir Grau/Schwarz RL+ Green Verde Vert Grün RL– Green/Black Verde/Negro Vert/Noir Grün/Schwarz RR+ Purple Púrpura Violet Lila RR– Purple/Black Púrpura/Negro Violet/Noir Lila/Schwarz

Appendix A: Input Sensitivity Level Setting

Following the directions below will allow the installer to adjust the input sensitivity of each amplifier channel pair in just a few minutes using equipment commonly available in installation bays.

Necessary Equipment

• Digital AC Voltmeter

• CD or file with a sine-wave test tone recorded at 0 dB reference level in the frequency range to be amplified for that set of channels (50 Hz for subwoofer channels, 1 kHz for a midrange application). Do not use attenuated test tones (-10 dB, -20 dB, etc.).

The Nine-Step Procedure

1) Disconnect the speakers from the amplifier’s speaker output connectors (you need only disconnect one speaker wire).

2) Turn off all processing (bass/treble, loudness, EQ, etc.) on the source unit, processors (if used) and amplifier. Set the source unit’s fader control to center position and its subwoofer level control to 3/4 of maximum.

3) Turn the “Input Sens.” control all the way down.

4) Set the source unit volume to 3/4 of full volume. This will allow for

reasonable gain overlap with moderate clipping at full volume.

5) Using the chart on this page, determine the target voltage for input sensitivity adjustment according to the nominal impedance of the speaker system connected to the amplifier outputs.

6) Verify that you have disconnected the speakers before proceeding. Play a track with an appropriate sine wave (within the frequency range to be amplified) at 3/4 source unit volume.

7) Connect the AC voltmeter to the speaker output connectors of the amplifier. Make sure you test the voltage at the correct connectors (+ and –).

8) Increase the “Input Sens.” control until the target voltage is observed with the voltmeter.

9) Once you have adjusted the amplifier to its maximum low-distortion output level, reconnect the speaker(s) and listen to the system. The “Input Sens.” controls can now be adjusted downward if the amplifier requires attenuation to achieve the desired system balance.

Troubleshooting

Problem Possible Cause Solution

How to properly set input sensitivity

Amplifier doesn’t turn on

Intermittent output, fluctuates when I tap on it or hit a bump

Distorted, attenuated, or popping sound

Output shuts off after a while



Faulty fuse

Poor connection integrity

Insufficient “Remote” input

Poor connection integrity

Faulty speaker connection (Short Circuit / Over Current Protection)

Overheating condition (Thermal Protection)

Please refer to Appendix A to set the input sensitivity for maximum, lowdistortion output.

Remove fuse and check with continuity meter. Replace if necessary.

Check “+12V”, “Ground”, and “Remote” leads for pinched wires; ensure tight connections.

Make sure there is a sufficient +12V supply at the “Remote” connection; if not a relay may be required.

Make sure insulation has been properly stripped back at connection points for good contact area.

Make sure input connectors are making good contact with input jacks of the amplifier.

Inspect speaker wires for possible short-circuit, either together or shorted to the vehicle’s chassis ground.

Check the nominal load impedance at the amplifier is equal to or greater than 2 ohms stereo (4 ohms bridged).

Make sure amplifier mounting area has adequate space for ventilation and heat dissipation.

2 Bridged Stereo Outputs

Channel Mode: 4CH Inputs: Left Signal to Both Front Inputs / Right Signal to Both Rear Inputs RMS Power: 250W x 2 @ 4 Ω

2 Stereo Front + 2 Mono Rear Outputs

Channel Mode: 3CH Inputs: Use Front Inputs Only RMS Power: 70W x 4 @ 4 Ω (125W x 4 @ 2 Ω)

Amplifier Inputs Speaker Outputs

White

White/Black

Y-Adaptor

[FRONT IN]

White/Black

Gray

Gray/Black

Front

Green

Source

Y-Adaptor

[REAR IN]

Green

Green/Black

Purple

Purple/Black

Amplifier Inputs Speaker Outputs

White

White/Black

Source

Front

Rear

(Not Used)

[FRONT IN]

[REAR IN]

Gray

Gray/Black

Green

Green/Black

Purple

Purple/Black

[FL+]

[FL–]

[FR+]

[FR–]

[RL+]

[RL–]

[RR+]

[RR–]

[FL+]

[FL–]

[FR+]

[FR–]

[RL+]

[RL–]

[RR+]

[RR–]

MX500/4

Nom. Impedance Target AC Voltage

4Ω 16.7 V

2Ω 15.8 V

Bridged to 4Ω 31.6 V

Do not increase any “Input Sens.” setting for any amplifier channel or channel pair in the system beyond the maximum level established during this procedure. Doing so will result in audible distortion and possible speaker damage.

It will be necessary to re-adjust the “Input Sens.” for the affected channels if any equalizer boost is activated after setting the “Input Sens.” with this procedure. This applies to any EQ boost circuit, including source unit tone controls or EQ circuits. EQ cuts will not require re-adjustment.

Limited Warranty – Amplifiers (USA)

JL Audio warrants this product to be free of defects in materials and workmanship for a period of two (2) years from the original date of purchase. This warranty is not transferrable and applies only to the original purchaser from an authorized JL Audio dealer. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, JL Audio will (at its discretion), repair or replace the defective product with new or remanufactured product at no charge. Damage caused by the following is not covered under warranty: accident, misuse, abuse, product modification or neglect, failure to follow installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty.

Warranty is void if the product’s serial number has been removed or defaced.

Any applicable implied warranties are limited in duration to the period of the express warranty as provided herein beginning with the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to this product thereafter. Some states do not allow limitations on implied warranties, therefore these exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.

If you need service on your JL AUDIO product:

All warranty returns should be sent to JL Audio ’s Amplifier Service Facility freight-prepaid through an authorized JL Audio dealer and must be accompanied by proof of purchase (a copy of the original sales receipt). Direct returns from consumers or non-authorized dealers will be refused unless specifically authorized by JL Audio with a valid return authorization number. Warranty expiration on products returned without proof of purchase will be determined from the manufacturing date code. Coverage may be invalidated as this date is previous to purchase date. Non-defective items received will be returned freight-collect. Customer is responsible for shipping charges and insurance in sending the product to JL Audio. Freight damage on returns is not covered under warranty.

2 Stereo Front + 1 Bridged Mono Rear Output

Channel Mode: 3CH Inputs: Use Front Inputs Only RMS Power: 70W x 2 @ 4 Ω (125W x 2 @ 2 Ω) +

250W x 1 @ 4 Ω

Amplifier Inputs Speaker Outputs

White

White/Black

Source

Front

Rear

(Not Used)

[FRONT IN]

[REAR IN]

Gray

Gray/Black

Green

Green/Black

Purple

Purple/Black

[FL+]

[FL–]

[FR+]

[FR–]

[RL+]

[RL–]

[RR+]

[RR–]

For Service Information in the U.S.A. please call

JL Audio Customer Service:

(9 5 4) 4 43-11 0 0

9:00 AM – 5:30 PM (Eastern Time Zone)

JL Audio, Inc.

10369 North Commerce Pkwy.

Miramar, FL 33025

(Do not send product for repair to this address)

International Warranties:

Products purchased outside the United States of America are covered only

by that country’s distributor and not by JL Audio, Inc.
