OWNER’S MANUAL
M10IB5 / M10W5
Marine Subwoofer
Thank you for choosing a JL Audio Marine Subwoofer.
With proper installation, your new speaker
will deliver years of listening pleasure.
We strongly recommend that you have your subwoofer installed
by your authorized JL Audio dealer. The installation
professionals employed by your dealer have the necessary tools and experience to
properly install this product. If you prefer to perform
your own installation, please read this instruction manual
completely before beginning the process.
A
C
B
E
D
PHYSICAL SPECIFICATIONS
Subwoofer Physical Specifications
Nominal Diameter: 10 in. / 250 mm
Overall Diameter (A): 10.75 in. / 273 mm
Mounting Hole Diameter (B): 8.875 in. / 225 mm
Bolt Hole Circle (C): 9.706 in. / 247 mm
Motor Overmold Outer Diameter (D): 6.11 in. / 155 mm
Mounting Depth (E): 5.93 in. / 151 mm
Net Weight: 11.4 lbs. / 5.17 Kg
Driver Displacement: 0.064 ft / 1.81 litres
Subwoofer Parameters M10IB5 M10W5
Free Air Resonance (Fs): 42.20 Hz 31.55 Hz
Electrical “Q” (Qes): 0.819 0.484
Mechanical “Q” (Qms): 10.355 8.946
Total Speaker “Q” (Qts): 0.759 0.460
Equivalent Compliance (Vas): 1.16 ft3 / 32.85 litres 1.58 ft3 / 44.75 litres
One-way, Linear Excursion (Xmax)*: 0.52 in. / 13.2 mm 0.52 in. / 13.2 mm
Efficiency (1W/1m)**: 86.8 dB SPL 86.7 dB SPL
Effective Piston Area (Sd): 50.11 in² / 0.0323 m² 50.11 in² / 0.0323 m²
DC Resistance (Re): 4.167 ohm 3.602 ohm
Nominal Impedance: 4 ohm 4 ohm
Infinite Baffle Use: Yes No
Enclosure Use: Yes (Sealed Only) Yes (Sealed and Ported)
Power Handling (continuous): 250W 250W
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1W/1m) is not an accurate indicator of a subwoofer’s output capability and should not be used
as a comparison to other subwoofers to determine which one is “louder” !
We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and amplifiers.
We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely
affect performance.
INCLUDED PARTS
• One Polymer Subwoofer Grille
• Six #10 x 1 5/8-inch (41 mm) pan-head
stainless-steel screws
• Six #10 stainless-steel washers
• Logo Badges (Sport-Grille Models Only)
One Pair Black (White & Titanium/Black Models)
One Pair Red (White & Titanium/Black Models)
One Pair White (White Models Only)
One Pair Titanium (Titanium/Black Models Only)
INSTALLATION PROCEDURE
The diagram above shows the typical
installation procedure into a fiberglass panel using
the supplied hardware (Classic Grille Model shown.
Installation is the same for Sport Grille Models).
Always follow proper safety procedures when
working on a vessel. Use eye-protection at all times
and a dust mask and gloves when cutting.
1) Choose a flat mounting surface that has
sufficient
depth and air space behind it to accept
the subwoofer.
2) Cut a 8.875-inch (225 mm) diameter hole.
3) Run the speaker cable to the mounting location.
4) Place the woofer in the hole and mark the screw
hole locations using a sharp, pointed tool.
5) Remove the woofer and drill a pilot hole
(see chart on next page) in each of the screw
locations. It is also advisable to use a hand-driven
countersink tool on each hole to further inhibit
gel-coat cracking of fiberglass panels.
6) Connect the speaker wires and place the woofer,
with its grille in place, into the opening (for Sport
Grille models, pay attention to where the logo
badge will added.
7) While holding the speaker firmly in its mounting
location, evenly snug the mounting screws in a
criss-cross pattern, then hand tighten in a criss-
cross pattern.
Non-standard installations may require different
hardware. Always use marine-grade, stainless-steel
fasteners to ensure a secure, reliable installation.
2 JL AUDIO M10 IB 5 / M10 W5
All specifications are subject to change without notice.
#10 SCREW: PILOT HOLE RECOMMENDATIONS
!!
While this speaker is designed to be water and
spray resistant, it is not designed to be submerged
or to withstand high-pressure water spray.
Please exercise care when washing your boat to
avoid damaging your speaker. Do not install on
submersibles, personal watercraft or any other
vessel likely to be under water at any time.
Prolonged exposure to sound pressure levels in
excess of 100dB can cause permanent hearing loss.
This high-performance speaker can exceed this
level. Please exercise restraint in its operation in
order to preserve your ability to enjoy its fidelity.
When installing a subwoofer in your vessel, it is
extremely important to secure it firmly. This applies
not only to the woofer itself, but also the structure
it is mounted to. If not firmly attached, the speaker
can become a dangerous projectile in a collision.
Please review the mounting information carefully
and use the supplied marine-grade hardware to
mount this product.
CAUTION
!!
Fiberglass Thickness Recommended Pilot Hole Drill Size
0.125 in. (3.18 mm) or less 1/8 in. (3.18 mm) pilot hole
foam core / fiberglass sandwich 1/8 in. (3.18 mm) pilot hole
larger than 0.125 in. (3.18 mm) 9/64 in. (3.57 mm) pilot hole
INTERCHANGEABLE LOGO BADGE
(Sport-Grille Models Only)
Interchangeable Logo Badges for Sport Grille
model subwoofers are included to further customize
your installation. The design of the Sport Grille allows
for the JL Audio logo to be added in your choice of
included colors and oriented in the manner that best
suits your installation.
NOTE: A left and a right badge of each color is
included. These two different orientations ensure
the “JL Audio” Logo will read correctly wherever
positioned (most commonly the 3:00 or 9:00
position).
Remove the adhesive backing from the badge
and affix the badge to the grille using the small
positioning hole as a guide. See diagram at right.
3:00 Position
9:00 Position

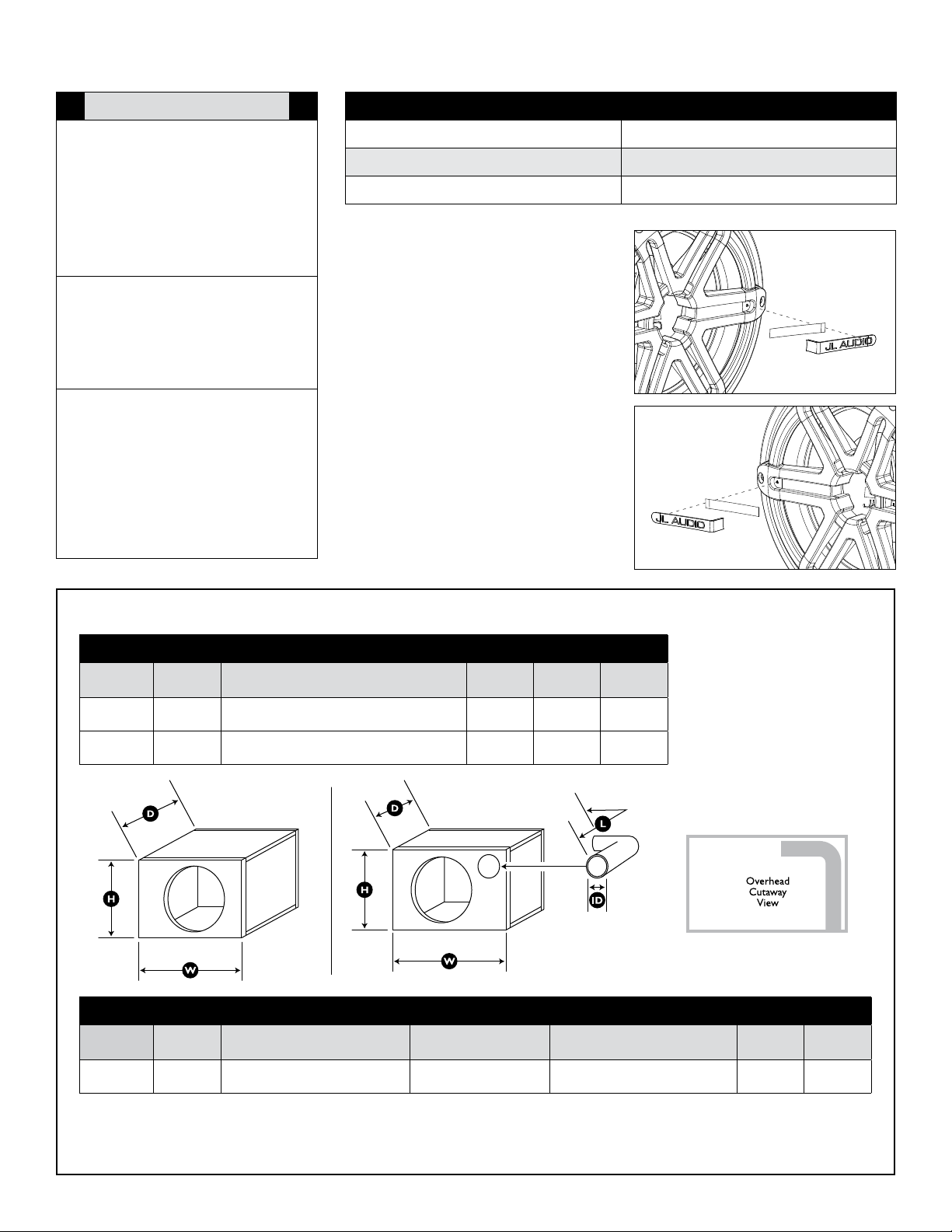

ENCLOSURE SPECIFICATIONS
Subwoofer Recommended Sealed Design
M10W5
M10IB5
Volume
(net int.)
0.875 ft³
24.8 litres
2.50 ft³
70.8 litres
External Dimensions
(Width x Height x Depth)
14 in. x 14 in. x 12 in.
356 mm x 356 mm x 305 mm
18 in. x 18 in. x 17.75 in.
457 mm x 457 mm x 451 mm
F3
(Hz)
Fc
(Hz)
49 52.85 .770
42 51.06 .918
Qtc
Sealed Design Ported Design
NOTE: The M10IB5 Marine Subwoofer is not
recommended for use in Ported Enclosures.
Subwoofer Recommended Ported Design
Volume
(net int.)
M10W5
The enclosure recommendations listed are external dimensions which assume the use of 3/4” (19mm) thick material. If you are using 5/8” (16mm) thick material, subtract 1/4”
(6.5mm) from each dimension. Do not use any material with a thickness of less than 5/8” (16mm) as this may compromise the rigidity of the enclosure.
All enclosure volumes listed are net internal volumes! Box volume displacement, port displacement and brace displacement must be added to obtain the final gross internal
volume. All enclosure dimensions listed have already taken this into account.
1.250 ft³
35.4 litres
Enclosure External Dimensions
(Width x Height x Depth)
16.5 in. x 13.5 in. x 14 in.
419 mm x 343 mm x 356 mm
Round Port Specs
(Inner Diameter x Length)
3 in. x 13 in.
76 mm x 330 mm
Port Information
Round port requires a 90˚ elbow
to fit in the specified enclosure
Tune to:
(Hz)
32 34
F3
(Hz)
JL AUDIO M10 IB 5 / M10 W5 3
All specifications are subject to change without notice.
RECOMMENDED CONTINUOUS RMS POWER RANGE FOR ONE SUBWOOFER DRIVER:
MEDIU M GRAY MINI MUM:
From a r eliabil ity sta ndpoint , th is z one
represe nts a very comfor table operating power
range f or each dri ver. This level of power wi ll not
stress th e w oofer but will not e xtract all of its
perfo rmance potenti al, either.
Use of l ess tha n the minimu m power level
will not dam age the woofer, but may re sult in
unsatis factory pe rformance.
When designing systems with our drivers, it is very important to achieve a good power match between the subwoofer amplifier and the subwoofer driver's capabilities. The power levels listed in the above
chart represent continuous (RMS) amplifier power per woofer and assume that the user will regularly make full use of that power without drastically overdriving the amplifier(s). Make sure you factor system
impedance and the total number of subwoofers into your calculations. Adhering to these power recommendations will result in systems that are both reliable and enjoyable.
LIGHT GRAY OPTIMU M:
This zone rep resents the best compromise
between long-term reliability, high-output and
low-distortion performance. This power level is
lower than the woofer’s continuous power rating
(as published in its s pecificat ions), bu t you will still
be taking advantage of the woofer’s, low-distortion
performance range without undue risk of failure.
DARK G RAY MAXIMUM:
Slightly more SPL will be gained by pushing the
power into this zone, but typically not more than
2dB, compared to the light gray zone. The subwo ofer
driver is designed to operate safely up to this power
range, but not beyond. Operate with caution.
BLACK WA RRANTY VOID:
We do not recomme nd operating woofe rs at
this level of power. In this z one, there is a ver y
high proba bility that the driv er will fail due to
excessive heat and/or mec hanical stres s.
Subwoofer drivers operated at these levels of
power are NOT covered under warranty.
JL AUDIO LIMITED WARRANTY USA
Marine Subwoofer Components
JL AUDIO warrants this speaker to be free of defects in materials and
workmanship for a period of two (2) years from the original date of purchase.
Damage caused by the following is not covered under warranty: accident,
misuse, abuse, product modification or neglect, failure to follow installation
instructions, unauthorized repair attempts, misrepresentations by the seller. This
warranty does not cover incidental or consequential damages and does not cover
the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident
or normal wear and tear is not covered under warranty.
This warranty is not transferable and applies only to the original
purchaser of the product from an authorized JL AUDIO dealer. Warranty is
voided if the factory-applied product serial number is removed or defaced.
Should service be necessary under this warranty for any reason due to
manufacturing defect or malfunction, JL AUDIO will, at its discretion, repair or
replace the defective product with new or remanufactured product at no charge.
Any applicable implied warranties are limited in duration to the period of
the express warranty as provided herein beginning with the date of the original
purchase at retail, and no warranties, whether express or implied, shall apply to this
product thereafter. Some states do not allow limitations on implied warranties,
therefore these exclusions may not apply to you. This warranty gives you specific
legal rights, and you may also have other rights which vary from state to state.
If you need service on your JL AUDIO product:
All warranty returns should be sent to JL AUDIO freight prepaid through an
authorized JL AUDIO dealer and must be accompanied by proof of purchase
(a copy of the original sales receipt.) Direct returns from consumers or nonauthorized dealers will be refused unless specifically authorized by JL AUDIO with
a valid return authorization number. Warranty expiration on products returned
without proof of purchase will be determined from the manufacturing date code.
Coverage may be invalidated as this date is previous to purchase date. Return only
defective components. Non-defective items received will be returned freightcollect. Customer is responsible for shipping charges and insurance in sending the
product to JL AUDIO. Freight damage on returns is not covered under warranty.
Always include proof of purchase (sales receipt).
JL Audio customer service: (954) 443-1100 during normal business hours (Eastern Time)
For Service Information in the U.S.A. please call:
JL Audio, Inc
10369 North Commerce Parkway, Miramar, FL 33025
International Warranties:
Products purchased outside the United States of America are covered only by that country’s distributor and not by JL Audio, Inc.
Printed in U.S.A. JLM10IB5_M10W5-0308-SKU#011012
