Jlab Audio GO+ User Manual

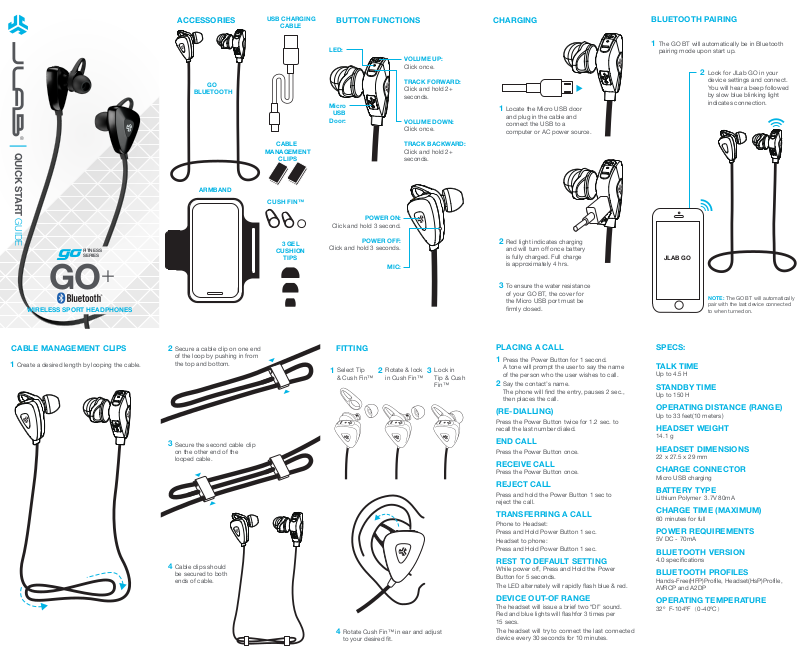

QUICK START GUIDE

ACCESSORIES

GO

BLUETOOTH

ARMBAND

USB CHARGING

CABLE

CABLE

MANAGEMENT

CLIPS

CUSH FIN™

BUTTON FUNCTIONS

LED:

Micro

USB

Door:

VOLUME UP:

Click once.

TRACK FORWARD:

Click and hold 2+
seconds.

VOLUME DOWN:

Click once.

TRACK BACKWARD:

Click and hold 2+
seconds.

CHARGING

1

Locate the Micro USB door
and plug in the cable and
connect the USB to a
computer or AC power source.

BLUETOOTH PAIRING

1

The GO BT will automatically be in Bluetooth
pairing mode upon start up.

2

Look for JLab GO in your
device settings and connect.
You will hear a beep followed
by slow blue blinking light
indicates connection.

FITNESS
SERIES

GO

WIRELESS SPORT HEADPHONES

+

CABLE MANAGEMENT CLIPS

1 Create a desired length by looping the cable.

2

Secure a cable clip on one end
of the loop by pushing in from
the top and bottom.

3

Secure the second cable clip
on the other end of the
looped cable.

4

Cable clips should
be secured to both
ends of cable.

3 GEL

CUSHION

TIPS

Click and hold 3 second.

Click and hold 3 seconds.

POWER ON:

POWER OFF:

MIC:

FITTING

Select Tip

1 2 3

& Cush Fin™

4

Rotate Cush Fin™ in ear and adjust
to your desired fit.

Rotate & lock
in Cush Fin™

Lock in
Tip & Cush
Fin™

2

Red light indicates charging
and will turn off once battery
is fully charged. Full charge
is approximately 4 hrs.

To ensure the water resistance

3

of your GO BT, the cover for
the Micro USB port must be
firmly closed.

PLACING A CALL
1

Press the Power Button for 1 second.
A tone will prompt the user to say the name
of the person who the user wishes to call.

2 Say the contact’s name.

The phone will find the entry, pauses 2 sec.,
then places the call.

(RE-DIALLING)

Press the Power Button twice for 1.2 sec. to
recall the last number dialed.

END CALL

Press the Power Button once.

RECEIVE CALL

Press the Power Button once.

REJECT CALL

Press and hold the Power Button 1 sec to
reject the call.

TRANSFERRING A CALL

Phone to Headset:
Press and Hold Power Button 1 sec.

Headset to phone:
Press and Hold Power Button 1 sec.

REST TO DEFAULT SETTING

While power off, Press and Hold the Power
Button for 5 seconds.

The LED alternately will rapidly flash blue & red.

DEVICE OUT-OF RANGE

The headset will issue a brief two “DI” sound.
Red and blue lights will flashfor 3 times per
15 secs.

The headset will try to connect the last connected
device every 30 seconds for 10 minutes.

JLAB GO

NOTE: The GO BT will automatically

pair with the last device connected
to when turned on.

SPECS:

TALK TIME

Up to 4.5 H

STANDBY TIME

Up to 150 H

OPERATING DISTANCE (RANGE)

Up to 33 feet(10 meters)

HEADSET WEIGHT

14.1 g

HEADSET DIMENSIONS

22 x 27.5 x 29 mm

CHARGE CONNECTOR

Micro USB charging

BATTERY TYPE

Lithium Polymer 3.7V 80mA

CHARGE TIME (MAXIMUM)

60 minutes for full

POWER REQUIREMENTS

5V DC - 70mA

BLUETOOTH VERSION

4.0 specifications

BLUETOOTH PROFILES

Hands-Free(HFP)Profile, Headset(HsP)Profile,
AVRCP and A2DP

OPERATING TEMPERATURE

32º F-104ºF（0-40ºC）
