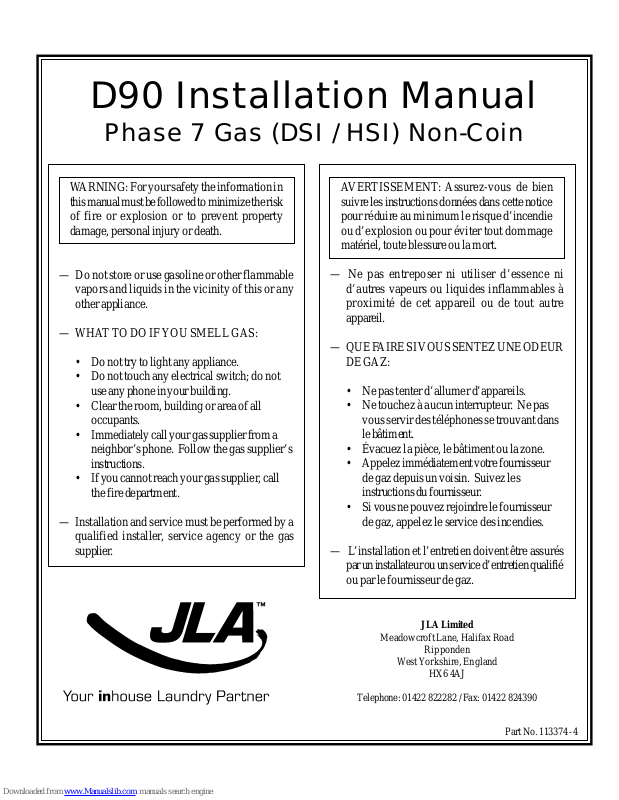

JLA D90 Installation Manual

Page 1

D90 Installation Manual

Phase 7 Gas (DSI / HSI) Non-Coin

W ARNING: For your safety the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or death.

— Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any other appliance.

— WHA T TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Clear the room, building or area of all occupants.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

— Installation and service must be performed by a

qualified installer, service agency or the gas supplier .

AVERTISSEMENT: Assurez-vous de bien suivre les instructions données dans cette notice pour réduire au minimum le risque d’incendie ou d’explosion ou pour éviter tout dommage matériel, toute blessure ou la mort.

— Ne pas entreposer ni utiliser d’essence ni

d’autres vapeurs ou liquides inflammables à proximité de cet appareil ou de tout autre appareil.

— QUE F AIRE SI VOUS SENTEZ UNE ODEUR

DE GAZ:

• Ne pas tenter d’allumer d’appareils.

• Ne touchez à aucun interrupteur . Ne pas vous servir des téléphones se trouvant dans le bâtiment.

• Évacuez la pièce, le bâtiment ou la zone.

• Appelez immédiatement votre fournisseur de gaz depuis un voisin. Suivez les instructions du fournisseur .

• Si vous ne pouvez rejoindre le fournisseur de gaz, appelez le service des incendies.

— L ’installation et l’entretien doivent être assurés

par un installateur ou un service d’entretien qualifié ou par le fournisseur de gaz.

JLA Limited

Meadowcroft Lane, Halifax Road

Ripponden

W est Y orkshire, England

HX6 4AJ

Telephone: 01422 822282 / Fax: 01422 824390

Part No. 113374-4

Page 2

Retain This Manual In A Safe Place For Future Reference

This product embodies advanced concepts in engineering, design, and safety. If this product is properly maintained, it will provide many years of safe, efficient, and trouble free operation.

ONLY qualified technicians should service this equipment.

OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with the dryer.

The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

W e have tried to make this manual as complete as possible and hope you will find it useful. Manufacturer reserves the right to make changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or discontinue models. The illustrations included in this manual may not depict your particular dryer exactly.

POUR VOTRE SÉCURITÉ

Ne pas entreposer ni utiliser d’essence ni d’autres vapeurs ou liquides inflammables à proximité de cet appareil ou de tout autre appareil.

Important

For your convenience, log the following information:

DA TE OF PURCHASE____________________________________________________________ MODEL NO. ______________

DISTRIBUTOR’S NAME ____________________________________________________________________________________

Serial Number(s) ________________________________________________________________________________________

D90

________________________________________________________________________________________

Replacement parts can be obtained from your distributor or JLA. When ordering replacement parts from JLA, you can F AX your order to JLA at 01422 824390 or telephone your order directly to the JLA Parts Department at 01422 822282. Please specify the dryer model number and serial number in addition to the description and part number, so that your order is processed accurately and promptly.

“IMPORT ANT NOTE TO PURCHASER”

Information must be obtained from your local gas supplier on the instructions to be followed if the user smells gas. These instructions must be posted in a prominent location near the dryer.

Page 3

IMPORTANT

YOU MUST DISCONNECT AND LOCKOUT THE ELECTRIC SUPPL Y AND THE GAS SUPPLY BEFORE ANY COVERS OR GUARDS ARE REMOVED FROM THE MACHINE TO ALLOW ACCESS FOR CLEANING , ADJUSTING, INST ALLA TION, OR TESTING OF ANY EQUIPMENT PER OSHA (Occupational Safety and Health

Administration) STANDARDS.

«Attention: Au moment de l’entretien des “Caution: Label all wires prior to disconnection when servicing controls. W iring errors can cause improper operation.”

commandes, étiquetez tous les fils avant de

les débrancher. Des erreurs de câblage

peuvent entraîner un fonctionnement ina-

déquat et dangereux.»

CAUTION

DR YERS SHOULD NEVER BE LEFT UNA TTENDED WHILE IN OPERA TION.

WARNING

CHILDREN SHOULD NOT BE ALLOWED TO PLA Y ON OR NEAR THE DRYER(S). CHILDREN

SHOULD BE SUPER VISED IF NEAR DRYERS IN OPERA TION.

FOR YOUR SAFETY

DO NOT DR Y MOP HEADS IN THE DRYER. DO NOT USE DR YER IN THE PRESENCE OF DR Y CLEANING FUMES.

WARNING

UNDER NO CIRCUMSTANCES should the dryer door switch, the lint drawer switch, or the heat safety circuit ever be disabled.

Page 4

WARNING

The dryer must never be operated with any of the back guards, outer tops, or service panels removed. PERSONAL INJURY OR FIRE COULD RESUL T .

WARNING

DRYER MUST NEVER BE OPERA TED WITHOUT THE LINT FIL TER/SCREEN IN PLACE, EVEN IF AN EXTERNAL LINT COLLECTION SYSTEM IS USED.

IMPORTANT

PLEASE OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment and/or specified in the installation manual included with the dryer.

Dryers must not be installed or stored in an area where it

The wiring diagram for the dryer is located in the front electrical control box area.

will be exposed to water or weather .

IMPORTANT

Dryer must be installed in a location/environment, which the ambient temperature remains between 40° F (4.44° C) and 130° F (54.44° C).

Page 5

T able of Contents

SECTION I

SAFETY PRECAUTIONS ..............................................................................................................................2

SECTION II

SPECIFICATIONS/COMPONENT IDENTIFICATION .........................................................................4

A. Specifications.......................................................................................................................................... 4

B. Component Identification ........................................................................................................................ 6

SECTION III

INSTALLATION PROCEDURES ................................................................................................................8

A. Location Requirements........................................................................................................................... 8

B. Unpacking/Setting Up............................................................................................................................. 9

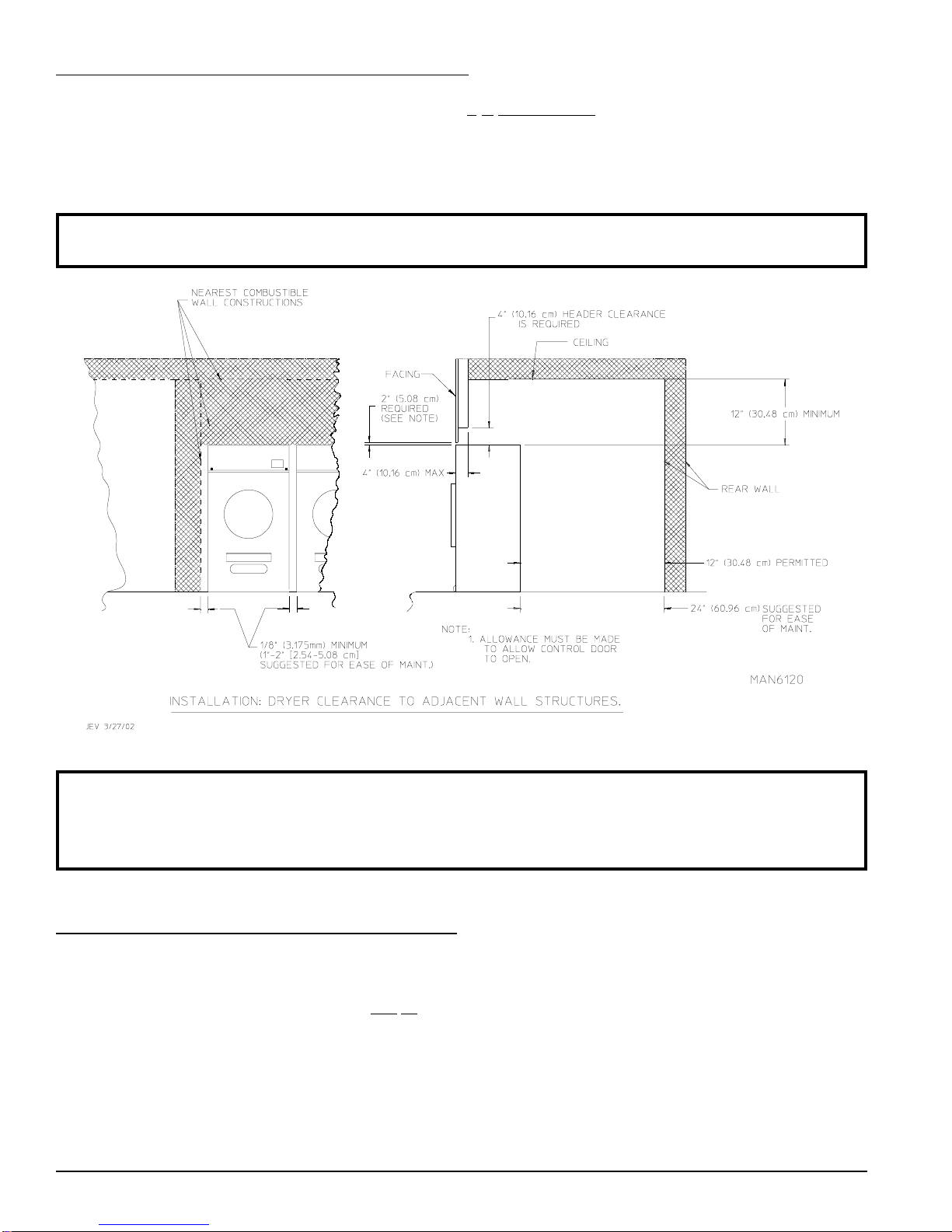

C. Dryer Enclosure Requirements ............................................................................................................ 10

D. Fresh Air Supply Requirements............................................................................................................ 10

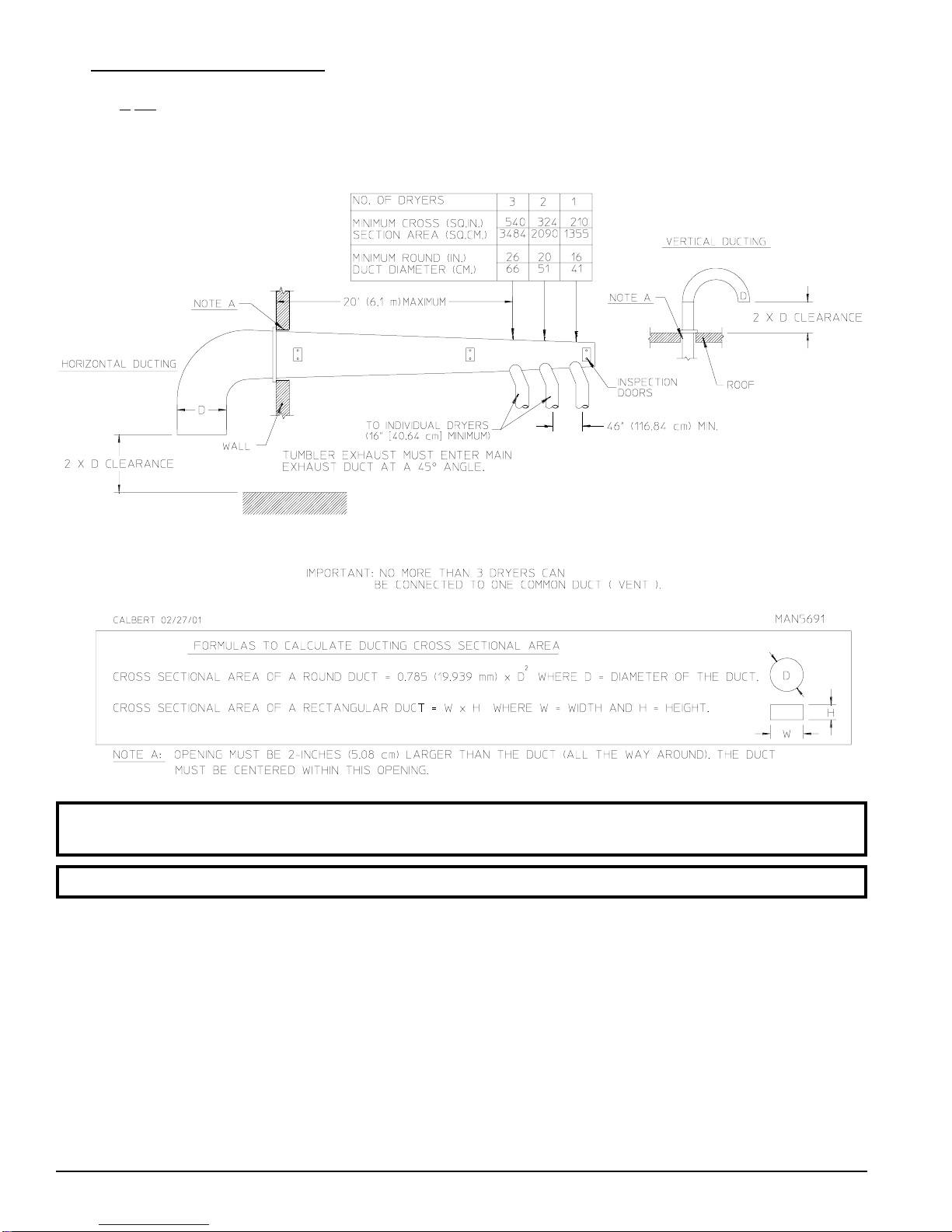

E. Exhaust Requirements.......................................................................................................................... 11

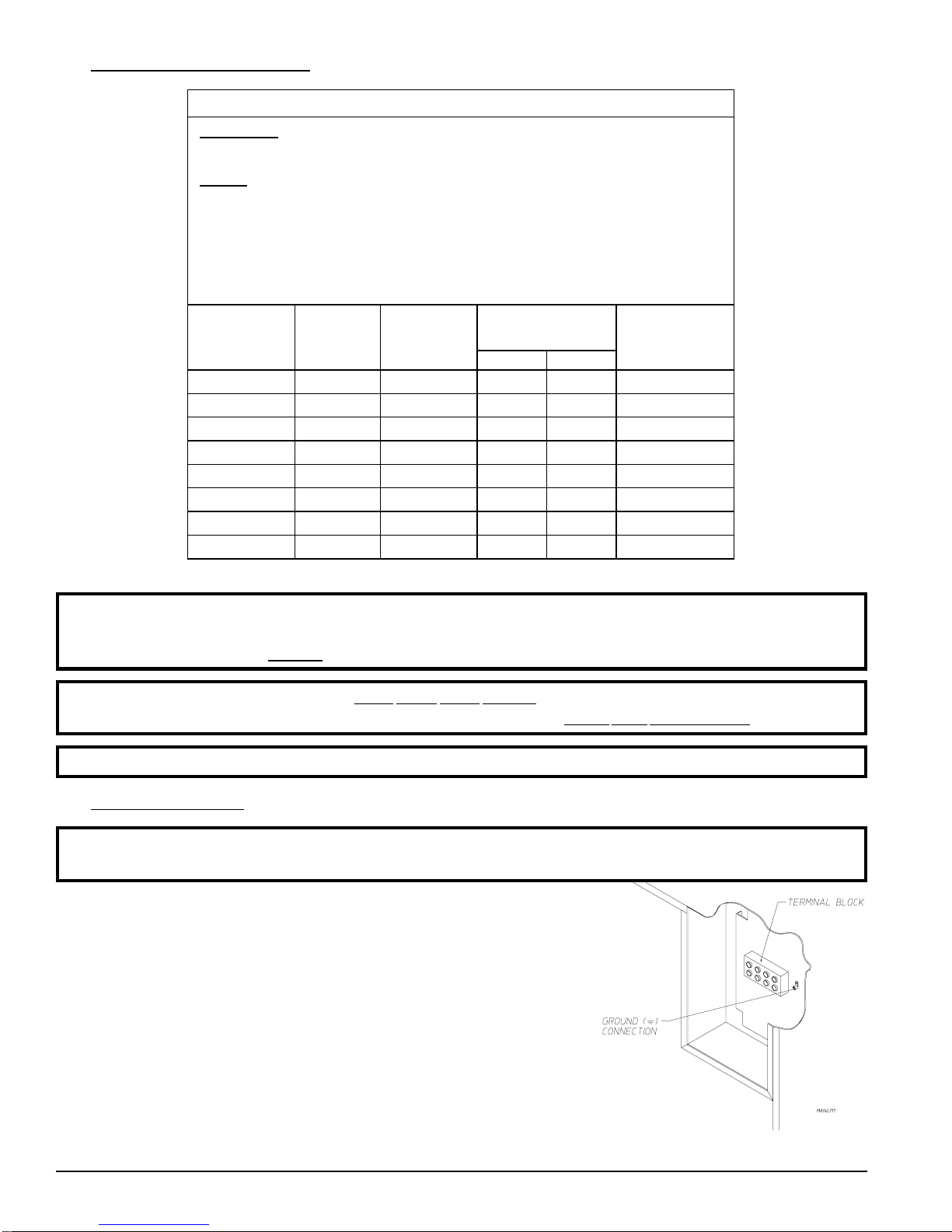

F. Electrical Information ........................................................................................................................... 15

G. Gas Information .................................................................................................................................... 17

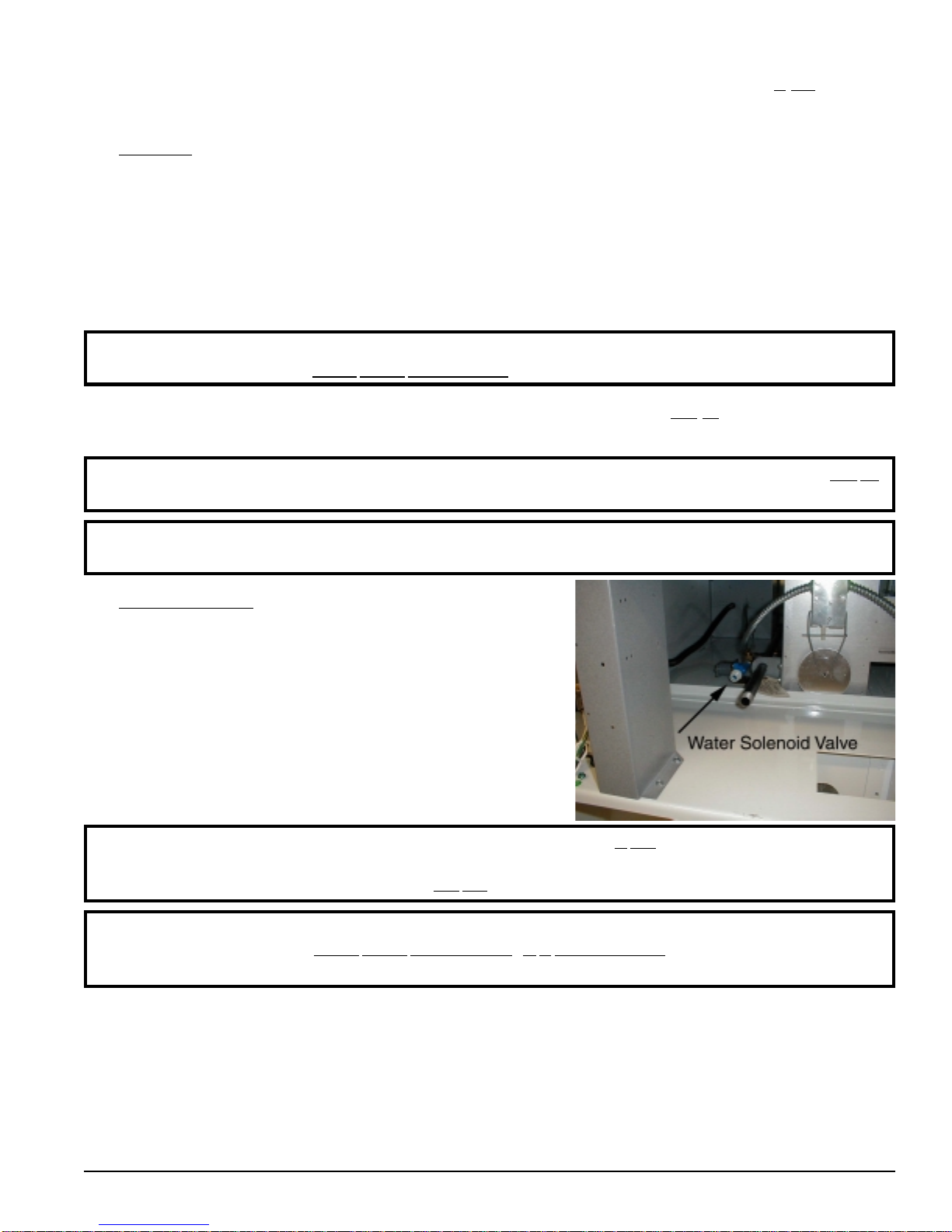

H. Water Information ................................................................................................................................ 20

I. Preparation for Operation/Start-Up...................................................................................................... 23

J. Preoperational Tests ............................................................................................................................. 23

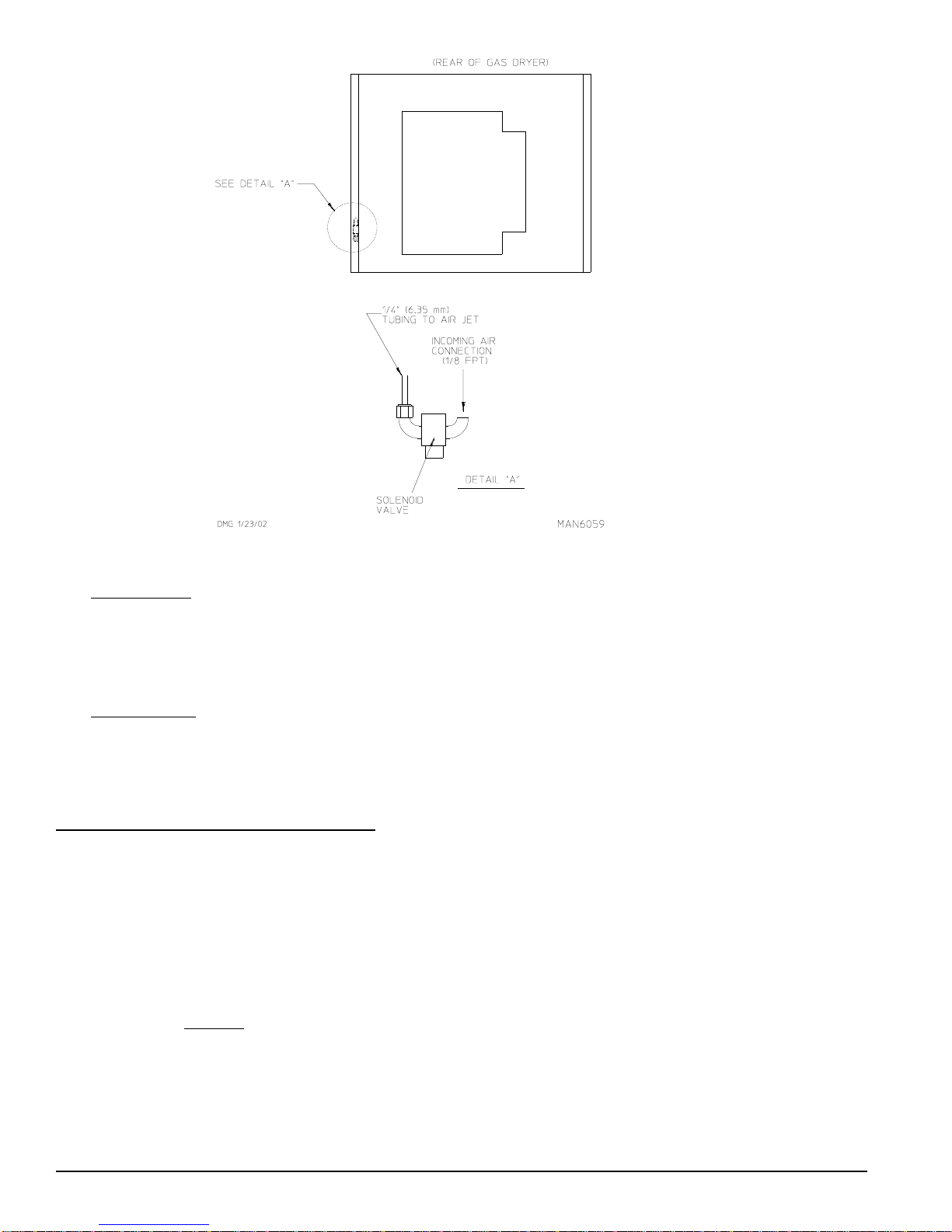

K. Compressed Air Requirements ............................................................................................................. 25

L. Shutdown Instructions .......................................................................................................................... 26

SECTION IV

SERVICE/PARTS INFORMATION ...........................................................................................................27

A. Service .................................................................................................................................................. 27

B. Parts ...................................................................................................................................................... 27

SECTION V

WARRANTY INFORMATION ...................................................................................................................28

A. Returning Warranty Cards ................................................................................................................... 28

B. Warranty ............................................................................................................................................... 28

SECTION VI

ROUTINE MAINTENANCE ......................................................................................................................29

A. Cleaning ................................................................................................................................................ 29

B. Adjustments .......................................................................................................................................... 30

C. Lubrication ............................................................................................................................................ 30

SECTION VII

DATA LABEL INFORMATION .................................................................................................................31

SECTION VIII

PROCEDURE FOR FUNCTIONAL CHECK OF REPLACEMENT COMPONENTS ...................32

SECTION IX

PHASE 7 NON-COIN SYSTEM DIAGNOSTICS ....................................................................................33

A. Diagnostic (L.E.D. Display) Fault Messages ...................................................................................... 33

Page 6

SECTION I

SAFETY PRECAUTIONS

WARNING: For your safety, the information in this manual must be followed to minimize the risk of fire or

explosion or to prevent property damage, personal injury , or loss of life.

WARNING: The dryer must never be operated with any of the back guards, outer tops, or service

panels removed. PERSONAL INJURY OR FIRE COULD RESUL T.

1. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

2. Purchaser/user should consult the local gas supplier for proper instructions to be followed in the event the user smells

gas. The instructions should be posted in a prominent location.

3. WHAT TO DO IF YOU SMELL GAS:

a. DO NOT try to light any appliance.

b. DO NOT touch any electrical switch.

c. DO NOT use any phone in your building.

d. Clear the room, building, or area of

e. Immediately call your gas supplier from a neighbor’ s phone. Follow the gas supplier’s instructions.

f. If you

4. Installation and service must be performed by a qualified installer, service agency, or gas supplier.

5. Dryer(s) must be exhausted to the outdoors.

6. Although JLA produces a very versatile dryer, there are some articles that, due to fabric composition or cleaning method, should not be dried in it.

cannot reach your gas supplier, call the fire department.

ALL occupants.

WARNING: Dry only water washed fabrics. DO NOT dry articles spotted or washed in dry cleaning

solvents, a combustible detergent, or “all purpose” cleaner . EXPLOSION COULD RESUL T.

WARNING: DO NOT dry rags or articles coated or contaminated with gasoline, kerosene, oil, paint, or wax.

EXPLOSION COULD RESUL T.

WARNING: DO NOT dry mop heads. Contamination by wax or flammable solvents will create a fire

hazard.

WARNING: DO NOT use heat for drying articles that contain plastic, foam, sponge rubber , or similarly

textured rubberlike materials. Drying in a heated basket (tumbler) may damage plastics or rubber and may be a fire hazard.

2 JLA Limited 113374-4

Page 7

7. A program should be established for the inspection and cleaning of lint in the burner area, exhaust ductwork, and

area around the back of the dryer . The frequency of inspection and cleaning can best be determined from experience at each location.

WARNING: The collection of lint in the burner area and exhaust ductwork can create a potential fire hazard.

8. For personal safety, the dryer must be electrically grounded in accordance with local codes and/or the National

Electrical Code ANSI/NFPA NO. 70-LATEST EDITION, or in Canada, the Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION.

NOTE: Failure to electrically ground the dryer properly will VOID THE WARRANTY.

9. UNDER NO CIRCUMSTANCES should the dryer door switch, the lint drawer switch, or the heat safety circuit

ever be disabled.

WARNING: PERSONAL INJURY OR FIRE COULD RESULT SHOULD THE DRYER DOOR

SWITCH, THE LINT DRAWER SWITCH, OR THE HEAT SAFETY CIRCUIT EVER BE DISABLED.

10. This dryer

11. Remove articles from the dryer as soon as the drying cycle has been completed.

is not to be used in the presence of dry cleaning solvents or fumes.

WARNING: Articles left in the dryer after the drying and cooling cycles have been completed can create a fire

hazard.

12. READ AND FOLLOW ALL CAUTION AND DIRECTION LABELS ATTACHED TO THE DRYER.

13. For safety, proper operation, and optimum performance, the dryer must not be operated with a load less than sixty-

six percent (66%), 63 pounds (28.57 kg) of its rated capacity .

W ARNING: YOU MUST DISCONNECT AND LOCKOUT THE ELECTRIC SUPPLY AND THE

GAS SUPPL Y BEFORE ANY COVERS OR GUARDS ARE REMOVED FROM THE MACHINE TO ALLOW ACCESS FOR CLEANING, ADJUSTING, INST ALLA TION, OR TESTING OF ANY EQUIPMENT PER OSHA (Occupational Safety and Health Administration) STANDARDS.

IMPORTANT: Dryer must be installed in a location/environment, which the ambient temperature

remains between 40º F (4.44º C) and 130º F (54.44º C).

113374- 4 Telephone 01422 822282 3

Page 8

SPECIFICATIONS/COMPONENT IDENTIFICATION

A. SPECIFICATIONS

SECTION II

MAX IMUM CAPAC ITY (DRY WEIGHT) 9 5 lb TUMBLER DIAMETER 41 - 3/8” TUMBLER DEPTH 28-7/8” TUMBLER VOLUME 22.5 cu ft TUMBLER/DRIVE MOTOR 1 /2 hp BLOWER/FAN MOTOR 3 hp DOOR OP ENING (DIAMETER) 31 -3/8” DOOR S ILL HEIGHT N / A WATER CONNECTION* 3/4”-11.5 NH

3/4” B.S.P.T. DRYE RS P ER 20’/ 40’ CO NTAINE R 10 / 20 DRYERS PER 48’/53 ’ TRUCK 24 / 26

VOLTAGE AVAILABLE 208-460V 3ø 3,4w 50/60 Hz APP RO XIMATE NET WEIGHT 1, 087 lb APPROXIMATE SHIPPING WEIGHT 1,157 lb

kcal/hr

60 Hz 50 Hz

2,700 cfm 2,268 cfm

1” B.S.P.T.

AIRFLOW

HEAT INPUT 350,000 Btu/hr EXHA UST CONNE CTION (DIA METER) 16”

Gas**ElectricSteam

COMPRESSED AIR CONNECTION 1/4 ” Quick C onnect ion COMPRESSED AIR VOLUME 3.2 5 cfh INLET PIPE CONNE C TION 1” F.B .S. P.T.

VOLTAGE AVAILABLE APP RO XIMATE NET WEIGHT APPROXIMATE SHIPPING WEIGHT AIRFLOW EXHA UST CONNE CTION (DIA METER) COMPRESSED AIR CONNECTION COMPRESSED AIR VOLUME

OVE N SIZE

kW Btu/hr VOLTAGE AVAILABLE APP RO XIMATE NET WEIGHT APPROXIMATE SHIPPING WEIGHT AIRFLOW STEAM CONSUMPTION OPERATING STEAM PRESSURE EXHA UST CONNE CTION (DIA METER) COMPRESSED AIR CONNECTION COMPRESSED AIR VOLUME BOILER HORSEPOWER (NORMAL LOAD) SUPPLY CONNECTION RETURN CONNE CTION

Shaded areas are stated in metric equivalents 5/5/04 * The fire suppression system must be supplied with water at a pressure of 40 psi +/- 20 psi (2.75 bar +/- 1.37 bar).

** The dryers must be provided with a clean dry regulated 80 psi +/- 10 psi (5.51 bar +/- 0.69 bar) air supply.

(Outside North America)

(CE and Australia Only)

N / A

43.1 kg

105.1 cm

73.3 cm

637.12 L

0.373 kW

2.238 kW

79.7 cm

(North A merica)

493.1 kg

524.8 kg

76.5 cmm

64.2 cmm

88,200 kcal/hr

40.6 cm

0.09 cmh

NOTE: JLA reserves the right to make changes in specifications at any time without notice or obligation.

4 JLA Limited 113374-4

Page 9

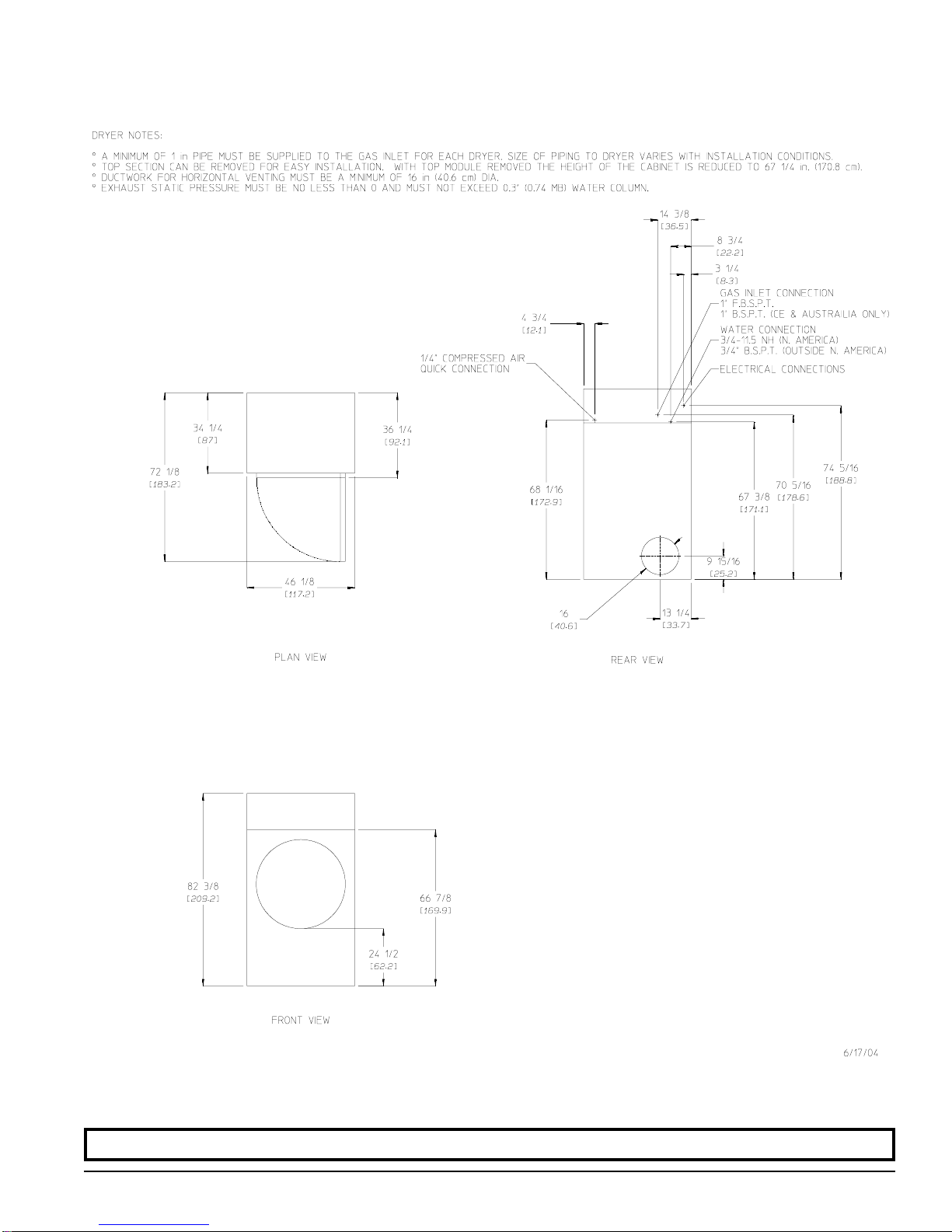

SPECIFICATIONS

NOTE: JLA reserves the right to make changes in specifications at any time without notice or obligation.

113374- 4 Telephone 01422 822282 5

Page 10

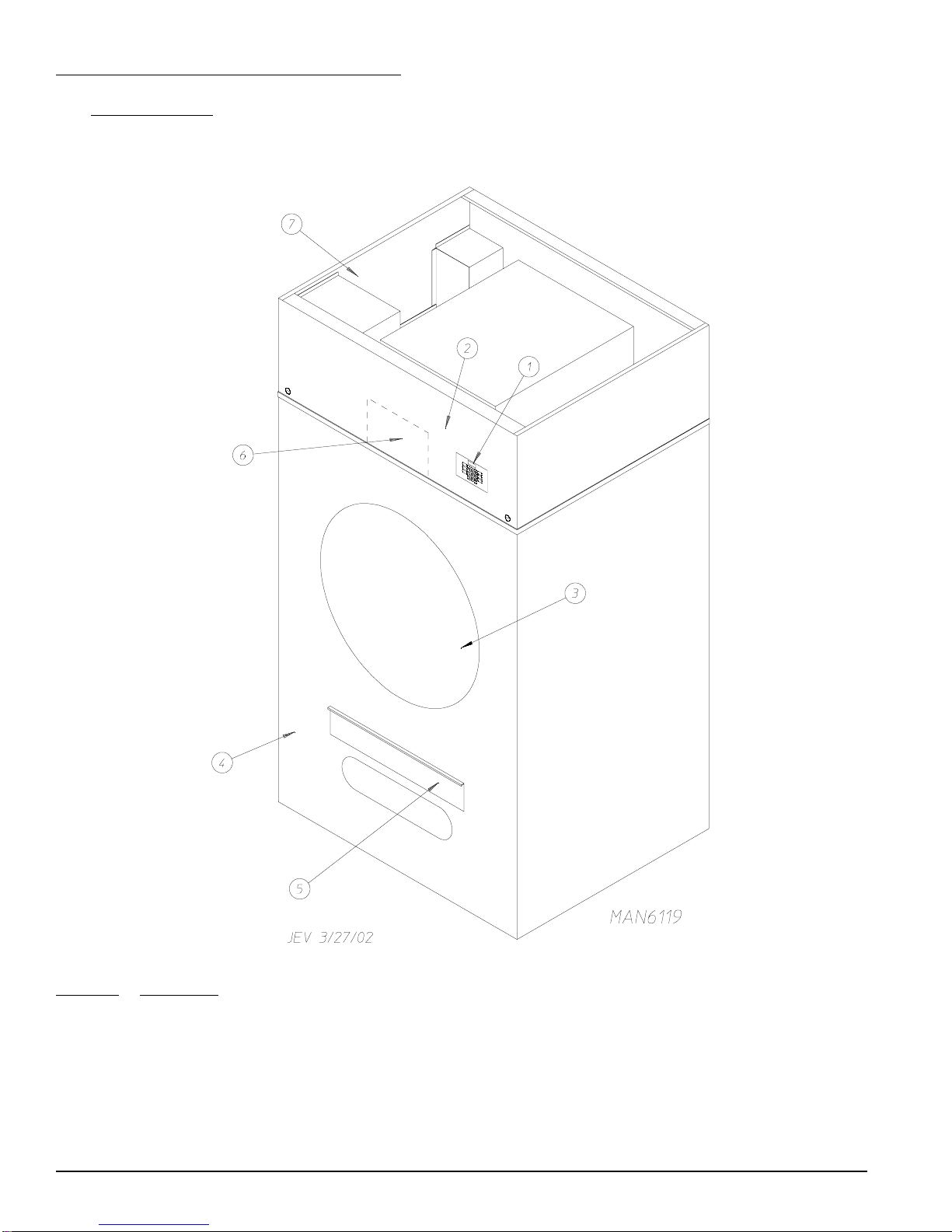

B. COMPONENT IDENTIFICATION

1. Dryer Front View

Illus. No. Description

1 Microprocessor Control/Keyboard (touch pad) Panel Assembly (controls) 2 Control (top access) Door Assembly 3 Main Door Assembly 4 Lint Panel Assembly 5 Lint Door 6 Wire Diagram (located behind control door) 7 T op Console (module) Assembly

6 JLA Limited 113374-4

Page 11

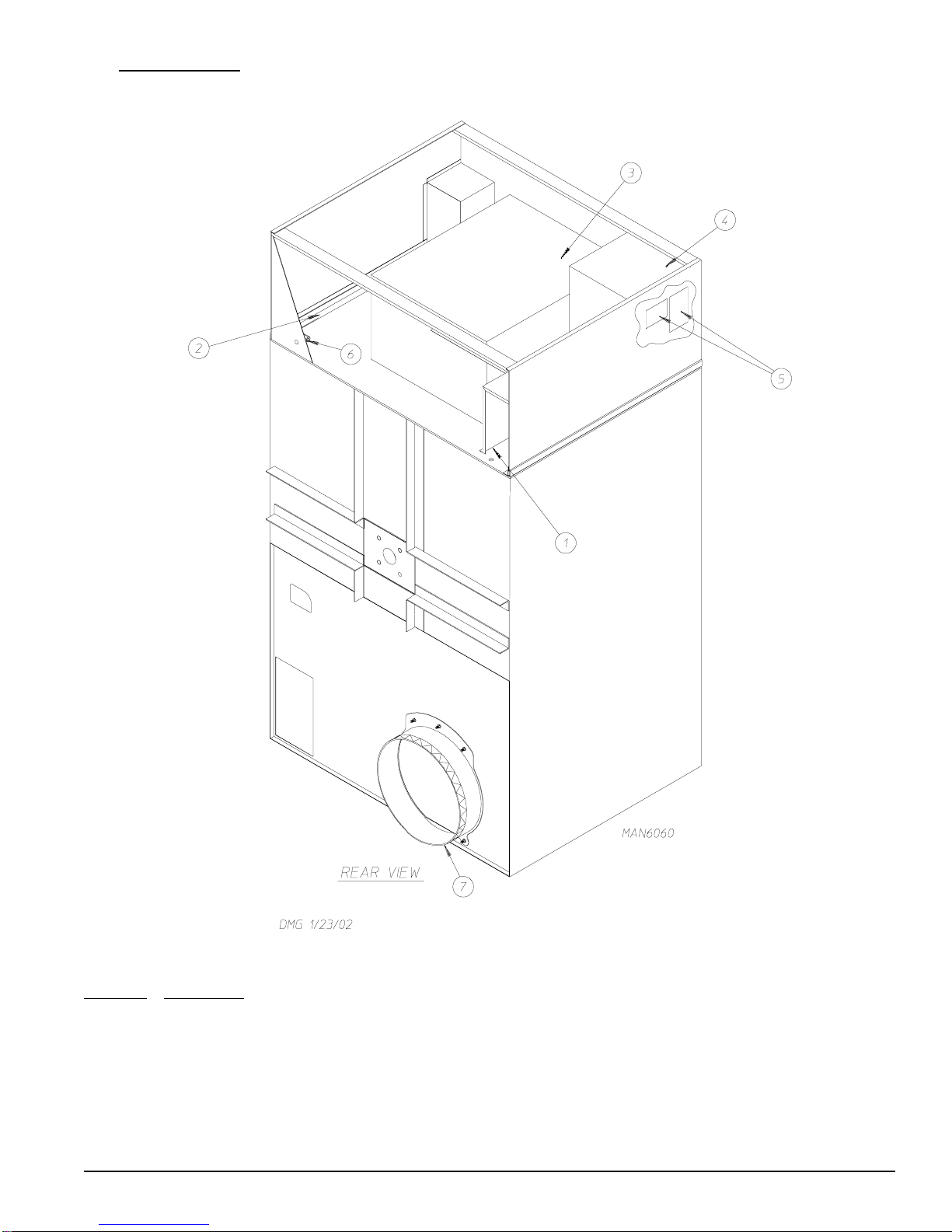

2. Dryer Rear View

Illus. No. Description

1 Electrical Service Connections 2 Top Console 3 Heating Unit 4 Relay/Wiring Box 5 Data Label and Installation Label 6 Air Connection 7 Exhaust Transition Piece

113374- 4 Telephone 01422 822282 7

Page 12

SECTION III

INSTALLATION PROCEDURES

Installation should be performed by competent technicians in accordance with local and state codes. In the absence of these codes, the installation must conform to applicable American National S tandards: ANSI Z223.1-LATEST EDITION (National Fuel Gas Code) or ANSI/NFPA NO. 70-LATEST EDITION (National Electrical Code) or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-M91 (Natural Gas) or CAN/CGAB149.2-M91 (Liquid Propane [L.P .] Gas) or LATEST EDITION (for General Installation and Gas Plumbing) or Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION (for Electrical Connections).

A. LOCATION REQUIREMENTS

Before installing the dryer, be sure the location conforms to local codes and ordinances. In the absence of such codes or ordinances the location must conform with the National Fuel Gas Code ANSI.Z223.1 LATEST EDITION, or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-M91 (Natural Gas) or CAN/CGAB149.2-M91 (L.P. Gas) or LA TEST EDITION (for General Installation and Gas Plumbing).

1. The dryer must be installed on a sound level floor capable of supporting its weight. Carpeting must be removed

from the floor area that the dryer is to rest on.

IMPORTANT: “The dryer must be installed on noncombustible floors only .”

2. The dryer must not be installed or stored in an area where it will be exposed to water and/or weather.

3. The dryer is for use in noncombustible locations.

4. Provisions for adequate air supply must be provided as noted in this manual (refer to Fresh Air Supply Requir ements

Section D).

5. Clearance provisions must be made from combustible construction as noted in this manual (refer to Dryer Enclosure Requirements in

6. Provisions must be made for adequate clearances for servicing and for operation as noted in this manual (refer to Dryer Enclosure Requirements in

7. The dryer must be installed with a proper exhaust duct connection to the outside as noted in this manual (refer to Exhaust Requirements in

8. Dryer must be located in an area where correct exhaust venting can be achieved as noted in this manual (refer to

Exhaust Requirements in

Section C).

Section E).

IMPORTANT: Dryer should be located where a minimum amount of exhaust duct will be necessary.

9. The dryer must be installed with adequate clearance for air openings into the combustion chamber.

CAUTION: This dryer produces combustible lint and must be exhausted to the outdoors. Every 6 months,

inspect the exhaust ducting and remove any lint build up.

IMPORTANT: Dryer must be installed in a location/environment, which the ambient temperature

remains between 40º F (4.44º C) and 130º F (54.44º C).

8 JLA Limited 113374-4

Page 13

B. UNPACKING/SETTING UP

Remove protective shipping material (i.e., plastic wrap and/or optional shipping box) from dryer.

IMPORTANT: The dryer must be transported and handled in an upright position at ALL times.

The dryer can be moved to its final location while still attached to the skid or with the skid removed. To unskid the dryer, locate and remove the four (4) lag bolts securing the base of the dryer to the wooden skid. T wo (2) are at the rear base, and two (2) are located in the bottom of the lint chamber. To remove the two (2) lag bolts located in the lint chamber area, remove the front panel.

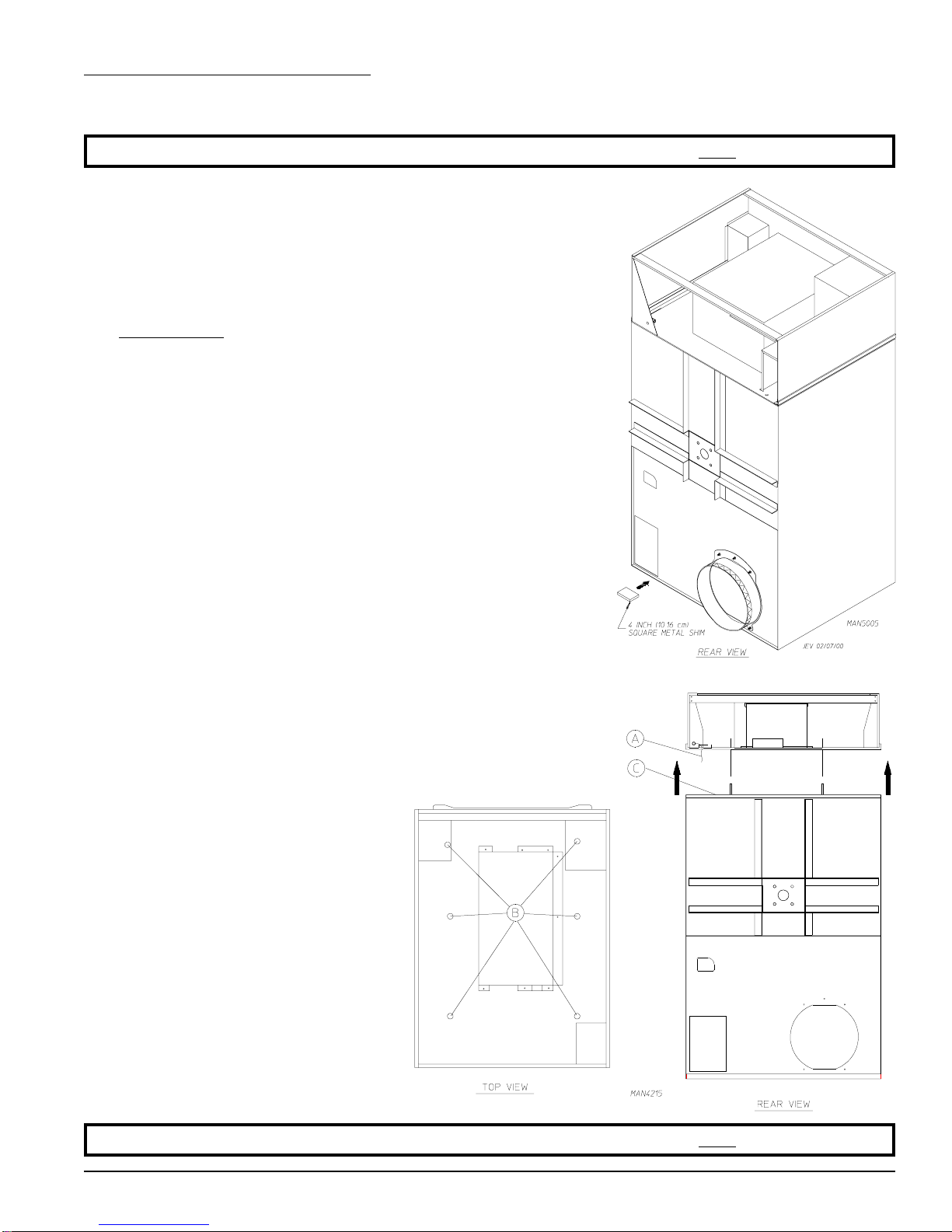

Leveling Dryer

To level the dryer, place 4-inch (10.16 cm) square metal shims or other suitable material under the base pads. It is suggested that the dryer be tilted slightly to the rear (refer to the illustration on right).

2. If more headroom is needed when moving the dryer into position, the

top console (module) may be removed.

T o Remove Top Console (module)...

a. Disconnect the ground wire (A in the illustration below) located

at the rear upper left corner of the dryer.

b. Remove the six (6) sets of nuts and washers (B in the illustration

below) holding the console (module) to the base.

c. Disconnect the white plug connector (C in the illustration on

right) located on the top of the rear electric service/relay box (provides power to the heat circuit).

d. Disconnect air connection from the 3-way micro valve.

e. Lift the console (module) off of the dryer base.

IMPORTANT: The dryer must be transported and handled in an upright position at ALL times.

113374- 4 Telephone 01422 822282 9

Page 14

C. DRYER ENCLOSURE REQUIREMENTS

Even though a 12-inch (30.48 cm) clearance is acceptable, it is recommended that the rear of the dryer be positioned approximately 24-inches (60.96 cm) from the nearest obstruction (i.e., wall) for ease of installation, maintenance, and service. Bulkheads and partitions should be made from noncombustible materials. The clearance between the bulkhead header and the dryer must be a minimum of 4-inches (10.16 cm) and must not extend more than 4-inches (10.16 cm) to the rear of the front. A 2-inch (5.08 cm) clearance is required between the bulkhead facing and the top of the dryer.

NOTE: Bulkhead facing should not be installed until after the dryer is in place. Ceiling area must be located

a minimum of 12-inches (30.48 cm) above the dryer top console (module).

NOTE: When fire sprinkler systems are located above the dryers, a minimum of 18-inches (45.72 cm) above

the dryer console (module) is required. Dryers may be positioned sidewall to sidewall, however, 1 or 2-inches (2.54 or 5.08 cm) is suggested for ease of installation and maintenance. Allowances must be made for the opening and closing of the control door and the lint door.

D. FRESH AIR SUPPLY REQUIREMENTS

When the dryer is operating, it draws in room air, heats it, passes this air through the basket (tumbler), and exhausts it out of the building. Therefore, the room air must be continually replenished from the outdoors. If the make-up air is inadequate, drying time and drying efficiency problems may result, as well as premature motor failure from overheating. The dryer must be installed with provisions for adequate combustion and make-up air supply .

Air supply (make-up air) must be given careful consideration to ensure proper performance of each dryer. An unrestricted source of air is necessary for each dryer. As a general rule, an unrestricted air entrance from the outdoors (atmosphere) of a minimum of 350 square inches (2258.1 square cm) is required for each gas dryer (based on 1 square inch per 1000 Btus).

10 JLA Limited 113374-4

will be adversely affected. Ignition problems and sail switch “fluttering”

Page 15

To compensate for the use of registers or louvers used over the openings, this make-up air must be increased by approximately thirty-three percent (33%). Make-up air openings should not be located in an area directly near where exhaust vents exit the building.

is not necessary to have a separate make-up air opening

It for each dryer . Common make-up air openings are acceptable. However, they must be set up in such a manner that the make-up air is distributed equally to

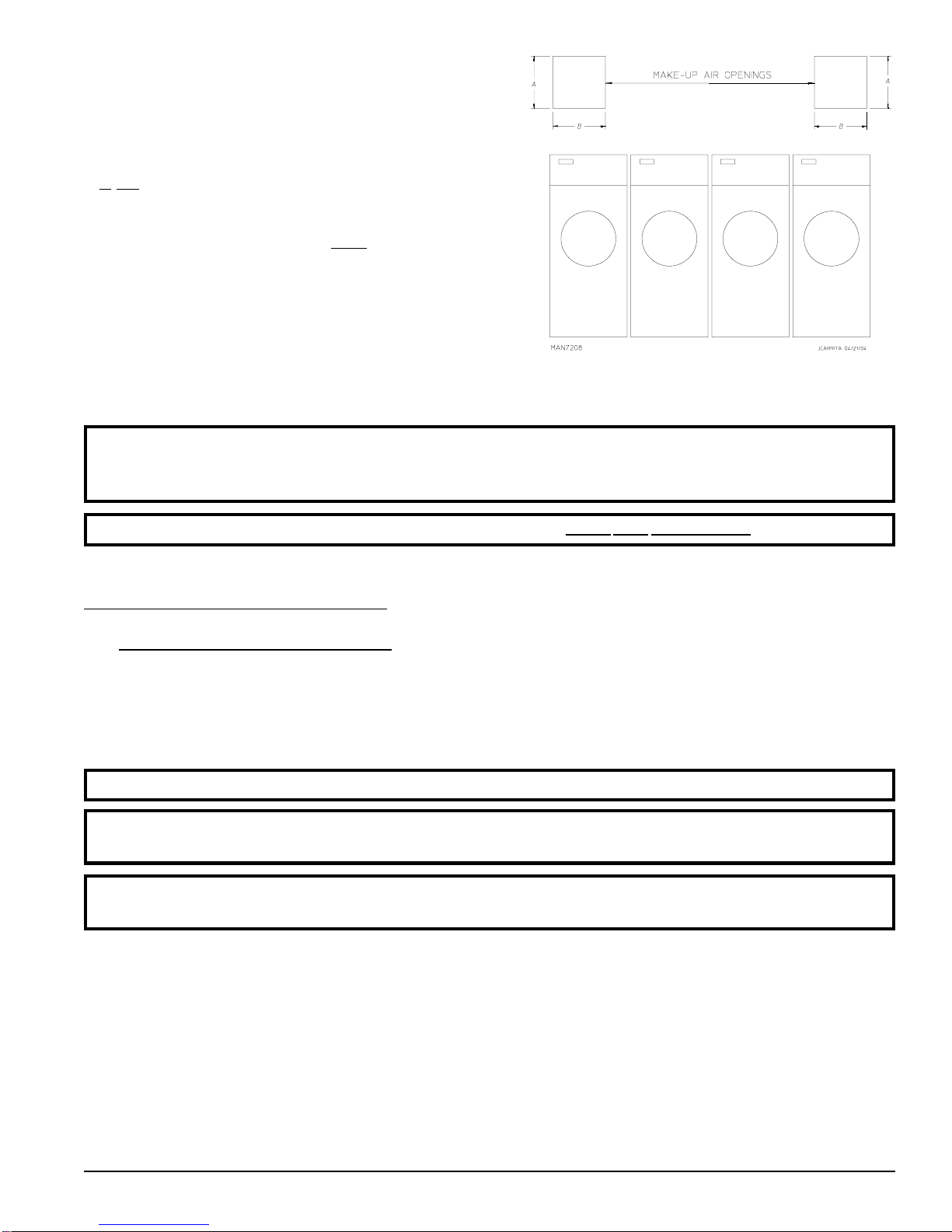

EXAMPLE: For a bank of four (4) dryers, two (2) unrestricted openings measuring 26-inches by 26.9-inches (66.1 cm by

68.4 cm) each are acceptable.

Allowances must be made for remote or constricting passageways or where dryers are located at excessive altitudes or predominantly low pressure areas.

ALL the dryers.

A = 26-Inches (66.1 cm) B = 26.9-Inches (68.4 cm)

IMPORTANT: Make-up air must be provided from a source free of dry cleaning solvent fumes. Make-up

air that is contaminated by dry cleaning solvent fumes will result in irreparable damage to the motors and other dryer components.

NOTE: Component failure due to dry cleaning solvent fumes will VOID THE WARRANTY.

E. EXHAUST REQUIREMENTS

1. General Exhaust Ductwork Information

Exhaust ductwork should be designed and installed by a qualified professional. Improperly sized ductwork will create excessive back pressure which results in slow drying, increased use of energy, overheating of the dryer, and shutdown of the burner by the airflow (sail) switches, burner hi-limits, or basket (tumbler) hi-heat thermostats. The dryer must be installed with a proper exhaust duct connection to the outside.

CAUTION: This dryer produces combustible lint and must be exhausted to the outdoors.

CAUTION: IMPROPERLY SIZED OR INSTALLED EXHAUST DUCTWORK CAN CREATE A

POTENTIAL FIRE HAZARD.

NOTE: When dryers are exhausted into a multiple (common) exhaust line, each dryer must be supplied with a

back draft damper.

The ductwork should be laid out in such a way that the ductwork travels as directly as possible to the outdoors with as few turns as possible. Single or independent dryer venting is recommended.

113374- 4 Telephone 01422 822282 11

Page 16

When single dryer venting is used, the ductwork from the dryer to the outside exhaust outlet should not exceed 20 feet (6.09 meters). In the case of multiple (common) dryer venting, the distance from the last dryer to the outside exhaust outlet should not exceed 20 feet (6.09 meters). The shape of the ductwork minimum cross-sectional area is provided. It is suggested that the use of 90º turns bends/angles instead. The radius of the elbows should preferably be 1-1/2 times the diameter of the duct. Excluding basket (tumbler)/dryer elbow connections or elbows used for outside protection from the weather, no more than two (2) elbows should be used in the exhaust duct run. If more than two (2) elbows are used, the cross-sectional area of the ductwork must be increased in proportion to the number of elbows used.

ALL ductwork should be smooth inside with no projections from sheet metal screws or other obstructions, which will collect lint. When adding ducts, the duct to be added should overlap the duct to which it is to be connected. ductwork joints must be taped to prevent moisture and lint from escaping into the building. Inspection doors should be installed at strategic points in the exhaust ductwork for periodic inspection and cleaning of lint from the ductwork.

is not critical as long as the

be avoided; use 30º and/or 45º

IMPORTANT: Exhaust back pressure measured by a manometer in the exhaust duct must be no less than 0

and must not exceed 0.3 inches (0.74 mb) of water column (W.C.).

NOTE: When the exhaust ductwork passes through a wall, ceiling, or roof made of combustible materials, the

opening must be 2-inches (5.08 cm) larger than the duct (all the way around). The duct must be centered within this opening.

ALL

Outside Ductwork Protection

To protect the outside end of the horizontal ductwork from the weather, a 90° elbow bent downward should be installed where the exhaust exits the building. If the ductwork travels vertically up through the roof, it should be protected from the weather by using a 180° turn to point the opening downward. In either case, allow at least twice the diameter of the duct between the duct opening and the nearest obstruction.

IMPORTANT: DO NOT use screens, louvers, or caps on the outside opening of the exhaust ductwork.

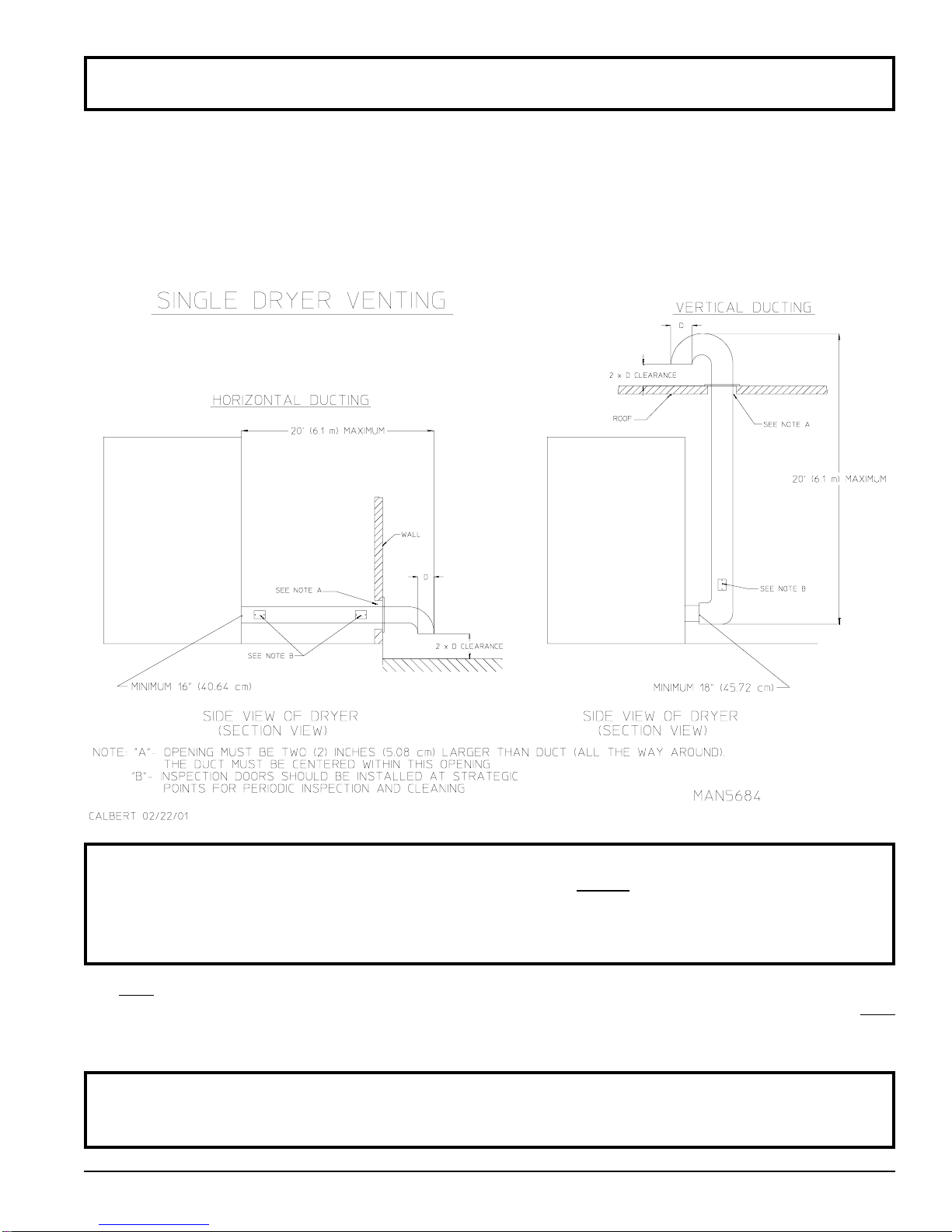

2. Single Dryer Venting

Where possible, it is suggested to provide a separate exhaust duct for each dryer. The exhaust duct should be laid out in such a way that the ductwork travels as directly as possible to the outdoors with as few turns as possible. It is suggested that the use of 90° turns in the ducting exhaust ductwork

is not critical as long as the minimum cross section area is provided.

IMPORTANT: The minimum duct size for a gas unit is 16-inches (40.64 cm) for a round duct and

14-1/4” x 14-1/4” (36.2 cm x 36.2 cm) for a square duct. THE DUCT SIZE MUST NOT BE REDUCED ANYWHERE DOWNSTREAM OF THE DRYER.

12 JLA Limited 113374-4

be avoided; use 30° and/or 45° angles instead. The shape of the

Page 17

IMPORTANT: Exhaust back pressure measured by a manometer at each basket (tumbler) exhaust duct area

must be no less than 0 and must not exceed 0.3 inches (0.74 mb) of water column (W .C.).

It is suggested that the ductwork from each dryer not exceed 20 feet (6.09 meters) with no more than two (2) elbows (excluding dryer connections). If the ductwork exceeds 20 feet (6.09 meters) or has numerous elbows, the cross-sectional area of the ductwork must be increased in proportion to the length and number of elbows in it. In calculating duct size, the cross-sectional area of a square or rectangular duct must be increased twenty percent (20%) for each additional 20 feet (6.09 meters). The diameter of a round exhaust duct should be increased ten percent (10%) for each additional 15 feet (4.57 meters). Each 90º elbow is equivalent to an additional 40 feet (12.19 meters), and each 45º elbow is equivalent to an additional 20 feet (6.09 meters).

IMPORTANT: For extended ductwork runs, the cross section area of the ductwork can only be increased to

an extent. Maximum proportional ductwork runs cannot exceed 20 feet (6.09 meters) more than the original limitations of 20 feet (6.09 meters) with two (2) elbows. When the ductwork approaches the maximum limits as noted in this manual, a professional heating, ventilating, and air-conditioning (HVAC) firm should be consulted for proper venting information.

be installed at strategic points in the exhaust ductwork for periodic inspection and cleaning of lint from the ductwork.

NOTE: When the exhaust ductwork passes through a wall, ceiling, or roof made of combustible materials, the

opening must be 2-inches (5.08 cm) larger than the duct (all the way around). The duct must be centered within this opening.

113374- 4 Telephone 01422 822282 13

ALL

Page 18

3. Multiple Dryer (Common) Venting

If it

is not feasible to provide separate exhaust ducts for each dryer , ducts from individual dryers may be channeled

into a “common main duct.” The individual ducts should enter the bottom or side of the main duct at an angle not more than 45° in the direction of the flow and should be spaced at least 46-inches (116.84 cm) apart. The main duct should be tapered, with the diameter increasing before each individual 16-inch (40.54 cm) duct is added.

IMPORTANT: When exhausted into a multiple (common) exhaust line, a back draft damper must be installed

at each dryer duct.

IMPORTANT: No more than three (3) dryers should be connected to one (1) main common duct.

The main duct may be any shape or cross-sectional area, as long as the minimum cross section area is provided. The

illustration above shows the minimum cross section area for multiple dryer round or square venting. These figures must be increased 10 square inches (64.52 square centimeters) when rectangular main ducting is used, and the

ratio of duct width to depth should not be greater than 3-1/2 to 1. These figures must be increased in proportion if the main duct run to the last dryer to where it exhausts to the outdoors is unusually long (over 20 feet [6.09 meters]) or has numerous elbows (more than two [2]) in it. In calculating ductwork size, the cross-sectional area of a square or rectangular duct must be increased twenty percent (20%) for each additional 20 feet (6.09 meters). The diameter of a round exhaust must be increased ten percent (10%) for each additional 20 feet (6.09 meters). Each 90° elbow is equivalent to an additional 40 feet (12.19 meters) and each 45° elbow is equivalent to an additional 20 feet (6.09 meters).

14 JLA Limited 113374-4

Page 19

IMPORTANT: For extended ductwork runs, the cross section area of the ductwork can only be increased to

an extent. Maximum proportional ductwork runs

cannot exceed 20 feet (6.09 meters) more

than the original limitations of 20 feet (6.09 meters) with two (2) elbows. When the ductwork approaches the maximum limits as noted in this manual, a professional heating, ventilating, and air-conditioning (HVAC) firm should be consulted for proper venting information.

IMPORTANT: Exhaust back pressure measured by a manometer in the exhaust duct must be no less than 0

and must not exceed 0.3 inches (0.74 mb) of water column (W.C.).

The ductwork should be smooth inside with no projections from sheet metal screws or other obstructions, which will collect lint. When adding ducts, the duct to be added should overlap the duct to which it is to be connected. ductwork joints must be taped to prevent moisture and lint from escaping into the building. Inspection doors should

be installed at strategic points in the exhaust ductwork for periodic inspection and cleaning of lint from the ductwork.

NOTE: When the exhaust ductwork passes through a wall, ceiling, or roof made of combustible materials, the

opening must be 2-inches (5.08 cm) larger than the duct (all the way around). The duct must be centered within this duct.

F. ELECTRICAL INFORMATION

ALL

1. Electrical Requirements

It is your responsibility to have to ensure that the electrical installation is adequate and conforms to local and state regulations or codes. In the absence of such codes, requirements of the National Electrical Code ANSI/NFPA NO. 70-LATEST EDITION or in Canada, the Canadian Installation Codes CAN/CGA-B149.1-M91 (Natural Gas) or CAN/CGA-B149.2-M91 (Liquid Propane [L.P .] Gas) or LATEST EDITION.

ALL electrical connections, material, and workmanship must conform to the applicable

ALL electrical connections made by a properly licensed and competent electrician

IMPORTANT: Failure to comply with these codes or ordinances, and/or the requirements stipulated in this

manual can result in personal injury or component failure.

NOTE: Component failure due to improper installation will VOID THE WARRANTY.

Each dryer should be connected to an independently protected branch circuit. The dryer must be connected with copper wire only. DO NOT use aluminum wire, which could cause a fire hazard. The copper conductor wire/ cable must be of proper ampacity and insulation in accordance with electric codes for making connections.

ALL service

NOTE: The use of aluminum wire will VOID THE WARRANTY.

NOTE: Wiring diagrams are affixed to the inside at the top front control door and the rear upper back guard/

panel.

113374- 4 Telephone 01422 822282 15

Page 20

2. Electrical Service Specifications

ELECTRICAL SERVICE SPECIFICATIONS (PER DRYER)

IMPORTANT:

208 VAC AND 230/240 VAC ARE NOT THE SAME. When ordering, specify e xact voltage.

NOTES

: A.

SERVICE

VOLTAGE

When fuses are used they must be dual element, time delay, current limiting, c la s s RK 1 or RK5 ONLY. Ca lc ulate /d e termine c o rr e c t fuse value, by applying either local and/or National Electrical Codes to listed appliance amp draw data. Circuit breakers are thermal-magnetic (industrial) motor curve type ONLY. For others, calculate/verify correct breaker size according to appliance amp draw rating and type of breaker used. Circuit breakers for 3-phase (3ø) dryers must be 3-pole type.

APPROX.

AMP DR AW

60 Hz 50 Hz

CIRCUIT

BREAKER

PHASE

WIRE

SERVICE

208 3ø 3 11.2 — 20 240 3ø 3 9.4 — 15 230 3ø 3 — 8.0 15

380 3ø 400 3ø 416 3ø

4* 4* 4*

—5.1 15 —4.8 15

—4.6 15 460 3ø 3 5.5 — 15 480 3ø 3 5.5 — 15

* Built 4-wire only. Customer must contact the factory to special order 3-wire systems. 10/2/07

IMPORTANT: The dryer must be connected to the electric supply shown on the data label. In the case of

208 VAC or 240 VAC, the supply voltage must match the electric service specifications of the data label exactly.

W ARNING: 208 VAC and 240 V AC ARE NOT THE SAME. Any damage done to dryer components

due to improper voltage connections will automatically VOID THE WARRANTY.

NOTE: JLA reserves the right to make changes in specifications at any time without notice or obligation.

3. Electrical Connections

NOTE: A wire diagram is included with each dryer and is affixed to the back side of the top control (access)

door.

The only electrical input connections to the dryer are the 3-phase (3ø) power leads (L1, L2, and L3), GROUND, and in the case of 4 wire service, the NEUTRAL. These electrical connections are made at the terminal block located in the service/relay box at the rear, upper left hand corner of the dryer. To gain access into this service box, the service cover must be removed.

The “LINE POWER” and the “GROUND” connections to the dryer must be made through the knockout hole at the top of the electric service/relay box. A strain relief must be used where the line power ground wires go into the electric service/relay box.

16 JLA Limited 113374-4

Page 21

Providing local codes permit, power connections to the dryer can be made by use of a flexible underwriters laboratory (U.L.) listed power cord/pigtail (wire must conform to ratings of the dryer), or the dryer can be hard wired directly to the service breaker. In service (relay) box.

ALL cases, a strain relief must be used where the wire(s) enter the dryer electrical

NOTE: A CIRCUIT SER VICING EACH DR YER MUST BE PROVIDED.

4. Grounding

A ground (earth) connection must be provided and installed in accordance with state and local codes. In the absence of these codes, grounding must conform to applicable requirements of the National Electrical Code ANSI/ NFPA NO. 70-LATEST EDITION, or in Canada, the installation must conform to applicable Canada Standards: Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION. The ground connection may be to a proven earth ground at the location service panel.

NOTE: A grounding connection (terminal lug) is provided in the dryer’s electrical service/relay box at the rear ,

upper left hand corner of the dryer.

For added personal safety, when possible, it is suggested that a separate ground wire (sized per local codes) be connected from the ground connection of the dryer to a grounded cold water pipe. DO NOT ground to a gas pipe or hot water pipe. The grounded cold water pipe must have metal to metal connection electrical ground. If there are any nonmetallic interruptions, such as a meter, pump, plastic, rubber , or other insulating connectors, they must be jumped out with no. 4 copper wire and securely clamped to bare metal at both ends.

ALL the way to the

IMPORTANT: For personal safety and proper operation, the dryer must be grounded. For proper operation

of the microprocessor controller (computer), an earth (zero) ground is required.

NOTE: Grounding via metallic electrical conduit (pipe) is not recommended.

G. GAS INFORMATION

It is your responsibility to have ALL plumbing connections made by a qualified professional to ensure that the gas plumbing installation is adequate and conforms to local and state regulations or codes. In the absence of such codes, plumbing connections, materials, and workmanship must conform to the applicable requirements of the National Fuel Gas Code ANSI Z223.1-LATEST EDITION, or in Canada, the Canadian Installation Codes CAN/CGA-B149.1-M91 (Natural Gas) or CAN/CGA-B149.2-M91 (Liquid Propane [L.P.] Gas) or LATEST EDITION.

IMPORTANT: Failure to comply with these codes or ordinances, and/or the requirements stipulated in this

manual, can result in personal injury and improper operation of the dryer.

The dryer and its individual shutoff valves must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa). The dryer must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure test of the gas supply system at test pressures equal to or less than 1/2 psig (3.5 kPa).

ALL

IMPORTANT: Failure to isolate or disconnect dryer from supply as noted can cause irreparable damage to

the gas valve, which will VOID THE WARRANTY.

113374- 4 Telephone 01422 822282 17

Page 22

W ARNING: FIRE OR EXPLOSION COULD RESUL T DUE TO F AILURE OF ISOLATING OR

DISCONNECTING THE GAS SUPPLY AS NOTED.

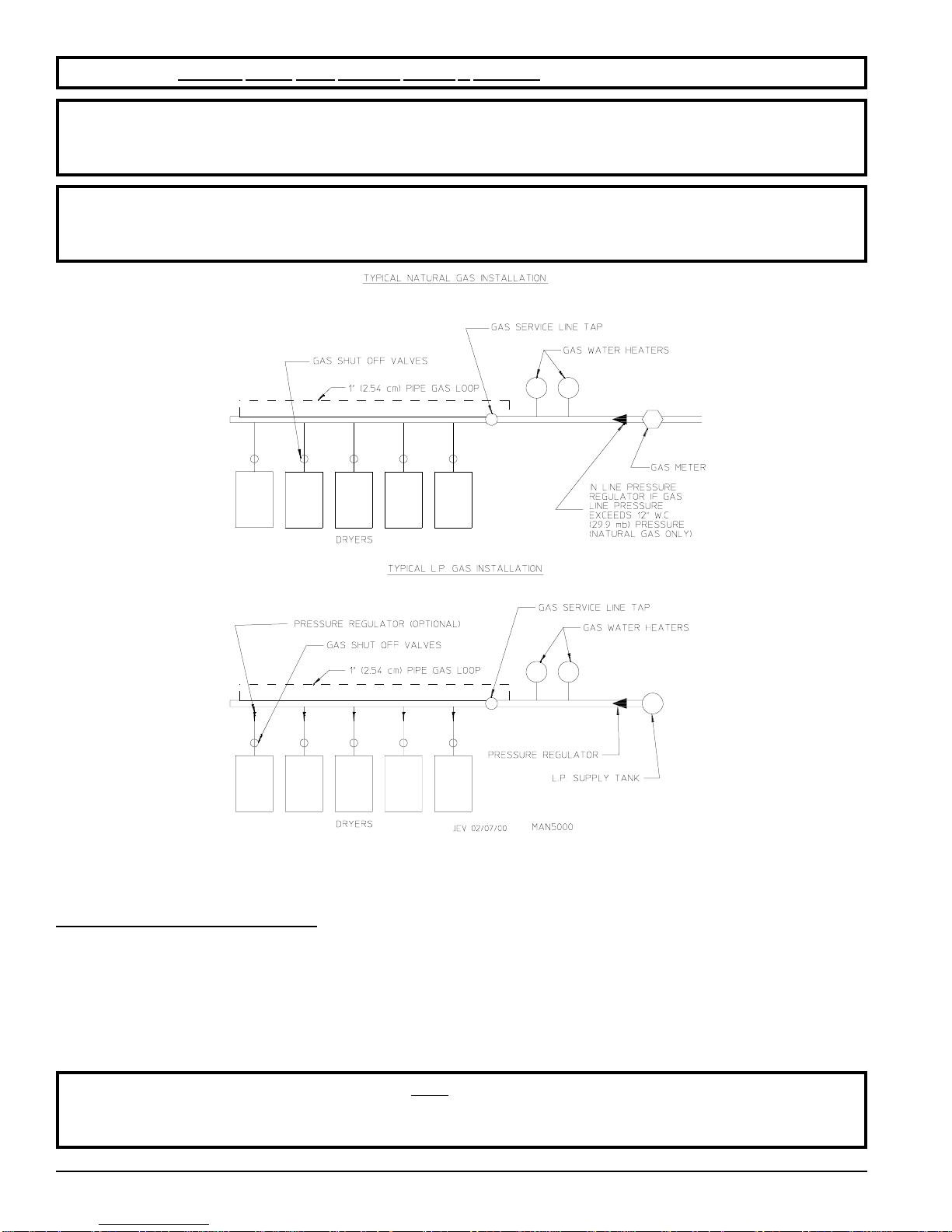

1. Gas Supply

The gas dryer installation must meet the American National Standard...National Fuel Gas Code ANSI Z223.1LATEST EDITION, or in Canada, the Canadian Installation Codes CAN/CGA-B149.1 M91 (Natural Gas) or CAN/CGA-B149.2-M91 (L.P. Gas) or LATEST EDITION, as well as local codes and ordinances and must be done by a qualified professional.

NOTE: Undersized gas piping will result in ignition problems, slow drying, increased use of energy, and can

create a safety hazard.

The dryer must be connected to the type of heat/gas indicated on the dryer label. If this information does not agree with the type of gas available, DO NOT operate the dryer. Contact the distributor who sold the dryer or contact the

JLA factory.

IMPORTANT: Any burner changes or conversions must be made by a qualified professional.

The input ratings shown on the dryer data label are for elevations up to 2,000 feet (609.6 meters), unless elevation requirements of over 2,000 feet (609.6 meters) were specified at the time the dryer order was placed with the factory . The adjustment or conversion of dryers in the field for elevations over 2,000 feet (609.6 meters) is made by changing each burner orifice. If this conversion is necessary, contact the distributor who sold the dryer or contact the JLA factory.

Technical Data

a. Gas Specifications

erusserPdlofinaM * .C.Wsehcni5.3

erusserPeniL-nI.C.Wsehcni0.21-0.6

Shaded areas are stated in metric equivalents

* Measured at the gas valve pressure tap when the gas valve is on.

b. Gas Connections:

Inlet connection---- 1” F.P .T . Inlet supply size---- 1” Diameter Pipe (minimum) Btu/hr input--------- 350,000 (88,200 kcal/hr)

1) Natural Gas

LARUTANENAPORPDIUQIL

bm7.8

bm9.92-29.41

SAGFOEPYT

.C.Wsehcni5.01 .C.Wsehcni0.11

bm1.62 bm4.72

Regulation is controlled by the dryer’s gas valve’s internal regulator. Incoming supply pressure must be consistent between a minimum of 6.0 inches (14.92 mb) and a maximum of 12.0 inches (29.9 mb) water column (W.C.) pressure.

18 JLA Limited 113374-4

Page 23

2) Liquid Propane (L.P.) Gas

Dryers made for use with L.P. gas have the gas valve’s internal pressure regulator blocked open so that the gas pressure must be regulated upstream of the dryer. The pressure measured at each gas valve pressure tap must be a consistent 10.5 inches (26.1 mb) water column. There is no regulator or regulation provided in an L.P. dryer. The water column pressure must be regulated at the source (L.P. tank) or an external regulator must be added to each dryer.

SAGFOEPYT

diuqiL

enaporP

rh/utB

gnitaR

000,053

Shaded area is stated in metric equivalent * Drill Measurement Size (D.M.S.) equivalents are as follows:

Natural Gas ....................... #7 = 0.2010” (5.334 mm).

Liquid Propane Gas ........... #31 = 0.1200” (3.048 mm).

rh/lack

gnitaR

002,88

.ytQ.S.M.D * .oNtraP.ytQ.S.M.D * .oNtraP

37#268041313#818041903388

larutaNenaporPdiuqiL

3. Piping/Connections

ALL components/materials must conform to National Fuel Gas Code Specifications ANSI Z223.1-LATEST EDITION, or in Canada, CAN/CGA-B149.1-M91 (Natural Gas) or CAN/CGA-B149.2-M91 (Liquid Propane [L.P .] Gas) or LATEST EDITION (for General Installation and Gas Plumbing), as well as local codes and ordinances and must be done by a qualified professional. It is important that gas pressure regulators meet applicable pressure requirements, and that gas meters be rated for the total amount of

ALL the appliance Btus being supplied.

The dryer is provided with a 1” N.P.T. inlet pipe connection extending out the back area of the burner box. The minimum pipe size (supply line) to the dryer is 1” diameter. For ease in servicing, the gas supply line of each dryer must have its own shutoff valve.

The size of the main gas supply line (header) will vary depending on the distance this line travels from the gas meter or, in the case of L.P. gas, the supply tank, other gas-operated appliances on the same line, etc. Specific information regarding supply line size should be determined by the gas supplier .

tiKnoisrevnoC

rebmuNtraP

NOTE: Undersized gas supply piping can create a low or inconsistent pressure, which will result in erratic

operation of the burner ignition system.

Consistent gas pressure is essential at ALL gas connections. It is recommended that a 1-inch (2.54 cm) pipe gas loop be installed in the supply line servicing a bank of dryers. An in-line pressure regulator must be installed in the gas supply line (header) if the (natural) gas pressure exceeds 12.0 inches (29.9 mb) of water column (W.C.) pressure.

NOTE: A consistent water column test pressure of 3.5 inches (8.7 mb) for natural gas and 10.5 inches (26.1

mb) for L.P . dryers is required at the gas valve pressure tap of each dryer for proper and safe operation.

A 1/8” N.P.T. plugged tap, accessible for a test gauge connection, must be installed in the main gas supply line immediately upstream of each dryer .

IMPORTANT: Pipe joint compounds that resist the action of natural gas and L.P . gas must be used.

IMPORTANT: Test ALL connections for leaks by brushing on a soapy water solution (liquid detergent works

well).

113374- 4 Telephone 01422 822282 19

Page 24

WARNING: NEVER TEST FOR LEAKS WITH A FLAME!!!

IMPORTANT: The dryer and its individual shutoff valve must be disconnected from the gas supply piping

system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa).

NOTE: The dryer must be isolated from the gas supply piping system by closing its individual manual shutoff

valve during any pressure test of the gas supply system at test pressures equal to or less than 1/2 psig (3.5 kPa).

H. WATER INFORMATION

Before Y ou Start!

Check Local Codes and Permits

Call your local water company or the proper municipal authority for information regarding local codes.

IMPORTANT: It is your responsibility to have ALL plumbing connections made by a qualified professional to

ensure that the plumbing installation is adequate and conforms to local, state, and federal regulations or codes.

20 JLA Limited 113374-4

Page 25

It is the installation or owners responsibility to see that the necessary or required water, water pressure, pipe size, or connections are provided. Manufacturer assumes no responsibility if the fire suppression system installed, or maintained properly .

Installation

Requirements

The fire suppression system must be supplied with a minimum water pipe size of 1/2” and be provided with 40 psi +/- 20 psi (2.75 bar +/- 1.37 bar) of pressure. For use of optional manual bypass, a second source with the same piping and pressure requirements is required.

Flexible 1/2 feeds must be provided to avoid damage to electric water solenoid valve by vibration.

is not connected,

IMPORTANT: Flexible supply line/coupling must be used. Solenoid valve failure due to hard plumbing

connections

If the rear area of the dryer, or the water supply is located in an area where it will be exposed to cold/freezing temperatures, provisions must be made to protect these water lines from freezing.

WILL VOID WARRANTY.

WARNING: If the water in the supply line or water solenoid valve freezes, the fire suppression system will be

INOPERATIVE!!

IMPORTANT: Appliance is to be connected to the water mains using a new hose-set and the old hose-sets

should not be reused.

2. Water Connections:

The water connection is made to the 3/4”-11.5 NH hose adapter of the electric water solenoid valve, located at the rear upper midsection of the dryer (refer to the photo).

The water solenoid valve has a 3/8” M.P.T. connection supplied with a 3/4”-11.5 NH hose adapter to provide the minimum 1/2-inch supply (feed) line. Flexible supply line/coupling must be used in an effort to avoid damaging the electric water solenoid valve.

NOTE: The 3/4”-11.5 NH is a standard hose coupling screw thread. It is not to be confused with 3/4” N.P .T.

The sealing of an NH connection is made with a washer opposed to the mating threads of an N.P .T . assembly . The two (2) thread designs are not compatible.

IMPORTANT: Flexible supply line/coupling must be used. Solenoid valve failure due to hard plumbing

connections WILL VOID WARRANTY. It is recommended that a filter or strainer be installed in the water supply line.

113374- 4 Telephone 01422 822282 21

Page 26

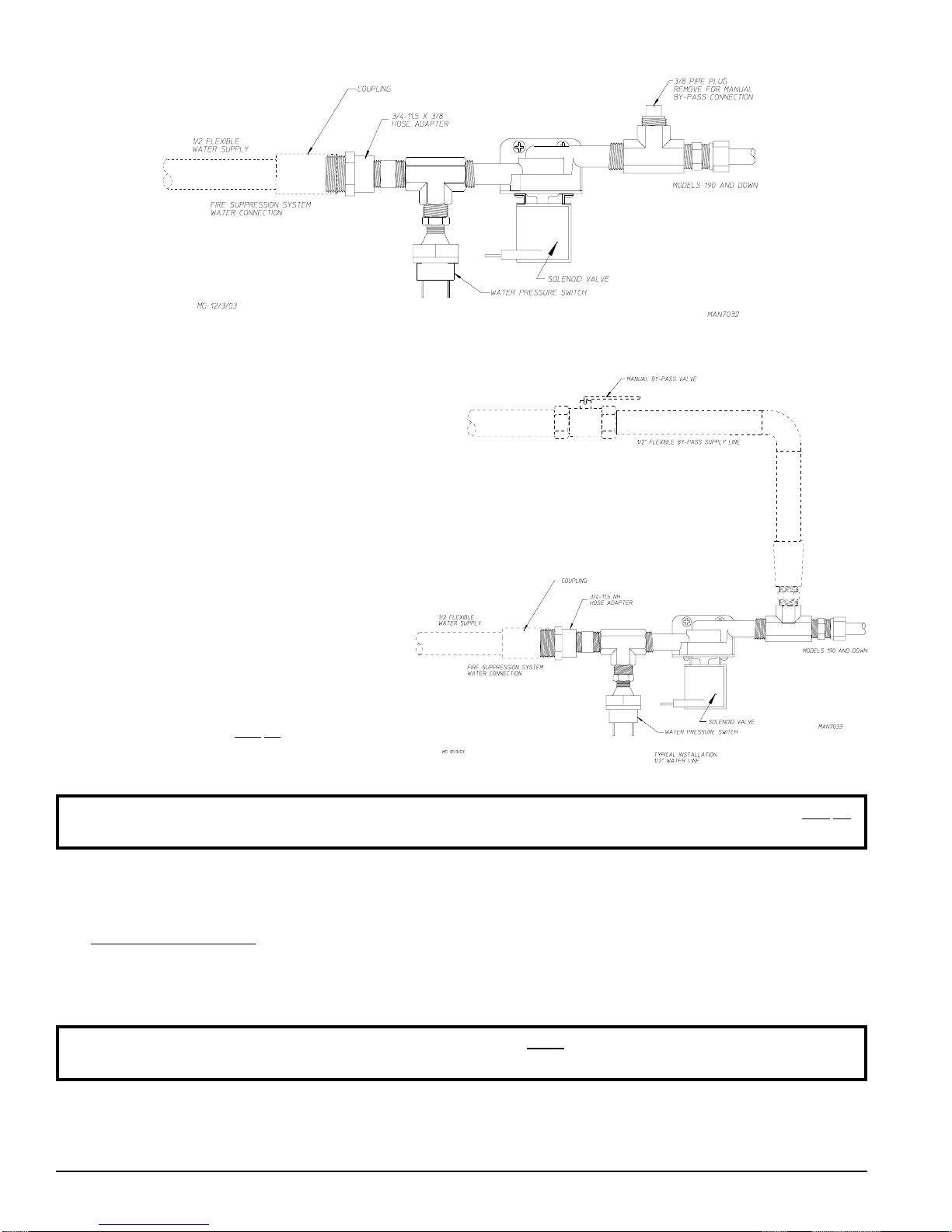

Typical Water Supply:

Optional Manual Bypass

Provisions are made in the dryer’s fire suppression system for the installation of an optional manual bypass. Depending on the model dryer, the connections for the manual bypass are made at the “T” or “three way” fitting located in the outlet supply side of the water solenoid valve. The use and connections of this manual bypass are at the option or discretion of the owner.

The water connection for the manual bypass is made to the “T” or “three way” fitting which has a 3/8” F.P.T. and a coupling must be used to provide the minimum 1/2” supply (feed) line.

If the rear area of the dryer, or the water supply is located in an area where it freezing temperatures, provisions must be made to protect these water lines from freezing.

will be exposed to cold/

WARNING: If the water in the supply line or water solenoid valve freezes, the fire suppression system will be

INOPERATIVE!!

The manual ball cock shutoff valve must be located outside of the dryer at a distance from the dryer where it is easily accessible.

3. Electrical Requirements

No independent external power source or supply connection is necessary. The 24 volt power to operate the fire suppression system is accomplished internally in the dryer (from the dryer controls).

WARNING: Electrical power must be provided to the dryer at ALL times. If the main electrical power

supply to the dryer is disconnected, the fire suppression system is INOPERA TIVE!!

22 JLA Limited 113374-4

Page 27

I. PREPARATION FOR OPERATION/START-UP

The following items should be checked before attempting to operate the dryer:

1. Read

2. Check incoming supply voltage to be sure that it is the same as indicated on the dryer data label. In the case of 208

3. GAS MODELS – check to ensure that the dryer is connected to the type of heat/gas indicated on the dryer data

4. GAS MODELS – the sail switch damper assembly was installed and pre-adjusted at the factory prior to shipping.

5. Check to be sure that the drive belts between the idler pulley and the motor pulley have been reconnected.

ALL “CAUTION,” “WARNING,” and “DIRECTION” labels attached to the dryer.

VAC or 240 VAC THE SUPPLY VOLTAGE MUST MATCH THE ELECTRIC SERVICE

label.

However, each sail switch adjustment must be checked to ensure that this important safety control is functioning.

EXACTLY.

NOTE: The drive belts were disconnected at the factory prior to dryer shipment.

6. GAS MODELS – be sure that ALL gas shutoff valves are in the open position.

7. Be sure

8. Check

9. Be sure the lint drawer is securely in place.

ALL back panels (guards) and electric box covers have been replaced.

ALL service doors to ensure that they are closed and secured in place.

NOTE: LINT DRA WER MUST BE ALL THE W AY IN PLACE TO ACTIV A TE THE SAFETY

SWITCH OTHERWISE THE DR YER WILL NOT ST ART.

10. Rotate the basket (tumbler/drum) by hand to be sure it moves freely.

1 1 . Check bolts, nuts, screws, terminals, and fittings for security .

12. GAS MODELS – check to ensure air supply (80 psi [5.51 bar]) is connected to the dryer.

13. Check basket (tumbler) bearing setscrews to ensure they are

ALL tight.

J. PREOPERATIONAL TESTS

ALL dryers are thoroughly tested and inspected before leaving the factory. However, a preoperational test should be performed before the dryer is publicly used. It is possible that adjustments have changed in transit or due to marginal location (installation) conditions.

1. Turn on electric power to the dryer.

2. Make sure the main door is closed and the lint drawer is securely in place.

3. Refer to the Operating Instructions for starting your particular model dryer.

113374- 4 Telephone 01422 822282 23

Page 28

4. Check to ensure that the basket (tumbler) starts in the clockwise (CW) direction. Additionally, check the direction of the blower motor impellor (fan) to ensure that the impellor (fan) rotates in the clockwise (CW) direction as viewed from the front. If it is, the phasing is correct. If the phasing is incorrect, reverse two (2) of the leads at L1, L2, or L3 of the power supply connections made to the dryer.

IMPORTANT: Dryer blower motor/pulley that drives the impellor/fan (squirrel cage) when viewed from the

back of the dryer must turn in the counterclockwise (CCW) direction, otherwise the dryer efficiency

5. Heat Circuit Operational Test

a. Gas Models

1) When the dryer is first started (during initial start-up), the burner has a tendency not to ignite on the first attempt. This is because the gas supply piping is filled with air , so it may take a few minutes for this air to be purged from the lines.

a) If the dryer is equipped with a Direct Spark Ignition (DSI) system, the DSI control module has internal

diagnostics. If ignition “LOCKOUT” until it is manually reset. To reset the DSI system, open and close the main door and restart the dryer.

b) If the dryer is equipped with a Hot Surface Ignition (HSI) system, the HSI control module has internal

diagnostics. If ignition “LOCKOUT” until it is manually reset. To reset the HSI system, open and close the main door and restart the dryer.

will be drastically reduced and premature component failure can result.

is not established within three (3) attempts, the heat circuit DSI module will

is not established after the first attempt, the heat circuit HSI module will

NOTE: During the purging period, check to be sure that ALL gas shutoff valves are open.

2) Once ignition is established, a gas pressure test should be taken at the gas valve pressure tap of each dryer to ensure that the water column (W.C.) pressure is correct and consistent.

NOTE: Water column pressure requirements (measured at the gas valve pressure tap):

Natural Gas---------------------3.5 Inches (8.7 mb) Water Column. Liquid Propane (L.P .) Gas ----10.5 Inches (26.1 mb) Water Column.

IMPORTANT: There is no regulator provided in an L.P . dryer . The water column pressure must be regulated

at the source (L.P . tank) or an external regulator must be added to each dryer.

6. Make a complete operational check of ALL safety-related circuits (i.e., lint drawer switch and sail switch on gas

models).

NOTE: To check for proper sail switch operation, open the main door and while holding main door switch

plunger in, start the dryer . The dryer should start but the heat circuit should not be activated (on). If the heat (burner) does activate, shut the dryer off and make the necessary adjustments.

7. A reversing basket (tumbler) dryer must never be operated with less than a 63 pound (28.57 kg) load (dry weight).

The size of the load will affect the coast-down and dwell (stop) times. The basket (tumbler) must come to a complete stop before starting in the opposite direction.

24 JLA Limited 113374-4

Page 29

Microprocessor Controller (Computer) Dryer Models

a. Spin and stop times

microprocessor controller (computer) for 150-seconds spin time in the forward direction and 120-seconds in the reverse direction with a 5-second dwell (stop) time.

b. Spin and stop times are adjustable in the Manual (timed) Mode.

The basket (tumbler) is treated with a protective coating. We suggest dampening old garments or cloth material with a solution of water and nonflammable mild detergent and tumbling them in the basket (tumbler) to remove this coating.

8. Each dryer should be operated through one (1) complete cycle to ensure that no further adjustments are necessary

and that

9. Make a complete operational check of

Microprocessor Controller (Computer) Programs/Selections...

Each microprocessor controller (computer) has been preprogrammed by the factory with the most commonly used parameter (program) selections. If computer changes are required, refer to the computer programming manual, which was shipped with the dryer.

ALL components are functioning properly .

are not adjustable in the Automatic Mode and have been preprogrammed into the

BASKET (TUMBLER) COATING

ALL operating controls.

K. COMPRESSED AIR REQUIREMENTS

The dryer requires an external supply of compressed air (2.5 cfh [cubic feet per hour] @ 80 psi [0.07 cmh [cubic meters per hour] @ 5.51 bar]) for gas models. On gas model dryers, compressed air is necessary/required for blower air jet operation to clean lint from the impellor/fan (squirrel cage).

Air Requirements

Microprocessor Controller (Computer) Dryers

Compressed

Air Pressure

Air Supply

Normal 80 psi Minimum Supply 70 p s i Maximum Supply 90 psi

Shaded areas are stated in metric equivalents

5.51 bar

4.82 bar

6.21 bar

113374- 4 Telephone 01422 822282 25

Page 30

2. Air Regulation

No air regulation or air filtration is provided with the dryer. External regulation/filtration of 80 psi (5.51 bar) must be provided. It is suggested that a regulator/filter gauge arrangement be added to the compressed air line just before the dryer connection. This is necessary to ensure that correct and clean air pressure is achieved.

Air Connection

Air connection to this system is a 1/8” F.P.T. as per the illustration above.

L. SHUTDOWN INSTRUCTIONS

If the dryer is to be shut down (taken out of service) for a period of time, the following must be performed:

1. Discontinue power to the dryer either at the external disconnect switch or the circuit breaker.

2. Discontinue the heat supply:

GAS MODELS – discontinue the gas supply.

SHUT OFF

26 JLA Limited 113374-4

external gas supply shutoff valve.

Page 31

SECTION IV

SERVICE/PAR TS INFORMATION

A. SERVICE

Service must be performed by a qualified trained technician, service agency, or gas supplier. If service is required, contact the distributor from whom the JLA equipment was purchased. If the distributor unknown, contact the JLA Service Department for a distributor in your area.

NOTE: When contacting the JLA Service Department, be sure to give them the correct model number and

serial number so that your inquiry is handled in an expeditious manner .

B. PARTS

Replacement parts should be purchased from the distributor from whom the JLA equipment was purchased. If the distributor may also be purchased directly from JLA Parts Department by calling 01422 822282 or you may F AX in your order at 01422 824390.

cannot be contacted or is unknown, contact the JLA Parts Department for a distributor in your area. Parts

cannot be contacted or is

NOTE: When ordering replacement parts from the JLA distributor or JLA, be sure to give them the correct

model number and serial number so that your parts order can be processed in an expeditious

manner.

113374- 4 Telephone 01422 822282 27

Page 32

SECTION V

WARRANTY INFORMATION

A. RETURNING WARRANTY CARDS

Before any dryer leaves the factory test area, a warranty card is placed on the back side of the main door glass. These warranty cards are intended to serve the customer where we record the individual installation date and warranty information to better serve you should you file a warranty claim. If a warranty card did not come with your dryer, contact the JLA Warranty Department.

IMPORTANT: A separate warranty card must be completed and returned for each individual dryer.

NOTE: Be sure to include the installation date when returning the warranty card(s).

B. WARRANTY

For a copy of the JLA commercial warranty covering your particular dryer(s), contact the JLA distributor from whom you purchased the equipment and request a dryer warranty form. If the distributor warranty information can be obtained from JLA by contacting the JLA Warranty Department.

cannot be contacted or is unknown,

NOTE: Whenever contacting JLA for warranty information, be sure to have the dryer’ s model number and

serial number available so that your inquiry can be handled in an expeditious manner.

28 JLA Limited 113374-4

Page 33

SECTION VI

ROUTINE MAINTENANCE

A. CLEANING

A program and/or schedule should be established for periodic inspection, cleaning, and removal of lint from various areas of the dryer, as well as throughout the ductwork system. The frequency of cleaning can best be determined from experience at each location. Maximum operating efficiency is dependent upon proper air circulation. The accumulation of lint can restrict this airflow . If the guidelines in this section are met, a JLA dryer will provide many years of efficient, trouble free, and most importantly , safe operation.

WARNING: LINT FROM MOST FABRICS IS HIGHLY COMBUSTIBLE . THE

ACCUMULA TION OF LINT CAN CREA TE A POTENTIAL FIRE HAZARD.

WARNING: KEEP DRYER AREA CLEAR AND FREE FROM COMBUSTIBLE MA TERIALS,

GASOLINE, AND OTHER FLAMMABLE VAPORS AND LIQUIDS.

NOTE: REMOVE POWER FROM THE DRYER BEFORE PERFORMING ANY

MAINTENANCE IN THE DRYER.

NOTE: Suggested time intervals shown are for average usage which is considered six (6) to eight (8)

operational (running) hours per day .

IMPORTANT: Dryer produces combustible lint and must be exhausted to the outdoors. Every 6 months,

inspect the exhaust ducting and remove any lint build up.

CLEAN LINT FROM LINT DRAWER/SCREEN EVERY THIRD OR FOURTH LOAD.

NOTE: The frequency of cleaning the lint screens can best be determined from experience at each location.

WEEKLY

Clean lint accumulation from the lint chamber, thermostat, and microprocessor temperature sensor (sensor bracket) area.

W ARNING: TO A V OID HAZARD OF ELECTRICAL SHOCK, DISCONTINUE ELECTRICAL

POWER SUPPL Y TO THE DRYER .

90 DAYS

Remove lint from around basket (tumbler), drive motors, and surrounding areas. Remove lint from the gas valve burner area with a dusting brush or vacuum cleaner attachment.

Impellor (fan/blower) shaft bearings should be lubricated using this grease would be described as an NLGI grade 2 multipurpose industrial grease with a lithium thickener and mineral base oil.

Check to make sure that the setscrews on the impellor/fan shaft bearings are tight.

113374- 4 Telephone 01422 822282 29

Shell Alvania grease NLGI 2 or its equivalent. Generically ,

Page 34

NOTE: To prevent damage, avoid cleaning and/or touching the Direct Spark Ignitor .

Remove lint accumulation from inside.

6 MONTHS

Inspect and remove lint accumulation in customer furnished exhaust ductwork system and from dryer’s internal exhaust ducting.

NOTE: THE ACCUMULA TION OF LINT IN THE EXHAUST DUCTWORK CAN CREA TE A

POTENTIAL FIRE HAZARD.

NOTE: DO NOT OBSTRUCT THE FLOW OF COMBUSTION AND VENTILA TION AIR. CHECK

CUSTOMER FURNISHED BACK DRAFT DAMPERS IN THE EXHAUST DUCTWORK. INSPECT AND REMOVE ANY LINT ACCUMULA TION, WHICH CAN CAUSE THE DAMPER TO BIND OR STICK.

NOTE: A back draft damper that is sticking partially closed can result in slow drying and shut down of the heat

circuit safety switches or thermostats.

NOTE: When cleaning the dryer cabinet(s), avoid using harsh abrasives. A product intended for the cleaning

of appliances is recommended.

Check ALL V-belts for tightness and wear. Retighten, realign, or replace if required.

NOTE: V-belts should be replaced in matched sets (pairs).

B. ADJUSTMENTS

7 DAYS AFTER INSTALLATION and EVERY 6 MONTHS THEREAFTER

Inspect bolts, nuts, screws, setscrews, grounding connections, and nonpermanent gas connections ( unions, shutoff valves, and orifices). Fan (impellor) V -belts, along with the motor and drive belts should be examined and replaced if necessary . Tighten loose V-belts when necessary . Complete operational check of controls and valves. Complete operational check

ALL safety devices (door switches, lint drawer switch, sail switch, burner, and hi-limit thermostats).

NOTE: Squirrel cage type fan (impellor) on the blower motor must be inspected and cleaned every 6 months.

C. LUBRICATION

The fan shaft bearings and ALL the basket (tumbler) drive shaft and idler shaft bearings must be lubricated every 3 months.

Use a #2 grease or its equivalent. Lubrication is necessary or premature bearing failure will be the result.

The motor bearings are permanently lubricated and DO NOT require to be serviced.

30 JLA Limited 113374-4

Page 35

SECTION VII

DATA LABEL INFORMATION

When contacting JLA, certain information is required to ensure proper service/parts information from JLA. This information is on the data label that is affixed to the left side panel/wall area behind the control panel. When contacting JLA, please have the model number and serial number available.

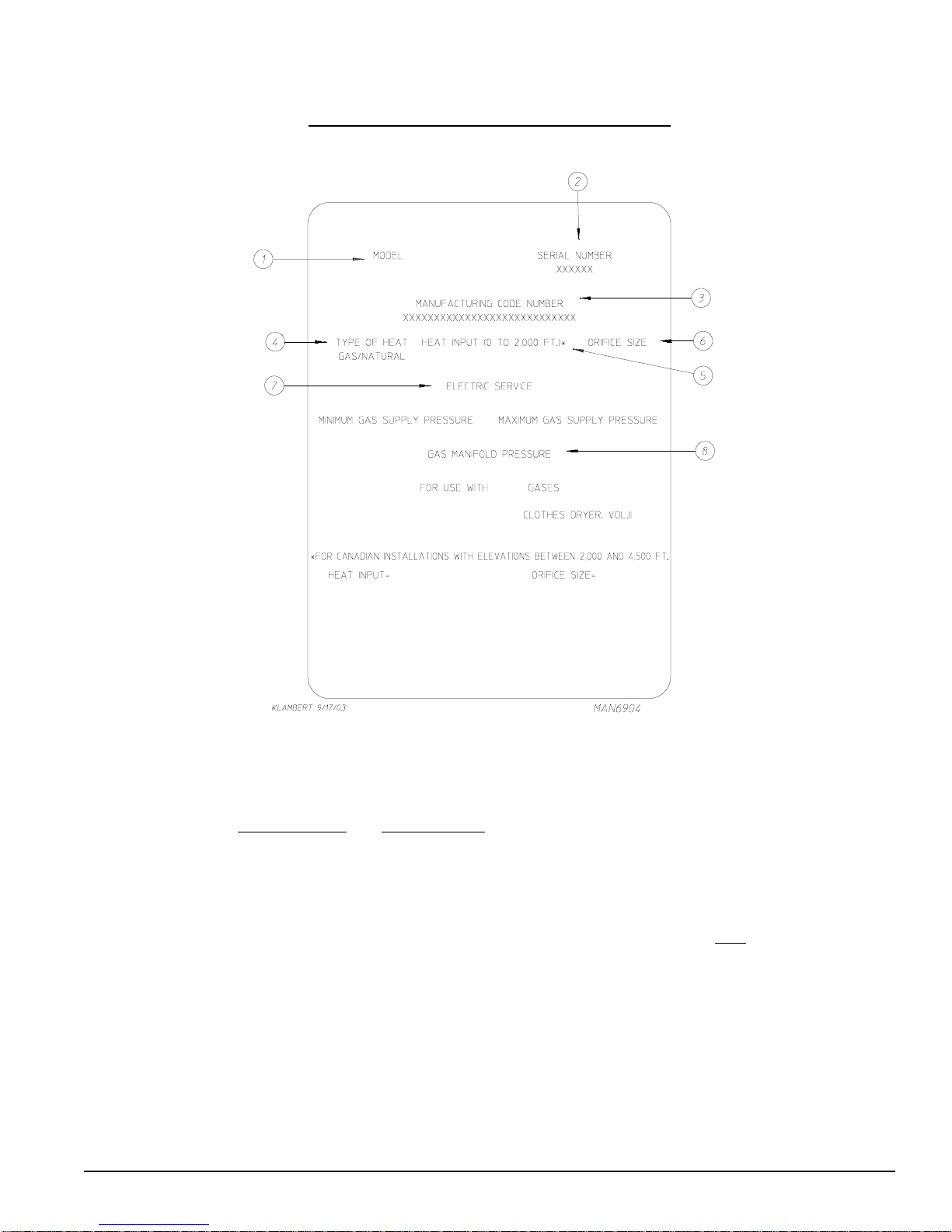

1. MODEL NUMBER – Describes the size of the dryer and the type of heat (gas, electric, or steam).

2. SERIAL NUMBER – Allows the manufacturer to gather information on your particular dryer .

3. MANUFACTURING CODE NUMBER – The number issued by the manufacturer, which describes ALL possible options on your

particular model.

4. TYPE OF HEA T – This describes the type of heat for your particular dryer , gas (either natural gas or liquid propane [L.P.] gas),

electric, or steam.

5. HEAT INPUT (for GAS DR YERS) – This describes the heat input in British Thermal Units per Hour (Btu/hr).

6. ORIFICE SIZE (for GAS DRYERS) – Gives the number drill size used.

7. ELECTRIC SERVICE – This describes the electric service for your particular model.

8. GAS MANIFOLD PRESSURE (for GAS DRYERS) – This describes the manifold pressure taken at the gas valve tap.

113374- 4 Telephone 01422 822282 31

Page 36

SECTION VIII

PROCEDURE FOR FUNCTIONAL CHECK

OF REPLACEMENT COMPONENTS

1. For Heat Control Module Ignition Circuit

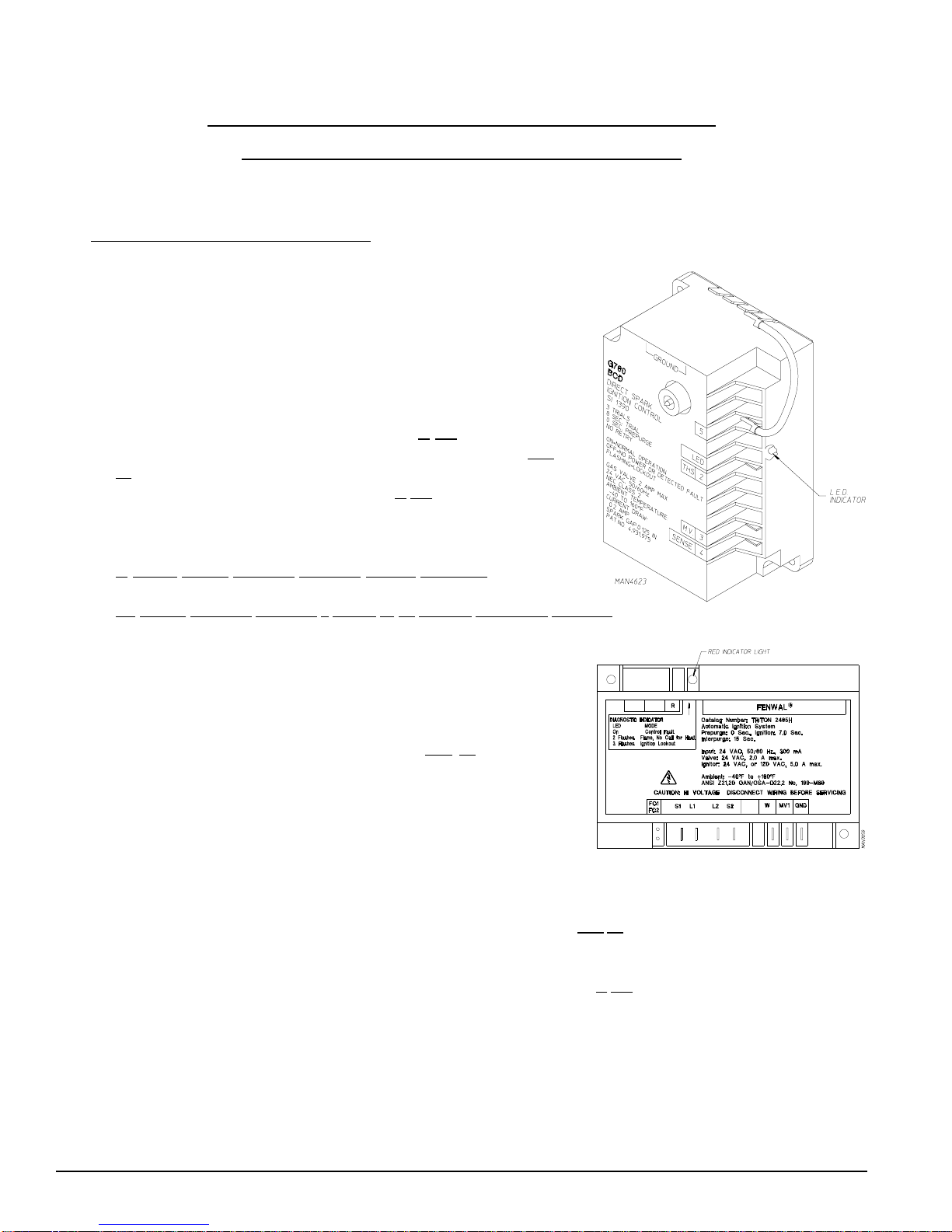

a. For Models With Johnson Controls Direct Spark Ignition (DSI) Module (G760)

Theory Of Operation:

Start the drying cycle. When the gas burner ignites within the chosen trial for ignition time (6-seconds), the flame sensor detects gas burner flame and signals the DSI module to keep the gas valve open as long as there is a call for heat. The DSI module will “LOCKOUT” if the gas burner flame end of the trial for ignition period. The trial for ignition period be repeated for a total of three (3) retries/trials (the initial try and two [2] more retries/trials). If the flame of the third retry/trial (inter-purge period of 30-seconds) the DSI module will “LOCKOUT” (light emitting diode [L.E.D.] flashes).

is not sensed at the

will

is not sensed at the end

A steady L.E.D. indicator indicates normal operation.

No L.E.D. indicator indicates a power or an internal failure has occurred.

b. For Models With Hot Surface Ignition (HSI) Module

1) Start the drying cycle.

2) The HSI will turn on, and after approximately 4-seconds the ignitor will shut off and the gas valve Ignition (flame) should now be established.

3) With the burner flame on, remove the flame sensor wire from the S2 terminal of the HSI module. The burner flame must shut off immediately .

4) Stop the drying cycle, with the flame sensor wire still removed, restart the drying cycle.

5) The HSI will turn on, and after a few seconds later the gas valve Ignition (flame) should be evident for approximately 7-seconds and then shut off.

6) The HSI module will attempt to light burner only “once.” If flame lockout and the “red” indicator light will flash continuously .

will be energized.

will be energized and the HSI will shut off.

is not reestablished the HSI module will

7) Functional check of the HSI module is complete.

Replace the flame sensor wire from the S2 terminal to the HSI module.

32 JLA Limited 113374-4

Page 37

SECTION IX

PHASE 7 NON-COIN SYSTEM DIAGNOSTICS

IMPORT ANT : YOU MUST DISCONNECT AND LOCKOUT THE ELECTRIC SUPPLY AND THE

ALL major circuits, including door, microprocessor temperature sensor, heat and motor circuits are monitored. The

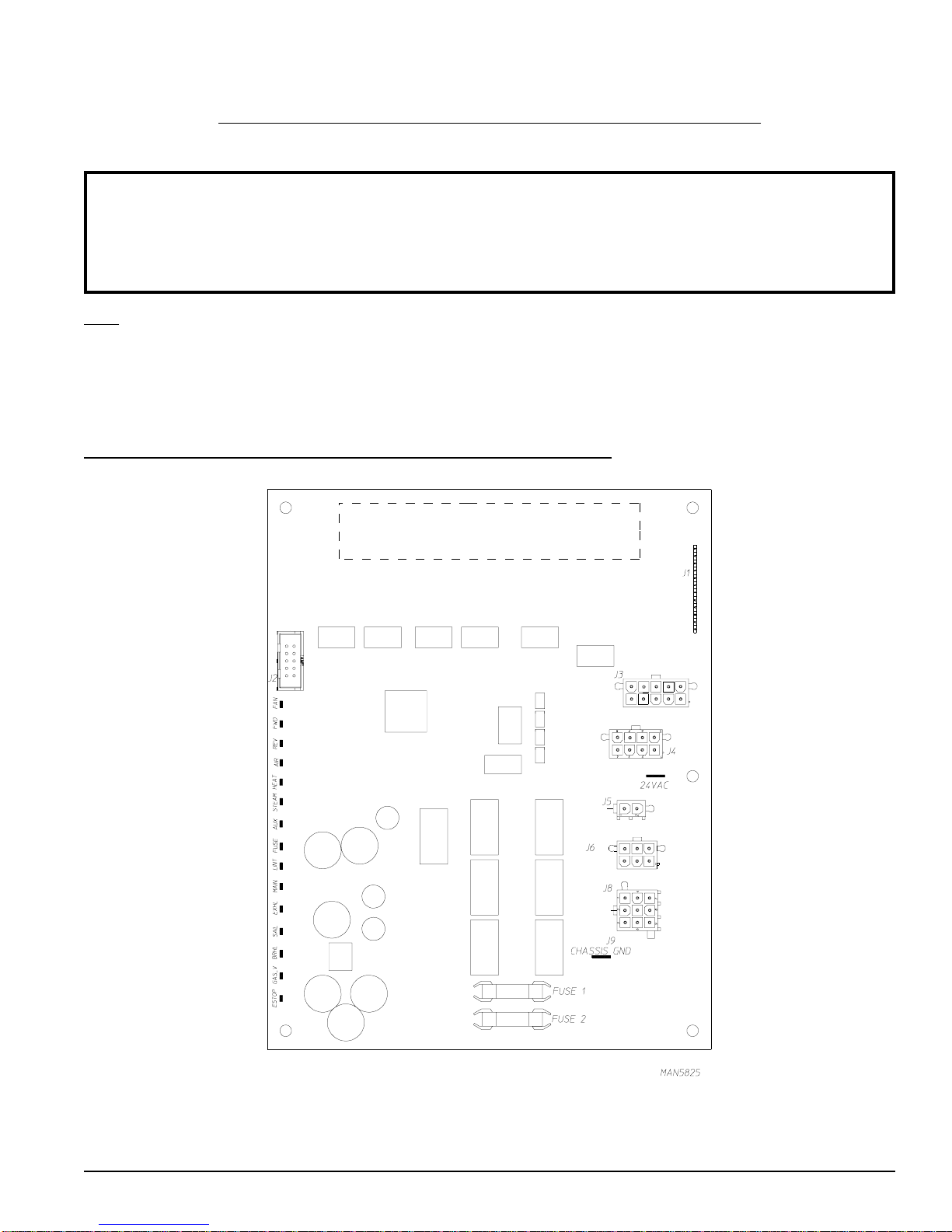

Phase 7 non-coin microprocessor controller (computer) will inform the user, via the light emitting diode (L.E.D.) display of certain failure messages, along with L.E.D. indicators on the input/output (I/O) board on the back panel of the front right control door.

A. DIAGNOSTIC (L.E.D. DISPLAY) FAULT MESSAGES

113374- 4 Telephone 01422 822282 33

Page 38

OUTPUTS: (GREEN)

INPUTS: (RED)

1. FAN - Blower Fan On

2. FWD - Basket (Tumbler) Forward

3. REV - Basket (Tumbler) Reverse

4. AIR JET - Air Jet On

5. HEAT - Front Heat

6. STEAM - Steam Injection

7. AUX - Fire Suppression System (F.S.S.) Active On

8. FUSE - 24 VAC To Board (F2)

9. LINT - Lint Drawer Closed

10. MAIN - Main Door Closed 1 1. EXHL - Exhaust High Limit

12. SAIL - Sail Switch

13. BRHL - Burner High Limit

14. GAS_V - Gas Valve

15. ESTOP - Emergency Stop

Input/Output (I/O) Board Output Description (“Green” light emitting diode [L.E.D.])

1. FAN – (GREEN L.E.D.) This L.E.D. will indicate the status of the Fan output. If the request to turn on the Fan (blower) is made, then the L.E.D. is ON.

2. FWD – (GREEN L.E.D.) This L.E.D. will indicate the status of the Basket (Tumbler) Forward direction output. If the request to tumble the drum in the Forward direction is made, then the L.E.D. is ON.

3. REV – (GREEN L.E.D.) This L.E.D. will indicate the status of the Basket (T umbler) Reverse direction output. If the request to tumble the drum in the Reverse direction is made, then the L.E.D. is ON.

4. AIR JET – (GREEN L.E.D.) This L.E.D. will indicate the status of the Air Jet output. If the request to turn on the Air Jet is made, then the L.E.D. is ON.

5. HEAT – (GREEN L.E.D.) This L.E.D. will indicate the status of the Front Heat output. If the request to turn on the Front Burner is made, then the L.E.D. is ON.

6. STEAM – (GREEN L.E.D.) This L.E.D. will indicate the status of the Steam Injection output. If the request to turn on the Steam Injection is made, then the L.E.D. is ON.

7. AUX – (GREEN L.E.D.) This L.E.D. will indicate the status of the fire suppression system output. If the request to turn on the fire suppression system is made, then the L.E.D. is ON.

Input/Output (I/O) Board Input Description (“Red” L.E.D.)

8. FUSE – (RED L.E.D.) This L.E.D. will indicate the status of the (F2), which fuses the 24 VAC supplied to the board.

9. LINT – (RED L.E.D.) This L.E.D. will indicate the status of the Lint Drawer. If the drawer is closed, then the L.E.D. is ON.

10.MAIN – (RED L.E.D.) This L.E.D. will indicate the status of the Front Doors. If the doors are closed, then the L.E.D. is ON.

11. EXHL – (RED L.E.D.) This L.E.D. will indicate the status of the Exhaust Hi-Limit Disk. If the disk is closed (Temperature below 225º F [107º C]), then the L.E.D. is ON.

12.SAIL – (RED L.E.D.) This L.E.D. will indicate the status of the Sail Switch. If the switch is closed, then the L.E.D. is ON.

13. BRHL – (RED L.E.D.) This L.E.D. will indicate the status of the Burner Hi-Limit Disk. If the disk is closed (Temperature below 330º F [166º C]), then the L.E.D. is ON.

14.GAS_V – (RED L.E.D.) This L.E.D. will indicate the status of the Gas Valve. If the Gas V alve is open (ON), then the L.E.D. is ON.

15. ESTOP – (RED L.E.D.) This L.E.D. will indicate the status of the Emergency Stop Switch. If the Emergency Stop Switch is open (ON), then the L.E.D. is ON.

34 JLA Limited 113374-4

Page 39

Notes ______________________________________________________________________________________________________________________________

____________________________________________________________________________________________________________________________________

113374- 4 Telephone 01422 822282 35

Page 40

JLA 113374 4 - 10/02/07 - 5
