JK Audio BlueDriver-M3 User Manual
BlueDriver-M3
Wireless Audio Interface
User Guide
JK Audio
™
Welcome
Thank You
Thank you for purchasing the JK Audio
BlueDriver-M3 Wireless Audio
Interface. Please read this guide for
instructions on setting up and using
your new product.
Getting Assistance
If you have technical or application
questions:
In the US & Canada, call us toll free at:
800-552-8346
All other countries dial: 815-786-2929
(M-F 8:30-5:00pm Central Time Zone)
Email us at: support@jkaudio.com
Or, check out our FAQ section
for answers to common questions.
BlueDriver-M3 Wireless Audio Interface
ii
Limited Warranty
BlueDriver is covered by a 2 year
warranty to be free from defective
workmanship and materials. To obtain
service, contact JK Audio by phone or
email for return authorization. Once
authorized, you will carefully pack and
ship the faulty product and all accessories to us. You will pay for shipping
to us and we will pay for return back
to you.
This warranty does not cover
damages due to accident, weather,
re, ood, earthquake, misuse,
unauthorized repairs or modications,
or damages occurred in shipping, only
defective workmanship or materials.
There are no expressed or implied
warranties which extend beyond
the warranty here made.
Contents
Overview 1
Getting to know your BlueDriver-M3 2
Starting Up 3
Bluetooth Wireless Technology
4 Status LED
5 Pairing to a Cell Phone
6
Pairing to a Headset
7 Disconnecting, Connection History, Reconnecting
Wireless Applications 8
FAQ's 14
Technical Information
17 Battery Information, Bluetooth Proles
16
4
Contents
iii
Features
HD Voice*
Mini USB Power Jack
3 Pin Male XLR Output
1/8' (3.5 mm) Line Level Input
>10 Hours on Internal Li-Ion Battery
* HD Voice. While standard phone calls have a narrow bandwidth of 300 Hz to 3.4 kHz, HD
Voice calls offer 50 Hz to 7 kHz bandwidth. The additional 1.5 octaves on the low end gives
voice a more natural sound, while the additional upper octave dramatically improves speech
clarity and intelligibility.
Wireless HD Calls. To take advantage of this extended bandwidth, both phones on the call
must support HD Voice, and both phones must be on the same carrier, in coverage areas
that support HD Voice.
7 kHz
BlueDriver-M3 Wireless Audio Interface
iv
Overview
Introducing the BlueDriver-M3.
The BlueDriver-M3 wireless audio interface uses Bluetooth® Wireless
Technology to add wireless possibilities to your audio mixing console. Model M3
provides 2-way, full duplex voice band audio path when connected to a device
using the Hands Free prole.
HD Voice is available on many third party headsets and cell phones. The 7 kHz
audio bandwidth produces rich, natural voice clarity.
Additionally, music bandwidth stereo audio can be heard using the A2DP prole.
Be aware that the standard A2DP music prole includes a 150 millisecond
transmission latency.
Overview
1
Getting To Know your BlueDriver-M3

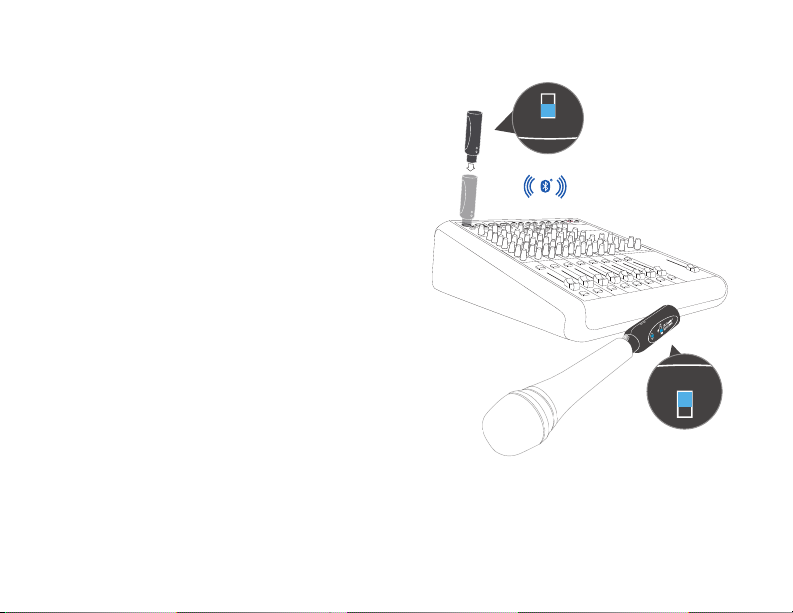

Mode Switch
In the Bluetooth world, a Master
device, such as a wireless phone,
computer, or music player, is
connected to a Headset device.
Before you turn the BlueDriver on,
be sure to set the <Headset/Phone
Switch> to the correct position. If you
change that switch while the unit is
on, you will need to power the unit off,
then power the unit back on before the
change takes effect.
Select <Headset> if you will be using
your BlueDriver with a Bluetooth
enabled headset or any device that
emulates a headset. Select <Phone>
if you will be using your BlueDriver
with a cell phone or other master
device. See page 17 for more
information on Bluetooth proles for
different wireless applications.
2

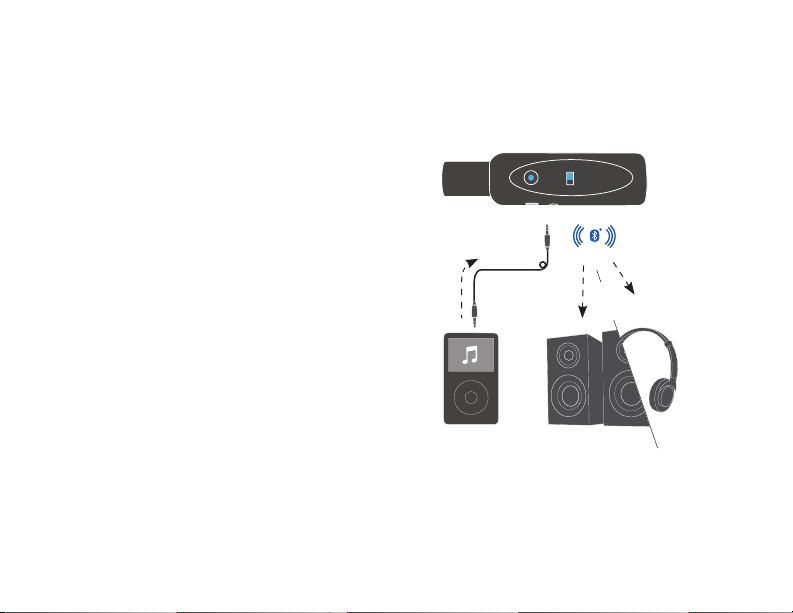

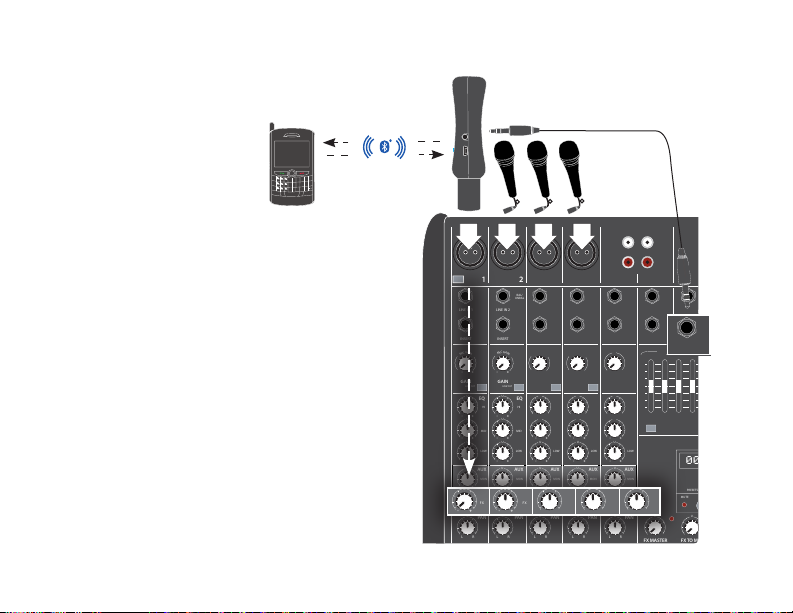

Send Input
A 3.5 mm stereo line level input jack
enables you to add audio from another
source to this device. Both channels of
this input will be sent to the Bluetooth
device and not to the XLR jack. If you
are connected in A2DP as the Master,
you will be able to send stereo audio
to a slave device. If you are connected
as the Slave in HF mode, the two
channels will be mixed together for
transmission.
Power Send
Starting Up
Connect Button
Headset
Connect
Phone
The <Connect Button> is used to
initialize connections. See pages 4-6.
This button is also used to disconnect
and turn off the BlueDriver. See page 7.
BlueDriver-M3
JK Audio
™
™
Charging
To achieve maximum battery capacity,
BlueDriver should be fully charged
before its rst use. While this battery
will normally charge in about 2 1/2
hours, please allow 4-5 hours for this
rst charge. Connect the power supply
cable to the mini USB connector on
your BlueDriver to charge the battery.
The red LED will ash to indicate that
the battery is charging, once charging
is complete, the LED will turn off.
If the battery becomes completely
discharged for an extended period of
time, the red LED will not ash until it
can begin its charge cycle. This may
take several minutes.
If the power cable is connected when
the unit is shut down, the blue LED
will stay lit. If the unit is in use, the
blue LED will indicate the current
connect mode.
Feel free to use your BlueDriver while
it is charging.
Pairing your BlueDriver
Your devices are now ready to be
paired. See Bluetooth Wireless
Technology on page 5 for pairing
instructions.
Starting Up
3
Bluetooth Wireless Technology

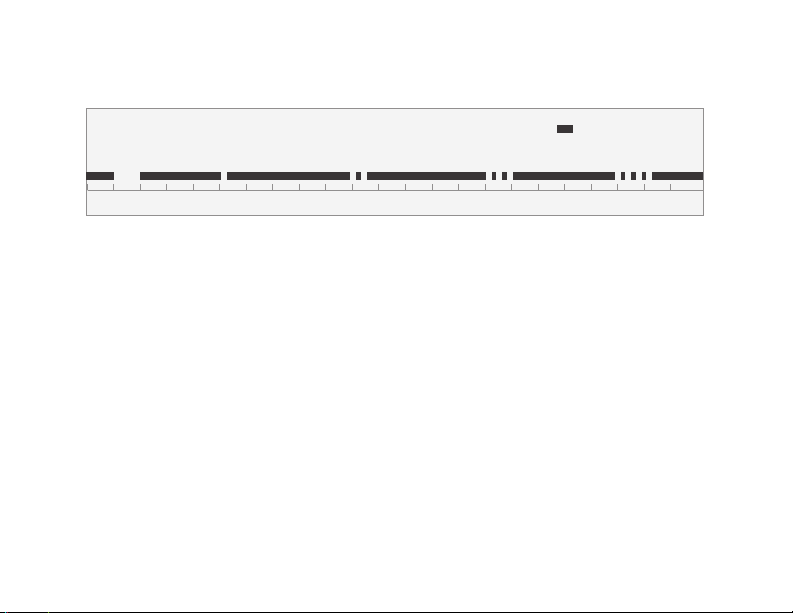

Bluetooth Status LED
The blue LED on the side of the unit ashes in different sequences to indicate the
current connection status.
Pairing Mode
In Pairing Mode, any Bluetooth
wireless technlogy enabled device
within range can pair with your
BlueDriver. To put the unit in Pairing
Mode, press the <Connect Button>
for 6 seconds. The blue LED will
ash rapidly at a rate of 100ms
off, 100ms on. Once the pairing
process is complete the unique
device ID is stored in Connection
History. Subsequent connections
can be made automatically from
Idle Mode.
Note: If you put the unit into the wrong state due to releasing the <Connect Button> at the
4
wrong time, please start over from the powered-off state.
Idle Mode
To connect from Idle Mode, hold
the <Connect Button> for 2
seconds. Upon release, the blue
LED will ash at a slow rate of 2
secs off, 200ms on. In Idle Mode,
BlueDriver searches for paired
devices.
Connected Mode
After bonding is complete, the blue
LED will ash at a slower rate of
2 secs off, 1 sec on (2 secs off,
4 secs on for HD Voice). The
connection to that device
is secure.
