Kitchen Cabinets (wall)

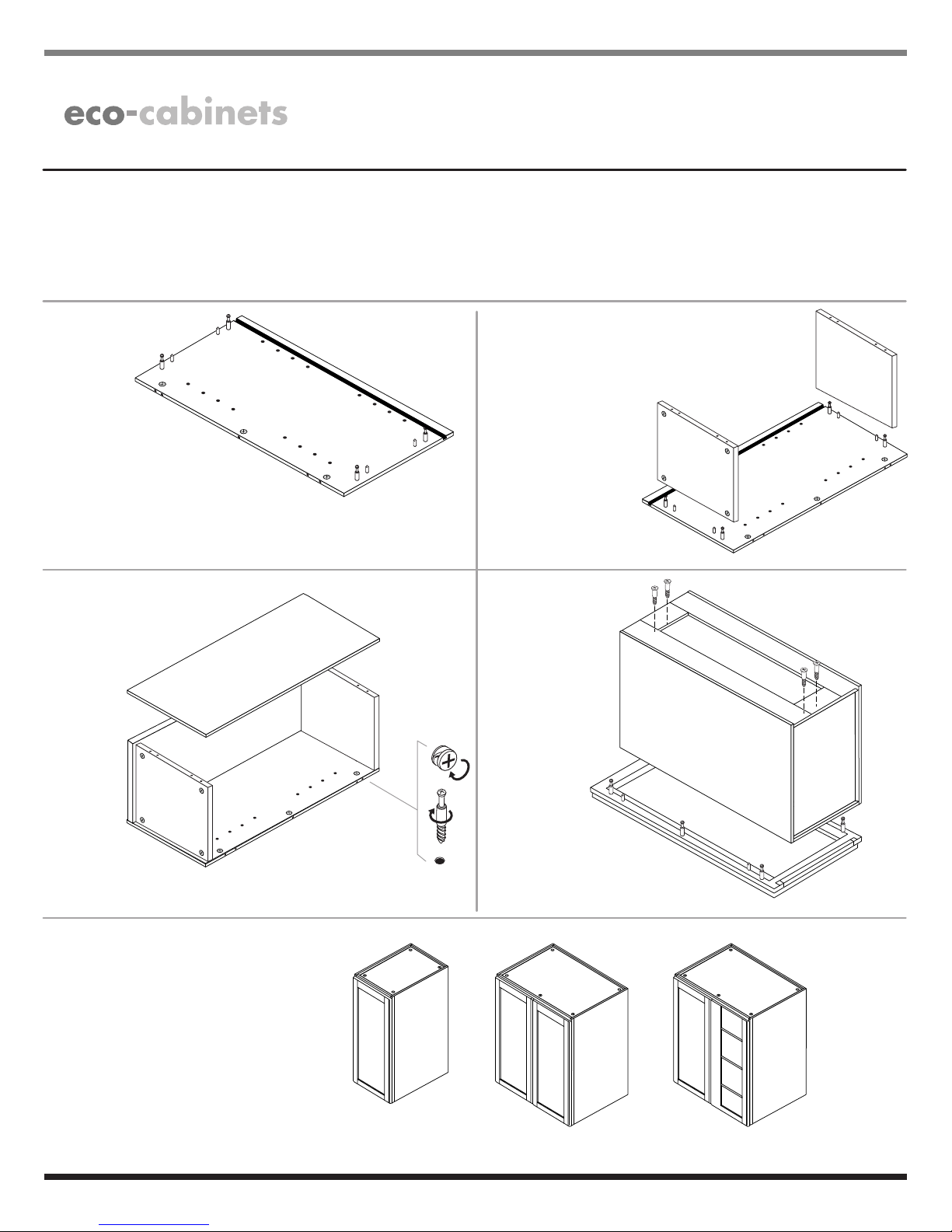

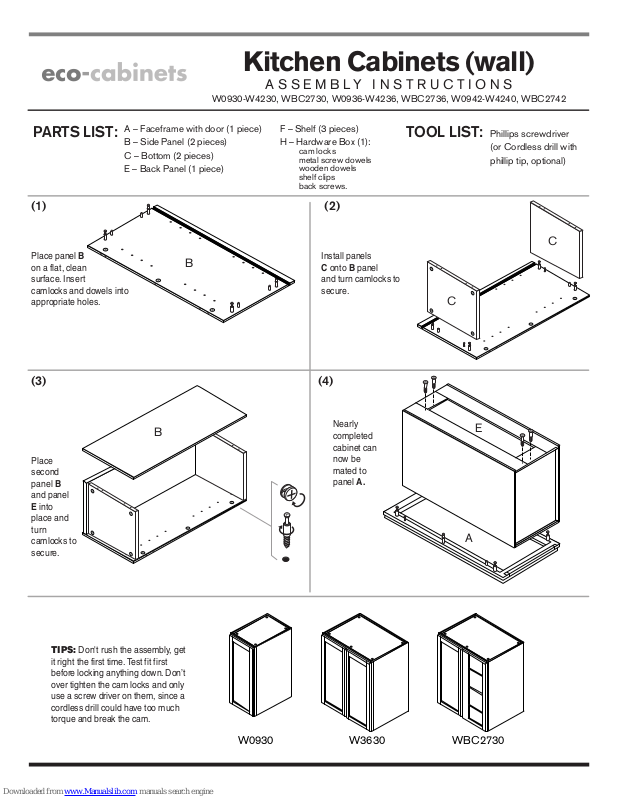

ASSEMBLY INSTRUCTIONS
W0930-W4230, WBC2730, W0936-W4236, WBC2736, W0942-W4240, WBC2742
PARTS LIST: TOOL LIST:
A – Faceframe with door (1 piece)
B – Side Panel (2 pieces)
C – Bottom (2 pieces)
E – Back Panel (1 piece)
F – Shelf (3 pieces)
H – Hardware Box (1):
cam locks
metal screw dowels
wooden dowels
shelf clips
back screws.
(1) (2)
Place panel B
on a flat, clean
surface. Insert
camlocks and dowels into
appropriate holes.
B
Install panels
C onto B panel
and turn camlocks to
secure.
C
(3) (4)
Phillips screwdriver
(or Cordless drill with
phillip tip, optional)
C
Place
second
panel B
and panel
E into
place and
turn
camlocks to
secure.
TIPS: Don't rush the assembly, get
it right the first time. Test fit first
before locking anything down. Don’t
over tighten the cam locks and only
use a screw driver on them, since a
cordless drill could have too much
torque and break the cam.
B
Nearly
completed
cabinet can
now be
mated to
panel A.
E
A
W0930 W3630 WBC2730
