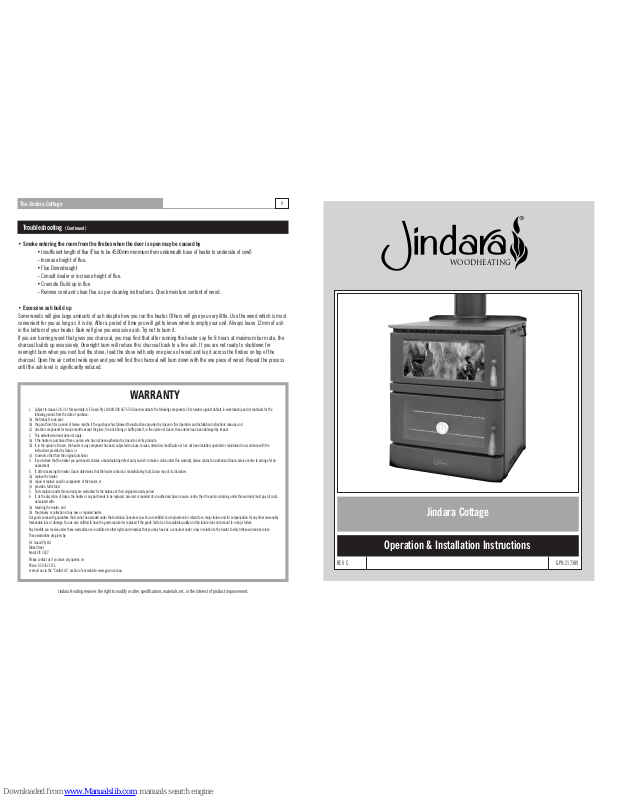

GPN 217389
Jindara Cottage
Operation & Installation Instructions
REV. C
woodheating
• Smoke entering the room from the firebox when the door is open may be caused by
• Insufficient length of flue (Flue to be 4500mm minimum from underneath base of heater to underside of cowl)
– Increase height of flue.
• Flue Downdraught
– Consult dealer or increase height of flue.
• Creosote Build up in flue
– Remove cowl and clean flue as per cleaning instructions. Check moisture content of wood.
• Excessive ash build up
Some woods will give large amounts of ash despite how you run the heater. Others will give you very little. Use the wood which is most
convenient for you as long as it is dry. After a period of time you will get to know when to empty your unit. Always leave 12mm of ash
in the bottom of your heater. Bark will give you excessive ash. Try not to burn it.
If you are burning wood that gives you charcoal, you may find that after running the heater say for 8 hours at maximum burn rate, the
charcoal builds up excessively. Overnight burn will reduce this charcoal back to a fine ash. If you are not ready to shutdown for
overnight burn when you next fuel the stove, load the stove with only one piece of wood and lay it across the firebox on top of the
charcoal. Open the air control wide open and you will find the charcoal will burn down with the one piece of wood. Repeat the process
until the ash level is significantly reduced.
The Jindara Cottage
8
Troubleshooting (Continued)
1. Subject to clauses 2 & 3 of this warranty, A.F. Gason Pty Ltd ACN 004 667 556 (Gason) warrants the following components of its heaters against defects in workmanship and/or materials for the
following periods from the date of purchase:
(a) the firebox for one year;
(b) the paint finish for a period of twelve months if the purchaser has followed the instructions provided by Gason in this Operation and Installation Instructions manual; and
(c) all other components for twelve months except the glass, fire brick lining or baffle plate if, in the opinion of Gason, these items have been damaged by impact.
2. This extended warranty does not apply:
(a) if the heater is purchased from a person who has not been authorised by Gason to sell its products;
(b) if, in the opinion of Gason, the heater or any component has been subjected to abuse, misuse, alteration, modification or has not been installed, operated or maintained in accordance with the
instructions provided by Gason; or
(c) to owners other than the original purchaser.
3. If you believe that the heater you purchased contains a manufacturing defect and you wish to make a claim under this warranty, please contact an authorised Gason service centre to arrange for an
assessment.
4. If, after assessing the heater, Gason determines that the heater contains a manufacturing fault, Gason may at its discretion:
(a) replace the heater;
(b) repair or replace specific components of the heater; or
(c) provide a full refund.
5. Parts replaced under this warranty are warranted for the balance of their original warranty period.
6. If, at the discretion of Gason, the heater or any part needs to be replaced, serviced or repaired at an authorised Gason service centre, then the person claiming under this warranty must pay all costs
associated with:
(a) returning the heater; and
(b) the delivery or collection of any new or repaired heater.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Any benefits you receive under these warranties are in addition to other rights and remedies that you may have as a consumer under a law in relation to the heater to which these warranties relate.
These warranties are given by:
A.F. Gason Pty Ltd
Blake Street
Ararat VIC 3322
Please contact us if you have any queries on:
Phone: 03 5352 2151;
or email us via the “Contact Us” section of our website: www.gason.com.au.
Jindara Heating reserves the right to modify or alter specifications, materials, etc. in the interest of product improvement.
WARRANTY
The Jindara Cottage
7
Troubleshooting
!
WARNING
NEVER OPERATE YOUR APPLIANCE WITH THE DOOR LOOSE AND NOT AIR TIGHT. OVERFIRING
COULD RESULT IN DETRIMENTAL WEAR AND TEAR ON THE FIREBOX.
• Air Control Jamming
There are three bolts holding the air slide control in place. Undo them and remove the air slide. Wipe any ash or dust that may have
accumulated on the back of the air slide or on the face of the heater. If any burrs have developed on the back of the air slide or on the face
of the heater, rub them off with fine wet and dry sand paper till you have a smooth surface and edges. Replace the air slide and make sure
the washers and spacers are on the bolts when you screw the bolts back into the face of the heater. Do not apply any type of lubricant to the
air slide whatsoever as this will attract dust and make the slide stick.
• No Overnight Burn
Remove the air slide as per air control jamming and check that the air slide is hard against the face of the heater. If it is loose, tighten up the
bolts holding the air slide to the face of the heater. Do not overtighten.
Check that the door rope has an even indentation from the sealing strip, which is on the face of the firebox. If it is uneven and it appears as
though air could leak through the seal, adjust the thickness of the door rope to suit. Stretch the rope to make it thinner where the indentation is
the heaviest and bunch up the excess where the indentation is smaller.
Check the four bolts that hold the glass retainer in position. If loose tighten. Do not overtighten.
The door may become loose through the door seal shrinking. To tighten the door, open the door and look at the inside of the door catch.
(a) Unscrew Allen key screw in door handle shaft.
(b) Rotate door handle anti-clockwise (when looking from front of heater). This will tighten door rope seal.
1 turn = approx. 1mm.
(c) Close door and lock.
(d) Check for seal around door opening.
(e) Replace Allen key screw.
(f) Check that roll pin is central in shaft.
When closing the door you should now feel firm resistance when the roll pin comes into contact with the catch.
Note: Not all woods will last overnight.
Overfiring
!
WARNING
Leaving Door Open
As stated previously in relation to leaving door open 25mm to encourage the fire to pick up at
a faster rate. Your heater has been tested to ensure that no structural damage can take place
if the door is inadvertently left open. However your paint finish can be damaged if the door is
left open for a long period with a full firebox of fuel. Closely supervise your heater while the
door is left open.
Closing the Door
Always ensure that before you close your door there is no wood protruding beyond the front of
the firebox opening. Do not use the door glass as a ’battering ram’ to push the wood back into
the firebox. Damage to the glass by such impact is not covered by your warranty.
The Door
The Jindara Cottage
2
!
WARNING
Read and follow these instructions carefully before installing and using this appliance.
SAVE THESE INSTRUCTIONS
Paint curing and care
!
WARNING
• A flue fire with resulting damage may occur if this appliance is not installed, operated
and maintained as per this booklet.
• Never place combustible material such as wood, paper or furniture near the
appliance.
• This appliance is designed to burn dry wood. Do not burn rubbish, driftwood,
flammable liquids or any substance containing salts or corrosives.
• This appliance must not be installed and operated in an area where kerosene, petrol,
paint thinner or other flammable liquid is used or stored.
• The flue system must be inspected and cleaned annually or sooner if required. Failure
to do so could result in an excessive build up of creosote which may result in a flue
fire which may damage the flue or cause damage to your home.
• The surface of the appliance becomes hot during operation. Do not touch the surface
of this appliance. Keep children away from the appliance during operation. Do not
allow anyone to operate this appliance who is not familiar with the instructions in this
booklet.
!
WARNING
Your appliance is coated with the best available heat resistant paint. Even though the paint
has been baked after application, it may require further temperature curing. It may, if you
overfire the heater on its first fire, discolour. For your first two or three firings, never exceed
medium air setting. Do not wipe the heater while paint is curing. After the paint has cured the
only maintenance required to maintain the heaters finish is to wipe it with a soft cloth. Do not
use any commercial cleaners or solvents on the paint finish.
We are proud of the presentation of our products. If at any time you need to freshen up the
paint finish, your local dealer has touch up paint available for purchase. You may even
change the colour of your appliance if you wish.
If you have any enquires, please contact the dealer from whom you purchased your heater:
PLEASE COMPLETE:
Dealer Name
Dealer Address
Phone
Please attach your original purchase dockets to this booklet for future reference.
Safety Warnings
The Jindara Cottage
3
Installation
!
WARNING
THE INSTALLATION OF THIS APPLIANCE MUST BE CARRIED OUT AS PER THIS MANUAL AND
THE FLUE MANUFACTURERS SPECIFICATIONS.
WE RECOMMEND THAT YOU USE A QUALIFIED INSTALLER TO CARRY OUT THE
INSTALLATION.
If you have any other enquiries, please contact the dealer from whom you purchased your
heater.
THIS APPLIANCE WEIGHS IN EXCESS OF 180 KILOGRAMS. EXTREME CARE SHOULD BE TAKEN
WHEN HANDLING THE APPLIANCE.
Installation
Rear Wall
200mm
200mm
Side Wall
Rear Wall
175mm
350mm
Side Wall
Floor Protector
350mm in front of heater
base
Floor Protector
350mm in front of heater
base
The Jindara Cottage conforms to A.S. 2918:2001 Appendix B when placed in the above position on a minimum hearth or floor protector of
1095mm deep x 890mm wide x 12mm thickness. The floor protector should extend 350mm in front of the appliance base.
Hearth Requirements
Installation Permit
Depending on what your local authority requires, a permit may be required for the installation of your heater. It is your responsibility to
arrange the same.
Clearances to combustibles & flue requirements
It is recommended that you either use the flue kit that was tested in test report number shown below, or an approved Australian Standard flue
kit, (that incorporates a decorative surround which is unperforated for 180 degrees of its circumference) in conjunction with the original test
report.
The Jindara Cottage has been tested to the Australian Standard 2918:2001 Appendix B, Report Number HCMG/05/019.
The Jindara Cottage conforms to the Australian Standard in the following placement of the appliance in relation to combustible surfaces.
The Jindara Cottage
6
Operating your Jindara Cottage (Continued)
Overnight burn
Approximately 30 minutes before turning the heater down to overnight burn it is recommended to load the heater with fuel for the overnight
burn. Leave the air control in the medium to high position. Let the heater run for about thirty minutes. This will reduce the moisture content
in the fuel before shut down. (This will help reduce the creosote formation in the firebox and flue.) Set the air control to the setting you have
found best for your requirements. The aim when overnight burning is to have only a few hot embers left in the bottom of the firebox in the
morning. Not huge lumps of wood. Note: Not all woods will last overnight.
Cleaning your flue
Carefully remove baffle plate and put it to one side. Close the firebox door, and position flue damper control in the open position using the
flue damper control handle. Obtain a 150mm dia. flue brush from your local Jindara Dealer and proceed up onto your roof. Remove the cowl.
Slowly push the flue brush down the chimney until it stops. Pull the brush back out and repeat the process. Each time you do this you will
notice that the brush will go further down the chimney till it reaches the bottom. The soot and creosote will fall down the chimney and into
the firebox. Clean residue from firebox. Replace the baffle plate. Make sure you do the job well. The cleaner the flue the less chance there
will be of the creosote sticking again. After you have replaced the cowl, inspect the roof flashing for any damage that may have been
incurred whilst you were cleaning the flue. Reseal the seal on the roof with roof and gutter silicone if required.
Cleaning the soot tray & internal side panels
The soot tray & the internal cavity each side of the cooker should be cleaned at regular intervals in the following manner:
1. Open oven door.
2. Remove bottom panel below oven door (held by 2 screws).
3. Unscrew the 2 knobs & remove cover.
4. Slide out the soot tray & give it a good clean.
5. Using the L shape scraper tool supplied, slide tool up between the firebox side & wrapper panels. Remove creosote using a sweeping
motion. Repeat for opposite side.
6. Make sure all soot & creosote has been removed from all surrounding areas including the tray cavity.
7. Replace tray & panels.
Operating your oven
When ready to start cooking in your oven make sure
there is a good fire burning in the firebox. Move the flue
damper control forward to the closed position for oven
use.
To regulate the temperature in the oven:
(a) Move the air slide control in (cooler) or out (hotter)
to the required setting.
(b) Remove and place to the side 1 or 2 of the air hole
covers on top of the cooker using the tool supplied.
Flue damper control
handle
Air slide control
Tool to remove top
cover
Soot tray
The Jindara Cottage
4
The Jindara Cottage
5
Fitting the Baffle Plate
1. Feed baffle plate through the door opening with front
edge folded up and place into the top of angle supports.
2. Lift the rear of the baffle up onto the two pins at rear.
3. Lower the front of the baffle down onto angle supports.
4. Ensure baffle is hard up against the rear of the firebox
and baffle is sitting as shown in illustration.
!
WARNING
WITH THE CURVED LIP FACING UPRIGHT AND TO THE FRONT, ENSURE THE BAFFLE IS SITTING
CORRECTLY. FAILURE TO DO SO WILL CAUSE THE APPLIANCE TO BE LESS EFFICIENT AND
OVERHEAT THE FLUE SYSTEM. IF THE BAFFLE PLATE IS NOT SUPPORTED AT THE REAR OF
THE FIREBOX AND PLACED FIRMLY AGAINST THE BACK WALL THE BAFFLE MAY BOW
CAUSING INEFFICIENT OPERATION.
!
WARNING
DO NOT ATTEMPT TO OPERATE THIS APPLIANCE WITHOUT READING AND UNDERSTANDING
THESE OPERATING INSTRUCTIONS THOROUGHLY. FAILURE TO OPERATE THIS APPLIANCE
PROPERLY MAY CAUSE UNDUE DAMAGE TO THE APPLIANCE OR RESULT IN A FLUE FIRE.
Take the firebricks out of the heater. They are to be placed so that
they stand on end against the rear and two side walls of the firebox.
You will notice that the bricks have a bevel on one end.
Inside the firebox there is a “C” shaped angle iron firebrick retaining
bracket. This is designed to sit over the bricks and hold them in
place. This should be placed in the firebox so that you see a flat face
of the angle iron on both sides of the firebox and at the rear of the
firebox.
Holding the “C” frame up to the top of the firebox, insert a whole
firebrick, standing it vertically with the bevel edge pointing down and
facing inwards toward the left hand side of the firebox. Lower the left
hand side of the “C” frame onto the firebrick. Repeat with a whole
firebrick on the right hand side.
Place firebricks (2 whole firebricks and one half firebrick) using the same method against the back wall of the firebox.
Now place one extra half firebrick on either side of the firebox to complete the installation of the firebricks. (i.e. two each side and remainder
on the back wall.)
Push each brick and “C” frame firmly against the wall of the firebox.
Sand Layer
Place a 12mm (approx) layer of sand in the bottom of the heater. (Provided in the installation kit.) This is required for the first fire.
Thereafter, when cleaning out the firebox, always leave the equivalent amount of ash in the bottom.
Baffle Plate
Operating your Jindara Cottage
Your first fire
Before starting your fire ensure oven door is left open for the first three fires for paint curing of oven.
Starting your fire
Place a firelighter or paper in the bottom of the firebox and place a large amount of small kindling on top. Ignite the paper or the firelighter.
Set the air control to high and leave the main door open approximately 25mm. With flue damper control in open position (refer illustration on
page 6 for flue damper control location). When the kindling is burning, place about four pieces of small wood on top of the burning kindling.
Once the wood is alight, close the main door. After approximately 20 minutes, turn the air control down to medium.
On the initial fire up you may detect smoke coming from the paint finish and from any oils that may be on the steel on the outside of the
firebox. This is normal. It is suggested to well ventilate your home on the initial fire up. Please refer to our section ‘Paint curing and cure’.
The glass door
Always operate your heater with the firebox door closed and locked. The only time you can leave the firebox door open is on initial lighting, or
when reloading the heater.
Care of your glass
If you are burning good dry wood, you will have very little discolouration of your glass in normal burning cycle. If you aim for an eight to ten
hour overnight burn, you should not get much discolouration. You can control this by adjusting the air slide control, moving from the left and
slowly creeping the control to the right. After a number of days you will find the right position to suit your requirements and the fuel that you
are using.
Cleaning the glass
Generally the only time you will possibly need to clean your glass is after a long overnight burn. If you find that you have a wet sticky black
film on your glass (creosote), it is better to burn the heater as normal for one load of wood. When the wood has burnt down to a hot bed of
embers, open the door and leave it wide open until the glass cools sufficiently to be wiped with a damp cloth. This should clean all the white
smoky film off the glass. Creosote on the glass is normally a sign that you have tried to get too long an overnight burn or you have burnt
excessively wet or green wood.If the film on the glass won’t come off with a wet cloth, you can use wet ash from the ash bed as a cleaner or
commercial products such as Crystal Clear, Johnson Foam Clean or Windex.
Normal Operations
When you get up in the morning, open up the air control of the heater to high position to start the embers glowing. Place three or four pieces
of wood on top of the embers and leave the door open 25mm. Once the fuel starts to flame close the door. As the heater starts to heat up
(approx 20 minutes) begin reducing the air control towards a lower setting. You will find you will only need to run the heater between low and
medium to maintain the temperature you desire in your home.
For best results it is best to burn 250mm long wood and load your wood straight into the firebox front to rear. This will give optimum
efficiency and recoverable heat, and minimise creosote formation and smoke emissions.
Placement of firebricks and sand layer in firebox
Installation (Continued)
Read these instructions
Angle Supports
Firebox
Oven
Soot tray
cover
Lip facing up at front
Support pins
“C” Angle iron bracket
Fire Bricks
Bevelled edge
12mm (approx)
layer of sand
Loading...
