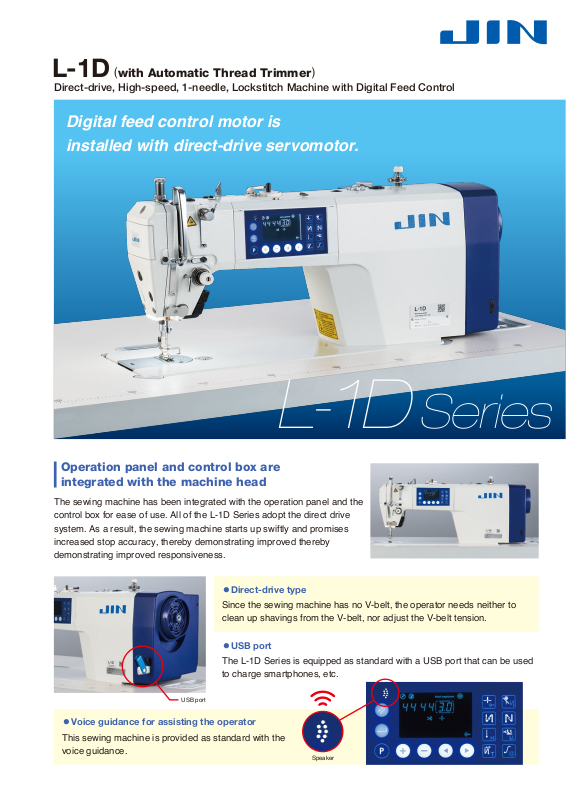

L-1D
Direct-drive, High-speed, 1-needle, Lockstitch Machine with Digital Feed Control
(
with Automatic Thread Trimmer
)
Digital feed control motor is
installed with direct-drive servomotor.
L-1D Series
Operation panel and control box are
integrated with the machine head
The sewing machine has been integrated with the operation panel and the
control box for ease of use. All of the L-1D Series adopt the direct drive
system. As a result, the sewing machine starts up swiftly and promises
increased stop accuracy, thereby demonstrating improved thereby
demonstrating improved responsiveness.
Direct-drive type
Since the sewing machine has no V-belt, the operator needs neither to
clean up shavings from the V-belt, nor adjust the V-belt tension.
USB port
The L-1D Series is equipped as standard with a USB port that can be used
to charge smartphones, etc.
USB port
Voice guidance for assisting the operator
This sewing machine is provided as standard with the
voice guidance.
Speaker
Page 2
Sewing mechanism that demonstrates
outstanding responsiveness to materials
to be sewn.
By thoroughly in modifying the sewing mechanisms, the
machine flexibly responds to various kinds of materials and
produced beautiful seams of consistent quality by digital
controled feed system.
LED hand light
Illuminance of the LED hand light is adjustable in five levels. It can be
adjusted to the illuminance to help the operator to easily carry out work
around the needle, thereby helping increase work efficiency.
SPECIFICATIONS
Model name
Application
Max. sewing speed
Max. stitch length
Lift of the presser foot
Needle
Nipper
Automatic foot lifter
Lubrication
Lubricating oil
Voice guidance
Power consumption
Power requirement
* sti/min is the abbreviation for “stitches per minute”
L-1D-M L-1D-H
Medium-weight
5,000sti/min*
DB× 1 (#14) #11-#18 DP× 5 (#21) #16-#21
JUKI MACHINE OIL 7 (equivalent to ISO VG7)
Single-phase 220V/Single-phase 110V
Heavy-weight
3,500sti/min*
5mm
By hand: 5.0mm / By knee: 13mm
provided
provided
Automatic
with voice guide
0.65kwh
WHEN YOU PLACE ORDERS
Please note when placing orders, that the model name should be written as follows:
Machine head & Control box
L1D- -
Application
Medium-weight
Heavy-weight
Code
M
H
2-11-1
TOKYO
PHONE: (81) 42-357-2370
FAX:
SEWING MACHINERY & SYSTEMS BUSINESS UNIT
Specifications and appearance are subject to change without prior notice for improvement.
Read the instruction manual before putting the machine into service to ensure safety.
This catalogue prints with environment-friendly soyink on recycle paper.
Paper from responsible sources FSC™ C001712
https://www.juki.co.jp/en
Power supply
Single-phase 220V
Single-phase 110V
, TSURUMAKI, TAMA-SHI,
206-8551
)
(
42-357-2274
81
, JAPAN
Code
A
L
Destination
General export
India
Turkey (for RoHS)
Code
A
F
H
JULY, 2022 Printed (TN)
