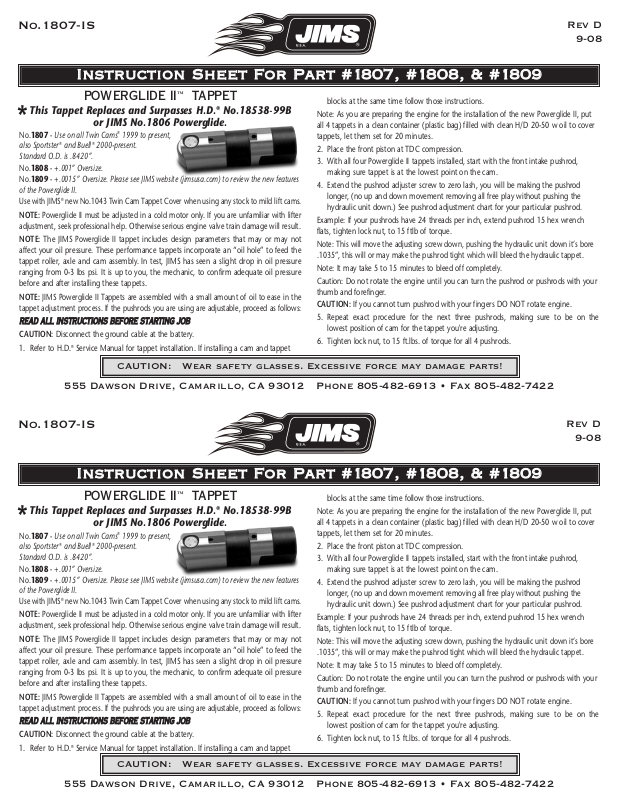

JIMS 1807 User Manual

No.1807-IS

IInnssttrruuccttiioonn SShheeeett FFoorr PPaarrtt ##11880077,, ##11880088,, && ##11880099

Rev D

9-08

POWERGLIDE II™TAPPET

This Tappet Replaces and Surpasses H.D.®No.18538-99B

*

N

o.1807 - Use on all Twin Cams

also Sportster
Standard O.D. is .8420”.

No.1808 - +.001” Oversize.
No.1809 - +.0015” Oversize. Please see JIMS website (jimsusa.com) to review the new features

of the Powerglide II.

Use with JIMS®new No.1043 Twin Cam Tappet Cover when using any stock to mild lift cams.

NOTE: Powerglide II must be adjusted in a cold motor only. If you are unfamiliar with lifter
adjustment, seek professional help. Otherwise serious engine valve train damage will result.

NOTE: The JIMS
affect your oil pressure. These performance tappets incorporate an “oil hole” to feed the
tappet roller, axle and cam assembly. In test, JIMS has seen a slight drop in oil pressure
ranging from 0-3 lbs psi. It is up to you, the mechanic, to confirm adequate oil pressure
before and after installing these tappets.

NOTE: JIMS Powerglide II Tappets are assembled with a small amount of oil to ease in the
tappet adjustment process. If the pushrods you are using are adjustable, proceed as follows:

RREEAADD AALLLL IINNSSTTRRUUCCTTIIOONNSS BBEEFFOORREE SSTTAARRTTIINNGG JJOOB

CAUTION: Disconnect the ground cable at the battery.

1. Refer to H.D.

®

or JIMS No.1806 Powerglide.

®

1

and Buell®2000-present.

Powerglide II

®

Service Manual for tappet installation. If installing a cam and tappet

999 to present,

tappet includes design parameters that may or may not

B

CAUTION: Wear safety glasses. Excessive force may damage parts!

555 Dawson Drive, Camarillo, CA 93012 Phone [phone] • Fax [phone]

blocks at the same time follow those instructions.

Note: As you are preparing the engine for the installation of the new
all 4 tappets in a clean container (plastic bag) filled with clean H/D 20-50 w oil to cover
tappets, let them set for 20 minutes.

2

. Place the front piston at TDC compression.

3. With all four Powerglide II tappets installed, start with the front intake pushrod,
making sure tappet is at the lowest point on the cam.

4

. Extend the pushrod adjuster screw to zero lash, you will be making the pushrod

longer, (no up and down movement removing all free play without pushing the
hydraulic unit down.) See pushrod adjustment chart for your particular pushrod.

Example: If your pushrods have 24 threads per inch, extend pushrod 15 hex wrench
flats, tighten lock nut, to 15 ftlb of torque.

Note: This will move the adjusting screw down, pushing the hydraulic unit down it’s bore
.1035”, this will or may make the pushrod tight which will bleed the hydraulic tappet.

Note: It may take 5 to 15 minutes to bleed off completely.
Caution: Do not rotate the engine until you can turn the pushrod or pushrods with your

thumb and forefinger.
CAUTION: If you cannot turn pushrod with your fingers DO NOT rotate engine.

5. Repeat exact procedure for the next three pushrods, making sure to be on the
lowest position of cam for the tappet you're adjusting.

6. Tighten lock nut, to 15 ft.lbs. of torque for all 4 pushrods.

Powerglide II

, put

No.1807-IS

IInnssttrruuccttiioonn SShheeeett FFoorr PPaarrtt ##11880077,, ##11880088,, && ##11880099

POWERGLIDE II™TAPPET

This Tappet Replaces and Surpasses H.D.®No.18538-99B

*

No.1807 - Use on all Twin Cams
also Sportster

Standard O.D. is .8420”.

No.1808 - +.001” Oversize.
No.1809 - +.0015” Oversize. Please see JIMS website (jimsusa.com) to review the new features

of the Powerglide II.

Use with JIMS

NOTE: Powerglide II must be adjusted in a cold motor only. If you are unfamiliar with lifter
adjustment, seek professional help. Otherwise serious engine valve train damage will result.

NOTE: The JIMS
affect your oil pressure. These performance tappets incorporate an “oil hole” to feed the
tappet roller, axle and cam assembly. In test, JIMS has seen a slight drop in oil pressure
ranging from 0-3 lbs psi. It is up to you, the mechanic, to confirm adequate oil pressure
before and after installing these tappets.

NOTE: JIMS Powerglide II Tappets are assembled with a small amount of oil to ease in the
tappet adjustment process. If the pushrods you are using are adjustable, proceed as follows:

RREEAADD AALLLL IINNSSTTRRUUCCTTIIOONNSS BBEEFFOORREE SSTTAARRTTIINNGG JJOOB

CAUTION: Disconnect the ground cable at the battery.

1. Refer to H.D.

®

®

or JIMS No.1806 Powerglide.

®

1999 to present,

and Buell®2000-present.

new No.1043 Twin Cam Tappet Cover when using any stock to mild lift cams.

Powerglide II

®

Service Manual for tappet installation. If installing a cam and tappet

tappet includes design parameters that may or may not

B

CAUTION: Wear safety glasses. Excessive force may damage parts!

Rev D

9-08

blocks at the same time follow those instructions.

Note: As you are preparing the engine for the installation of the new
all 4 tappets in a clean container (plastic bag) filled with clean H/D 20-50 w oil to cover
tappets, let them set for 20 minutes.

2. Place the front piston at TDC compression.

3. With all four Powerglide II tappets installed, start with the front intake pushrod,
making sure tappet is at the lowest point on the cam.

4. Extend the pushrod adjuster screw to zero lash, you will be making the pushrod
longer, (no up and down movement removing all free play without pushing the
hydraulic unit down.) See pushrod adjustment chart for your particular pushrod.

Example: If your pushrods have 24 threads per inch, extend pushrod 15 hex wrench
flats, tighten lock nut, to 15 ftlb of torque.

Note: This will move the adjusting screw down, pushing the hydraulic unit down it’s bore
.1035”, this will or may make the pushrod tight which will bleed the hydraulic tappet.

Note: It may take 5 to 15 minutes to bleed off completely.
Caution: Do not rotate the engine until you can turn the pushrod or pushrods with your

thumb and forefinger.
CAUTION: If you cannot turn pushrod with your fingers DO NOT rotate engine.

5. Repeat exact procedure for the next three pushrods, making sure to be on the
lowest position of cam for the tappet you're adjusting.

6. Tighten lock nut, to 15 ft.lbs. of torque for all 4 pushrods.

Powerglide II

, put

555 Dawson Drive, Camarillo, CA 93012 Phone [phone] • Fax [phone]

No.1807-IS

7. Recheck lock nut, close covers, and install your pushrod clips.

8. Turn motor over several times to pump oil into the Powerglide II tappets. You should
turn the motor over until the oil light goes out, or when the oil is returning back to
the oil tank.

CAUTION: Use 20-50W motorcycle oil with your new tappets. New motors, after the
first 50 miles change oil, oil filter and run the new tappets for 500 miles using 20-50W
motorcycle oil.

WWAARRRRAANNTTY

All JIMS parts are guaranteed to the original purchaser to be free of manufacturing defects
in materials and workmanship for a period of six (6) months from the date of purchase.
Merchandise that fails to conform to these conditions will be repaired or replaced at JIMS
option if the parts are returned to us by the dealer (purchaser) within the six (6) month
warranty period or within ten (10) days thereafter.
In the event warranty service is required, the original purchaser must call or write JIMS
immediately with the problem. Some problems can be rectified by a telephone call and need
no further course of action. A part suspected of being defective must not be replaced by a
dealer without prior authorization from
JIMS. If it is deemed necessary for JIMS
to make an evaluation to determine
whether the part is defective, it must be
packaged properly to prevent further
damage and be returned prepaid to
JIMS with a copy of the original invoice
of purchase and a detailed letter outlin­ing the nature of the problem, how the
part was used and the circumstances at
the time of failure. If after an evaluation
has been made by JIMS and the part
was found to be defective, repair,
replacement or credit will be granted.

555 Dawson Drive, Camarillo, CA 93012 Phone [phone] • Fax [phone]

Y

Popular Pushrods

JIMS®Pro-lite 24 No.s 2380, 2400
Slim Jims 32 No.s 2404, 2369

Andrews 28

ndrews 32

A
Crane 28 New Time Savers
Crane 24 Old Time Savers
Crane 32

.D. 32

H
S & S 32
Screamin Egl. 32
Rivera 40 Taper Lite
Rev Tech 36

Rev D

9-08

AADDDDIITTIIOONNAALL WWAARRRRAANNTTYY PPRROOVVIISSIIOONNS

1.) JIMS shall have no obligation in the event a JIMS part is modified by any other person
or organization.

2

.) JIMS shall have no obligation if a JIMS part becomes defective in whole or in part as a

r

esult of improper installation, improper maintenance, improper use, abnormal

operation, or any other misuse or mistreatment of the part.

3.) JIMS shall not be liable for any consequential or incidental damages resulting from the
failure of a JIMS part, the breach of any warranties, the failure to deliver, delay in
delivery, delivery in non-conforming condition, or for any other breach of contract or
duty between JIMS and a customer.

4.) JIMS parts are designed exclusively for use in Harley-Davidson
shall have no warranty or liability obligation if a JIMS part is used in any other
application.

Pushrod Adjustments For POWERGLIDE II

JIMS No.1807 & No.1808

Threads Wrench Total Travel Distance Distance
per inch Flats Distance Per Turn Per Flat

24 15 .1042” .0417” .0069”
28 17 .1011” .0357” .0059”
32 18 .0937” .0313” .0052”
36 21 .0965” .0275” .0045”
40 24 .100” .025” .0042”
52 30 .0962” .0192” .0032”

S

®

Motorcycles. JIMS
