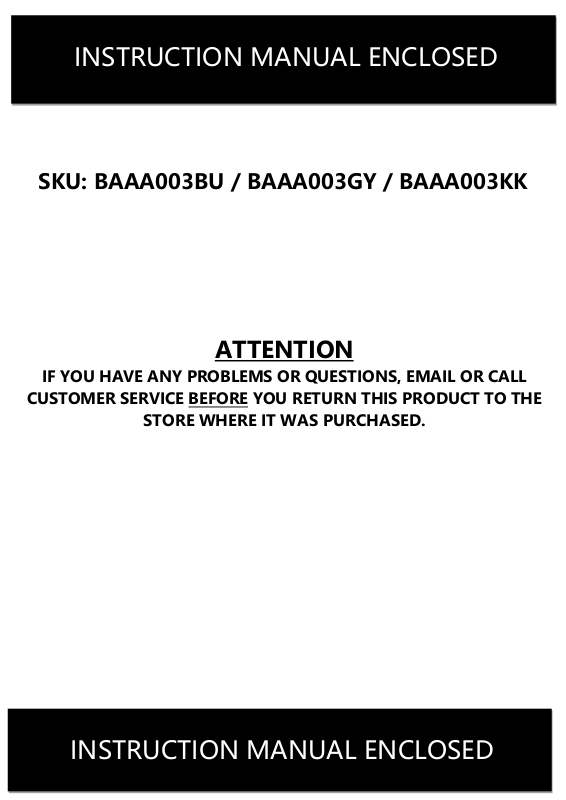

Page 1
INSTRUCTION MANUAL ENCLOSED
SKU: BAAA003BU / BAAA003GY / BAAA003KK
ATTENTION
IF YOU HAVE ANY PROBLEMS OR QUESTIONS, EMAIL OR CALL
CUSTOMER SERVICE BEFORE YOU RETURN THIS PRODUCT TO THE
STORE WHERE IT WAS PURCHASED.
INSTRUCTION MANUAL ENCLOSED
Page 2
SIDE TABLE
SIDE TABLE ASSEMBLY INSTRUCTION
PARTS LIST
Part Description Quantity
PARTS
A Table Feet 4
B Table Top 1
C Table Rack 1
HARDWARE
D Washers 12
E Bolts M6*15 mm 12
F Allen Key 1
5
Page 3
PLEASE READ AND FOLLOW ALL SAFETY TIPS
***Tips: Do not fasten all bolts completely tight until finish all steps.
1. Locate 4 Table Feet(A) to the Table Top(B) by the pre-drilled threads. Fasten Bolts(E) with
Washers(D) by using Allen Key(F) to combine table top and table feet together. 8 bolts should
be fastened totally, 2 for each foot. (Step 1)
2. Locate Table Rack(C) to 4 Table Feet(A) by the pre-drilled threads. Fasten Bolts(E) with
Washers(D) by using Allen Key(F) to combine table rack and table feet together. 4 bolts should
be fastened totally, 1 for each corner of the rack. Now fasten all bolts tight(Step 2)
Till now you have finished the whole assembly and enjoy your coffee with the table!!
Page 4
INSTRUCTION MANUAL ENCLOSED
FOR ONE OF THE TWO CHAIRS
ATTENTION
IF YOU HAVE ANY PROBLEMS OR QUESTIONS, EMAIL OR CALL
CUSTOMER SERVICE BEFORE YOU RETURN THIS PRODUCT TO THE
STORE WHERE IT WAS PURCHASED.
INSTRUCTION MANUAL ENCLOSED
Page 5
SWIVEL CHAIR
PARTS LIST
Part Description Quantity
PARTS
A
B
C
D
E
F
H
K
L
M
BSI0019
SWIVEL CHAIR ASSEMBLY INSTRUCTION
Right Armrest 1
Left Armrest 1
Chair Seat 1
Chair Back 1
Rocking Track 1
Swivel Chair Base 1
HARDWARE
Bolts M6 *40mm 18
I Washers 18
Screw Nuts 8
Allen Key 1
Hex Spanner 1
Page 6
PLEASE READ AND FOLLOW ALL SAFETY TIPS
PL
***Tips: Do not fasten all bolts completely tight until finish all steps.
1. Locate the Armrests(A & B) to the Chair Back(D) by the pre-drilled threads. Fasten Bolts(H)
with Washers (I) by using Allen Key(L) to combine armrests and chair back together. 4 bolts
should be fastened totally. (Step 1)
Page 7

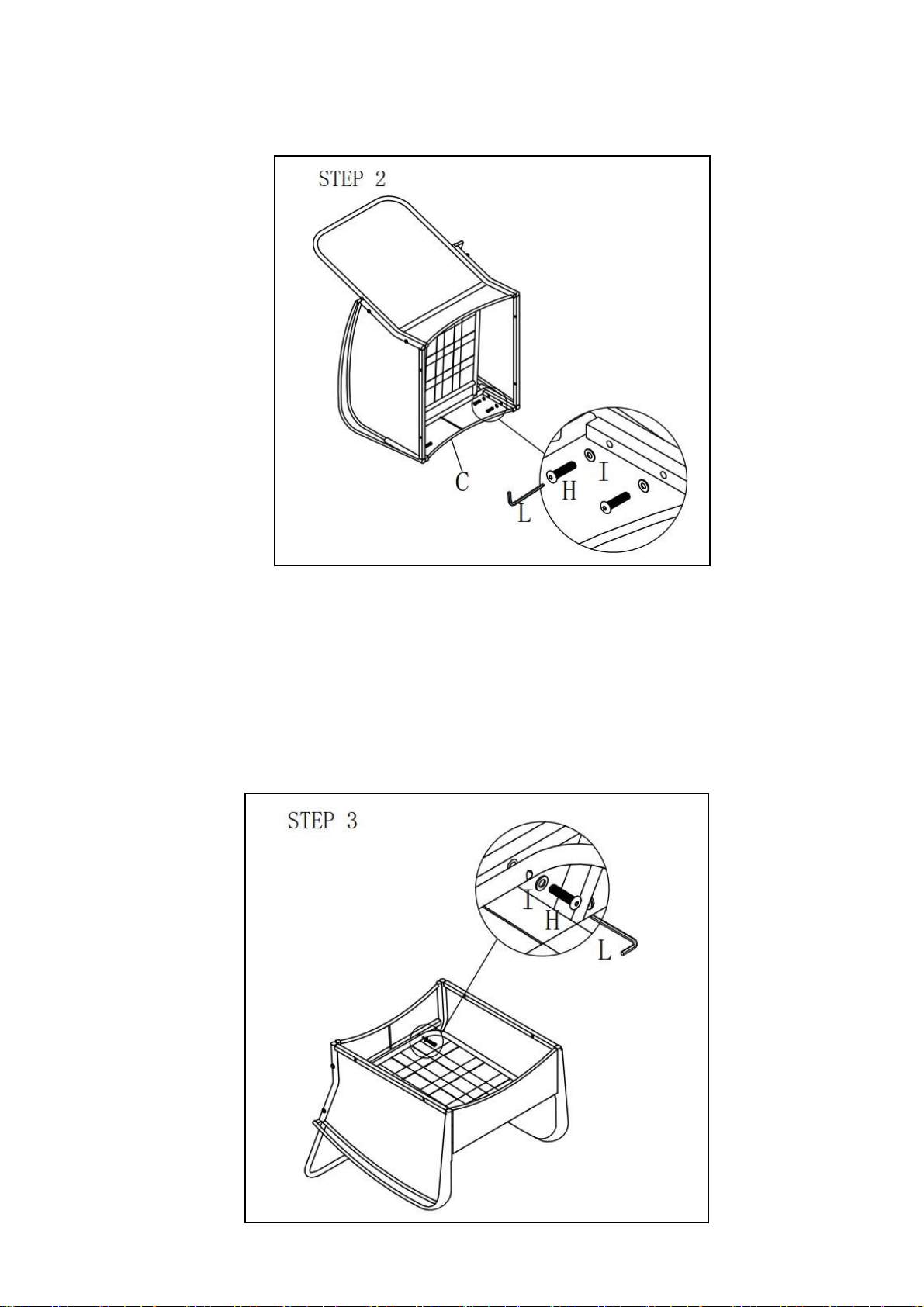

2.Locate the Chair Seat(C) to the Armrests(A & B) by the pre-drilled threads. Fasten Bolts(H)
with Washers (I) by using Allen Key(L) to combine armrests and chair seat together. 4 bolts
should be fastened totally. (Step 2)
3.Locate the Chair Seat(C) to the Chair Back(D) by the pre-drilled threads. Fasten Bolts(H) with
Washers (I) by using Allen Key(L) to combine chair seat and chair back together. 2 bolts should
be fastened totally. (Step 3).
Page 8

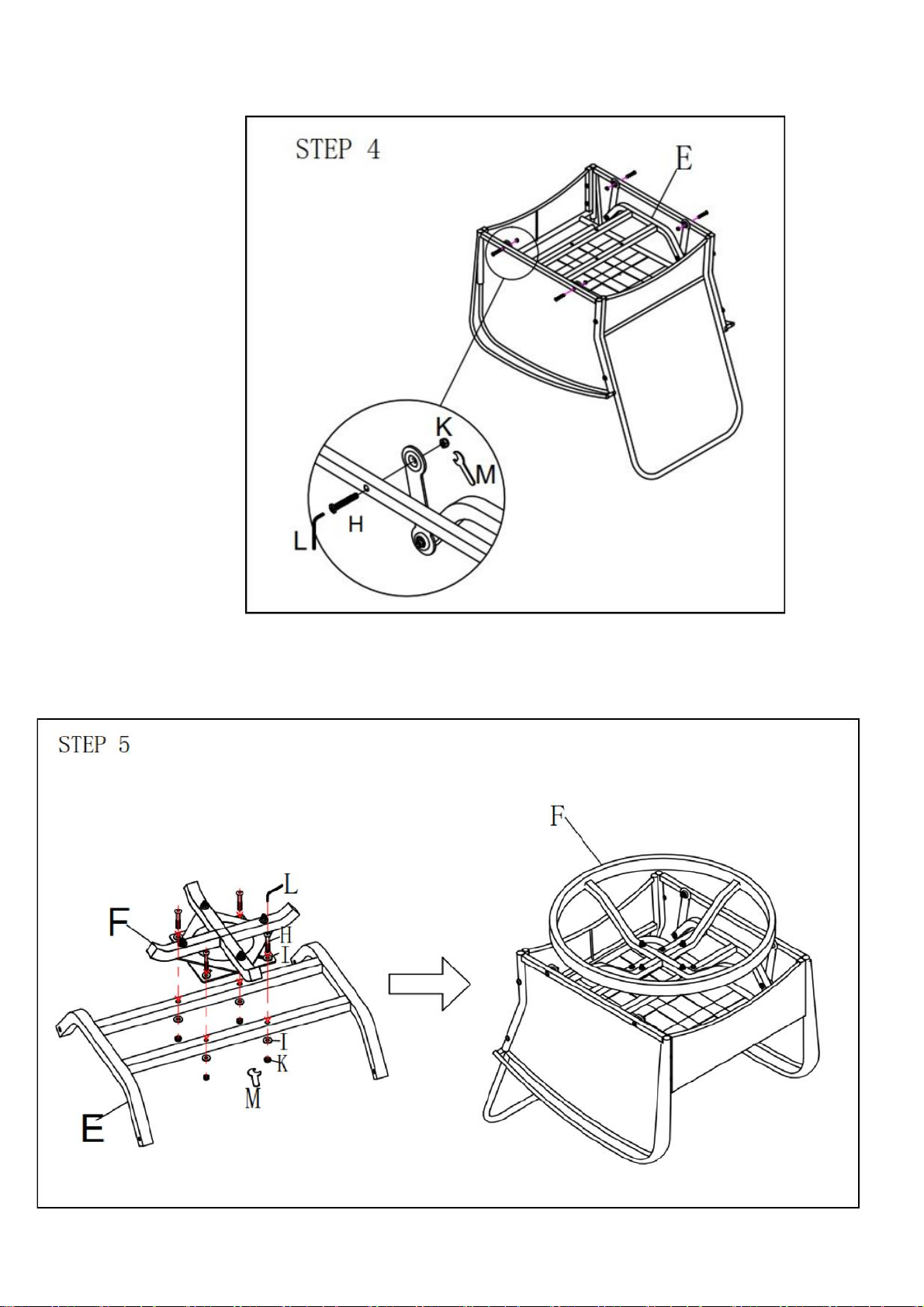

4. Locate the Rocking Track(E) to the Armrests’ bottom(A & B) by the pre-drilled threads.
Fasten Bolts(H) into Screw Nuts(K) by using Allen Key(L) and Hex Spanner(M) to combine
rocking rack and the chair main part together. 4 bolts should be fastened totally. (Step 4).
5.Locate the Rocking Track(F) to the Rocking Rack(E) by the pre-drilled threads. Fasten
Bolts(H) with Washers (I) into Screw Nuts(K) by using Allen Key(L) and Hex Spanner(M). 4 bolts
should be fastened totally. 8 Washers A and 4 Washers B are needed for this step (Step 5).
6.Fasten all bolts tight.
Till now you have finished the whole assembly and enjoy your chair!!
