Doc: AH-01
Three phase 400 V
AquaHeat•
TM
13
AquaHeat•
TM
18
User Manual
User Manual
Installation Manual,
Planning Manual
Jifon AquaHeat
Jifon AquaHeat
TM
TM
A groundwater heat pump
EN
Copyright © 2013 Jifon AB
This manual contains copyright protected information which is the property of Jifon AB. No part
of this document may be copied or forwarded electronically, or in any other way, without a prior written
permission from Jifon AB. The same rule applies to images in the manual and translation to other
languages.
Edition 1, 2013-05-13
The right to make changes in this manual is reserved.
This document is produced by
Jifon AB
Verkstadsgatan 1
SE-280 10 SÖSDALA
SVERIGE
More copies can be ordered from Jifon AB. When ordering, always refer to the document number written
on the fi rst page of the manual as well as in the footer of each page.
Introduction 4
Safety Instructions 5
Introduction 7
User Manual 9
Included Parts 9
Temperature Setting 12
Care and Maintenance 14
Troubleshooting 15
Recycling and Dismantling 16
Technical Data 16
Declaration of Conformity 17
Installation Manual 18
Checklist 18
Unpacking and Inspection of Material 18
Lifting/Unloading 18
Mounting of the evaporator 19
Shape Pipes 19
Placement of the Heat Pump Module 19
Connecting to an Existing Heating System 20
Installing and Connecting the Control Panel 23
Placement of the Air Temperature Sensor 23
Pressure Test 23
Vacuum Drive 23
Refrigerant 23
Operation Start-up 24
Temperature Setting 25
Parameter List 26
Installation Checklist 27
Wiring Diagrams (Three phase 400 V) 28
Measurements and Connections 31
Technical Data 31
Planning Manual 32
Electricity 32
Transport and Storage 32
Preparations 33
Additional Heating and Water Heating 35
Contents
AH-014
Introduction
Congratulations! When you chose the Jifon heat pump, you chose a heat pump system which
is a more energy-saving concept than traditional heat pumps. e system examines a list of
parameters to ensure that the operation always is machine-friendly and energy-effi cient.
How much heat a house needs, is dependent on many diff erent factors. During a part of the
year, the house gets enough energy from the sun, people and household appliances. e house
often needs more heat during autumn, winter and spring. How much more is necessary to
keep the house warm, depends on the insulation of the house, the type of domestic heating
system installed, the outdoor temperature, the weather conditions and losses through ventilation.
JiControlTM, the control panel of the system, handles this for you by fl oating condensation,
which is by only producing as much heat as the house needs to maintain an even indoor temperature.
Introduction
5AH-01
Always follow the safety instructions in this manual as well as on signs and markings on and
around the machine in order to prevent damage to person and machinery.
e heat pump may only be used in accordance with the instructions in this manual. All other
use is forbidden. Incorrect use caused by not following the instructions in this manual may
result in damage to property, and at worst in personal injury.
If problems arise with the AquaHeatTM heat pump, refer to the Troubleshooting chapter before
you contact Jifon. If you need a service engineer, only contact authorized service engineers. All
adjustments, other than room temperature are strictly forbidden.
All maintenance work must only be carried out by authorized personnel.
is document should be kept for the lifetime of the heat pump.
e following symbols occur in the manual to help you when you read the directions.
Safety directions. is symbol is used
when a dangerous situation may arise.
Advice. is symbol is used when we
want you to pay attention to something
important.
Safety Instructions
Manual Symbols
Introduction
Make sure that the
current is disconnected
before any maintenance
work is started.
WARNING!
It is important that all
radiators are completely
open in order for the heat
pump to work optimally.
NOTE!
Model:
Serialno:
Refrigerant: Amount:
Safety relief pressure
HP-side bar LP-side bar
Made in Sweden
NOTICE TO INSTALLER!
THIS THREE-PHASE UNIT IS ROTATION •
SENSITIVE
USE SERVICE GAGES WHEN STARTING•
SWITCH ANY TWO COMPRESSOR POWER •
LEADS AT THE CONTACTOR TO CHANGE
ROTATION DIRECTION
REVERSE RUNNING
COMPRESSOR IS LOUD•
DISCHARGE PRESSURE CHANGES VERY LITTLE•
SUCTION PRESSURE CHANGES VERY LITTLE•
SUCTION TUBE NEAR COMPRESSOR SHELL •
GETS HOT AFTER 1-2 MINUTES OF RUNNING
AH-016
Introduction
Machine Signs
CE - Sign
High Voltage Sign
Information to installer
7AH-01
1)
2)
3)
Introduction
System Description
Introduction
a) JiControlTM (control panel)
b) GreenboxTM (heat pump module)
c) AquaHeatTM (evaporator)
e system consists of a control panel (1), heat pump module (2) and a evaporator (3).
e heat pump heats the house waterborne systems by extracting energy from groundwater. e control panel manages control of the heat pump and supplement heat source.
Using an indoor sensor, it ensures that an even temperature is maintained regardless of
weather conditions.
AH-018
+20 till +50°C +20 till +50°C
Värmepumpsmodul
Introduction
Operation
Two copper pipes are connected to the evaporator. One pipe transfers fl uid to the AquaHeatTM.
e other pipe transfers energy fi lled gas to the heat pump module. Energy is transferred
to the buildings hydronic heating system by the heat pump module. e heated water is then
pumped around the building.
1. e heat gathering part - low pressure
is part of the heat pump is called the evaporator (AquaHeat
TM
). A refrigerant with a low
temperature fl ows through the evaporator. e
AquaHeatTM is heated by water, evaporating the
refrigerant.
2. e preassure rising part - High pressure
is part consists of a compressor. e heated
and evaporated refrigerant is compressed by the
compressor. e increase in pressure raises the
temperature and condensation point (the point
where gas returns to liquid form).
3. e heat emitting part - High pressure
is part of the heat pump transfers the heat to
the house and is called the condensor. e
refrigerant passes through the condensor at a
high temperature and condensation point. In the
condensor, the refrigerant is cooled down by the
heating system of the house (such as radiators
or fl oor heating), leading to the condensation of
the refrigerant (returning it to liquid form).
4. Pressure lowering part - Low pressure
is part consists of a throttling device. e
cooled refrigerant expands and both the temperature and the boiling point of the refrigerant
is signifi cantly lowered as a result of the lower
pressure.
9AH-01
User Manual
User Manual
Included Parts
GreenBox
TM
e heat pump module consists of the following:
A compressor. e compressor increases the pressure on the refrigerant and in doing 1.
so increases the temperature.
A heat exchanger (the condensor). Within the heat exchanger the hot gas transfers its 2.
energy to the hydronic heating system.
A junction box. e control panel is to be wired into this box.3.
A vibration absorber4.
A high pressure sensor5.
A low pressure sensor6.
Flameproof insulation7.
A safety switch8.
CE-sign9.
A drying fi lter10.
AquaHeat
TM
Aqua Heat consists of a PEM (polythene) tube with copper tubes inside which are rotated
around a loop. is acts as an evaporator with natural regulation of the liquid and gas volume
of the refrigerant in the system.
AH-0110
1
2
7
5
4
3
8
9
10
6
41 2 3
User Manual
Heat exchanger1.
Compressor2.
Junction box3.
Vibration absorber4.
High pressure sensor5.
Low pressure sensor6.
Flameproof insulation7.
Safety Switch8.
CE-Sign9.
Drying filter10.
Water, out (red)1.
Water, in (blue)2.
Refrigerant, out3.
Refrigerant, in4.
On the top side of the heat pump module there are two pipes (infl ow and outfl ow) for the
refrigerant and two pipes (infl ow and outfl ow) for water.
11AH-01
User Manual
JiControl
TM
Air Temperature Sensor
e control panel controls the heating system for the entire house and has one digital thermostats.
e digital thermostat MCX controls the temperature in the room where the air temperature
sensor is placed. e air temperature sensor is to be placed in a suitable location in the house.
Read more about the air temperature sensor below. It also controls the temperature of the hot
water from the heat exchanger safety. e control panel also controls the pressure in the compressor (high or low pressure).
e air temperature sensor measures the actual temperature of the room/house. e sensor
provides data for the heat pump control panel to work with.
It is important that the air temperature sensor is placed in a room (or in a location) in the
house where the highest average temperature is required. e air temperature sensor has to be
placed where it is changed by the Jifon heating system of the room/house such as fl oor heating
and radiators and not by local sources of heat such as lamps, stoves, and direct sunlight. e
air temperature sensor should not be placed on external walls.
AH-0112
21.0 °C
°C
21.2
Temperature Regulation
e regulation of the temperature in the house is done with the digital MCX control. e
factory default setting air temperature setpoint is 21°C.
When the air temperature sensor measures a temperature that is 0.1°C below the control panel
value the compressor is started with a delay of 500 seconds. If the measured temperature is
0.5°C below the control panel value the boost is started, this also occurs with a delay of 500
seconds. If fl oor heating is used the boost should be set to not start until the measured temperature is 1.0°C below the control panel value, see Installer Manual.
When there is no temperature diff erence between the air temperature sensor value and the
control panel value the compressor and the additional heating is turned off .
e heat pump has a default setpoint setting of 21°C. To change the air temperature setpoint
use the Up/Down button.
Temperature Setting
User Manual
13AH-01
Heat Pump Protection
Additional Heating
Radiators
e factory setting is 50°C and must only be changed by Jifon AB or authorized personnel.
e compressor is automatically shut off at the setpoint value (50°C) to protect the compressor and it starts again when the water temperature is 5°C below the setpoint value.
Additional heating should be installed if it is not already installed.
During the coldest months of the year the heat pump might need additional heating to keep
a constant temperature within the building. If the heat pump is forced to maintain an indoor
temperature that is higher than its performance capacity and no additional heating is available
it has to work continuously, thus not giving the heat pump the off times it needs. is can
result in the evaporator freezing up to a point when its effi ciency is lowered.
e diff erent heat pump modules can be connected to all hydronic heating systems such as district heating, electric element, oil- , gas-, or pellet boiler.
This value must only be
changed by Jifon AB or
authorized personnel.
NOTE!
All radiators must have
open valves in the rooms
that are to be heated.
NOTE!
User Manual
AH-0114
Controls
Defrosting of the AquaHeat
Change of Components
If the heat pump should stop functioning, consult the troubleshooting section of this manual.
If the problem persists, contact your installation technician for further instructions and assistance.
Defrosting of the AquaHeat coil is done automatically.
When a component is changed the new component must be equivalent to the original.
When changing the compressor the fi lter must be changed as well.
Only weld in a well-ventilated area.
Care and Maintenance
Change of components
must only be performed
by authorized personnel.
NOTE!
User Manual
15AH-01
Troubleshooting
Description Probable Cause Solution
The house is not getting
warm
The settings for the control panel are wrong
Check the settings for the control
panel (see Control Panel, page
12)
The additional heating is not
working
Contact your installation technician
The HP or LP is displayed
under the error section
During extreme or long-running
cold weather this can be normal
Open all thermostats in the •
house, deareate the radiators/system
Check that the circulation •
pump is operating
Contact your installation •
technician
May be caused by either too
much or not enough refrigerant
May be caused by bad circulation within the house
The heat pump is loud and
does not produce heat
The electrical phase is wrong Turn off the heat pump with the
motor protection (safety switch
and contact your installation
technician/electrician
The compressor does not
start
The motor protection is tripped /
the safety fuse is tripped
Reset the safety fuse followed
by the motor protection. Contact
your installation technician
User Manual
AH-0116
User Manual
When the heat pump is to be dismantled and recycled, follow these instructions:
Draining of the refrigerant must be performed by accredited personnel.•
e compressor shall be sent to an appropriate recycling centre.•
All other hardware shall be sorted and recycled.•
Recycling and Dismantling
Technical Data
All current to the heat pump
must be disconnected before
dismantling can begin.
NOTE!
Model AquaHeat
Model AquaHeat
TM
TM
Unit 13kW 18kW 25kW
Electrical connection 400 V, N3 phases
Fuse A 16D 25D
Compressor, type Scroll
Compressor, maximum input kW 4,26 5,66 8,47
Compressor, displacement m3/h 14,1 19,3 28,3
Maximum water temperatures
°C
55
Refrigerant R407c kg ~1,8 ~2 ~4
Cut-off pressure min/max R407c bar 0,5/31
Minimum water fl ow l/min 20 40 65
Dimensions GreenBox (HxWxD) mm 730x590x500
Weight GreenBox kg 95 102 120
JiControl control panel size 16 16 25
DECLARATION OF CONFORMITY/MANUFACTURER´S DECLARATION
FÖRSÄKRAN OM ÖVERENSSTÄMMELSE/TILLVERKARDEKLARATION
By signing this document, the undersigned declares as manufacturer that the equipment in question
complies with the protection requirements of the above directive.
Genom att underteckna detta dokument försäkrar undertecknad såsom tillverkare att angiven utrustning
uppfyller skyddskraven i rubricerade direktiv.
Date / Datum Signature / Underskrift Position / Befattning
2012-02-15 Head of R&D / Utveckl.chef
______________________________
Clarifi cation / Namnförtydligande
Amrish Kapoor
Manufacturer name, address, telephone and fax no:
Tillverkarens namn, adress, telefon och faxnummer:
Jifon AB
Verkstadsgatan 1, SE-280 10 Sösdala, Sweden
Telephone: +46(0)451-70 54 60, Fax: +46(0)451-600 12
Directive area
Direktivets område
Directive no
Direktiv nr
Safety of machinery
Maskindirektivet
98/37/EG
Low voltage equipment
Lågspänningsdirektivet
2006/95/EC
Electromagnetic compatibility
Elektromagnetisk compatibilitet
2004/108/EC
Pressure equipment
Tryckbärande anordning
97/23/EC
article 3.3
Type designation etc.
Typbeteckning etc.
Name
Namn
Size
Storlek
AquaHeat 13, 18, 25
Type of equipment
Typ av utrustning
Heat pump 1-phase 220 V and 3-phase 380 V
Värmepump 1-fas 220 V och 3-fas 380 V
Brand name or trademarke
Fabrikatnamn eller varumärke
AH-0118
Installation Manual
Checklist
Unpacking and Inspection of Material
Lifting/Unloading
Before starting the installation, check that the items listed below are attended to:
Space requirements in regards to installation and services•
Dimensions of pipe and canal connections•
Holes in the wall for pipes and cables•
Supply of electricity•
If any of these items are not attended to, please follow the instructions in the Planning Manual.
Before starting the installation, check that the items listed below are attended to:
Same current on all electrical phases (not required when single phase)•
Capacity of the main fuse (it must be suitably rated)•
Unpack the material and check to see that it has nothing missing or anything damaged due
to transportation. Any damages due to transportation should be immediately reported to the
transporter and to Jifon AB.
Consider the following when lifting/unloading the AquaHeat coil and the heat pump module:
Be careful not to damage the material when lifting and unloading.•
A lifting device or a minimum of 3 people are recommended when unloading.•
e heat pump module must only be transported in the vertical position.•
Secure tightly to ensure
that the units are unable
to turn over or slide out of
the lifting device.
NOTE!
Installation Manual
19AH-01
Installation Manual
Mounting of the Evaporator
Note that condensation may
form around the evaporator
NOTE!
Shape the Pipes
Placement of the Heat Pump Module
All piping and moulding of tubes must be performed by accredited personnel according
industry standard.
When joining copper to copper, 5% silver solder should be used.
When joining copper to corrosion metal 55% silver solder should be used.
Heat pump module should stand straight, ie. 0% slope of the fl oor.•
Heat pump module should always be accessible for service. Working space in front of the heat •
pump module should be at least 1 meter, see page 33 for dimensions.
No heavy objects should be placed on top of the heat pump module.•
It is forbidden to jump / step / stand on the heat pump module.•
e fl oor of the room where the heat pump module is located must be dry. Make sure that •
water can not drip down from the ceiling and enter the heat pump.
No items may be hung on the heat pump pipe installation.•
We recommend that there is runoff potential (a drain) under the evaporator, whereby •
condensation may form
Control of water quality, see salt, iron and manganese, etc., high levels may damage the •
evaporator (copper)
Water fl ow must be established (liters / min)•
The evaporator
Hole in the wall / fl oor
Must be performed
by skilled personnel
NOTE!
Think of the risk of
freezing in the walls
NOTE!
AH-0120
12
Jifon recommends installing preheating
when tap hot water is to be heated
(see page 21-22 for more information).
Installation Manual
Connecting to an Existing Heating System
Jifon recommends using fl exible connection hoses for vibration dampening when connecting
the heat pump module to an existing heating system.
e following applies when connecting water pipes to the heat pump module, regardless of
model:
e connection for incoming water is marked with blue.•
e connection for outgoing water is marked with red.•
Connection for incoming water to the heat pump module.1.
Connection for outgoing water from the heat pump module.2.
NOTE!
21AH-01
Installation Manual
TA1
&&
Additional
heating
1
The air temperature starts the heat pump
when the temperature drops 0,1 degrees
Additional heating is activated if the temperature
falls 0,5 degrees under the set value
Radiator
Floor heating
JiControl
Water in
1. Expansion vessel
2. Electrical water heater
3. Pipe sensor, protects the compressor against unnecessary load
4. Circulation pump
2
4
3
Heat bearer
Water
Control cable
Refrigerant
AH-0122
Installation Manual
TA2
&&
1
The air temperature sensor starts the heat pump
when the temperature drops 0,1 degrees
Additional heating is activated if the temperature
falls 0,5 degrees under the set value
Radiator
Floor heating
JiControl
Water in
1. Expansion vessel
2. Electrical water heater
3. Pipe sensor, protects the compressor against unnecessary load
4. Circulation pump
5. Electrical element (additional heating)
6. Plate heat exchanger, enables pre-heating of hot water
2
4
5
6
Heat pump
Heat bearer
Water
Control cable
Refrigerant
3
23AH-01
Installation Manual
Installing and Connecting the Control Panel
Placement of the Air Temperature Sensor
Pressure Test
Vacuum Drive
The heat pump module shall always be connected
to a permanent electrical installation.
NOTE!
e control panel should be installed near the heat pump module.•
All electrical work is to be done by authorized personnel according to the wiring diagrams (see •
pages 28-30).
It is important that the air temperature sensor in the house is placed in the room (or location)
where the highest average temperature is required. It is also important that the air temperature
sensor is placed in the room where it is aff ected by the Jifon heating system of the room/house,
such as fl oor heating and radiators, and not by any local heat source such as lamps, stoves or
direct sunlight. e air temperature sensor should not be placed on external walls.
A pressure test is performed to check that all parts of the refrigerant will mechanically keep
during the normal running pressure at the factory. is is done with nitrogen gas.
e pressure test is done according to industry standard.
e two things that is desired to accomplish by performing a vacuum drive are:
Acquire a system that is completely free of any other gas than the refrigerant.1.
Acquire a system that is completely without moisture.2.
Perform a vacuum drive according to industry standard.
Refrigerant
Filling the refrigerant must
be performed by accredited
personnel
NOTE!
Filling the refrigerant
occurs at deployment
NOTE!
AH-0124
Installation Manual
Compressor Startup (only three phase unit)
Refilling and Deareating
e compressor is a three-phase unit that is sensitive to the rotation direction and can be damaged
if in operation with a faulty rotation direction during longer periods of time. To change the rotation direction, switch two incoming phases. Check the compressor drive at operation start-up.
During normal operation:
e peak pressure increases rapidly1.
e suction pressure decreases rapidly2.
e hot gas pipe is warm within 5-10 seconds after start-up3.
During faulty rotation direction:
e compressor is loud1.
e peak pressure does not changed2.
e suction pressure does not changed3.
After operation start-up of the heat pump the following is to be checked:
e water pressure1.
at there is no air in the radiator circuit or in the circulation pump2.
Operation Start-up
After a pressure test and a vacuum drive are performed on the heat pump, refrigerant can be added.•
Connect a manometer to the valves of the low- and high pressure pipes.•
Add refrigerant until the high pressure warning is turned off .•
e compressor can now be started, letting it draw additional refrigerant from the low pressure pipe.•
If the condensation is exceptionally high this might be because there is to much refrigerant in the •
system or it might be due to bad circulation.
Bad circulation is usually caused by:
e circulation pump•
Air in the system•
Closed valves•
e water fl ow has been wrongly connected through the heat pump•
To be able to quickly start the compressor, the setting on the
control panel displays must be changed (see Delay Setting on
page 25). In operation mode this is set to 500 seconds but can
be set to 10 seconds during operation start-up or service.
NOTE!
25AH-01
21.0 °C
°C
21.2
Installation Manual
Temperature Setting
Temperature Regulation
e regulation of the temperature in the house is carried out by the digital MCX control. e
factory default setting air temperature setpoint is 21°C.
When the air temperature sensor measures a temperature that is 0.1°C below the control panel
value the compressor is started with a delay of 500 seconds. If the measured temperature is
0.5°C below the control panel value the boost is started, this also occurs with a delay of 500
seconds. If fl oor heating is used the boost should be set to not start until the measured temperature is 1.0°C below the control panel value.
When there is no temperature diff erence between the air temperature sensor value and the
control panel value the compressor and the additional heating is turned off .
e heat pump has a default setpoint setting of 21°C. To change the air temperature setpoint
use the Up/Down button.
Heat Pump Protection
Delay Setting
MCX control also works as a heat pump protection.
e compressor is automatically shut off at the setpoint value 50°C to protect the compressor
and it is started again when the water temperature is 5°C below the set value.
e factory setting for delay time is 10 seconds. During operation start-up or service this value
can be set to 10 seconds. After operation start-up or service the value must be set to 500 sec.
To change these values, perform the following in the MCX:
Main menu ››› Login ››› Parameters ››› Regulation ››› Confi g ››› T1
AH-0126
Installation Manual
Parameter list
Main Menu Lvl
Alarms 0
Active Alarms 0
Reset Alarms 0
Login 0
Password 0
Parameters 0
Regulation 0
Setpoint 0 Min Max Default U.M.
S1 Setpoint 0 -40,0 150,0 21,0 °C
D1 Differential 1 1 0,0 50,0 0,1 K
D2 Differential 2 1 0,0 50,0 0,5 K
HWS High Water Set 1 -99,9 99,9 50,0 °C
HWD High Water Diff 1 0,0 20,0 5,0 K
Confi g1
T1 HP Delay 1 0 900 10 s
I/O Display 0
Start 1
Load Default 1
Service 0
Software info 0
Device info 0
Password: Contact factory
To enter menu press Enter button•
Use Enter button to highlight value•
Use Up/Down to adjust value•
To confi rm option press Enter button, whereby ### will be confi rmation•
Use X to escape/back•
X = Escape/Back
Up = Adjust value
Down = Adjust value
Enter = Enter/Confi rm
HP Delay should be set to
500 seconds after
Installation/Service
NOTE!
27AH-01
Installation Manual
Installation Checklist
Serial Number
Installation Date
Installation Technicians
Pressure Test
Vacuum Drive
Additional Heating
Heating System
Passed Failed
Passed
Failed
Electric Element Oil Boiler
Gas Boiler
Pellet Boiler
District Heating
_____________________
Radiators Air Heating Aggregate
Supply Air Aggregate
Floor Heating
_____________________
Property address
AH-0128
Installation Manual

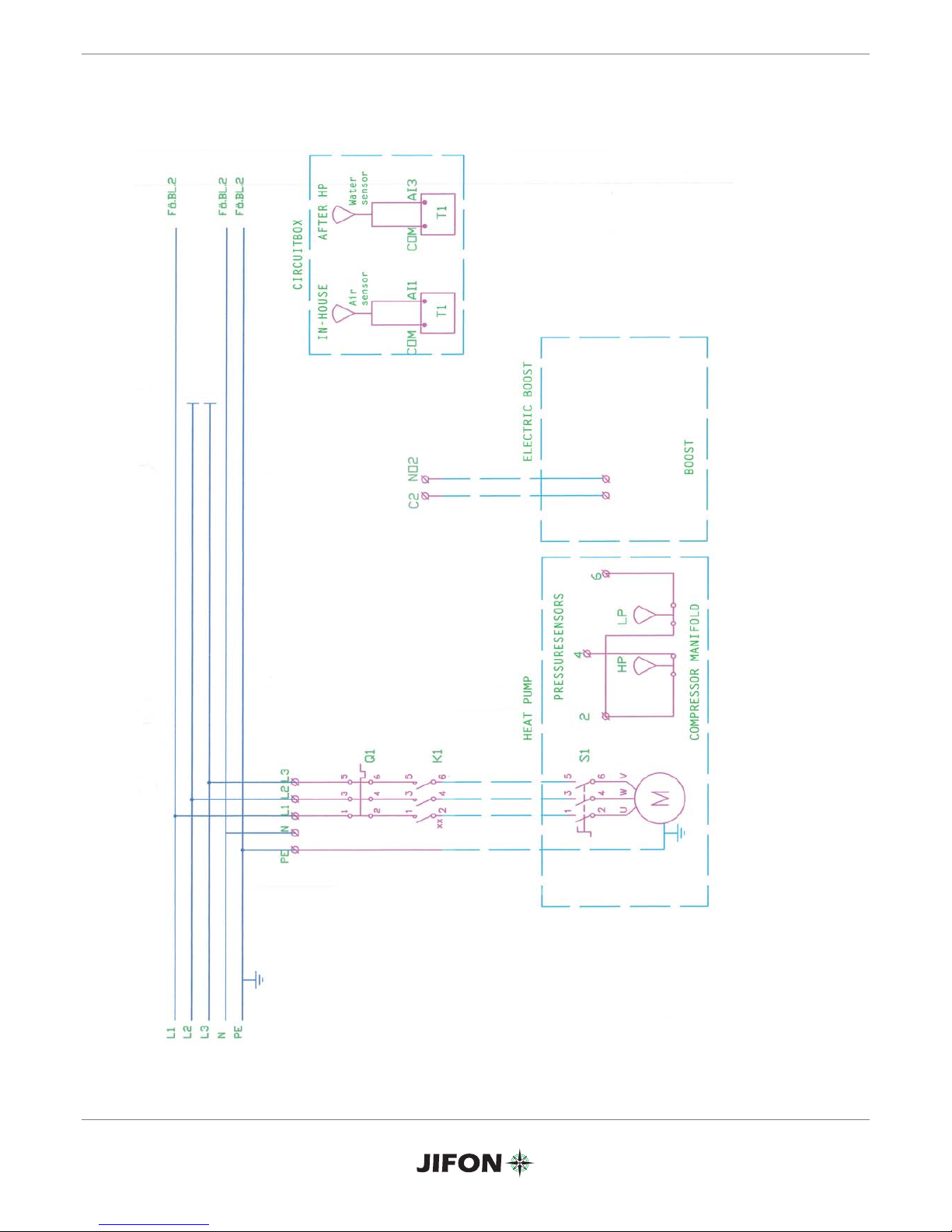

Wiring Diagrams (Three phase 400 V)
29AH-01
Installation Manual
AH-0130
Installation Manual
31AH-01
1 2 3 4
5
6
590mm
500mm
730mm
Installation Manual
Measurements and Connections (13kW-18kW)
Ø connection for outgoing water1.
Ø connection for incoming water2.
Ø connection for outgoing refrigerant3.
Ø connection for incoming refrigerant4.
Ø electrical connection5.
Ø electrical connection6.
Technical Data
Model AquaHeat
Model AquaHeat
TM
TM
Unit 13kW 18kW 25kW
Electrical connection 400 V, N3 phases
Fuse A 16D 25D
Compressor, type Scroll
Compressor, maximum input kW 4,26 5,66 8,47
Compressor, displacement m3/h 14,1 19,3 28,3
Maximum water temperatures
°C
55
Refrigerant R407c kg ~1,8 ~2 ~4
Cut-off pressure min/max R407c bar 0,5/31
Minimum water fl ow l/min 20 40 65
Dimensions GreenBox (HxWxD) mm 730x590x500
Weight GreenBox kg 95 102 120
JiControl control panel size 16 16 25
AH-0132
Planning Manual
Planning Manual
Electricity
Transport and Storage
e heat pump module shall always be connected to a permanent electrical installation. We
defi ne a permanent electrical installation to be a connection to a power distribution grid.
e heat pump is delivered on europallets. If there is a delay before assembly and connection,
consider the following:
e heat pump should be placed in a dry location indoors.•
Consider the following during the transport of the AquaHeat
TM
:
Be careful not to damage the material when lifting and unloading.•
A lifting device or a minimum of 3 people are recommended when unloading.•
e heat pump module must only be transported in the upright position.•
33AH-01
Planning Manual
Preparations
We recommend that there is runoff potential (a drain) under the evaporator, whereby •
condensation may form.
Monitoring of water quality, see the salt, iron and manganese, etc., high levels may dam-•
age the evaporator (copper)
Water fl ow must be established (liters / min)•
The evaporator
Hole in the wall / fl oor
Must be performed
by skilled personnel
NOTE!
Think of the risk of
freezing in the walls
NOTE!
Placement of the GreenBox
TM
e heat pump module must stand upright.•
e heat pump module should always be accessible for service.•
No heavy objects is to be placed on top of the heat pump module.•
It is forbidden to jump/step/stand on the heat pump module.•
No objects are to be hung on the piping of the heat pump module.•
e working space in front of the heat pump module should be at least 1,2 meter.•
e measurements (WxDxH) of the heat pump module are •
590mm x 500mm x 730mm.
AH-0134
Planning Manual
Placement of the JiControl
TM
Placement of the Air Temperature Sensor
e installation of the control panel is to be carried out by authorised technician. e location
of the control panel should be agreed with the client and engineer prior to the installation.
e control panel should be installed near the heat pump module if the heat pump module •
is placed indoors.
e control panel should be installed in a room free of moisture and dust.•
e installation of the air temperature sensor is to be carried out by authorised technician. e
location of the air temperature sensor should be agreed with the client and engineer prior to
the installation.
It is important that the air temperature sensor in the house is placed in the room (or location)
where the highest average temperature is required. It is also important that the air temperature
sensor is placed in the room where it is aff ected by the heating system of the room/house, such
as fl oor heating and radiators, and not by any local heat source such as lamps, stoves or direct
sunlight. e air temperature sensor should not be placed on external walls.
35AH-01
Planning Manual
Additional heating should be installed if not already installed.
e heat pump might need som assistance from additional heating during the coldest months
to maintain a steady temperature. If the heat pump is pressured to keep a indoor temperature
higher that its performance and if there are no additional heating, the AquaHeat will have to
work continuously and by doing so, not allowing it to have the breaks it need. is can result
in lowering its eff ect.
e diff erent heat pump modules can be connected to all hydronic heating systems (that acts
as additional heating) such as district heating, electric element, oil- , gas-, or pellet boiler.
Additional Heating and Water Heating
Constant circulation is needed if
pre-heating should work. To achive
constant circulation all radiators need
to have open valves.
NOTE!
Domestic Hot-water for Households
Jifon recommends installing pre-heating when heating domestic hot-water.
Within the Jifon solution, pre-heating of domestic hot-water is preferred. A single-jacket and
insulated water heater is installed in the house. e water entering the heater and its mixing
valve have already been heated by the hydronic heating system of the house. is is best done
with a plate heat exchanger. With this solution the heat pump stands for the largest contribution during the winter. During the summer, almost half of the energy is drawn from the house,
acting as a large solar collector.
e benefi ts of pre-heating are drastically lowered domestic hot-water costs for a small investment together with disburdening the heat pump from the high load required when producing
domestic hot-water.
Jifon AB - Verkstadsgatan 1 - 280 10 SÖSDALA, Sweden
Phone: +46-451 70 54 60 - Fax: +46-451 600 12
Internet: www.jifon.se - E-mail: kontor@jifon.se
A Better Climate with products from Jifon AB
More From Less EN
Loading...
