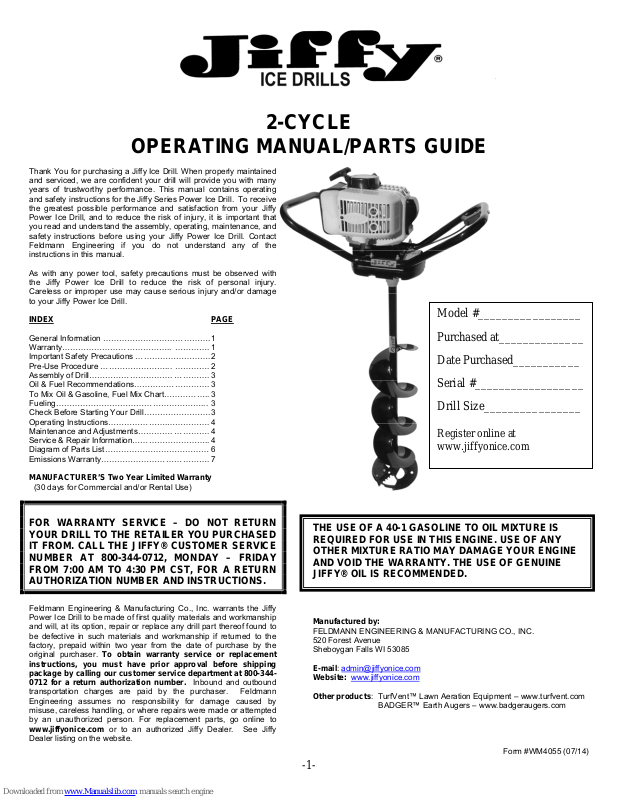

Jiffy Ice Drill 2-Cycle Operating Manual
OPERATING MANUAL/PARTS GUIDE
Thank You for purchasing a Jiffy Ice Drill. When properly maintained
and serviced, we are confident your drill will provide you with many
years of trustworthy performance. This manual contains operating
and safety instructions for the Jiffy Series Power Ice Drill. To receive
the greatest possible performance and satisfaction from your Jiffy
Power Ice Drill, and to reduce the risk of injury, it is important that
you read and understand the assembly, operating, maintenance, and
safety instructions before using your Jiffy Power Ice Drill. Contact
Feldmann Engineering if you do not understand any of the
instructions in this manual.
As with any power tool, safety precautions must be observed with
the Jiffy Power Ice Drill to reduce the risk of personal injury.
Careless or improper use may cause serious injury and/or damage
to your Jiffy Power Ice Drill.
INDEX PAGE
General Information …………………………………. 1
Warranty………………………………….. …………. 1
Important Safety Precautions ………………………. 2
Pre-Use Procedure ……………………... …………. 2
Assembly of Drill…………………………. …………. 3
Oil & Fuel Recommendations………………………. 3
To Mix Oil & Gasoline, Fuel Mix Chart…………….. 3
Fueling………………………………………………... 3
Check Before Starting Your Drill……………………. 3
Operating Instructions………………….……………. 4
Maintenance and Adjustments…………. …………. 4
Service & Repair Information……………………….. 4
Diagram of Parts List………………………………… 6
Emissions Warranty……………………… …………. 7
MANUFACTURER’S Two Year Limited Warranty
(30 days for Commercial and/or Rental Use)
FOR WARRANTY SERVICE – DO NOT RETURN
YOUR DRILL TO THE RETAILER YOU PURCHASED
IT FROM. CALL THE JIFFY® CUSTOMER SERVICE
NUMBER AT 800-344-0712, MONDAY – FRIDAY
FROM 7:00 AM TO 4:30 PM CST, FOR A RETURN
AUTHORIZATION NUMBER AND INSTRUCTIONS.
Feldmann Engineering & Manufacturing Co., Inc. warrants the Jiffy
Power Ice Drill to be made of first quality materials and workmanship
and will, at its option, repair or replace any drill part thereof found to
be defective in such materials and workmanship if returned to the
factory, prepaid within two year from the date of purchase by the
original purchaser. To obtain warranty service or replacement
instructions, you must have prior approval before shipping
package by calling our customer service depa rtment a t 800-3 440712 for a return authorization number. Inbound and outbound
transportation charges are paid by the purchaser. Feldmann
Engineering assumes no responsibility for damage caused by
misuse, careless handling, or where repairs were made or attempted
by an unauthorized person. For replacement parts, go online to
www.jiffyonice.com or to an authorized Jiffy Dealer. See Jiffy
Dealer listing on the website.
2-CYCLE
THE USE OF A 40-1 GASOLINE TO OIL MIXTURE IS
REQUIRED FOR USE IN THIS ENGINE. USE OF ANY
OTHER MIXTURE RATIO MAY DAMAGE YOUR ENGINE
AND VOID THE WARRANTY. THE USE OF GENUINE
JIFFY® OIL IS RECOMMENDED.
Manufactured by:
FELDMANN ENGINEERING & MANUFACTURING CO., INC.
520 Forest Avenue
Sheboygan Falls WI 53085
E-mail: admin@jiffyonice.com
Website: www.jiffyonice.com
Other products: TurfVent™ Lawn Aeration Equipment – www.turfvent.com
BADGER™ Earth Augers – www.badgeraugers.com
-1-
Model #_________________
Purchased at______________
Date Purchased___________
Serial #__________________
Drill Size________________
Register online at
www.jiffyonice.com
Form #WM4055 (07/14)
IMPORTANT SAFETY PRECAUTIONS
Please read this manual carefully. Operate your equipment
according to the safety instructions and recommendations found
throughout this manual. Anyone who uses this equipment must read
and fully understand the instructions and be familiar with its
operation.
To receive the greatest possible performance and satisfaction from
your Jiffy Power Ice Drill, and to reduce the risk of injury, it is
important that you read and understand the assembly, operating,
maintenance, and safety instructions before using your Jiffy Power
Ice Drill. Contact Feldmann Engineering if you do not understand
any of the instructions in this manual.
Your Jiffy Power Ice Drill is designed and manufactured to provide
safe and dependable operation, provided it is operated in
accordance with the following safety precautions.
Preventing accidents is the responsibility of every power equipment
operator. The safety precautions identified in this manual must be
fully understood and followed by every operator of this Jiffy Power
Ice Drill. Review the safety precautions frequently and never take
chances.
Take the time to become familiar with your Jiffy Power Ice Drill and
it’s components, then operate it in a safe manner. Study the
appropriate sections of this manual for the description of the controls
and function of your Jiffy Power Ice Drill. Teach the safety
precautions to all persons who use your Jiffy Power Ice Drill.
Avoid mishandling and abuse of your Jiffy Power Ice Drill.
Handle it with care, as any rough treatment can cause damage
to your Jiffy Power Ice Drill or it can cause a malfunction.
Should the engine stop while drilling, do not attempt to restart it
while the drill bit is in the hole.
Never attempt to adjust or repair your Jiffy Power Ice Drill while
the engine is running. Avoid possible injury from moving parts
by first stopping the engine.
+ Never modify your Jiffy Power Ice Drill in any way. Only Jiffy
ice drills and accessories supplied by Feldmann Engineering or
expressly approved by Feldmann Engineering for use with your
Jiffy Power Ice Drill are authorized for connection and use. The
use of non-Jiffy or unauthorized components may cause
damage or injury.
+ Check the tightness of screws, nuts, and bolts at regular
intervals and re-tighten if necessary.
Do not wear loose clothing while operating your Jiffy Power Ice Drill and
keep all clothes and parts of the body (hands, feet, etc.) clear of the
rotating ice drill assembly to avoid being drawn into the boring drill.
By wearing cleated or spiked shoes, or ice creepers when using your
Jiffy Power Ice Drill, you will find it easier to control the rotational torque
as you drill holes in the ice.
Do not allow children to operate your Jiffy Power Ice Drill at any time.
Do not allow adults to operate your Jiffy Power Ice Drill without proper
operational instructions, including all safety precautions.
Do not lend or rent your Jiffy Power Ice Drill without providing the
owner’s manual. Be sure that anyone who uses your Jiffy Power Ice
Drill understands the information contained in this manual.
Give your complete and undivided attention to the proper operation of
your Jiffy Power Ice Drill. To operate it properly, you must be in good
physical condition and mental health and not under the influence of any
substance (alcohol, drugs, etc.) which might impair vision, dexterity, or
judgment.
+ Using your Jiffy Power Ice Drill may be strenuous. If you have any
condition that may be aggravated by strenuous activity, check with your
doctor before operating your Jiffy Power Ice Drill.
+ Do not operate it when you are fatigued. Tiredness may result in loss of
control of your Jiffy Power Ice Drill.
+ Do not carry your Jiffy Power Ice Drill or leave it unattended while the
engine is running.
+ When transporting your Jiffy Power Ice Drill in a vehicle, properly secure
it to prevent turnover, spillage and damage.
+ Gasoline is flammable and caution must be used when handling or
storing it.
+ Do not fill the fuel tank while your Jiffy Power Ice Drill is running, if the
engine is hot, or when your Jiffy Power Ice Drill is in an enclosed area.
+ Always fill the fuel tank outdoors.
PRE-USE PROCEDURE
Before using your Jiffy Power Ice Drill to drill holes in ice, follow this
procedure to prepare for proper and correct use.
Find, read, and understand the Jiffy operating/parts manual.
Assemble the components of your Jiffy Power Ice Drill as indicated
in the Assembly of Drill section of this manual.
Mix FRESH WINTER BLEND fuel, in a well ventilated outdoor
area as directed in the To Mix Oil and Gasoline, Fuel Mix Chart
section of this manual. Put some fuel into the tank, but no more
than a quarter of a tankful.
Re-read and follow the Starting Instructions section of this manual.
After allowing the Jiffy Power Ice Drill’s engine to idle for a minute
or so, turn it off as indicated in the Stopping Instructions section of
this manual. Drain the remaining gasoline from the fuel tank back
into your pre-mix gas can. Re-start your Jiffy Power Ice Drill and
allow it to run until the fuel is gone. Your Jiffy Power Ice Drill is now
ready for transporting or storage.
If the engine does not run satisfactorily, or if you feel it needs an
adjustment of some kind, contact Feldmann Engineering for the
proper repair information. Do not attempt to adjust the engine
operation yourself, only an authorized service person may make
adjustments to your Jiffy Power Ice Drill’s engine without
invalidating the unit warranty.
-2-
DO NOT RETURN your Jiffy Power Ice Drill TO THE
RETAILER THAT SOLD IT TO YOU. THEY MAY NOT BE
AUTHORIZED TO PROVIDE REPAIRS OR WARRANTY
REPLACEMENT. If you have any questions concerning
service, contact Feldmann Engineering as indicated in the
Service & Repair Information section of this manual.
ASSEMBLY AND DISASSEMBLY OF DRILL AND POWERHEAD
Jiffy E-Z Connect™ Collar
Connect drill assembly to powerhead by sliding E-Z Connect™
Collar down and pulling clevis pin out. Then slide drill assembly onto
output shaft. Reinsert clevis pin through drill assembly and output
shaft, then slide E-Z Connect™ Collar up over clevis pin and twist
collar slightly to lock pin in place.
Note: Do not remove clevis pin from collar
tether.
OIL & FUEL RECOMMENDATIONS
IMPORTANT NOTE: A 40-1 MIXTURE OF FRESH WINTER BLEND
GAS AND HIGH QUALITY 2-CYCLE OIL IS NEEDED TO RUN THIS
ENGINE. NEVER RUN ON STRAIGHT GAS, OR ANY MIXTURE
OTHER THAT 40-1 AS SERIOUS ENGINE DAMAGE WILL
RESULT AND VOID ALL WARRANTY OF YOUR ENGINE.
TO OPERATE YOUR DRILL, YOU WILL NEED THE FOLLOWING:
USE OF JIFFY® SPECIALLY FORMULATED 2-CYCLE
OIL IS RECOMMENDED. (DO NOT USE MULTIVISCOSITY OILS).
CLEAN, FRESH, WINTER BLEND, UNLEADED
REGULAR FUEL ONLY. USE OF FUEL WITH THE
LOWEST ETHANOL PERCENTAGE IS
RECOMMENDED.
FUEL MUST BE FRESH AND CLEAN. NEVER USE FUEL
LEFT OVER FROM LAST SEASON OR STORED FOR
LONG PERIODS. DO NOT USE FUEL CONTAINING
METHANOL (WOOD ALCOHOL). DO NOT USE
SUMMER BLEND FUEL.
NOTE: THE USE OF ALTERNATIVE FUELS SUCH
AS E85, E20 OR E15 ARE NOT
RECOMMENDED FOR USE IN JIFFY ICE
DRILLS. ALTERNATIVE FUELS WITH HIGH
ALCOHOL CONTENT CAN CAUSE HARD
STARTING, POOR PERFORMANCE, AND
INTERNAL ENGINE DAMAGE. NEVER MIX
OR STORE GASOLINE/OIL MIXTURE
INDOORS OR IN ENCLOSED, POORLY
VENTILATED ENCLOSURES, WHERE FUEL
FUMES MAY REACH AN OPEN FLAME,
SPARK OR PILOT LIGHT AS ON A
FURNACE, WATER HEATER, CLOTHES
DRYER, ETC.
DAMAGE AND/OR PERFORMANCE
PROBLEMS THAT WILL OCCUR FROM USE
OF FUELS, OTHER THAN THOSE LISTED
IN THE MANUAL WILL NOT BE
CONSIDERED WARRANTY.
TO MIX OIL AND GASOLINE
1. Mix a FRESH WINTER BLEND gasoline and JIFFY® 2-Cycle Engine
Oil, Part #4024, in an approved, clean, safety-type container. Inferior
quality gasoline or oil may damage the engine, sealing rings, fuel lines
or fuel tank.
2. Add recommended oil to gasoline per FUEL MIX CHART. DO NOT
MIX DIRECTLY IN ENGINE FUEL TANK. Pour oil into container first
then add gasoline.
3. Securely screw cap on container and shake vigorously. Once mixed, oil
and gasoline should not separate.
FUEL MIX CHART MIXTURE 40:1
U.S. METRIC
Gas Oil To Be Added Petrol Oil To Be Added
1 Gal. 3.2 oz. 4 Liters 100 ml
FUELING
1. Gasoline vapor pressure may build up inside gas tank of a two cycle
engine depending on weather conditions, venting system of the tank,
and the fuel used. To reduce the risk of injury from escaping gas fumes
and vapor, remove the gas cap on your drill slowly to release pressure
build-up.
2. Fill fuel tank with fuel mixture specified in the preceding “Oil and Fuel
Recommendations”.
+ NEVER FILL FUEL TANK INDOORS, WHILE ENGINE IS RUNNING,
OR WHILE ENGINE IS HOT.
+ NEVER FILL FUEL TANK COMPLETELY. FILL TANK TO ½ INCH
BELOW BOTTOM OF FILLER NECK TO PROVIDE SPACE FOR
FUEL EXPANSION. WIPE ANY FUEL SPILLAGE FROM ENGINE
AND EQUIPMENT BEFORE STARTING ENGINE.
CHECK THE FOLLOWING BEFORE STARTING YOUR DRILL
1. Be sure spark plug wire is ATTACHED to spark plug.
2. Be sure ignition switch is in the ON Position.
3. Inspect the machine for proper condition and operation, paying special
attention to the throttle control assembly, on/off switch, and drilling
assembly.
+ TO REDUCE THE RISK OF INJURY FROM THE TURNING D RILL
ASSEMBLY OR FROM REACTIVE FORCES, THE THROTTLE
ASSEMBLY AND RELATED MECHANISM MUST MOVE FREELY
AND RETURN IMMEDIATELY TO THE IDLE POSITION WHEN
RELEASED.
+ NEVER OPERATE YOUR DRILL IF IT HAS BEEN DAMAGED,
IMPROPERLY ADJUSTED OR NOT COMPLETELY AND
SECURELY ASSEMBLED.
+ NEVER RUN ENGINE INDOORS OR IN ENCLOSED, POORLY
VENTILATED AREAS. ENGINE EXHAUST CONTAINS CARBON
MONOXIDE, AN ODORLESS AND DEADLY GAS.
+ TO REDUCE THE RISK OF INJURY FROM REACTIVE FORCES,
THE OPERATOR MUST HAVE A FIRM GRIP ON THE MACHINE
AND A GOOD FOOTHOLD BEFORE STARTING THE DRILL AND
OPENING THE THROTTLE.
+ KEEP HANDS, FEET, HAIR AND LOOSE CLOTHING AWAY
FROM ANY MOVING PARTS ON ENGINE AND EQUIPMENT.
+ WARNING – TEMPERATURE OF MUFFLER AND NEARBY
AREAS MAY EXCEED 150° F (65° C) AVOID THESE AREAS TO
AVOID BURNS OR OTHER INJURY.
-3-
OPERATING INSTRUCTIONS
COLD STARTING PROCEDURE: Starting engine for the first time or
after engine has cooled off or after running out of fuel.
Mix one gallon of fresh Winter Blend regular gasoline with one
container of Jiffy 2-cycle oil. Use this fuel blend to fill tank to ¾
full.
1. Press primer bulb until gas (return) line is free of bubbles.
(10-15 Primes or more)
2. Check to make sure the rocker switch is in the RUN (ON)
position
3. Move choke lever to FULL CHOKE or (I\I) position.
(operator’s left)
4. Depress throttle control with left hand and grasp the starter
handle in your right hand.
5. Slowly pull starter handle until you feel resistance from
engine, then pull vigorously with short quick pulls.
6. Without releasing the starter handle or the throttle control,
let handle return to original position and repeat step 5.
7. If engine doesn’t start after 5-6 pulls, press the primer bulb
5-10 times and repeat with steps 5-6.
8. After engine starts running, move choke lever to HALF
CHOKE position until engine runs smoothly. Leave in half
choke position in extremely cold weather.
9. Move choke lever to RUN or (III) position as the engine
warms up. (Operator’s right)
10 To stop engine, push rocker switch to OFF or (O) position.
SPECIAL NOTE: If the engine does not start due to extremely cold
temperatures, move unit to warm environment, remove spark plug and
wipe off excess fuel, replace spark plug and repeat steps 1 thru 9.
Please view starting video on Jiffy website
www.jiffyonice.com
NOTE: To minimize water splash, back-off throttle when the
drill breaks thru ice, then raise drill slowly.
NOTE: The clutch slips when the drill is o verloaded, w hen th is
happens, raise complete unit slightly to ease load.
NOTE: Remove blade protector from drill assembly prior to
drilling. Reinstall when drilling is complete.
NOTE: If drilling additional holes, carry unit in upright
position by handles only, to next location and proceed
with normal starting and operating instructions.
12. When all holes have been drilled, lay unit down, resting on
wing handles. Disconnect drill assembly from powerhead
by sliding E-Z Connect™ Collar down and pulling clevis
pin from drill assembly. Do not remove pin from collar
tether. Slip drill assembly off of engine output shaft, then
re-insert clevis into drill assembly and slide E-Z Connect™
Collar up to cover clevis pin.
13. Position powerhead with the filler neck of the fuel tank in
the upper-most position to prevent fuel spillage.
14. Reattach blade protector to drill assembly to prevent
damage to the blade teeth and point.
TRANSPORTING AND STORAGE
1. Disconnect spark plug wire from spark plug and keep it
away from spark plug.
2. Make sure all fuel is drained from fuel tank, and fuel cap is
screwed on tight.
3. Always transport and store powerhead in an upright
position and make sure powerhead and drill assembly are
properly anchored to prevent damage.
4. Never store powerhead with fuel in tank indoors or in
enclosed, poorly ventilated enclosures where fuel fumes
may reach an open flame, spark or pilot light as on a
furnace, water heater, clothes dryer, etc.
MAINTENANCE AND ADJUSTMENTS
Check SPARK PLUG, periodically.
1. Before removing plug, wipe dirt and debris from spark plug base.
2. Remove and inspect spark plug for carbon build up.
3. Replace spark plug if electrodes are pitted, burned, or porcelain is
cracked. For replacement use: Jiffy® Spark Plug #4002,
AutoLite® 2976, Torch L8RTC, or equivalent.
4. Check electrode gap with wire feeler gauge and set gap at .024 if
necessary.
5. Install spark plug in engine and tighten securely. Reattach spark
plug wire to spark plug.
Check THROTTLE CONTROL AND CABLE periodically for proper
operation. Periodically, use silicon spray to lubricate throttle cable. DO NOT
use WD-40 because it will freeze.
AIR FILTER - The engine has an air cleaner which helps prevent premature
engine wear and failure. Never run an engine without a complete, clean air
filter properly installed. Service or replace air filter every 3 months or after 20
hours of operation. Clean filter daily in extreme dusty conditions.
Servicing Foam Filter:
1. Remove filter cover.
2. Wash in warm water with mild soap until dirt and debris are
removed. Press filter when washing - do not twist.
3. Rinse thoroughly until water is clear.
4. Wrap in a clean cloth and press, do not twist, until completely dry.
5. Saturate with clean engine oil and press, do not twist, to distribute
oil.
6. Remove excess oil.
7. Attach filter and cover to the engine.
REPLACEMENT BLADE - Improper or difficult cutting may be due to dull or
damaged drill teeth or drill point. Maintain sharp blade teeth and point.
Preserve the original factory cutting angles when sharpening your drill. File
blade teeth and use a disk sander to sharpen the point. Only genuine Jiffy®
blade teeth are to be used.
SERVICE & REPAIR INFORMATION

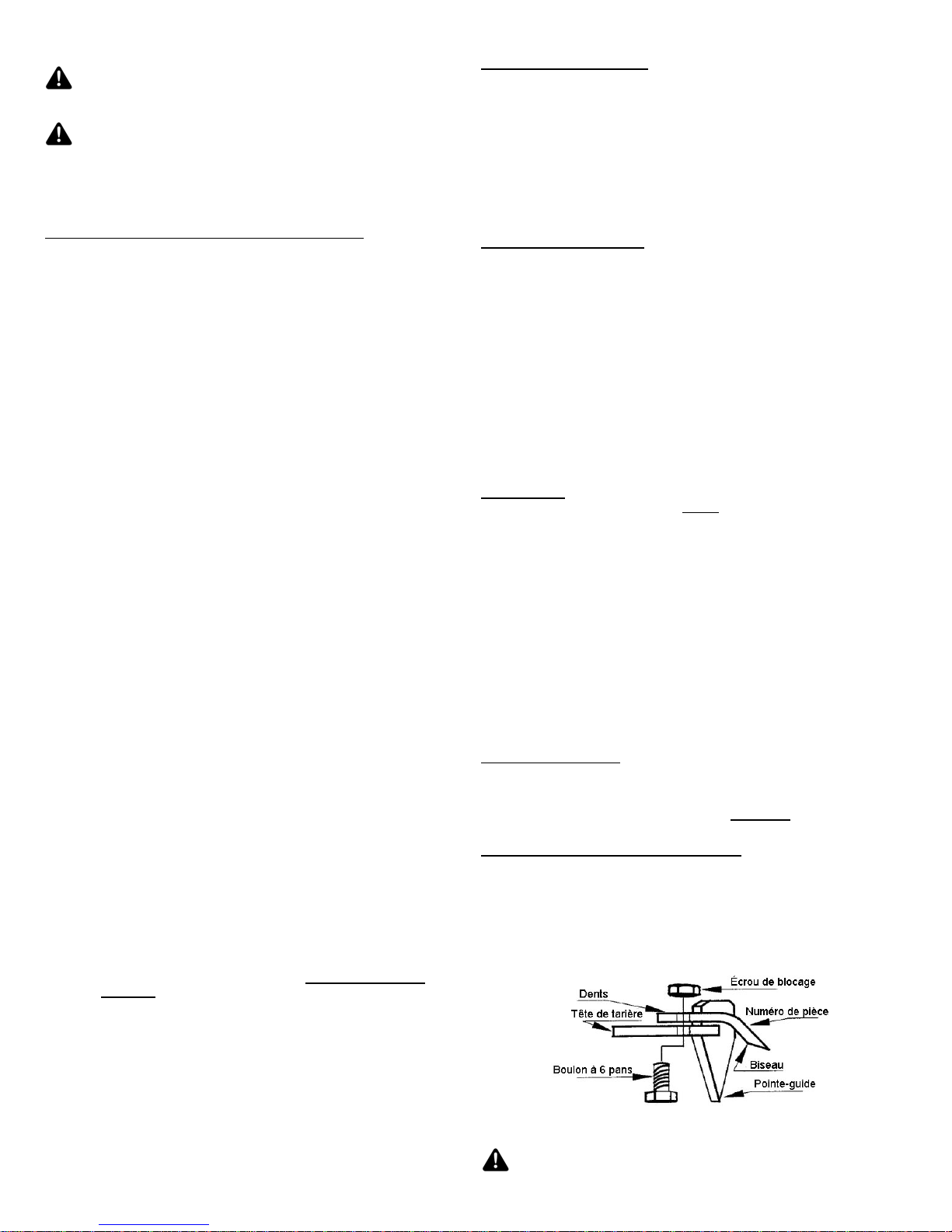

BLADE TEETH REPLACEMENT INSTRUCTIONS – When replacing blade
teeth, the beveled edge of teeth and the head of the capscrews should face
the ice. The stamped part number on the teeth should face away from the
ice, as shown in the diagram. Use two 7/16” wrenches to remove the
capscrews. When attaching blades, finger tighten all fasteners, then full
tighten with wrenches.
CAUTION – THE BLADE TEETH ARE SHARP AND SHOULD BE
HANDLED CAREFULLY TO AVOID FLESH CUTS OR INJURY.
-4-
ENGINE SPEED – NEVER TAMPER WITH ENGINE
GOVERNOR, OVERSPEEDING THE ENGINE CAN BE
DANGEROUS AND MAY CAUSE PERSONAL INJURY OR
DAMGE TO UNIT.
TAMPERING WITH ENGINE GOVERNOR WILL VOID ENGINE
WARRANTY.
IF ENGINE IS NOT TO BE USED FOR 30 DAYS OR MORE,
PREPARE AS FOLLOWS:
FUEL SYSTEM – To avoid stale fuel and carburetor problems, treat
fuel with fuel stabilizer.
1. Add fuel stabilizer according to manufacture’s instructions.
2. Run engine at least 10 minutes after adding stabilizer to
allow it to reach the carburetor.
For engine adjustments, repairs or warranty service not covered in
this manual, visit our web site at www.jiffyonice.com or call 800-344-
0712. When requesting warranty service, Jiffy® ice drill proof of
purchase establishes the date of sale and the start of the warranty
period.
IMPORTANT NOTE: TRANSPORTING YOUR JIFFY ICE
DRILL
When transporting your Jiffy Ice Drill on an ATV or
snowmobile, it is extremely important to follow these
instructions and use caution to avoid damage to the
power head (engine and transmission) or related
equipment:
There are many after-market ice drill carrier mounting
systems to choose from. Make sure the carrier system
you purchase or use has the proper support for the
power head. Many systems are designed to only
support and mount to the lower drill assembly. This
leaves the power head unsupported. This situation will
result in major damage to the engine and transmission.
Take the necessary steps insure proper support of the
power head as noted above. If the power head is not
properly supported during transportation, this will void
the limited warranty and all repairs or replacement cost s
will be the responsibility of the owner. Purchase the
correct carrier mounting system and exercise extreme
caution when transporting the auger.
NOTE: To further protect your power head when
transporting, make sure the power head is covered to
minimize any snow or ice build-up or accumulation on
any of the functional engine parts, such as the
carburetor, throttle, or throttle cable assemblies. Jiffy
has an accessory power head cover (Jiffy #4022) to
protect the power head from these types of conditions
and can be purchased at most retail locations.
Blade Warranty
Instructions:
1. Please send the following information:
Name,
Address,
City, State/Province, Zip/Postal Code,
Country,
Telephone Number,
Email Address,
Date of Purchase
Jiffy® Serial Number
2. Send sales receipt, UPC label ( No Photocopies), three Stealth
STX™ Blades or the Ripper™ blade and $14.95 in US dollars
for return Shipping and Handling to:
Feldmann Engineering & Mfg. Co. Inc.
520 Forest Avenue
Sheboygan Falls, WI 53085 USA
Jiffy® Blade Warranty –
● One Time Sharpening or Replacement
● Expires Two Years after Date of Purchase
Please Allow 3 Weeks for Delivery!
-5-
Loading...
