User Guide 1225 Matrix Printer

Tally Dascom 1225

Important Safety Instructions (English)

Read the following instructions thoroughly before starting up your printer.

• Never carry out maintenance or repair work yourself. Always contact a qualified service technician.

• Keep this Operator’s Manual in a place which is easily accessible at all times.

• Place the printer on a solid and even base so that it cannot fall.

• Never place the printer in the vicinity of inflammable gas or explosive substances.

• Ensure the printer is connected to a socket with the correct mains voltage.

• Always disconnect the printer from the mains before opening the device to perform maintenance work or remedy errors.

• Do not expose the printer to high temperatures, direct sunlight or dust.

• Keep all liquids away from the printer.

• Protect the printer from shock, impact and vibration.

• Make sure that the printer and computer are switched off before connecting the data cable.

• The print head will become very hot during printing; avoid contact with the print head after printing has finished.

• Do not perform any operation or action in any way other than those provided in this manual. When in doubt, contact your dealer or your customer support.

Tally Dascom 1225

Wichtige Sicherheitshinweise (German)

Lesen Sie bitte diese Sicherheitshinweise durch, bevor sie den Drucker in Betrieb nehmen.

x Führen Sie Wartungsarbeiten und Reparaturen keinesfalls selbst aus, sondern verständigen Sie

immer einen qualifizierten Servicetechniker.

x Bewahren Sie diese Dokumentation an einem jederzeit zugänglichen Ort auf.

x Den Drucker auf stabilem und ebenem Untergrund so aufstellen, dass er nicht zu Boden fallen kann.

x Stellen Sie den Drucker keinesfalls in der Nähe von leicht entzündlichen Gasen oder explosiven

Stoffen auf.

x Den Drucker nur an eine Steckdose mit der richtigen Spannung anschließen.

x Wenn Sie den Drucker vom Netz trennen wollen, den Drucker ausschalten und immer den Netzstecker

an der Steckdose ziehen.

x Den Drucker weder hohen Temperaturen noch direktem Sonnenlicht und Staub aussetzen.

x Keine Flüssigkeiten mit dem Drucker in Berührung bringen.

x Den Drucker keinen Erschütterungen, Stößen oder Vibrationen aussetzen.

x Sicherstellen, dass der Drucker und der Computer ausgeschaltet sind, bevor das Datenkabel

angeschlossen wird.

x Der Druckkopf wird während des Druckens heiß. Vor dem Berühren deshalb einige Zeit abkühlen

lassen.

x Weichen Sie bei der Bedienung des Druckers nicht von den Anweisungen in der Dokumentation ab.

Bei Unklarheiten wenden Sie sich bitte an Ihren Händler oder Ihren Kundendienst.

Tally Dascom 1225

Consignes importantes de sécurité (French)

Lire attentivement les instructions suivantes avant de mettre l’imprimante en service.

x Ne jamais effectuer soi-même les travaux d’entretien et de réparations. Contacter toujours un

dépanneur qualifié.

x Placer l’imprimante sur un support stable de façon à ce qu’elle ne puisse pas tomber.

x Ne jamais placer l’imprimante à proximité de sources de gaz aisément inflammables ou de substances

explosives.

x Ne connecter l’imprimante à une prise que lorsque la tension est correcte.

x Pour déconnecter l’imprimante de l’alimentation principale, mettre l’imprimante hors tension et toujours

débrancher le connecteur secteur de la prise murale.

x Ne pas exposer l’imprimante à des températures élevées, à la lumière directe du soleil ou à la

poussière.

x Ne pas mettre l’imprimante en contact avec des liquides.

x Ne pas exposer l’imprimante à des chocs, impacts ou vibrations.

x S’assurer que l’imprimante et l’ordinateur sont hors tension avant de connecter le câble de données.

x La tête d’impression est brûlante pendant l’impression. C’est pourquoi laissez-la refroidir quelques

instants avant d’y toucher.

x N'exécutez aucune opération ni action d'une autre manière que celle indiquée dans ce manuel. En cas

de doute, veuillez contacter votre distributeur ou service après-vente.

III

Tally Dascom 1225

Indicazioni di sicurezza importanti (Italian)

Prima di mettere in funzione la stampante, leggere attentamente le seguenti indicazioni.

Non eseguire mai da sé gli interventi di manutenzione e riparazione, ma rivolgersi sempre a un tecnico di assistenza qualificato.

x Conservare le presenti istruzioni per l’uso in un luogo sempre accessibile.

x Collocare la stampante su una superficie stabile, per evitare che cada a terra.

x Non collocare la stampante in prossimità di gas facilmente infiammabili o di sostanze esplosive.

x Collegare la stampante a una presa di corrente con tensione adeguata.

x Per scollegare la stampante dalla rete di alimentazione, spegnere la stampante e disinserire sempre il

connettore di rete dalla presa.

x Non esporre la stampante ad elevate temperature né alla luce solare diretta e alla polvere.

x Evitare il contatto della stampante con liquidi.

x Non esporre la stampante a colpi, scosse o vibrazioni.

x Verificare che la stampante e il computer siano spenti prima di collegare il cavo di trasmissione dati.

x Durante la stampa, la testina si surriscal-da notevolmente. Prima di toccarla, se necessario opportuno

quindi lasciarla raffreddare qualche istante.

x Non eseguire alcuna operazione o azione se non nella maniera descritta nel presente manuale. In

caso di dubbio, contattare il rivenditore o dalla società incaricata dell’assistenza.

Tally Dascom 1225

Instrucciones de seguridad importantes (Spanish)

Lea las siguientes instrucciones con esmero antes de poner la impresora en servicio.

Nunca lleve a cabo trabajos de mantenimiento o reparación Ud. mismo, sino consulte a un técnico de servicio calificado.

x Guarde las presentes instrucciones de servicio en un lugar de fácil acceso en cualquier momento.

x Ponga la impresora sobre un base estable de manera que no pueda caer al suelo.

x Nunca coloque la impresora en la vecindad de gases de fácil inflamabilidad o sunstancias explosivas.

x Asegure conectar la impresora sólo a un enchufe con un voltaje correcto.

x Cuando quiera desconectar la impresora de la red, apague la impresora y siempre tire la clavija de

alimentación del enchufe.

x No exponga la impresora a temperaturas altas, a la luz solar directa y al polvo.

x No ponga la impresora en contacto con fluidos.

x Nunca exponga la impresora a sacudidas, choques o vibraciones.

x Asegúrese de que la impresora y el ordenador estén apagdos antes de conectar el cable de datos.

x La cabeza de impresión se pone muy caliente durante la impresión. Por lo tanto, deje enfriarlo algún

tiempo antes de tocarla.

x No permita que se realice cualquier operación o acción de una forma diferente a lo que se señala en el

manual. En caso de duda, póngase en contacto con su comerciante o con su servicio post-venta.

Tally Dascom 1225

ɉɪɚɜɢɥɚ ɩɨ ɬɟɯɧɢɤɟ ɛɟɡɨɩɚɫɧɨɫɬɢ. (Russian)

ɉɪɨɱɢɬɚɣɬɟ, ɩɨɠɚɥɭɣɫɬɚ, ɢɧɫɬɪɭɤɰɢɸ ɩɨ ɬɟɯɧɢɤɟ ɛɟɡɨɩɚɫɧɨɫɬɢ ɩɟɪɟɞ ɜɤɥɸɱɟɧɢɟɦ ɜ ɪɚɛɨɬɭ ɩɪɢɧɬɟɪɚ.

x ɇɟ ɜɵɩɨɥɧɹɣɬɟ ɬɟɯɧɢɱɟɫɤɢɟ ɪɚɛɨɬɵ ɢ ɪɟɦɨɧɬ ɬɟɯɧɢɤɢ ɫɚɦɨɫɬɨɹɬɟɥɶɧɨ, ɧɨ ɫɨɨɛɳɚɣɬɟ ɨ

ɧɟɢɫɩɪɚɜɧɨɫɬɹɯ ɤɜɚɥɢɮɢɰɢɪɨɜɚɧɧɵɦ ɫɟɪɜɢɫɧɵɦ ɬɟɯɧɢɤɚɦ.

x Ⱦɚɧɧɚɹ ɢɧɫɬɪɭɤɰɢɹ ɞɨɥɠɧɚ ɛɵɬɶ ɜɫɟɝɞɚ ɞɨɫɬɭɩɧɚ ɤɚɠɞɨɦɭ ɩɨɥɶɡɨɜɚɬɟɥɸ.

x ɍɫɬɚɧɨɜɢɬɟ ɩɪɢɧɬɟɪ ɧɚ ɪɨɜɧɨɦ ɢ ɫɬɚɛɢɥɶɧɨɦ ɦɟɫɬɟ ɬɚɤ, ɱɬɨɛɵ ɨɧ ɧɟ ɫɦɨɝ ɭɩɚɫɬɶ ɧɚ ɩɨ

x ɇɢ ɜ ɤɨɟɦ ɫɥɭɱɚɟ ɧɟ ɫɬɚɜɶɬɟ ɩɪɢɧɬɟɪ ɜɛɥɢɡɢ ɥɟɝɤɨ ɜɨɫɩɥɚɦɟɧɹɸɳɢɯɫɹ ɝɚɡɨɜ ɢ ɜɡɪɵɜɱɚɬɵɯ

ɜɟɳɟɫɬɜ.

x ȼɤɥɸɱɚɣɬɟ ɩɪɢɧɬɟɪ ɜ ɪɨɡɟɬɤɭ ɬɨɥɶɤɨ ɫ ɫɨɨɬɜɟɬɫɬɜɭɸɳɢɦ ɧɚɩɪɹɠɟɧɢɟɦ.

x ȿɫɥɢ ȼɵ ɯɨɬɢɬɟ ɨɬɤɥɸɱɢɬɶ ɩɪɢɧɬɟɪ ɨɬ ɧɚɩɪɹɠɟɧɢɹ, ɫɧɚɱɚɥɚ ɜɵɤɥɸɱɢɬɟ ɩɪɢɧɬɟɪ ɫɚɦ ɢ ɡɚɬɟɦ

ɜɵɧɶɬɟ ɲɬɟɤɟɪ ɢɡ ɪɨɡɟɬɤɢ.

x Ȼɟɪɟɝɢɬɟ ɩɪɢɧɬɟɪ ɨɬ ɧɚɝɪɟɜɚɧɢɹ, ɨɬ ɩɨɩɚɞɚɧɢɹ ɧɚ ɧɟɝ

x ɇɟ ɞɨɩɭɫɤɚɣɬɟ ɩɨɩɚɞɚɧɢɹ ɠɢɞɤɨɫɬɢ ɧɚ ɩɪɢɧɬɟɪ.

x ɇɟɥɶɡɹ ɩɨɞɜɟɪɝɚɬɶ ɩɪɢɧɬɟɪ ɬɪɹɫɤɟ, ɭɞɚɪɚɦ ɢ ɜɢɛɪɚɰɢɢ.

x ɍɛɟɞɢɬɟɫɶ, ɱɬɨ ɩɪɢɧɬɟɪ ɢ ɤɨɦɩɶɸɬɟɪ ɜɵɤɥɸɱɟɧɵ, ɬɨɥɶɤɨ ɩɨɫɥɟ ɷɬɨɝɨ ɫɨɟɞɢɧɢɬɟ ɩɪɢɧɬɟɪ ɫ

ɤɨɦɩɶɸɬɟɪɨɦ.

x ɉɟɱɚɬɚɸɳɚɹ ɝɨɥɨɜɤɚ ɧɚɝɪɟɜɚɟɬɫɹ ɜɨ ɜɪɟɦɹ ɪɚɛɨɬɵ ɩɪɢɧɬɟɪɚ. ɉɨɷɬɨɦɭ ɩɨɞɨɠɞɢɬɟ ɤɚɤɨɟ-ɬɨ

ɜɪɟɦɹ, ɩɪɟɠɞɟ ɱɟɦ ɞɨ

x ɉɨɥɶɡɭɣɬɟɫɶ ɩɪɢɧɬɟɪɨɦ ɬɚɤ, ɤɚɤ ɷɬɨ ɧɚɩɢɫɚɧɨ ɜ ɞɨɤɭɦɟɧɬɚɰɢɢ. ȿɫɥɢ ɭ ȼɚɫ ɜɨɡɧɢɤɚɸɬ ɧɟɹɫɧɨɫɬɢ,

ɨɛɪɚɳɚɣɬɟɫɶ ɫ ɜɨɩɪɨɫɚɦɢ ɤ ȼɚɲɢɦ ɩɪɨɞɚɜɰɚɦ ɢɥɢ ɜ ɫɟɪɜɢɫɧɵɣ ɰɟɧɬɪ.

ɬɪɨɧɭɬɶɫɹ ɞɨ ɧɟɟ.

ɨ ɩɪɹɦɵɯ ɫɨɥɧɟɱɧɵɯ ɥɭɱɟɣ ɢ ɩɵɥɢ.

ɥ.

Tally Dascom 1225

Instruções Importantes sobre Segurança (Portuguese)

Leia as instruções de segurança antes de usar a impressora.

x Consulte sempre um técnico qualificado para executar uma reparação .

x Coloque a impressora sobre uma base sólida e nivelada, para que ela não sofra quedas.

x Jamais instale a impressora nas proximidades de lugares onde haja gás inflamável ou substâncias

explosivas.

x Assegure-se de conectar a impressora à tomada elétrica com a voltagem apro-priada.

x Quando desligar a impressora da rede, desligue sempre a impressora e retire o cabo da tomada.

x Não exponha a impressora a temperaturas altas ou luz solar direta.

x Não aproxime substâncias líquidas da impressora.

x Proteja a impressora de choques, impactos e vibrações.

x Desligue a impressora e o computador antes de conectar o cabo da rede.

x A cabeça da impressora pode ficar muito quente . Portanto, espere algum tempo antes de tocá-la.

x Não faça nenhuma operação ou ação além das recomendadas neste manual. Em caso de dúvida,

contate seu revendedor ou companhia de serviço.

VII

Tally Dascom 1225

Önemli Güvenlik Talimatları (Turkish)

Lütfen, yazıcıyı iúletime geçirmeden önce bu güvenlik talimatlarını bütünüyle dikkatle okuyun.

x Bakım ve tamir çalıúmalarını kesinlikle ve hiçbir surette kendi baúınıza yapmayın; her zaman kalifiye bir

uzman servis-teknisyenine haber verin.

x Yazıcıyı, üzerinden yere düúmesi mümkün olmayacak sabit ve düz bir zemine yerleútirin.

x Yazıcıyı kesinlikle ve hiçbir surette kolayca yanabilecek gaz veya patlayıcı maddeler içeren nesnelerin

yakınına koymayın.

x Yazıcı akım kablosunu sadece do÷ru gerilime sahip bir prize takın.

x Yazıcıyı úebeke a÷ından ayırmak istedi÷inizde, yazıcıyı kapatın ve a÷-fiúi

x Yazıcıyı ne yüksek ısılı ne de do÷rudan güneú ıúı÷ına ve toza mâruz kalan mekânlarda bulundurun.

x Yazıcı hiçbir sıvı maddeyle temasta olmamalıdır.

x Yazıcı hiçbir sarsıntıya, darbeye veya titreúime mâruz kalmamalıdır.

x Veri kablosu ba÷lanmadan önce hem yazıcının hem de bilgisayarın kapalı olduklarından emin

olmalısınız.

x Yazıcının baúı basma esnasında yüksek ısıya ulaúıyor

so÷umasını bekleyin.

x Yazıcının iúletimi ve kullanımında bu dokümantasyondaki talimatların hiç dıúına çıkmayın. Sorunlu

görünen hususlarda lütfen imâlatçınıza veya müúteri hizmetleri servisinize baúvurun.

. Bu yüzden lütfen dokunmadan önce kısa süre

ni her zaman prizden çıkartın.

VIII

Tally Dascom 1225

TRADEMARK ACKNOWLEDGEMENTS

“IBM” is a trademark of International Business Machines Corporation. “EPSON” is a trademark of Epson America Incorporated. “DEC” is a trademark of Digital Equipment Corporation. “Centronics” is a trademark of Centronics Data Computer Corporation. “DOS” is a trademark of Microsoft Corporation. “SAP” is a trademark of SAP AG. “Windows”, “Windows 7”, “Windows 95”, “Windows 98“, “Windows NT”, “Windows 2000”, “Windows 2003/2008 Server”, “Windows XP” and “Windows Vista” are trademarks of Microsoft Corporation. All other product names and company names appearing in this manual are the registered trademarks or trademarks of the individual companies.

Tally Dascom 1225

TABLE OF CONTENTS

1 UNPACKING GUIDE........................................................................................................................................ 1

PLACING THE PRINTER ........................................................................................................................................2

PRINTER COMPONENTS ......................................................................................................................................2

2 SETTING UP PRINTER.................................................................................................................................... 4

INSTALL RIBBON..................................................................................................................................................4

INSTALL THE SINGLE SHEET FEEDER....................................................................................................................5

CONNECTING THE INTERFACE CABLE...................................................................................................................5

CONNECTING THE MAINS POWER ........................................................................................................................6

INSTALLING THE WINDOWS DRIVER......................................................................................................................7

3 PAPER INSTALLATION GUIDE....................................................................................................................10

ADJUSTING THE PRINT GAP LEVER .................................................................................................................... 10

FRICTION FEED HANDLING ................................................................................................................................10

TRACTOR FEED HANDLING ................................................................................................................................11

CONTINUOUS PAPER PLACEMENT......................................................................................................................12

4 CONTROL PANEL OPERATION...................................................................................................................13

PANEL OPERATION............................................................................................................................................15

Online State............................................................................................................................................................. 16

Offline State ............................................................................................................................................................ 17

Power-On State ...................................................................................................................................................... 19

LANGUAGE SETUP ............................................................................................................................................20

5. PRINTER SETTING CHANGES.................................................................................................................... 21

SYSTEM SETUP ................................................................................................................................................21

PRINT SETUP....................................................................................................................................................21

PAGE SETUP .................................................................................................................................................... 23

INTERFACE SETUP ............................................................................................................................................24

ADVANCED SETUP ............................................................................................................................................24

VERTICAL ALIGNMENT .......................................................................................................................................34

CHANGE PIN FUNCTION ....................................................................................................................................35

ADJUST PHYSICAL MARGINS .............................................................................................................................36

DASCOM PRINTER SETUP TOOL ........................................................................................................................38

6 MAINTENANCE..............................................................................................................................................39

CLEANING AND VACUUMING THE PRINTER ..........................................................................................................39

CLEANING THE PAPER ROLLERS........................................................................................................................39

7 TROUBLESHOOTING....................................................................................................................................41

PRINT QUALITY PROBLEMS AND SOLUTIONS....................................................................................................... 41

PAPER HANDLING PROBLEMS AND SOLUTIONS ...................................................................................................42

OPERATING PROBLEMS AND SOLUTIONS ............................................................................................................ 42

Tally Dascom 1225

ERROR INDICATIONS ON LEDS ..........................................................................................................................43

DIAGNOSTIC FUNCTIONS ................................................................................................................................... 44

FIRMWARE UPDATE........................................................................................................................................... 45

8 GENERAL SPECIFICATIONS ....................................................................................................................... 46

9 INTERFACES ................................................................................................................................................. 51

PARALLEL INTERFACE........................................................................................................................................51

USB INTERFACE ...............................................................................................................................................51

10 CHARACTER SETS & CODE PAGES ........................................................................................................52

CHARACTER SETS ............................................................................................................................................52

INTERNATIONAL CHARACTER SETS ..................................................................................................................... 54

INTERNATIONAL CHARACTER SET COMMANDS....................................................................................................54

CHARACTER TABLES ......................................................................................................................................... 55

CODE PAGE COMMANDS ...................................................................................................................................57

CODE PAGE TABLES..........................................................................................................................................59

11 CONTROL CODES SUMMARY...................................................................................................................83

EPSON EMULATION COMMAND LIST ................................................................................................................... 83

IBM EMULATION COMMAND LIST .......................................................................................................................85

FCC STATEMENT.............................................................................................................................................87

XII

Tally Dascom 1225

1 Unpacking Guide

x Place your packaged printer on a solid base. x Make sure that the “Up” symbols point in the correct direction. x Open the packaging, lift the printer out of the cardboard box and remove the remaining packaging

material.

x Check the printer for any visible transport damage and missing items. If you find any transport damage

or if any accessories are missing, please contact your dealer. The following items should be included:

o Printer o Paper feed knob o Paper feed tray o Power cord o Ribbon cartridge o CD-ROM o Installation Guide

Remove the packaging materials from the printer as follows:

1. Remove the tape on the paper feed lever.

2. Remove other visible tape on the printer.

3. Open and remove the top cover of the printer.

4. Remove the shipping cardboard from around the print head.

5. On the left and right sides, remove the protective foam inserts.

6. Install the paper feed knob.

Tally Dascom 1225

Placing the Printer

Place the printer on a solid, flat, stable surface; ensuring that the printer is positioned in such a way that it cannot move, and that there is easy access to the control panel and paper input devices. Also ensure that there is enough space for sufficient ventilation and for the printed output.

When selecting the printer location, observe the following additional instructions:

x Never place the printer near to any flammable gas or explosive substances. x Do not expose the printer to direct sunlight. If you cannot avoid placing the printer near a window, protect it

from the sunlight with a curtain.

x When connecting a computer to the printer, make sure the maximum recommended cable length is not

exceeded.

x Ensure sufficient distance between the printer and any heating devices/radiators. x Avoid exposing the printer to extreme temperature or air humidity fluctuations. Avoid exposure to dusty

environments.

x It is recommended the printer is installed in a position which reduces noise exposure to the work place

during printing.

x The socket-outlet shall be installed near the equipment and shall be easily accessible.

Printer Components

Tally Dascom 1225

Component Function

Gap Lever

Paper Guides

Print Head

Cover

Control Panel

Paper Feed Lever

Paper Feed Knob

Power Switch

Ribbon Cartridge

Ribbon Frame

Tractors Power Receptacle

Interface

Controls printing impact or density. Adjusts the print gap lever according to the thickness of paper.

Adjusts positioning of single sheet paper.

24-pin printing mechanism

Protects print head and other components inside, and reduce noise.

Shows printer status, for printer setup.

Two positions: = continuous forms; = single sheet paper

Manual feed or vertical positioning of paper

Power printer ON or OFF

Install ribbon in the printer.

For guiding ribbon installation on print head.

For feeding and adjustment of continuous forms. Connects power cord to the printer.

Connects interface cables from the host.

Tally Dascom 1225

2 Setting Up Printer

Install Ribbon

1. Ensure the power to the printer is off and the print gap lever “A” is set to the furthest open position. Move

the carriage to the centre of the print platen.

2. Install the recess positions

3. Press the ribbon frame

4. Turn the ribbon knob

to ensure the carriage and ribbon fabric can move smoothly.

5. Ensure the print gap lever “A” is set to the original position.

6. Close the printer’s top cover. When printer is in operation, ensure the printer’s top cover is closed to keep

the noise level to a minimum.

c on the ribbon cassette into the printer mounting.

d onto the print head.

e in clockwise direction until the ribbon fabric is taut. Move the carriage left and right

Notes on Ribbon Cartridge Removal:

1. Eject any paper loaded in the printer.

Turn off the printer power.

Open and remove the top cover.

Lift up the tear bar.

5. Set the gap lever to the most open position labeled “RIBBON”.

6. Move the carriage to the middle. Be careful not to touch the print head if printing had just been performed,

as the print head may be hot.

7. Remove the blue ribbon frame from the print head.

8. Use fingers to take hold of the handle on the ribbon cartridge firmly, and lift the cartridge upwards to unlatch

it. Some force may be needed to unlatch the cartridge.

Tally Dascom 1225

Install the Single Sheet Feeder

Install the single sheet feeder into the rear of the printer.

Connecting the Interface Cable

The 36-pin Centronics parallel and USB ports are located at the rear of the printer. IMPORTANT: Make sure the printer and the computer are switched off before connecting or disconnecting the interface cable to prevent electrical damage to the interface ports.

Tally Dascom 1225

Connecting the Mains Power

Checking the printer voltage

Make sure that the device has been set according to your country’s power supply voltage. To do this, check the rating plate at the back of the printer. Contact your dealer if the setting is incorrect.

Never switch on the printer if the voltage setting is incorrect; this may result in electrical

damage to the printer.

Make sure that the power switch “A”, located to the right side of the printer, is in the “O” (off) position.

Connect the power cord to the power inlet of the printer. Connect the power cord plug to a mains socket. Switch on the printer.

Tally Dascom 1225

Installing the Windows Driver

(Windows 2000/2003/2008 Server/XP/Vista/7)

1. Your printer CDROM comes with Windows drivers. Go to the Drivers folder and run the Installer “DriverSetup.exe”. You will see the screen on the right. Click “Next” to continue.

2. A list of ports available on your system will be displayed as shown on the right. Choose the desired port to use. Click “Next” to continue.

3. Select the desired printer model as shown on the right. Click “Next” to continue.

Tally Dascom 1225

4. Here you can choose whether to set the driver as the system default driver, and whether you want to print the Test Page after installation is completed. If the driver had been installed before, it would be listed in the white box on the right. Select the listed driver (if any) if you want to replace it; otherwise a copy of the driver will be installed. Click “Next” to continue.

5. Click “Finish” to start the installation process.

6. If the driver is not yet Microsoft Certified, the message on the right would appear. Click “Continue Anyway”. (As we continue to expand our product portfolio, not all of our drivers may be certified yet. Please check our website

www.dascom.com

certified drivers.)

for the latest

Tally Dascom 1225

7. Installation in progress.

8. After installation is completed successfully, you will see the message on the right.

Tally Dascom 1225

3 Paper Installation Guide

The printer can handle either single sheets or continuous forms. Single sheets, also called cut sheets, include envelopes and non-continuous, multipart forms. Continuous forms include labels and multipart forms fed into the printer using the forms tractors. The printer is able to print 1~5 plies multipart paper.

Do not load paper that has been folded or is damaged, wrinkled, or curled.

Adjusting the Print Gap Lever

The print gap lever is on the left side of the printer. Take care to adjust the print gap lever to a suitable position whenever you change the number of copies being printed. Using the wrong print gap may cause print head damage or paper jams.

Paper type Weight (g/m

Single sheet

2-ply

3-ply

4-ply

5-ply

Change ribbon --- Above 0.45

There are 2 paper feed modes: friction feed and tractor feed.

52100 0.060.12

4052 0.120.14

4052 0.170.22

4052 0.230.27

4052 0.280.33

) / ply Thickness (mm) Gap lever position

Friction Feed Handling

1. Move the paper-feed lever forward to “ ” for friction feed mode.

2. Adjust the print gap lever if necessary.

1PЊ2P

3PЊ4P

Tally Dascom 1225

3. Raise the single sheet feeder until it locks into its mounting. Align the left paper guide with the mark on the left of the single sheet feeder. Adjust the right paper guide to the width of the paper used.

4. Insert a sheet of paper. Make sure that the bottom edge of the paper engages snugly with the platen.

5. The paper should advance automatically to the print position. The printer is now ready to print in the online state.

Paper Guides

Tractor Feed Handling

1. Move the paper-feed lever backward to “ ” for continuous paper position.

2. Adjust the print gap lever if necessary.

3. Raise the tractor doors and fit the first 3 paper holes onto the left tractor pins. Close the left tractor door. In the same way, install the paper on the right tractor.

4. Adjust the right tractor to the width of the paper until the paper is flat. Do not stretch the paper too taut. Push the right lock lever down to secure the right tractor in place.

5. Press theǏLoad/Ejectǐkey to load the paper to the starting print position. The printer is now ready to print in the online state.

Tally Dascom 1225

Continuous Paper Placement

1. Place the printer on a solid base. The minimum suitable height of the solid base is 75 cm.

2. Left and right positioning: The direction of continuous paper should be parallel with the paper guide. The tolerance should be less than 3 cm

3. Front and back positioning: The distance between the rear of printer and the wall should be more than 60 cm. To avoid paper jam, the distance between the continuous paper and the edge of desk should be 10~15 cm.

Tally Dascom 1225

4 Control Panel Operation

There are 5 switches S1~S5 and 10 LEDs L1~L10. The meaning and application of each switch and LED are described below.

LED Indicators

“Power/Paper Out” LED: On: Power on Flashing: Paper out Flashing + buzzer: Paper jam

“Online” LED: On: The printer is in online state and ready to receive data from the computer. Off: The printer is in offline state and cannot receive data.

“Pitch” LEDs: On: Indicates the selected pitch.

“Font” LEDs: On: Indicates the selected font.

Control Panel Keys

“Online” Key: This key switches the printer between online and offline states. Printing is stopped when the printer is switched to offline state. When printer is switched to online state again, printing will resume.

“Load/Eject” Key: When paper is loaded, pressing this key will eject the paper (single sheet mode) or park the paper (continuous paper mode). When paper is not loaded, pressing this key will load the paper to the starting print position.

Tally Dascom 1225

“LF/FF” Key: Pressing this key will feed paper one line forward. By holding down this key, the printer will initially feed a few lines, then perform a form feed (continuous paper mode) or eject the form (single sheet mode).

“Tear Off” Key: When online, this key will move any loaded continuous paper to the tear-off position. When offline, this key is used to select the desired pitch.

“Font” Key: When offline, this key is used to select the desired font.

Table 4.1

Switch Top Label Bottom Label

S1 Font Clear/Reset S2 Tear Off Pitch

S3 LF/FF Micro Feed Down S4 Load/Eject Micro Feed Up S5 Online -

Table 4.2

LED Function

L1 Draft L2 Sans Serif L3 Prestige L4 Others

L1, L2 Roman L2, L3 Courier L3, L4 Script L5 10CPI / Tear Off L6 15CPI L7 20CPI L8 PS

L5, L6 12CPI L6, L7 17CPI L9 Power/Paper Out L10 Online

Tally Dascom 1225

Panel Operation

There are 3 states of operation: Online, Offline and Power On.

In the Online state, the keys provide the following functions: Go to Tear Off position, Line Feed/Form feed, Load/Eject, and switch to Offline state.

In the Offine state, the keys provide the following functions: Font select, Pitch select, Line Feed/Form feed, Load/Eject, and switch to Online state, micro feed, control PE (paper error) sensitivity, clear buffer and restore factory defaults.

To enter the Power On state, the user holds down a key or a combination of keys while powering up the printer. This state provides the following functions: Main Menu setup, Hex-dump, print Main Menu, access Service Menu, adjust page margins, restore factory defaults, and firmware update.

The followings describe the 3 states in details.

Legend: [A] = press and hold switch A {B} = press and then release switch B [A]+ {B} = press switch B while holding A

Tally Dascom 1225

Online State

Function Name

Online {S5} L10 Toggles between Online and Offline states

Load/Eject {S4} -

LF {S3} - Feeds a line with every press of S3.

FF [S3] -

Tear Off {S2} L5 flashing

Switch

Operation

LED Function Description

x Load: Automatically loads the paper (according to path

selection) when no paper is on the platen.

x Eject: For rear tractor, it retracts the form from the

platen to allow users to install cut sheets. (NOTE: Users have to toggle the path selection lever.) For cut sheets, it ejects the form on the platen.

By holding S3, the printer initially feeds a few lines; then feeds the form to the next TOF for rear tractor or ejects the form for cut sheets.

This is valid for tractor mode only. It feeds the form to the tear-off position. After tearing off the form, printing starts on the next TOF by:

x pressing S2 once, or x receiving print data from the host.

Tally Dascom 1225

Offline State

Function Name

Font {S1} L1~L4 Selects the font. Pitch {S2} L5~L8 Selects the pitch. LF {S3} - Feeds a line with every press of S3.

FF [S3] -

Load/Eject {S4} -

Online {S5} L10 Toggles between Online and Offline states Micro Forward {S4}+[S5] - While holding down S5, press S4 to micro feed paper up. Micro Reverse {S3}+[S5] - While holding down S5, press S3 to micro feed paper down. Activate user-defined sensitivity

Switch

Operation

[S2]+{S3} Activates the calibrated PE sensor sensitivity value according

LED Function Description

By holding S3, the printer initially feeds a few lines; then feeds the form to the next TOF for rear tractor or ejects the form for cut sheets. x Load: Automatically loads the paper (according to path

selection) when no paper is on the platen.

x Eject: For rear tractor, it retracts the form from the platen to

allow users to install cut sheets. (NOTE: Users have to toggle the path selection lever.) For cut sheets, it ejects the form on the platen.

to the currently selected paper path. Beeps once when completed.

Tally Dascom 1225

Calibrate PE sensor sensitivity

Restore default PE sensor sensitivity Clear Buffer and Reset

{S1}+[S2] -

[S2]+{S4} Resets PE sensor sensitivity to factory defaults. Beeps twice

{S1}+[S5] -

x Out-of-paper: Beeps once. Automatically loads a form in 10

seconds.

x Paper loaded: Calibrates PE sensor with paper loaded and

save the sensitivity value. Beeps 5 times when completed.

x [NOTE: There are 2 independent sensors for rear tractor and

front friction.

when completed.

x Clears the print buffer. Beeps once upon completion. x Pressing S1 longer initializes the printer to default settings.

Beeps 3 times upon completion.

Tally Dascom 1225

Power-On State

Function

Name

Menu Setup / EDS

Hex Dump [S4] - Beeps once to indicate going into hex dump mode:

Self Test / Status Page Service Menu [S2]+[S3] - Vertical Alignment, Change Pin Function and Endless Self

Adjust Page Margins

Switch

Operation

[S2] - Allows for Main Menu setting changes. Please read the

[S5] - Prints the printer settings and self-test pattern.

[S4]+[S5] - Includes Adjust Fanfold Top Margin, Adjust Single Top

LED Function Description

instructions printed on how to change settings when this mode is activated. (EDS: Electronic DIP Switch)

x Prints data from host in hexadecimal representation. x Pressing S4 suspends the printing. x When the hex dump has finished, pressing S4 forces the

printing of the last line of data, as any line termination control code from host has no function.

x Pressing S1 can change the font. x Switch off the power to terminate the hex dump.

Pressing S1 can change the font.

Test

Margin, Adjust Fanfold Left Margin, Adjust Single Left Margin and Adjust Tear-Off position.

Tally Dascom 1225

Restore Factory Defaults Firmware Update

Language Setup

[S3]+[S4]+[S5] - Restore settings to factory defaults except for Change Pin,

Vertical Alignment and Adjust Page Margin Parameters. [S2]+[S3]+[S4]+ [S5]

[S3]+[S4]

x Alternate flashing of L9 and L10 indicates ready for

firmware update from host.

x When new firmware is being received: L1 and L2 will

flash, followed by L1 and L3 flashing, then followed by L1 and L4 flashing.

x When downloading is completed, the carriage returns to

home position. Printer initializes normally.

x Allows user to select one of the following languages:

English, German, Russian, Italian, French, Spanish and Turkish. Factory default is English. Refer to Language Setup section below for details.

Language Setup

The panel menu can display the following languages: English, German, Russian, Italian, French, Spanish and Turkish. Factory default setting is English. To change it to another language, hold down the [LF/FF] and [Load/Eject] keys on the panel and power-on. Upon exiting the Language Setup Menu, a listing of the current configuration is printed, and this is followed by Main Menu Setup.

Below is an example of changing from English to German language:

Tally Dascom 1225

5. Printer Setting Changes

In order to meet individual print requirements, the printer configurations may be changed as follows: Hold down the Tear Off key while powering on the printer, release the Tear Off key when the print head starts to move. The printer will enter Main Menu setup state. Follow the instructions printed on how to make setting changes. When a new setting is saved, it is retained after the printer has been powered off.

The Main Menu is grouped into 5 sub-menus: System Setup, Page Setup, Print Setup, Interface Setup and Advanced Setup. A detailed description of the sub-menus is given below. The settings in bold and italic refer to the default settings.

System Setup

System

Setup

Emulation

Auto CR (IBM) Auto LF

Print Dir

Top Print Dir Impact IBM AGM

Valid Settings Function

ESC/P2, IBM 2390 Plus

Yes, No

Bi-Dir, Uni-Dir, Auto

Bi-Dir, Uni-Dir

Normal, Heavy

Yes, No

Selects the printer emulation. This should be the same as the host printer driver. Yes: LF = LF+CR; No: LF = LF (Applies to IBM emulation only) Yes: CR = CR+LF; No: CR = CR Auto: Text & graphics in bi-direction; double height in uni-direction. Uni-Dir: Prints everything in uni-direction. Bi-dir: Prints everything in bi-direction. Note: Top position print direction may be affected by Top Print Dir setting. Bi-dir: Prints top position according to Print Dir setting. Uni-dir: Prints top position in uni-direction regardless of Print Dir setting. Heavy: Higher impact force for multipart printing Selects the IBM graphic mode. Applies to IBM emulation only

Print Setup

Print Setup Valid Settings Function

When Font is set to “Others”

Font (Others)

OCR-B, OCR-A, ORATOR, GOTHIC, SOUVENIR

on control panel, OCR-B, OCR-A, ORATOR, GOTHIC fonts are selectable.

Pitch

Zero

10cpi, 12cpi, 15cpi, 17cpi, 20cpi, PS

0,Ø

Controls the characters per inch setting.

Selects slashed or no-slash zero.

Tally Dascom 1225

HS-Draft

Graphic Speed

IBM Set 1/2

Int'l Char Set

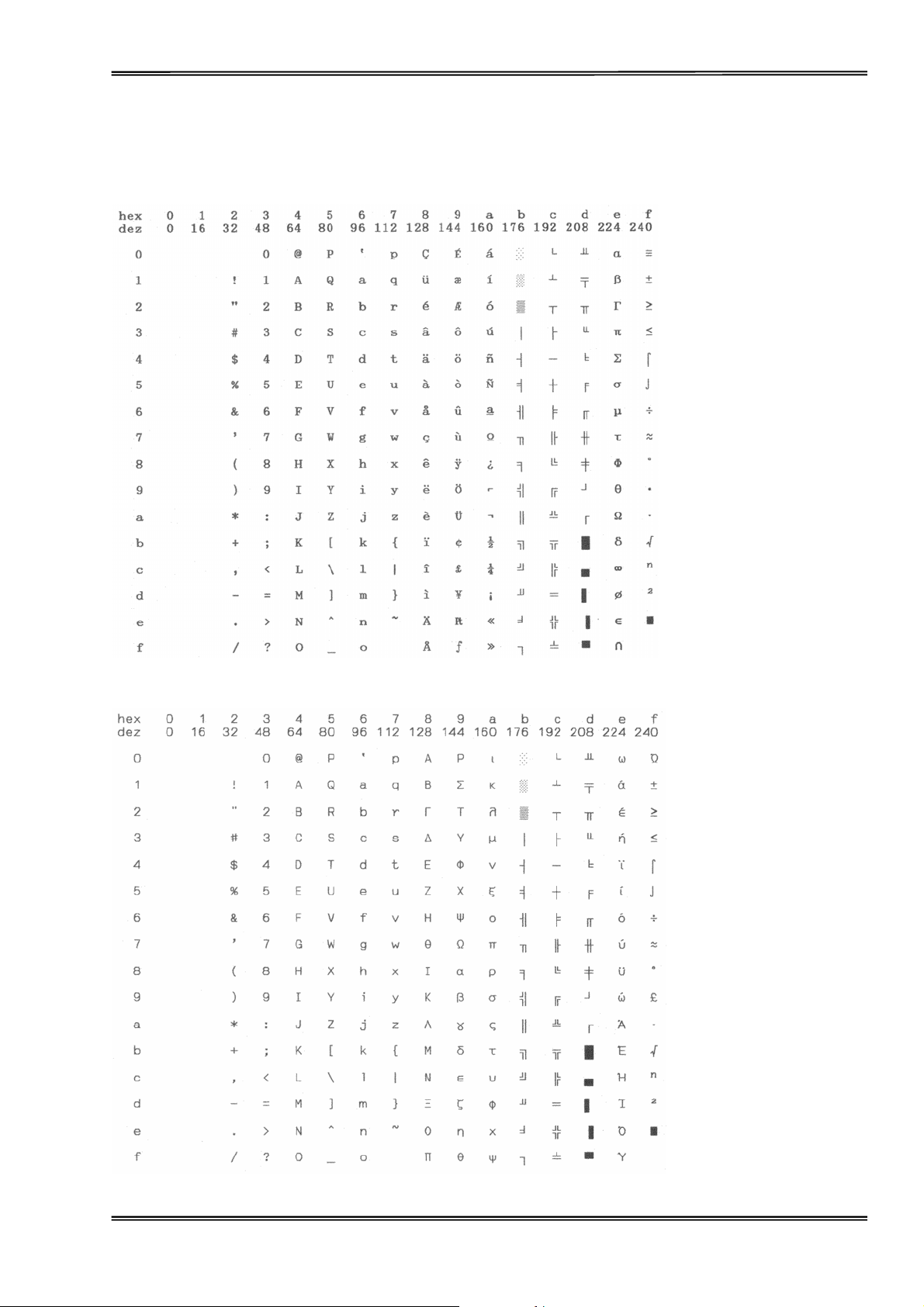

Code Page

On, Off

Normal, Fast, Ultra

Set 1, Set 2

USA, France, Germany, UK, Denmark, Sweden, Italy,

Spain, Japan, Norway, Denmark II, Spain II, Latin AM, Korea, Legal

1. CP 437

2. CP 737

3. CP 850

4. CP 851

5. CP 852

6. CP 857

7. CP 858

8. CP 860

9. CP 861

10. CP 863

11. CP 864

12. CP 864 Extended

13. CP 865

14. CP 866 Cyrillic

15. CP 866 Bulgaria

16. CP 1250

17. CP 1251

18. CP 1252

19. CP 1253

20. CP 1254

21. 8859-1

22. 8859-1 (SAP)

23. 8859-2

24. 8859-5

25. 8859-7

26. 8859-9

27. 8859-15

28. BRASCII

29. Abicomp

On: Prints High Speed Draft when Draft font is selected.

When printing 180x180 DPI graphics: Normal – prints in 180x180 DPI, Fast – prints in 90x180 DPI, Ultra – prints in 60x180 DPI. Selects the IBM character set. 1: Normal; 2: Extended

14+1 international character set selections

National code page selections

Tally Dascom 1225

30. Roman8

31. Coax/Twinax

32. New-437

33. New-Dig 850

34. Old-Code 860

35. Flarro 863

36. 865 Hebrew

37. CP 1257

38. 866 Ukraine

39. 866 Kazakhstan

40. Kamenicky

41. Mazovia

42. CP 775

43. CRO-ASCII

44. Arabic Farsi

45. Arabic Urdu

46. Greek DEC

47. Greek ELOT 928

Character Table

Graphic Table, Italic Table

Page Setup

Page Setup Valid Settings Function

Print Width Line Per Inch

Fanfold Form Length

Fanfold Top Margin

Fanfold Bottom Margin

Single Form Length

Single Top Margin

Single Bottom Margin

Roll Paper

Perforation Skip

13.6", 8" 1, 2, 3, 4, 5, 6, 7, 8 3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17"

0/60" … 10/60"…99/60"

0/60"…10/60"...30/60"

3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14", 17"

0/60" … 10/60"…99/60"

0/60"…10/60"...30/60"

Yes, No

Printable width options Sets the line spacing

Sets the page length for tractor mode

Sets the top margin for tractor mode. Due to mechanical tolerance, 0/60” is not guaranteed. Sets the bottom margin for tractor mode. Due to mechanical tolerance, 0/60” is not guaranteed.

Sets the page length for friction mode

Sets the top margin for friction mode. Due to mechanical tolerance, 0/60” is not guaranteed. Sets the bottom margin for friction mode. Due to mechanical tolerance, 0/60” is not guaranteed. In friction mode, [LF/FF] will not eject the paper and feed to next page. (Assume roll paper) Skips printing on perforation area

Character table type selection

Tally Dascom 1225

Auto Tear

Manual, 0.5s, 1s, 2s, 3s, 4s, 5s View1s, View2s, View3s

Interface Setup

Specifies the waiting time before feeding the page to tear-off position automatically. Manual: Auto tear mode is off. View1s, View2s, View3s: After printing is completed, the printer will feed the paper until the last printed line is at the tear-off position. (Applies to tractor mode only)

Interface

Setup

Interface I-PRIME Auto IF Delay

RAM Usage

CX Bid

Valid Settings Function

For multi-host connection. Auto: First come first served;

Auto, Parallel, USB Yes, No

10s, 30s

User Font, Buffer

Yes, No

Parallel/USB: Serves the designated host only. Yes: Host I-Prime signal resets the printer. Determines the waiting time before receiving data from another interface. User Font: Part of RAM is used for user download characters; Buffer: Disables user character download function; uses RAM for expanded buffer size up to 48KB. Yes: Sets the parallel interface of the printer to bidirectional mode (IEEE 1284, Nibble mode), e.g. for Windows Plug & Play. No: Sets the interface to compatibility mode in order to ensure reliable operation with special external boxes.

Advanced Setup

Advanced Setup Valid Settings Function

Auto Load

Paper Jam Prevention

Paper End Detect

Form Length Ctrl Pitch Ctrl Font Ctrl Quality Ctrl Buzzer

Manual, 0.5s, 1s, 1.5s, 2s

Yes, No

Software, Ignore Software, Ignore Software, Ignore Software, Ignore Yes, No

Specifies the waiting time before loading a cut sheet automatically. Manual: Auto load mode is off. (Applies to friction mode only) Flattens paper edges by carriage movement before printing starts. Yes: Detects paper out and halts printing; otherwise, ignores paper out and continues printing.

Ignore: Ignores form length commands Ignore: Ignores CPI commands Ignore: Ignores font select commands Ignore: Ignores print quality commands Yes: Sounds buzzer on all hardware errors

Tally Dascom 1225

German (Deutsch)

System Setup Valid Settings

Emulation Auto CR (IBM) Auto LF Druck Dir Top Druck Dir Anschlag IBM AGM

Druck Setup Valid Settings

ESC/P2, IBM 2390 Plus Ja, Nein Ja, Nein

Bi-Dir, Uni-Dir, Auto Bi-Dir, Uni-Dir Normal, Stark

Ja, Nein

Font (Andere)

Zeichenteilung Null HS-Draft

Graphikgeschw.

IBM Set ½

Land

Zeichensatz Zeichentabelle

Seiten Setup

Druckbreite Zeilen Pro Zoll

Endlos Formularlänge

Endlos Oberer Rand Endlos Unterer Rand

Einzel Formularlänge

Einzel Oberer Rand Einzel Unterer Rand Rollenpapier Perforationssprung Abreissen

OCR-B,OCR-A,ORATOR,GOTHIC,SOUVENIR

10cpi, 12cpi, 15cpi, 17cpi, 20cpi, PS 0,Ø An, Aus

Normal, Schnell, Ultra

Set 1, Set 2 USA, Frankreich, Deutschland, UK, Dänemark, Schweden,

Italien, Spanien, Japan, Norwegen, Dänemark II, Spanien II, Latein-Amerika, Korea, Legal

CP 437, CP 857… Graphik, Italic

Valid Settings

13.6", 8" 1, 2, 3, 4, 5, 6, 7, 8

3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17"

0/60" … 10/60"…99/60" 0/60"…10/60"...30/60" 3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14", 17" 0/60" … 10/60"…99/60" 0/60"…10/60"...30/60" Ja, Nein Ja, Nein Manuell, 0.5s, 1s, 2s, 3s, 4s, 5s, view1s, view 2s, view 3s

Schnittstellen Setup

Schnittstelle I-PRIME

Valid Settings

Auto, Parallel, USB Ja, Nein

Tally Dascom 1225

Auto IF Delay RAM Nutzung CX Bid

Erweitertes Setup

Auto Laden

Papierstau Vorbeugung Papierende Detekt Formularlänge Strg

Zeichenteilung Strg

Font Strg

Qualität Strg Summer

Russian (Ɋɨɫɫɢɹ)

ɋɢɫɬɟɦɧɵɟ ɭɫɬɚɧɨɜɤɢ Valid Settings

ɗɦɭɥɹɰɢɹ Ⱥɜɬɨ CR (IBM) Ⱥɜɬɨ LF ɇɚɩɪɚɜɥɟɧɢɟ ɩɟɱɚɬɢ ɇɚɩɪɚɜɥɟɧɢɟ ɩɟɱɚɬɢ ɡɚɝɥ. ɛɭɤɜ ɍɞɚɪ

IBM AGM

10s, 30s Ladbarer Font, Puffer

Ja, Nein

Valid Settings

Manuell, 0.5s, 1s, 1.5s, 2s

Ja, Nein Ja, Nein Software, Ignoriere

Software, Ignoriere

Software, Ignoriere Ja, Nein

ESC/P2, IBM 2390 Plus

Ⱦɚ, ɇɟɬ Ⱦɚ, ɇɟɬ

Ⱦɜɭɧɚɩɪɚɜɥɟɧɧɚɹ, Ɉɞɧɨɧɚɩɪɚɜɥɟɧɧɚɹ, Ⱥɜɬɨ Ⱦɜɭɧɚɩɪɚɜɥɟɧɧɚɹ, Ɉɞɧɨɧɚɩɪɚɜɥɟɧɧɚɹ ɇɨɪɦɚɥɶɧɵɣ, ɋɢɥɶɧɵɣ Ⱦɚ, ɇɟɬ

ɇɚɫɬɪɨɣɤɚ ɩɟɱɚɬɢ

Ⱦɨɩɨɥɧɢɬɟɥɶɧɵɣ ɲɪɢɮɬ

ɡɧɚɤɨɜ/ɞɸɣɦ

ɉɟɪɟɱɟɪɤɧɭɬɵɣ ɧɨɥɶ

ȼɵɫɨɤɚɹ ɫɤɨɪɨɫɬɶ ɋɤɨɪɨɫɬɶ ɝɪɚɮɢɤɢ

ɋɢɦɜɨɥɵ IBM 1/2

ɇɚɛɨɪ ɡɧɚɤɨɜ

Ʉɨɞɨɜɚɹ ɬɚɛɥɢɰɚ

Ɍɚɛɥɢɰɚ ɡɧɚɤɨɜ

ɉɚɪɚɦɟɬɪɵ ɫɬɪɚɧɢɰɵ

ɒɢɪɢɧɚ ɩɟɱɚɬɢ ɋɬɪɨɤ ɧɚ ɞɸɣɦ

Valid Settings

OCR-B,OCR-A,ORATOR,GOTHIC,SOUVENIR

10cpi, 12cpi, 15cpi, 17cpi, 20cpi, PS

0,Ø

ȼɤɥ, ȼɵɤɥ ɇɨɪɦɚɥɶɧɚɹ, Ȼɵɫɬɪɚɹ, Ɉɱɟɧɶ ɛɵɫɬɪɚɹ

ɍɫɬ. 1, ɍɫɬ. 2

USA, France, Germany, UK, ¿Ûèãú, Sweden, Italy, Spain,

Japan, ИйлЭаЮгъ, ¿Ûèãú II, Spain II, ЖЫнги ìåÛú Ⱥɦɟɪɢɤɚ, Korea, Legal

CP 437, CP 857…

Ƚɪɚɮɢɤɚ, Ʉɭɪɫɢɜ

Valid Settings

13.6", 8" 1, 2, 3, 4, 5, 6, 7, 8

Tally Dascom 1225

Ⱦɥɢɧɚ ɮɨɪɦɵ ɞɥɹ ɧɟɩɪɟɪɵɜɧɨɣ ɛɭɦɚɝɢ Ɉɬɫɬɭɩ ɫɜɟɪɯɭ ɞɥɹ ɧɟɩɪɟɪɵɜɧɨɣ ɛɭɦɚɝɢ Ɉɬɫɬɭɩ ɫɧɢɡɭ ɞɥɹ ɧɟɩɪɟɪɵɜɧɨɣ ɛɭɦɚɝɢ

Ⱦɥɢɧɚ ɮɨɪɦɵ ɞɥɹ ɨɬɞɟɥɶɧɵɯ ɥɢɫɬɨɜ

Ɉɬɫɬɭɩ ɫɜɟɪɯɭ ɞɥɹ ɨɬɞɟɥɶɧɵɯ ɥɢɫɬɨɜ Ɉɬɫɬɭɩ ɫɧɢɡɭ ɞɥɹ ɨɬɞɟɥɶɧɵɯ ɥɢɫɬɨɜ Ɋɭɥɨɧɧɚɹ ɛɭɦɚɝɚ ɉɪɨɩɭɫɤ ɩɟɪɮɨɪɚɰɢɢ Ⱥɜɬɨ ɩɪɨɝɨɧ

ɍɫɬɚɧɨɜɤɢ ɢɧɬɟɪɮɟɣɫɚ

ɂɧɬɟɪɮɟɣɫ

ɉɚɪɚɥɟɥ. ɩɨɪɬ

ȼɪɟɦɹ ɨɠɢɞɚɧɢɹ

3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17"

0/60" … 10/60"…99/60"

0/60"…10/60"...30/60" 3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14", 17" 0/60" … 10/60"…99/60" 0/60"…10/60"...30/60"

Ⱦɚ, ɇɟɬ Ⱦɚ, ɇɟɬ

Ɋɭɱɧɨɣ, 0.5s, 1s, 2s, 3s, 4s, 5s, view1s, view 2s, view 3s

Valid Settings

Ⱥɜɬɨ, ɉɚɪɚɥɟɥ, USB

Ⱦɚ, ɇɟɬ

10s, 30s

ɇɚɡɧɚɱɟɧɢɟ RAM

CX Bid

Ⱦɨɩɨɥɧɢɬɟɥɶɧɵɟ ɭɫɬɚɧɨɜɤɢ

Ⱥɜɬɨɡɚɝɪɭɡɤɚ Ⱦɚɬɱɢɤ ɞɜɢɠ. ɛɭɦɚɝɢ Ⱦɚɬɱɢɤ ɤɨɧɰɚ ɛɭɦɚɝɢ

Ʉɨɧɬɨɥɶ ɞɥɢɧɵ ɮɨɪɦɵ

Ʉɨɧɬɪɨɥɶ ɡɧɚɤɨɜ/ɞɸɣɦ

Ʉɨɧɬɪɨɥɶ ɲɪɢɮɬɚ

Ʉɨɧɬɪɨɥɶ ɤɚɱɟɫɬɜɚ Ɂɜɭɤ

Italian (Italiano)

Menu Sistema Valid Settings

Emulazione Auto CR (IBM) Auto LF Direz. Stampa Top Print Dir Impatto IBM AGM

ɉɨɥɶɡɨɜ. ɲɪɢɮɬ, Ȼɭɮɟɪ

Ⱦɚ, ɇɟɬ

Valid Settings

Ɋɭɱɧɚɹ, 0.5s, 1s, 1.5s, 2s

Ⱦɚ, ɇɟɬ Ⱦɚ, ɇɟɬ

ɉɪɨɝɪɚɦɧɵɣ, ɂɝɧɨɪ.

ɉɪɨɝɪɚɦɧɵɣ, ɂɝɧɨɪ. Ⱦɚ, ɇɟɬ

ESC/P2, IBM 2390 Plus Si, No Si, No

Bi-Dir, Uni-Dir, Auto Bi-Dir, Uni-Dir Normale, Pesante

Si, No

Tally Dascom 1225

Menù Stampa Valid Settings

Fonte (Altre)

OCR-B,OCR-A,ORATOR,GOTHIC,SOUVENIR

Spaziatura

Zero HS-Bozza Veloc. Grafica IBM Set 1/2

Set Carat. Int.

Code Page Tab.Carattere

Menù Pagina Valid Settings

Larghezza di stampa Interlinea Lungh. Mod. Continuo Margine Sup. Continuo Margine Inf. Continuo

Lunghezza Foglio

Margine Sup. Foglio Margine Infer. Foglio Rullo Carta Salto Perforazione Autostrappo

10cpi, 12cpi, 15cpi, 17cpi, 20cpi, PS

0,Ø Si, No Normale, Veloce, Ultra Set 1, Set 2 USA, Francia, Germania, Regno Unito, Danimarca, Svezia,

Italia, Spagna, Giappone, Norvegia, Danimarca II, Spagna II, America Latina, Korea, Legal

CP 437, CP 857… Tab. Grafica, Italico

13.6", 8"

1, 2, 3, 4, 5, 6, 7, 8 3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17" 0/60" … 10/60"…99/60" 0/60"…10/60"...30/60" 3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14", 17" 0/60" … 10/60"…99/60" 0/60"…10/60"...30/60" Si, No Si, No Manuale, 0.5s, 1s, 2s, 3s, 4s, 5s, view1s, view 2s, view 3s

Menù Interfacc. Valid Settings

Interfaccia I-PRIME Ritardo Auto IF

Uso RAM

CX Bid

Menù Avanzato Valid Settings

Autocaricamento

Previene Inceppamento Rileva Fine Carta

Control. Lungh. Carta

Control. Spaziatura

Auto, Parallela, USB Si, No 10s, 30s

Fonti utente, Memoria

Si, No

Manuale, 0.5s, 1s, 1.5s, 2s

Si, No Si, No

Software, Ignora

Tally Dascom 1225

Controllo Fonti

Controllo Qualità

Cicalino

French (Français)

Setup système Valid Settings

Emulation RC-Auto (IBM) SL-Auto Dir Impr. Sup. Dir Impr. Frappe IBM AGM

Setup impression

Polices (Autres) Densités caract. Zéro HS-Draft Vitesse graphiq. IBM Set 1/2

Pays

Jeu de caractèr. Tabl.de caract.

Software, Ignora

Si, No

ESC/P2, IBM 2390 Plus

Oui, Non Oui, Non

Bidir, Unidir, Auto Bidir, Unidir Normal, Forte Oui, Non

Valid Settings

OCR-B,OCR-A,ORATOR,GOTHIC,SOUVENIR 10cpi, 12cpi, 15cpi, 17cpi, 20cpi, PS 0,Ø Oui, Non Normal, Rapide, Ultra Set 1, Set 2 USA, France, Allemagne, Royaume-Uni, Denmark, Suède, Italie,

Espagne, Japon, Norvège, Denmark II, Espagne II, Amerique latine, Korea, Legal

CP 437, CP 857… Graphique, Italique

Setup page

Largeur d'impression Lignes par pouce

Papier continu Longueur formulaire

Papier continu Bord supérieure Papier continu Bord inférieure

Feuille à feuille Longueur formulaire

Feuille à feuille Bord supérieur Feuille à feuille Bord inférieur Papier du rouleau Sauter la perforation Coupe Auto

Valid Settings

13.6", 8" 1, 2, 3, 4, 5, 6, 7, 8

3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17"

0/60" … 10/60"…99/60" 0/60"…10/60"...30/60" 3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14", 17" 0/60" … 10/60"…99/60" 0/60"…10/60"...30/60" Oui, Non Oui, Non Manuel, 0.5s, 1s, 2s, 3s, 4s, 5s, view1s, view 2s, view 3s

Tally Dascom 1225

Setup interface Valid Settings

Interface

I-PRIME

Auto IF Delay

Utilisation RAM

CX Bid

Setup élargi Valid Settings

Chargem. Autom.

Prévention bourrage Détec.fin de pap Long.formul.Strg

Densi.caract.Strg

Police Strg

Qualité Strg Vibrateur

Spanish (Español)

Auto, Parallel, USB

Oui, Non

10s, 30s

User Font, Buffer

Oui, Non

Manuel, 0.5s, 1s, 1.5s, 2s

Qui, Non Qui, Non Software, Ignorer

Software, Ignorer

Software, Ignorer Qui, Non

System Setup Valid Settings

Emulación Auto CR(IBM) Auto LF ModoImpresión ModoImp.Borde Impacto IBM AGM

Print Setup Valid Settings

Fuente (Otros)

Tamaño Letra

Cero

Alta Velocidad

Imp. Grafica

IBM Juego 1/2

Carácter Local

Tabla Carácter Tipo Tabla

ESC/P2, IBM 2390 Plus Si, No Si, No

Bi-Dir, Uni-Dir, Auto Bi-Dir, Uni-Dir Normal, Fuerte

Si, No

OCR-B,OCR-A,ORATOR,GOTHIC,SOUVENIR

10cpp, 12cpp, 15cpp, 17cpp, 20cpp, PS

0,Ø

Activado, Desactivado

Normal, Rápido, Ultra

Juego 1, Juego 2 USA, Francia, Alemania, Reino Unido, Dinamarca, Suecia, Italia,

España, Japón, Noruega, Dinamarca II, España II, AméricaLatina, Corea, Legal

CP 437, CP 857… Tabla Gráfica, Italica

Tally Dascom 1225

ò ò

Page Setup Valid Settings

Ancho de Impresión Lineas Por Pulgada Tamaño Papel Continuo Margen Sup. Pap Cont. Margen Inf. Pap.Cont.

Tamaño Hojas Sueltas

Margen Sup. Folios Margen Inf. Folios Rollo de Papel Salto perforación

13.6", 8" 1, 2, 3, 4, 5, 6, 7, 8 3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17" 0/60" … 10/60"…99/60" 0/60"…10/60"...30/60" 3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14", 17" 0/60" … 10/60"…99/60" 0/60"…10/60"...30/60" Si, No Si, No

Mover a PosiciónCorte

Interface Setup Valid Settings

Interface

I-Prime

Auto retraso

Uso de RAM

CX Bid

Advanced Setup Valid Settings

Auto Carga Prevención Atascos Detección Fin Papel

Control Tamaño Papel

Control Tamaño Letra

Control Fuente

Control Calidad Alarma

Manual, 0.5s, 1s, 2s, 3s, 4s, 5s, view1s, view 2s, view 3s

Auto, Paralelo, USB

Si, No

10s, 30s

Font Usuario, Buffer

Si, No

Manual, 0.5s, 1s, 1.5s, 2s Si, No Si, No Software, Ignorar

Software, Ignorar

Software, Ignorar Si, No

Turkish (Türkce)

Sistem Ayarı Valid Settings

Benzetim/Emulation Otom. Satırbaġı (IBM) Otom. Satır besleme Yazdırma yönü Üstte yazdırma yönü Vuruġ

ESC/P2, IBM 2390 Plus Evet, Hayır Evet, Hayır

ki-Yöne, Tek-Yöne, Otom. ki-Yöne, Tek-Yöne

Normal, Güçlü

Tally Dascom 1225

IBM AGM

Yazdırma Ayarları Valid Settings

Yazı Tipi (Diáer)

Karakter Sıklıáı

Sıfır

Yük.Hız-Taslak

Grafik Hızı

IBM Karakter Seti 1/2

Uluslararası Kar. Seti

Kod Sayfası

Karakter Tablosu

Sayfa Düzeni Ayarı Valid Settings

Baskı Geniúli÷i ònç baġına satır

Evet, Hayır

OCR-B,OCR-A,ORATOR,GOTHIC,SOUVENIR

10cpi, 12cpi, 15cpi, 17cpi, 20cpi, PS

0,Ø

On, Off

Normal, Hızlı, Ultra

Set 1, Set 2 Amerika Bir.Devleti, Fransa, Almanya, øngiltere, Danimarka,

øsveç, øtalya, øspanya, Japonya, Norveç, Danimarka II, øspanya II, Latin Amerika, Korea, Legal

CP 437, CP 857…

Grafik Tablosu, òtalik

13.6", 8"

1, 2, 3, 4, 5, 6, 7, 8

Sürekli-kaáıt Form Uzunluáu

Sürekli-kaáıt Üst kenar boġluáu Sürekli-kaáıt Alt kenar boġluáu

Tek-kaáıt Form uzunluáu

Tek-kaáıt Üst kenar boġluáu Tek-kaáıt Alt kenar boġluáu Rulo kaáıt Delik atlama Otom. Koparma

Arabirim Ayarları Valid Settings

Arabirim I-Prime

Otom. Arabirim gecikmesi

RAM Kullanımı

CX Bid

3",3.5",11/3", 4", 5", 5.5" 6",7",8", 8.5",11", 70/6", 12", 14", 17"

0/60" … 10/60"…99/60" 0/60"…10/60"...30/60" 3", 3.5", 11/3", 4", 5", 5.5", 6", 7", 8", 8.5", 11", 70/6", 12", 14", 17" 0/60" … 10/60"…99/60" 0/60"…10/60"...30/60" Evet, Hayır Evet, Hayır

Elle/Manuel, 0.5s, 1s, 2s, 3s, 4s, 5s, view1s, view 2s, view 3s

Otom., Paralel, USB

Evet, Hayır

10s, 30s

Kullanıcı Yazı Tipi, Arabellek

Evet, Hayır

Geliġtirilmiġ Ayarlar

Otom. Yükleme

Kaáıt Sıkıġmasını Önleme Kaáıt Sonunu Algılama Form Uzunl. Kont.

Valid Settings

Elle/Manuel, 0.5s, 1s, 1.5s, 2s

Evet, Hayır Evet, Hayır

Yazılım, Yoksay

Tally Dascom 1225

Karak.Sıkl. Kont.

Yazı Tipi Kont. Kalite Kont. Alarm Zili

Yazılım, Yoksay

Yazılım, Yoksay Yazılım, Yoksay Evet, Hayır

Tally Dascom 1225

Vertical Alignment

The vertical alignment function is used to resolve any vertical line misalignments in bi-directional printing.

Adjust Vertical Alignment Procedure:

1. Enter the Service Menu by holding down theɋTear/OffɌandɋLF/FFɌkeys while powering up.

2. Load paper.

3. The printer will print as follows:

Service Menu

LF/FFɌ= OK ɋTear/OffɌ= Back ɋLoad/EjectɌ= Next ɋOnlineɌ= Exit

Current SettingφVertical Alignment

4. Press

Vertical Alignment

Please select Paper TypeφSingle Ply

For single ply paper, press to “Multipart”ˈthen press

5. If single ply is selected for paper type, the following will print:

Single Ply

Current Print Mode: LQ

Press

LF/FFɌkey to select the current setting. The printer will print as follows:

LF/FFɌ= OK ɋTear/OffɌ= Back ɋLoad/EjectɌ= Next ɋOnlineɌ= Exit

LF/FFɌkey to select. For multipart paper, press ɋLoad/EjectɌkey to go

LF/FFɌkey to select.

Load/EjectɌkey to scroll to other print modes if required.

6. If LQ is selected, the following will print:

LF/FFɌ= lower ½ to left ɋLoad/EjectɌ= lower ½ to right ɋOnlineɌ= Exit

LQ -2:

||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

Pressing

LF/FFǐor ǏLoad/Ejectǐkey will allow you to adjust the alignment of the vertical lines

Tally Dascom 1225

printed above.

7. Once the setting which gives the best alignment is found, press Printer will print “Save settings? Yes”. Press ɋLF/FFɌ key to save setting. Press ǏOnlineǐ key a few times until the printer exits the Service Menu.

OnlineɌ key to exit current level.

Change Pin Function

When printer has been used for a long time or the print volume is high, the frequently used print head pins may fail. The Change Pin function enables the user to continue using the printer for a while without compromise in print quality until a suitable print head replacement is available. This function will reduce the print speed if activated.

Change Pin Procedure:

1. Enter the Service Menu by holding down theɋTear/OffɌandɋLF/FFɌkeys while powering up.

2. Load paper.

3. The printer will print as below:

Service Menu

LF/FFɌ=OK ɋTear/OffɌ= Back ɋLoad/EjectɌ= Next ɋOnlineɌ= Exit

Current MenuφVertical Alignment

Press of each pin will be printed as follows:

Change Pin 1 ---------- Is this pin OK? Yes / No 2 ---------- Is this pin OK? Yes / No 3 ---------- Is this pin OK? Yes / No : 24 ---------- Is this pin OK? Yes / No

Press selection.

4. When all the 24 pins are evaluated, press Press ɋLF/FFɌ key to confirm selection. Press Service Menu.

Load/Ejectǐkey to scroll to “Change Pin”ˈthen press ɋLF/FFɌkey to select. The status

Load/EjectɌkey to choose whether the pin is Yes or Noˈthen press ɋLF/FFɌ key to confirm

OnlineɌ. The printer will print “Save settings? Yes”.

Onlineǐkey a few times until the printer exits the

Tally Dascom 1225

Ǐ Ǐ

Adjust Physical Margins

Adjust Page Margins allows for adjustments of physical left, top margins and tear-off position. Warning: Once these settings are changed, resetting the printer to factory defaults will not initialize these settings back to the original settings; so it is not advisable to perform this adjustment unless it is absolutely necessary.

Adjust Top Margin Procedure:

1. Enter the Adjust Page Margins function by holding down theɋLoad/EjectɌandɋOnlineɌkeys while powering up until the printer beeps twice.

2. Load paper.

3. The printer will print as below:

Adjust Page Margins:

LF/FFɌ=OK ɋTear/OffɌ= Back ɋLoad/EjectɌ= Next ɋOnlineɌ= Exit

Current Setting: Adjust Fanfold Top Margin

PressǏLF/FFǐkey to confirm selection if the paper used is fanfold type. The printer will print as follows:

Procedure

Install fanfold paper to tractors

LF/FFǐ = Add ǏLoad/Ejectǐ = Reduce ǏOnlineǐ = Exit

Each step is 0.5 mm

Function of keys:

Load/Ejectǐkey: Decrease 0.5mm

LF/FFǐkey: Increase 0.5mm

4. Press ǏOnlineǐ key, printer will print “Save settings Yes or Noˈthen press ǏLF/FFǐ key to confirm selection and exit “Adjust Page Margins” mode by pressing ǏOnlineǐ. The print head moves to the left side and the printer beeps twice, then the print head moves to the middle position.

Yes ”. Press ǏLoad/Ejectǐ key to choose

Adjust Left Margin Procedure:

1. Enter the Adjust Page Margins function by holding down theɋLoad/EjectɌandɋOnlineɌkeys while powering up until the printer beeps twice.

2. Load paper.

3. The printer will print as below:

Adjust Page Margins:

LF/FFɌ=OK ɋTear/OffɌ= Back ɋLoad/EjectɌ= Next ɋOnlineɌ= Exit

Current Setting: Adjust Fanfold Top Margin

4. Press confirm selection if the paper used is fanfold type. The printer will print as follows:

Adjust Fanfold Left Margin 0

PressɋTear OffɌorɋLoad/EjectɌ to reduce or increase the left margin, respectively, by one

Load/Ejectǐkey until the current setting is “Adjust Fanfold Left Margin”. PressǏLF/FFǐkey to

Tally Dascom 1225

Ǐ Ǐ

unit of 1/60 inch.

6. When satisfied with the left margin setting, press ǏOnlineǐ key, printer will print “Save settings Yes”. Press ǏLoad/Ejectǐ key to choose Yes or No, then press ǏLF/FFǐ key to confirm selection and exit “Adjust Page Margins” mode by pressing ǏOnlineǐ. The print head moves to the left side and the printer beeps twice, then the print head moves to the middle position.

Adjust Tear-Off Position Procedure:

1. Enter the Adjust Page Margins function by holding down theɋLoad/EjectɌandɋOnlineɌkeys while powering up until the printer beeps twice.

2. Load fanfold paper

3. The printer will print as below:

Adjust Page Margins:

LF/FFɌ=OK ɋTear/OffɌ= Back ɋLoad/EjectɌ= Next ɋOnlineɌ= Exit

Current Setting: Adjust Fanfold Top Margin

4. Press confirm selection. The printer will print as follows:

Procedure

Install fanfold paper to tractors

Each step is 0.5 mm

Load/Ejectǐkey until the current setting is “Adjust Tear-Off Position”. PressǏLF/FFǐkey to

LF/FFǐ = Add ǏLoad/Ejectǐ = Reduce ǏOnlineǐ = Exit

Function of keys:

Load/Ejectǐkey: Decrease 0.5mm

LF/FFǐkey: Increase 0.5mm

5. Press ǏOnlineǐ key, printer will print “Save settings Yes or Noˈthen press ǏLF/FFǐ key to confirm selection and exit “Adjust Page Margins” mode by pressing ǏOnlineǐ. The print head moves to the left side and the printer beeps twice, then the print head moves to the middle position.

Yes ”. Press ǏLoad/Ejectǐ key to choose

Tally Dascom 1225

Dascom Printer Setup Tool

In the CDROM is a software utility called “Dascom Printer Setup”. This application enables a convenient, simple and fast way to control your printer without touching any keys on the operation panel.

1. Start the tool installation by double clicking the “Dascom Printer Setup.exe”.

2. Connect the printer to the system using USB cable

3. Power up the printer.

4. Load paper into the printer. (Note: The tool cannot get connected to the printer when the printer is offline.)

5. Run the tool from the Windows Start menu by selecting All Programs, then Dascom Printer Setup, and then Tally Dascom Printer Setup.

6. For more information on how to use the tool, go to the Help menu and select User Guide.

Tally Dascom 1225

6 Maintenance

Your printer requires very little care. Occasional cleaning and replacement of the ribbon cartridge are all that is required. Cleaning is recommended approximately every 6 months or 300 hours of operation, whichever is sooner. Lubrication of the printer is not usually necessary. If the print head carriage does not move smoothly back and forth, clean the printer in the manner described in this chapter. If the problem continues, contact your dealer to determine whether lubrication may be necessary.

Switch printer off and unplug the power cord from

the mains before doing any maintenance work.

Cleaning

The housing and the top cover of the printer help protect it against dust, dirt, and other contaminants. However, paper produces small particles that accumulate inside the printer. This section explains how to clean and vacuum the printer and how to clean the paper bail rollers. It is easier to clean the printer when the cover is open.

Cleaning and Vacuuming the Printer

If the print head carriage does not move smoothly back and forth or paper particles have accumulated in the printer, clean the printer.

To clean and vacuum the printer:

1. Remove any paper from the printer. Make sure that the power is off, and then disconnect the printer power

cord.

2. Using a soft vacuum brush, vacuum the exterior of the printer. Also vacuum the cut sheet edge.

3. Use a soft, damp cloth to wipe the exterior of the printer, including the cover. A mild detergent may be used. Do not use solvents, kerosene, or abrasive cleaning materials that may damage the printer.

4. Open the cover of the printer and remove the ribbon cartridge. Using a soft vacuum brush, gently vacuum the platen, the print head carriage and shaft, and surrounding areas. You can easily slide the print head to the left or right when the power is off. Be careful not to press too hard on the flat head cable that extends from the print head carriage.

5. Re-install the ribbon cartridge.

6. Remove the single sheet feeder and clean the form tractors and the surrounding areas.

7. Re-install the single sheet feeder.

Cleaning the Paper Rollers

Clean the platen and paper bail rollers occasionally or when stains or smudges appear on the paper. Use a mild detergent as appropriate. Do not use alcohol to clean the platen or the rollers. Alcohol may cause the

rubber to harden.

To clean the rollers and the platen:

1. Apply a small amount of water to a soft cloth. Avoid spilling liquid inside the printer.

2. Place the cloth against the platen and manually rotate the paper feed knob.

3. Repeat this procedure for each roller.

Tally Dascom 1225

4. To dry the platen, place a dry cloth against the platen and the rollers and manually rotate the paper feed knob.

Tally Dascom 1225

7 Troubleshooting

Your printer is extremely reliable, but occasionally problems may occur. This chapter provides information on some of the common problems you may encounter and how you may solve them. If you encounter problems that you cannot resolve, contact your dealer or service partner for assistance.

Print Quality Problems and Solutions

Problem Solution

• Make sure that the ribbon cartridge is properly installed and that the ribbon feeds smoothly.

Printing is too light or too dark.

Smears and stains appear on the page.

Printing is erratic or the wrong characters are printed. Many “?” or unexpected characters are printed.

The page is blank.

• Replace the ribbon if necessary.

• Make sure that the print gap lever is set for the thickness of your paper.

• Check for ribbon wear. Replace the ribbon if necessary.

• Check whether the tip of the print head is dirty. Clean the head with a soft cloth if necessary.

• The print head may need to be replaced.

• Make sure that the interface cable is securely connected to both the printer and computer.

• Make sure that the printer driver selected in your software is the same as the emulation selected on the printer.

• Check the length of the interface cable. (Maximum Parallel & USB: 2 meters)

• Try another interface cable.

• Make sure that the ribbon cartridge is properly installed.

• Make sure the gap lever is set correctly.

Printing is vertically misaligned (jagged).

The top margin is wrong.

Lines are double spaced instead of single spaced. The printer overprints on the same line.

The next print line starts where the previous line ended instead of at the left margin.

Use the printer's vertical alignment function to check the vertical print alignment. If necessary, adjust the print alignment.

• Check the application top margin setting.

• Adjust the Top Margin setting in Page Setup menu if necessary.

Change the Auto LF setting in the System Setup menu to No.

Change the Auto CR setting in the System Setup menu to No.

Change the Auto CR setting in the System Setup menu to Yes.

Tally Dascom 1225

Paper Handling Problems and Solutions

Problem Solution

• Make sure that the paper select lever located on the top right of

Paper cannot be loaded or fed.

Paper jams while loading.

Paper jams while printing.

the printer is set correctly. Move the lever to the front for single sheets or to the rear for continuous forms.

• Make sure that the paper covers the paper-out sensor.

• Turn off the printer and remove the jammed paper. Remove any obstructions from the paper path.

• Make sure that the Print Gap lever is set for the thickness of your paper.

• Make sure that the paper is not folded, creased, or torn.

• Make sure that the left and right tractors are set so that the continuous forms are stretched taut.

• Turn off the printer and remove the jammed paper. Remove any obstructions from the paper path.

• Make sure that the Print Gap lever is set for the thickness of your paper.

• For continuous forms, make sure that the incoming and outgoing paper stacks are correctly placed. Paper should feed straight.

Paper slips off the forms tractors or the perforated holes of the paper tear during printing.

Make sure that the forms tractors are positioned correctly for the width of your paper and that the perforated holes of the paper fit directly over the tractor pins.

Operating Problems and Solutions

Problem Solution

• Check whether the mains voltage is correct.

• Make sure that the power cord is securely connected to both the printer and the mains power outlet.

The power does not turn on.

The printer is on but it will not print.

• Make sure that the power outlet is functional. If not so, use other outlet.

• Turn the power off. Wait a minute and then turn the printer on again. If the printer still has no power, contact your dealer.

• Make sure that the Online indicator is lit.

• If you use the interface cable, make sure it is securely connected to both the printer and the computer.

• Make sure paper is loaded.

• Run the printer Status Page. If printing executes normally, the problem is caused by: the interface, the computer, incorrect printer settings, or incorrect software settings.

• Make sure that the printer driver selected in your software is the same as the emulation selected on the printer.

Tally Dascom 1225

If paper is loaded and the paper select lever is moved to the

Paper select lever error

incorrect position, the printer turns offline, and the buzzer sounds continuously. Switch the paper select lever back to its correct position.

Printer Failures

A user cannot generally resolve a problem involving defective printer hardware. Power off and on again the printer to recover any fatal error. If the problem cannot be resolved, contact your dealer or service partner.

Error Indications on LEDs

Error

Description

No paper Normal Flash Off

Paper

jammed

Friction feed

/Tractor feed

Print head hot Normal On Flash

Carriage

initial position

Operation

Status

Suspend Flash Off Flash

Suspend Flash Off Flash Flash

Stop Flash Off

Paper

Out

Online L1 L2 L3 L4 L5 L6 L7 L8

changeNochangeNochangeNochangeNochangeNochangeNochangeNochange

changeNochangeNochangeNochangeNochangeNochangeNochange

changeNochangeNochangeNochangeNochangeNochange

changeNochangeNochangeNochangeNochangeNochangeNochangeNochange

changeNochangeNochangeNochange

Flash Flash

changeNochange

Buzzer

Sound

Once

Continuously

Once

Tally Dascom 1225

Diagnostic Functions

The printer diagnostic functions are Self-Test page, hex-dump mode and print alignment adjustment.

x Self-Test page: Tells you whether the printer hardware is functioning correctly. If the printer hardware

is functional, any problems you are having are probably caused by incorrect printer settings, incorrect software settings, the interface, or the computer.

x HEX-DUMP MODE: Allows you to determine whether the computer is sending the correct commands

to the printer, and whether the printer is executing the commands correctly. This function is useful to programmers or others who understand how to interpret hex dumps.

x PRINTING ALIGNMENT ADJUSTMENT: Allows you to check and, if necessary, correct the printer’s

vertical line print alignment in bi-directional mode.

For details on using these functions, please refer to chapters 4 and 5.

Tally Dascom 1225

Firmware Update

Sometimes it is necessary update the firmware to solve a problem. The latest firmware file may be obtained from your dealer or downloaded from our website www.dascom.com recommended to print the Main Menu page to keep a record of the old settings.

Note: Firmware update should only be performed by an authorized service person. We disclaim any responsibility for any damage caused if it is performed by any other person.

To load new firmware, proceed as follows:

1. Switch off the printer. Connect your PC to the parallel port on the printer.

2. Press and hold down 4 keys (S2, S3, S4, S5) while powering on the printer.

3. Alternate flashing of L9 and L10 LEDs indicates printer is ready for firmware update.

. Before upgrading firmware, it is strongly

4. Go to the DOS prompt window. Copy the firmware file (with extension .MOT) to your printer as follows:

COPY /B <filename>.mot PRN

5. When new firmware is being received, L1 and L2 will flash, followed by L1 and L3 flashing, then

followed by L1 and L4 flashing.

Note: Do not interrupt the downloading process to prevent possible flash memory corruption.

6. When downloading is completed, the carriage returns to home position. Printer initializes normally.

Alternatively, you can use the Firmware Flash Tool version 3.5 or higher which is available in the CDROM and our website as well. Upon starting up the tool, choose the correct file and press "Update".

Tally Dascom 1225

8 General Specifications

Print System

Print Technology

Print Speed

Font Matrix

Print Head

Mono-chrome serial impact dot matrix

Uni-/bi-directional logic seeking for text and graphics

Pitch HS Draft Draft LQ (CPS/DPI) 10 CPI 375/80H 250/120H 83/360H 12 CPI 300/120H 300/120H 100/360H 15 CPI 375/120H 375/120H 125/360H

17.1 CPI 426/120H 426/120H 142/360H 20 CPI 498/120H 498/120H 166/360H

Pitch HS Draft Draft LQ (Matrix/DPI) 10 CPI 8x24/80H 12x24/120H 36x24/360H 12 CPI 10x24/120H 10x24/120H 30x24/360H 15 CPI 8x16/120H 8x16/120H 24x16/360H

17.1 CPI 7x24/120H 7x24/120H 21x24/360H 20 CPI 6x24/120H 6x24/120H 18x24/360H Proportional Nx24/36H Nx24/360H Nx24/360H

Number of pins: 24 pins Firing frequency: Normal mode: 1500 Hz Pin diameter: 0.2 mm Life: 400 million strokes/pin @ Draft mode

Graphics

Paper Feed Speed

Resolution

Printable Columns

8-bit mode: 8V x 60H, 80H, 90H, 120H, 240H (DPI) 24-bit mode: 24V x 60H, 90H, 120H, 180H, 360H (DPI)

Continuous feed: 5.0 IPS (inches per second)

360 x 360 DPI maximum

Characters per line (CPL) 10 CPI: 136 CPL 12 CPI: 163 CPL 15 CPI: 204 CPL

17.1 CPI: 232 CPL 20 CPI: 272 CPL

Tally Dascom 1225

Bitmap Fonts:

Built-In Fonts

Barcodes

1. Draft 10, 12, 15, 17, 20 CPI

2. Roman 10, 12, 15, 17, 20 CPI, Proportional

3. Sans Serif 10, 12, 15, 17, 20 CPI, Proportional

4. Courier 10, 12, 15, 17, 20 CPI, Proportional

5. Prestige 10, 12, 15, 17, 20 CPI

6. OCR-B 10, 12, 17, 20 CPI

7. OCR-A 10, 12, 17, 20 CPI

8. Orator 10, 12, 15, 17, 20 CPI, Proportional

9. SOUVENIR 10, 12, 15, 17, 20 CPI, Proportional

10. GOTHIC 10, 12, 15, 17, 20 CPI, Proportional

11. Script 10, 12, 15, 17, 20 CPI

1. EAN-13

2. EAN-8

3. Interleaved 2 of 5

4. UPC-A

5. UPC-E

6. Code 39

7. Code 128

8. POSTNET

9. Codabar

10. Industrial 2 of 5

Code Pages

1. CP 437

2. CP 737

3. CP 850

4. CP 851

5. CP 852

6. CP 857

7. CP 858

8. CP 860

9. CP 861

10. CP 863

11. CP 864

12. CP 864 Extended

13. CP 865

14. CP 866 Cyrillic

15. CP 866 Bulgaria

16. CP 1250

17. CP 1251

18. CP 1252

19. CP 1253

20. CP 1254

Tally Dascom 1225

Code Pages

21. 8859-1

22. 8859-1 (SAP)

23. 8859-2

24. 8859-5

25. 8859-7

26. 8859-9

27. 8859-15

28. BRASCII

29. Abicomp

30. Roman8

31. Coax/Twinax

32. New-437

33. New-Dig 850

34. Old-Code 860

35. Flarro 863

36. 865 Hebrew

37. CP 1257

38. 866 Ukraine

39. 866 Kazakhstan

40. Kamenicky

41. Mazovia

42. CP 775

43. CRO-ASCII

44. Arabic Farsi

45. Arabic Urdu

46. Greek DEC

47. Greek ELOT 928

International Character Sets

1. USA

2. France

3. Germany

4. UK

5. Denmark I

6. Sweden

7. Italy

8. Spain I

9. Japan

10. Norway

11. Denmark II

12. Spain II

13. Latin America

14. Korea

15. Legal

Tally Dascom 1225

Line Spacing

Paper Specifications

1/6", 1/8", n/60", n/180", n/360"

Fanfold Paper

Cut Sheet

Single ply Multi-part

Width:

76.2mm419.1mm ˄3"16.5"˅

Length:

101.6mm363.2mm ˄4"14.3"˅

Weight: 5290g/΃ Thickness:

0.0650.14mm

(0.0026"0.0055”)

Weight: 5282 g/΃ Thickness:

0.0650.14mm (0.0026"0.0055")

Width: 76.2mm419.1mm (3"16.5"˅

Length: 101.6mm min (4" min)

Weight: 4052g/΃ Thickness: 0.45 mm max (0.0177” max)

Feeding method: Friction and Tractor

Paper Handling

Copy Capability Original + 4 copies

Emulation ESC/P2, IBM 2390 Plus

Ribbon Type Cartridge; Monochrome

Ribbon Life

Input Data Buffer

Windows Drivers

Interface

Operation Panel

Paper path: Cut sheets: Top load and top out

Fanfold: Rear in and top out

7 million characters (rolling Draft 10 CPI)

Up to 48KB

Windows Server 2000/2003/2008 Windows Vista Windows XP Windows 98 Windows 7

Parallel (Bi-directional IEEE-1284 nibble mode) USB 2.0 (B type connector)

Switches: 5 pcs LED indicators: 10 pcs

Noise Level

< 55 dBA in 10CPI draft ASCII (Conforming to ISO7779)

Tally Dascom 1225

Temperature Operating: +5 to +40 °C. Stand-by: -20 to +55 °C

Ambient Conditions

Humidity Operating: 10 to 90%RH

(No condensation)

Stand-by: 10 to 90%RH

(No condensation)

Dimensions

Weight 8.5 kg

Power Supply

Power consumption

MTTR < 20 minutes

MTBF 10000 hours @ 25% duty cycle

Certification

587 mm (W) x 333 mm (D) x 173 mm (H)

Unit type: Switching mode power supply Power cord: Detachable Voltage rating: AC 230V (180V~264V), 50Hz to 60Hz AC 110V/120V, 60Hz (factory option) Stand by: Less than 7.6W ESD: Comply with IEC801-2 Contact discharge: 4kV Air discharge: 8kV

38.2 W (Test pattern is specified in standard ISO/IEC 10561.)

CE, UL, FCC, ES, ISTA, RoHS, WEEE, REACH, ChemVerbotsV, Microsoft Certified for Windows 7

Tally Dascom 1225

9 Interfaces

Parallel Interface

Parallel Interface Pin Assignment

Pin Signal Name Signal Transmission

1 STROBE¯¯¯¯¯¯ Printer I Computer

2~9 DATA Printer I Computer

10 ACK¯¯¯ Printer J Computer

11 BUSY Printer J Computer

12 PE Printer J Computer

13 SELECT Printer J Computer

14 AFXT¯¯¯¯ Printer I Computer

15 Unused Unused

16 GND Printer Q Computer

17 F-GND Printer Q Computer

18 +5V Printer J Computer

19~30 GND Printer Q Computer

31 INIT¯¯¯¯ Printer I Computer

32 FAULT¯¯¯¯¯ Printer J Computer

33 GND Printer Q Computer

34 Unused Unused

35 FUSE Printer J Computer

36 SLCTIN¯¯¯¯¯¯ Printer I Computer

Parallel Interface Connector Diagram

Note: Any external devices connected to the parallel port should not draw current exceeding 200 mA from pin 18; otherwise it may affect the printer operation.

USB Interface

The USB interface conforms to the Universal Serial Bus 2.0 Specifications. It supports the Full Speed mode at 12 Mbps. It uses the “B” type USB connector.

Tally Dascom 1225

10 Character sets & Code Pages

Character Sets

Standard Character Set 1

Standard Character Set 2

Tally Dascom 1225

IBM Character Set 1

IBM Character Set 2

Tally Dascom 1225

International character sets

International Character Set Commands

Country Command

USA

France

Germany

Denmark1

Sweden

Italy

Spain1

Japan

Norway

Denmark2

Spain2

Lat America

Korea

Legal

˘ESC˚“R”CHRˀ˄0˅

˘ESC˚“R”CHRˀ˄1˅ ˘ESC˚“R”CHRˀ˄2˅ ˘ESC˚“R”CHRˀ˄3˅ ˘ESC˚“R”CHRˀ˄4˅ ˘ESC˚“R”CHRˀ˄5˅ ˘ESC˚“R”CHRˀ˄6˅ ˘ESC˚“R”CHRˀ˄7˅ ˘ESC˚“R”CHRˀ˄8˅ ˘ESC˚“R”CHRˀ˄9˅ ˘ESC˚“R”CHRˀ˄10˅ ˘ESC˚“R”CHRˀ˄11˅ ˘ESC˚“R”CHRˀ˄12˅ ˘ESC˚“R”CHRˀ˄13˅ ˘ESC˚“R”CHRˀ˄64˅

Tally Dascom 1225

Character Tables

Italic

Tally Dascom 1225

Graphic 1

Graphic 2

Tally Dascom 1225

Code Page Commands

Code Page ESC R Parameter

CRO-ASCII

Arabic Farsi

Arabic Urdu

Greek DEC

Greek ELOT 928

CP437 Latin US

CP737 Greek

CP850 Latin 1

CP851 Greek

CP852 Latin 2

CP857 Turkish

CP858 (IBM with €)

CP860 Portugal

CP861 Icelandic

CP863 French Canada

CP864 Arabic

CP864 Arab. Extended

CP865 Nordic

CP866 Cyrillic

CP866 Bulgaria

Siemens Turkish

DEC Turkish

CP1250 Win Latin 2

CP1251 Win Cyrillic

CP1252 Win Latin 1

CP1253 Win Greek

CP1254 Win Turkish

8859-1 Latin 1

8859-1 Latin 1 (SAP)

8859-2 Latin 2

8859-5 Cyrillic

8859-7 Greek

8859-9 Turkish

8859-15 Latin 9 (Euro)

BRASCII

Abicomp

Roman 8

96 97 46

80 93 82 88

87 8D 9E

85 8C

86 8E 9D 9B 9C

25 2B

26 2A 2D 2E 2F 6D 6E 4D

Tally Dascom 1225

Coax/Twinax(Hebrew)

New-437 (Hebrew)

New-DIG 850 (Hebr.)

Old-Code 860 (Hebr.)

Flarro 863 (Hebrew)

Table 865 (Hebrew)

CP775 Baltic

CP1257 Baltic

Mazovia (Poland)

Kamenicky (Czech)

CP866 Ukraine

CP866 Kazakhstan

99 9A A6

91 8F

Tally Dascom 1225

Code Page Tables

CP 437 (US)

CP 737 Greek

Tally Dascom 1225

CP 850 (Multilingual)

CP 851

Tally Dascom 1225

CP 852 (Eastern Europe)

CP 857 (Turkish)

Tally Dascom 1225

CP 858

CP 860 (Portugal)

Tally Dascom 1225

CP 861 (Iceland)

CP 863 (French-Canadian)

Tally Dascom 1225

CP 864 Arabic

CP 864 Arabic Extended

Tally Dascom 1225

CP 865 (Norway)

CP 866 (Cyrillic)

Tally Dascom 1225

CP 866 Bulgaria

CP 1250 Win Latin 2

Tally Dascom 1225

CP 1251 Win Cyrillic

CP 1252 Win Latin 1

Tally Dascom 1225

CP 1253 Win Greek

CP 1254 Win Turkish

Tally Dascom 1225

8859-1 Latin 1

8859-1 Latin 1 (SAP)

Tally Dascom 1225

ISO 8859-2 (ISO Latin 2)

ISO 8859-5 Cyrillic

Tally Dascom 1225

ISO 8859-7 (Latin/Greek)

ISO 8859-9 (Turkish)

Tally Dascom 1225

ISO 8859-15 Euro (Code Page 923)

BRASCII

Tally Dascom 1225

Abicomp

Roman 8

Tally Dascom 1225

Coax/Twinax (Hebrew)

New-437 (Hebrew)

Tally Dascom 1225

New-Dig 850 (Hebrew)

Old-Code 860 (Hebrew)

Tally Dascom 1225

Flarro 863 (Hebrew)

865 Hebrew

Tally Dascom 1225

CP 1257

866 Ukraine

Tally Dascom 1225

866 Kazakhstan

Kamenicky

Tally Dascom 1225

Mazovia

CP 775

Tally Dascom 1225

CRO-ASCII

Arabic Farsi

Tally Dascom 1225

Arabic Urdu

Greek DEC

Tally Dascom 1225

Greek ELOT 928

Tally Dascom 1225

11 Control Codes Summary

Epson Emulation Command List

Command Sequence Function

BEL Beeper BS Backspace HT Tab horizontally LF Line feed VT Tab vertically FF Form feed CR Carriage return SO Select double-width printing (one line) SI Select condensed mode DC1 Online DC2 Cancel condensed mode DC3 Offline DC4 Cancel double-wide mode(one line) CAN Cancel line DEL Delete character ESC SO Select double-width printing (one line) ESC SI Select condensed mode ESC SP n Set intercharacter space ESC EM n NA ESC ! n Print mode setup ESC ( - n1 n2 m d1 d2 Choose character lineation ESC $ n1 n2 Select absolute horizontal print position ESC | n Set left margin ESC % n Select user-defined set ESC & Define user-defined set ESC ( ^ n m d1 d2… Print data in character style ESC (G NUL d Select graphics mode ESC * m n1 n2… Select image mode ESC . c v h m nL nH d1 d2… Print raster graphics ESC + n Select n/360Ǝline spacing ESC – n Underline on/off ESC / n Select vertical orientation channel ESC ( C NUL n m Set page length ESC ( c NUL nt mt nb mb Page setup ESC ( U NUL n Set unit ESC 0 Set 1/8Ǝline spacing ESC 2 Set 1/6Ǝline spacing ESC 3 n Set n/180Ǝline spacing ESC 4 Set Italic ESC 5 Cancel Italic ESC 6 Enable printable characters ESC 7 Enable upper control characters

ESC : Copy ROM to RAM

Tally Dascom 1225

ESC ˘ ESC > Set MSB to 1 ESC = Set MSB to 0 ESC # Cancel MSB control ESC ˛n m ESC @ Initialize printer ESC ˸n1 n2 ESC A n Set n/60Ǝline spacing ESC B…NUL Set/cancel vertical tabs ESC C n Set page length in lines ESC D…NUL Set/cancel horizontal tabs ESC E Select Bold ESC F Cancel Bold ESC G Select double-strike mode ESC H Cancel double-strike mode ESC J n Perform tactic n/180Ǝline feed ESC K n1 n2 … Select 8 pins single-density graphics ESC L n1 n2 … Select 8 pins double–density graphics ESC M ESC N n Set bottom margin ESC O Cancel bottom margin ESC P ESC Q n Set right margin ESC R n International character set ESC S n Select superscript/subscript ESC T Cancel superscript/subscript ESC U n Select unidirectional/bidirectional printing mode ESC ( V NUL n m Select absolute vertical print position ESC W n Turn Double-wide mode on/off ESC X n1 n2 Select font by pitch and point ESC Y n1 n2 … Select 8 pins, high speed ,double –density graphics ESC Z n1 n2 … Select 8 pins, high speed fourfold –density graphics ESC a n Select justification ESC b n Select vertical orientation channel ESC c n m Set horizontal intercharacter space ESC g Select 15CPI ESC j n Perform reverse n/180Ǝline feed ESC k n Select typeface ESC p n Turn proportional mode on/off ESC q n Select character style ESC r n Select printing colour ESC t n Select character table ESC (t nL nH d1 d2 d3 Assign character table ESC ( v NUL n m Set relative vertical print position ESC w n Turn double-high mode on/off ESC x n Select print quality ESC( B n1 n2 k m s v1 v2 c Barcode print

Unidirectional mode(1 line)

Reassign graphics mode

Set relative horizontal print position

Select ELITE˄12CPI˅

Select PICA˄10CPI˅

Tally Dascom 1225

IBM Emulation Command List

Command Sequence Function

BEL Beeper BS Backspace HT Tab horizontally LF Line feed VT Tab vertically FF Form feed CR Enter SO Select double-wide mode SI Select condensed mode DC1 Online DC2 Select 10CPI DC3 Offline DC4 Cancel double-wide mode(one line) CAN Cancel buffer ESC BEL Beeper ESC BS Backspace ESC HT Tab horizontally ESC CR Enter ESC LF Line feed ESC SO Select double-wide mode ESC SI Select condensed mode ESC DC1 Online ESC DC2 Select 10CPI ESC DC3 Offline ESC DC4 Cancel double-wide mode(one line) ESC CAN Cancel buffer ESC FF Form feed ESC EM n Automatically Feed Paper mode ESC : Set 12CPI ESC VT Tab vertically ESC 0 Select 1/8Ǝline spacing ESC 1 Select 7/72Ǝline spacing ESC 2 Select 1/6Ǝline spacing or activate ESC A n command ESC 3 n Select n/216Ǝor 1/180Ǝline spacing ESC 4 Set top margin ESC 5 n Automatic Line Feed ESC 6 Select character set 2 ESC 7 Select character set 1 ESC = NA ESC \ Print continuously from all character chart ESC ^ Print single character from all character chart ESC A n Select n/72Ǝor n/60Ǝline spacing ESC B n Select Tab vertically ESC C n Set page length in lines

Tally Dascom 1225

ESC C NUL n Set page length in inches ESC D Select Tab horizontally ESC E Select bold ESC F Cancel bold ESC G Select double-strike mode ESC H Cancel double-strike mode ESC I n Select printing mode ESC J n Perform n/180Ǝor n/216Ǝsingle line feed ESC K n1 n2 V1 V2 …Vn Normal density graphics ESC L n1 n2 V1 V2 …Vn Dual-Density Bit Image Graphics (Half Speed) ESC N n Select bottom margin ESC O Cancel bottom margin ESC P n Set proportional intercharacter ESC Q n Offline ESC R Clear tab ESC S n Select superscript/subscript ESC T Cancel superscript/subscript ESC U n Select bidirectional printing on/off ESC W n Select double-wide printing mode(continuous) ESC X n m Set left and right margin ESC Y n1 n2 V1 V2 …Vn Select double -density graphics ESC Z n1 n2 V1 V2 …Vn Select fourfold -density graphics ESC [- n1 n2 m1 m2 Select line ESC [@ n1 n2 m1 m2 m3 m4 Select printing mode ESC [I n1 n2 Hf Ls Hs Lf Sm NUL Hc Lc Select font and pitch ESC [ K n1 n2 init id para1 para2 …paran Set initialization condition ESC [ T n1 n2 n3 n4 Hc Lc Set code page ESC [\ Set vertical unit ESC [d Select printing quality ESC [f n1 n2 k m s v1 v2c Set barcode parameters ESC [g n1 n2 m Select high-density graphics printing ESC [p n1 n2 Set barcode data ESC ] Feed paper in reverse direction ESC_ n Print upper-line ESC- n Print underline ESC d n m Move the current printing position ESC j Stop printing ESC r n Select printing colour ESC * m Select graphic mode

If you need more details regarding the emulation commands, please contact us.
