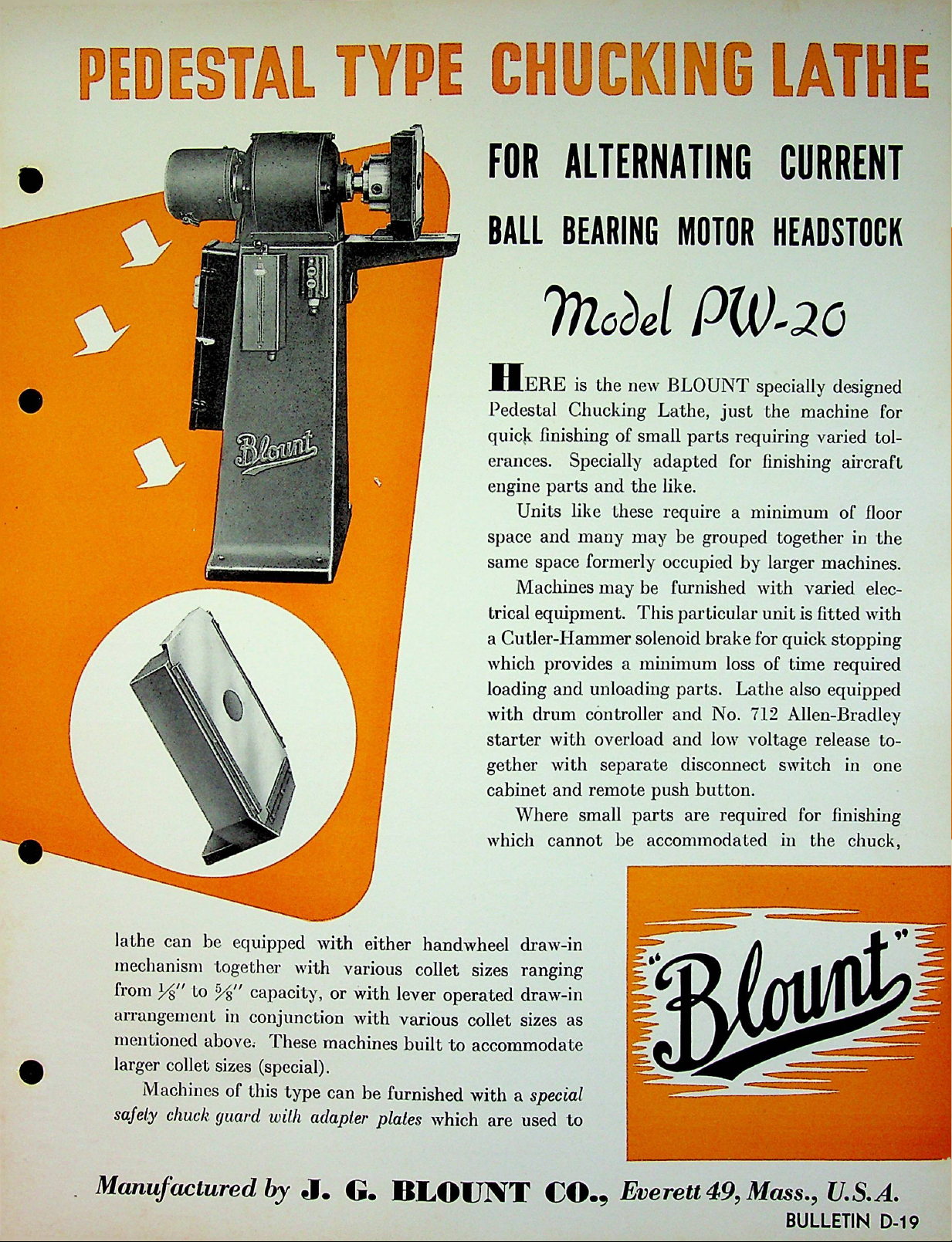

PEDESTAL
TYPE CHUCKING LATHE
FOR ALTERNATING
BALL BEARING
MOTOR
CURRENT
HEADSTOCK
lYlobel PW'2C
H
ere
Pedestal Chucking Lathe, just the machine for
quick finishing of small parts requiring varied tol-
erances.
engine parts and the like.
Units like these require a minimum of floor
space and many may be grouped together in the
same space formerly occupied by larger machines.
Machines may be furnished with varied elec
trical equipment. This
a Cutler-Hammer solenoid brake for quick stopping
which provides a minimum loss of time required
loading and unloading parts. Lathe also equipped
with drum controller and No. 712 Allen-Bradley
starter with overload and low voltage release to
gether with separate disconnect switch in one
cabinet and remote push button.
Where small parts are required for finishing
which cannot be accommodated in the chuck,
is the new BLOUNT specially designed
Specially adapted for finishing aircraft
particular unit is fitted with
lathe can be equipped with either
mechanism together with various collet sizes ranging
from y§" to h
arrangement in conjunction with various collet sizes as
mentioned above, fliese machines built to accommodate
larger collet sizes (special).
Machines of this type can be furnished with a special
safety chuck guard with adapter plates which are used to
/y capacity, or with lever operated draw-in
Manufactured by J. G. BLOUNT
handwheel
draw-in
CO., Everett 49, Mass., U.S.A.
BULLETIN D-19
'
protect the operator while fin
ishing the small parts held in
the chuck. Chuck guard covers
the jaws of the chuck and in
turn the adapter plates are pro
vided with openings to accom
modate the various sizes of
parts which arc lo be finished.
(See cut showing chuck guard
and adapter plate.)
Motor used on machine of
this type is totally enclosed.
Various combinations of stand
ard speeds can be furnished de
pending upon those speeds re
quired for finishing different
diameters of parts. Two speed
motors 600/1200, 900/1800
R.P.M. can be supplied. Also four speed motors 600-1200-1800-3600 R.P.M. Larger
machines of this same general design can be furnished with two speed motors of 300/600
or 450/900 R.P.M. and also four speed motors of 300-450-600-900 R.P.M. as well.
Prices of machines w ith various combinations of electrical equipment and motor speeds
on application.
Tlloclel PW-20
Floor to center of spindle — 41
Height overall — 47"
Width overall — 31"
Base — 14" x 20^"
Bolt holes — 9%" x 17y2
<
Distance end of table to face or body of chuck — 7"
"
Spindle nose — 1
Size of
bearing,
front — 210 single row
rear — 208 single ro>v
Table length — 12"
Table width — 6J4
/7
Net weight — 490 lbs.
Crated >veight — 625 lbs.
J^"
iTiaviu^aciuKzb by ft. Cj.
BULLETIN D-19
