Page 1
V600DA / V600DAP
User's Manual
AMD Socket 462 Processor Motherboard
VIA KT600 + VIA 8237
Revision 3.0
P / N: G03 -V600DA
Page 2
i
Table of Content
Manual Revision History....................................................................................................................... ii
Copyright Announcement ..................................................................................................................... ii
Trademarks Notice ................................................................................................................................ ii
Safety Instructions ................................................................................................................................. ii
Packing Item Checklist.......................................................................................................................... iv
AMD Socket A Processor Thermal Solutions...................................................................................... iv
CHAPTER 1 INTRODUCTION OF V600DA/V600DAP
MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD ...................................................................................... 1
1-2 SPECIFICATION.................................................................................................................. 2
1-3 PERFORMANCE LIST........................................................................................................ 3
1-4 LAYOUT DIAGRAM & JUMPER SETTING ................................................................... 4
CHAPTER 2 HARDWARE INSTALLATION
2-1 PRE-HARDWARE INSTALLATION................................................................................. 6
2-2 TO VERIFY THE JUMPER SETTINGS OF THE MOTHERBOARD .......................... 6
2-3 TO INSTALL THE CPU....................................................................................................... 8
2-3-1 GLOSSARY............................................................................................................. 8
2-3-2 ABOUT AMD ATHLON XP & DURON 462-PIN CPU...................................... 9
2-4 TO INSTALL THE SYSTEM MEMORY .......................................................................... 10
2-5 TO INSTALL THE EXPANSION CARDS......................................................................... 11
2-5-1 PROCEDURE FOR EXPANSION CARD INSTALLATION ............................ 11
2-5-2 ASSIGNING IRQS FOR EXPANSION CARD.................................................... 11
2-5-3 INTERRUPT REQUEST TABLE FOR THIS MOTHERBOARD.................... 12

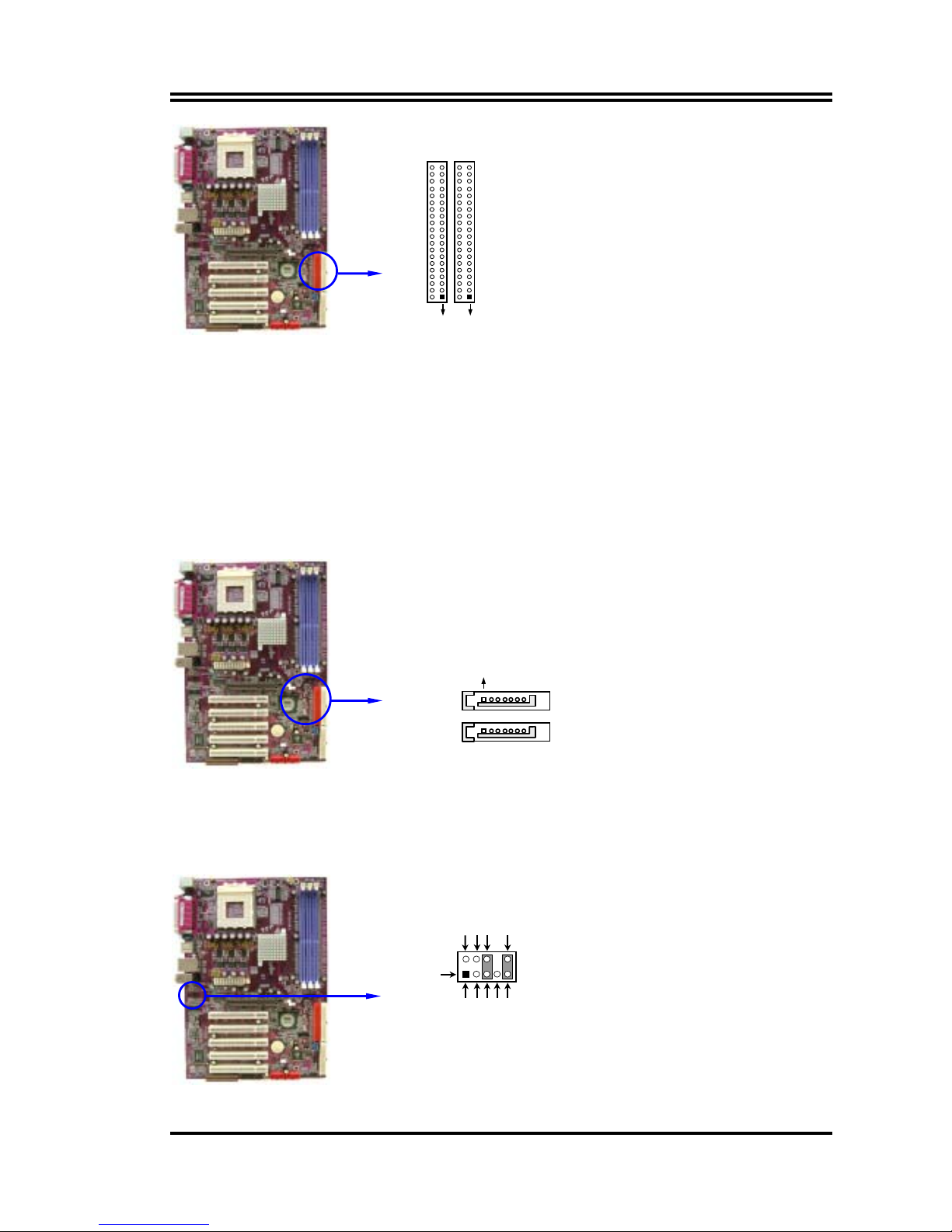

2-6 CONNECTORS AND PIN HEADERS................................................................................ 13
2-6-1 CONNECTORS....................................................................................................... 13

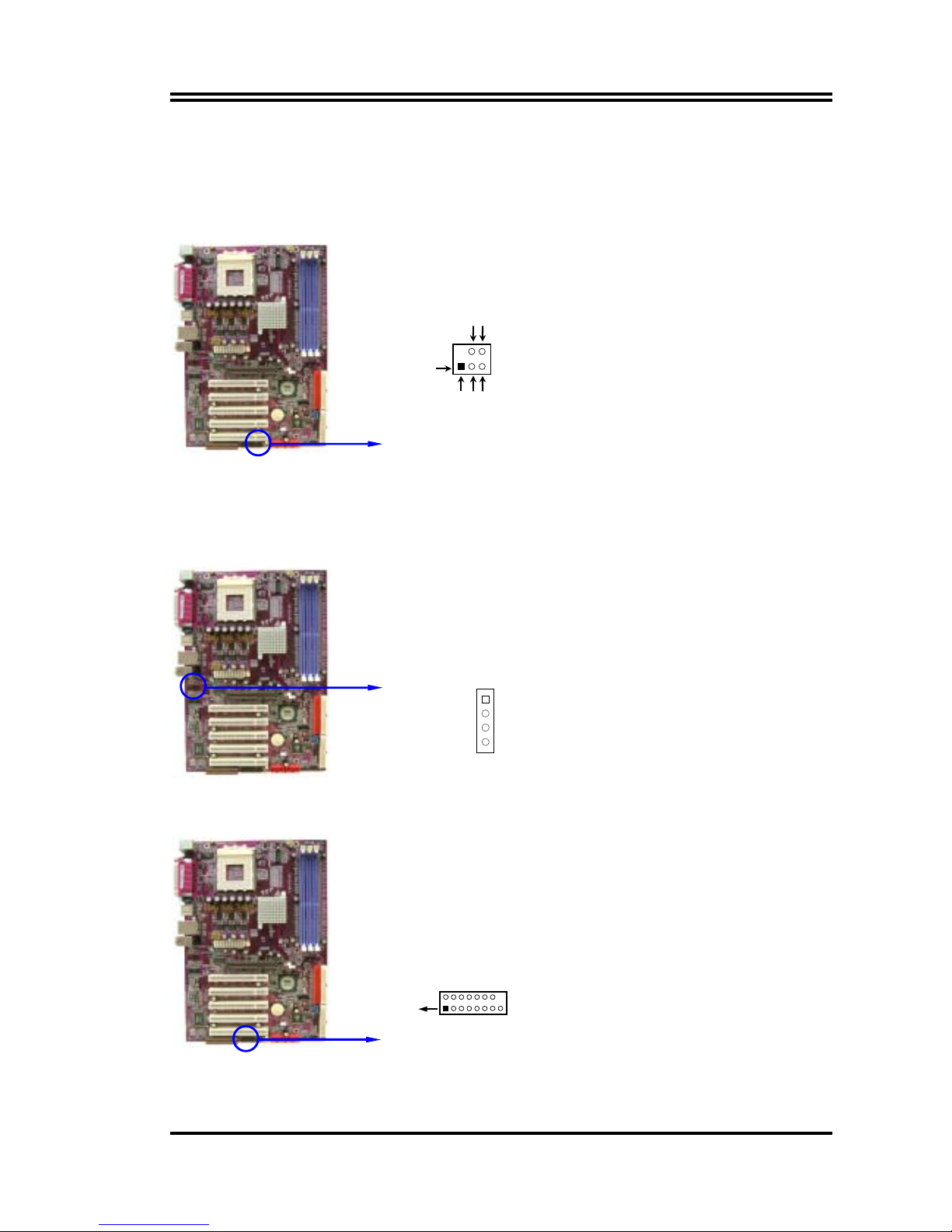

2-6-2 PIN HEADERS........................................................................................................ 15
2-7 STARTING UP YOUR COMPUTER ................................................................................. 19
CHAPTER 3 INTRODUCING BIOS SETTINGS
3-1 ENTERING SETUP .............................................................................................................. 20
3-2 GETTING HELP................................................................................................................... 21
3-3 THE MAIN MENU................................................................................................................ 21
3-4 STANDARD CMOS FEATURES ........................................................................................ 23
3-5 ADVANCED BIOS FEATURES.......................................................................................... 24
3-6 ADVANCED CHIPSET FEATURES .................................................................................. 27
3-6-1 DRAM TIMING SETTINGS ............................................................................... 28
3-6-2 AGP TIMING SETTINGS ................................................................................... 29
3-6-3 PCI TIMING SETTINGS..................................................................................... 29
3-7 INTEGRATED PERIPHERALS ......................................................................................... 30
3-7-1 ONCHIP IDE FUNCTION................................................................................... 31
3-7-2 ONCHIP DEVICE FUNCTION .......................................................................... 32
3-7-3 ONCHIP SUPER IO FUNCTION ....................................................................... 33
3-8 POWER MANAGEMENT SETUP ..................................................................................... 34
3-8-1 WAKE UP EVENTS ............................................................................................. 35
3-8-1.1 IRQS ACTIVITIES.............................................................................. 36
3-9 PNP/PCI CONFIGURATION SETUP ................................................................................ 37
3-9-1 IRQ RESOURCES................................................................................................ 38
3-10 PC HEALTH STATUS.......................................................................................................... 38
3-11 MISCELLANEOUS CONTROL ......................................................................................... 39
3-12 LOAD STANDARD/OPTIMIZED DEFAULTS ................................................................ 40
3-13 SET SUPERVISOR/USER PASSWORD ............................................................................ 40
CHAPTER 4 DRIVER & FREE PROGRAM INSTALLATION

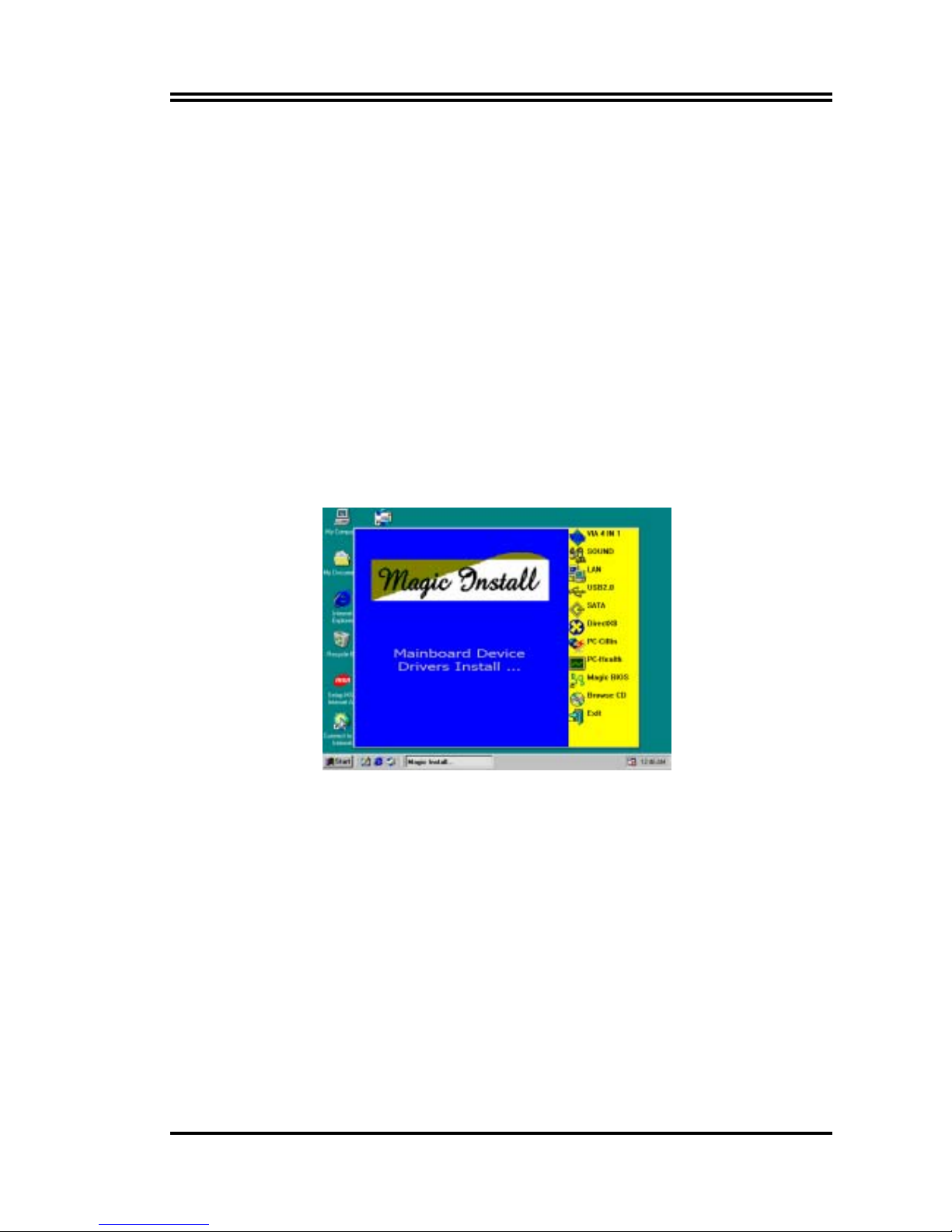

MAGIC INSTALL SUPPORTS WINDOWS 9X/NT/2K/XP ............................................................ 41

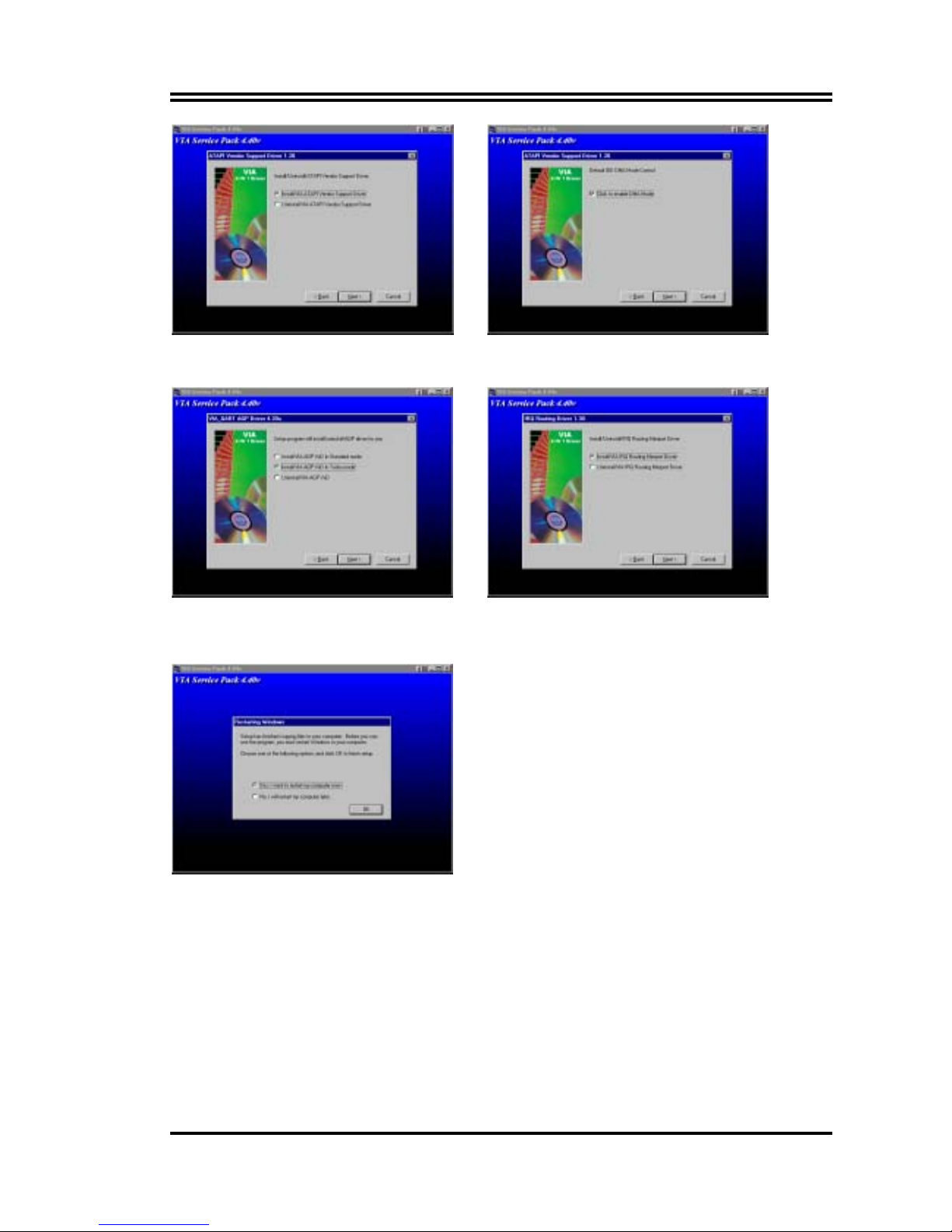

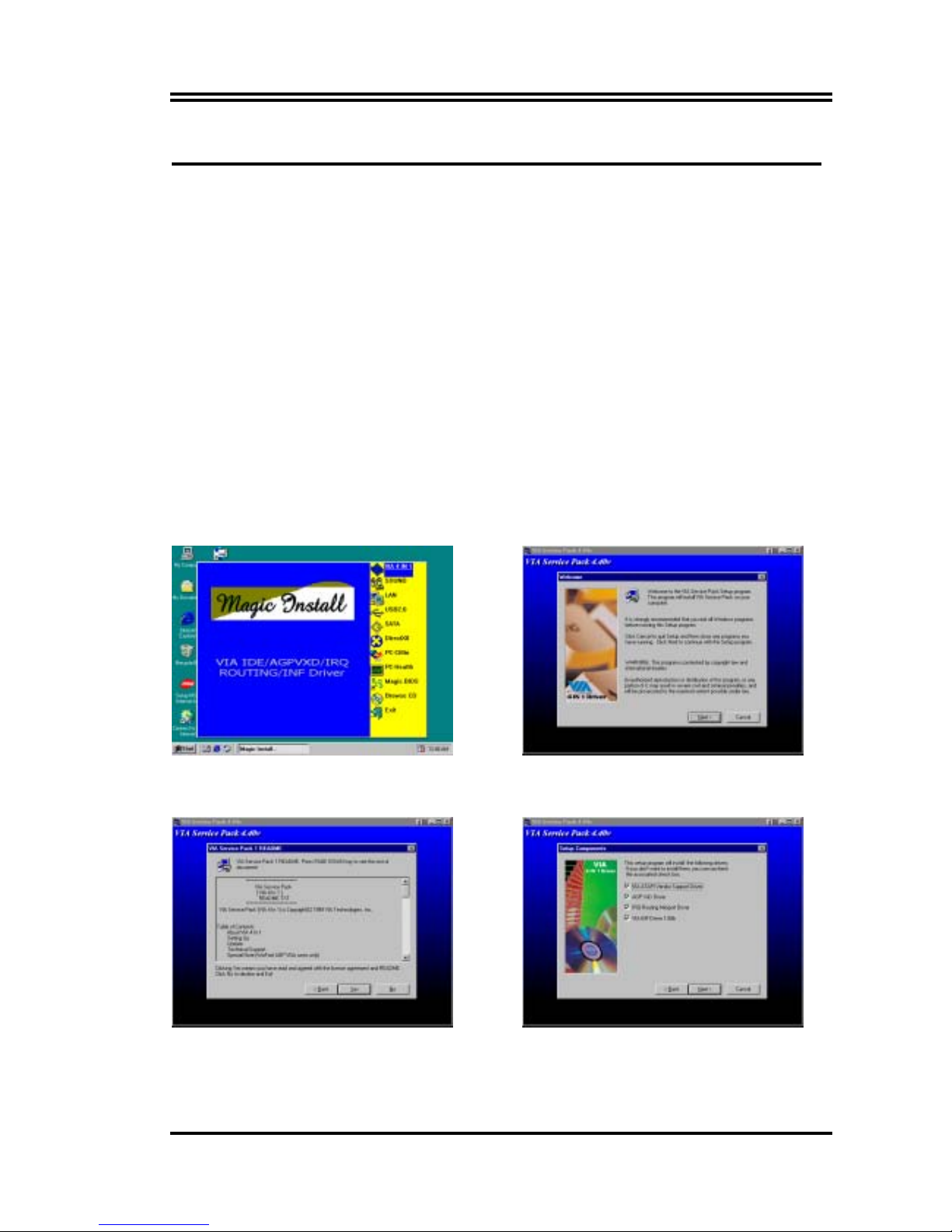

4-1 VIA 4 IN 1 INSTALL VIA SERVICE PACK 4 IN 1 DRIVER ........................................ 42

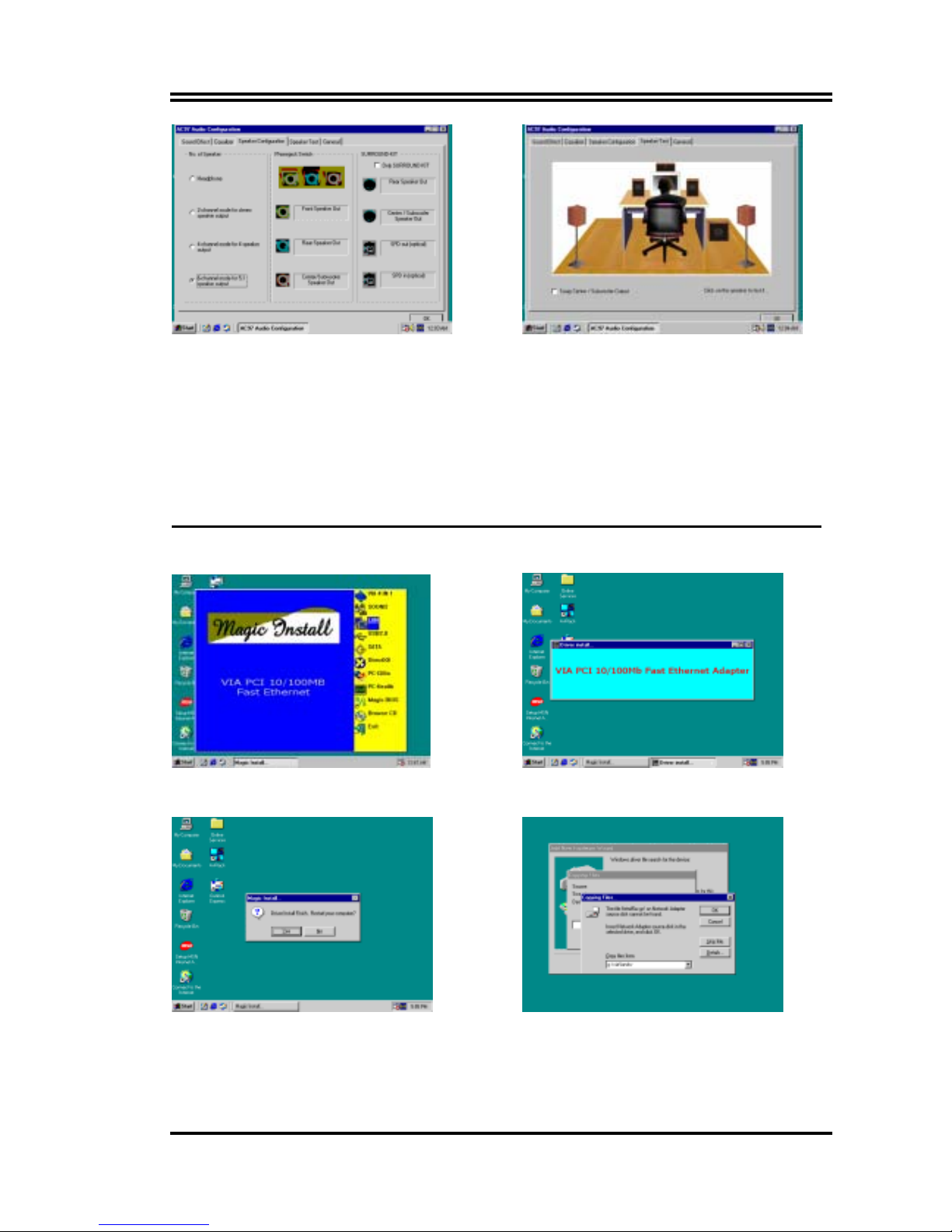

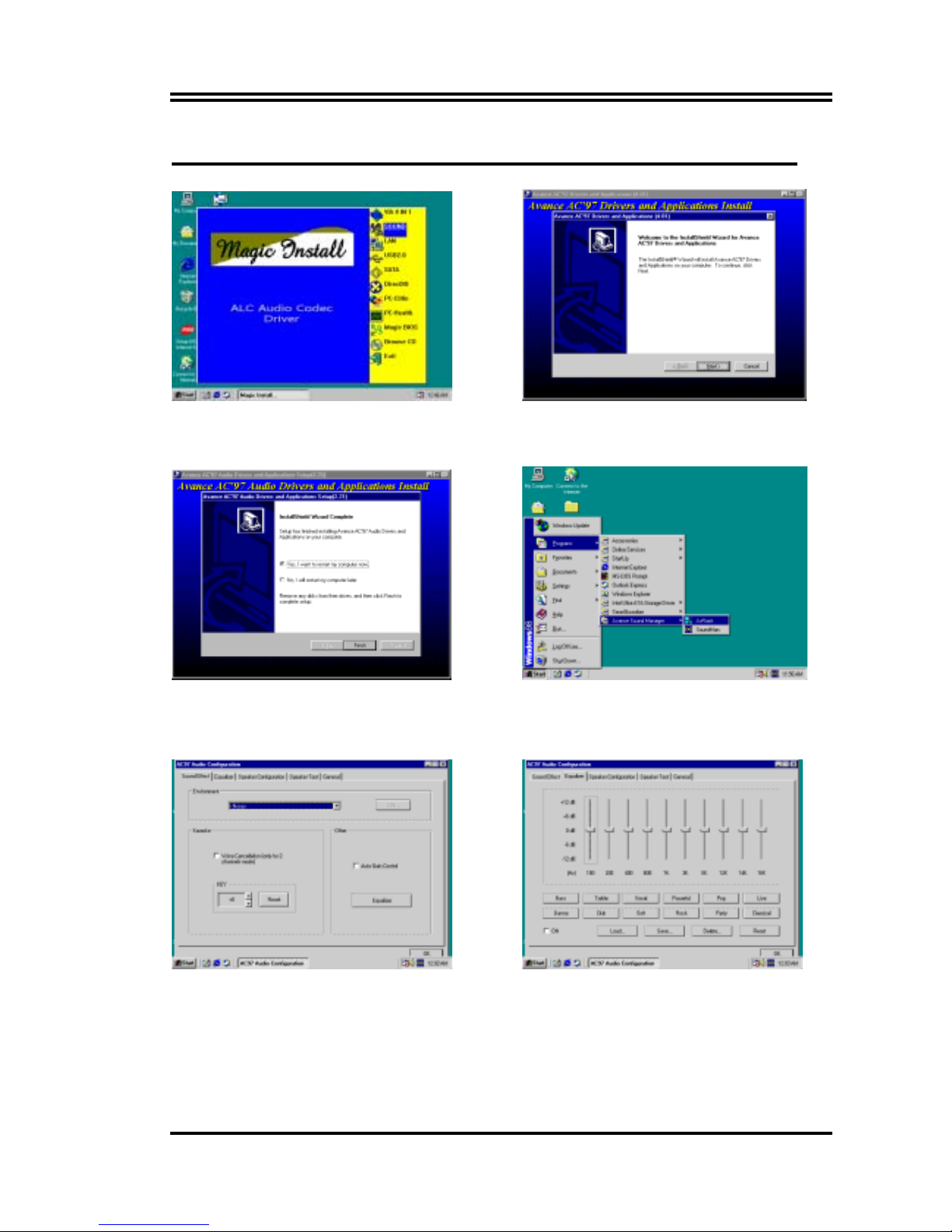

4-2 SOUND INSTALL ALC AUDIO CODEC DRIVER.................................................... 44
4-3 LAN INSTALL VIA 10/100MB LAN CONTROLLER DRIVER ......................... 45

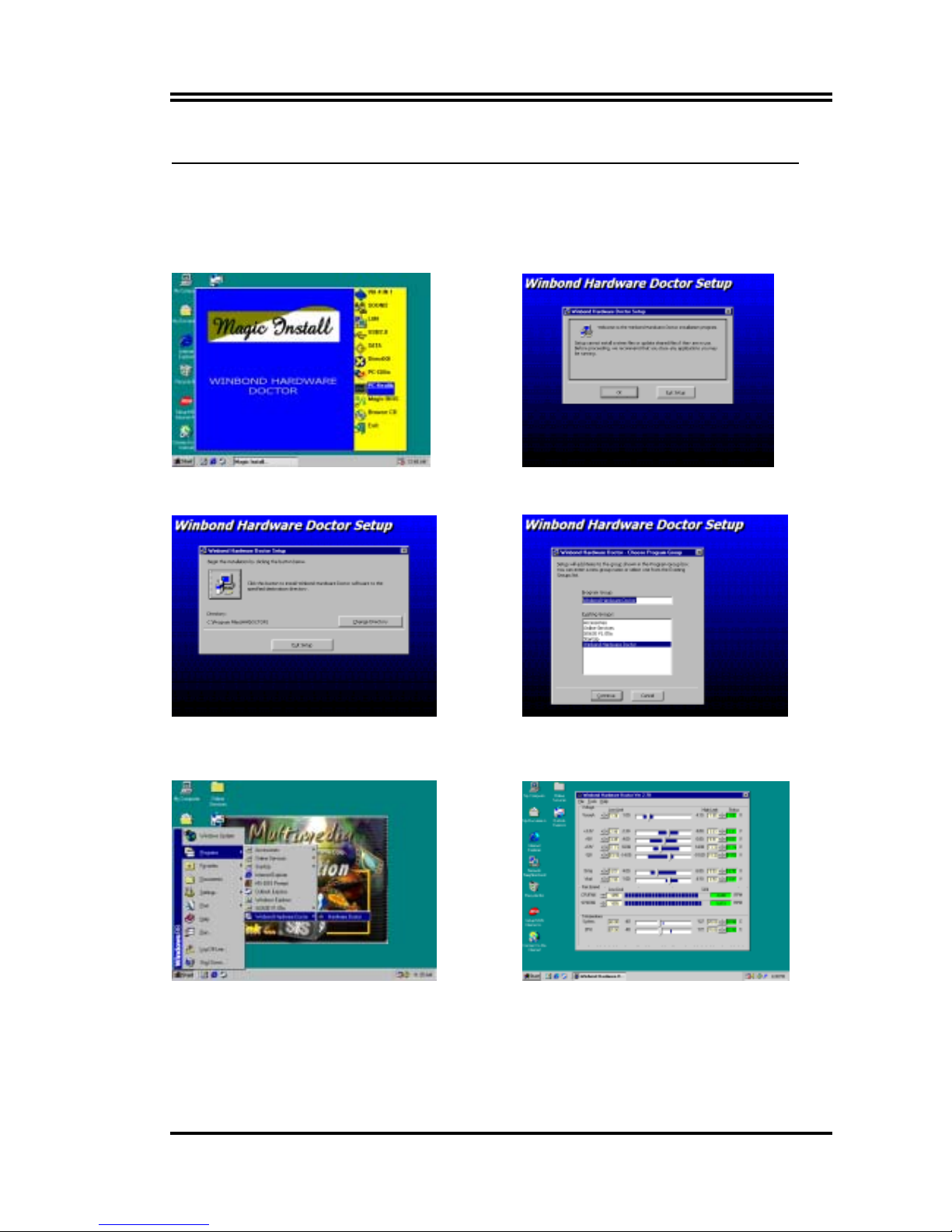

4-4 PC-HEALTH WINBOND HARDWARE DOCTOR MONITORING SOFTWARE 46

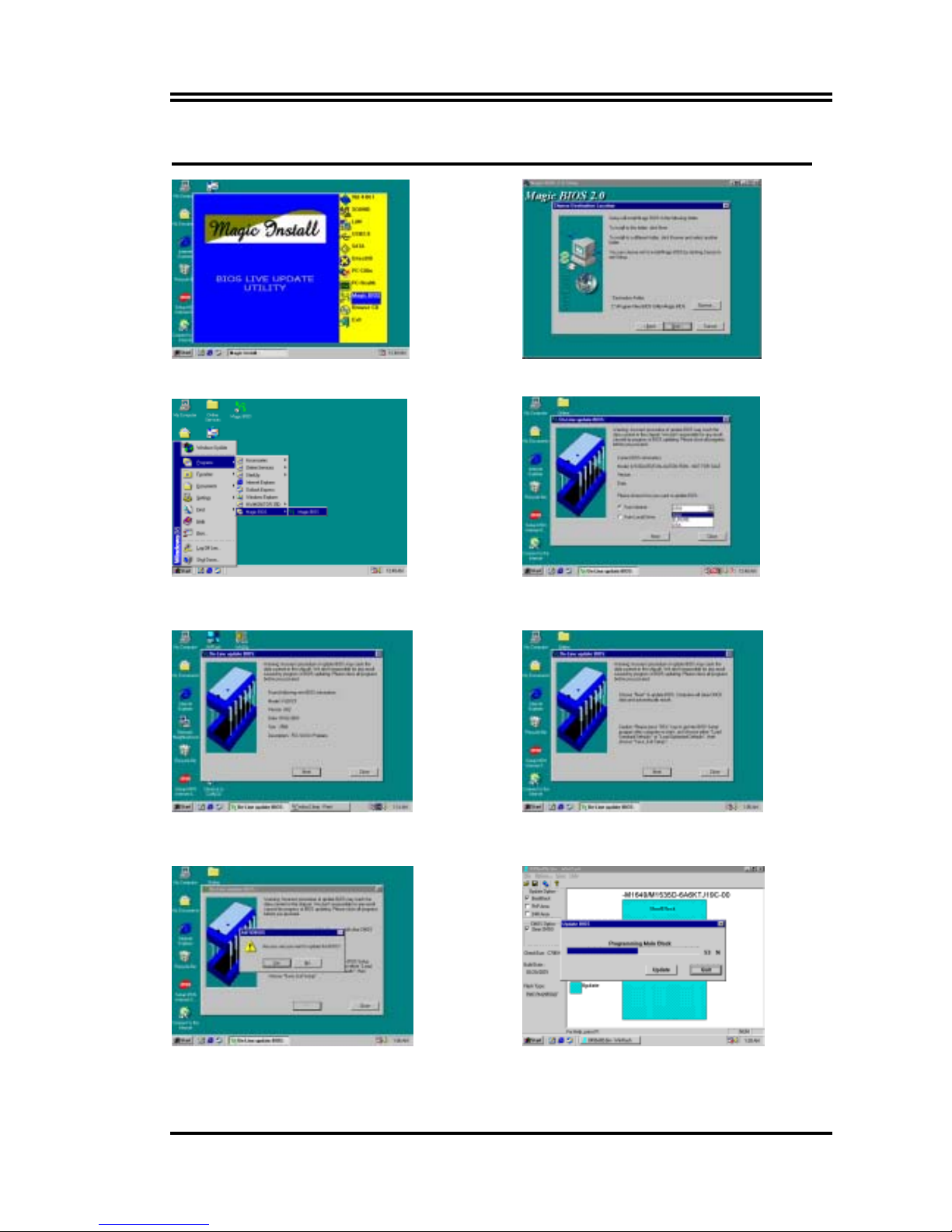

4-5 MAGIC BIOS INSTALL BIOS LIVE UPDATE UTILITY.......................................... 47

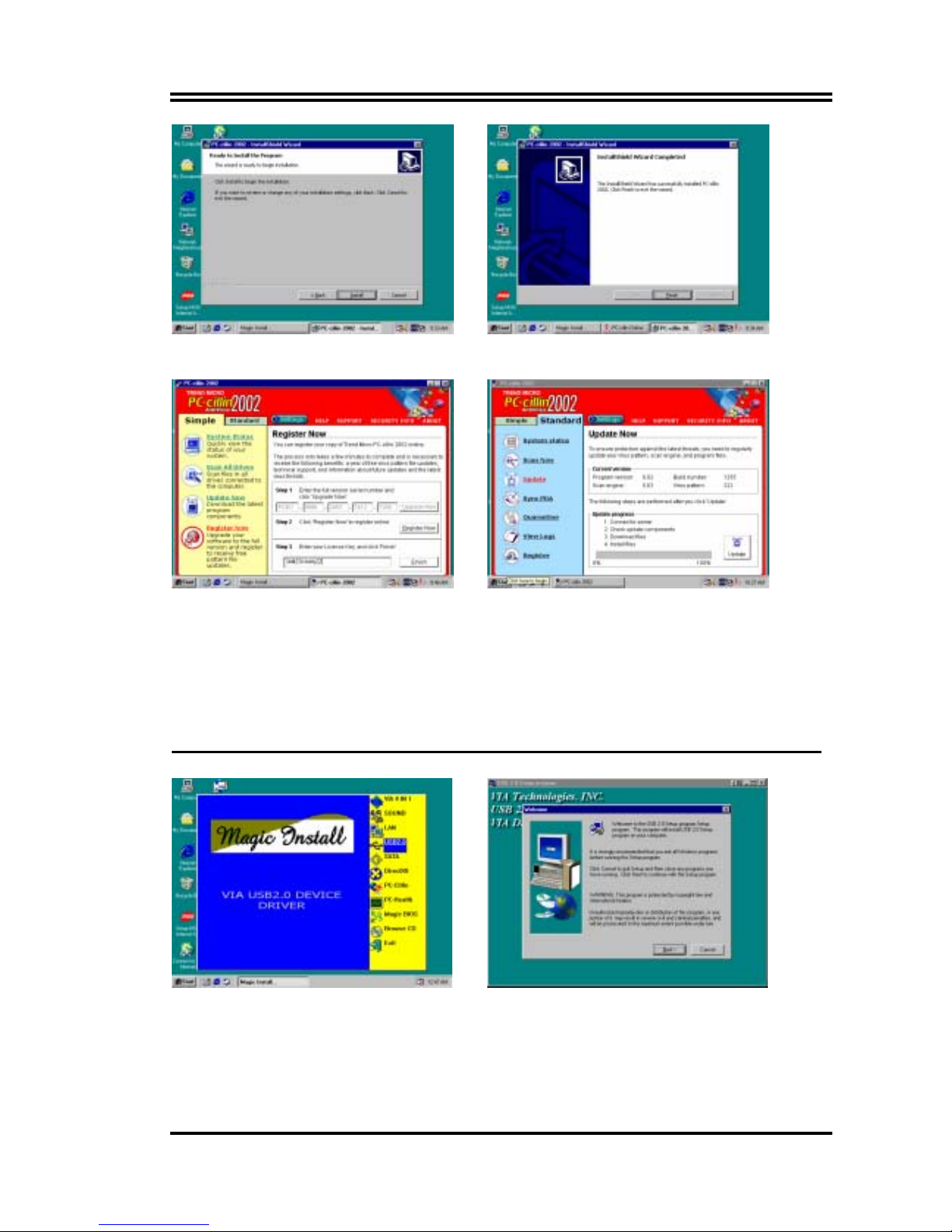

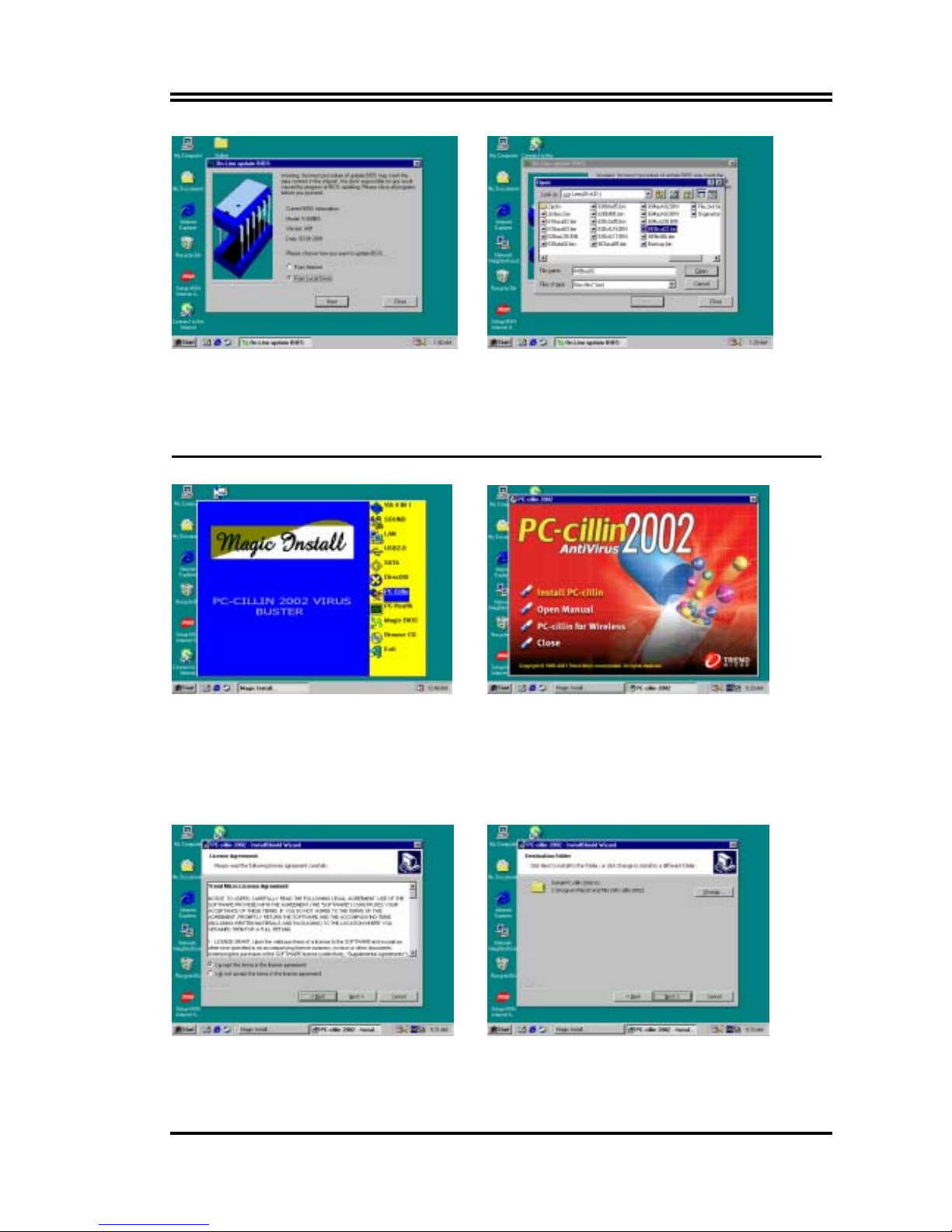

4-6 PC-CILLIN INSTALL PC-CILLIN2002 ANTI-VIRUS PROGRAM...................... 48
4-7 USB 2.0 INSTALL VIA USB 2.0 DEVICE DRIVER ........................................ 49

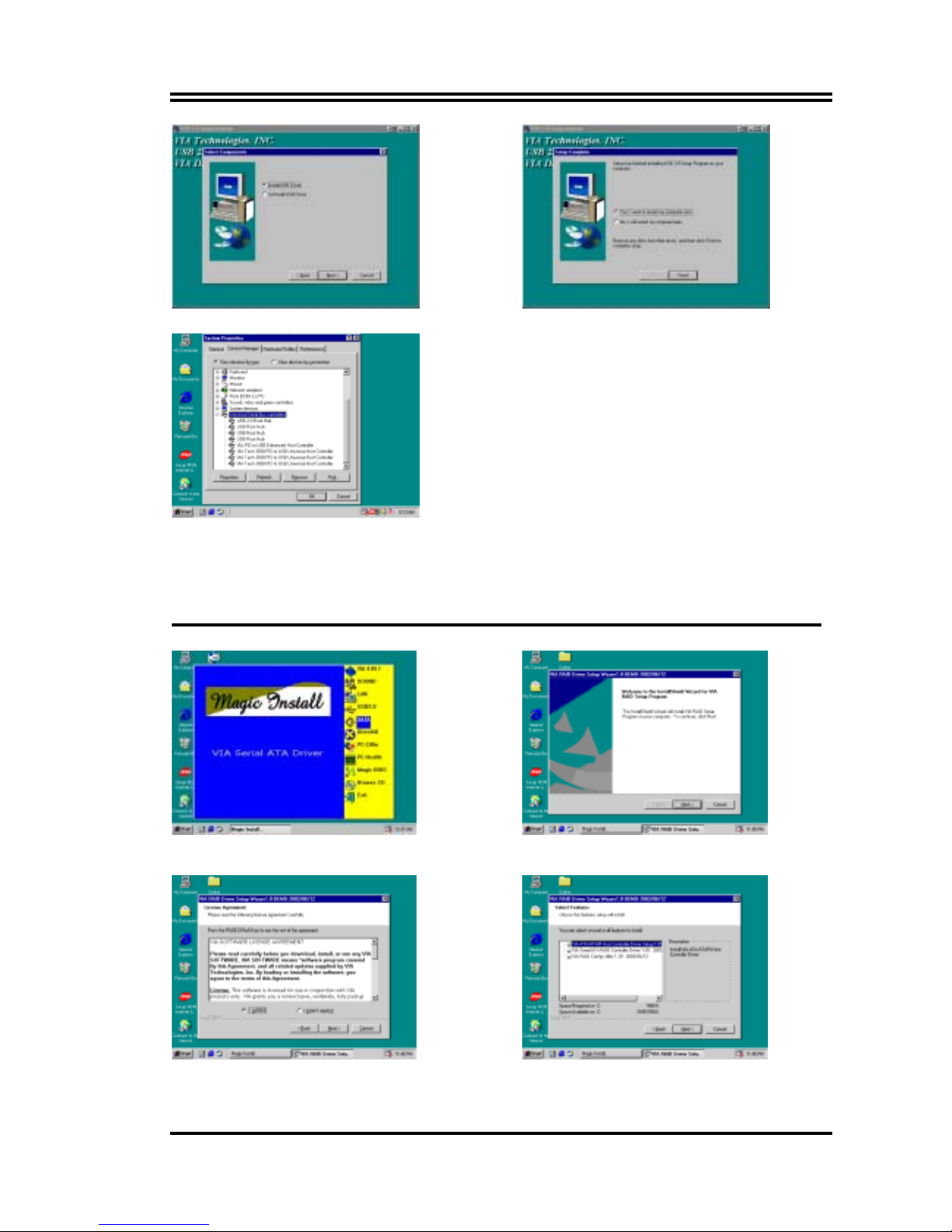

4-8 SATA INSTALL VIA SERIAL ATA DRIVER .............................................. 50
4-9 HOW TO DISABLE ON-BOARD SOUND ........................................................................ 51
4-10 HOW TO UPDATE BIOS..................................................................................................... 51
Page 3
ii
Manual Revision History
Revision Manual Revision History Date of Release
Rev 3.0 Second edition copy of Mother 01/02/2004
Boards adopts VIA Chipsets:
VIA KT600 and VIA 8237
Copyright Announcement
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER.
NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND
SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY
MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE
V600DA/ V600DAP MOTHER-BOARD AND WE DO ASSURE THIS
MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE,
CORRECT ANY TIME WITHOUT NOTICE. MANUFACTURER
PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTIAL OR CONSEQUENTIAL DAMAGES (INCLUDING
DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF
USE OF DATA, INTERRUPTION OF BUSINESS AND THE LIKE).
Trademarks Notice
All brands, products, logos, trademarks, and companies are trademarks or
registered trademarks of their respective companies.
AMD, Athlon™, Athlon™ XP, Thoroughbred™, and Duron™ are
registered trademarks of AMD Corporation.
Award® is a registered trademark of Phoenix Technologies Ltd.
Intel® and Pentium® are registered trademarks of Intel Corporation.
Kensington and MicroSaver are registered trademarks of the Kensington
Technology Group.
Microsoft is a registered trademark of Microsoft Corporation.
Netware® is a registered trademark of Novell, Inc.
NVIDIA, the NVIDIA logo, DualNet, and nForce are registered trademarks
Page 4
iii
or trademarks of NVIDIA Corporation in the United States and/or other
countries.
PS/2 and OS®/2 are registered trademarks of International Business Machines
Corporation.
PCMCIA and CardBus are registered trademarks of the Personal Computer
Memory Card International Association.
Windows® 98/2000/NT/XP are registered trademarks of Microsoft
Corporation.
**The ranking above is by the sequence of alphabets.**
Safety Instructions
1. Please read these safety instructions carefully.
2. Please keep this User‘s Manual for later reference.
3. Please place the equipment on a reliable flat surface before installation.
4. Make sure the voltage of the power source when you try to connect the
equipment to the power outlet.
5. All cautions and warnings on the equipment should be noted.
6. Disconnect this equipment from connecter before inserting add-on interfaces
or modules.
7. Never pour any liquid into the opening, this could cause fire or electrical shock.
8. Explosion may occur if the battery is replaced incorrectly. Replace only with the
type recommended by the manufacturer.
9. If one of the following situations arises, get the equipment checked by a service
personnel:
a. Liquid has penetrated into the equipment.
b. The equipment has been exposed to moisture.
c. The equipment has not work well or you can not get it work according to
user‘s manual.
d. The equipment has dropped and damaged.
e. If the equipment has obvious sign of breakage.
10. Do not leave the equipment in an humidity or unconditional environment,
storage temperature above 60°C(140°C), it may damage the equipment.
Precaution: It may void the warranty if any label on the equipment been removed.
Packing Item Checklist
Page 5
iv
5
V600DA / V600DAP Motherboard
5
Cable for IDE/Floppy
5
Cable for Serial ATA IDE Port
5
CD for motherboard utilities
□
Cable for USB Port 3/4 (Option)
5
V600DA / V600DAP User’s Manual
AMD Socket A Processor Thermal Solutions
As processor technology pushes to faster speeds and higher performance with
increasing operation clock, thermal management becomes increasingly crucial
while building computer systems. Maintaining the proper computing environment
without thermal increasing is the key to reliable, stable, and 24 hours system
operation. The overall goal is keeping the processor below its specified
maximum case temperature. Heatsinks induce improved processor heat
dissipation through increasing surface area and concentrated airflow from
attached active cooling fans. In addition, interface materials allow effective
transfers of heat from the processor to the heatsink. For optimum heat
transfer,
AMD recommends the use of thermal grease and mounting clips to attach the
heatsink to the processor.
Please refer to the website below for collection of heatsinks evaluated and
recommended for Socket-A processors by AMD. In addition, this collection is
not intended to be a comprehensive listing of all heatsinks that support
Socket-A processors.
For vendor list of heatsinks and Active cooling fans, please visit：
http://www1.amd.com/products/duron/thermals
http://www1.amd.com/products/athlon/thermals
Page 6
1
Chapter 1
Introduction of V600DA / V600DAP Motherboard
Thank you for purchasing the V600 series which provide extremely
performance and meet future specification demand.
V600 series motherboards are adopted with advanced technologies to deliver the
extremely performance for socket A processors. V600 series motherboards also
feature AGP 8X, Serial ATA RAID0, 1, USB 2.0 as well as 6-channel audio which are
based on the advanced VIA KT600 chipset with FSB 400MHz and DDR 400 MHz
support. Now we could know more details by reading the features of motherboards
below.
1-1 Feature of motherboard
V600 series motherboards are designed for AMD Socket-A
200MHz/266MHz/333MHz/400MHz (Double Data Rate) Front Side Bus Frequency
CPUs and the memory size expandable to 3.0GB.
By using VIA KT600 chipset which provides 400/333/266MHz (Double Data Rate)
Front Side Bus frequency and DDR266/333/400 SDRAM support as a obvious further
step to the next generation of 200/266/333/400MHz processors. V600 series
motherboards also offer ULTRA ATA 133 and Serial ATA RAID0, 1 functions to
provide speedier HDD throughout that boosts overall system performance.
Integrated AC’97 CODEC audio on system supports 6 channel speaker for 3D
Surround Effect which is fully compatible with Sound Blaster Pro that gives you the
best sound quality and compatibility. AGP 8X slot enables more complex models
and detailed textures with AGP 8X graphic accelerators which creates richer and
more lifelike virtual environments. VIA VT6103 LAN PHY supports 10/100Mbps data
transfer rate full duplex, half duplex operation. USB control as well as capability of
expanding to 8 USB function ports support USB2.0/1.1 Devices.
Built-in hardware monitor function will monitor and protect your computer which is
the special design in hardware for protecting Athlon XP CPU from burned, and will
shutdown power supply automatically when CPU is overheated or the CPU cooling
fan is not working.
Minor adjustable DDR memory 2.5V Voltage, AGP 1.5V Voltage, and other special
functions allows user to increase CPU Host clock step by step by setting up BIOS to
approach over clocking and increasing stability of the system.
Page 7
2
1-2 Specification
Spec Description
Design ∗
ATX form factor 4 layers PCB size: 30.5x21.0cm
Chipset ∗
VIA KT600 North Bridge Chipset for V600DA/V600DAP
∗
VIA VT8237 South Bridge
CPU Socket ∗
Support AMD Athlon 700MHz∼1.4GHz processor
∗
Support AMD Duron 600MHz∼1.4GHz processor
∗
Support AMD Athlon XP1500+~XP3200+ processor
∗
Support 200MHz/266MHz/333MHz/400MHz (Double Data
Rate) Front Side Bus frequency processors
∗
Reserves support for future AMD Athlon/Duron/Athlon XP
processors
Memory Socket ∗
184-pin DDR module socket x3
∗
Support DDR266/DDR333/DDR400 DDR SDRAM
Expandable to 3.0GB
Expansion Slot &
Headers
∗
AGP slot x1 support AGP 3.0 & 8X mode
∗
32-bit PCI slot x5
∗
CNR slot x1
Integrate IDE and
Serial ATA RAID
∗
Two PCI IDE controllers support PCI Bus Mastering, ATA
PIO/DMA and the ULTRA DMA 33/66/100/133 functions that
deliver the data transfer rate up to 133 MB/s; Two Serial ATA
ports provide 150 MB/sec data transfer rate for two Serial ATA
Devices and offer RAID0, 1 functions
On board LAN
(for V600DAP)
∗
VIA VT6103 LAN PHY support 10/100Mbps full duplex, half
duplex operation
∗
Support Boot On LAN function
Audio ∗
AC’97 Digital Audio controller integrated
∗
AC’97 Audio CODEC on board
∗
Audio driver and utility included
∗
Support 6 channel Speaker for 3D surround effect
BIOS ∗
Award 2MBit Flash ROM
Multi I/O ∗
PS/2 keyboard and PS/2 mouse connectors
∗
Floppy disk drive connector x1
∗
Parallel port x1
∗
Serial port x2
∗
USB2.0 connector x4
∗
USB2.0 headers x4 (connecting cable option)
∗
Audio connector (Line-in, Line-out, MIC & Game Port)
Page 8
3
1-3 Performance List
The following performance data list is the testing result of some popular benchmark testing
programs. These data are just referred by users, and there is no responsibility for different
testing data values gotten by users (the different Hardware & Software configuration will
result in different benchmark testing results.)
Performance Test Report
CPU:
AMD Athlon XP 3200+
DRAM:
512MB DDR400 X1 (Kingston D328DW)
VGA Expansion Card:
ATi RADEON 9700 PRO (1024x768x32BIT color)
Hard Disk Driver:
IBM IC35L040AVVN07-0 (ATA-100 7200RPM)
BIOS:
Award Optimal default
OS:
Windows XP Professional
200/200
3D Mark 2001SE 14900
3D Mark 2003 4666
3D Winbench 2000 (32/32bit) 438
PC Mark 2002
CPU/Memory/HDD 6639/5309/861
Content Creation Winstone 2002 48.1
Content Creation Winstone 2003 39.8
Business Winstone2002 37.5
Winbench 99 V1.2:
Business Disk Winmark99 10100
Hi-end Disk Winmark99 33000
Business Graphic Winmark 854
Hi-end Graphic Winmark 1870
SYS Mark 2001/2002 : SISMark 2001/2002 Rating (Internet Content
Creation / Office Productivity)
SISMark 2001 248 (255/241)
SISMark 2002 252 (326/195)
SISOFT Sandra 2003 :
Dhrystone ALU MIPS 8230
Whetstone FPU MFLOPS 3306
RAM Int Buffered iSSE2 MFLOPS 2631
RAM Float Buffered iSSE2 MFLOPS 2453
Integer SSE2 IT/S 12175
Floating- Point SSE2 MB/S 12948
QUAKE3 DEMO1 FPS 236.2
DEMO2 FPS 233.3
Return to Castle Wolfenstein FPS 128.7
WCPUID System/CPU Clock 199.98/2199.75
Page 9
4
1-4 Layout Diagram & Jumper Setting
LINE-OUT
LINE-IN
COM1 USB1
MIC
PS/2 Mouse
PS/2 Keyboard
PRINT LAN
USBCOM2
2MBit Flash ROM BIOS
(SATA2)
Serial-ATA Connector
K/B Power ON Jumper (JP1)
USB Port
(USB1, USB2)
CPU Socket
Front Panel Audio
(JP3, JP4)
CPU F.S.B. Frequency Selector
PC99 Back Panel
USB Port/
LAN Connector
PS2 KB/Mouse Port
ATX Power Connector
USB Port
Audio Connecto
r
(CN1)
FAN2
Winbond 83697HF Chip
GAME Port Connecto
r
PCI Slot
IR Connector
6-Channel AC’97 Codec
AGP 4X/8X Slot
Floppy Connector
VIA KT600 Chip
Front Panel Connector
ATA 133 IDE Connector
Clear CMOS (JBAT)
CPU FAN
DDR DIMM X3
VIA VT8237 Chip
Speak Connector
Wake On LAN
FAN 1
(SATA1)
Serial-ATA Connector
CPU Ratio Jumper (JP7)
Page 10
5
Jumpers
Jumper Name Description Page
JP3, JP4 CPU Front Side Bus Frequency 2x2-pin Block P.6
JBAT CMOS RAM Clear 3-pin Block P.6
JP1 Keyboard Power On Enable/Disabled 3-pin Block P.7
JP7 CPU Ratio Select 2x5-pin Block P.7
Connectors
Connector Name Description Page
ATXPOW ATX Power Connector 20-pin Block P.13
J1 PS/2 Mouse & PS/2 Keyboard
Connector
6-pin Female P.13
USB/J2 USB Port Connector 4-pin Connector P.13
LAN
(for V600DAP)
LAN Port Connector RJ45 Connector P.13
PARALLEL Parallel Port Connector 25-pin Female P.13
CN1 Audio Connector 3 phone jack Connector P.13
COM1/COM2 Serial Port COM1/2 Connector 9-pin Connector P.14
FDD Floppy Driver Connector 34-pin Block P.14
IDE1/IDE2 Primary/Secondary IDE Connector 40-pin Block P.14
SATA1/SATA2 Serial ATA 1/2 Connector 7-pin Connector P.15
Headers
Header Name Description Page
AUDIO Line Out/MIC header 10-pin Block P.16
USB1/USB2 USB Port Headers 9-pin Block P.16
IDE LED IDE activity LED 2-pin Block P.16
TB LED Turbo LED switch 2-pin Block P.16
RESET Reset switch lead 2-pin Block P.16
SPEAKER Speaker connector 4-pin Block P.16
PWR LED Power LED 2-pin Block P.16
PW BN Power switch 2-pin Block P.16
WOL Wake On-LAN Headers 3-pin Block P.17
FAN1, FAN2, CPUFAN FAN Headers 3-pin Block P.17
IR IR infrared module Headers 5-pin Block P.18
CDIN1 CD Audio-In Headers 4-pin Block P.18
GAME Game Port header 15-pin Block P.18
Expansion Sockets
Socket/Slot Name Description Page
ZIF Socket 462 CPU Socket 462-pin PPGA CPU Socket P.9
DDR1, DDR2, DDR3 DDR SDRAM Module Socket 184-pin DDR SDRAM
Module Expansion Socket
P.10
PCI1, PCI2, PCI3,
PCI4, PCI5
PCI Slot 32-bit PCI Local Bus
Expansion slots
P. 11
AGP AGP 8X Mode Slot AGP Expansion Slot P.12
Page 11
6
Chapter 2
Hardware installation
2-1 Pre-Hardware installation
Before starting to use the computer with the motherboard installing the components on it,
please make sure complete the following steps:
1. To verify the settings of your motherboard
2. To install the CPU
3. To install the system memory
4. To install the expansion cards
5. To connect with ribbon cables, panel wires, and power supply
6. To setup BIOS
7. To install software driver & utility
2-2 To verify the jumper settings of the motherboard
(1) CPU Front Side Bus Frequency Setting (2x2-pin) : JP3, JP4
JP4 JP3 CPU CLK
OFF ON 100MHz
OFF OFF 133MHz (Default)
ON OFF 166MHz
ON ON 200MHz
CPU Front Side Bus Frequency Setting
100MHz
JP3
12
JP4
166MHz
200MHz
133MHz
(Default)
JP3
12
JP4
JP3
12
JP4
JP3
1 2
JP4
(2) CPU Ratio Select (2x5-pin) : JP7
Ratio 1 2 3 4 5 Ratio 1 2 3 4 5
AUTO OFF OFF OFF OFF OFF 9.0x ON ON ON OFF OFF
5.0x ON ON ON OFF ON 9.5x ON OFF ON OFF OFF
5.5x ON OFF ON OFF ON 10.0x ON ON OFF OFF OFF
6.0x ON ON OFF OFF ON 10.5x ON OFF OFF OFF OFF
6.5x ON OFF OFF OFF ON 11.0x ON ON ON ON ON
7.0X ON ON ON ON OFF 11.5x ON OFF ON ON ON
7.5x ON OFF ON ON OFF 12.0x ON ON OFF ON ON
8.0x ON ON OFF ON OFF 12.5x ON OFF OFF ON ON
8.5x ON OFF OFF ON OFF
Page 12
7
CPU Ratio Selector
JP7
1
2
3
4
5

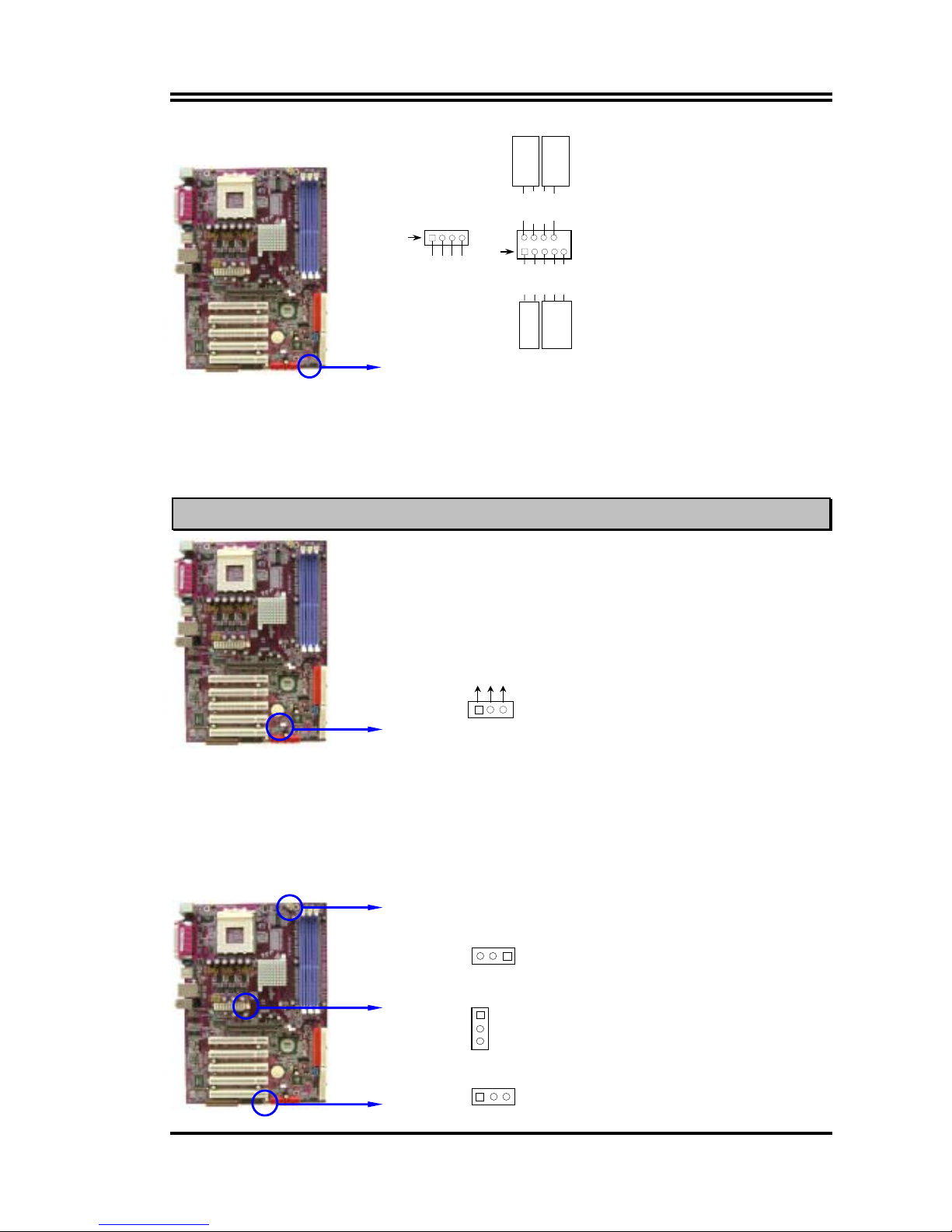

(3) Keyboard Power On function Enabled/Disabled: JP1
When setting Enabled you can using keyboard by key in password to power on system.
Keyboard Power On Setting
2-3 closed K/B Power ON Enabled
JP1
1 3
JP1
13
1-2 closed K/B Power ON Disable
(
Default
)
(4) CMOS RAM Clear (3-pin) : JBAT
A battery must be used to retain the motherboard configurations in CMOS RAM. To
close pin 1-2 of JBAT to store the CMOS data.
To clear the CMOS, follow the procedure below:
1. Turn the system power off and unplug the AC power
2. Remove ATX power cable from ATX power connector of the motherboard
3. To locate JBAT and close pin 2-3 for a few seconds
4. Return JBAT to its default setting by closing pin 1-2
5. To connect ATX power cable with ATX power connector of the motherboard
Note: When should clear the CMOS
1. Can’t remember the password setting up for BIOS
2. In any case when system boot fail
CMOS RAM Clear Setting
2-3 closed Clear CMOS
JBAT
1
3
JBAT
1
3
1-2 closed Normal
Page 13
8
2-3 To install the CPU
2-3-1 Glossary
Chipset (or core logic) - two or more integrated circuits which control the interfaces
between the system processor, RAM, I/O devises, and adapter cards.
Processor socket - the socket used to mount the system processor on the motherboard.
Slot (AGP, PCI, ISA, RAM DIMMs) - the slots used to mount adapter cards and system
RAM.
AGP - Accelerated Graphics Port - the high speed interface for video cards which runs at
1X (66MHz), 2X (133MHz), 4X (266MHz), and 8X (533MHz).
PCI - Peripheral Component Interconnect - the high speed interface for video cards, sound
cards, network interface cards, and modems which runs at 33MHz.
ISA - Industry Standard Architecture - the relatively low speed interface primarily used for
sound cards and modems which runs at approx. 8MHz.
Serial Port - the low speed interface typically used for mouse and external modems.
Parallel Port - the low speed interface typically used for printers.
PS/2 - the low speed interface used for mouse and keyboards.
USB - Universal Serial Bus - the medium speed interface typically used for mouse,
keyboards, scanners, and some digital cameras.
Sound (interface) - the interface between the sound card or integrated sound connectors and
speakers, MIC, game controllers, and MIDI sound devices.
LAN (interface) - Local Area Network - the interface links to local area network.
BIOS (Basic Input/Output System) - the program logic used to boot up a computer and
establish the relationship between various components.
Driver - software, which defines the characteristics of a device for use by another device or
other software.
Processor - the "central processing unit" (CPU); the principal integrated circuit used for
doing the "computing" in "personal computer"
Front Side Bus Frequency -
the working frequency of the motherboard, which is generated
by the clock generator for CPU, DRAM and PCI BUS.
CPU L2 Cache -
the flash memory inside the CPU, normally Athlon serial CPU has 256K or
above, and Duron has 64K.
Page 14
9
2-3-2 About AMD Athlon XP & Duron 462-pin CPU
This motherboard supports Socket-A (Socket-462) AMD Athlon XP /Duron processors.
This motherboard Provides a ZIF Socket-A. The CPU that comes with the motherboard
should have a cooling fan and heatsink attached to prevent overheating. If this is not the case,
then purchase a correct cooling fan with heatsink before you turn on your system.
WARNING!
Be sure that there is sufficient air circulation across the processor’s
heatsink, and CPU cooling FAN is working correctly. Otherwise it may
cause the processor and motherboard overheat and even damage, you may
install an auxiliary cooling FAN if it’s necessary.
WARNING!
Due to this motherboard provides new function of CPU over-heated
protection; make sure to connect the CPU FAN with the connector on
CPUFAN location of the motherboard in order to obtain this feature
works. Without connection with CPUFAN (or you have connected CPU
FAN with FAN1), the system will shut down immediately to protect both
your CPU and motherboard.
Over heat Protect:
Only for Athlon XP serial CPU, when the CPU overheated, the system
will auto shut down the power supply. You could hear a continual
beeps, and the power button will be locked up. Users must turn off and
turn on the AC power to reset the system, otherwise the power button
will no function, the other way is keeping press the push button few
seconds till the beeps stop, then release the power button and press the
power button again to turn on the system power supply.
To install a CPU, first turn off your system and remove its cover. To locate the ZIF socket
and open it by first pulling the level sideways away from the socket then upward to
90-degree. Insert the CPU with the correct orientation as shown below. The notched corner
should point toward the end of the level. Because the CPU has a corner pin for two of the
four corners, the CPU will only fit in the orientation as shown.
CPU ZIF Socket-A
Colden Arrow
Socket 462
When you put the CPU into the ZIF socket. No force needed to insert of the CPU, then
press the level to Locate position slightly without any extra force.
Page 15
10
2-4 To install the system memory
This motherboard provides three 184-pin DUAL INLINE MEMORY MODULES (DIMM)
sites for memory expansion available from minimum memory size of 64MB to maximum
memory size of 3.0GB DDR SDRAM.
Valid Memory Configurations
Bank 184-Pin DIMM PCS Total Memory
Bank 0, 1 (DDR1) PC2100/PC2700/PC3200 DDR SDRAM X1
64MB∼1.0GB
Bank 2, 3 (DDR2) PC2100/PC2700/PC3200 DDR SDRAM X1
64MB∼1.0GB
Bank 4, 5 (DDR3) PC2100/PC2700/PC3200 DDR SDRAM X1
64MB∼1.0GB
Total System Memory (Max. 3.0GB) 3
64MB∼3.0GB
NOTE!
Make sure the total installed memory does not exceed 3.0GB, otherwise the
system may hang during startup.
Generally speaking, installing DDR SDRAM modules to your motherboard is very easy,
you can refer to figure 2-4 to see what a 184-Pin PC2100/PC2700/PC3200 DDR SDRAM
module looks like.
DDR2 ( BANK2+ BANK3)
DDR1 ( BANK0+ BANK1)
DDR3 ( BANK4+ BANK5)
NOTE!
When you install DIMM modules fully into the DIMM sockets the eject tab
should be locked into the DIMM modules firmly and fit to its indention on
both sides.
WARNING!
For the DDR SDRAM CLOCK is set at 166MHz, use only PC2700-
compliant DDR Modules. When this motherboard operate at 133Mhz,
most system will not even boot if non-compliant modules are used because
of the strict timing issues, if your DDR Modules are not PC2100-compliant,
set the DDR SDRAM clock to 100MHz to ensure system stability.
Figure 2-4
Page 16
11
2-5 To install the Expansion Cards
WARNING!
Turn off your power when adding or removing expansion cards or other
system components. Failure to do so may cause severe damage to both
your motherboard and expansion cards.
2-5-1 Procedure For Expansion Card Installation
1. To read documentations or manuals for your expansion cards and make any necessary
hardware or software settings for your expansion card such as jumpers.
2. To remove your computer’s cover and the bracket plate on the slot you intend to use.
3. To align the card’s connectors and press firmly.
4. To secure the card on the slot with the screen you remove above.
5. To replace the computer system’s cover.
6. To set up the BIOS if it’s necessary.
7. To install the necessary software drivers for your expansion cards.
2-5-2 Assigning IRQs For Expansion Card
Some expansion cards need to assign an IRQ address to operate. Generally speaking, an
IRQ address must exclusively assign to one use only. With standard factory design, there
are 16 IRQs available, but most of them are already in use.
Standard Interrupt Assignments
IRQ Priority Standard function
0 N/A System Timer
1 N/A Keyboard Controller
2 N/A Programmable Interrupt
3 * 8 Communications Port (COM2)
4 * 9 Communications Port (COM1)
5 * 6 Sound Card (sometimes LPT2)
6 * 11 Floppy Disk Controller
7 * 7 Printer Port (LPT1)
8 N/A System CMOS/Real Time Clock
9 * 10 ACPI Mode when enabled
10 * 3 IRQ Holder for PCI Steering
11 * 2 IRQ Holder for PCI Steering
12 * 4 PS/2 Compatible Mouse Port
13 N/A Numeric Data Processor
14 * 5 Primary IDE Channel
15 * 1 Secondary IDE Channel
* These IRQs are usually available for ISA or PCI devices.
Page 17
12
2-5-3 Interrupt Request Table For This Motherboard
Interrupt requests are shared as shown the table below:
INT A INT B INT C INT D
PCI slot 1 Shared
PCI slot 2
Shared
PCI slot 3
Shared
PCI slot 4
Shared
PCI slot 5 Shared
AGP slot Shared
AC97/MC97
Shared
Onboard USB
Shared
Onboard USB 1
Shared
Onboard USB 2
Shared
IMPORTANT! While using PCI cards on shared slots, make sure that the drivers
support “Shared IRQ” or that the cards don’t need IRQ assignments.
Conflicts will arise between the two PCI groups that will make the
system unstable or cards inoperable.
This motherboard provides an AGP Slot, support the 4X/8X AGP VGA card.
AGP SLOT
2-6-
Page 18
13
2-6 Connectors and pin headers
2-6-1 Connectors

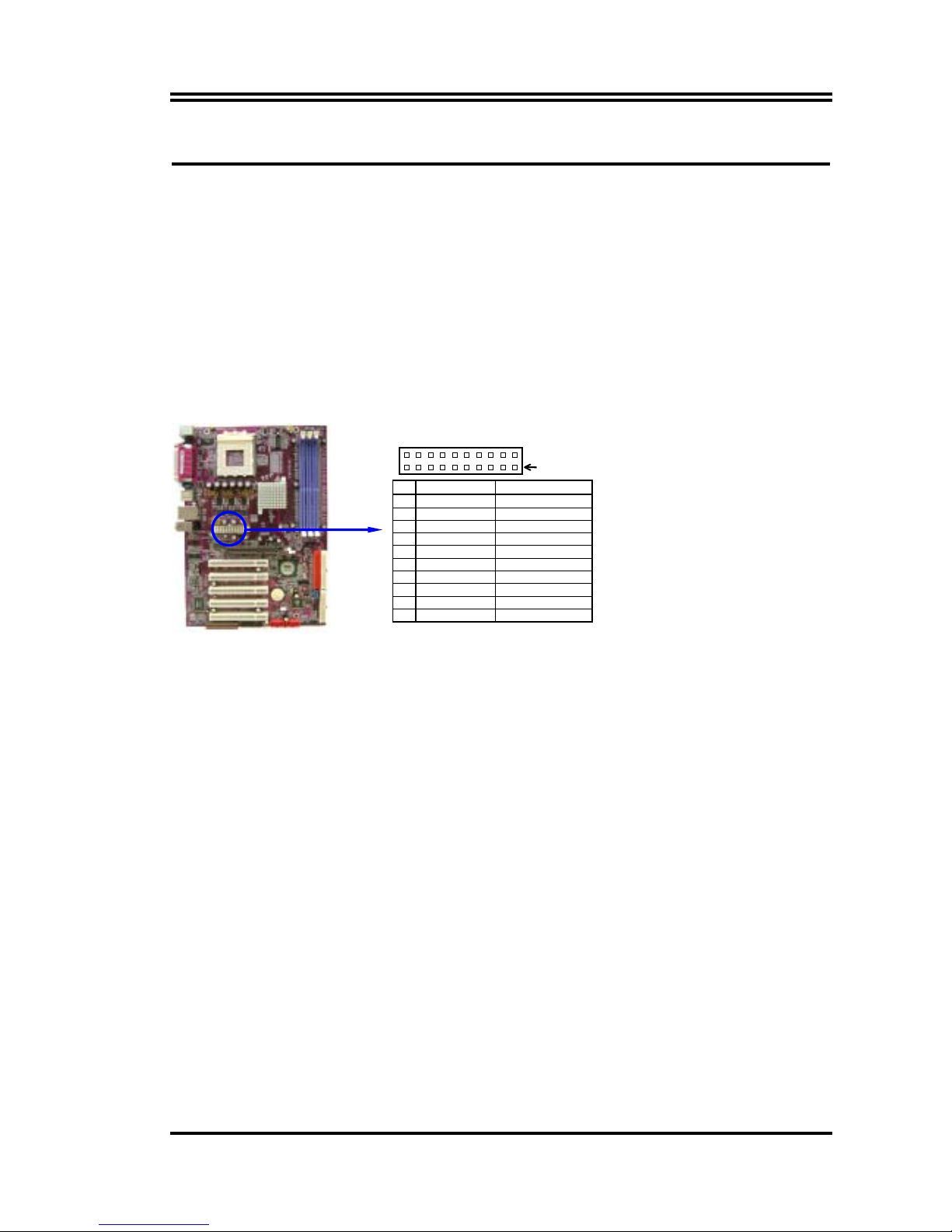

(1) Power Connector (20-pin block) : ATXPOW
ATX Power Supply connector. This is a new defined 20-pins connector that usually
comes with ATX case. The ATX Power Supply allows to use soft power on momentary
switch that connect from the front panel switch to 2-pins Power On jumper pole on the
motherboard. When the power switch on the back of the ATX power supply turns on,
the full power will not come into the system board until the front panel switch is
momentarily pressed. Press this switch again will turn off the power to the system
board.
PIN ROW2 ROW1
1 3.3V 3.3V
2 -12V 3.3V
3 GND GND
4 Soft Power On 5V
5 GND GND
6 GND 5V
7 GND GND
8 -5V Power OK
9 +5V +5V (for Soft Logic)
10 +5V +12V
Pin 1

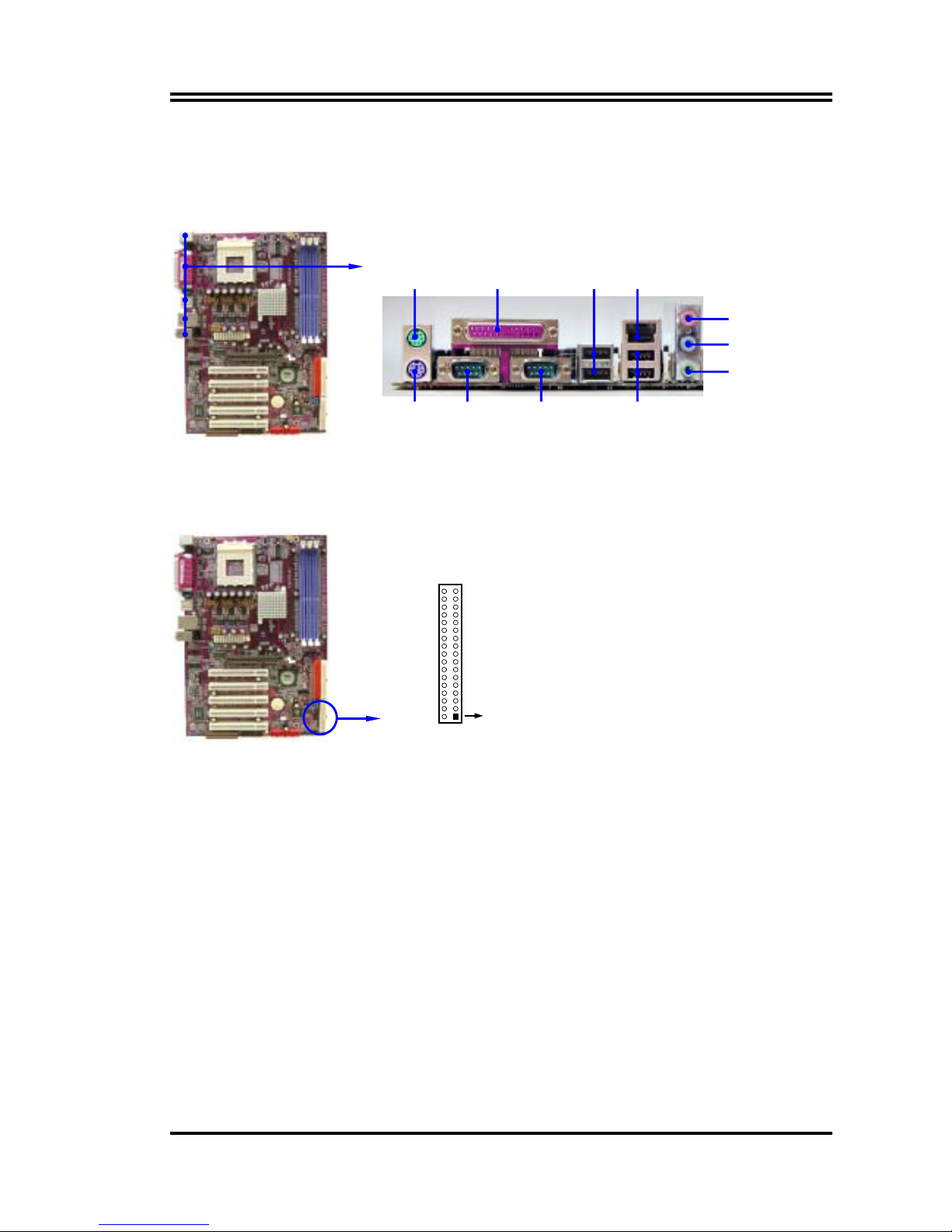

(2) PS/2 Mouse & PS/2 Keyboard Connector: J1
The connectors for PS/2 keyboard and PS/2 Mouse.
(3) USB Port connector: USB/J2
The connectors are 4-pin connector that connect USB devices to the system board.
(4) LAN Port connector: LAN (only for V600DAP)
This connector is standard RJ45 connector for Network
(5) Parallel Port Connector (25-pin female): PARALLEL
Parallel Port connector is a 25-pin D-Subminiature Receptacle connector. The
On-board Parallel Port can be disabled through the BIOS SETUP. Please refer to
Chapter 3 “INTEGRATED PERIPHERALS SETUP” section for more detail
information.
(6) Audio Connector : CN1
This Connector are 3 phone Jack for LINE-OUT, LINE-IN, MIC
Line-out :
Audio output to speaker
Line-in :
Audio input to sound chip
MIC :
Microphone Connector
Page 19
14
(7) Serial Port COM1, COM2 : COM1, COM2
COM1, COM2 are the 9-pin D-Subminiature mail connector. The On-board serial port
can be disabled through BIOS SETUP. Please refer to Chapter 3 “INTEGRATED
PERIPHERALS SETUP” section for more detail information.
(8) Floppy drive Connector (34-pin block): FDD
This connector supports the provided floppy drive ribbon cable. After connecting the
single plug end to motherboard, connect the two plugs at other end to the floppy drives.
Pin 1
Floppy Drive Connector
(9) Primary IDE Connector (40-pin block): IDE1
This connector supports the provided IDE hard disk ribbon cable. After connecting the
single plug end to motherboard, connect the two plugs at other end to your hard disk(s).
If you install two hard disks, you must configure the second drive to Slave mode by
setting its jumpers accordingly. Please refer to the documentation of your hard disk for
the jumper settings.
(10) Secondary IDE Connector (40-pin block): IDE2
This connector connects to the next set of Master and Slave hard disks. Follow the
same procedure described for the primary IDE connector. You may also configure
two hard disks to be both Masters using one ribbon cable on the primary IDE connector
and another ribbon cable on the secondary IDE connector.
USB1
LINE-OUT
LINE-IN
MIC
PS/2 Mouse
PRINT LAN
COM1
COM2
PS/2 Keyboard USB
Page 20
15
Pin 1
IDE2
Pin 1
IDE1
•
Two hard disks can be connected to each connector. The first HDD is referred to as
the “Master” and the second HDD is referred to as the “Slave”.
•
For performance issues, we strongly suggest you don’t install a CD-ROM or
DVD-ROM drive on the same IDE channel as a hard disk. Otherwise, the system
performance on this channel may drop.
(11) Serial-ATA Port connector: SATA1/SATA2
This connector support the provided Serial ATA IDE hard disk cable to connecting the
motherboard and serial ATA hard disk.
Serial-ATA Port Connector
Pin 1
SATA2
SATA1
2-6-2 Pin headers
(1) Line-Out, MIC Header (9-pin): AUDIO
This header connect to Front Panel Line-out, MIC connector with cable.
Line-Out, MIC Headers
A
UDI O
Pin 1
AUD
_
MIC
AUD
_
FPOUT
_
L
AUD
_
MIC
_
BI AS
AUD
_
FPOUT
_
R
AUD
_
GND
AUD
_
RET
_
L
AUD
_
RE
T
_
R
HP
_
ON
AUD
_
VCC
2
9
10
Page 21
16

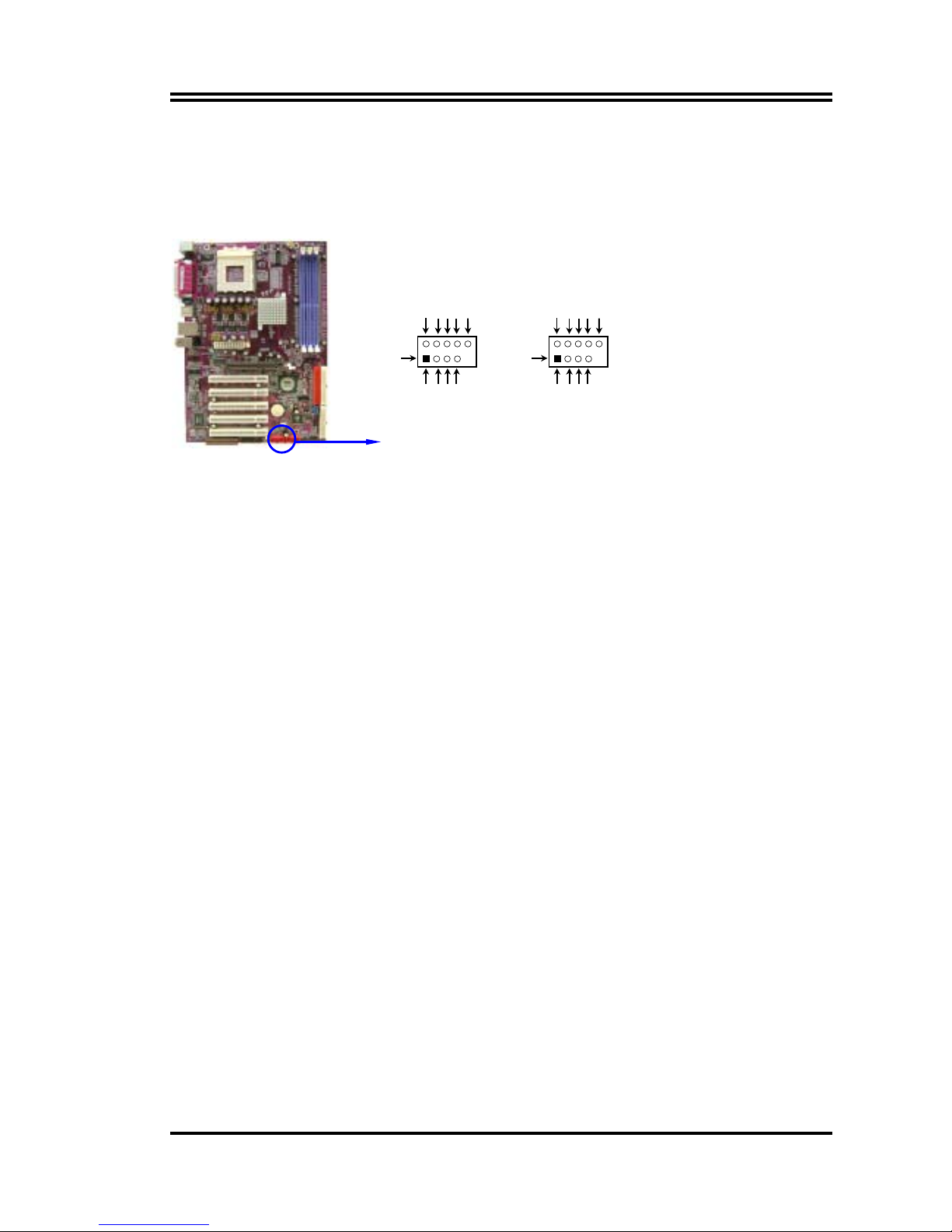

(2) USB Port Headers (9-pin) : USB1, USB2
These headers are used for connecting the additional USB port plug. By attaching an
option USB cable, your can be provided with two additional USB plugs affixed to the
back panel.
USB Port Headers
Pin 1
USB1
VCC
-
DAT
A
GND
+ DATA
VCC
OC
-
DATA
GND
+ DATA
Pin 1
USB2
VCC
-
DAT
A
GND
+ DATA
VCC
OC
-
DATA
GND
+ DATA
(3) IDE Activity LED: IDE LED
This connector connects to the hard disk activity indicator light on the case.
(4) Turbo LED switch: TB LED
Since the motherboard’s turbo function is always on. The turbo LED will remain
constantly on while the system power is on. You may wish to connect the Power LED
from the system case to this lead. See the figure below.
(5) Reset switch lead: RESET
This 2-pin connector connects to the case-mounted reset switch for rebooting your
computer without having to turn off your power switch. This is a preferred method of
rebooting in order to prolong the lift of the system’s power supply. See the figure
below.
(6) Speaker connector: SPEAKER
This 4-pin connector connects to the case-mounted speaker. See the figure below.
(7) Power LED: PWR LED
The Power LED is light on while the system power is on. Connect the Power LED
from the system case to this pin.
(8) Power switch: PW BN
This 2-pin connector connects to the case-mounted power switch to power ON/OFF the
system.
Page 22
17
System Case Connections
HDLED
RESET
VCC5
GND
VCC5
PWR LED
PWRBTN
PWRBTN
PWRLED
HDDLED
RST S W
NC
GND
JW_FPSPEAK
SPK
R
GND
NC
VCC5
Pin 1
Pin 1
(9) Wake On-LAN Headers (3-pin) : WOL
This connector connects to a LAN card with a WAKE ON-LAN output. This
connector power up the system when a wake up signal is received through the LAN
card.
NOTE:
This feature requires that Wake On LAN or Ring In Wake up is enabled.
Wake-On-LAN Headers
WOL
13
5VSB
GND
WOL
(10) FAN Speed Headers (3-pin) : FAN1, FAN2, CPUFAN
These connectors support cooling fans of 350mA (4.2 Watts) or less, depending on the
fan manufacturer, the wire and plug may be different. The red wire should be positive,
while the black should be ground. Connect the fan’s plug to the board taking into
consideration the polarity of connector.
CPUFAN
13
FAN2
13
FAN1
1
3
Page 23
18
(11) IR infrared module Headers (9-pin) : IR
This connector supports the optional wireless transmitting and receiving infrared
module. You must configure the setting through the BIOS setup to use the IR
function.
IR infrared module Headers
IR
Pin 1
GND
IRRX
NC
VCC
IRTX
2
5
6
(12) CD Audio-In Headers (4-pin) : CDIN1
CDIN1 is the connector for CD-Audio Input signal. Please connect it to CD-ROM
CD-Audio output connector.
CD Audio-In Headers
1
4
CDI N 1
(13) Game Port Header: GAME (Cable option)
Pin 1
GAME Port Header
Page 24
19
2-7 Starting up your computer
1. After all connection are ready, close your computer case cover.
2. Be sure all the switches are off, and check that the power supply input voltage is set to
proper position, usually in-put voltage is 220V∼240V or 110V∼120V depending on your
country’s voltage used.
3. Connect the power supply cord into the power supply located on the back of your system
case according to your system user’s manual.
4. Turn on your peripherals as following order:
a. Your monitor.
b. Other external peripherals (Printer, Scanner, External Modem etc…)
c. Your system power. For ATX power supplies, you need to turn on the power
supply and press the ATX power switch on the front side of the case.
5. The power LED on the front panel of the system case will light. The LED on the
monitor may light up or switch between orange and green after the system is on. If it
complies with green standards or if it is has a power standby feature. The system will
then run power-on test. While the test are running, the BIOS will alarm beeps or
additional message will appear on the screen.
If you do not see any thing within 30 seconds from the time you turn on the power. The
system may have failed on power-on test. Recheck your jumper settings and connections
or call your retailer for assistance.
Beep Meaning
One short beep when displaying logo No error during POST
Long beeps in an endless loop No DRAM install or detected
One long beep followed by three short
beeps
Video card not found or video card memory
bad
High frequency beeps when system is
working
CPU overheated
System running at a lower frequency
6. During power-on, press <Delete> key to enter BIOS setup. Follow the instructions in
BIOS SETUP.
7.
Power off your computer:
You must first exit or shut down your operating system
before switch off the power switch. For ATX power supply, you can press ATX power
switching after exiting or shutting down your operating system. If you use Windows
9X, click
“Start”
button, click
“Shut down”
and then click
“Shut down the
computer?”
The power supply should turn off after windows shut down.
Page 25
20
Chapter 3
Introducing BIOS Settings
The BIOS is a program located on a Flash Memory of the motherboard. Using this program
as a bridge between motherboard and operating system. When the computer starting to
work, the BIOS program gain control. The BIOS first operates an auto-diagnostic test
called POST (power on self test) for all the necessary hardware, it detects the entire hardware
device and configures the parameters of the hardware synchronization. Only when these
tasks are completed done it gives up control of the computer to operating system (OS).
Since the BIOS is the only channel for hardware and software to communicate, it is the key
factor for system stability, and in ensuring that your system performance as its best.
In the BIOS Setup main menu of Figure 3-1, you can see several options. We will explain
these options step by step in the following pages of this chapter, but let us first see a short
description of the function keys you may use here:
•
Press <Esc> to quit the BIOS Setup.
•
Press
↑↓←→
(up, down, left, right) to choose, in the main menu, the option you want
to confirm or to modify.
•
Press <F10> when you have completed the setup of BIOS parameters to save these
parameters and to exit the BIOS Setup menu.
•
Press Page Up/Page Down or +/– keys when you want to modify the BIOS parameters
for the active option.
3-1 Entering Setup
Power on the computer and by pressing <Del> immediately allows you to enter BIOS
Setup. If the message disappears before your respond and you still wish to enter BIOS
Setup, restart the system to try again by turning it OFF then ON or pressing the “RESET”
button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>
and <Delete> keys. If you do not press the keys at the correct time and the system does not
boot, an error message will be displayed and you will again be asked to
Press <F1> to continue, <Ctrl-Alt-Esc> or <Del> to enter Setup
Page 26
21
3-2 Getting Help
Main Menu
The on-line description of the highlighted setup function is displayed at the bottom of the
screen.
Status Page Setup Menu/Option Page Setup Menu
Press F1 to pop up a small help window that describes the appropriate keys to use and the
possible selections for the highlighted item. To exit the Help Window, press <Esc>.
3-3 The Main Menu
Once you enter Award BIOS CMOS Setup Utility, the Main Menu (Figure 3-1) will appear
on the screen. The Main Menu allows you to select from fourteen setup functions and two
exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter
the sub-menu.
CMOS Setup Utility – Copyright(C) 1984-2003 Award Software
Standard CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status
Miscellaneous Control
Load optimized Defaults
Load Standard Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
Esc : Quit
↑↓→←
: Select Item
F10 : Save & Exit Setup
Time, Date, Hard Disk Type...
Figure 3-1
Page 27
22
Standard CMOS Features
Use this Menu for basic system configurations.
Advanced BIOS Features
Use this menu to set the Advanced Features available on your system.
Advanced Chipset Features
Use this menu to change the values in the chipset registers and optimize your system’s
performance.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
Power Management Setup
Use this menu to specify your settings for power management.
PnP/PCI configurations
This entry appears if your system supports PnP/PCI.
PC Health Status
This entry shows your PC health status.
Miscellaneous Control
Use this menu to specify your settings for Miscellaneous control.
Load Optimized Defaults
Use this menu to load the BIOS default values that are factory settings for optimal
performances system operations.
Load Standard Defaults
Use this menu to load the BIOS default values for the minimal/stable performance system
operation.
Set Supervisor/User Password
Use this menu to set User and Supervisor Passwords.
Save & Exit Setup
Save CMOS value changes to CMOS and exit setup.
Exit Without Saving
Abandon all CMOS value changes and exit setup.
Page 28
23
3-4 Standard CMOS Features
The items in Standard CMOS Setup Menu are divided into several categories. Each
category includes no, one or more than one setup items. Use the arrow keys to highlight the
item and then use the <PgUp> or <PgDn> keys to select the value you want in each item.
CMOS Setup Utility – Copyright(C) 1984-2003 Award Software
Standard CMOS Features
Item Help
Date (mm:dd:yy) Tue, Jul, 24 2003
Time (hh:mm:ss) 16 : 45 : 35
> IDE Primary Master Press Enter None
> IDE Primary Slave Press Enter None
> IDE Secondary Master Press Enter None
> IDE Secondary Slave Press Enter None
Drive A 1.44M, 3.25 in.
Drive B None
Video EGA/VGA
Halt On All,But Keyboard
Base Memory 640K
Extended Memory 56320K
Total Memory 57344K
Menu Level >
Change the day, month,
year and century
↑↓→←
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Date
The date format is <day><month><date><year>.
Day
Day of the week, from Sun to Sat, determined by BIOS. Read-only.
Month
The month from Jan. through Dec.
Date
The date from 1 to 31 can be keyed by numeric function keys.
Year
The year depends on the year of the BIOS.
Time
The time format is <hour><minute><second>.
Primary Master/Primary Slave
Secondary Master/Secondary Slave
Press PgUp/<+> or PgDn/<–> to select Manual, None, Auto type. Note that the
specifications of your drive must match with the drive table. The hard disk will not work
properly if you enter improper information for this category. If your hard disk drive type is
not matched or listed, you can use Manual to define your own drive type manually.
If you select Manual, related information is asked to be entered to the following items.
Enter the information directly from the keyboard. This information should be provided in
the documentation from your hard disk vendor or the system manufacturer.
If the controller of HDD interface is SCSI, the selection shall be “None”.
Page 29
24
If the controller of HDD interface is CD-ROM, the selection shall be “None”
Access Mode
The settings are Auto Normal, Large, and LBA.
Cylinder
number of cylinders
Head
number of heads
Precomp
write precomp
Landing Zone
landing zone
Sector
number of sectors
3-5 Advanced BIOS Features
CMOS Setup Utility – Copyright(C) 1984-2003 Award Software
Advanced BIOS Features
Item Help
Anti-Virus Protection Disabled
Cooling Sprite Disabled
CPU L1 Cache Enabled
CPU L2 Cache Enabled
Processor SSE Feature Enabled
Quick Power On Self Test Enabled
HDD Boot Sprite Disabled
First Boot Device Floppy
Second Boot Device HDD-0
Third Boot Device CDROM
Boot other Device Enabled
Swap Floppy Drive Disabled
Boot Up Floppy Seek Enabled
Boot Up NumLock Status On
Gate A20 Option Normal
Typematic Rate Setting Disabled
Typematic Rate (Chars/Sec) 6
Typematic Delay (Msec) 250
Security Option Setup
OS Select For DRAM > 64MB Non-OS2
HDD S.M.A.R.T. Capability Disabled
Report No FDD for Windows Yes
Video BIOS Shadow Enabled
Menu Level >
↑↓→←
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Anti-Virus Protection
Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot sector protection.
If this function is enabled and someone attempt to write data into this area, BIOS will show a
warning message on screen and alarm beep.
Disabled
(default) No warning message to appear when anything attempts to access the
boot sector or hard disk partition table.
Page 30
25
Enabled
Activates automatically when the system boots up causing a warning
message to appear when anything attempts to access the boot sector
of hard disk partition table.
CPU L1 Cache
The default value is Enabled.
Enabled
(default) Enable cache
Disabled
Disable cache
Note: The internal cache is built in the processor.
CPU L2 Cache
Choose Enabled or Disabled. This option enables the Level 2 cache memory.
Processor SSE Feature
Choose Enabled or Disabled. This option enables the AMD Athlon XP SSE Feature.
Quick Power On Self-Test
This category speeds up Power On Self Test (POST) after you power on the computer. If
this is set to Enabled. BIOS will shorten or skip some check items during POST.
Enabled
(default) Enable quick POST
Disabled
Normal POST
First/Second/Third/Fourth Boot Device
The BIOS attempts to load the operating system from the devices in the sequence selected in
these items. The settings are Floppy, LS/ZIP, HDD-0/HDD-1/HDD-3, SCSI, CDROM,
LAD and Disabled.
Swap Floppy Drive
Switches the floppy disk drives between being designated as A and B. Default is Disabled.
Boot Up Floppy Seek
During POST, BIOS will determine if the floppy disk drive installed is 40 or 80 tracks.
360K type is 40 tracks while 760K, 1.2M and 1.44M are all 80 tracks.
Boot Up NumLock Status
The default value is On.
On
(default) Keypad is numeric keys.
Off
Keypad is arrow keys.
Gate A20 Option
Normal
The A20 signal is controlled by keyboard controller or chipset hardware.
Fast
(default) The A20 signal is controlled by port 92 or chipset specific method.
Page 31
26
Typematic Rate Setting
Keystrokes repeat at a rate determined by the keyboard controller. When enabled, the
typematic rate and typematic delay can be selected. The settings are: Enabled/Disabled.
Typematic Rate (Chars/Sec)
Sets the number of times a second to repeat a keystroke when you hold the key down. The
settings are: 6, 8, 10, 12, 15, 20, 24, and 30.
Typematic Delay (Msec)
Sets the delay time after the key is held down before is begins to repeat the keystroke. The
settings are 250, 500, 750, and 1000.
Security Option
This category allows you to limit access to the system and Setup, or just to Setup.
System
The system will not boot and access to Setup will be denied if the
correct password is not entered at the prompt.
Setup
(default) The system will boot, but access to Setup will be denied if the correct
password is not entered prompt.
OS Select For DRAM > 64MB
Allows OS2 to be used with >64MB or DRAM. Settings are Non-OS/2 (default) and OS2.
Set to OS/2 if using more than 64MB and running OS/2.
Page 32
27
3-6 Advanced Chiset Features
The Advanced Chipset Features Setup option is used to change the values of the chipset
registers. These registers control most of the system options in the computer.
CMOS Setup Utility – Copyright(C) 1984-2003 Award Software
Advanced Chipset Features
Item Help
> DRAM Timing Settings Press Enter
> AGP Timing Settings Press Enter
> PCI Timing Settings Press Enter
System BIOS Cacheable Disabled
Video RAM Cacheable Disabled
Memory Hole Disabled
Menu Level >
↑↓→←
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
DRAM Timing Settings
Please refer to section 3-6-1
AGP Timing Settings
Please refer to section 3-6-2
PCI Timing Settings
Please refer to section 3-6-3
System BIOS Cacheable
Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh, resulting in
better system performance. However, if any program writes to this memory area, a system
error may result. The settings are: Enabled and Disabled.
Video RAM Cacheable
Select Enabled allows caching of the video BIOS, resulting in better system performance.
However, if any program writes to this memory area, a system error may result. The settings
are: Enabled and Disabled.
Memory Hole
You can reserve this area of system memory for ISA adapter ROM. When this area is
reserved, it cannot be cached. The user information of peripherals that need to use this area
of system memory usually discusses their memory requirements. The settings are: Enabled
and Disabled.
Page 33
28
3-6-1 DRAM Timing Settings
CMOS Setup Utility – Copyright(C) 1984-2003 Award Software
DRAM Timing Settings
Item Help
Auto Configuration By SPD
x RAS Active Time 7T
x RAS Precharge Time 3T
x RAS to CAS Delay 3T
CAS Latency 2.5T
Bank Interleave 4 Bank
DRAM Command Rate 2T Command
DRAM Queue Depth 4 Level
Menu Level >>
↑↓→←
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
RAS Active Time
This field let’s you insert a timing delay between the CAS and RAS strobe signals, used
when DRAM is written to, read from, or refreshed. Fast gives faster performance; and Slow
gives more stable performance. This field applies only when synchronous DRAM is
installed in the system. The settings are: 2T and 3T.
RAS Precharge Time
If an insufficient number of cycles is allowed for the RAS to accumulate its charge before
DRAM refresh, the refresh may be incomplete and the DRAM may fail to retain date. Fast
gives faster performance; and Slow gives more stable performance. This field applies only
when synchronous DRAM is installed in the system. The settings are: 2T and 3T.
CAS Latency
When synchronous DRAM is installed, the number of clock cycles of CAS latency depends
on the DRAM timing. The settings are: 2T and 2.5T.
Page 34
29
3-6-2 AGP Timing Settings
CMOS Setup Utility – Copyright(C) 1984-2003 Award Software
AGP Timing Settings
Item Help
AGP Transfer Aperture Size 64M
AGP Mode Auto
AGP Driving Control Auto
x AGP Driving Value DA
AGP Fast Write Disabled
AGP Master 1 WS Write Enabled
AGP Master 1 WS Read Enabled
CPU to AGP Post Write Enabled
AGP Delay Transaction Enabled
Menu Level >>
↑↓→←
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Note: Change these settings only if you are familiar with the chipset.
3-6-3 PCI Timing Settings
CMOS Setup Utility – Copyright(C) 1984-2003 Award Software
PCI Timing Settings
Item Help
PCI Master 1 WS Write Disabled
PCI Master 1 WS Read Disabled
CPU to AGP Post Write Enabled
PCI Delay Transaction Disabled
Menu Level >>
↑↓→←
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
PCI Delay Transaction
The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles.
Select Enabled to support compliance with PCI specification version 2.1. The settings are:
Enabled and Disabled.
Page 35
30
3-7 Integrated Peripherals
CMOS Setup Utility – Copyright(C) 1984-2003 Award Software
Integrated Peripherals
Item Help
> OnChip IDE Function Press Enter
> OnChip Device Function Press Enter
> Onboard Super IO Function Press Enter
Init Display First PCI Slot
Menu Level >
↑↓→←
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
OnChip IDE Function
Please refer to section 3-7-1
OnChip Device Function
Please refer to section 3-7-2
Onboard Super IO Function
Please refer to section 3-7-3
Init Display First
This item allows you to decide to activate whether PCI Slot or AGP VGA first. The
settings are: PCI Slot, AGP Slot.
Page 36
31
3-7-1 OnChip IDE Function
CMOS Setup Utility – Copyright(C) 1984-2003 Award Software
OnChip IDE Function
Item Help
OnChip IDE Channel0 Enabled
OnChip IDE Channel1 Enabled
Primary Master PIO Auto
Primary Slave PIO Auto
Secondary Master PIO Auto
Secondary Slave PIO Auto
Primary Master UDMA Auto
Primary Slave UDMA Auto
Secondary Master UDMA Auto
Secondary Slave UDMA Auto
IDE HDD Block Mode Enabled
IDE 32-bit Transfer Mode Enabled
IDE DMA Transfer Access Enabled
IDE Prefetch Mode Enabled
Delay For HDD (Secs) 0
Menu Level >>
↑↓→←
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
OnChip IDE Channal0/Channel1
The integrated peripheral controller contains an IDE interface with support for two IDE
channels. Select Enabled to activate each channel separately. The settings are: Enabled
and Disabled.
Primary/Secondary Master/Slave PIO
The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each of
the four IDE devices that the onboard IDE interface supports. Modes 0 through 4 provide
successively increased performance. In Auto mode, the system automatically determines the
best mode for each device. The settings are: Auto, Mode 0, Mode 1, Mode 2, Mode 3,
Mode 4.
Primary/Secondary Master/Slave UDMA
Ultra DMA/33 implementation is possible only if your IDE hard drive supports it and the
operating environment includes a DMA driver (Windows 95 OSR2 or a third-party IDE bus
master driver). If your hard drive and your system software both support Ultra DMA/33
and Ultra DMA/66, select Auto to enable BIOS support. The settings are: Auto, Disabled.
IDE HDD Block Mode
Block mode is also called block transfer, multiple commands, or multiple sector read/write.
If your IDE hard drive supports block mode (most new drives do), select Enabled for
automatic detection of the optimal number of block read/writes per sector the drive can
support. The settings are: Enabled, Disabled.
Page 37
32
3-7-2 OnChip Device Function
CMOS Setup Utility – Copyright(C) 1984-2003 Award Software
OnChip Device Function
Item Help
VIA LAN Function Enabled
VIA LAN Boot ROM Disabled
AC97 Sound Device Auto
AC97 Modem Device Auto
Game Port Address 201
Midi Port Address Disabled
Midi Port IRQ 10
USB Host Controller Enabled
USB Keyboard Legacy Support Disabled
Menu Level >>
↑↓→←
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
AC97 Sound Device
This item allows you to decide to enable/disable the chipset family to support AC97 Audio.
The settings are: Enabled, Disabled.
Game Port Address/Midi Port Address
This will determine which Address the Game Port/Midi Port will use.
AC97 Modem Device
This item allows you to decide to enable/disable the chipset family to support AC97 Modem.
The settings are: Auto, Disabled.
USB Host Controller
Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have
a USB peripherals. The settings are: Enabled, Disabled.
USB Keyboard Support
Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have
a USB keyboard. The settings are: Enabled, Disabled.
←
(Only for V600DAP)
Page 38
33
3-7-3 Onboard Super IO Function
CMOS Setup Utility – Copyright(C) 1984-2003 Award Software
Onboard Super IO Function
Item Help
Onboard FDD Controller Enabled
Onboard Serial Port 1 3F8/IRQ4
Onboard Serial Port 2 2F8/IRQ3
UART2 Mode Normal
RxD, TxD Active Hi, Lo
IR Duplex Mode Half
Use IR Pins IRRX/IRTX
Onboard Parallel Port 378/IRQ7
Parallel Mode SPP
EPP Mode Select EPP1.7
ECP Mode Use DMA 3
Menu Level >>
↑↓→←
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Onboard FDD Controller
Select Enabled if your system has a floppy disk controller (FDD) installed on the system
board and you wish to use it. If you install add-on FDC or the system has no floppy drive,
select Disabled in this field. The settings are: Enabled and Disabled.
Onboard Serial Port 1/Port 2
Select an address and corresponding interrupt for the first and the second serial ports. The
settings are: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/IRQ3, Disabled, Auto.
UART2 Mode
This item allows you to determine which InfraRed(IR) function of the onboard I/O chip, this
functions uses.
Onboard Parallel Port
There is a built-in parallel port on the on-board Super I/O chipset that Provides Standard,
ECP, and EPP features. It has the following option:
Disabled
(3BCH/IRQ7)/
Line Printer port 0
(278H/IRQ5)/
Line Printer port 2
(378H/IRQ7)
Line Printer port 1
Parallel Port Mode
SPP : Standard Parallel Port
EPP : Enhanced Parallel Port
ECP : Extended Capability Port
Page 39
34
SPP/EPP/ECP/ECP+EPP
To operate the onboard parallel port as Standard Parallel Port only, choose “SPP.” To
operate the onboard parallel port in the EPP modes simultaneously, choose “EPP.” By
choosing “ECP”, the onboard parallel port will operate in ECP mode only. Choosing
“ECP+EPP” will allow the onboard parallel port to support both the ECP and EPP modes
simultaneously. The ECP mode has to use the DMA channel, so choose the onboard
parallel port with the ECP feature. After selecting it, the following message will appear:
“ECP Mode Use DMA” at this time, the user can choose between DMA channels 3 to 1.
The onboard parallel port is EPP Spec. compliant, so after the user chooses the onboard
parallel port with the EPP function, the following message will be displayed on the
screen: “EPP Mode Select.” At this time either EPP 1.7 spec. or EPP 1.9 spec. can be
chosen.
3-8 Power Management Setup
The Power Management Setup allows you to configure your system to most effectively save
energy saving while operating in a manner consistent with your own style of computer use.
CMOS Setup Utility – Copyright(C) 1984-2003 Award Software
Power Management Setup
Item Help
ACPI Function Enabled
Video Off Option Suspend -> off
Video off Method V/H SYNC+Blank
MODEM Use IRQ 3
Power Button Function Instant-Off
State After Power Failure Auto
> Wake Up Events Press Enter
Menu Level >
↑↓→←
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
ACPI Function
This item allows you to Enabled/Disabled the Advanced Configuration and Power Management
(ACPI). The settings are Enabled and Disabled.
Video Off Option
This determines the manner in which the monitor is blanked. The choice are Suspend →
off, All Modes → Off, and Always On.
Page 40
35
Video Off Method
This determines the manner in which the monitor is blanked.
DPMS
(default) Initial display power management signaling.
Blank Screen
This option only writes blanks to the video buffer.
V/H SYNC+Blank
This selection will cause the system to turn off the vertical and
horizontal synchronization ports and write blanks to the video
buffer.
Modem Use IRQ
This determines the IRQ in which the MODEM can use.
The settings are: 3, 4, 5, 7, 9, 10, 11, NA.
Power Button Function
Pressing the power button for more than 4 seconds forces the system to enter the Soft-Off
state. The settings are: Delay 4 Sec, Instant-Off.
State After Power Failure
This item allows the system power ON/OFF automatic when power loss and recovery again,
you can choose Auto for recovery pre-state, or always ON/OFF after power recovery.
Wake Up Events
Please refer to section 3-8-1
3-8-1 Wake up Events
CMOS Setup Utility – Copyright(C) 1984-2003 Award Software
Wake Up Events
Item Help
VGA OFF
LPT & COM LPT/COM
HDD & FDD ON
PCI Master OFF
Wake-Up on LAN/Ring Disabled
Wake-Up on PCI PME Disabled
Wake-Up On Hot Key (PS2 KB) Disabled
RTC Alarm Resume Disabled
x Date of Month Alarm 0
x Time (hh:mm:ss) Alarm 0 : 0 : 0
> IRQs Activities Press Enter
Menu Level >>
↑↓→←
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Wake Up On Ring/PME
During Disabled, the system will ignore any incoming call from the modem. During
Enabled, the system will boot up if there’s an incoming call from the modem.
Page 41
36
Wake-Up on RTC Alarm
This function is for setting date and time for your computer to boot up. During Disabled,
you cannot use this function. During Enabled, choose the Date and Time Alarm:
Date(of month) Alarm
You can choose which month the system will boot up. Set to 0, to boot every day.
Time(hh:mm:ss) Alarm
You can choose what hour, minute and second the system will boot up.
Note: If you have change the setting, you must let the system boot up until it goes to
the operating system, before this function will work.
IRQs Activities
Please refer to section 3-8-1.1
3-8-1.1 IRQs Activities
CMOS Setup Utility – Copyright(C) 1984-2003 Award Software
IRQs Activities
Item Help
Primary INTR ON
IRQ3 (COM 2) Enabled
IRQ4 (COM 1) Enabled
IRQ5 (LPT 2) Enabled
IRQ6 (Floppy Disk) Enabled
IRQ7 (LPT 1) Enabled
IRQ8 (RTC Alarm) Disabled
IRQ9 (IRQ2 Redir) Disabled
IRQ10 (Reserved) Disabled
IRQ11 (Reserved) Disabled
IRQ12 (PS/2 Mouse) Enabled
IRQ13 (Coprocessor) Disabled
IRQ14 (Hard Disk) Enabled
IRQ15 (Reserved) Disabled
Menu Level >>>
↑↓→←
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Page 42
37
3-9 PnP/ PCI Configuration Setup
This section describes configuring the PCI bus system. PCI, or Personal Computer
Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed
the CPU itself uses when communicating with its own special components. This section
covers some very technical items and it is strongly recommended that only experienced
users should make any changes to the default settings.
CMOS Setup Utility – Copyright(C) 1984-2003 Award Software
PnP/PCI Configurations
Item Help
PnP OS Installed No
Reset Configuration Data Disabled
Resources Controlled By Manual
x IRQ Resources Press Enter
PCI/VGA Palette Snoop Disabled
Assign IRQ For VGA Enabled
Assign IRQ For USB Enabled
Menu Level >
↑↓→←
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Reset Configuration Data
Normally, you leave this field Disabled. Select Enabled to reset Extended System Configuration Data
(ESCD) when you exit Setup if you have installed a new add-on and the system reconfiguration has
caused such a serious conflict that the operating system can not boot. The settings are: Enabled
and Disabled.
Resource Controlled By
The Award Plug and Play BIOS has the capacity to automatically configure all of the boot and Plug
and Play compatible devices. However, this capability means absolutely nothing unless you are
using a Plug and Play operating system such as Windows95/98. If you set this field to “manual”
choose specific resources by going into each of the sub menu that follows this field (a sub menu is
preceded by a “>”).
The settings are: Auto(ESCD), Manual.
IRQ Resources
When resources are controlled manually, assign each system interrupt a type, depending on the type
of device using the interrupt.
Please refer to section 3-9-1
PCI/VGA Palette Snoop
Leave this field at Disabled. The settings are Enabled, Disabled.
Page 43
38
3-9-1 IRQ Resources
CMOS Setup Utility – Copyright(C) 1984-2003 Award Software
IRQ Resources
Item Help
IRQ3 assigned to PCI Device
IRQ4 assigned to PCI Device
IRQ5 assigned to PCI Device
IRQ7 assigned to PCI Device
IRQ9 assigned to PCI Device
IRQ10 assigned to PCI Device
IRQ11 assigned to PCI Device
IRQ12 assigned to PCI Device
IRQ14 assigned to PCI Device
IRQ15 assigned to PCI Device
Menu Level >>
↑↓→←
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
3-10 PC Health Status
This section shows the Status of you CPU, Fan, Warning for overall system status. This is
only available if there is Hardware Monitor onboard.
CMOS Setup Utility – Copyright(C) 1984-2003 Award Software
PC Health Status
Item Help
Shutdown Temperature Disabled
Show PC Health in Post Enabled
Current CPU Temperature 31°C/91°F
Current System Temperature 33°C/91°F
Current CPU Temperature 52°C/125°F
Current CPUFAN Speed 5000 rpm
Current SYSFAN Speed 5000 rpm
Vcore 1.78V
Vcc3.3 3.31V
+ 5V 4.98V
+12V 12.22V
-12V -12.36V
-5V -5.25V
VBAT(V) 3.21V
5VSB(V) 5.02V
Menu Level >
↑↓→←
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Shutdown Temperature
This item can let users setting the Shutdown temperature, when CPU temperature over this
setting the system will auto shutdown to protect CPU.
Show PC Health in Post
During Enabled, it displays information list below. The choice is either Enabled or Disabled.
Page 44
39
Current CPU Temperature/Current System Temp/Current FAN1, FAN2 Speed/Vcore/
Vdd/ 3.3V/+5V/+12V/-12V/VBAT(V)/5VSB(V)
This will show the CPU/FAN/System voltage chart and FAN Speed.
Detect CPUFAN in Post
During Enabled, system will warn the user if CPU Fan is not functioning.
3-11 Miscellaneous Control
This section is for setting CPU Frequency/Voltage Control.
CMOS Setup Utility – Copyright(C) 1984-2003 Award Software
Miscellaneous Control
Item Help
Auto Detect DIMM/PCI Clk Enabled
Spread Spectrum Disabled
** Current Host Clock is 133/33MHz **
Host/PCI Clock at Next Boot is 133MHz/33MHz
** Current DRAM Clock is 166MHz **
DRAM Clock at next Boot is By SPD
CPU Vcore Select Default
VDIMM Select 2.5V (Default)
AGP VddQ Select 1.5V (Default)
VCC2.5 Select 2.5V (Default)
Menu Level >
↑↓→←
Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
Auto Detect DIMM/PCI Clk
This item allows you to enable/disable auto detect DIMM/PCI Clock.
Spread Spectrum
This item allows you to set the CPU Host/PCI clock and Spread Spectrum.
The settings are: Enabled, Disabled.
Host Clock at next Boot is
This item allows you to select CPU frequency step by step increasing
The choice are: 100MHz∼132MHz, 133MHz∼165MHz, 166MHz∼255MHz.
DRAM Clock at next Boot is
This field displays the capability of the memory modules that you can use
The choice is either 100MHz or 133MHz or 166MHz or 200MHz.
AGP VddQ Select
This item allows you to select 1.5V of the AGP 4X/8X VGA card. The choice are: 1.5V,
1.6V.
VDIMM Select
This item allows you to select 2.5V of the DDR Module. The choice are: 2.5V, 2.6V, 2.7V,
2.8V.
Page 45
40
3-12 Load Standard/Optimized Defaults
Load Standard Defaults
When you press <Enter> on this item, you get confirmation dialog box with a message
similar to:
Load Standard Defaults (Y/N)? N
Pressing <Y> loads the BIOS default values for the most stable, minimal-performance
system operations.
Load Optimized Defaults
When you press <Enter> on this item, you get a confirmation dialog box with a message
similar to:
Load Optimized Defaults (Y/N)? N
Pressing <Y> loads the default values that are factory settings for optimal performance
system operations.
3-13 Set Supervisor/User Password
You can set either supervisor or user password, or both of them. The differences are:
Supervisor password: Can enter and change the options of the setup menus.
User password: Can only enter but do not have the right to change the options of
the setup menus. When you select this function, the following
message will appear at the center of the screen to assist you in
creating a password.
ENTER PASSWORD:
Type the password, up to eight characters in length, and press <Enter>. The password typed
now will clear any previously entered password from CMOS memory. You will be asked to
confirm the password. Type the password again and press <Enter>. You may also press
<Esc> to abort the selection and not enter a password.
To disable a password, just press <Enter> when you are prompted to enter the password.
A message will confirm that the password will be disabled. Once the password is disabled,
the system will boot and you can enter Setup freely.
PASSWORD DISABLED.
When a password has been enabled, you will be prompted to enter it every time you try to
enter Setup. This prevents an unauthorized person from changing any part of your system
configuration.
Additionally, when a password is enabled, you can also require the BIOS to request a
password every time your system is rebooted. This would prevent unauthorized use of
your computer.
You determine when the password is required within the BIOS Features Setup Menu and its
Security option. If the Security option is set to “System”, the password will be required
both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to
enter Setup.
Page 46
41
Chapter 4
DRIVER & FREE PROGRAM INSTALLATION
Check your package and there is A MAGIC INSTALL CD included. This CD consists of all
DRIVERS you need and some free application programs and utility programs. In addition,
this CD also include an auto detect software which can tell you which hardware is installed,
and which DRIVERS needed so that your system can function properly. We call this auto
detect software MAGIC INSTALL.
MAGIC INSTALL supports WINDOWS 9X/NT/2K/XP
Insert CD into your CD-ROM drive and the MAGIC INSTALL Menu should appear as
below. If the menu does not appear, double-click MY COMPUTER / double-click
CD-ROM drive or click START / click RUN / type X:\SETUP.EXE (assuming X is your
CD-ROM drive).
From MAGIC INSTALL MENU you may make 11 selections:
1. VIA 4 IN 1 install VIA Service Pack 4 IN 1 driver
2. SOUND install AC97 Audio Codec Installing driver
3. LAN install VIA LAN Controller driver (for V600DAP)
4. USB2.0 install USB 2.0 driver
5. SATA install VIA Serial ATA driver
6. DIRECTX8 install Microsoft DirectX 8.1 driver
7. PC-CILLIN install PC-CILLIN2002 anti-virus program
8. PC-HEALTH install Winbond PC-HEALTH hardware monitor Software
9. MAGIC BIOS install BIOS Live Update Utility
10. BROWSE CD to browse the contents of the CD
11. EXIT to exit from MAGIC INSTALL menu
Page 47
42
4-1 VIA 4IN1 Install VIA Service Pack 4 IN 1 Driver
* The path of the file is X:\VIA\DRIVER\SETUP.EXE
IDE : VIA ATAPI VENDOR SUPPORT DRIVER IS USED TO FIXED
COMPATIBILITY ISSUE FOR IDE DEVICES
AGPVXD : VIA AGPVXD DRIVER IS TO BE INSTALLED, IF YOU ARE USING
AN AGP VGA CARD, VIAGART.VXD WILL PROVIDE SERVICE
ROUTINES TO YOUR VGA DRIVER AND INTERFACE DIRECTLY TO
HARDWARE, PROVIDING FAST GRAPHIC ACCESS
IRQ ROUTING : VIA PCI IRQ MINIPORT DRIVER IS TO BE INSTALLED UNDER WIN98
ONLY, IT WILL FIX PCI IRQ ROUTING SEQUENCE
INF : VIA REGISTRY DRIVER IS TO BE INSTALLED UNDER WINDOWS
THE DRIVER WILL ENABLE VIA POWER MANAGERMENT
CONTROLLER
1. Click IDE when MAGIC INSTALL MENU
appears
2. Click NEXT when VIA Service Pack Wizard
appears
3. This is to announce the Copy Write, click
Ye s
4. Click NEXT to choose all driver
Page 48
43
5. Click NEXT to Install ATAPI Vender
Support Driver
6. Click NEXT to choose enabled DMA Mode
7. Click NEXT to Install VIA AGP VXD
Driver
8. Click NEXT to Install VIA IRQ Routing
Mini port Driver
9. Click Finish to restart computer
Page 49
44
4-2 SOUND install ALC AC97’ Codec Audio Driver
1. Click SOUND when MAGIC INSTALL
MENU appears
2. Then auto detect operation system language
edition, click OK, start to install DRIVER
3. Click Finish and Restart Windows
4. Click Start→Program→Avance Sound
Manager→AvRack. Then AVRACK Windows
appears
5. Sound Effect select and KaraOK Mode
Function
6. Manual Sound Effect Setting
Page 50
45
7. 2/4/6 channel speaker configuration setting 8. 6 channel speaker place test
Note: The path of the file
For WIN98/NT4.0/WIN2K/XP is X:\CODEC\ALC\SETUP.EXE
Note: In Win2K/WinME users have to click Control Panel\System\Device Manager\
DVD\CD-ROM drives to Enabled digital CD Audio for the CD-ROM Device when
use the SPDIF-Out digital signal.
4-3 LAN Install VIA LAN Controller Driver (V600DAP)
The VIA 10/100Mb PCI Ethernet Adapter Driver path is X:\VIA\LANDRV
1. Click LAN when Magic Install Menu appear 2. Setup VIA 10/100Mb PCI Ethernet Driver
3. Driver install Finish, Click Yes and Restart
Computer
4. When windows ask VIA 10/100Mb PCI
Ethernet Adapter driver path, Change
directory to X:\VIA\LANDRV and click OK,
then finish installation
Page 51
46
4-4 PC-HEALTH Winbond Hardware Doctor Monitoring Software
The path of the file is X:\VIA\HEALTH-W\SETUP.EXE
(Only support WINDOWS 95/98/98SE/ME)
In Windows 95/98 Winbond Hardware Doctor Monitoring Software needs some system files
to copy in Utility that’s why it needs install PC-HEALTH twice to complete setup.
1. Click PC-Health when Magic Install Menu
appears
2. Click OK when Winbond Hardware Doctor
Setup Window appears
3. Click the Button to start installation 4. Select Program Group name or enter a new
group name, click continue to setup and click
OK after setup complete
5. Click Program → Winbond Hardware Doctor
→ Hardware Doctor the Winbond Hardware
Doctor will appears
You can remove the Utility in Control Panel
→ Add/Remove Program icon
6. After executing Winbond Hardware Doctor it
supports system voltage, Fan speed and CPU/
SYSTEM Temperature. Because this is a
On-time Monitoring program therefore the
value will change after it detected, if the value
is over default setting the system will have
warning picture and beeps
Page 52
47
4-5 MAGIC BIOS Install BIOS Live Update Utility
1. Click Magic BIOS when Magic Install
MENU appears
2. Click Next to install the Magic BIOS in
Destination Folder
3. After finish Setup you will have a Magic
BIOS icon in your screen
4. Double click the Magic BIOS icon you will
have this picture, choose from internet you
can upgrade BIOS On-line
5. When On-line update BIOS the program
will auto-check your BIOS version
6. Click Next if you need update BIOS, after
upgrade BIOS, the system will clear CMOS
and automatically restart
7. Click Yes if you want to update the BIOS
otherwise choose No to exit
8. When System programming BIOS don’t turn
off power, after finish update BIOS, the
system will clear CMOS and automatically
Restart
Page 53
48
9. When choose From Local Driver to update
BIOS, you must have the correct BIOS file
in your Local Driver
10. Choose the correct BIOS file to update BIOS
4-6 PC-CILLIN Install PC-CILLIN 2002 Anti-virus program
1. Click PC-CILLIN when MAGIC INSTALL
MENU appear
2. (1) Click "Install PC-CILLIN" when
PC-CILLIN 2002 main menu appears, and
Click NEXT when "Install Shield Wizard For
PC-CILLIN 2002"
(2) Click Open Manual. you can learn
PC-CILLIN 2002 how to use
3. This is license agreement, select "I Accept the
terms" and Click NEXT
4. Click NEXT and Enter your Customer
Information, Click NEXT or choose Change
to change the path for the file to be stored
Page 54
49
5. Click INSTALL, Start to install the software 6. Setup Complete and click FINISH
7. After PC-CILLIN 2002 complete, Please
register your information and get LICENSE
KEY from TREND MICRO web site, enter
your license key and click FINISH
8. finish register process, we recommend select
update item to download newest engine code
and virus code
Note : Please install ACROBAT READER, Before you read PC-CILLIN 2002 User
Manual, the path at X:\acrobat\ar500eng.exe
4-7 USB2.0 Install VIA USB2.0 DEVICE DRIVER
1. Click USB2.0 when MAGIC INSTALL
MENU Appear
2. When USB2.0 Setup Program Appear, Click
NEXT
Note: Please Install Microsoft Service Pack 1 in Windows XP OS Before you Install VIA
USB2.0 Device Driver.
Page 55
50
3. Select Install USB Driver and Click NEXT 4. Select FINISH and Restart your Computer
5. Check device working properly in Device
Manager
The Path of the file is X:\VIA\VIAUSB20\SETUP.EXE
4-8 SATA Install VIA Serial ATA
1. Click SATA when MAGIC INSTALL MENU
appears
2. Start install VIA serial ATA driver , then click
NEXT
3. When license agreement appear, choose I
agree and click NEXT
4. Select you want to install driver
Page 56
51

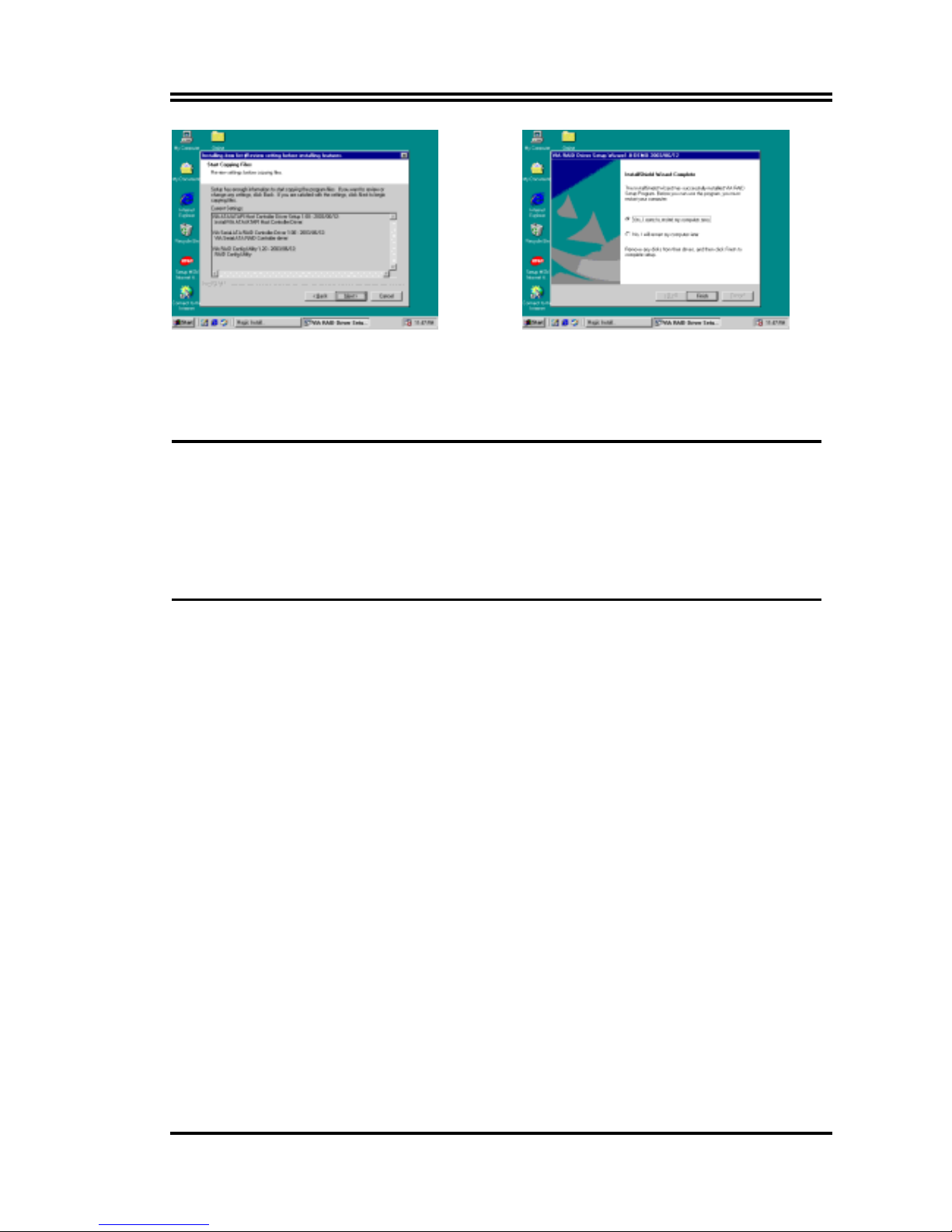

5. Review install driver and utility component,
then click NEXT
6. Click FINISH and restart your computer
4-9 HOW TO DISABLE ON-BOARD SOUND
Enter BIOS SETUP choose INTEGRATE PERIPHERALS choose ON-CHIP DEVICE
FUNCTION choose AC97 SOUND DEVICE
Disable on-board sound function by press PAGE DOWN KEY to Disable
4-8 HOW TO DISABLE ON-BOARD SOUND
4-10 HOW TO UPDATE BIOS
Method 1. Use “Magic BIOS” update BIOS in Windows 98 (refer page 47)
Method 2. In DOS Mode
STEP 1. Prepare a boot disc. (you may make one by click START click RUN type SYS A:
click OK)
STEP 2. Copy utility program to your boot disc. You may copy from DRIVER CD
X:\FLASH\AWDFLASH.EXE or download from our web site.
STEP 3. Copy latest BIOS for V600DA/V600DAP from our web site to your boot disc.
STEP 4. Insert your boot disc into A:,
start the computer, type “Awdflash A:\ V600DAPAxxx.BIN /SN/PY/CC/R”
V600DAPAxxx.BIN is the file name of latest BIOS it can be V600DAPA3.BIN or
V600DAPB2.BIN
SN means don’t save existing BIOS data
PY means renew existing BIOS data
CC means clear existing CMOS data
R means restart computer
STEP 5. Push ENTER and the BIOS will be updated, computer will be restarted
automatically.
Loading...
