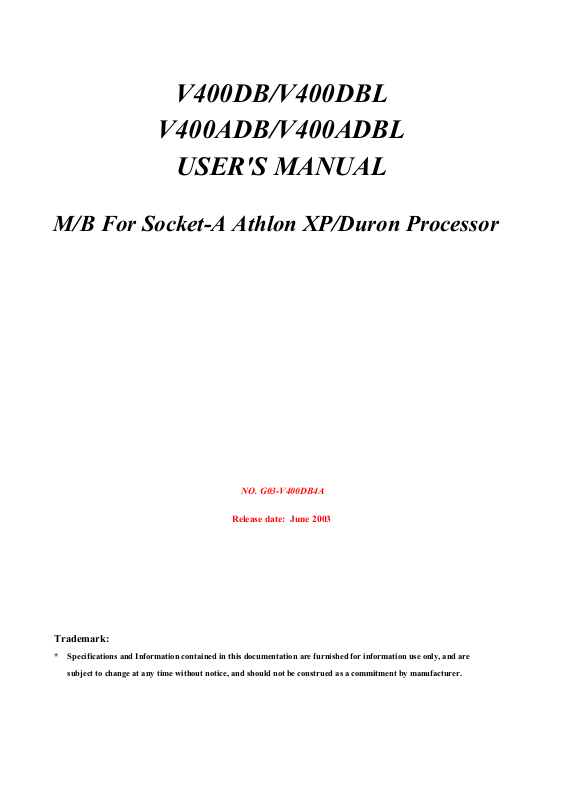

JETWAY V400DB User Manual

V400DB/V400DBL

V400ADB/V400ADBL

USER'S MANUAL

M/B For Socket-A Athlon XP/Duron Processor

NO. G03-V400DB4A

Release date: June 2003

Trademark:

* Specifications and Information contained in this documentation are furnished for information use only, and are

subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

USER’S NOTICE........................................................................................................................... ii

MANUAL REVISION INFORMATION.......................................................................................... ii

COOLING SOLUTIONS ..............................................................................................................ii

CHAPTER 1 INTRODUCTION OF V400DB/V400DBL/V400ADB/V400ADBL

1-1 FEATURE OF MOTHERBOARD ...................................................................................... 1

1-2 SPECIFICATION.................................................................................................................. 2

1-3 PERFORMANCE LIST........................................................................................................ 3

1-4 LAYOUT DIAGRAM & JUMPER SETTING ................................................................... 4

CHAPTER 2 HARDWARE INSTALLATION

2-1 HARDWARE INSTALLATION STEPS............................................................................. 6

2-2 CHECKING MOTHERBOARD'S JUMPER SETTING................................................... 6

2-3 INSTALL CPU....................................................................................................................... 8

2-3-1 GLOSSARY................................................................................................................ 8

2-3-2 ABOUT AMD ATHLON XP & DURON 462-PIN CPU ........................................ 9

2-4 INSTALL MEMORY............................................................................................................ 10

2-5 EXPANSION CARD.............................................................................................................. 11

2-5-1 PROCEDURE FOR EXPANSION CARD INSTALLATION ............................... 11

2-5-2 ASSIGNING IRQ FOR EXPANSION CARD......................................................... 11

2-5-3 INTERRUPT REQUEST TABLE FOR THIS MOTHERBOARD....................... 12

2-5-4 AGP SLOT.................................................................................................................. 12

2-6 CONNECTORS, HEADERS ................................................................................................ 12

2-6-1 CONNECTORS.......................................................................................................... 12

2-6-2 HEADERS .................................................................................................................. 15

2-7 STARTING UP YOUR COMPUTER.................................................................................. 18

CHAPTER 3 INTRODUCING BIOS

3-1 ENTERING SETUP............................................................................................................... 19

3-2 GETTING HELP ................................................................................................................... 19

3-3 THE MAIN MENU................................................................................................................ 20

3-4 STANDARD CMOS FEATURES ........................................................................................ 21

3-5 ADVANCED BIOS FEATURES.......................................................................................... 22

3-6 ADVANCED CHIPSET FEATURES .................................................................................. 24

3-6-1 DRAM TIMING SETTINGS .................................................................................... 25

3-6-2 AGP TIMING SETTINGS........................................................................................ 26

3-6-3 PCI TIMING SETTINGS ......................................................................................... 26

3-7 INTEGRATED PERIPHERALS.......................................................................................... 27

3-7-1 ONCHIP IDE FUNCTION ....................................................................................... 27

3-7-2 ONCHIP DEVICE FUNCTION............................................................................... 28

3-7-3 ONCHIP SUPER IO FUNCTION............................................................................ 29

3-8 POWER MANAGEMENT SETUP...................................................................................... 30

3-8-1 WAKE UP EVENTS................................................................................................. 31

3-8-1.1 IRQS ACTIVITIES ................................................................................... 32

3-9 PNP/PCI CONFIGURATION SETUP ................................................................................ 32

3-9-1 IRQ RESOURCES.................................................................................................... 33

3-10 PC HEALTH STATUS ........................................................................................................ 33

3-11 MISCELLANEOUS CONTROL ........................................................................................ 34

3-12 LOAD STANDARD/OPTIMIZED DEFAULTS ............................................................... 35

3-13 SET SUPERVISOR/USER PASSWORD........................................................................... 35

CHAPTER 4 DRIVER & FREE PROGRAM INSTALLATION

MAGIC INSTALL SUPPORTS WINDOWS 9X/NT/2K/XP....................................................... 36

4-1 VIA 4 IN 1 INSTALL VIA SERVICE PACK 4 IN 1 DRIVER .............................. 37

4-2 SOUND INSTALL ALC AUDIO CODEC DRIVER.......................................... 39

4-3 LAN INSTALL VIA 10/100MB LAN CONTROLLER DRIVER ............... 40

4-4 PC-HEALTH WINBOND HARDWARE DOCTOR MONITORING SOFTWARE 40

4-4-1 HOW TO UTILIZE PC-HEALTH.......................................................................... 41

4-5 MAGIC BIOS INSTALL BIOS LIVE UPDATE UTILITY.......................................... 41

4-6 PC-CILLIN INSTALL PC-CILLIN2002 ANTI-VIRUS PROGRAM ..................... 43

4-7 USB 2.0 INSTALL VIA USB 2.0 DEVICE DRIVER ....................................... 44

4-8 HOW TO DISABLE ON-BOARD SOUND......................................................................... 45

4-9 HOW TO UPDATE BIOS..................................................................................................... 45

TABLE OF CONTENT

i

MOTHERBOARD

USER’S NOTICE

COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.

THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE V400DB/V400DBL/V400ADB/
V400ADBL MOTHER-BOARD AND WE DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT
WILL CHANGE, CORRECT ANY TIME WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL
“AS IS” WITHOUT WARRANTY OF ANY KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTIAL OR CONSEQUENTIAL DAMAGES (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS
OF BUSINESS, LOSS OF USE OF DATA, INTERRUPTION OF BUSINESS AND THE LIKE).

PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.

Manual Revision Information

Reversion Revision History Date

4.0 Fourth Edition June 2003

Item Checklist

5

V400DB/V400DBL/V400ADB/V400ADBL Motherboard

5

Cable for IDE/Floppy

5

CD for motherboard utilities

□

Cable for USB Port 3/4 (Option)

5

V400DB/V400DBL/V400ADB/V400ADBL User’s Manual

AMD Athlon™ XP / Duron™ Processor Family

Cooling Solutions

As processor technology pushes to faster speeds and higher performance, thermal management
becomes increasingly crucial when building computer systems. Maintaining the proper thermal
environment is key to reliable, long-term system operation. The overall goal in providing the proper
thermal environment is keeping the processor below its specified maximum case temperature.
Heatsinks induce improved processor heat dissipation through increased surface area and
concentrated airflow from attached fans. In addition, interface materials allow effective transfers of
heat from the processor to the heatsink. For optimum heat transfer, AMD recommends the use of
thermal grease and mounting clips to attach the heatsink to the processor.

When selecting a thermal solution for your system, please refer to the website below for collection of
heatsinks evaluated and recommended by AMD for use with AMD processors. Note, those heatsinks
are recommended for maintaining the specified Maximum T case requirement. In addition, this
collection is not intended to be a comprehensive listing of all heatsinks that support AMD processors.

For vendor list of heatsink and fan, please visit：
http://www1.amd.com/products/duron/thermals

http://www1.amd.com/products/athlon/thermals

ii

Chapter 1

Introduction of
V400DB/V400DBL/V400ADB/V400ADBL Motherboard

1-1 Feature of motherboard

The V400DB/V400DBL/V400ADB/V400ADBL motherboard is design for use AMD
Athlon/Duron/Athlon XP 200MHz/266MHz/333MHz (Double Data Rate) Front Side Bus
Frequency CPU, which utilize the Socket-A design and the memory size expandable to 3.0GB.

V400DB/V400DBL/V400ADB/V400ADBL motherboard use the newest VIA KT400/
KT400A chipset, whose 333/266MHz (Double Data Rate) Front Side Bus frequency delivers
a clear upgrade path to the future generation of 200/266/333MHz processors. The V400DB/
V400DBL/V400ADB/V400ADBL provided 266/333/400MHz memory frequency supported
DDR266/DDR333 DDR SDRAM. The V400DB/V400DBL/V400ADB/ V400ADBL
motherboard offers ULTRA ATA 133 to provide speedier HDD throughout that boosts overall
system performance.

These motherboards also has an integrated AC’97 CODEC on board which is fully compatible
with Sound Blaster Pro that gives you the best sound quality and compatibility. It Supports 6
channel Speaker for 3D Surround Effect.

For those wanting even greater graphic performance, an AGP 8X slot is included on the board.

The V400DBL/V400ADBL motherboard use VIA VT6103 LAN PHY support 10/100Mbps
data transfer rate full duplex, half duplex operation.

With USB control as well as capability of expanding to 6 USB function ports support
USB2.0/USB1.1 Devices, the V400DB/V400DBL/V400ADB/V400ADBL meet future USB
demand also this motherboard has built-in hardware monitor function. This will monitor and
protect your computer.

A special design in hardware for protecting Athlon XP CPU from burned, the system will auto
shutdown power supply when CPU is overheat or the CPU FAN is stop.

In V400DB/V400DBL/V400ADB/V400ADBL we design in DDR memory 2.5V Voltage,
AGP 1.5V Voltage those can minor adjustable in BIOS setup. This design can let users
approach over clock demand and also can make system more stable. The V400DB/

V400DBL/V400ADB/V400ADBL motherboard provides special function in BIOS Setup to
setting CPU Host clock step by step increasing let users to approach over clocking.

V400DB/V400DBL/V400ADB/V400ADBL provides high performance & meets future
specification demand. It is really wise choice for your computer.

1-2 Specification

1

Spec Description

ATX form factor 4 layers PCB size: 30.5x21.0cm

Design

Chipset

CPU Socket

∗

VIA KT400 North Bridge Chipset for V400DB/V400DBL

∗

VIA KT400A North Bridge Chipset for V400ADB/V400ADBL

∗

VIA VT8235 South Bridge

∗

Support AMD Athlon 700MHz∼1.4GHz processor

∗

Support AMD Duron 600MHz∼1.4GHz processor

∗

Support AMD Athlon XP1500+~XP3000+ processor

∗

Support 200MHz/266MHz/333MHz (Double Data Rate) Front

∗

Side Bus frequency processors

Reserves support for future AMD Athlon/Duron/Athlon XP

∗

processors

184-pin DDR module socket x3

Memory Socket

∗

Support DDR266/DDR333 DDR SDRAM

∗

Expandable to 3.0GB

AGP slot x1 support AGP 3.0 & 8X mode

Expansion Slot &
Headers

Integrate IDE

∗

32-bit PCI slot x5

∗

CNR slot x1

∗

Two PCI IDE controllers support PCI Bus Mastering, ATA

∗

PIO/DMA and the ULTRA DMA 33/66/100/133 functions that
deliver the data transfer rate up to 133 MB/s

VIA VT6103 LAN PHY support 10/100Mbps full duplex, half

On board LAN

(for

V400DBL/V400ADBL)

Audio

BIOS

Multi I/O

∗

duplex operation

Support Boot On LAN function

∗

AC’97 Digital Audio controller integrated

∗

AC’97 Audio CODEC on board

∗

Audio driver and utility included

∗

Support 6 channel Speaker for 3D surround effect

∗

Award 2MBit Flash ROM

∗

PS/2 keyboard and PS/2 mouse connectors

∗

Floppy disk drive connector x1

∗

Parallel port x1

∗

Serial port x2

∗

USB2.0 connector x2

∗

USB2.0 headers x2 (connecting cable option)

∗

Audio connector (Line-in, Line-out , MIC & Game Port)

∗

1-3 Performance List

2

The following performance data list is the testing result of some popular benchmark testing
programs. These data are just referred by users, and there is no responsibility for different
testing data values gotten by users (the different Hardware & Software configuration will
result in different benchmark testing results.)

Performance Test Report

CPU:

DRAM:

AMD Athlon XP 2000+

256MB DDR266 X1 (SAMSUNG DDR K4H280838B-TCB0)

256MB DDR333 X1 (MICRON DDR MT46V16M8-6)

VGA Expansion Card:

Hard Disk Driver:

BIOS:

Win 98SE

OS:

Award Optimal default

NVDIA Geforce 2 MX400 (1024x768 Hi-color)

IBM DTLA-305040 (ATA-100)

DDR266 DDR333

3D Mark 2000 5678 5687
3D Mark 2001 2554 2550
3D Winbench 2000 105 105
Final Reality 10.34 10.39
Content Creation Winstone 2000 50 50.3
Content Creation Winstone 2001 63.6 64.5
Content Creation Winstone 2002 23.6 23.9
Business Winstone2001 53.9 53.7

Winbench 99:

CPU Mark 99 152 151
FPU Winmark 99 9140 9140
Business Disk Winmark99 7440 7690
Hi-end Disk Winmark99 19600 19400
Business Graphic Winmark 794 790
Hi-end Graphic Winmark 2390 2400

SYS Mark 2000/2001 : SISMark 2000/2001 Rating (Internet Content
Creation / Office Productivity)

SISMark 2000 282 (298/270) 285 (302/272)
SISMark 2001 166 (178/154) 171 (180/163)

SISOFT Sandra 2001 :

Dhrystone ALU MIPS 4640 4657
Whetstone FPU MFLOPS 2280 2303
Int ALU/RAM MB/S 761 827
Float FPU/RAM MB/S 804 892
Integer SSE2 IT/S 9320 9302
Floating- Point SSE2 MB/S 10706 10780
QUAKE3 DEMO1 FPS 178.9 185.2
DEMO2 FPS 186.5 191.9
WCPUID System/CPU Clock 133.79/1672.32 133.79/1672.32

1-4 Layout Diagram & Jumper Setting

3

r

(for V400DBL/V400ADBL)

LAN

PRINT GAME/MIDI PORT

PS/2 Mouse

PS/2

Keyboard

MIC

K/B Power ON

Jumper (JP1)

PS2 KB/Mouse Port

USB Port/

LAN Connector

COM1 COM2 USB

LINE-IN

LINE-OUT

CPU FAN

CPU Socket

PC99 Back Panel

Front Panel Audio

CD Audio

CPU Front Side Bus

Frequency Jumper (JP4)

AGP Slot

PCI Slot

Winbond 83697HF

Chip

CNR Slot

IR Connector

USB Port

(USB1, USB2)

DDR Socket X3

VIA KT400/KT400A
Chip

ATX Power Connecto

FAN2

ATA 133 IDE
Connector

VIA VT8235 Chip

Clear CMOS (JBAT)

Floppy Connector

2MBit Flash ROM BIOS

FAN1
Wake On LAN

Front Panel Connector

Jumpers

Jumper Name Description Page

4

JP4 CPU Front Side Bus Frequency 4-pin Block P.6
JBAT CMOS RAM Clear 3-pin Block P.6
JP1 Keyboard Power On Enable/Disabled 3-pin Block P.7

Connectors

Connector Name Description Page

ATXPOW ATX Power Connector 20-pin Block P.12
J2 PS/2 Mouse & PS/2 Keyboard

Connector

USB USB Port Connector 4-pin Connector P.13

LAN

LAN Port Connector RJ45 Connector P.13
(for V400DBL/
V400ADBL)

PARALLEL Parallel Port Connector 25-pin Female P.13
AUD_GAME Audio/Game Connector 3 phone jack + 15-pin Connector P.13
COM1/COM2 Serial Port COM1/2 Connector 9-pin Connector P.13
FDD Floppy Driver Connector 34-pin Block P.13
IDE1 Primary IDE Connector 40-pin Block P.14
IDE2 Secondary IDE Connector 40-pin Block P.14

6-pin Female P.13

Headers

Header Name Description Page

AUDIO Line-In/Out, MIC header 10-pin Block P.16
USB1/USB2 USB Port Headers 9-pin Block P.16
IDE LED IDE activity LED 2-pin Block P.16
TB LED Turbo LED switch 2-pin Block P.16
RESET Reset switch lead 2-pin Block P.16
SPEAKER Speaker connector 4-pin Block P.16
PWR LED Power LED 2-pin Block P.16
PW BN Power switch 2-pin Block P.17
WOL Wake On-LAN Headers 3-pin Block P.17
FAN1,FAN2,CPUFAN FAN Headers 3-pin Block P.17
IR IR infrared module Headers 5-pin Block P.18
CDIN1 CD Audio-In Headers 4-pin Block P.18

Expansion Sockets

Socket/Slot Name Description Page

ZIF Socket 462 CPU Socket 462-pin PPGA CPU Socket P.9
DDR1, DDR2, DDR3 DDR SDRAM Module

PCI1, PCI2, PCI3, PCI4,
PCI5
AGP AGP 8X Mode Slot AGP Expansion Slot P.12

Socket

184-pin DDR SDRAM Module
Expansion Socket

P.10

PCI Slot 32-bit PCI Local Bus Expansion slots P.11

Chapter 2

5

Hardware installation

2-1 Hardware installation Steps

Before using your computer, you had better complete the following steps:

1. Check motherboard setting

2. Install CPU

3. Install Memory

4. Install Expansion cards

5. Connect Ribbon cables, Panel wires, and power supply

6. Setup BIOS

7. Install software driver & utility

2-2 Checking Motherboard’s Jumper Setting

(1) CPU Front Side Bus Frequency Setting (4-pin) : JP4

JP4

1-2 : 100MHz

(Default)

1

4

CPU Front Side Bus Frequency Setting

1

JP4

2-3 : 133MHz

4

1

JP4

3-4 : 166MHz

(2) CMOS RAM Clear (3-pin) : JBAT

A battery must be used to retain the motherboard configuration in CMOS RAM short 1­2 pins of JBAT to store the CMOS data.

To clear the CMOS, follow the procedure below:

1. Turn off the system and unplug the AC power

2. Remove ATX power cable from ATX power connector

3. Locate JBAT and short pins 2-3 for a few seconds

4. Return JBAT to its normal setting by shorting pins 1-2

5. Connect ATX power cable back to ATX power connector

Note: When should clear CMOS

1. Troubleshooting

2. Forget password

3. After over clocking system boot fail

4

6

(

)

13

JBAT

2-3 closed Clear CMOS

13

JBAT

1-2 closed Normal

CMOS RAM Clear Setting

(3) Keyboard Power On function Enabled/Disabled: JP1

When setting Enabled you can using keyboard by key in password to power on system.

1-2 closed K/B Power ON Disable

Default

13

JP1

2-3 closed K/B Power ON Enabled

Keyboard Power On Setting

1 3

JP1

7

2-3 Install CPU

2-3-1 Glossary

Chipset (or core logic) - two or more integrated circuits which control the interfaces between
the system processor, RAM, I/O devises, and adapter cards.

Processor socket - the socket used to mount the system processor on the motherboard.

Slot (AGP, PCI, ISA, RAM) - the slots used to mount adapter cards and system RAM.

AGP - Accelerated Graphics Port - a high speed interface for video cards; runs at 1X

(66MHz), 2X (133MHz), 4X (266MHz), 8X (533MHz).

PCI - Peripheral Component Interconnect - a high speed interface for video cards, sound
cards, network interface cards, and modems; runs at 33MHz.

ISA - Industry Standard Architecture - a relatively low speed interface primarily used for
sound cards and modems; runs at approx. 8MHz.

Serial Port - a low speed interface typically used for mouse and external modems.

Parallel Port - a low speed interface typically used for printers.

PS/2 - a low speed interface used for mouse and keyboards.

USB - Universal Serial Bus - a medium speed interface typically used for mouse, keyboards,

scanners, and some digital cameras.

Sound (interface) - the interface between the sound card or integrated sound connectors and
speakers, MIC, game controllers, and MIDI sound devices.

LAN (interface) - Local Area Network - the interface to your local area network.

BIOS (Basic Input/Output System) - the program logic used to boot up a computer and

establish the relationship between the various components.

Driver - software, which defines the characteristics of a device for use by another device or
other software.

Processor - the "central processing unit" (CPU); the principal integrated circuit used for doing
the "computing" in "personal computer"

Front Side Bus Frequency -

the working frequency of the motherboard, which is generated

by the clock generator for CPU, DRAM and PCI BUS.

CPU L2 Cache -

the flash memory inside the CPU, normally Athlon serial CPU has 256K or

above, while Duron will have 64K.

8

2-3-2 About AMD Athlon XP & Duron 462-pin CPU

This motherboard supports Socket-A (Socket-462) AMD Athlon XP /Duron processors.

This motherboard Provides a ZIF Socket-A. The CPU that comes with the motherboard
should have a cooling FAN attached to prevent overheating. If this is not the case, then
purchase a correct cooling FAN before you turn on your system.

WARNING!

Be sure that there is sufficient air circulation across the processor’s heatsink
and CPU cooling FAN is working correctly, otherwise it may cause the
processor and motherboard overheat and damage, you may install an auxiliary
cooling FAN, if necessary.

WARNING!

Due to this motherboard provides new function of protecting CPU；you must
connect the CPU FAN connector on CPUFAN location in order to obtain this
feature. Without connection on CPUFAN (or you have connect CPU FAN on
FAN1), the system will shut down immediately to protect both your CPU and
motherboard.

Over heat Protect:

Only for Athlon XP serial CPU, when the CPU overheat, system will auto
shut down power supply. You can hear a continue beep sound, the power
button will be locked up. Users must turn off and turn on the AC power
to reset the system otherwise the power button will no function, the other
way is keeping press the push button few seconds till the beep sound stop,
then release the power button and press the power button again to turn on
the power supply.

To install a CPU, first turn off your system and remove its cover. Locate the ZIF socket and
open it by first pulling the level sideways away from the socket then upward to a 90-degree
angle. Insert the CPU with the correct orientation as shown below. The notched corner
should point toward the end of the level. Because the CPU has a corner pin for two of the
four corners, the CPU will only fit in the orientation as shown.

Socket-A

Colden Arrow

CPU ZIF Socket-A

When you put the CPU into the ZIF socket. No force require to insert of the CPU, then press
the level to Locate position slightly without any extra force.

9

2-4 Install Memory

This motherboard provides three 184-pin DUAL INLINE MEMORY MODULES (DIMM)
sites for memory expansion available from minimum memory size of 64MB to maximum
memory size of 3.0GB DDR SDRAM.

Valid Memory Configurations

Bank 184-Pin DIMM PCS Total Memory

Bank 0, 1 (DDR1) PC2100/PC2700 DDR SDRAM X1 64MB∼1.0GB
Bank 2, 3 (DDR2) PC2100/PC2700 DDR SDRAM X1 64MB∼1.0GB
Bank 4, 5 (DDR3) PC2100/PC2700 DDR SDRAM X1 64MB∼1.0GB

Total System Memory (Max. 3.0GB) 3 64MB∼3.0GB

NOTE!

Make sure the total installed memory does not exceeds 3.0GB, otherwise the
system may hang during startup.

Generally, installing DDR SDRAM modules to your motherboard is very easy, you can refer
to figure 2-4 to see what a 184-Pin PC2100/PC2700 DDR SDRAM module looks like.

DDR2 (BANK2 + BANK3)

DDR1 (BANK0 + BANK1)

DDR3 (BANK4 + BANK5)

Figure 2-4

NOTE!

When you install DIMM module fully into the DIMM socket the eject tab
should be locked into the DIMM module very firmly and fit into its
indention on both sides.

WARNING!

For the DDR SDRAM CLOCK is set at 166MHz, use only PC2700­compliant DDR Modules. When this motherboard operate at 133Mhz, most
system will not even boot if non-compliant modules are used because of the
strict timing issues, if your DDR Modules are not PC2100-compliant, set the
DDR SDRAM clock to 100MHz to ensure system stability.

10

2-5 Expansion Cards

WARNING!

Turn off your power when adding or removing expansion cards or other
system components. Failure to do so may cause severe damage to both
your motherboard and expansion cards.

2-5-1 Procedure For Expansion Card Installation

1. Read the documentation for your expansion card and make any necessary hardware or
software setting for your expansion card such as jumpers.

2. Remove your computer’s cover and the bracket plate on the slot you intend to use.

3. Align the card’s connectors and press firmly.

4. Secure the card on the slot with the screen you remove above.

5. Replace the computer system’s cover.

6. Set up the BIOS if necessary.

7. Install the necessary software driver for your expansion card.

2-5-2 Assigning IRQs For Expansion Card

Some expansion cards need an IRQ to operate. Generally, an IRQ must exclusively assign to
one use. In a standard design, there are 16 IRQs available but most of them are already in use.

Standard Interrupt Assignments

IRQ Priority Standard function

0 N/A System Timer
1 N/A Keyboard Controller
2 N/A Programmable Interrupt
3 * 8 Communications Port (COM2)
4 * 9 Communications Port (COM1)
5 * 6 Sound Card (sometimes LPT2)
6 * 11 Floppy Disk Controller
7 * 7 Printer Port (LPT1)
8 N/A System CMOS/Real Time Clock

9 * 10 ACPI Mode when enabled
10 * 3 IRQ Holder for PCI Steering
11 * 2 IRQ Holder for PCI Steering
12 * 4 PS/2 Compatible Mouse Port
13 N/A Numeric Data Processor
14 * 5 Primary IDE Channel
15 * 1 Secondary IDE Channel

* These IRQs are usually available for ISA or PCI devices.

2-5-3 Interrupt Request Table For This Motherboard

11

Interrupt request are shared as shown the table below:

INT A INT B INT C INT D

PCI slot 1 Shared
PCI slot 2
PCI slot 3
PCI slot 4

Shared 





PCI slot 5 Shared
AGP slot Shared
AC97/MC97
Onboard USB
Onboard USB 1
Onboard USB 2








Shared 






Shared 








Shared





Shared



Shared



Shared









IMPORTANT! If using PCI cards on shared slots, make sure that the drivers support

“Shared IRQ” or that the cards don’t need IRQ assignments. Conflicts will
arise between the two PCI groups that will make the system unstable or
cards inoperable.

2-5-4 AGP Slot

This motherboard provides an AGP Slot, support the 2X/4X/8X AGP VGA card.

AGP SLOT

2-6 Connectors, Headers

2-6-1 Connectors

(1) Power Connector (20-pin block) : ATXPOW

ATX Power Supply connector. This is a new defined 20-pins connector that usually

comes with ATX case. The ATX Power Supply allows to use soft power on momentary
switch that connect from the front panel switch to 2-pins Power On jumper pole on the
motherboard. When the power switch on the back of the ATX power supply turned on,
the full power will not come into the system board until the front panel switch is
momentarily pressed. Press this switch again will turn off the power to the system
board.

12
