V266A

USER'S MANUAL

M/B For Socket-A Athlon/Duron Processor

NO. G03-V266AR1A

Release date: December 2001

Trademark:

* Specificati ons and Information contained in thi s documentation are furnished for information use only, and are

subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

TABLE OF CONTENT

USER’S NOTICE..............................................................................ii

MANUAL REVISION INFORMATION .............................................1

COOLING SOLUTIONS..................................................................1

CH APTER 1 INTRODUCTION OF V266A MOTHERBOARD

1-1 FEATURE OF MOTHERBOARD............................................................... 2

1-2 SPECIFICATION..........................................................................................3

1-3 PERFORMANCE LIST ................................................................................ 4

1-4 LAYOUT DIAGRAM & JUMPER SETTING...........................................5

CHAPTER 2 HARDWARE INSTALLATION

2-1 HARDWARE INSTALLATION STEPS..................................................... 7

2-2 CHECKING MOTHERBAORD'S JUMPER SETTING ..........................7

2-3 INSTALL CPU ...............................................................................................9

2-3-1 GLOSSARY ...................................................................................................9

2-3-2 ABOUT AMD ATHLON & DURON 462-PIN CPU..................................

2-4 INSTALL MEMORY .................................................................................... 11

2-5 EXPANSION CARD......................................................................................12

2-5-1 PROCEDURE FOR EXPANSION CARD INSTALLATION..................12

2-5-2 ASSIGNING IRQ FOR EXPANSION CARD............................................

2-5-3 INTERRUPT REQUEST TABLE FOR THIS MOTHERBOARD..........

2-5-4 AGP SLOT.....................................................................................................

2-6 CONNECTORS, HEADERS ........................................................................14

2-6-1 CONNECTORS.............................................................................................

2-6-2 HEADERS......................................................................................................16

2-7 STARTING UP YOUR COMPUTER..........................................................20

12 13 13

CHAPTER 3 INTRODUCING BIOS

3-1 ENTERING SETUP.......................................................................................21

3-2 GETTING HELP............................................................................................22

3-3 THE MAIN MENU ........................................................................................22

3-4 STANDARD CMOS FEATURES.................................................................23

3-5 ADVANCED BIOS FEATURES ..................................................................25

3-6 ADVANCED CHIPSET FEATURES ..........................................................27

3-6-1 DRAM TIMING SETTINGS............................................................28

3-6-2 AGP TIMING SETTINGS................................................................28

3-6-3 PCI TIMING SETTINGS..................................................................29

3-7 INTEGRATED PERIPHERALS..................................................................29

3-7-1 ONCHIP IDE FUNCTION................................................................30

3-7-2 ONCHIP DEVICE FUNCTION.......................................................31

3-7-3 ONCHIP SUPER IO FUNCTION.................................................... 31

3-8 POWER MANAGEMENT SETUP..............................................................33

3-8-1 WAKE UP EVENTS ......................................................................... 34

3-8-1.1 IRQS ACTIVITIES ...........................................................35

3-9 PNP/PCI CONFIGURATION SETUP.........................................................35

3-9-1 IRQ RESOURCES ............................................................................ 36

3-10 MISCELLANEOUS CONTROL ................................................................ 37

3-11 LOAD STANDARD/OPTIMIZED DEFAULTS .......................................38

3-12 SET SUPERVISOR/USER PASSWORD...................................................39

3-13 SET SUPERVISOR/USER PASSWORD...................................................39

CHAPTER 4 DRIVER & FREE PROGRAM INSTALLATION

MAGIC INSTALL SUPPORTS WINDOWS 95/98/98SE/NT4.0/2000 .............40

4-1 VIA 4 IN 1 4-2 SOUND

FOR EDITING/PLAYBACK

4-3 PC-HEALTH

INSTALL VIA SERVICE PACK 4 I N 1 DRI VER AC97 SOUND DRIVER AND THE PROGRA M INSTALL

...................................................43

WINBOND HARDW ARE DOCTOR MONITORING SOFTWARE

..........................................................................44

4-3-1 HOW TO UTILIZE PC-HEALTH...................................................45

4-4 MAGIC BIOS 4-5 PC-CILLIN

INSTALL BIOS LIVE UPDATE UTILITY INSTALL PC-CILLIN2000 ANTI-VIRUS PROGRAM

................................46

4-6 HOW TO DISABLE ON-BOARD SOUND.................................................49

4-7 HOW TO UPDATE BIOS.............................................................................49

.....................41

.............47

USER’S NOTICE

COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE

MANUFACTURER.

THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE V266A MOTHERBOARD AND WE DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME WITHO UT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, AND WILL NOT BE LIAB LE FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAM A G E S (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA, INTERRUPTION OF BUSINESS AND THE LIKE).

PRODUCTS AND CORPORATE NAMES AP PEARING IN TH IS MANUAL M AY OR MAY NOT BE REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE USED O NLY FO R IDENTIFICATI ON O R EXPLANATIO N AND TO THE OWNER’S BENEFIT, WITHOUT INTENT TO INFRINGE.

Manual Revision Information

Reversion Revision History Date

1.0 First Release December 2001

Item Checklist

5 V266A Motherboard 5 Cable for IDE/Floppy 5 CD for motherboard utilities

□

Cable for USB Port 3/4 (Option)

5 V266A User’s Manual

AMD Athlon™ / Duron™ Processor Family

Cooling Solutions

As processor technology pushes to faster speeds and higher performance, thermal management becomes increasingly crucial when building computer systems. Maintaining the proper thermal environment is key to reliable, long-term system operation. The overall goal in providing the proper thermal environment is keeping the processor below its specified maximum case temperature. Heatsinks induce improved processor heat dissipation through increased surface area and concentrated airflow from attached fans. In addition, interface materials allow effective transfers of heat from the processor to the heatsink. For optimum heat transfer, AMD recommends the use of thermal grease and mounting clips to attach the heatsink to the processor. When selecting a thermal solution for your system, please refer to the website below for collection of heatsinks evaluated and recommended by AMD for use with AMD processors. Note, those heatsinks are recommended for maintaining the specified Maximum T case requirement. In addition, this collection is not intended to be a comprehensive listing of all heatsinks that support AMD processors.

For vendor list of heatsink and fan, please visit： http://www1.amd.com/products/duron/thermals

http://www1.amd.com/products/athlon/thermals

Chapter 1

Introduction of V266A Motherboard

1-1 Feature of motherboard

The V266A motherboard is design for use AMD Athlon XP/Duron/Athlon 200MHZ /266MHz (Double Data Rate) Front Side Bus Frequency CPU, which utilize the Socket-A design and the memory size expandable to 2.0GB.

This motherboard use the newest VIA KT-266A chipset, whose 133MHz/266MHz (Double Data Rate) Front Side Bus frequency and 266MHz memory interface delivers a clear upgrade path to the future generation of 266MHz processors, PC-1600/PC-2100 DDR DRAM and PC100/PC133 SDRAM. The V266A motherboard offers ULTRA ATA

This motherboard also has an integrated AC’97 2.1 CODEC on board which is fully compatible with Sound Blaster Pro compatibility.

to provide speedier HDD throughout that boosts overall system performance.

100



that gives you the best sound quality and

For those wanting even greater graphic performanc e , a n A G P 4 X s l o t i s i n c l u d e d o n t h e board.

With USB control as well as capability of expanding to 6 USB function ports, the V266A meet future USB demand. This motherboard

protected your hard disk from virus crash hard disk data.

BIOS

integrated Recovery Genius in

The V266A motherboard provides CPU Ratio Setting by Jumper and special function in BIOS Setup to setting CPU Host clock step by step increasing, and

Voltage minor Adjustable in BIOS Setup

let users to approach over clocking.

CPU Vcore

V266A provides high performance & meets future specification demand. It is really wise choice for your computer.

1-2 Specification

Spec Description

ATX form factor 4 layers PCB size: 30.5x24.4cm

∗

Design Chipset

CPU Socket

Memory Socket

Expansion Slot & Headers

Integrate IDE

Audio

VIA KT266A/VT8233 Chipset

∗

Support AMD Athlon 700MHz∼1.4GHz processor

∗

Support AMD Athlon XP 1500+∼2000+ processor

∗

Support AMD Duron 600MHz∼1.3GHz processor

∗

Support 200MHz/266MHz (Double Data Rate) Front Side

∗

Bus frequency processors

Reserves support for future AMD processors

∗

184-pin DDR module socket x2

∗

Support PC1600/PC2100 DDR DRAM

168-pin SDRAM module socket x2

∗

Support PC100/PC133 SDRAM

Expandable to 2.0GB

∗

AGP slot x1 support AGP 2.0 & 4X mode

∗

32-bit PCI slot x5

∗

CNR slot x1

∗

Two PCI IDE controllers support PCI Bus Mastering, ATA

∗

PIO/DMA and the ULTRA DMA 33/66/100 functions that deliver the data transfer rate up to 100 MB/s

AC’97 Digital Audio controller integrated

∗

AC’97 Audio CODEC on board

∗

Audio driver and utility included

∗

Award 2MBit Flash ROM

∗

BIOS Multi I/O

PS/2 keyboard and PS/2 mouse connectors

∗

Floppy disk drive connector x1

∗

Parallel port x1

∗

Serial port x2

∗

USB connector x2

∗

USB headers x4 (connecting cable option)

∗

Audio connector (Line-in, Line-out , MIC & Game Port)

∗

1-3 Performance List

The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.)

Performance Test Report

CPU: DRAM:

AMD Athlon 1.2GHz/Duron 1.1GHz 128M SDRAM x2 (Hyundai GM 72V66841ET75)

128M DDR SDRAM x2 (Samsung K4H280838B-TCB0)

VGA Expansion Card: Hard Disk Driver: BIOS:

Win 98SE

OS:

Award Optimal default

RIVA Geforce 256 (1024x768 Hi-color) Driver V3.68

IBM DTLA-305040 (ATA-100)

Athlon 1.2GHz Duron 1.1GHz

SDRAM

(133/133)

3D Mark 99 5936 5965 5818 5861 3D Mark 2000 4772 4787 4599 4659 3D Mark 2001 1969 1994 1883 1933 3D Winbench 99 V1.2 900 900 900 900 3D Winbench 2000 94.8 95.1 93.8 94.6 Final Reality 6.49 6.53 6.54 6.87 Winstone 99 V1.3 34.9 35.8 32.2 33.1 Content Creation Winstone 2000 42.5 43.2 37.8 39.6 Content Creation Winstone 2001 50.4 51.1 43.8 45.2 Business Winstone 2001 43.5 45.4 36.7 37.6 Winbench 99 :

CPU Mark 99 107 108 77.4 80.6 FPU Winmark 99 6580 6580 6000 6000 Business Disk Winmark99 8140 8540 7700 8370 Hi-end Disk Winmark99 21000 20500 18200 19000 Business Graphic Winmark 542 543 463 471 Hi-end Graphic Winmark 1560 1580 1380 1420

SYS Mark 2000 : SISMark 2000 Rating (Internet Content Creation / Office Productivity)

Suites 211 (214/208) 213 (216/210) 176 (194/163) 180 (200/166) Official 213 (217/210) 214 (216/213) 177 (194/165) 180 (200/167)

SISOFT Sandra 2001 :

Dhrystone ALU MIPS 3341 3340 3022 3049 Whetstone FPU MFLOPS 1645 1629 1512 1496 Int ALU/RAM MB/S 419 533 365 514 Float FPU/RAM MB/S 500 688 419 558 QUAKE3 DEMO1 FPS 128.5 133.2 107.8 114.8

DEMO2 MIPS 128.2 132.8 105.6 113.8

DDR

(133/133)

SDRAM

(100/100)

DDR

(100/100)

1-4 Layout Diagram & Jumper Setting

PS/2 MOUSE

PS/2 Keyboard

USB

CPU Socket

K/B Power ON Jumper (JP1)

PS/2 MOUSE

PS/2 Keyboard

PC99 Back Panel

PRINT GAME/MIDI PORT

COM1 COM2

MIC LINE-IN LINE-OUT

ATX Powe Connector

CPU FAN

PC133 DIMMX2 PC1600/PC2100

DDR DIMM X2

VIA KT266A Chip

Front Panel Audio

CD Audio

CPU F.S.B. Clock

Jumper (JP4)

AGP Slot

PCI Slot

Winbond 83697

IR Connector

Chip

CNR Slot

Wake On Modem

ATA 100 IDE Connector

FAN2

(SW1)

CPU Ratio Selector

VIA VT8233 Chip Floppy Connector

Clear CMOS (JBAT)

Front Panel Connector

2MBit Flash ROM BIOS

USB Port

FAN1 Wake On LAN

Jumpers

Jumper Name Description Page

SW1 CPU Ratio Selector 10-pin Block P.7 JP4 CPU Front Side Bus Frequency OFF : 133MHz /266MHz

P.8

ON : 100MHz /200MHz JBAT CMOS RAM Clear 3-pin Block P.8 JP1 Keyboard Power On Enable/Disabled 3-pin Block P.9

Connectors

Connector Name Description Page

ATXPOWER ATX Power Connector 20-pin Block P.14 J2 PS/2 Mouse & PS/2 Keyboard

Connector J3 USB Port Connector 4-pin Connector P.14 PARALLEL Parallel Port Connector 25-pin Female P.14 AUD_GAME Audio/Game Connector 3 phone jack + 15-pin Connector P.14 COM1/COM2 Serial Port COM1/2 Connector 9-pin Connector P.14 FDD Floppy Driver Connector 34-pin Block P.15 IDE1 Primary IDE Connector 40-pin Block P.15 IDE2 Secondary IDE Connector 40-pin Block P.16

6-pin Female P.14

Headers

Header Name Description Page

AUDIO Line-In/Out, MIC header 9-pin Block P.16 USB1/USB2 USB Port Headers 9-pin Block P.17 IDE LED IDE activity LED 2-pin Block P.17 TB LED Turbo LED switch 2-pin Block P.17 RESET Reset switch lead 2-pin Block P.17 SPEAKER Speaker connector 4-pin Block P.17 PWR LED Power LED 2-pin Block P.17 PW BN Power switch 2-pin Block P.17 WOL/WOM Wake On-LAN/Modem Headers 3-pin Block P.18 FAN1,FAN2,CPUFAN FAN Headers 3-pin Block P.18 IR IR infrared module Headers 5-pin Block P.19 CDIN1,CDIN2 CD Audio-In Headers 4-pin Block P.19

Expansion Sockets

Socket/Slot Name Description Page

ZIF Socket 462 CPU Socket 462-pin PPGA CPU Socket P.10 SDR1, SDR2 SDRAM Module 168-pin SDRAM Module

DDR1, DDR2, DDR SDRAM Module

PCI1, PCI2, PCI3, PCI4, PCI5 AGP AGP 4X Mode Slot AGP Expansion Slot P.13

P.11

Expansion Socket

Socket

184-pin DDR SDRAM Module Expansion Socket

P.11

PCI Slot 32-bit PCI Local Bus Expansion slots P.12

Chapter 2

Hardware installation

2-1 Hardware installation Steps

Before using your computer, you had better complete the following steps:

1. Check motherboard setting

2. Install CPU

3. Install Memory

4. Install Expansion cards

5. Connect Ribbon cables, Panel wires, and power supply

6. Setup BIOS

7. Install software driver & utility

2-2 Checking Motherboard’s Jumper Setting

(1) CPU Ratio Selector (10-pin) : SW1

Ratio 1 2 3 4 5 Ratio 1 2 3 4 5

5.0x ON ON ON OFF ON 9.0x ON ON ON OFF OFF

5.5x ON OFF ON OFF ON 9.5x ON OFF ON OFF OFF

6.0x ON ON OFF OFF ON 10.0x ON ON OFF OFF OFF

6.5x ON OFF OFF OFF ON 10.5x ON OFF OFF OFF OFF

7.0X ON ON ON ON OFF 11.0x ON ON ON ON ON

7.5x ON OFF ON ON OFF 11.5x ON OFF ON ON ON

8.0x ON ON OFF ON OFF 12.0x ON ON OFF ON ON

8.5x ON OFF OFF ON OFF 12.5x ON OFF OFF ON ON

SW1

1 2 3 4 5

CPU Ratio Selector

(2) CPU Front Side Bus Frequency Setting (2-pin) : JP4

JP4

ON : 100MHz

CPU Front Side Bus Frequency Settin

(Default)

JP4

OFF : 133MHz

Note: CPU Front Side Bus Frequency also can setting step by step in BIOS

SETUP, please refer page 39 Miscellaneous Control in Host Clock at Next.

(3) CMOS RAM Clear (3-pin) : JBAT

A battery must be used to retain the motherboard configuration in CMOS RAM short 1-2 pins of JBAT to store the CMOS data.

To clear the CMOS, follow the procedure below:

1. Turn off the system and unplug the AC power

2. Remove ATX power cable from ATX power connector

3. Locate JBAT and short pins 2-3 for a few seconds

4. Return JBAT to its normal setting by shorting pins 1-2

5. Connect ATX power cable back to ATX power connector

Note: When should clear CMOS

1. Troubleshooting

2. Forget password

3. After over clocking system boot fail

JBAT

1-2 closed Normal

CMOS RAM Clear Setting

(4) Keyboard Power On function Enabled/Disabled: JP1

JBAT

2-3 closed Clear CMOS

(

)

When setting Enabled you can using keyboard by key in password to power on system.

1 3

JP1

1-2 closed K/B Power ON Disable

Default

JP1

Keyboard Power On Setting

2-3 closed K/B Power ON Enabled

2-3 Install CPU

2-3-1 Glossary

Chipset (or core logic) - two or more integrated circuits which cont rol th e int erfaces between the system processor, RAM, I/O devises, and adapter cards.

Processor slot/socket - the slot or socket used to mount the system processor on the motherboard.

Slot (AGP, PCI, ISA, RAM) - the slots used to mount adapter cards and system RAM. AGP - Accelerated Graphics Port - a high speed interface for video cards; runs at 1X

(66MHz), 2X (133MHz), or 4X (266MHz). PCI - Peripheral Component Interconnect - a high speed interface for video cards, sound

cards, network interface cards, and modems; runs at 33MHz. ISA - Industry Standard Architecture - a relatively low speed interface primarily used for

sound cards and modems; runs at approx. 8MHz.

Serial Port - a low speed interface typically used for mouse and external modems. Parallel Port - a low speed interface typically used for printers. PS/2 - a low speed interface used for mouse and keyboards. USB - Universal Serial Bus - a medium speed interface typically used for mouse, keyboards,

scanners, scanners, and some digital cameras. Sound (interface) - the interface between the sound card or integrated sound connectors and

speakers, MIC, game controllers, and MIDI sound devices.

LAN (interface) - Local Area Network - the interface to your local area network.

BIOS (Basic Input/Output System) - the program logic used to boot up a computer and

establish the relationship between the various components. Driver - software, which defines the characteri stics of a device for use by another device or

other software. Processor - the "central processing unit" (CPU); the principal integrated circuit used for doing

the "computing" in "personal computer"

Front Side Bus Frequency -

the working frequency of the motherboard, which is generated

by the clock generator for CPU, DRAM and PCI BUS.

CPU L2 Cache -

the flash memory inside the CPU, normally Athlon CPU has 256K or above,

while Duron will have 64K.

2-3-2 About AMD Athlon & Duron 462-pin CPU

This motherboard supports Socket-A (Socket-462) AMD Athlon/Duron processors. This motherboard Provides a ZIF Socket-A. The CPU that comes with the motherboard

should have a cooling FAN attached to prevent overheating. If this is not the case, then purchase a correct cooling FAN before you turn on your system.

WARNING!

To install a CPU, first turn off your system and remove its cover. Locate the ZIF socket and open it by first pulling the level sideways away from the socket then upward to a 90-degree angle. Insert the CPU with the correct orientation as shown below. The notched corner should point toward the end of the level. Because the CPU has a corner pin for two of the four corners, the CPU will only fit in the orientation as shown.

Be sure that there is sufficient air circulation across the processor’s heatsink and CPU cooling FAN is working correctly, otherwise it may cause the processor and motherboard overheat and damage, you may install an auxiliary cooling FAN, if necessary.

Socket-A

Colden Arrow

AMD

CPU ZIF Socket-A

When you put the CPU into the ZIF socket. No force require to insert of the CPU, then press the level to Locate position slightly without any extra force.

2-4 Install Memory

This motherboard provides two 184-pin DUAL INLINE MEMORY MODULES (DIMM) And two 168-pin SDRAM Module Socket sites for memory expansion available from minimum memory size of 64MB to maximum memory size of 2.0GB DDR SDRAM.

Users only can install either 168-pin SDRAM Module or 184-pin DDR DRAM Module at one time.

Valid Memory Configurations

Bank 168-Pin SDRAM/184-Pin DDR Module Total Memory

Bank 0, 1

(SDR1)

Bank 2, 3

(SDR2)

Bank 0, 1

(DDR1)

Bank 2, 3

(DDR2)

SDRAM 64, 128, 256, 512MB

DDR SDRAM 64, 128, 256, 512MB

Total System Memory (Max. 2GB)

X 1

64MB∼1GB

64MB∼2GB

Generally, installing SDRAM/ DDR SDRAM modules to your motherboard is very easy, you can refer to figure 2-4 to see what a 184-Pin PC1600/PC2100 DDR SDRAM module looks like.

DDR1 DDR2 SDR1 SDR2

DDR2 (BANK2+ BANK3)

NOTE!

When you install DIMM module fully into the DIMM socket the eject tab should be locked into the DIMM module very firmly and fit into its indention on both sides.

WARNING!

For the SDRAM CLOCK is set at 133MHz, use only PC2100-compliant DDR Modules or PC133 compliant SDRAM Modules. When this motherboard operate at 133Mhz, most system will not even boot if noncompliant modules are used because of the strict timing issues, if your DRAM Modules are not PC133/PC2100-compliant, set the SDRAM clock to 100MHz to ensure system stability.

DDR1 (BANK0+ BANK1)

SDR2 (BANK2+ BANK3)

SDR1 (BANK0+ BANK1)

Figure 2-4

2-5 Expansion Cards

WARNING!

Turn off your power when adding or removing expansion cards or other system components. Failure to do so may cause severe damage to both your motherboard and expansion cards.

2-5-1 Procedure For Expansion Card Installation

1. Read the documentation for your expansion card and make any necessary hardware or software setting for your expansion card such as jumpers.

2. Remove your computer’s cover and the bracket plate on the slot you intend to use.

3. Align the card’s connectors and press firmly.

4. Secure the card on the slot with the screen you remove above.

5. Replace the computer system’s cover.

6. Set up the BIOS if necessary.

7. Install the necessary software driver for your expansion card.

2-5-2 Assigning IRQs For Expansion Card

Some expansion cards need an IRQ to operate. Generally, an IRQ must exclusively assign to one use. In a standard design, there are 16 IRQs available but most of them are already in use.

Standard Interrupt Assignments

IRQ Priority Standard function

0 N/A System Timer 1 N/A Keyboard Controller 2 N/A Programmable Interrupt 3 * 8 Communications Port (COM2) 4 * 9 Communications Port (COM1) 5 * 6 Sound Card (sometimes LPT2) 6 * 11 Floppy Disk Controller 7 * 7 Printer Port (LPT1) 8 N/A System CMOS/Real Time Clock

9 * 10 ACPI Mode when enabled 10 * 3 IRQ Holder for PCI Steering 11 * 2 IRQ Holder for PCI Steering 12 * 4 PS/2 Compatible Mouse Port 13 N/A Numeric Data Processor 14 * 5 Primary IDE Channel 15 * 1 Secondary IDE Channel

* These IRQs are usually available for ISA or PCI devices.

2-5-3 Interrupt Request Table For This Motherboard

Interrupt request are shared as shown the table below:

INT A INT B INT C INT D PCI slot 1 Shared PCI slot 2 PCI slot 3 PCI slot 4

  

PCI slot 5 Shared AGP slot Shared AC97/MC97 Onboard USB Onboard USB 1

  

Onboard USB 2 Shared



Shared

      

 

Not Shared

  

Shared

 

  

Shared

  

Shared Shared

IMPORTANT!

If using PCI cards on shared slots, make sure that the drivers support “S hared IRQ” or that the cards don’t need IRQ assignments . Conflicts will arise between the two PCI groups that will make the system unstable or cards inoperable.

2-5-4 AGP Slot

This motherboard provides an AGP Slot, support the 1X/2X/4X AGP VGA card.

AGP SLOT

2-6 Connectors, Headers

2-6-1 Connectors

(1) Power Connector (20-pin block) : ATXPOWER

ATX Power Supply connector. This is a new defined 20-pins connector that usually

comes with ATX case. The ATX Power Supply allows to use soft power on momentary switch that connect from the front panel switch to 2-pins Power On jumper pole on the motherboard. When the power switch on the back of the ATX power supply turned on, the full power will not come into the system board until the front panel switch is momentarily pressed. Press this switch again will turn off the power to the system board.

Pin 1

PIN ROW2 ROW1

1 3.3V 3.3V 2 -12V 3.3V 3 GND GND 4 Soft Power On 5V 5 GND GND 6 GND 5V 7 GND GND 8 -5V Power OK 9 +5V +5V (for Soft Logic) 10 +5V +12V

(2) PS/2 Mouse & PS/2 Keyboard Connector: J2

The connectors for PS/2 keyboard and PS/2 Mouse.

(3) USB Port connector: J3

The connectors are 4-pin connector that connect USB devices to the system board.

(4) Parallel Port Connector (25-pin female): PARALLEL

Parallel Port connector is a 25-pin D-Subminiature Receptacle connector. The Onboard Parallel Port can be disabled through the BIOS SETUP. Please refer to Chapter 3 “INTEGRATED PERIPHERALS SETUP” section for more detail information.

(5) Audio and Game Connector : AUD_GAME

This Connector are 3 phone Jack for LINE-OUT, LINE-IN, MIC and a 15-pin D-Subminiature Receptacle Connector for joystick/MIDI Device.

Line-out : Line-in :

Audio input to sound chip

MIC : Game/MIDI :

Audio output to speaker

Microphone Connector

For joystick or MIDI Device

(6) Serial Port COM1, COM2 : COM1, COM2

COM1, COM2 are the 9-pin D-Subminiature mail connector. The On-board serial port can be disabled through BIOS SETUP. Please refer to Chapter 3 “INTEGRATED PE R IPHE R ALS SETUP” section f o r m o r e detail information.

ppy

PS/2

MOUSE

PRINT GAME/MIDI PORT

PS/2

Keyboard

USB

COM1 COM2

MIC LINE-IN LINE-OUT

(7) Floppy drive Connector (34-pin block): FDD

This connector supports the provided floppy drive ribbon cable. After connecting the single plug end to motherboard, connect the two plugs at other end to the floppy drives.

Pin 1

Flo

Drive Connector

(8) Primary IDE Connector (40-pin block): IDE1

This connector supports the provided IDE hard disk ribbon cable. After connecting the

single plug end to motherboard, connect the two plugs at other end to your hard disk(s). If you install two hard disks, you must configure the second drive to Slave mode by setting its jumpers accordingly. Please refer to the documentation of your hard disk for the jumper settings.

Pin 1

Primary IDE Connector

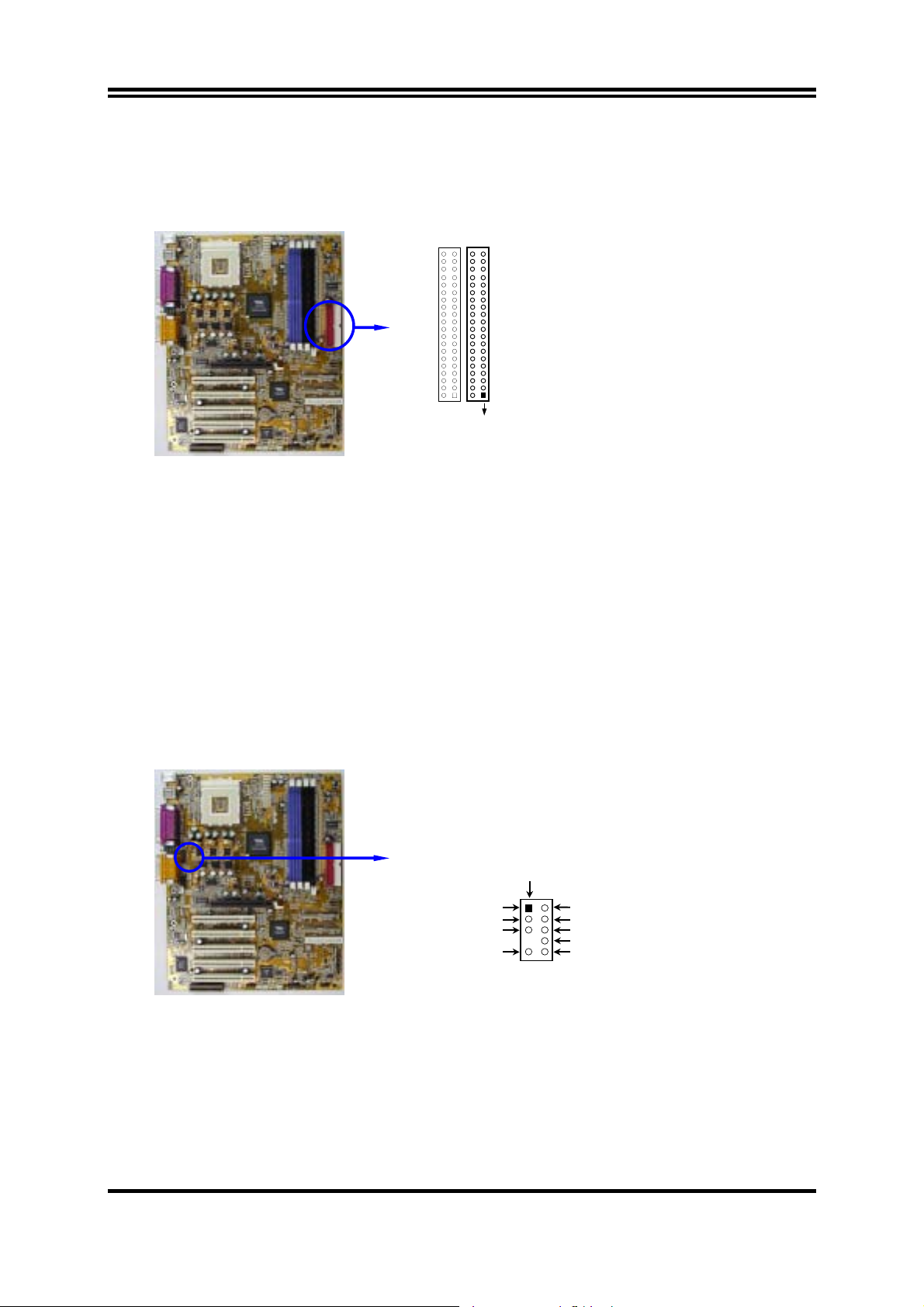

(9) Secondary IDE Connector (40-pin block): IDE2

This connector connects to the next set of Master and Slave hard disks. Follow

the same procedure described for the primary IDE connector. You may also configure two hard disks to be both Masters using one ribbon cable on the primary IDE connector and another ribbon cable on the secondary IDE connector.

Pin 1

Two hard disks can be connected to each connector. The first HDD is referred to

•

Secondary IDE Connector

as the “Master” and the second HDD is referred to as the “Slave”. For performance issues, we strongly suggest you don’t install a CD-ROM or

•

DVD-ROM drive on the same IDE channel as a hard disk. Otherwise, the system performance on this channel may drop.

2-6-2 Headers

(1) Line-In/Out, MIC Header (9-pin): AUDIO

This header connect to Front Panel Line-In, Line-out, MIC connector with cable.

UDIO

Pin 1

L-I N-R

MICP GND

-OUT-R

L-I N-L MIC

-O UT-

Line-In/Out, MIC Headers

(2) USB Port Headers (9-pin) : USB1, USB2

These headers are used for connecting the additional USB port plug. By attaching an

option USB cable, your can be provided with two additional USB plugs affixed to the

back panel.

USB1

Pin 1

VCC

GND

DATA

+ DATA

VCC

GND

DATA

+ DATA

USB2

Pin 1

GND

USB Port Connector

VCC

GND

DATA

+ DATA

VCC

GND

DATA

+ DATA

(3) IDE Activity LED: IDE LED

This connector connects to the hard disk activity indicator light on the case.

(4) Turbo LED switch: TB LED

Since the motherboard’s turbo function is always on. The turbo LED will remain

constantly on while the system power is on. You may wish to connect the Power LED

from the system case to this lead. See the figure below.

(5) Reset switch lead: RESET

This 2-pin connector connects to the case-mounted reset switch for rebooting your

computer without having to turn off your power switch. This is a preferred method of

rebooting in order to prolong the lift of the system’s power supply. See the figure

below.

(6) Speaker connector: SPEAKER

This 4-pin connector connects to the case-mounted speaker. See the figure below.

(7) Power LED: PWR LED

The Power LED is light on while the system power is on. Connect the Power LED

from the system case to this pin.

(8) Power switch: PW BN

This 2-pin connector connects to the case-mounted power switch to power ON/OFF the

system.

VCC

Speaker

Reset SW

Tur bo LED

GND

Power LE D

Turbo S W

SMI

PW BN

IDE L ED

System Case Connections

(9) Wake On-LAN/Modem Headers (3-pin) : WOL, WOM

This connector connects to a LAN/Modem card with a WAKE ON-LAN/Modem output.

This connector power up the system when a wake up signal is received through the

LAN/Modem card.

NOTE:

This feature requires that Wake On LAN or Ring In Wake up is enabled.

5VS B

GND

WOM

5VS B

GND

WON

WOM

Wake-On-Modem Headers

WOL

Wake-On-LAN Headers

(10) FAN Speed Headers (3-pin) : FAN1, FAN2, CPUFAN

These connectors support cooling fans of 350mA (4.2 Watts) or less, depending on the fan manufacturer, the wire and plug may be different. The red wire should be positive, while the black should be ground. Connect the fan’s plug to the board taking into consideration the polarity of connector.

CPUFAN

FAN2

FAN1

(11) IR infrared module Headers (9-pin) : IR

This connector supports the optional wireless transmitting and receiving infrared

module. You must configure the setting through the BIOS setup to use the IR function.

CI RRX

IOVSB

CIR

6 1

IR: (Pin1∼Pin5) for Standard IR CIR: (Pin6∼Pin10) for Consumer IR

GND

VCC

IRRX

IRTX

Infrared Module Headers

(12) CD Audio-In Headers (4-pin) : CDIN1, CDIN2

CD_IN1 and CDIN2 are the connectors for CD-Audio Input signal. Please connect it to

CD-ROM CD-Audio output connector.

CDI N1

CDI N2

CD Audio-In Headers

2-7 Starting Up Your Computer

1. After all connection are made, close your computer case cover.

2. Be sure all the switch are off, and check that the power supply input voltage is set to proper position, usually in-put voltage is 220V∼240V or 110V∼120V depending on your country’s voltage used.

3. Connect the power supply cord into the power supply located on the back of your system case according to your system user’s manual.

4. Turn on your peripheral as following order: a. Your monitor.

b. Other external peripheral (Printer, Scanner, External Modem etc…) c. Your system power. For ATX power supplies, you need to turn on the power supply

and press the ATX power switch on the front side of the case.

5. The power LED on the front panel of the system case will light. The LED on the monitor may light up or switch between orange and green after the system is on. If it complies with green standards or if it is has a power standby feature. The system will then run power-on test. While the test are running, the BIOS will alarm beeps or additional message will appear on the screen.

If you do not see any thing within 30 seconds from the time you turn on the power. The system may have failed on power-on test. Recheck your jumper settings and connections or call your retailer for assistance.

Beep Meaning

One short beep when displaying logo No error during POST Long beeps in an endless loop No DRAM install or detected One long beep followed by three short

beeps High frequency beeps when system is

working

Video card not found or video card memory bad

CPU overheated System running at a lower frequency

6. During power-on, press <Delete> key to enter BIOS setup. Follow the instructions in BIOS SETUP.

Power off your computer:

You must first exit or shut down your operating system before switch off the power switch. For ATX power supply, you can press ATX power switching after exiting or shutting down your operating system. If you use W indows 9X, click

“Start”

button, click

“Shut down”

and then click

“Shut down the computer?”

The power supply should turn off after windows shut down.

Chapter 3

Introducing BIOS

The BIOS is a program located on a Flash Memory on the motherboard. This program is a bridge between motherboard and operating system. When you start the computer, the BIOS program gain control. The BIOS first operates an auto-diagnostic test called POST (power on self test) for all the necessary hardware, it detects the entire hardware devi ce and configures the parameters of the hardware synchronization. Only when these tasks are completed done it gives up control of the computer to operating system (OS). Since the BIOS is the only channel for hardware and software to communicate, it is the key factor for system stability, and in ensuring that your system performance as its best.

In the BIOS Setup main menu of Figure 3-1, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here:

Press <Esc> to quit the BIOS Setup.

•

Press

↑↓←→

(up, down, left, right) to choose, in the main menu, the option you want to

confirm or to modify. Press <F10> when you have completed the setup of BIOS parameters to save these

•

parameters and to exit the BIOS Setup menu. Press Page Up/Page Down or +/– keys when you want to modify the BIOS parameters for

•

the active option.

3-1 Entering Setup

Power on the computer and by pressing <Del> immediately allows you to enter Setup. If the message disappears before your respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the “RESET” button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt> and <Delete> keys . If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to

Press <F1> to continue, <Ctrl-Alt-Esc> or <Del> to enter Setup

3-2 Getting Help

Main Menu

The on-line description of the highlighted setup function is displayed at the bottom of the screen.

Status Page Setup Menu/Option Page Setup Menu

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window, press <Esc>.

3-3 The Main Menu

Once you enter Award BIOS CMOS Setup Utility, the Main Menu (Figure 3-1) will appear on the screen. The Main Menu allows you to select from fourteen setup functions and two exit choices. Use arrow keys to select among the items and press <Enter> t o accept or enter the sub-menu.

Standard CMOS Features Advanced BIOS Features Advanced Chipset Features Integrated Peripherals Power Management Setup PnP/PCI Configurations PC Health Status Esc : Quit

F10 : Save & Exit Setup

Time, Date, Hard Disk Type...

Figure 3-1

Miscellaneous Control Load optimized Defaults Load Standard Defaults Set Supervisor Password Set User Password Save & Exit Setup Exit Without Saving

↑↓→ ←

: Select Item

Standard CMOS Features

Use this Menu for basic system configurations.

Advanced BIOS Features

Use this menu to set the Advanced Features available on your system.

Advanced Chipset Features

Use this menu to change the values in the chipset registers and optimize your system’s performance.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

PnP/PCI configurations

This entry appears if your system supports PnP/PCI.

PC Health Status

This entry shows your PC health status.

Miscellaneous Control

Use this menu to specify your settings for Miscellaneous control.

Load Optimized Defaults

Use this menu to load the BIOS default values that are factory settings for optimal performances system operations.

Load Standard Defaults

Use this menu to load the BIOS default values for the minimal/stable performance system operation.

Set Supervisor/User Password

Use this menu to set User and Supervisor Passwords.

Save & Exit Setup

Save CMOS value changes to CMOS and exit setup.

Exit Without Saving

Abandon all CMOS value changes and exit setup.

3-4 Standard CMOS Features

The items in Standard CMOS Setup Menu are divided into several categories. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item.

Standard CMOS Features

Date (mm:dd:yy) Thu, Jul, 05 2001 Time (hh:mm:ss) 11 : 33 : 50

> IDE Primary Master Press Enter None > IDE Primary Slave Press Enter None > IDE Secondary Master Press Enter None > IDE Secondary Slave Press Enter None

Drive A 1.44M, 3.25 in. Drive B None

Video EGA/VGA Halt On All,But Keyboard

Base Memory 640K Extended Memory 56320K Total Memory 57344K

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Item Help

Menu Level >

Change the day, month, year and century

Date

The date format is <day><month><date><year>.

Day of the week, from Sun to Sat, determined by BIOS. Read-only.

Day Month Date Year

The month from Jan. through Dec.

The date from 1 to 31 can be keyed by numeric function keys.

The year depends on the year of the BIOS.

Time

The time format is <hour><minute><second>.

Primary Master/Primary Slave Secondary Master/Secondary Slave

Press PgUp/<+> or PgDn/<–> to select Manual, None, Auto type. Note that the specifications of your drive must match with the drive table. The hard disk will not work properly if you enter improper information for this category. If your hard disk drive type is not matched or listed, you can use Manual to define your own drive type manually.

If you select Manual, related information is asked to be entered to the following items. Enter the information directly from the keyboard. This information should be provided in the documentation from your hard disk vendor or the system manufacturer. If the controller of HDD interface is SCSI, the selection shall be “None”. If the controller of HDD interface is CD-ROM, the selection shall be “None”

Access Mode Cylinder Head Precomp Landing Zone Sector

number of sectors

The settings are Auto Normal, Large, and LBA.

number of cylinders

number of heads

write precomp

landing zone

3-5 Advanced BIOS Features

Advanced BIOS Features

Anti-Virus Protection Disabled Recovery Genius Enabled PhoneixNet Support Disabled CPU L1 Cache Enabled CPU L2 Cache Enabled Quick Power On Self Test Enabled ATA & SCSI Boot Order ATA, SCSI First Boot Device Floppy Second Boot Device HDD-0 Third Boot Device CDROM Boot other Device Enabled Swap Floppy Drive Disabled Boot Up Floppy Seek Enabled Boot Up NumLock Status On Gate A20 Option Normal Typematic Rate Setting Disabled Typematic Rate (Chars/Sec) 6 Typematic Delay (Msec) 250 Security Option Setup OS Select For DRAM > 64MB Non-OS2 HDD S.M.A.R.T. Capability Disabled Video BIOS Shadow Enabled

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Item Help

Menu Level >

Anti-Virus Protection

Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempt to write data into this area, BIOS will show a warning message on screen and alarm beep.

Disabled

(default) No warning message to appear when anything attempts to access the

boot sector or hard disk partition table.

Enabled

Activates automatically when the system boots up causing a warning message to appear when anything attempts to access the boot sector of hard disk partition table.

CPU Internal Cache

The default value is Enabled.

Enabled Disabled

(default) Enable cache

Disable cache

Note: The internal cache is built in the processor.

External Cache

Choose Enabled or Disabled. This option enables the Level 2 cache memory.

CPU L2 Cache ECC Checking

Choose Enabled or Disabled. This option enables the Level 2 cache memory ECC (error check correction).

Quick Power On Self-Test

This category speeds up Power On Self Test (POST) after you power on the computer. If this is set to Enabled. BIOS will shorten or skip some check items during POST.

Enabled Disabled

(default) Enable quick POST

Normal POST

First/Second/Third/Fourth Boot Device

The BIOS attempts to load the operating system from the devices in the sequence selected in these items. The settings are Floppy, LS/ZIP, HDD-0/HDD-1/HDD-3, SCSI, CDROM, LAD and Disabled.

Swap Floppy Drive

Switches the floppy disk drives between being designated as A and B. Default is Disabled.

Boot Up Floppy Seek

During POST, BIOS will determine if the floppy disk drive installed is 40 or 80 tracks. 360K type is 40 tracks while 760K, 1.2M and 1.44M are all 80 tracks.

Boot Up NumLock Status

The default value is On.

(default)

On Off

Keypad is numeric keys. Keypad is arrow keys.

Gate A20 Option

Normal

(default) The A20 signal is controlled by port 92 or chipset specific method.

Fast

The A20 signal is controlled by keyboard controller or chipset hardware.

Typematic Rate Setting

Keystrokes repeat at a rate determined by the keyboard controller. When enabled, the typematic rate and typematic delay can be selected. The settings are: Enabled/Disabled.

Typematic Rate (Chars/Sec)

Sets the number of times a second to repeat a keystroke when you hold the key down. The settings are: 6, 8, 10, 12, 15, 20, 24, and 30.

Typematic Delay (Msec)

Sets the delay time after the key is held down before is begins to repeat the keystroke. The settings are 250, 500, 750, and 1000.

Security Option

This category allows you to limit access to the system and Setup, or just to Setup.

System

The system will not boot and access to Setup will be denied if the correct password is not entered at the prompt.

Setup

(default) The system will boot, but access to Setup will be denied if the correct

password is not entered prompt.

OS Select For DRAM > 64MB

Allows OS2 to be used with >64MB or DRAM. Settings are Non-OS/2 (default) and OS2. Set to OS/2 if using more than 64MB and running OS/2.

3-6 Advanced Chipset Features

The Advanced Chipset Features Setup option is used to change the values of the chipset registers. These registers control most of the system options in the computer.

Advanced Chipset Features

> DRAM Timing Settings Press Enter > AGP Timing Settings Press Enter > PCI Timing Settings Press Enter System BIOS Cacheable Disabled Video RAM Cacheable Disabled Memory Hole Disabled

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Item Help

Menu Level >

DRAM Timing Settings

Please refer to section 3-6-1

AGP Timing Settings

Please refer to section 3-6-2

PCI Timing Settings

Please refer to section 3-6-3

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result. The settings are: Enabled and Disabled.

Video RAM Cacheable

Select Enabled allows caching of the video BIOS, resulting in better system performance. However, if any program writes to this memory area, a system error may result. The settings are: Enabled and Disabled.

Memory Hole

You can reserve this area of system memory for ISA adapter ROM. When this area is reserved, it cannot be cached. The user information of peripherals that need to use this area of system memory usually discusses their memory requirements. The settings are: Enabled and Disabled.

3-6-1 DRAM Timing Settings

DRAM Timing Settings

Auto Configuration Optimized RAS Active Time 6T RAS Precharge Time 3T RAS to CAS Delay 3T CAS Latency 2.5T Bank Interleave 4 Bank DRAM Command Rate 2T Command

Item Help

Menu Level >>

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

RAS Active Time

This field let’s you insert a timing delay between the CAS and RAS strobe signals, used when DRAM is written to, read from, or refreshed. Fast gives faster performance; and Slow gives more stable performance. This field applies only when synchronous DRAM is installed in the system. The settings are: 2T and 3T.

RAS Precharge Time

If an insufficient number of cycles is allowed for the RAS to accumulate its charge before DRAM refresh, the refresh may be incomplete and the DRAM may fail to retain date. Fast gives faster performance; and Slow gives more stable performance. This field applies only when synchronous DRAM is installed in the system. The settings are: 2T and 3T.

CAS Latency

When synchronous DRAM is installed, the number of clock cycles of CAS latency depends on the DRAM timing. The settings are: 2T and 2.5T.

3-6-2 AGP Timing Settings

AGP Timing Settings

AGP Transfer Aperture Size 128M AGP Mode Auto AGP Driving Control Auto AGP Driving Value DA AGP Fast Write Disabled AGP Master 1 WS Write Enabled AGP Master 1 WS Read Enabled CPU to AGP Post Write Disabled AGP Delay Transaction Disabled

Item Help

Menu Level >>

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Note: Change these settings only if you are familiar with the chipset.

3-6-3 PCI Timing Settings

PCI Timing Settings

PCI Master 1 WS Write Disabled PCI Master 1 WS Read Disabled CPU to AGP Post Write Disabled PCI Delay Transaction Disabled

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Item Help

Menu Level >>

PCI Delay Transaction

The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles. Select Enabled to support compliance with PCI specification version 2.1. The settings are: Enabled and Disabled.

3-7 Integrated Peripherals

Integrated Peripherals

> OnChip IDE Function Press Enter > OnChip Device Function Press Enter > Onboard Super IO Function Press Enter Init Display First PCI Slot

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

OnChip IDE Function

Please refer to section 3-7-1

Item Help

Menu Level >

OnChip Device Function

Please refer to section 3-7-2

Onboard Super IO Function

Please refer to section 3-7-3

Init Display First

This item allows you to decide to activate whether PCI Slot or AGP VGA first. The settings are: PCI Slot, AGP Slot.

3-7-1 OnChip IDE Function

OnChip IDE Function

OnChip IDE Channel0 Enabled OnChip IDE Channel1 Enabled Primary Master PIO Auto Primary Slave PIO Auto Secondary Master PIO Auto Secondary Slave PIO Auto Primary Master UDMA Auto Primary Slave UDMA Auto Secondary Master UDMA Auto Secondary Slave UDMA Auto IDE 32-bit Transfer Mode Enabled IDE HDD Block Mode Enabled IDE Prefetch Mode Enabled Delay For HDD (Secs) 0

Item Help

Menu Level >>

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

OnChip IDE Channal0/Channel1

The integrated peripheral controller contains an IDE interface with support for two IDE channels. Select Enabled to activate each channel separately. The settings are: Enabled and Disabled.

Primary/Secondary Master/Slave PIO

The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each of the four IDE devices that the onboard IDE interface supports. Modes 0 through 4 provide successively increased performance. In Auto mode, the system automatically determines the best mode for each device. The settings are: Auto, Mode 0, Mode 1, Mode 2, Mode 3, Mode

Primary/Secondary Master/Slave UDMA

Ultra DMA/33 implementation is possible only if your IDE hard drive supports it and the operating environment includes a DMA driver (Windows 95 OSR2 or a third-party IDE bus master driver). If your hard drive and your system software both support Ultra DMA/33 and Ultra DMA/66, select Auto to enable BIOS support. The settings are: Auto, Disabled.

IDE HDD Block Mode

Block mode is also called block transfer, multiple commands, or multiple sector read/write. If your IDE hard drive supports block mode (most new drives do), select Enabled for automatic detection of the optimal number of block read/writes per sector the drive can support. The settings are: Enabled, Disabled.

3-7-2 OnChip Device Function

OnChip Device Function

AC97 Sound Device Auto Game Port Address 201 Midi Port Address Disabled Midi Port IRQ 10 AC97 Modem Device Auto USB Host Controller Enabled USB Keyboard Legacy Support Disabled

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

AC97 Sound Device

This item allows you to decide to enable/disable the KT266A chipset family to support AC97 Audio. The settings are: Enabled, Disabled.

Item Help

Menu Level >>

Game Port Address/Midi Port Address

This will determine which Address the Game Port/Midi Port will use.

AC97 Modem Device

This item allows you to decide to enable/disable the KT266A chipset family to support AC97 Modem. The settings are: Auto, Disabled.

USB Host Controller

Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have a USB peripherals. The settings are: Enabled, Disabled.

USB Keyboard Support

Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have a USB keyboard. The settings are: Enabled, Disabled.

3-7-3 Onboard Super IO Function

Onboard Super IO Function

Onboard FDD Controller Enabled Onboard Serial Port 1 3F8/IRQ4 Onboard Serial Port 2 2F8/IRQ3 UART2 Mode Normal RxD, TxD Active Hi, Lo IR Duplex Mode Half Use IR Pins IRRX/IRTX Onboard Parallel Port 378/IRQ7 Parallel Mode SPP EPP Mode Select EPP1.9 ECP Mode Use DMA 3

Item Help

Menu Level >>

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Onboard FDD Controller

Select Enabled if your system has a floppy disk controller (FDD) installed on the system board and you wish to use it. If you install add-on FDC or the system has no floppy drive, select Disabled in this field. The settings are: Enabled and Disabled.

Onboard Serial Port 1/Port 2

Select an address and corresponding interrupt for the first and the second serial ports. The settings are: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/IRQ3, Disabled, Auto.

UART2 Mode

This item allows you to determine which InfraRed(IR) function of the onboard I/O chip, this functions uses.

Onboard Parallel Port

There is a built-in parallel port on the on-board Super I/O chipset that Provides Standard, ECP, and EPP features. It has the following option:

Disabled (3BCH/IRQ7)/ (278H/IRQ5)/ (378H/IRQ7)

Line Printer port 0

Line Printer port 2

Line Printer port 1

Parallel Port Mode

SPP : Standard Parallel Port EPP : Enhanced Parallel Port ECP : Extended Capability Port

SPP/EPP/ECP/ECP+EPP

To operate the onboard parallel port as Standard Parallel Port only, choose “SPP.” To operate the onboard parallel port in the EPP modes simultaneously, choose “EPP.” By choosing “ECP”, the onboard parallel port will operate in ECP mode only. Choosing “ECP+EPP” will allow the onboard parallel port to support both the ECP and EPP modes simultaneously. The ECP mode has to use the DMA channel, so choose the onboard parallel port with the ECP feature. After selecting it, the following message will appear: “ECP Mode Use DMA” at this time, the user can choose between DMA channels 3 to 1. The onboard parallel port is EPP Spec. compliant, so after the user chooses the onboard parallel port with the EPP function, the following message will be displayed on the screen: “EPP Mode Select.” At this time either EPP 1.7 spec. or EPP 1.9 spec. can be chosen.

3-8 Power Management Setup

The Power Management Setup allows you to configure your system to most effectively save energy saving while operating in a manner consistent with your own style of computer use.

Power Management Setup

ACPI Function Enabled Video Off Option Suspend -> off Video off Method V/H SYNC+Blank MODEM Use IRQ 3 Power Button Function Instant-Off > Wake Up Events Press Enter

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Item Help

Menu Level >

ACPI Function

Thi s item allows you to Enabled/Disabled the Advanced Configuration and Powe r Ma nag eme nt (ACPI). The settings are Enabled and Disabled.

Video Off Option

This determines the manner in which the monitor is blanked. The choice are Suspend → off, All Modes → Off, and Always On.

Video Off Method

This determines the manner in which the monitor is blanked.

DPMS Blank Screen V/H SYNC+Blank

(default) Initial display power management signaling.

This option only writes blanks to the video buffer.

This selection will cause the system to turn off the vertical and

horizontal synchronization ports and write blanks to the video buffer.

Modem Use IRQ

This determines the IRQ in which the MODEM can use. The settings are: 3, 4, 5, 7, 9, 10, 11, NA.

Power Button Function

Pressing the power button for more than 4 seconds forces the system to enter the Soft-Off state. The settings are: Delay 4 Sec, Instant-Off.

Wake Up Events

Please refer to section 3-8-1

3-8-1 Wake up Events

Wake Up Events

VGA OFF LPT & COM LPT/COM HDD & FDD ON PCI Master OFF Wake-Up on Ring Disabled Wake-Up on PCI PME Disabled PS2 KB Wakeup Selection Hot Key Wake-Up On Hot Key (PS2 KB) Disabled Wake-Up on RTC Alarm Disabled x Date of Month Alarm 0 x Time (hh:mm:ss) Alarm 0 : 0 : 0 > IRQs Activities Press Enter

Item Help

Menu Level >>

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Wake Up On Ring/PME

During Disabled, the system will ignore any incoming call from the modem. During Enabled, the system will boot up if there’s an incoming call from the modem.

Wake-Up on RTC Alarm

This function is for setting date and time for your computer to boot up. During Disabled, you cannot use this function. During Enabled, choose the Date and Time Alarm:

Date(of month) Alarm

You can choose which month the system will boot up. Set to 0, to boot every day.

Time(hh:mm:ss) Alarm

You can choose what hour, minute and second the system will boot up. Note: If you have change the setting, you must let the system boot up until it goes to the

operating system, before this function will work.

IRQs Activities

Please refer to section 3-8-1.1

3-8-1.1 IRQs Activities

IRQs Activities

Primary INTR ON IRQ3 (COM 2) Enabled IRQ4 (COM 1) Enabled IRQ5 (LPT 2) Enabled IRQ6 (Floppy Disk) Enabled IRQ7 (LPT 1) Enabled IRQ8 (RTC Alarm) Disabled IRQ9 (IRQ2 Redir) Disabled IRQ10 (Reserved) Disabled IRQ11 (Reserved) Disabled IRQ12 (PS/2 Mouse) Enabled IRQ13 (Coprocessor) Disabled IRQ14 (Hard Disk) Enabled IRQ15 (Reserved) Disabled

Item Help

Menu Level >>>

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

3-9 PnP/PCI Configuration Setup

This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed the

CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only ex perienced users should make any changes to the default settings.

PnP/PCI Configurations

PnP OS Installed No Reset Configuration Data Disabled

Resources Controlled By Manual x IRQ Resources Press Enter

PCI/VGA Palette Snoop Disabled Assign IRQ For VGA Enabled Assign IRQ For USB Enabled

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Item Help

Menu Level >

Reset Configuration Data

No rma ll y, you leave this field Disabled. Select Enabled to reset Extended S ystem Co nfi gur ati on

Data (ESCD) when you exit Setup if you have installed a new add-on and the system reconfiguration has caused such a serious conflict that the operating system can not boot. The settings are: Enabled and Disabled.

Resource Controlled By

The Award Plug and Play BIOS has the capacity to automatically configure all of the boot and Plug and Play compatible devices. However, this capability means absolutely nothing unless you are using a Plug and Play operating system such as Windows95/98. If you set this field to “manual” choose specific resources by going into each of the sub menu that follows this field (a sub menu is preceded by a “>”).

The settings are: Auto(ESCD), Manual.

IRQ Resources

When resources are controlled manually, assign each system interrupt a type, depending on the type of device using the interrupt.

Please refer to section 3-9-1

PCI/VGA Palette Snoop

Leave this field at Disabled. The settings are Enabled, Disabled.

3-9-1 IRQ Resources

IRQ Resources

IRQ3 assigned to PCI Device IRQ4 assigned to PCI Device IRQ5 assigned to PCI Device IRQ7 assigned to PCI Device IRQ9 assigned to PCI Device IRQ10 assigned to PCI Device IRQ11 assigned to PCI Device IRQ12 assigned to PCI Device IRQ14 assigned to PCI Device IRQ15 assigned to PCI Device

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Menu Level >>

Item Help

3-10 PC Health Status

This section shows the Status of you CPU, Fan, Warning for overall system status. This is only available if there is Hardware Monitor onboard.

PC Health Status

Shutdown Temperature Disabled Show PC Health in Post Enabled Detect CPUFAN in Post Enabled Current System Temperature 25°C Current CPU Temperature 38°C Current CPUFAN Speed 5000 rpm Current SYSFAN Speed 5000 rpm Vcore 1.78V Vcc3.3 3.31V + 5V 4.98V +12V 12.22V

-12V -12.36V VBAT(V) 3.21V 5VSB(V)

5.02V

Item Help

Menu Level >

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Shutdown Temperature

This item can let users setting the Shutdown temperature, when CPU temperature over this setting the system will auto shutdown to protect CPU.

Show PC Health in Post

During Enabled, it displays information list below. The choice is either Enabled or Disabled

Current CPU Temperature/Current System Temp/Current FAN1, FAN2 Speed/Vcore/ Vdd/3.3V/+5V/+12V/-12V/VBAT(V)/5VSB(V)

This will show the CPU/FAN/System voltage chart and FAN Speed.

Detect CPUFAN in Post

During Enabled, system will warn the user if CPU Fan is not functioning.

3-11 Miscellaneous Control

This section is for setting CPU Frequency/Voltage Control.

Miscellaneous Control

Auto Detect DIMM/PCI Clk Enabled Spread Spectrum Disabled ** Current Host Clock is Host Clock at Next Boot is 100MHz ** Current DRAM Clock is DRAM Clock at next Boot is CPU Vcore Select Default

Item Help

Menu Level >

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Auto Detect DIMM/PCI Clk

This item allows you to enable/disable auto detect DIMM/PCI Clock.

Spread Spectrum

This item allows you to set the CPU Host/PCI clock and Spread Spectrum. The settings are: Enabled, Disabled.

Host Clock at next Boot is

This item allows you to select CPU frequency step by step increasing The choice are: 100MHz∼133MHz, 133MHz∼166MHz.

DRAM Clock at next Boot is

This field displays the capability of the memory modules that you can use The choice is either 100MHz or 133MHz (only select CPU Frequency 100MHz.)

CPU Vcore Select

This item allows you to select Vcore of the CPU. The choice are: +16.25V∼+1.850V.

3-12 Load Standard/Optimized Defaults

Load Standard Defaults

When you press <Enter> on this item, you get confirmation dialog box with a message similar to:

Load Standard Defaults (Y/N)? N

Pressing <Y> loads the BIOS default values for the most stable, minimal-performance system operations.

Load Optimized Defaults

When you press <Enter> on this item, you get a confirmation dialog box with a message similar to:

Load Optimized Defaults (Y/N)? N

Pressing <Y> loads the default values that are factory settings for optimal performance system operations.

3-13 Set Supervisor/User Password

You can set either supervisor or user password, or both of them. The differences are:

Supervisor password: Can enter and change the options of the setup menus. User password: Can only enter but do not have the right to change the options of the

setup menus. When you select this function, the following message will appear at the center of the screen to assist you in creating a password.

ENTER PASSWORD:

Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.

To disable a password, just press <Enter> when you are prompted to enter the password. A message will confirm that the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

PASSWORD DISABLED.

When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration.

Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer.

You determine when the password is required within the BIOS Features Setup Menu and its Security option. If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.

Chapter 4

DRIVER & FREE PROGRAM INSTALLATION

Check your package and there is A MAGIC INSTALL CD included. This CD consis ts of all DRIVERS you need and some free application programs and utility programs. In addition, this CD also include an auto detect software which can tell you which hardware is installed, and which DRIVERS needed so that your system can function properly. We call this auto detect software MAGIC INSTALL.

MAGIC INSTALL Supports WINDOWS 95/98/98SE/NT4.0/2000

Insert CD into your CD-ROM drive and the MAGIC INSTALL Menu should appear as below. If the menu does not appear, double-click MY COMPUTER / double-click CD-ROM drive or click START / click RUN / type X:\SETUP.EXE (assuming X is your CD-ROM drive).

From MAGIC INSTALL MENU you may make 8 selections:

1. VIA 4 IN 1 install VIA Service Pack 4 IN 1 driver

2. SOUND install AC97 Audio Codec Installing driver

3. PC-HEALTH install VIA PC-HEALTH hardware monitor driver

4. MAGIC BIOS install BIOS Live Update Utility

5. DIRECTX8 install Microsoft DirectX 8.0 driver

6. PC-CILLIN install PC-CILLIN2000 anti-virus program

7. BROWSE CD to browse the contents of the CD

8. EXIT to exit from MAGIC INSTALL menu

4-1 IDE Install VIA Service Pack 4 IN 1 Driver

* The path of the file is X:\VIA\DRIVER\SETUP.EXE IDE : VIA ATAPI VENDOR SUPPORT DRIVER IS USED TO FIXED COMPATIBILITY

ISSUE FOR IDE DEVICES

AGPVXD : VIA AGPVXD DRIVER IS TO BE INSTALLED, IF YOU ARE USING AN

AGP VGA CARD, VIAGART.VXD WILL PROVIDE SERVICE ROUTINES TO YOUR VGA DRIVER AND INTERFACE DIRECTLY TO HARDWARE, PROVIDING FAST GRAPHIC ACCESS

IRQ ROUTING : VIA PCI IRQ MINIPORT DRIVER IS TO BE INSTALLED UNDER WIN98

ONLY, IT WILL FIX PCI IRQ ROUTING SEQUENCE

INF : VIA REGISTRY DRIVER IS TO BE INSTALLED UNDER WINDOWS

THE DRIVER WILL E N A B L E VIA PO W E R MANAGERMENT CONTROLLER

1. Click IDE when MAGIC INSTALL MENU

appears

2. Click NEXT when VIA Service Pack Wizard

appears

3. This is to announce the Copy Write,

click Yes

5. Click NEXT to Install ATAPI Vender

Support Driver

4. Click NEXT to choose all driver

6. Click NEXT to choose enabled DMA

Mode

7. Click NEXT to Install VIA AGP VXD

Driver

8. Click NEXT to Install VIA IRQ Routing

Mini port Driver

9. Click Finish to restart computer

4-2 AC97 sound driver and the program Install for editing/playback

1. Click SOUND when MAGIC INSTALL

MENU appears

3. When ask Remove old device driver, Click OK

2. Then auto detect operation system

language edition, click OK, start to install DRIVER

4. Click Finish and Restart Windows

NOTE: MAGIC INSTALL will auto detect file path:

X:\CODEC\ALC201\SETUP.EXE (for WINDOWS 95/98/98SE/ME/NT4.0/2000)

4-3 PC-HEALTH Winbond Hardware Doctor Monitoring

Software

The path of the file is X:\VIA\HEALTH-W\SETUP.EXE (Only support WINDOWS 95/98/98SE/ME)

In Windows 95/98 Winbond Hardware Doctor Monitoring Software needs some system files to copy in Utility that’s why it needs install PC-HEALTH twice to complete setup.

1. Click PC-Health when Magic Install

Menu appears

2. Click OK when Winbond Hardware

Doctor Setup Window appears

3. Click the Button to start installation 4. Select Program Group name or enter a new

group name, click continue to setup and click OK after setup complete

4-3-1 How To Utilize PC-HEALTH

1. Click Program → Winbond Hardware

Doctor → Hardware Doctor the Winbond Hardware Doctor will appears

You can remove the Utility in Control Panel → Add/Remove Program icon

2. After executing Winbond Hardware Doctor it supports system voltage, Fan speed and CPU/SYSTEM Temperature. Because this is a On-time Monitoring program therefore the value will change after it detected, if the value is over default setting the system will have warning picture and beeps

4-4 MAGIC BIOS Install BIOS Live Update Utility

1. Click Magic BIOS when Magic Install

MENU appears

3. After finish Setup you will have a Magic

BIOS icon in your screen

2. Click Next to install the Magic BIOS in

Destination Folder

4. Double click the Magic BIOS icon you

will have this picture, choose from internet you can upgrade BIOS On-line

5. When On-line update BIOS the program

will auto-check your BIOS version

6. Click Next if you need update BIOS,

after upgrade BIOS, the system will clear CMOS and automatically restart

7. Click Yes if you want to update the BIOS

otherwise choose No to exit

8. When System programming BIOS don’t turn

off power, after finish update BIOS, the system will clear CMOS and automatically Restart

9. When choose From Local Driver to update

BIOS, you must have the correct BIOS file in your Local Driver

10. Choose the correct BIOS file to update BIOS

4-5 PC-CILLIN Install PC-CILLIN 2000 Anti-virus program

1. Click PC-CILLIN when MAGIC INSTALL

MENU Appears

2. Click NEXT when PC-CILIN 2000 SETUP

APPEARS. Then click YES when the announcement of copyright appears. Software is starting to detect HD for virus

3. Click NEXT and Enter User Information,

Click NEXT or choose BROWSE to change the path For the file to be stored

4. Click NEXT and Choose all Internet

Protection

5. Click OK and If You Have Proxy Server,

Enter Your Setting

7. If you want to make a rescue disc, insert a

1.44 MB disc

6. Click NEXT when Start Copy Files, Start to

install the software

8. Setup Complete and click Finish

9. Enter Your name and E-mail address

10. After install PC-cillin 2000 complete we

recommend select update item to download newest virus code and setting Auto refresh virus code

4-6 HOW TO DISABLE ON-BOARD SOUND

Enter BIOS SETUP choose INTEGRATE PERIPHERALS choose ON-CHIP DEVICE FUNCTION choose AC97 SOUND DEVICE Disable on-board sound function by press PAGE DOWN KEY to Disable

4-7 HOW TO UPDATE BIOS

Before update BIOS please choose Disabled in “Flash Part Write Protect” item on “Miscellaneous Control” in BIOS Setup, please refer page 38

Method 1. Use “Magic BIOS” update BIOS in Windows 98 (refer page 46) Method 2. In DOS Mode

STEP 1. Prepare a boot disc. (you may make one by click START click RUN type SYS A:

click OK)

STEP 2. Copy utility program to your boot disc. You may copy from DRIVER CD

X:\FLASH\AWDFLASH.EXE or download from our web site.

STEP 3. Copy latest BIOS for V266A from our web site to your boot disc. STEP 4. Insert your boot disc into A:,

start the computer, type “Awdflash A:\V266AAxxx.BIN /SN/PY/CC/R” V266AAxxx.BIN is the file name of latest BIOS it can be V266AA03.BIN or

V266AB02.BIN SN means don’t save existing BIOS data

PY means renew existing BIOS data CC means clear existing CMOS data R means restart computer

STEP 5. Push ENTER and the BIOS will be updated, computer will be restarted

automatically

Jetway V266AR1A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
