JETWAY P4MDF, P4MDFT User Manual

Download

Page 1

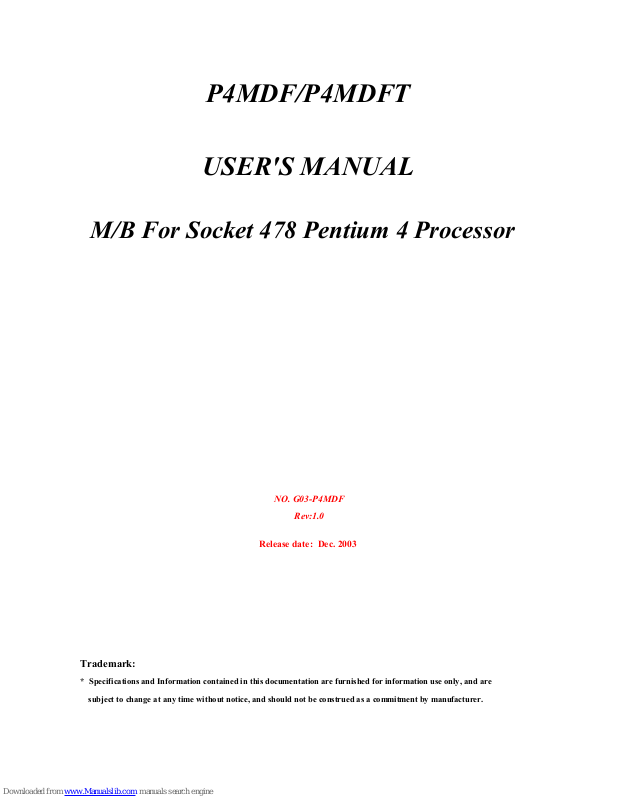

P4MDF/P4MDFT

USER'S MANUAL

M/B For Socket 478 Pentium 4 Processor

NO. G03-P4MDF

Rev:1.0

Release date: Dec. 2003

Trademark:

* Specifications and Information contained in this documentation are furnished for information use only, and are

subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

Page 2

USER’S NOTICE ..........................................................................................................ii

MANUAL REVISION INFORMATION..........................................................................ii

COOLING SOLUTIONS ..............................................................................................ii

CHAPTER 1 INTRODUCTION OF P4MDF/P4MDFT

1-1 FEATURE OF MOTHERBOARD ...................................................................................... 2

1-2 SPECIFICATION.................................................................................................................. 3

1-3 PERFORMANCE LIST........................................................................................................ 4

1-4 LAYOUT DIAGRAM & JUMPER SETTING ................................................................... 5

CHAPTER 2 HARDWARE INSTALLATION

2-1 HARDWARE INSTALLATION STEPS............................................................................. 7

2-2 CHECKING MOTHERBOARD'S JUMPER SETTING................................................... 7

2-3 INSTALL CPU....................................................................................................................... 8

2-3-1 GLOSSARY................................................................................................................ 8

2-3-2 ABOUT INTEL PENTIUM 4 478-PIN CPU ........................................................... 9

2-4 INSTALL MEMORY............................................................................................................ 10

2-5 EXPANSION CARD.............................................................................................................. 11

2-5-1 PROCEDURE FOR EXPANSION CARD INSTALLATION ............................... 11

2-5-2 ASSIGNING IRQ FOR EXPANSION CARD......................................................... 11

2-5-3 INTERRUPT REQUEST TABLE FOR THIS MOTHERBOARD....................... 12

2-5-4 AGP SLOT.................................................................................................................. 12

2-6 CONNECTORS, HEADERS ................................................................................................ 12

2-6-1 CONNECTORS.......................................................................................................... 12

2-6-2 HEADERS .................................................................................................................. 15

2-7 STARTING UP YOUR COMPUTER.................................................................................. 19

CHAPTER 3 INTRODUCING BIOS

3-1 ENTERING SETUP............................................................................................................... 20

3-2 GETTING HELP ................................................................................................................... 20

3-3 THE MAIN MENU................................................................................................................ 21

3-4 STANDARD CMOS FEATURES ........................................................................................ 22

3-5 ADVANCED BIOS FEATURES.......................................................................................... 23

3-6 ADVANCED CHIPSET FEATURES .................................................................................. 25

3-6-1 DRAM TIMING SETTINGS.................................................................................... 26

3-6-2 AGP FUNCTION SETTINGS .................................................................................. 27

3-6-3 PCI TIMING SETTINGS ......................................................................................... 27

3-7 INTEGRATED PERIPHERALS.......................................................................................... 27

3-7-1 ONCHIP IDE FUNCTION ....................................................................................... 28

3-7-2 ONCHIP DEVICE FUNCTION ............................................................................... 29

3-7-3 ONCHIP SUPER IO FUNCTION............................................................................ 30

3-8 POWER MANAGEMENT SETUP...................................................................................... 31

3-8-1 PM WAKE UP EVENTS.......................................................................................... 32

3-8-1.1 IRQS ACTIVITIES................................................................................................. 32

3-9 PNP/PCI CONFIGURATION SETUP ................................................................................ 33

3-9-1 IRQ RESOURCES.................................................................................................... 34

3-10 PC HEALTH STATUS ........................................................................................................ 34

3-11 MISCELLANEOUS CONTROL ........................................................................................ 35

3-12 LOAD STANDARD/OPTIMIZED DEFAULTS ............................................................... 36

3-13 SET SUPERVISOR/USER PASSWORD........................................................................... 36

CHAPTER 4 DRIVER & FREE PROGRAM INSTALLATION

MAGIC INSTALL SUPPORTS WINDOWS 9X/ME/NT4.0/2000/XP........................................ 37

4-1 VIA 4 IN 1 INSTALL VIA SERVICE PACK 4 IN 1 DRIVER................................ 38

4-2 VGA INSTALL PROSAVAGE DDR VGA DRIVER..................................... 39

4-3 SOUND INSTALL ALC AUDIO CODEC DRIVER............................................ 40

4-4 LAN INSTALL VIA 10/100MB LAN CONTROLLER DRIVER................. 41

4-5 PC-HEALTH INSTALL

MY GUARD FOR VIA8235 UTILITY ................................ 41

4-6 MAGIC BIOS INSTALL BIOS LIVE UPDATE UTILITY........................................... 42

4-7 USB2.0 INSTALL VIA USB2.0 DEVICE DRIVER............................................ 44

4-8 PC-CILLIN INSTALL PC-CILLIN2004 ANTI-VIRUS PROGRAM....................... 45

4-9 HOW TO DISABLE ON-BOARD SOUND......................................................................... 46

4-10 HOW TO UPDATE BIOS..................................................................................................... 46

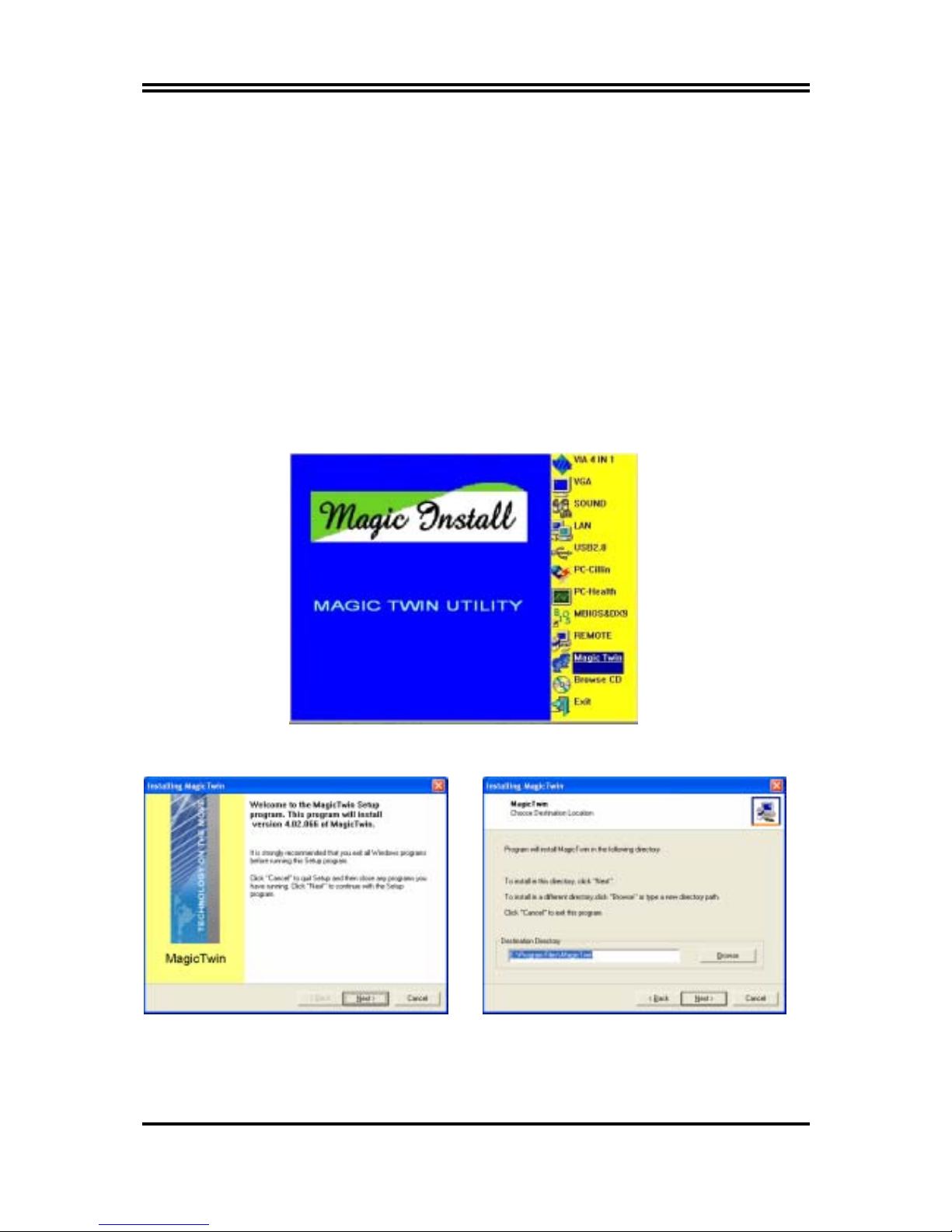

CHAPTER 5 INSTALLATION OF MagicTwin ..............................................................................

5-1 INSTALLATION OF MagicTwin (A 2-User-System Solution)......................................... 47

TABLE OF CONTENT

Page 3

USER’S NOTICE

MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE

REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR

BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER.

THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE P4MDF/P4MDFT MOTHER-

BOARD AND WE DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL

CHANGE, CORRECT ANY TIME WITHOUT NOTICE. MANUFACTURER PROVIDES THIS

MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, AND WILL NOT BE LIABLE FOR ANY

INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAMAGES (INCLUDING

DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,

INTERRUPTION OF BUSINESS AND THE LIKE).

PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE

REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND

THEY ARE USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S

BENEFIT, WITHOUT INTENT TO INFRINGE.

Manual Revision Information

Reversion Revision History Date

1.0 First Edition Dec. 2003

Item Checklist

P4MDF/P4MDFT motherboard

Cable for IDE/Floppy

□

Cable for COM2 Connector (Option)

CD for motherboard utilities

□

Magic Twin User’s Manual (Only for P4MDFT)

P4MDF/P4MDFT User’s Manual

Intel Pentium 4 Processor Family

Cooling Solutions

As processor technology pushes to faster speeds and higher performance, thermal management becomes increasingly crucial when building computer systems. Maintaining the proper thermal environment is key to reliable, long-term system operation. The overall goal in providing the proper thermal environment is keeping the processor below its specified maximum case temperature. Heatsinks induce improved processor heat dissipation through increased surface area and concentrated airflow from attached fans. In addition, interface materials allow effective transfers of heat from the processor to the heatsink. For optimum heat transfer, Intel recommends the use of thermal grease and mounting clips to attach the heatsink to the processor. When selecting a thermal solution for your system, please refer to the website below for collection of heatsinks evaluated and recommended by Intel for use with Intel processors. Note, those heatsinks are recommended for maintaining the specified Maximum T case requirement. In addition, this collection is not intended to be a comprehensive listing of all heatsinks that support Intel processors. For vendor list of heatsink and fan, please visit : http://developer.intel.com/design/Pentium4/components/index

Page 4

Chapter 1

Introduction of P4MDF/P4MDFT Motherboard

The special designed 2-user motherboard (P4MDFT)allows two users to share the computing power of a single PC system. With integrated connectivity hardware onboard, the motherboard comes with innovative software, the MagicTwin

, allowing 2 users to be connected to it and runs up to two stations directly from it simultaneously. The unique and copyright-protected MagicTwin

technology makes each of the 2 users feel like having himself his own Windows-XP computer. Each user needs to have himself his own keyboard, mouse, sound device, and monitor. All remaining PC hardware are shared, even the IP.

Both users can operate on their own station concurrently just like the operation of a standard PC. There is no obvious delay because of the Time-slicing/Multiplexing technology built-in. Each user gets an exact and extremely short defined moment to access to the PC system, devices, applications and Windows itself. Resources are only claimed for nanoseconds at a time, usually from electronic memory, or cache. Both users get from Windows and the PC, what they really need when they need it! The MagicTwin solution turns the single PC into a cost-effective multi-user system.

The setup is intuitive and easy. In only a few minutes, users can install and start using their new workstation. No network administrator is needed as everything to network the workstations together is done automatically with the MagicTwin software. You can add immediately additional user station to the single system and turn one PC into two.

System Requirement

Jetway MagicTwin Motherboard:

2 x PS/2 Y-cable Install CD (Driver and MagicTwin) Serial Number and Activation Key

Purchased Separately from Dealer:

>=1.2 GHz Processor Min 256MB DRAM NVIDIA Dual Head AGP Graphic Card Windows XP Home, Prof. w/ SP1 2 x PS/2 Keyboards 2 x PS/2 Mice 2 x Monitors

Page 5

1-1 Feature of motherboard

The P4MDF/P4MDFT motherboard is design for use Intel Pentium 4 Processor in 478 Pin Package Processor with the VIA P4M266A(CE) Chipset delivers a high performance and professional desktop platform solution. Which utilize the Socket 478 design and the memory size expandable to 2.0GB.

P4MDF/P4MDFT motherboards use the newest VIA P4M266A(CE) Chipset, provided 533MHz System Bus in data transfer rate supports Hyper Threading CPU. These motherboards provided 100MHz/133MHz Memory clock frequency, support DDR266/DDR200 DDR Module. The motherboard embedded VIA VT8235 V-Link LPC South Bridge offer ULTRA ATA 133 to provide speedier HDD throughout that boosts overall system performance. The motherboards use VIA VT6103 LAN PHY support 10/100Mbps data transfer rate support duplex, half duplex operation. These motherboards also has an integrated 6-channel AC’97 CODEC on board which is fully compatible with Sound Blaster Pro that gives you the best sound quality and compatibility.

These motherboards integrated High Performance & High Quality 3D Accelerator supports Ultra-AGPII with 2GB/s bandwidth, built-in MPEG-2/1 Video Decoder and Video Accelerator supports VCD DVD HDTV decoding and playback, supports graphic and video overlay function. Built-in programmable 24-bit true-color RAMDAC up to 250MHz pixel clock. Programmable frame buffer size from 8MB and up to 32MB. For those wanting even greater graphic performance, an AGP 4X slot is included on the board, support AGP 2X/4X capability and Fast write Transaction.

With USB control as well as capability of expanding to 5x USB2.0 ports provide 480Mb/s bandwidth, these motherboards meet future USB demand also has built-in hardware monitor function to monitor and protect your computer.

A useful software tool “Magic BIOS” examines the BIOS version automatically with the correct version available on the web, links the site for users to download the latest version of BIOS and updates the BIOS. Use “Magic BIOS”, users can download and update BIOS automatically and completed under the OS easily.

These motherboards provide high performance & meets future specification demand. It is really wise choice for your computer.

1-2 Specification

Page 6

Spec Description

Design

∗

Mini ATX form factor 6 layers PCB size: 18.5x25.5cm

Chipset

∗

VIA P4M266A North Bridge Chipset

∗

VIA VT8235 South Bridge Chipset

CPU Socket (mPGA478B Socket)

∗

Support Intel Pentium 4 478 Pin package utilizes Flip-Chip Pin Grid Array (FC-PGA2) package processor

∗

Support 1.5G∼3.06G 478 Pin Pentium 4 processor

∗ Support Hyper Threading CPU ∗

Reserves support for future Intel Pentium 4 processors

Memory Socket

∗

184-pin DDR Module socket x 2

∗

Support 2 pcs DDR266/DDR200 DDR Modules Expandable to

2.0GB

Expansion Slot

∗

AGP slot x1 support AGP 2.0 & 4X mode

∗

32-bit PCI slot x1

Integrate IDE

∗

Two PCI IDE controllers support PCI Bus Mastering, ATA PIO/DMA and the ULTRA DMA 33/66/100/133 functions that deliver the data transfer rate up to 133 MB/s

VGA

∗

Integrated High Performance & High Quality 3D Accelerator

∗

Support Ultra-AGPII with 2GB/s bandwidth

∗

Built-in programmable 24-bit true-color RAMDAC up to 250MHz pixel clock

∗

Programmable frame buffer size from 8MB and up to 32MB.

LAN

∗

With VIA VT6103 LAN PHY-ceiver

∗

Support Fast Ethernet LAN function provide 10/100 Mb/s data transfer rate

Audio

∗

AC’97 Digital Audio controller integrated

∗

6-channel AC’97 Audio CODEC on board

∗

Audio driver and utility included

BIOS

∗

Award 4MB Flash ROM

Multi I/O

∗

PS/2 keyboard and PS/2 mouse connectors

∗

Floppy disk drive connector x1

∗

Parallel port connector x1

∗

Serial port x2

∗

USB2.0 port x3 for P4MDFT, USB2.0 port x4 for P4MDF and headers x 2 (connecting cable option)

∗

Audio connector (Line-in, Line-out , MIC & Game Port)

1-3 Performance List

Page 7

The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.)

Performance Test Report

CPU:

Intel Pentium 4 1.9GHz mPGAB package

DRAM:

256MB DDR266 x1 (SAMSUNG K4H280838B-TCB0)

VGA Expansion Card:

NVDIA Geforce2 MX-400 64MB (1024x768xHi-color)

Hard Disk Driver:

IBM DTLA-305040 (ATA-100)

BIOS:

Award Optimal default

OS:

Win 98SE

DDR266

3D Mark 2000 5432 3D Mark 2001 2509 3D Winbench 2000 104 Final Reality 9.99 Content Creation Winstone 2000 43.2 Content Creation Winstone 2001 50.3 Content Creation Winstone 2002 20.1 Business Winstone2001 44.1

Winbench 99:

CPU Mark 99 111 FPU Winmark 99 6610 Business Disk Winmark99 7150 Hi-end Disk Winmark99 18800 Business Graphic Winmark 434 Hi-end Graphic Winmark 1260

SYS Mark 2000/2001 : SISMark 2000/2001 Rating (Internet Content Creation / Office Productivity)

SISMark 2000 208 (226/195) SISMark 2001 150 (175/129)

SISOFT Sandra 2001 :

Dhrystone ALU MIPS 3626 Whetstone FPU MFLOPS 1137/2371 Int ALU/RAM MB/S 1181 Float FPU/RAM MB/S 1183 Integer SSE2 IT/S 7547 Floating-Point SSE2 IT/S 9352 QUAKE3 DEMO1 FPS 169.1 DEMO2 FPS 169.7

WCPUID System/CPU Clock 101/1918.93

1-4 Layout Diagram & Jumper Setting

Page 8

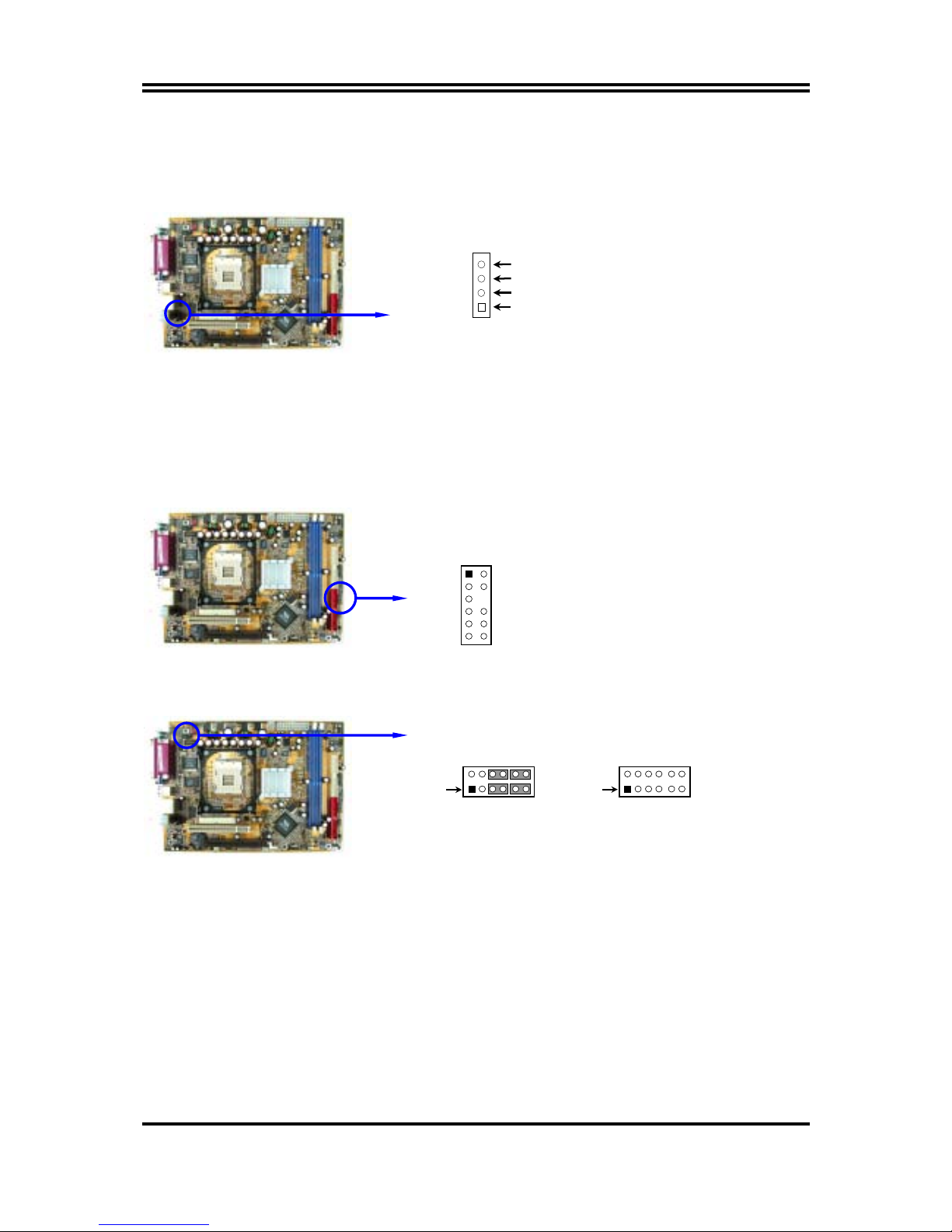

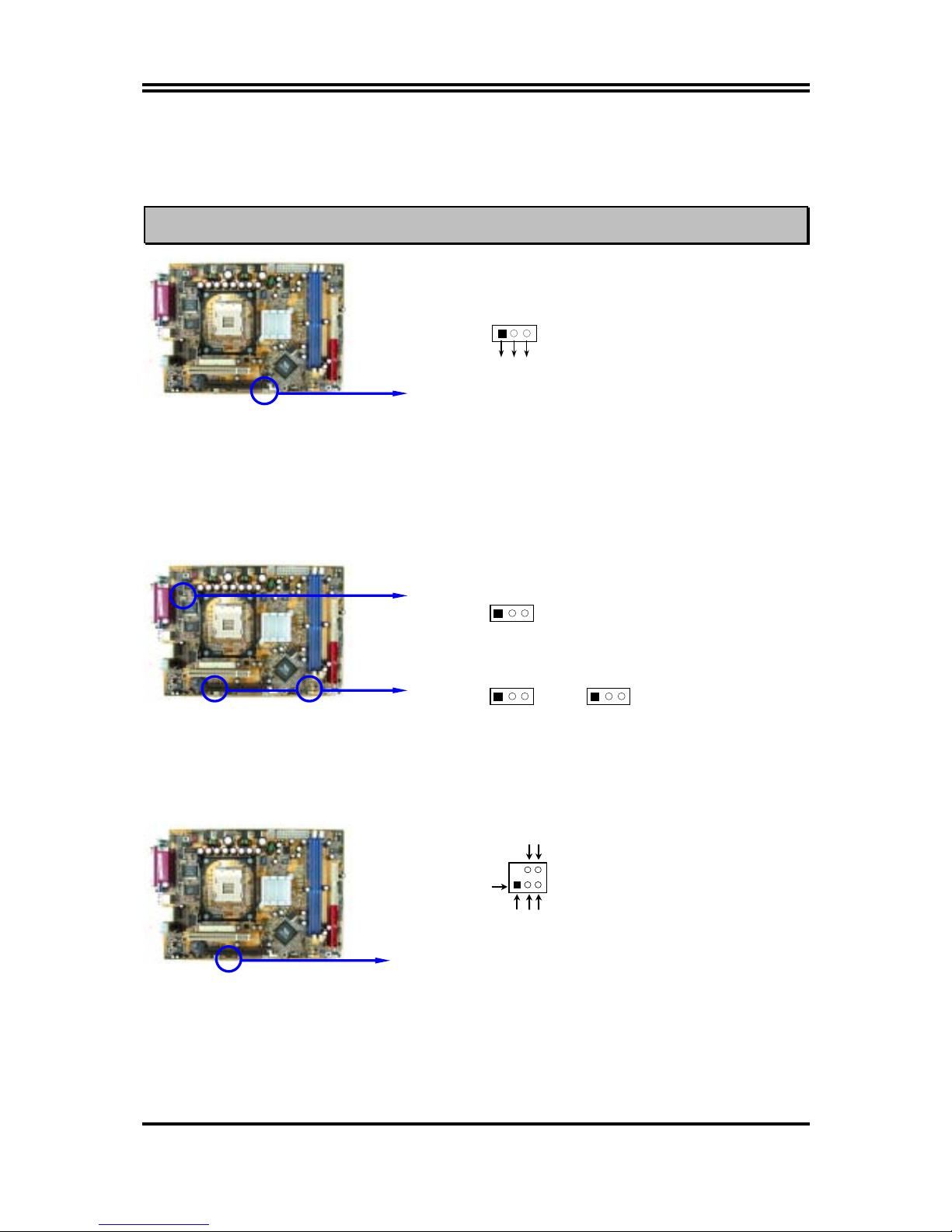

Jumpers

Jumper Name Description Page

6-Channel Speaker

PS/2 Mouse

PS/2 Keyboard

LAN

VGA USB1

Center/Base

REAR Speaker

Front Speaker

COM1 USB

Winbond 83697HF Chip

External Remote Control

(JP2)

PC99 Back Panel

K/B Power ON Jumper (JP1)

6-Channel Audio Connector

CPU FAN Connector

USB Port

PS2 KB/Mouse Port

DIMM Socket X2

Floppy Connector

ATA 100 IDE Conn.

LCD Front Panel Conn.

ATX Power Conn.

VIA P4M266A Chip

SYSFAN Connecto

Speaker Connector

CPU Socket

ATX 12V Power Conn.

SFAN1 Connector

4MBit Flash ROM BIOS

AC97’ Codec

AGP Slot

PCI Slot

Serial Port COM2 Connector

IR Connecto

CD In Audio

Clear CMOS (JBAT)

SPDIF-Out Optical Connector

IDE Activity LED (JP7)

USB Port/LAN Connector

USB Wake-Up Jumper (JP4)

USB Power On Jumper (JP1)

JW_USB Connecto

SPDIF-In heade

Power LED (JP6)

VIA VT8235 Chip

Wake On LAN

USB1: (2xport for P4MDF, 1xport for P4MDFT)

Page 9

JBAT CMOS RAM Clear 3-pin Block P.8

JP1 Keyboard/Mouse Power On Function 3-pin Block P.8 JP3/JP4 USB Power On Enable/Disabled 3-pin Block P.8

Connectors

Connector Name Description Page

ATXPWR ATX Power Connector 20-pin Block P.12 ATX12V ATX 12V Power Connector 4-pin Block P.13 PS2KBMS1 PS/2 Mouse & PS/2 Keyboard

Connector

6-pin Female P.13

USB1 USB Port Connector 4-pin Connector P.13 CN1 USB/LAN Port Connector 4-pin x2 + RJ-45 Connector P.13 PARALL Parallel Port Connector 25-pin Female P.13 CN2 Audio Connector 3 phone jack Connector P.13 COM1 Serial Port COM1 Connector 9-pin Connector P.13 VGA VGA Connector 15-pin Female P.14 FDD Floppy Driver Connector 34-pin Block P.14 IDE1/IDE2 Primary/Secondary IDE Connector 40-pin Block P.14

Headers

Header Name Description Page

COM2 Serial Port COM2 Header 9-pin Block P.15 SPDIF_OUT SPDIF-OUT connector Header 3-pin Block P.15 JW_USB SPEAKER/ MIC Header 13-pin Block P.15 +USB Port Headers P.15 JP7 IDE activity LED 2-pin Block P.16 SPEAK PC Speaker connector 4-pin Block P.16 JP6 Power LED 2-pin Block P.16 RESET Reset switch lead 2-pin Block P.16 PWR BTN Power switch 2-pin Block P.16 SPDIF_IN SPDIF-In connector Header 3-pin Block P.16 WOL Wake On-LAN Headers 3-pin Block P.17 SFAN1, SYSFAN, CPUFAN FAN Headers 3-pin Block P.17 IR IR infrared module Headers 5-pin Block P.17 CD_IN CD Audio-In Headers 4-pin Block P.18 JW_LCDFP LCD display panel Header 11-pin Block P.18 JP2 IR receiver controller Header 10-pin Block P.18

Expansion Sockets

Socket/Slot Name Description Page

ZIF Socket 478 Pin CPU Socket 478-pin mPGA CPU Socket P.9 DDR1, DDR2 DDR Module Socket 184-pin DDR Module Socket P.10 PCI1 PCI Slot 32-bit PCI Local Bus Expansion slots P.11 AGP AGP 4X Mode Slot AGP Expansion Slot P.12

Chapter 2

Hardware installation

Page 10

2-1 Hardware installation Steps

Before using your computer, you had better complete the following steps:

1. Check motherboard jumper setting

2. Install CPU and Fan

3. Install System Memory (DIMM)

4. Install Expansion cards

5. Connect IDE and Floppy cables, Front Panel /Back Panel cable

6. Connect ATX Power cable

7. Power-On and Load Standard Default

8. Reboot

9. Install Operating System

10. Install Driver and Utility

2-2 Checking Motherboard’s Jumper Setting

(1) CMOS RAM Clear (3-pin) : JBAT

A battery must be used to retain the motherboard configuration in CMOS RAM short 1-2 pins of JBAT to store the CMOS data.

To clear the CMOS, follow the procedure below:

1. Turn off the system and unplug the AC power

2. Remove ATX power cable from ATX power connector

3. Locate JBAT and short pins 2-3 for a few seconds

4. Return JBAT to its normal setting by shorting pins 1-2

5. Connect ATX power cable back to ATX power connector

Note: When should clear CMOS

1. Troubleshooting

2. Forget password

3. After over clocking system boot fail

CMOS RAM Clear Setting

2-3 closed Clear CMOS

JBAT

1-2 closed Normal (Default)

(2) Keyboard/Mouse Power On function Enabled/Disabled: JP1

Page 11

JP1 1-2 closed K/B Power ON Disabled (Default)

JP1 2-3 closed K/B Power ON Enabled

JP1

(3) USB Power On function Enabled/Disabled: JP3/JP4

JP3 1-2 closed USB Power On Disabled (Default)

JP3 2-3 closed USB Power On Enabled

JP3

JP4

JP4 1-2 closed USB Power On Disabled (Default)

JP4 2-3 closed USB Power On Enabled

2-3 Install CPU

2-3-1 Glossary

Chipset (or core logic) - two or more integrated circuits which control the interfaces between the system processor, RAM, I/O devises, and adapter cards.

Processor slot/socket - the slot or socket used to mount the system processor on the motherboard.

Slot (AGP, PCI, ISA, RAM) - the slots used to mount adapter cards and system RAM.

AGP - Accelerated Graphics Port - a high speed interface for video cards; runs at 1X

(66MHz), 2X (133MHz), or 4X (266MHz).

PCI - Peripheral Component Interconnect - a high speed interface for video cards, sound cards, network interface cards, and modems; runs at 33MHz.

ISA - Industry Standard Architecture - a relatively low speed interface primarily used for sound cards and modems; runs at approx. 8MHz.

Serial Port - a low speed interface typically used for mouse and external modems.

Parallel Port - a low speed interface typically used for printers.

PS/2 - a low speed interface used for mouse and keyboards.

USB - Universal Serial Bus - a medium speed interface typically used for mouse, keyboards,

scanners, and some digital cameras.

Sound (interface) - the interface between the sound card or integrated sound connectors and speakers, MIC, game controllers, and MIDI sound devices.

LAN (interface) - Local Area Network - the interface to your local area network.

BIOS (Basic Input/Output System) - the program logic used to boot up a computer and

establish the relationship between the various components.

Driver - software, which defines the characteristics of a device for use by another device or other software.

Page 12

Processor - the "central processing unit" (CPU); the principal integrated circuit used for doing

the "computing" in "personal computer"

Front Side Bus Frequency -

the working frequency of the motherboard, which is generated

by the clock generator for CPU, DRAM and PCI BUS.

CPU L2 Cache -

the flash memory inside the CPU, normal it depend on CPU type.

2-3-2 About Intel Pentium 4 478-pin CPU

This motherboard provides a 478-pin surface mount, Zero Insertion Force (ZIF) socket, referred to as the mPGA478B socket supports Intel Pentium 4 processor in the 478 Pin package utilizes Flip-Chip Pin Grid Array (FC-PGA2) package technology.

The CPU that comes with the motherboard should have a cooling FAN attached to prevent overheating. If this is not the case, then purchase a correct cooling FAN before you turn on your system.

WARNING!

Be sure that there is sufficient air circulation across the processor’s heatsink and CPU cooling FAN is working correctly, otherwise it may cause the processor and motherboard overheat and damage, you may install an auxiliary cooling FAN, if necessary.

To install a CPU, first turn off your system and remove its cover. Locate the ZIF socket and open it by first pulling the level sideways away from the socket then upward to a 90-degree angle. Insert the CPU with the correct orientation as shown below. The notched corner should point toward the end of the level. Because the CPU has a corner pin for two of the four corners, the CPU will only fit in the orientation as shown.

CPU ZIF mPGAB Socket

Colden Arrow

mPGA478B

When you put the CPU into the ZIF socket. No force require to insert of the CPU, then press the level to Locate position slightly without any extra force.

2-4 Install Memory

Page 13

This motherboard provides two 184-pin DDR DUAL INLINE MEMORY MODULES (DIMM) sites for DDR memory expansion available from minimum memory size of 64MB to maximum memory size of 2.0GB DDR SDRAM.

Valid Memory Configurations

Bank 184-pin DDR DIMM PCS Total Memory

Bank 0, 1 (DDR1) DDR266/DDR200 DDR DRAM Module X1 64MB∼1.0GB

Bank 2, 3 (DDR2) DDR266/DDR200 DDR DRAM Module X1 64MB∼1.0GB

Total System Memory (Max. 2.0GB) X2 64MB∼2.0GB

Generally, installing DDR SDRAM modules to your motherboard is very easy, you can refer to figure 2-4 to see what a 184-pin DDR SDRAM module looks like.

DDR2 (BANK2+ BANK3

)

DDR1 (BANK0+ BANK1)

NOTE!

When you install DIMM module fully into the DIMM socket the eject tab should be locked into the DIMM module very firmly and fit into its indention on both sides.

WARNING!

For the DDR SDRAM CLOCK is set at 133MHz, use only DDR266- compliant DDR Modules. When this motherboard operate at 133Mhz, most system will not even boot if non-compliant modules are used because of the strict timing issues, if your DDR Modules are not DDR266-compliant, set the SDRAM clock to 100MHz to ensure system stability.

2-5 Expansion Cards

Figure 2-4

Page 14

WARNING!

Turn off your power when adding or removing expansion cards or other system components. Failure to do so may cause severe damage to both your motherboard and expansion cards.

2-5-1 Procedure For Expansion Card Installation

1. Read the documentation for your expansion card and make any necessary hardware or software setting for your expansion card such as jumpers.

2. Remove your computer’s cover and the bracket plate on the slot you intend to use.

3. Align the card’s connectors and press firmly.

4. Secure the card on the slot with the screen you remove above.

5. Replace the computer system’s cover.

6. Set up the BIOS if necessary.

7. Install the necessary software driver for your expansion card.

2-5-2 Assigning IRQs For Expansion Card

Some expansion cards need an IRQ to operate. Generally, an IRQ must exclusively assign to one use. In a standard design, there are 16 IRQs available but most of them are already in use.

Standard Interrupt Assignments

IRQ Priority Standard function

0 N/A System Timer 1 N/A Keyboard Controller 2 N/A Programmable Interrupt 3 * 8 Communications Port (COM2) 4 * 9 Communications Port (COM1) 5 * 6 Sound Card (sometimes LPT2) 6 * 11 Floppy Disk Controller 7 * 7 Printer Port (LPT1) 8 N/A System CMOS/Real Time Clock

9 * 10 ACPI Mode when enabled 10 * 3 IRQ Holder for PCI Steering 11 * 2 IRQ Holder for PCI Steering 12 * 4 PS/2 Compatible Mouse Port 13 N/A Numeric Data Processor 14 * 5 Primary IDE Channel 15 * 1 Secondary IDE Channel

* These IRQs are usually available for ISA or PCI devices.

2-5-3 Interrupt Request Table For This Motherboard

Interrupt request are shared as shown the table below:

INT A INT B INT C INT D INT E INT F INT G INT H

Page 15

Slot 1

√

Onboard USB 1

√

Onboard USB 2

√

AC97/MC97

√

IMPORTANT!

If using PCI cards on shared slots, make sure that the drivers support “Shared IRQ” or that the cards don’t need IRQ assignments. Conflicts will arise between the two PCI groups that will make the system unstable or cards inoperable.

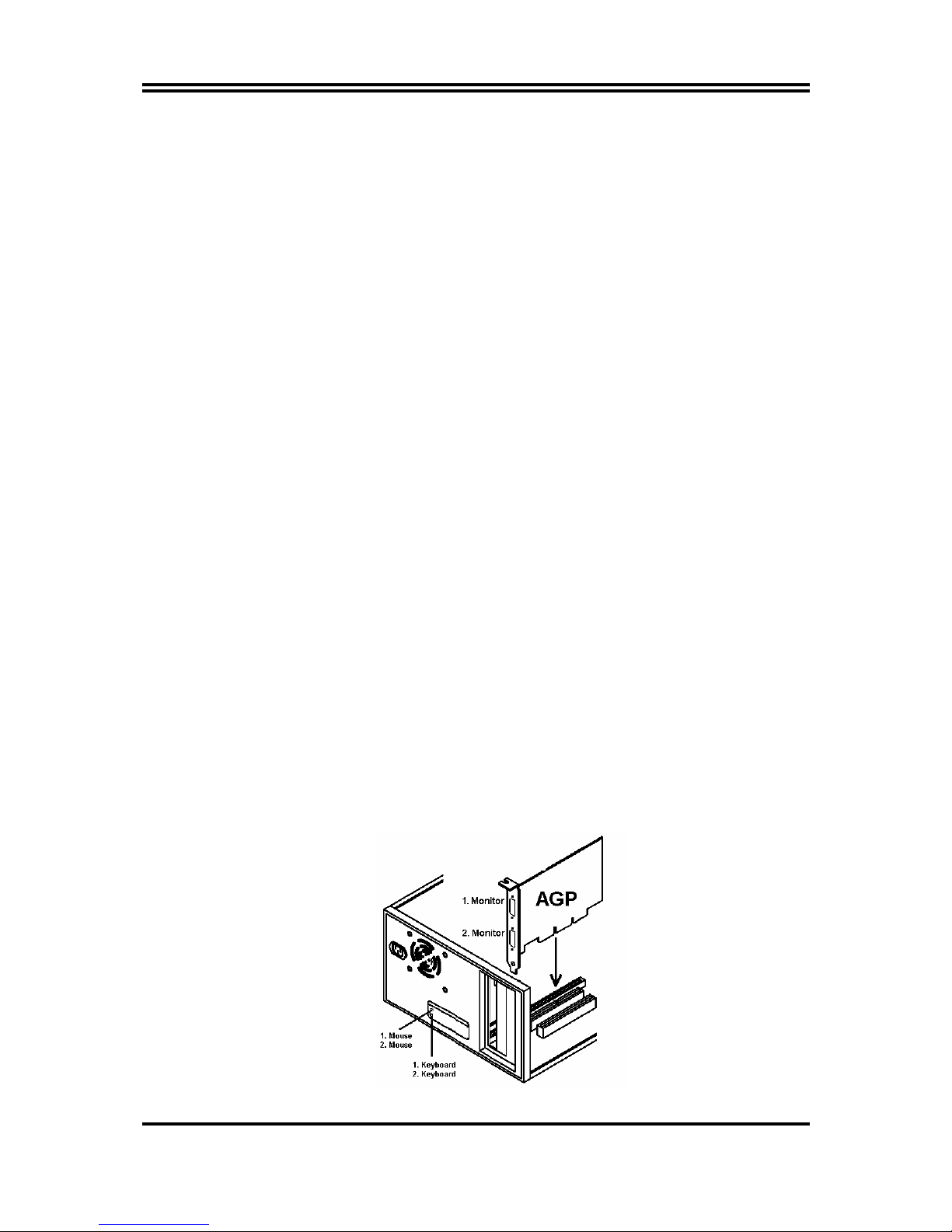

2-5-4 AGP Slot

This motherboard provides an AGP Slot, support the 2X/4X AGP VGA card.

AGP SLOT

2-6 Connectors, Headers

2-6-1 Connectors

(1) Power Connector (20-pin block) : ATXPWR

ATX Power Supply connector. This is a new defined 20-pins connector that usually

comes with ATX case. The ATX Power Supply allows to use soft power on momentary switch that connect from the front panel switch to 2-pins Power On jumper pole on the motherboard. When the power switch on the back of the ATX power supply turned on, the full power will not come into the system board until the front panel switch is momentarily pressed. Press this switch again will turn off the power to the system board.

PIN R OW2 ROW1

1 3.3V 3.3V 2 -12V 3.3V 3 GND GND 4 Soft Power On 5V 5 GND GND 6 GND 5V 7 GND GND 8 -5V Power OK 9 +5V +5V (for Soft Logic) 10 +5V +12V

Pin 1

(2) ATX 12V Power Connector (4-pin block) : ATX12V

This is a new defined 4-pins connector that usually comes with ATX Power Supply. The

ATX Power Supply which fully support Pentium 4 processor must including this connector for support extra 12V voltage to maintain system power consumption.

2x notch 4x notch

Page 16

Without this connector might cause system unstable because the power supply can not provide sufficient current for system.

Pin 1

(3) PS/2 Mouse & PS/2 Keyboard Connector : PS2KBMS1

The connectors for PS/2 keyboard and PS/2 Mouse.

It can connect with a Y-Cable

which can support 2 Keyboard and 2 Mouse for 2 user function.

(4) USB/USB1 Port connector: USB

The connectors are 4-pin connector that connect USB devices to the system board. USB1 support 1 port USB2.0 for P4MDFT USB1 support 2 port USB2.0 for P4MDF

(5) LAN Port connector: LAN

This connector is standard RJ45 connector for Network

(6) Parallel Port Connector (25-pin female): PARALL

Parallel Port connector is a 25-pin D-Subminiature Receptacle connector. The Onboard Parallel Port can be disabled through the BIOS SETUP. Please refer to Chapter 3 “INTEGRATED PERIPHERALS SETUP” section for more detail information.

(7) Audio Connector : CN1

This Connector are 3 phone Jack for LINE-OUT, LINE-IN, MIC for Speaker/ Microphone.

Line-out :

Audio output to speaker (Front Speaker for 6-channel solution)

Line-in :

Audio input to sound chip (Rear Speaker for 6-channel solution)

MIC :

Microphone Connector (Center/Base Speaker for 6-channel solution)

(8) Serial Port COM1 : COM1

COM1 is the 9-pin D-Subminiature male connector. The On-board serial port can be disabled through BIOS SETUP. Please refer to Chapter 3 “INTEGRATED PERIPHERALS SETUP” section for more detail information.

(9) VGA Connector (15-pin D-Sub) Connector: VGA

VGA is the 15-pin D-Subminiature female connector for display monitor.

Keyboard Y-Cable

Mouse Y-Cable

PRINT 6-Channel Speaker

PS/2 Mouse LAN

Page 17

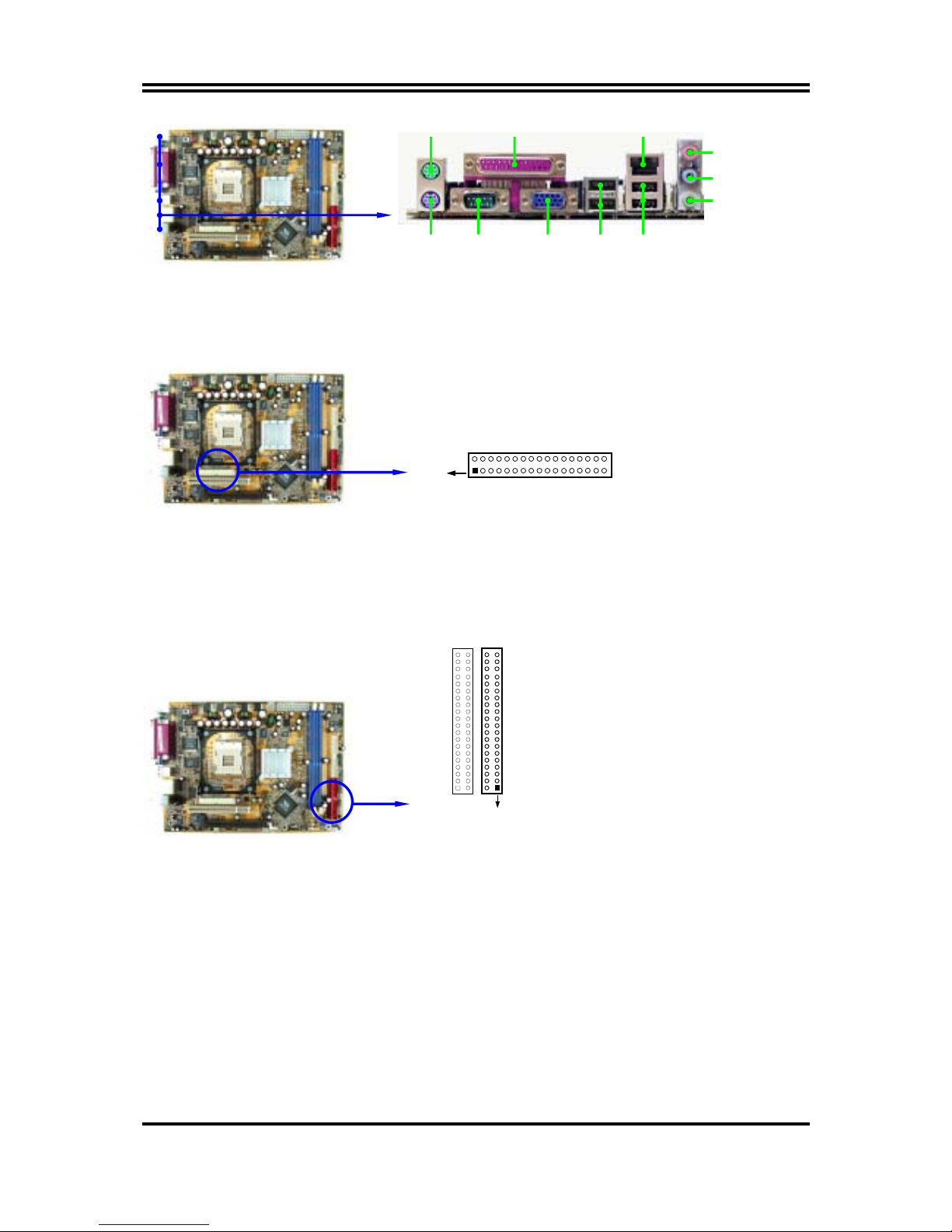

(10) Floppy drive Connector (34-pin block): FDD

This connector supports the provided floppy drive ribbon cable. After connecting the single plug end to motherboard, connect the two plugs at other end to the floppy drives.

Floppy Drive Connector

Pin 1

FDD

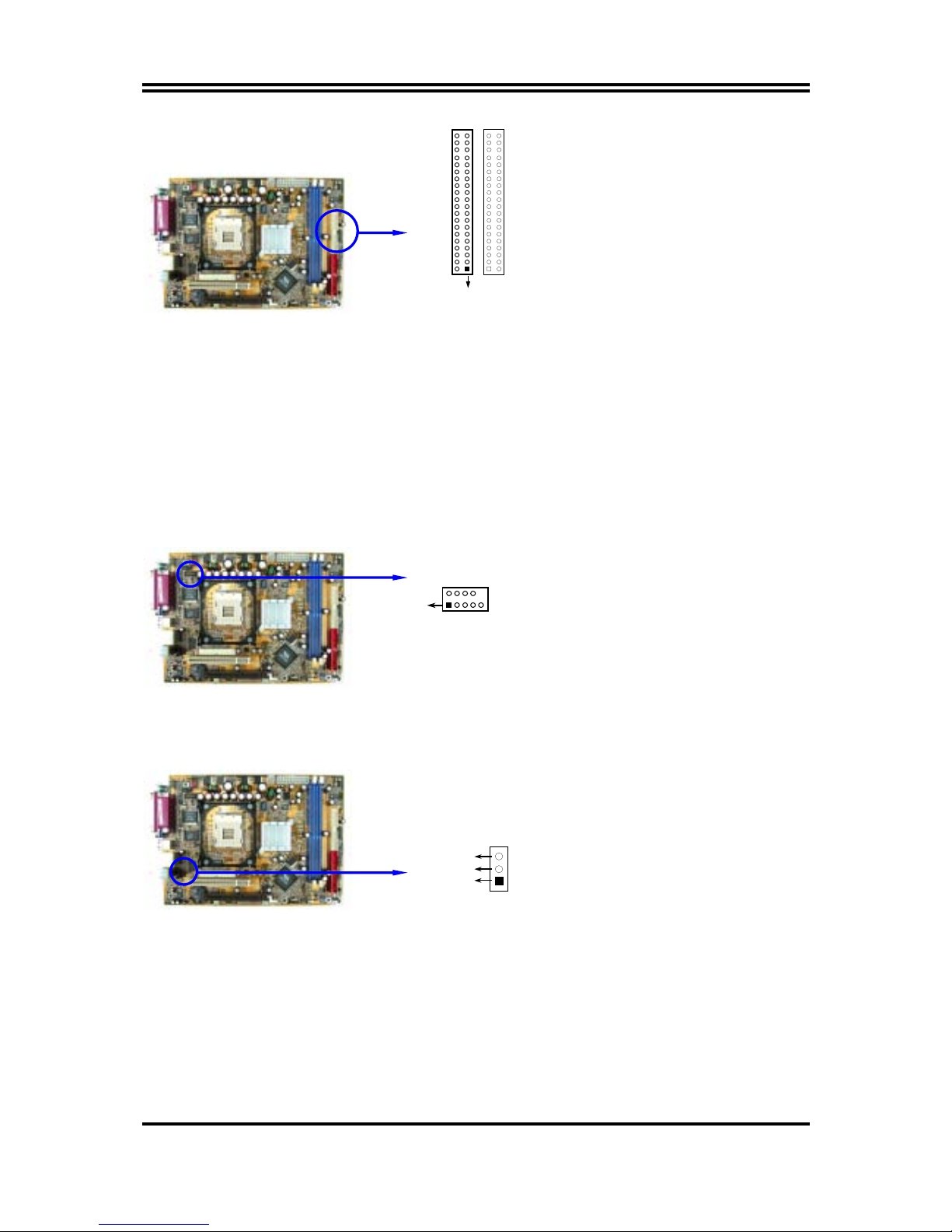

(11) Primary IDE Connector (40-pin block): IDE1

This connector supports the provided IDE hard disk ribbon cable. After connecting the

single plug end to motherboard, connect the two plugs at other end to your hard disk(s). If you install two hard disks, you must configure the second drive to Slave mode by setting its jumpers accordingly. Please refer to the documentation of your hard disk for the jumper settings.

Primary IDE Connector

Pin 1

IDE1

(12) Secondary IDE Connector (40-pin block): IDE2

This connector connects to the next set of Master and Slave hard disks. Follow the

same procedure described for the primary IDE connector. You may also configure two hard disks to be both Masters using one ribbon cable on the primary IDE connector and another ribbon cable on the secondary IDE connector.

PS/2

Keyboard

VGA USB1

Center/Base

REAR Speaker

Front Speaker

COM1 USB

USB1: (2xport for P4MDF, 1xport for P4MDFT)

Page 18

Secondary IDE Connector

Pin 1

IDE2

•

Two hard disks can be connected to each connector. The first HDD is referred to as the “Master” and the second HDD is referred to as the “Slave”.

•

For performance issues, we strongly suggest you don’t install a CD-ROM or DVD-ROM drive on the same IDE channel as a hard disk. Otherwise, the system performance on this channel may drop.

2-6-2 Headers

(1) Serial Port2 COM2 Header (9-pin) : COM2

ote: Orient the read marking on the

COM2 ribbon cable to pin 1

Serial Port COM2 Header

COM2

Pi n 1

(2) SPDIF-OUT Header for Back Panel (3-pin): SPDIF_OUT

This header connect to Back Panel SPDIF-OUT connector with cable.

SPDIF-OUT Optical Headers

SPDIF_OUT

VCC5

GND

SPDIF-OUT

(3) UBS Port Headers/Audio Port Headers (13-pin) : JW_USB

These headers are used for connecting the additional USB port plug and Line-

OUT/MIC audio port headers. By attaching an option cable, your can be provided with

two additional USB/ Speaker, MIC plugs affixed to the front panel.

Page 19

USB_VC

D+

AUD

SMI

CNC

USB_VCC

D+

GND

AUD_R

MIC_REF

GND

(4) IDE Activity LED: JP7

This connector connects to the hard disk activity indicator light on the case.

(5) Speaker connector: SPEAK

This 4-pin connector connects to the case-mounted speaker. See the figure below.

(6) Power LED: JP6

The Power LED is light on while the system power is on. Connect the Power LED

from the system case to this pin.

SPEAK

VCC

GND

SPKR

Pin 1

JP6

PWRLED

GND

Pin 1

JP7

HDDLED

Pin 1

(7) Reset switch lead: RESET

This 2-pin connector connects to the case-mounted reset switch for rebooting your

computer without having to turn off your power switch. This is a preferred method of

rebooting in order to prolong the lift of the system’s power supply. See the figure

below.

(8) Power switch: PWR BTN

This 2-pin connector connects to the case-mounted power switch to power ON/OFF the

system.

(9) SPDIF-IN Headers (4-pin) : SPDIF_IN

SPDIF_IN is the header for SPDIF Input signal. Please connect it with the cable in the

front panel connector. By use the SPDIF_IN connector you can input the digital signal

from SPDIF device for better audio quality.

POWER BUTT O

SPDI F V CC (Re d Wi r e)

GND (Black Wire)

SPDIF_IN (White Wire)

RESET BUT T O

Page 20

(10) Wake On-LAN Headers (3-pin) : WOL

This connector connects to a LAN card with a WAKE ON-LAN output. This connector

power up the system when a wake up signal is received through the LAN card.

NOTE:

This feature requires that Wake On LAN or Ring In Wake up is enabled.

Wake-On-LAN Headers

WOL

5VS

(11) FAN Headers (3-pin) : SFAN1, SYSFAN, CPUFAN

These connectors support cooling fans of 350mA (4.2 Watts) or less, depending on the fan manufacturer, the wire and plug may be different. The red wire should be positive, while the black should be ground. Connect the fan’s plug to the board taking into consideration the polarity of connector.

SYSFAN

CPUF A N

SFAN1

(12) IR infrared module Headers (5-pin) : IR

This connector supports the optional wireless transmitting and receiving infrared

module. You must configure the setting through the BIOS setup to use the IR function.

IR infrared module Headers

Pi n 1

GND

IRRX

VCC5

IRTX

Page 21

(13) CD Audio-In Headers (4-pin) : CD_IN

CD_IN are the connectors for CD-Audio Input signal. Please connect it to CD-ROM

CD-Audio output connector.

CD Audio-In Headers

CDI N

L-CH

GND

R-CH

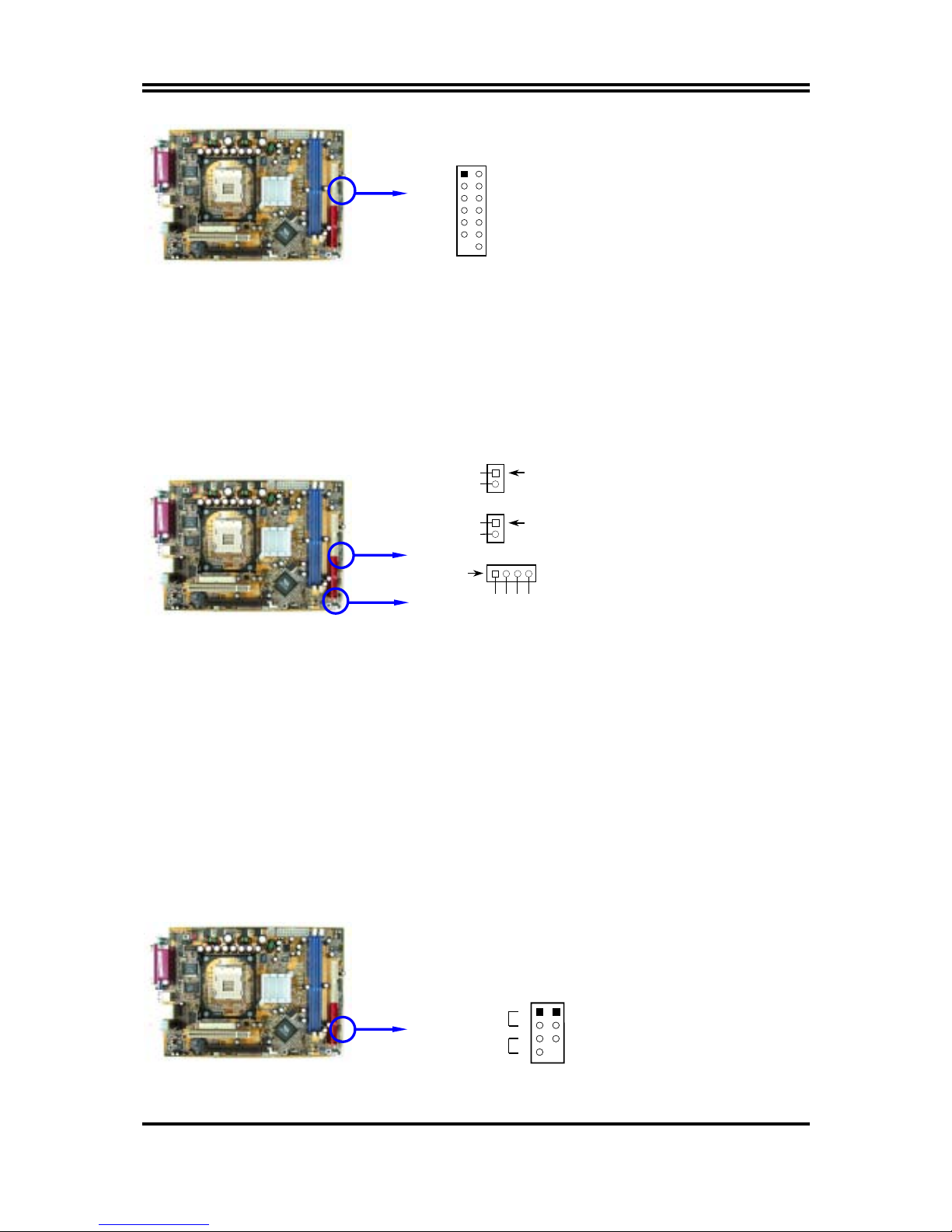

(14) LCD Display panel connect Headers (11-pin) : JW_LCDFP

This headers is the connector for LCD Display Panel, it transfer the data from

motherboard to display panel. Please connect this headers with optional cable between

display and motherboard for display CPU/SYSTEM temperatures /FAN speed and

Power/HDD status.

_LED

LAN_LE

3VS

BGND

I2C_C

KPWG

DVD_LED

PWR

LED

GND

I2C

+ 12V

(15) IR Receiver controller Header: JP2

(Default Setting)

JP2

Pin 1

6-8, 5-7, 9-11, 10-12 closed

for Normal use

JP2

Pin 1

Open for connect

IR Module Cable

Page 22

2-7 Starting Up Your Computer

1. After all connection are made, close your computer case cover.

2. Be sure all the switch are off, and check that the power supply input voltage is set to proper position, usually in-put voltage is 220V∼240V or 110V∼120V depending on your country’s voltage used.

3. Connect the power supply cord into the power supply located on the back of your system case according to your system user’s manual.

4. Turn on your peripheral as following order: a. Your monitor. b. Other external peripheral (Printer, Scanner, External Modem etc…) c. Your system power. For ATX power supplies, you need to turn on the power supply

and press the ATX power switch on the front side of the case.

5. The power LED on the front panel of the system case will light. The LED on the monitor may light up or switch between orange and green after the system is on. If it complies with green standards or if it is has a power standby feature. The system will then run power-on test. While the test are running, the BIOS will alarm beeps or additional message will appear on the screen.

If you do not see any thing within 30 seconds from the time you turn on the power. The system may have failed on power-on test. Recheck your jumper settings and connections or call your retailer for assistance.

Beep Meaning

One short beep when displaying logo No error during POST

Long beeps in an endless loop No DRAM install or detected

One long beep followed by three short beeps

Video card not found or video card memory bad

High frequency beeps when system is working

CPU overheated

System running at a lower frequency

6. During power-on, press <Delete> key to enter BIOS setup. Follow the instructions in BIOS SETUP.

Power off your computer:

You must first exit or shut down your operating system before switch off the power switch. For ATX power supply, you can press ATX power switching after exiting or shutting down your operating system. If you use Windows 9X, click

“Start”

button, click

“Shut down”

and then click

“Shut down the computer?”

The power supply should turn off after windows shut down.

Page 23

Chapter 3

Introducing BIOS

The BIOS is a program located on a Flash Memory on the motherboard. This program is a bridge between motherboard and operating system. When you start the computer, the BIOS program gain control. The BIOS first operates an auto-diagnostic test called POST (power on self test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization. Only when these tasks are completed done it gives up control of the computer to operating system (OS). Since the BIOS is the only channel for hardware and software to communicate, it is the key factor for system stability, and in ensuring that your system performance as its best.

In the BIOS Setup main menu of Figure 3-1, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here:

•

Press <Esc> to quit the BIOS Setup.

•

Press

↑↓←→

(up, down, left, right) to choose, in the main menu, the option you want to

confirm or to modify.

•

Press <F10> when you have completed the setup of BIOS parameters to save these parameters and to exit the BIOS Setup menu.

•

Press Page Up/Page Down or +/– keys when you want to modify the BIOS parameters for the active option.

3-1 Entering Setup

Power on the computer and by pressing <Del> immediately allows you to enter Setup. If the message disappears before your respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the “RESET” button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt> and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to

Press <F1> to continue, <Ctrl-Alt-Esc> or <Del> to enter Setup

3-2 Getting Help

Main Menu

The on-line description of the highlighted setup function is displayed at the bottom of the screen.

Status Page Setup Menu/Option Page Setup Menu

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window, press <Esc>.

Page 24

3-3 The Main Menu

Once you enter Award BIOS CMOS Setup Utility, the Main Menu (Figure 3-1) will appear on the screen. The Main Menu allows you to select from fourteen setup functions and two exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu.

Standard CMOS Features

Advanced BIOS Features

Advanced Chipset Features

Integrated Peripherals

Power Management Setup

PnP/PCI Configurations

PC Health Status

Miscellaneous Control

Load optimized Defaults

Load Standard Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Esc : Quit

↑↓→←

: Select Item

F10 : Save & Exit Setup

Time, Date, Hard Disk Type...

Figure 3-1

Standard CMOS Features

Use this Menu for basic system configurations.

Advanced BIOS Features

Use this menu to set the Advanced Features available on your system.

Advanced Chipset Features

Use this menu to change the values in the chipset registers and optimize your system’s performance.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

PnP/PCI configurations

This entry appears if your system supports PnP/PCI.

PC Health Status

This entry shows your PC health status.

Miscellaneous Control

Use this menu to specify your settings for Miscellaneous control.

Page 25

Load Optimized Defaults

Use this menu to load the BIOS default values these are setting for optimal performances system operations for performance use.

Load Standard Defaults

Use this menu to load the BIOS default values for the stable performance system operation that are factory settings for normal use.

Set Supervisor/User Password

Use this menu to set User and Supervisor Passwords.

Save & Exit Setup

Save CMOS value changes to CMOS and exit setup.

Exit Without Saving

Abandon all CMOS value changes and exit setup.

3-4 Standard CMOS Features

The items in Standard CMOS Setup Menu are divided into several categories. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item.

Standard CMOS Features

Item Help

Date (mm:dd:yy) Wed, Dec, 24 2003 Time (hh:mm:ss) 16 : 48 : 35

> IDE Primary Master Press Enter None > IDE Primary Slave Press Enter None > IDE Secondary Master Press Enter None > IDE Secondary Slave Press Enter None

Drive A 1.44M, 3.5 in. Drive B None

Video EGA/VGA Halt On All,But Keyboard

Base Memory 640K Extended Memory 56320K Total Memory 57344K

Menu Level >

Change the day, month, year and century

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Date

The date format is <day><month><date><year>.

Day

Day of the week, from Sun to Sat, determined by BIOS. Read-only.

Month

The month from Jan. through Dec.

Date

The date from 1 to 31 can be keyed by numeric function keys.

Year

The year depends on the year of the BIOS.

Time

Page 26

The time format is <hour><minute><second>.

Primary Master/Primary Slave Secondary Master/Secondary Slave

Press PgUp/<+> or PgDn/<–> to select Manual, None, Auto type. Note that the specifications of your drive must match with the drive table. The hard disk will not work properly if you enter improper information for this category. If your hard disk drive type is not matched or listed, you can use Manual to define your own drive type manually. If you select Manual, related information is asked to be entered to the following items. Enter the information directly from the keyboard. This information should be provided in the documentation from your hard disk vendor or the system manufacturer. If the controller of HDD interface is SCSI, the selection shall be “None”. If the controller of HDD interface is CD-ROM, the selection shall be “None”

Access Mode

The settings are Auto Normal, Large, and LBA.

Cylinder

number of cylinders

Head

number of heads

Precomp

write precomp

Landing Zone

landing zone

Sector

number of sectors

3-5 Advanced BIOS Features

Advanced BIOS Features

Item Help

Virus Warning Disabled CPU L1 Cache Enabled CPU L2 Cache Enabled Quick Power On Self Test Enabled First Boot Device Floppy Second Boot Device HDD-0 Third Boot Device CDROM Boot other Device Enabled Swap Floppy Drive Disabled Boot Up Floppy Seek Enabled Boot Up NumLock Status On Typematic Rate Setting Disabled Typematic Rate (Chars/Sec) 6 Typematic Delay (Msec) 250 Security Option Setup OS Select For DRAM > 64MB Non-OS2 HDD S.M.A.R.T. Capability Disabled Report No FDD For Windows Yes Video BIOS Shadow Enabled

Menu Level >

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Virus Warning

Page 27

Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempt to write data into this area, BIOS will show a warning message on screen and alarm beep.

Disabled

(default) No warning message to appear when anything attempts to access the

boot sector or hard disk partition table.

Enabled

Activates automatically when the system boots up causing a warning message to appear when anything attempts to access the boot sector of hard disk partition table.

CPU L1 & L2 Cache

The default value is Enabled. This option enabled the Level 1 & Level 2 cache memory.

Enabled

(default) Enable cache

Disabled

Disable cache

Note: The internal cache is built in the processor.

CPU L2 Cache ECC Checking

Choose Enabled or Disabled. This option enables the Level 2 cache memory ECC (error check correction).

Quick Power On Self-Test

This category speeds up Power On Self Test (POST) after you power on the computer. If this is set to Enabled. BIOS will shorten or skip some check items during POST.

Enabled

(default) Enable quick POST

Disabled

Normal POST

First/Second/Third Boot Device

The BIOS attempts to load the operating system from the devices in the sequence selected in these items. The settings are Floppy, LS/ZIP, HDD-0/HDD-1/HDD-3, SCSI, CDROM, LAD and Disabled.

Swap Floppy Drive

Switches the floppy disk drives between being designated as A and B. Default is Disabled.

Boot Up Floppy Seek

During POST, BIOS will determine if the floppy disk drive installed is 40 or 80 tracks. 360K type is 40 tracks while 760K, 1.2M and 1.44M are all 80 tracks.

Boot Up NumLock Status

The default value is On.

(default)

Keypad is numeric keys.

Off

Keypad is arrow keys.

Typematic Rate Setting

Keystrokes repeat at a rate determined by the keyboard controller. When enabled, the typematic rate and typematic delay can be selected. The settings are: Enabled/Disabled.

Typematic Rate (Chars/Sec)

Sets the number of times a second to repeat a keystroke when you hold the key down. The settings are: 6, 8, 10, 12, 15, 20, 24, and 30.

Page 28

Typematic Delay (Msec)

Sets the delay time after the key is held down before is begins to repeat the keystroke. The settings are 250, 500, 750, and 1000.

Security Option

This category allows you to limit access to the system and Setup, or just to Setup.

System

The system will not boot and access to Setup will be denied if the correct password is not entered at the prompt.

Setup

(default) The system will boot, but access to Setup will be denied if the correct

password is not entered prompt.

OS Select For DRAM > 64MB

Allows OS2 to be used with >64MB or DRAM. Settings are Non-OS/2 (default) and OS2. Set to OS/2 if using more than 64MB and running OS/2.

3-6 Advanced Chipset Features

The Advanced Chipset Features Setup option is used to change the values of the chipset registers. These registers control most of the system options in the computer.

Advanced Chipset Features

Item Help

> DRAM Timing Settings Press Enter > AGP Timing Settings Press Enter > PCI Timing Settings Press Enter System BIOS Cacheable Disabled FB Address Conversion Enabled FB Page Close Prediction Enabled Memory Hole Disabled

Menu Level >

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

DRAM Timing Settings

Please refer to section 3-6-1

AGP Timing Settings

Please refer to section 3-6-2

PCI Timing Settings

Please refer to section 3-6-3

Page 29

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result. The settings are: Enabled and Disabled.

Memory Hole

You can reserve this area of system memory for ISA adapter ROM. When this area is reserved, it cannot be cached. The user information of peripherals that need to use this area of system memory usually discusses their memory requirements. The settings are: Enabled and Disabled.

3-6-1 DRAM Timing Settings

DRAM Timing Settings

Item Help

Auto Configuration Standard RAS Active Time 6T RAS Precharge Time 3T RAS to CAS Delay 3T CAS Latency 2.5T Bank Interleave Disabled DRAM Command Rate 2T Command

Menu Level >>

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

RAS Active Time

This field let’s you insert a timing delay between the CAS and RAS strobe signals, used when DRAM is written to, read from, or refreshed. Fast gives faster performance; and Slow gives more stable performance. This field applies only when synchronous DRAM is installed in the system. The settings are: 2T and 3T.

RAS Precharge Time

If an insufficient number of cycles is allowed for the RAS to accumulate its charge before DRAM refresh, the refresh may be incomplete and the DRAM may fail to retain date. Fast gives faster performance; and Slow gives more stable performance. This field applies only when synchronous DRAM is installed in the system. The settings are: 2T and 3T.

CAS Latency

When synchronous DRAM is installed, the number of clock cycles of CAS latency depends on the DRAM timing. The settings are: 2T and 2.5T.

Page 30

3-6-2 AGP Timing Settings

AGP Timing Settings

Item Help

VGA Share Memory Size 32M AGP Transfer Aperture Size 64M AGP Mode Auto AGP Driving Control Auto * AGP Driving Value DA AGP Fast Write Disabled AGP Master 1 WS Write Enabled AGP Master 1 WS Read Enabled CPU to AGP Post Write Disabled AGP Delay Transaction Disabled

Menu Level >>

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Note: Change these settings only if you are familiar with the chipset.

3-6-3 PCI Timing Settings

PCI Timing Settings

Item Help

PCI Master 1 WS Write Disabled PCI Master 1 WS Read Disabled CPU to PCI Write Buffer Enabled PCI Delay Transaction Disabled

Menu Level >>

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

PCI Delay Transaction

The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles. Select Enabled to support compliance with PCI specification version 2.1. The settings are: Enabled and Disabled.

3-7 Integrated Peripherals

Integrated Peripherals

Item Help

> OnChip IDE Function Press Enter > OnChip Device Function Press Enter > Onboard Super IO Function Press Enter Init Display First PCI Slot

Menu Level >

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

OnChip IDE Function

Page 31

Please refer to section 3-7-1

OnChip Device Function

Please refer to section 3-7-2

Onboard Super IO Function

Please refer to section 3-7-3

Init Display First

This item allows you to decide to activate whether PCI Slot or AGP VGA first. The settings are: PCI Slot, AGP Slot.

3-7-1 OnChip IDE Function

OnChip IDE Function

Item Help

OnChip IDE Channel0 Enabled OnChip IDE Channel1 Enabled Primary Master PIO Auto Primary Slave PIO Auto Secondary Master PIO Auto Secondary Slave PIO Auto Primary Master UDMA Auto Primary Slave UDMA Auto Secondary Master UDMA Auto Secondary Slave UDMA Auto IDE DMA Transfer Access Enabled IDE 32-bit Transfer Mode Enabled IDE HDD Block Mode Enabled IDE Prefetch Mode Enabled Delay For HDD (Secs) 0

Menu Level >>

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

OnChip IDE Channal0/Channel1

The integrated peripheral controller contains an IDE interface with support for two IDE channels. Select Enabled to activate each channel separately. The settings are: Enabled and Disabled.

Primary/Secondary Master/Slave PIO

The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each of the four IDE devices that the onboard IDE interface supports. Modes 0 through 4 provide successively increased performance. In Auto mode, the system automatically determines the best mode for each device. The settings are: Auto, Mode 0, Mode 1, Mode 2, Mode 3, Mode

Primary/Secondary Master/Slave UDMA

Ultra DMA/33 implementation is possible only if your IDE hard drive supports it and the operating environment includes a DMA driver (Windows 95 OSR2 or a third-party IDE bus master driver). If your hard drive and your system software both support Ultra DMA/33 and Ultra DMA/66, select Auto to enable BIOS support. The settings are: Auto, Disabled.

IDE HDD Block Mode

Page 32

Block mode is also called block transfer, multiple commands, or multiple sector read/write. If your IDE hard drive supports block mode (most new drives do), select Enabled for automatic detection of the optimal number of block read/writes per sector the drive can support. The settings are: Enabled, Disabled.

3-7-2 OnChip Device Function

OnChip Device Function

Item Help

VIA LAN Function Enabled VIA LAN BootROM Disabled VIA LAN BootROM Option Hook INT19 VIA LAN BootROM PXERPL Option PXE Current VIA MAC Address is 003018-xxxxxx VIA MAC Address Input Press Enter AC97 Sound Device Auto Game Port Address 201 Midi Port Address Disabled Midi Port IRQ 10 AC97 Modem Device Auto USB Host Controller Enabled USB Keyboard Legacy Support Disabled

Menu Level >>

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

AC97 Sound Device

This item allows you to decide to enable/disable the chipset family to support AC97 Audio. The settings are: Enabled, Disabled.

Game Port Address/Midi Port Address

This will determine which Address the Game Port/Midi Port will use.

AC97 Modem Device

This item allows you to decide to enable/disable the chipset family to support AC97 Modem. The settings are: Auto, Disabled.

USB Host Controller

Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have a USB peripherals. The settings are: Enabled, Disabled.

USB Keyboard Support

Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have a USB keyboard. The settings are: Enabled, Disabled.

3-7-3 Onboard Super IO Function

Page 33

Onboard Super IO Function

Item Help

Onboard FDD Controller Enabled Onboard Serial Port 1 3F8/IRQ4 Onboard Serial Port 2 2F8/IRQ3 UART2 Mode Normal RxD, TxD Active Hi, Lo IR Duplex Mode Half Use IR Pins IRRX/IRTX Onboard Parallel Port 378/IRQ7 Parallel Mode SPP EPP Mode Select EPP1.7 ECP Mode Use DMA 3

Menu Level >>

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Onboard FDD Controller

Select Enabled if your system has a floppy disk controller (FDD) installed on the system board and you wish to use it. If you install add-on FDC or the system has no floppy drive, select Disabled in this field. The settings are: Enabled and Disabled.

Onboard Serial Port 1/Port 2

Select an address and corresponding interrupt for the first and the second serial ports. The settings are: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/IRQ3, Disabled, Auto.

UART2 Mode

This item allows you to determine which InfraRed(IR) function of the onboard I/O chip, this functions uses.

Onboard Parallel Port

There is a built-in parallel port on the on-board Super I/O chipset that Provides Standard, ECP, and EPP features. It has the following option:

Disabled (3BCH/IRQ7)/

Line Printer port 0

(278H/IRQ5)/

Line Printer port 2

(378H/IRQ7)

Line Printer port 1

Parallel Port Mode

SPP : Standard Parallel Port EPP : Enhanced Parallel Port ECP : Extended Capability Port

SPP/EPP/ECP/ECP+EPP

To operate the onboard parallel port as Standard Parallel Port only, choose “SPP.” To operate the onboard parallel port in the EPP modes simultaneously, choose “EPP.” By choosing “ECP”, the onboard parallel port will operate in ECP mode only. Choosing “ECP+EPP” will allow the onboard parallel port to support both the ECP and EPP modes simultaneously. The ECP mode has to use the DMA channel, so choose the onboard parallel port with the ECP feature. After selecting it, the following message will appear: “ECP Mode Use DMA” at this time, the user can choose between DMA channels 3 to 1. The onboard parallel port is EPP Spec. compliant, so after the user chooses the onboard parallel port with the EPP function, the following message will be displayed on the screen: “EPP Mode Select.” At this time either EPP 1.7 spec. or EPP 1.9 spec. can be chosen.

3-8 Power Management Setup

Page 34

The Power Management Setup allows you to configure your system to most effectively save energy saving while operating in a manner consistent with your own style of computer use.

Power Management Setup

Item Help

ACPI Function Enabled ACPI Suspend Type S1 (POS) Video Off Option Always off Video off Method V/H SYNC+Blank MODEM Use IRQ 3 Power Button Function Instant-Off Power After Power Failure Off > Wake Up Events Press Enter

Menu Level >

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

ACPI Function

This item allows you to Enabled/Disabled the Advanced Configuration and Power Management (ACPI). The settings are Enabled and Disabled.

Video Off Option

This determines the manner in which the monitor is blanked. The choice are Suspend → off, All Modes → Off, and Always On.

Video Off Method

This determines the manner in which the monitor is blanked.

DPMS

(default) Initial display power management signaling.

Blank Screen

This option only writes blanks to the video buffer.

V/H SYNC+Blank

This selection will cause the system to turn off the vertical and

horizontal synchronization ports and write blanks to the video buffer.

Modem Use IRQ

This determines the IRQ in which the MODEM can use. The settings are: 3, 4, 5, 7, 9, 10, 11, NA.

Power Button Function

Pressing the power button for more than 4 seconds forces the system to enter the Soft-Off state. The settings are: Delay 4 Sec, Instant-Off.

Wake Up Events

Please refer to section 3-8-1

3-8-1 Wake up Events

Page 35

Wake Up Events

Item Help

VGA OFF LPT & COM LPT/COM HDD & FDD ON PCI Master OFF Wake-Up on Ring/LAN Disabled Wake-Up on PCI PME Disabled PS2 KB Wakeup Selection Hot Key Wake-Up on Hot Key (PS2 KB) Power Key Wake-Up on RTC Alarm Disabled x Date of Month Alarm 0 x Time (hh:mm:ss) Alarm 0 : 0 : 0 > IRQs Activities Press Enter

Menu Level >>

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Wake Up On Ring/PME

During Disabled, the system will ignore any incoming call from the modem. During Enabled, the system will boot up if there’s an incoming call from the modem.

Wake-Up on RTC Alarm

This function is for setting date and time for your computer to boot up. During Disabled, you cannot use this function. During Enabled, choose the Date and Time Alarm:

Date(of month) Alarm

You can choose which month the system will boot up. Set to 0, to boot every day.

Time(hh:mm:ss) Alarm

You can choose what hour, minute and second the system will boot up. Note: If you have change the setting, you must let the system boot up until it goes to the

operating system, before this function will work.

IRQs Activities

Please refer to section 3-8-1.1

3-8-1.1 IRQs Activities

IRQs Activities

Item Help

Primary INTR ON IRQ3 (COM 2) Enabled IRQ4 (COM 1) Enabled IRQ5 (LPT 2) Enabled IRQ6 (Floppy Disk) Enabled IRQ7 (LPT 1) Enabled IRQ8 (RTC Alarm) Disabled IRQ9 (IRQ2 Redir) Disabled IRQ10 (Reserved) Disabled IRQ11 (Reserved) Disabled IRQ12 (PS/2 Mouse) Enabled IRQ13 (Coprocessor) Disabled IRQ14 (Hard Disk) Enabled IRQ15 (Reserved) Disabled

Menu Level >>>

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

3-9 PnP/PCI Configuration Setup

Page 36

This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed the

CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

PnP/PCI Configurations

Item Help

PnP OS Installed No Reset Configuration Data Disabled

Resources Controlled By Manual x IRQ Resources Press Enter

PCI/VGA Palette Snoop Disabled Assign IRQ For VGA Enabled

Assign IRQ For USB Enabled

Menu Level >

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Reset Configuration Data

Normally, you leave this field Disabled. Select Enabled to reset Extended System Configuration Data (ESCD) when you exit Setup if you have installed a new add-on and the system reconfiguration has caused such a serious conflict that the operating system can not boot. The settings are: Enabled and Disabled.

Resource Controlled By

The Award Plug and Play BIOS has the capacity to automatically configure all of the boot and Plug and Play compatible devices. However, this capability means absolutely nothing unless you are using a Plug and Play operating system such as Windows95/98. If you set this field to “manual” choose specific resources by going into each of the sub menu that follows this field (a sub menu is preceded by a “>”).

The settings are: Auto(ESCD), Manual.

IRQ Resources

When resources are controlled manually, assign each system interrupt a type, depending on the type of device using the interrupt. Please refer to section 3-9-1

PCI/VGA Palette Snoop

Leave this field at Disabled. The settings are Enabled, Disabled.

3-9-1 IRQ Resources

Page 37

IRQ Resources

Item Help

IRQ3 assigned to PCI Device IRQ4 assigned to PCI Device IRQ5 assigned to PCI Device IRQ7 assigned to PCI Device IRQ9 assigned to PCI Device IRQ10 assigned to PCI Device IRQ11 assigned to PCI Device IRQ12 assigned to PCI Device IRQ14 assigned to PCI Device IRQ15 assigned to PCI Device

Menu Level >>

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

3-10 PC Health Status

This section shows the Status of you CPU, Fan, Warning for overall system status. This is only available if there is Hardware Monitor onboard.

PC Health Status

Item Help

CPU Warning Temperature Disabled Show PC Health in Post Enabled CPUFAN Smart Mode Enabled CPUFAN Temp1 Value 40 CPUFAN Speed below Temp1 50% CPUFAN Temp2 Value 45 CPUFAN Speed below Temp2 80% SYSFAN Smart Mode Enabled SYSFAN Speed Value 40 SYSTEM Speed below Temp1 50% SYSTEM Temp2 Value 45 SYSTEM Speed below Temp2 80% Current System Temperature 25°C Current CPU Temperature 38°C CPUFAN 5000 rpm SYSFAN 5000 rpm Vcore 1.78V Vcc3.3 3.31V + 5V 4.98V AGPVDD

Menu Level >

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Show PC Health in Post

During Enabled, it displays information list below. The choice is either Enabled or Disabled

Current CPU Temperature/Current System Temp/Current FAN1, FAN2 Speed/Vcore/ Vdd/3.3V/+5V/+12V/-12V/VBAT(V)/5VSB(V)

This will show the CPU/FAN/System voltage chart and FAN Speed.

3-11 Miscellaneous Control

Page 38

This section is for setting CPU Frequency/Voltage Control.

Miscellaneous Control

Item Help

CPU Clock Ratio 8X Auto Detect PCI/DIMM Clock Enabled Spread Spectrum Disabled ** Current Host/PCI Clock is Host/PCI Clock at Next Boot is ** Current DRAM Clock is DRAM Clock at next Boot is CPU Vcore Select Default AGPVDD Output 1.5V(Default) VRAM Output 2.6V(Default) Chipset 2.5V 2.55V(Default) VTT Voltage 1/2 VRAM VAGP LUV Protect Enabled VRAM LUV Protect Enabled Dual3.3V LUV Protect Disabled

Menu Level >

↑↓→←

Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Optimized Defaults F7:Standard Defaults

Auto Detect PCI/DIMM Clock

This item allows you to enable/disable auto detect DIMM/PCI Clock.

Spread Spectrum

This item allows you to set the CPU Host/PCI clock and Spread Spectrum. The settings are: Enabled, Disabled.

Host/PCI Clock at next Boot is

This item allows you to select CPU frequency step by step increasing The choice are: 100MHz∼132MHz, 133MHz∼200MHz.

DRAM Clock at next Boot is

This field displays the capability of the memory modules that you can use The choice is either 100MHz or 133MHz (only select CPU Frequency 100MHz.)

AGPVDD Output

This item allows you to select 1.5V of the AGP 4X VGA card. The choice are: 1.5V, 1.6V.

VRAM Output

This item allows you to select 2.5V of the DDR Module. The choice are: 2.5V, 2.6V, 2.7V,

2.8V.

3-12 Load Standard/Optimized Defaults

Page 39

Load Standard Defaults

When you press <Enter> on this item, you get confirmation dialog box with a message similar to:

Load Standard Defaults (Y/N)? N Pressing <Y> loads the BIOS default values for the most stable, minimal-performance system operations.

Load Optimized Defaults

When you press <Enter> on this item, you get a confirmation dialog box with a message similar to:

Load Optimized Defaults (Y/N)? N Pressing <Y> loads the default values that are factory settings for optimal performance system operations.

3-13 Set Supervisor/User Password

You can set either supervisor or user password, or both of them. The differences are:

Supervisor password: Can enter and change the options of the setup menus. User password: Can only enter but do not have the right to change the options of the

setup menus. When you select this function, the following message will appear at the center of the screen to assist you in creating a password.

ENTER PASSWORD:

Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.

To disable a password, just press <Enter> when you are prompted to enter the password. A message will confirm that the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

PASSWORD DISABLED.

When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration.

Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer.

You determine when the password is required within the BIOS Features Setup Menu and its Security option. If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.

Chapter 4

DRIVER & FREE PROGRAM INSTALLATION

Page 40

Check your package and there is A MAGIC INSTALL CD included. This CD consists of all DRIVERS you need and some free application programs and utility programs. In addition, this CD also include an auto detect software which can tell you which hardware is installed, and which DRIVERS needed so that your system can function properly. We call this auto detect software MAGIC INSTALL.

MAGIC INSTALL supports WINDOWS 9X/ME/NT4.0/2000/XP

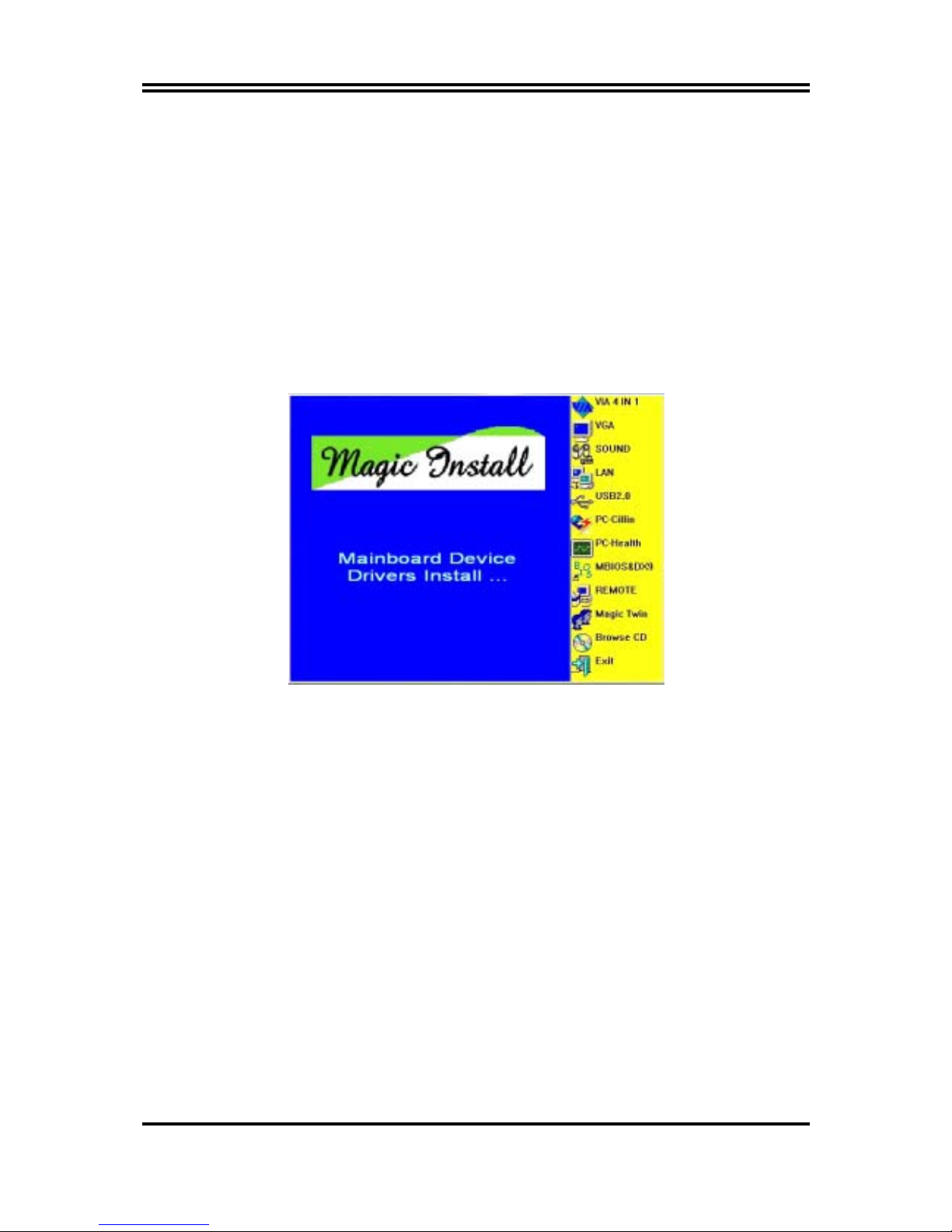

Insert CD into your CD-ROM drive and the MAGIC INSTALL Menu should appear as below. If the menu does not appear, double-click MY COMPUTER / double-click CD-ROM drive or click START / click RUN / type X:\SETUP.EXE (assuming X is your CD-ROM drive).

From MAGIC INSTALL MENU you may make 12 selections:

1. VIA 4 IN 1 install VIA Service Pack 4 IN 1 driver

2. VGA install VIA VGA Driver

3. SOUND install ALC Audio Codec Installing driver

4. LAN install VIA 10/100MB LAN Controller driver

5. USB2.0 install USB 2.0 driver

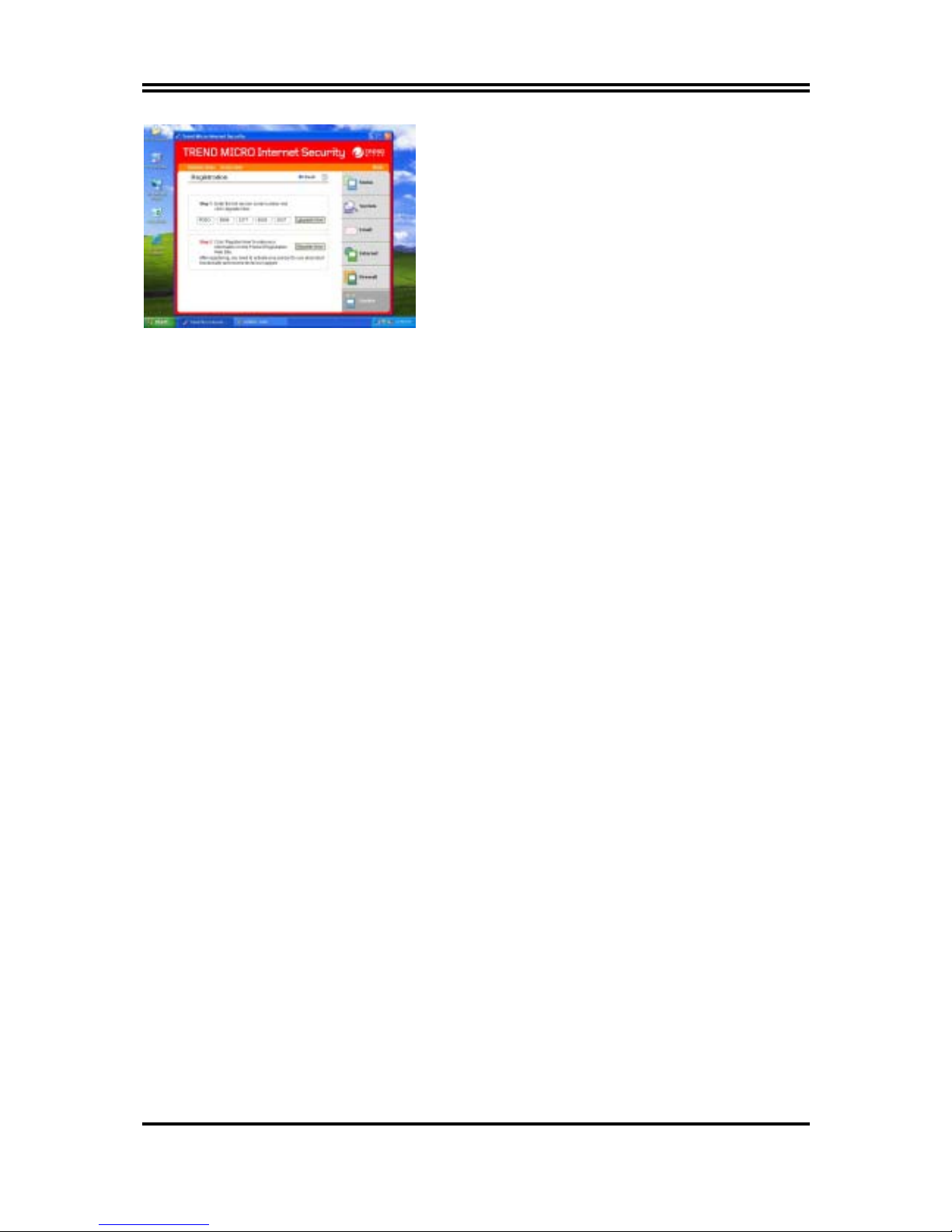

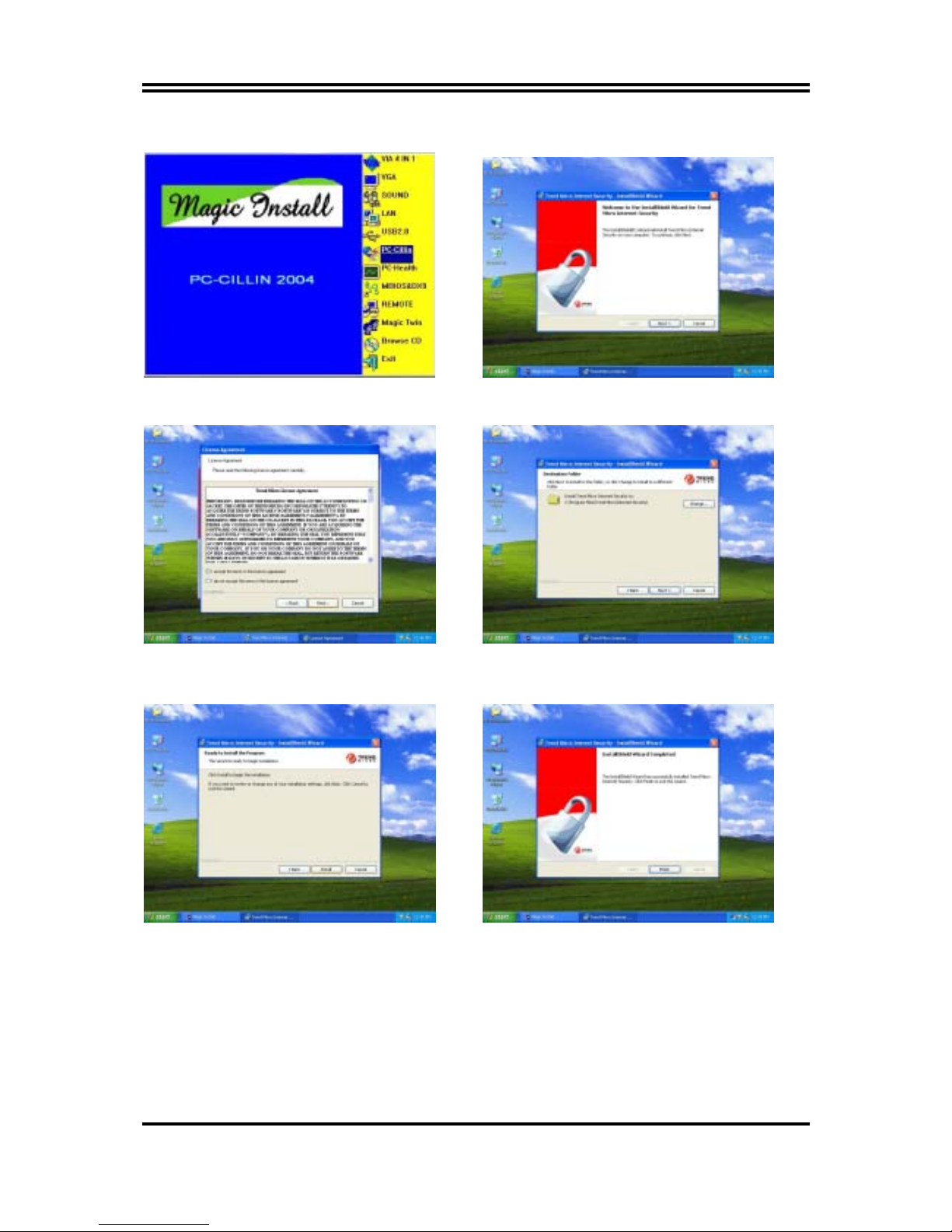

6. PC-CILLIN install PC-CILLIN2004 anti-virus program

7. PC-HEALTH install My Guard for VIA8235 Utility

8. MBIOS&DX9 install BIOS Live Update Utility and Microsoft DirectX 9 driver

9. REMOTE install Remote Controller driver

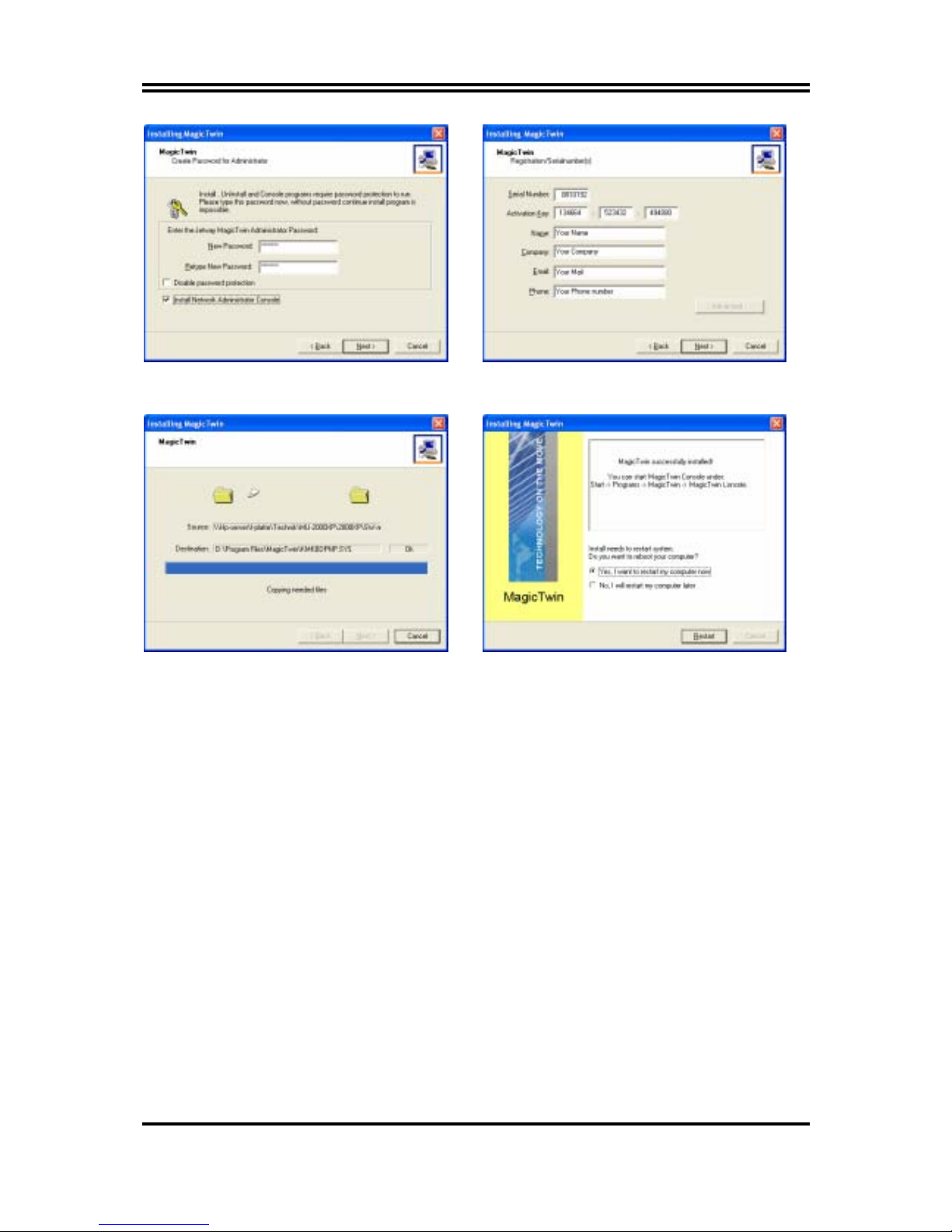

10. MAGIC TWIN install Magic Twin utility

11. BROWSE CD to browse the contents of the CD

12. EXIT to exit from MAGIC INSTALL menu

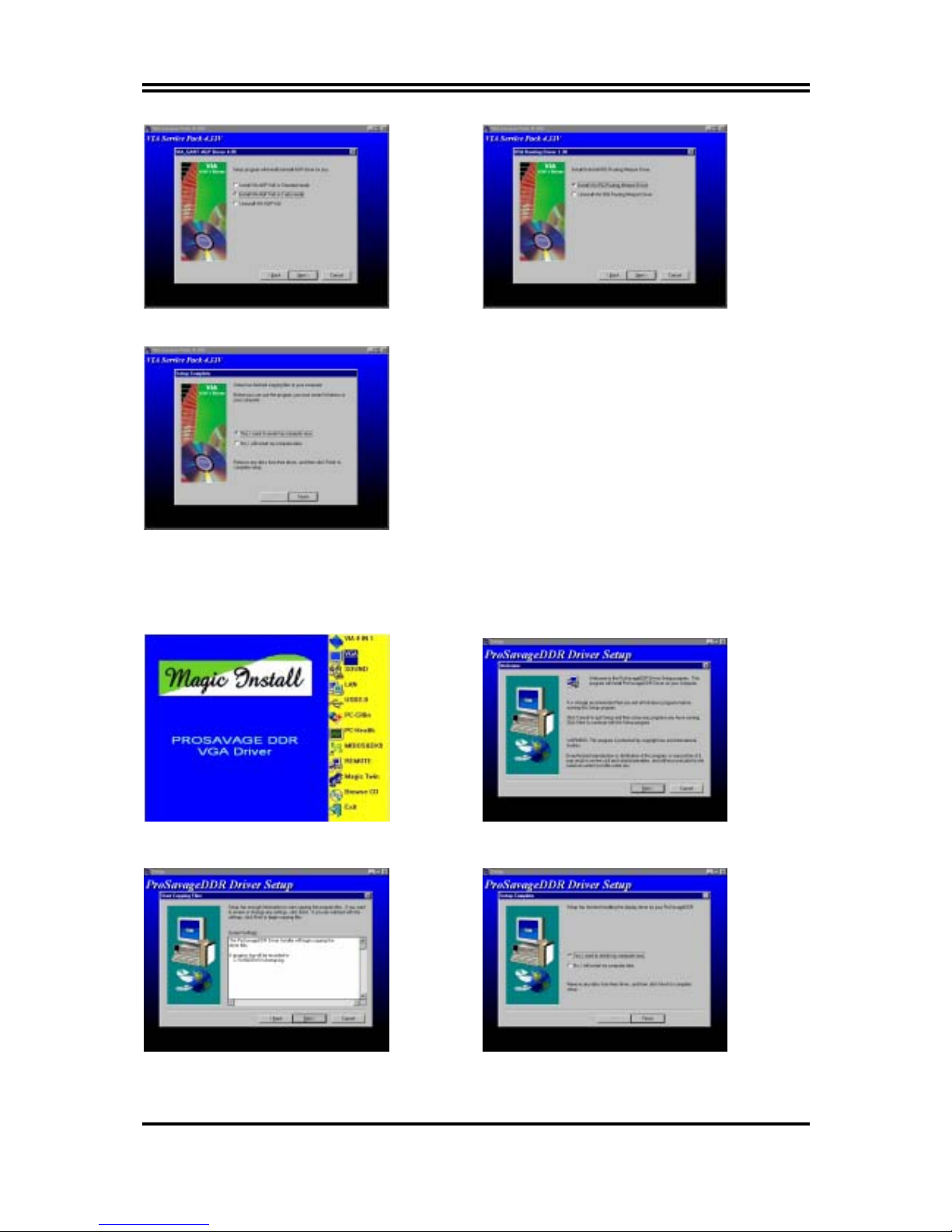

4-1 VIA 4 IN 1 Install VIA Service Pack 4 IN 1 Driver

* The path of the file is X:\VIA\DRIVER\SETUP.EXE

IDE : VI A ATAPI VENDOR SUPPORT DRIVER IS USED TO FIXED COM P ATIBILI T Y ISS U E

FOR IDE DEVICES

Page 41

AGPVXD : VIA AGPVXD DRIVER IS TO BE INSTALLED, IF YOU ARE USING AN AGP VGA

CARD, VIAGART.VXD WILL PROVIDE SERVICE ROUTINES TO YOUR VGA DRIVER AND INTERFACE DIRECTLY TO HARDWARE, PROVIDING FAST GRAPHIC ACCESS

IRQ ROUTING : VIA PCI IRQ MINIPORT DRIVER IS TO BE INSTALLED UNDER WIN98 ONLY,

IT WILL FIX PCI IRQ ROUTING SEQUENCE

INF : VIA REGISTRY DRIVER IS TO BE INSTALLED UNDER WINDOWS

THE DRIVER WILL ENABLE VIA POWER MANAGERMENT CONTROLLER

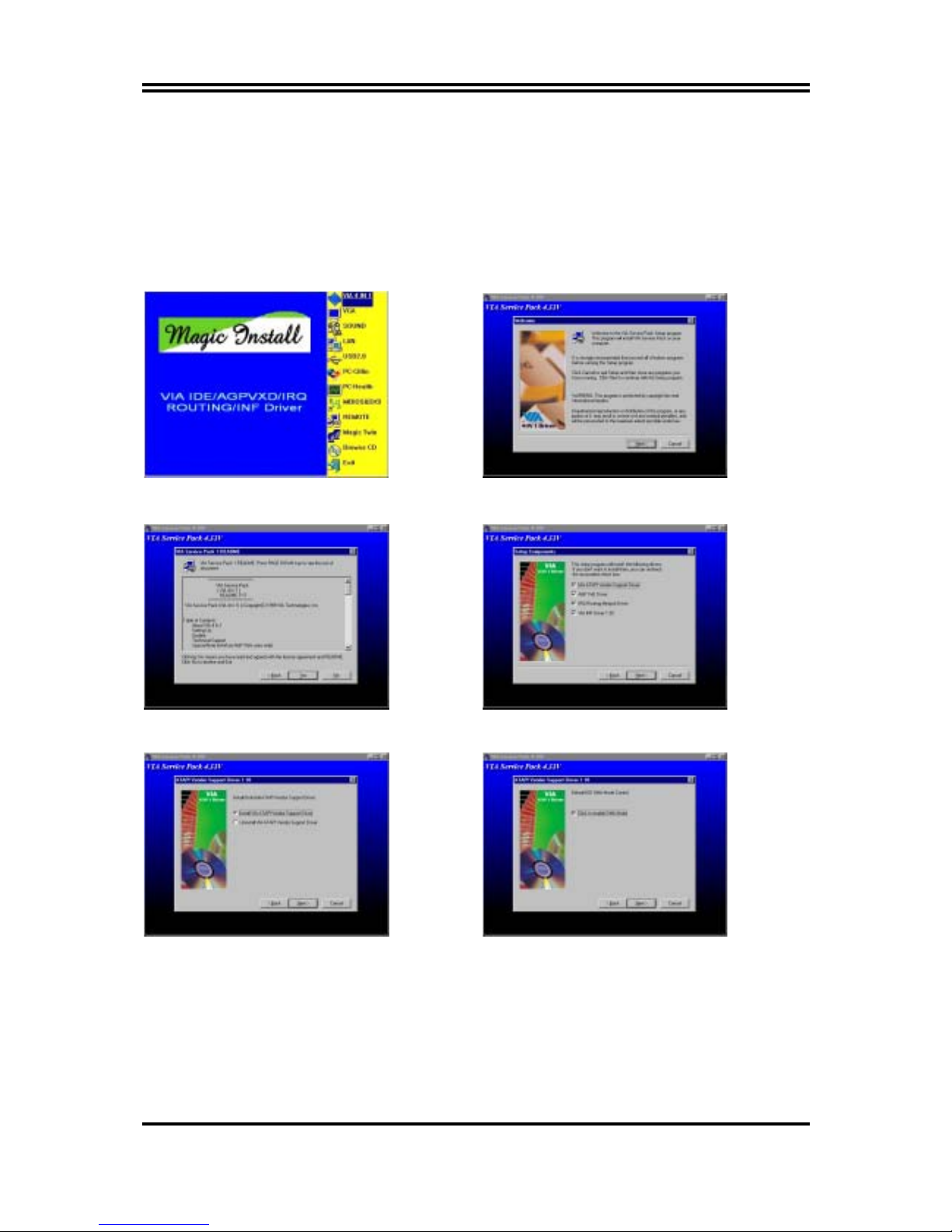

1. Click IDE when MAGIC INSTALL MENU

appears

2. Click NEXT when VIA Service Pack Wizard

appears

3. This is to announce the Copy Write, click

Yes

4. Click NEXT to choose all driver

5. Click NEXT to Install ATAPI Vender

Support Driver

6. Click NEXT to choose enabled DMA Mode

Page 42

7. Click NEXT to Install VIA AGP VXD Driver 8. Click NEXT to Install VIA IRQ Routing Mini

port Driver

9. Click Finish to restart computer

4-2 VGA install Prosavage DDR VGA Driver

For WINDOWS 9X/ME/NT4.0/2000/XP

1. Click VGA when MAGIC INSTALL MENU

appears

2. Click NEXT When ProSavageDDR Driver

Install Setup Wizard Appears

3. Click NEXT to Install Driver File 4. Click Finish to Restart Computer

Page 43

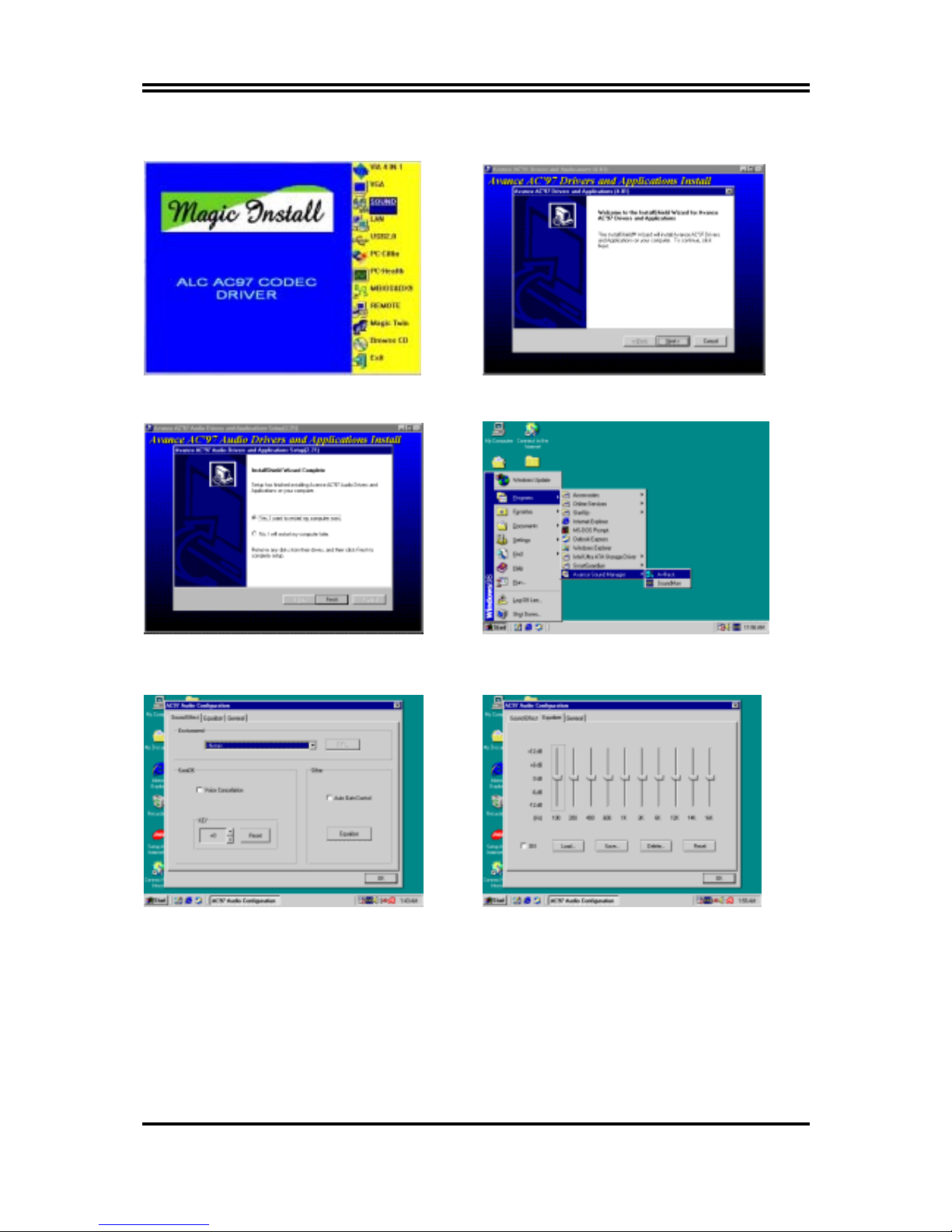

4-3 Sound Install ALC Audio Codec Driver

1. Click SOUND when MAGIC INSTALL

MENU appears

2. Then auto detect operation system language

edition, click OK, start to install DRIVER

3. Click Finish and Restart Windows

4. Click Start→Program→Avance Sound Manager→AvRack. Then AVRACK Windows appears

5. Sound Effect select and KaraOK Mode

Function

6. Manual Sound Effect Setting

Note: The path of the file

For WIN98/NT4.0/WIN2K is X:\CODEC\ALCCODEC\SETUP.EXE For WIN95 is X:\VIA\VIAUDIO\SETUP.EXE For Linux is X:\VIA\VIAUDIO\Linux For Real DOS Mode is X:\VIA\VIAUDIO\VIADOS

Page 44

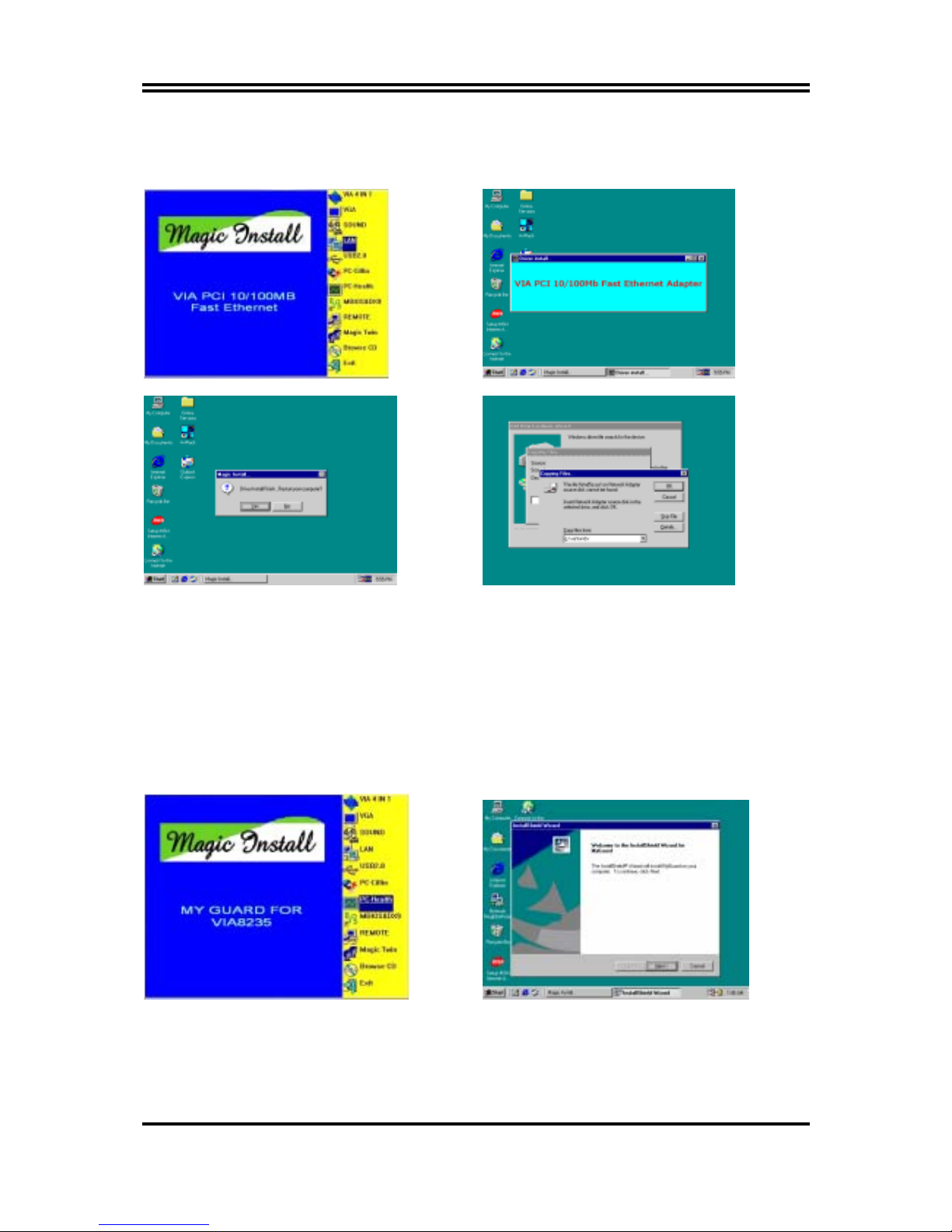

4-4 LAN Install VIA10/100MB LAN Controller Driver

The VIA10/100MB PCI Ethernet Adapter Driver path is X:\VIA\LANDRV

1. Click LAN when Magic Install Menu appear 2. Setup VIA 10/100Mb PCI Ethernet Driver

3. Driver install Finish , Click Yes and Restart

Computer

4. When windows ask VIA 10/100Mb PCI

Ethernet Adapter driver path, Change directory to X:\VIA\LANDRV and click OK , then finish installation

4-5 PC-HEALTH My Guard for VIA8235 Utility

The path of the file is X:\VIA\MYGUARD\SETUP.EXE (Support Windows 9X/ME/2K/NT/XP)

1. Click PC-Health when Magic Install Menu

appears

2. Click Next when Install shield wizard Window

appears, Choose destination location and click Next, when the start copy file windows appear, click next

Page 45

3. Select Finish after setup complete 4. Execute MY GUARD utility, On-time

Monitoring your system health

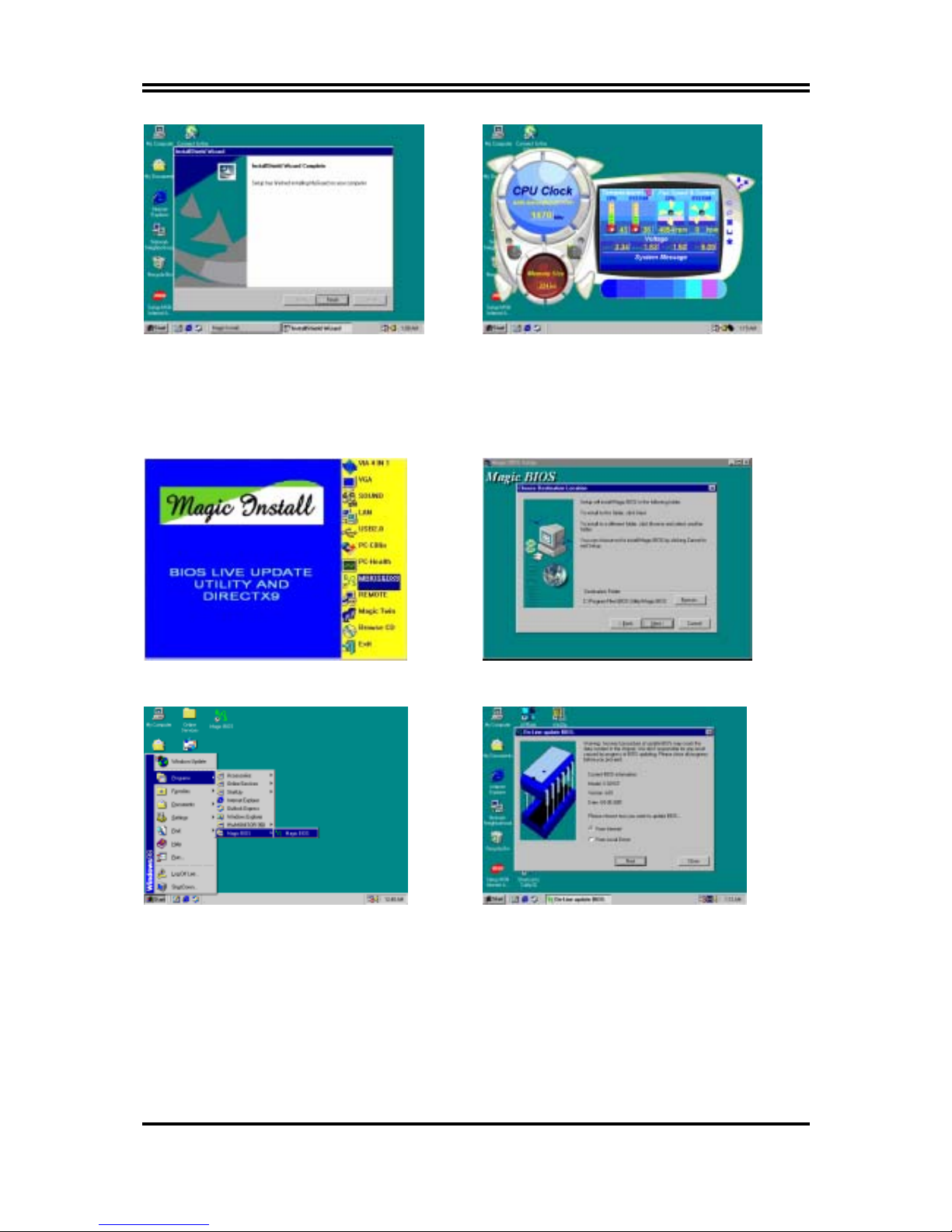

4-6 MAGIC BIOS Install BIOS Live Update Utility

1. Click Magic BIOS when Magic Install

MENU appears

2. Click Next to install the Magic BIOS in

Destination Folder

3. After finish Setup you will have a Magic

BIOS icon in your screen

4. Double click the Magic BIOS icon you will

have this picture, choose from internet you can upgrade BIOS On-line

Page 46

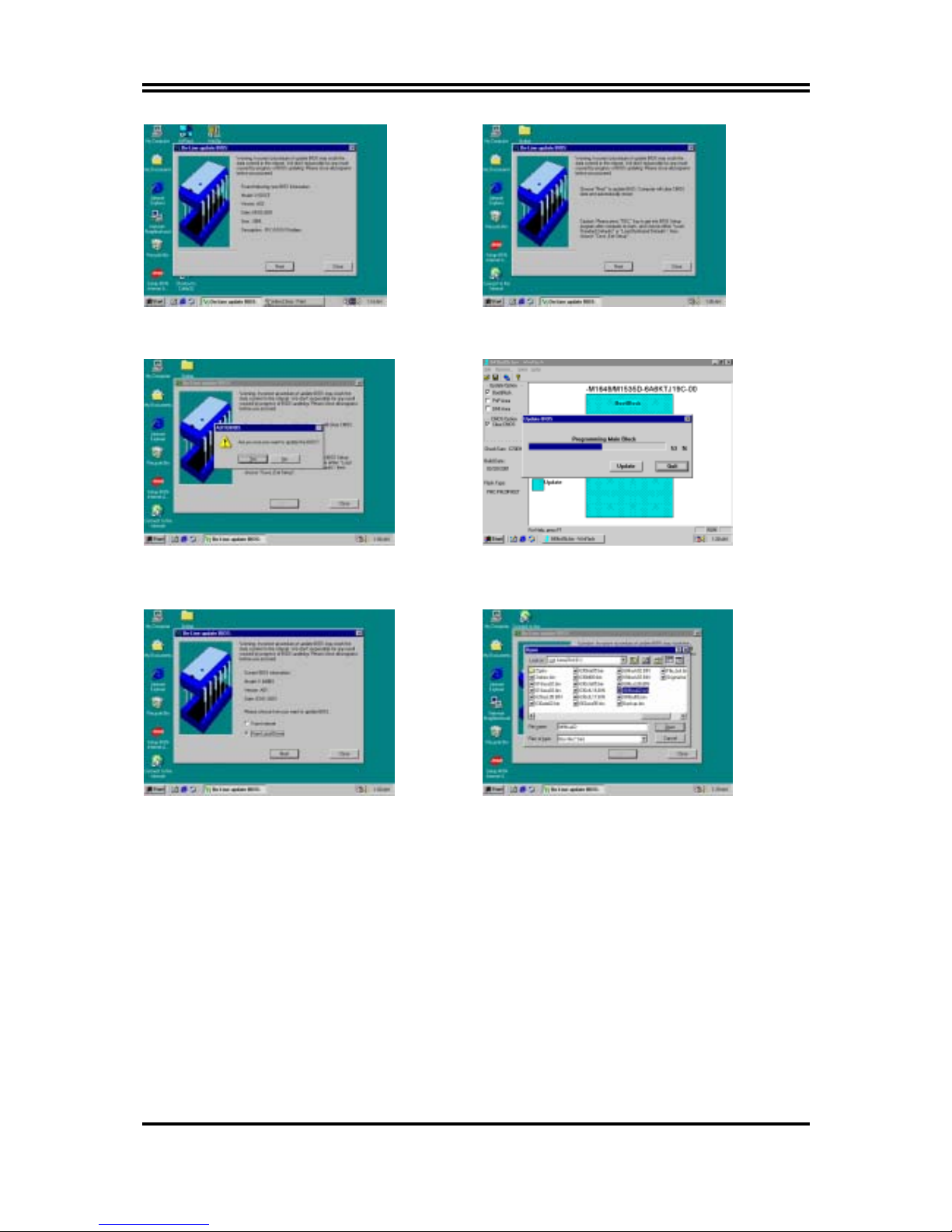

5. When On-line update BIOS the program

will auto-check your BIOS version

6. Click Next if you need update BIOS, after

upgrade BIOS, the system will clear CMOS and automatically restart

7. Click Yes if you want to update the BIOS

otherwise choose No to exit

8. When System programming BIOS don’t turn

off power, after finish update BIOS, the system will clear CMOS and automatically Restart

9. When choose From Local Driver to update

BIOS, you must have the correct BIOS file in your Local Driver

10. Choose the correct BIOS file to update BIOS

Page 47

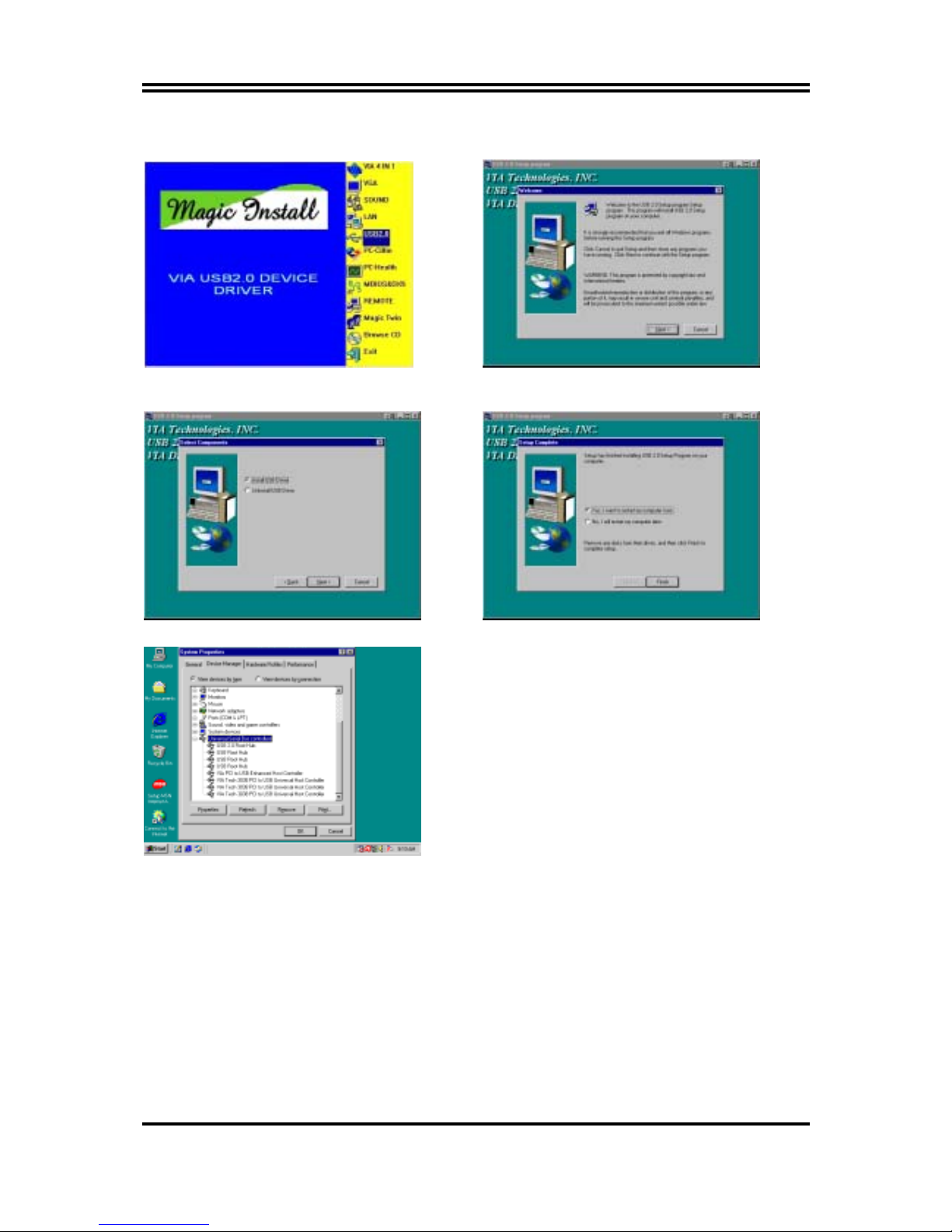

4-7 USB2.0 Install VIA USB2.0 Device Driver

1. Click USB2.0 when MAGIC INSTALL

MENU Appear

2. When USB2.0 Setup Program Appear, Click

3. Select Install USB Driver and Click NEXT 4. Select FINISH and Restart your Computer

5. Check device working properly in Device

Manager

The Path of the file is X:\VIA\VIAUSB20\SETUP.EXE

Page 48

4-8 PC-CILLIN Install PC-CILLIN 2004 Anti-virus program

1. Click PC-CILLIN when MAGIC INSTALL

MENU appear

2. Click NEXT when the "Trend Micro internet

security" installshield wizard windows appear

3. This is license agreement, select "I Accept

the terms" and Click NEXT

4. Click NEXT and Enter your Customer

Information, Click NEXT or choose Change to change the path for the file to be stored

5. Click INSTALL, Start to install the software 6. Setup Complete and click FINISH

Page 49

7. After PC-CILLIN 2004 complete, Please

Note : Please install ACROBAT READER, Before you read PC-CILLIN 2004 User

Manual, the path at X:\acrobat\adberdr6_enu_full.exe

4-9 HOW TO DISABLE ON-BOARD SOUND

Enter BIOS SETUP choose INTEGRATE PERIPHERALS choose ON-CHIP DEVICE FUNCTION choose AC97 SOUND DEVICE Disable on-board sound function by press PAGE DOWN KEY to Disable

4-10 HOW TO UPDATE BIOS

Before update BIOS please choose Disabled in “Flash Part Write Protect” item on “Miscellaneous Control” in BIOS Setup, please refer page 35

Method 1. Use “Magic BIOS” update BIOS in Windows 98 (refer page 42)

Method 2. In DOS Mode

STEP 1. Prepare a boot disc. (you may make one by click START click RUN type SYS A:

click OK)

STEP 2. Copy utility program to your boot disc. You may copy from DRIVER CD

X:\FLASH\AWDFLASH.EXE or download from our web site.

STEP 3. Copy latest BIOS for P4MDF/P4MDFT from our web site to your boot disc. STEP 4. Insert your boot disc into A:,

start the computer, type “Awdflash A:\ P4MDFAxxx.BIN /SN/PY/CC/R” P4MDFAxxx.BIN is the file name of latest BIOS it can be P4MDFA3.BIN or

P4MDFB2.BIN SN means don’t save existing BIOS data PY means renew existing BIOS data CC means clear existing CMOS data R means restart computer

STEP 5. Push ENTER and the BIOS will be updated, computer will be restarted

automatically.

Page 50

CHAPTER 5

5-1 INSTALLATION OF MagicTwin (a 2-User-System solution)

Introduction

MagicTwin is a 2-User-System solution built on this special designed motherboard with dual video connectors (such as a dual port AGP VGA card), two PS/2 keyboards and two PS/2 mice connected from motherboard using packaged Y-cables and one piece of software (Driver and Tools). It allows you to add ONE additional station simultaneously running under Windows XP Home or XP-Professional (Service Pack 1). Please refer the detail on the packaged MagicTwin XP 2-User Software Installation Guide.

Necessary Components to Configure 2-User-System:

¾ one special designed Motherboard (incl. all cablings) ¾ one Dual Display VGA card for two monitors (purchase separately) ¾ two Y-cables for two PS/2 Keyboards and two PS/2 Mice ¾ MAGIC INSTALL CD (incl. all DRIVERS you need and some TOOLS to enable the 2-

User function of the motherboard). In addition this CD includes an auto detect software, which detects, installs and assigns the related 2

video display and the 2nd

PS/2 keyboard and PS/2 mouse.

¾ two monitors ¾ two speaker systems (optional)

Recommendations

¾ CPU: >1.2 GHz ¾ minimum 256 MB RAM for two Stations, running simultaneously ¾ two Standard PS/2 Keyboards, -Mice and two Monitors (Sound: optional) ¾ Hard disk and CD-ROM drive

Installation of MagicTwin

¾ We recommend to install Windows XP and all related drivers from the scratch ¾ Switch off your PC and open the computer case ¾ Remove the AGP-slot bracket and insert the delivered dual headed AGP Video Card

into the AGP-slot

Page 51

¾ As well attach the delivered Y-cables to the “green” port (former PS/2 Mouse port)

and into the “violet” port (former PS/2 Keyboard port) at the rear side of the motherboard.

¾ Connect the 1

. and 2nd. Mouse to the octopus cable, which is also linked to the

“green” PS/2 connector and the 1

. and 2nd Keyboard to the other octopus cable, which is also connected to the “violet” port. The additional monitor MUST be attached otherwise windows will not detect and enable the 2

monitor. Make sure the

additional keyboards and mice work; they should affect the host console.

¾ Start your PC. Windows will automatically detect the new AGP Video device as a

standard VGA-card. Please install all drivers first before your install “MagicTwin” of the MAGIC INSTALL CD. Insert the CD, wait for the automatic start and run the Installation of all other drivers first, and then lastly the MagicTwin from the Magic Install CD. If the CD does not run automatically, please click to Start-> Run-> CDDrive-> SETUP.EXE.

Click “MagicTwin” when the MAGIC INSTALL MENU appears. The Installation-routine will start…

Welcome- Mask, click “Next” Option: Change destination path or click “Next”

Page 52

Password and Network Console, click “Next” Type in the Serial and your Address, click “Next”

Installation in process, please wait… Afterwards “Reboot your PC”.

¾ Windows is restarting and loading the new installed drivers. The MagicTwin will be

activated and assign automatically the 2

Station to the 2nd monitor, -PS/2-keyboard

and PS/2 mouse.

¾ Please login in to Windows and add one or more additional users under the control

panel.

NVIDIA AGP-card

The NVIDIA AGP dual-headed adapters are supported under MagicTwin. It does not work with ATI graphic card at the moment. One display can be used by the host and the second by the MagicTwin station. This will be done automatically after installation of MagicTwin. Please refer to the MagicTwin XP 2-User Software Installation Guide for detail.

Language Support

The MagicTwin Console text and online help have not been updated for all supported languages. The same applies to the installation process text, menue items and desktop shortcuts. Therefore some text may be incorrect with respect to some languages.

Page 53

Microsoft License Agreement

MagicTwin is (technically) able to run with only a single Windows-XP Installation and license. Each software application including Windows has i's own EULA (End User License Agreement) that you must check for the specifics of multi-user application. 's software license does not supersede any other manufacturer´s license. Since most liecense agreements are vague about this specific situation of multi-user or leave it open, and their partners cannot give any general recommendation other than to check the EULA of the software that is being used on each of the workstations.

(C) MagicTwin is registered trademark of the manufacturer. We acknowledge all copyrights, names and trademarks to MagicTwin and all companies above. Information on this flyer may contain technical inaccuracies or typographical errors. Information may be changed or updated without notice. Manufacturer reserves the right to make improvements and/or changes in the products, programs and/or specifications described in this information at any time without notice. Distribution is only via Dealers, Shops and Distributors.
