Technical Manu al
Of
Intel Bay Trail Series CPU
Based Mini-ITX M/B
NO.G03-NF9N-F
Revision: 2.0
Release date: Octob er 1, 2019
Trademark:
* Specifications and Information contained in t his docu ment ation ar e furnish ed for i nfo r mation u se only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
Environmental Prote cti on Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protect ion of mother earth, please recyc l e.
ii
TABLE OF CONTENT
ENVIRONMENTAL SAFETY INSTRUCTION ........................................................................... iv
USER’S NOTICE ....................................................................................................................... v
MANUAL REVISION INFORMATION ....................................................................................... v
ITEM CHECKLIST ..................................................................................................................... v
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD ................................................................................ 1
1-2 SPECIFICATION ......................................................................................................... 2
1-3 LAYOUT DIAGRAM .................................................................................................... 3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING ..................................................................................................... 8
2-2 CONNECTORS AND HEADERS ................................................................................ 12
2-2-1 CONNECTORS ............................................................................................. 12
2-2-2 HEADERS ..................................................................................................... 15
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERING SETUP ..................................................................................................... 24

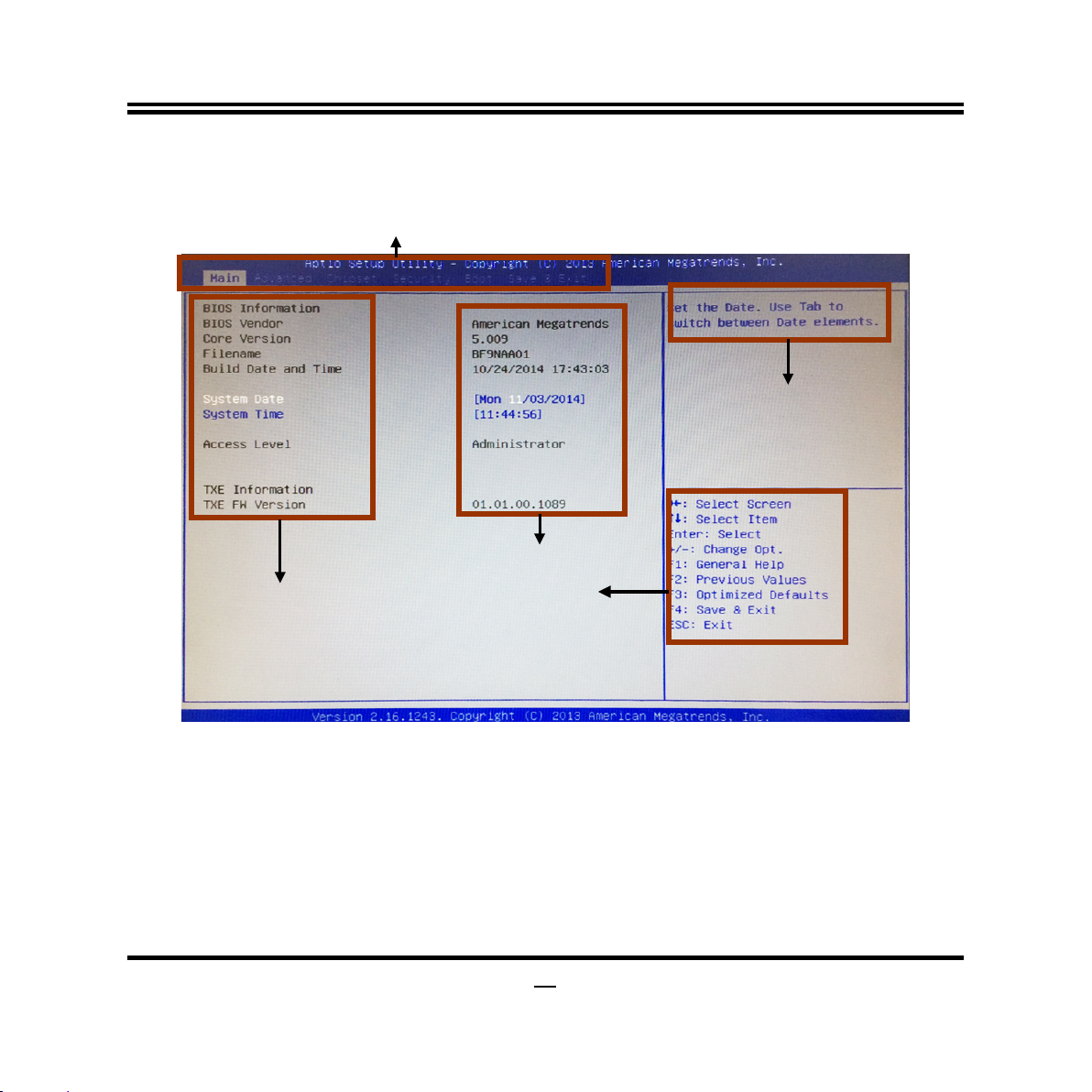

3-2 BIOS MENU SCREEN ................................................................................................ 25
3-3 FUNCTION KEYS ....................................................................................................... 25
3-4 GETTING HELP .......................................................................................................... 26
3-5 MEMU BARS ............................................................................................................... 26

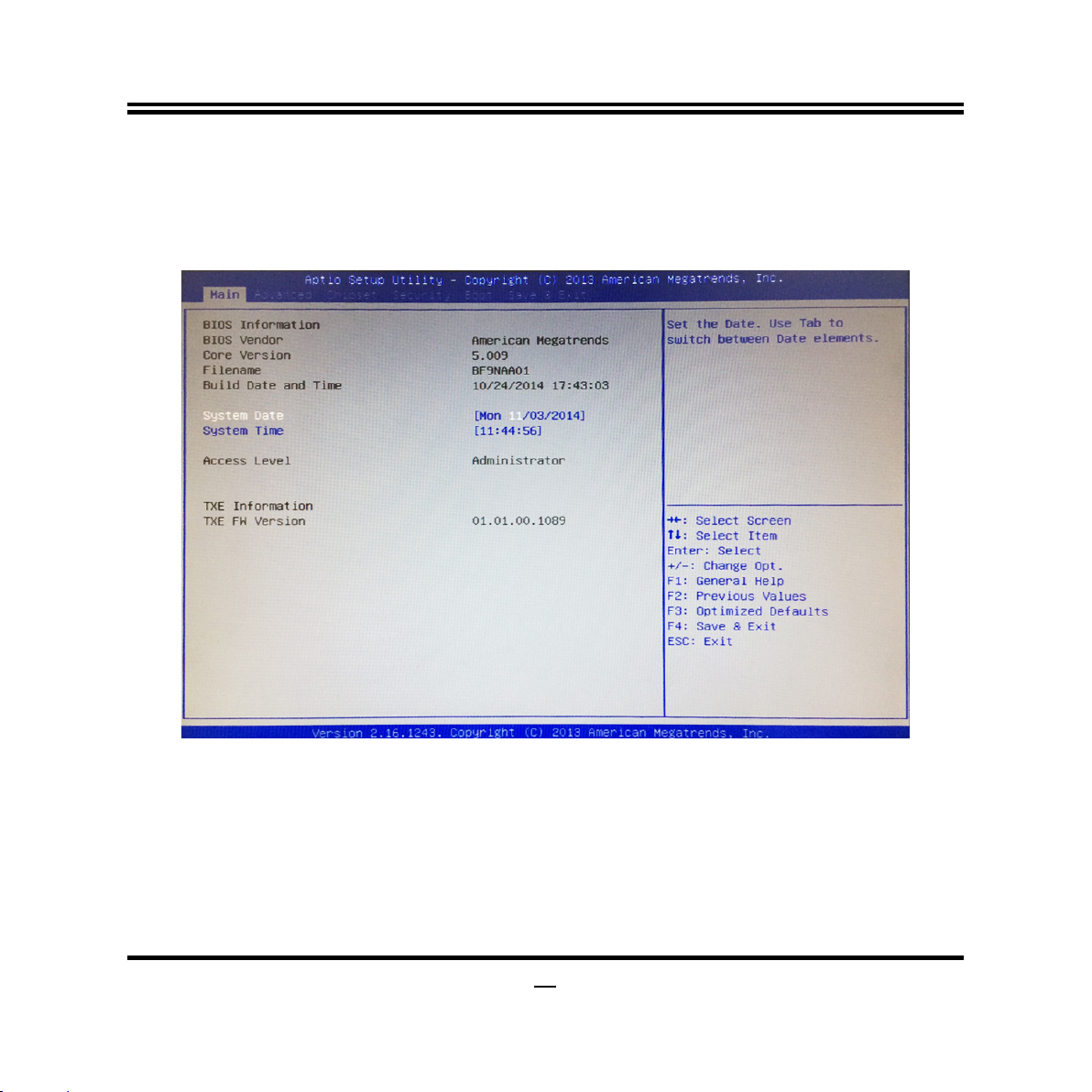

3-6 MAIN MENU ................................................................................................................ 27

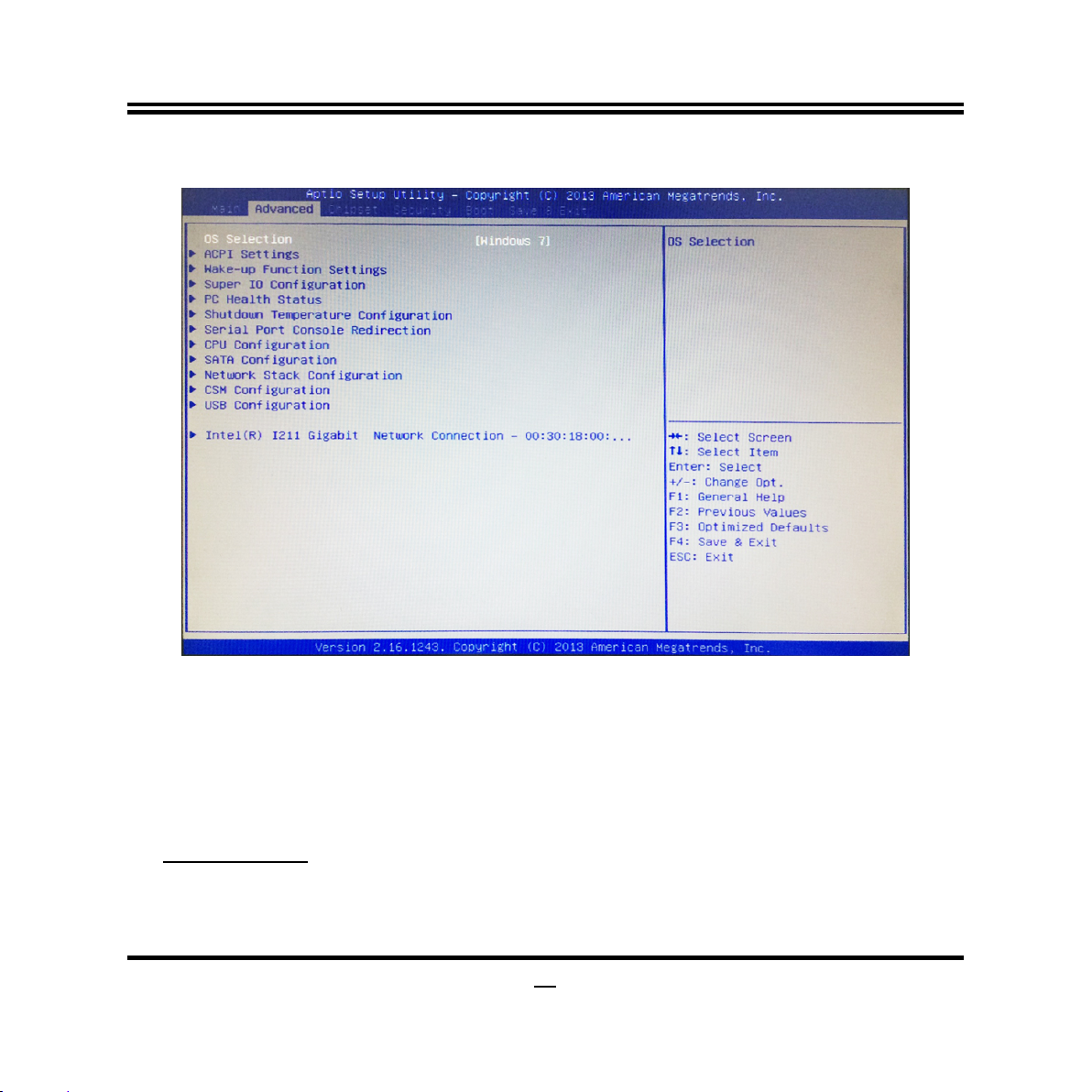

3-7 ADVANCED MENU ..................................................................................................... 28

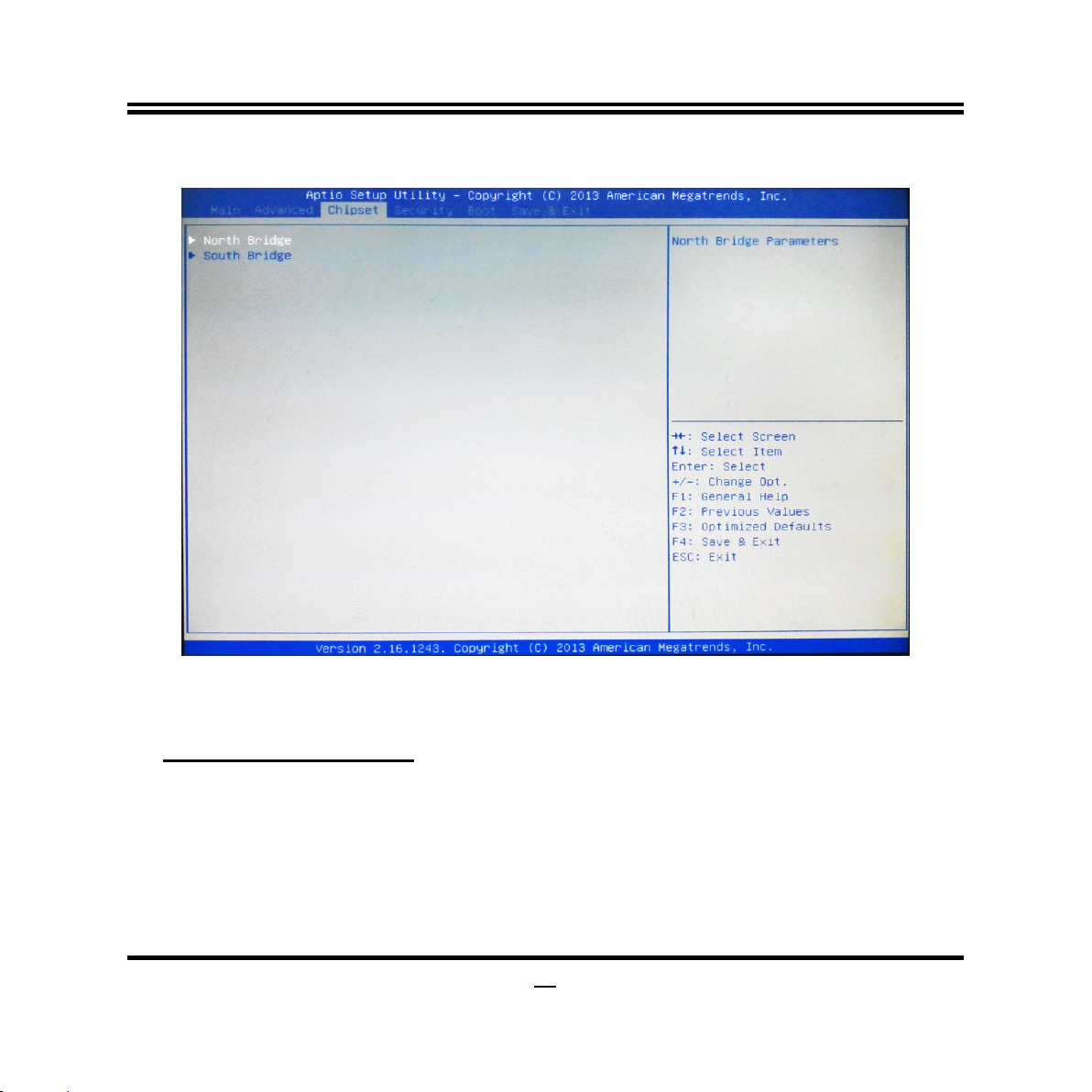

3-8 CHIPSET MENU .......................................................................................................... 38

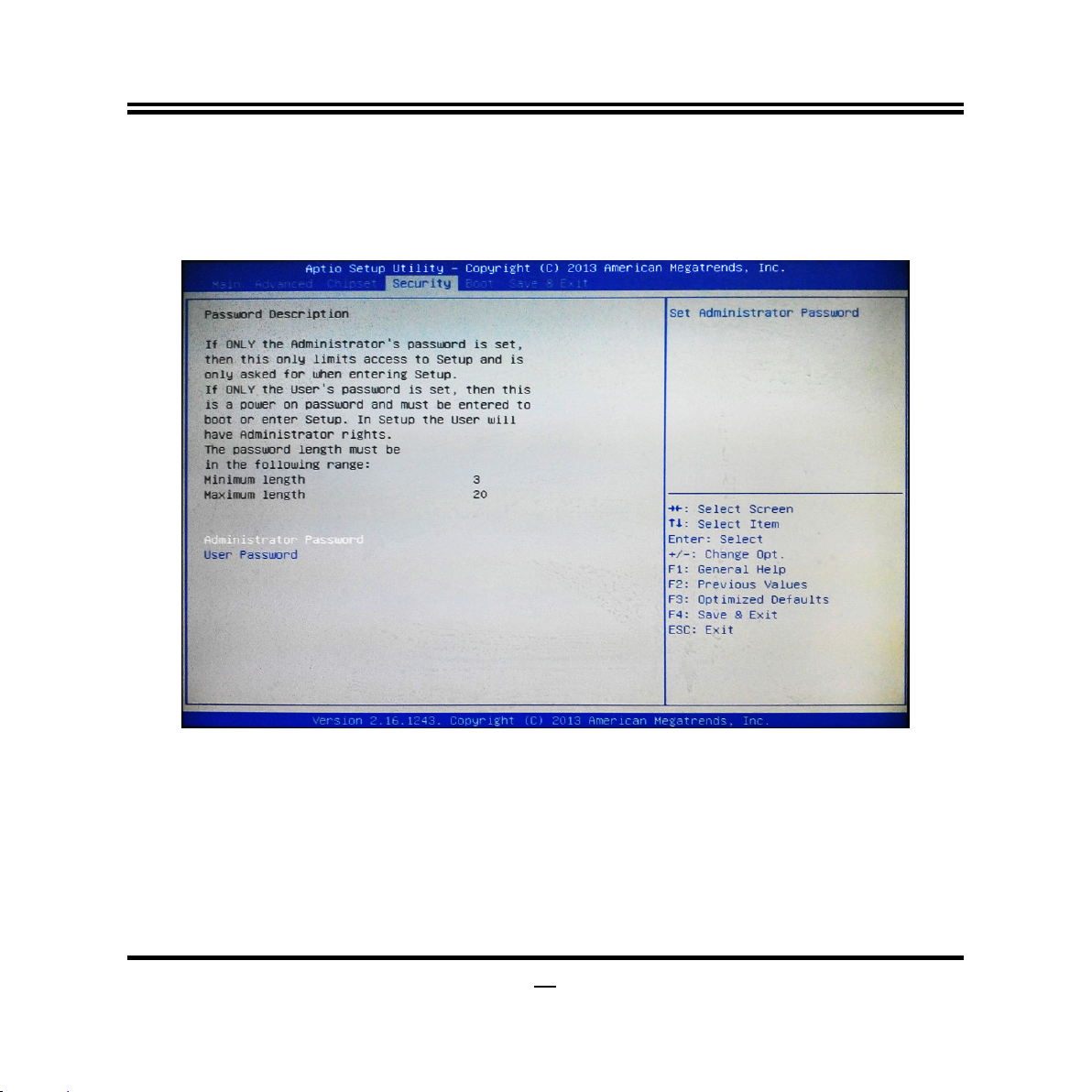

3-9 SECURITY MENU ....................................................................................................... 41

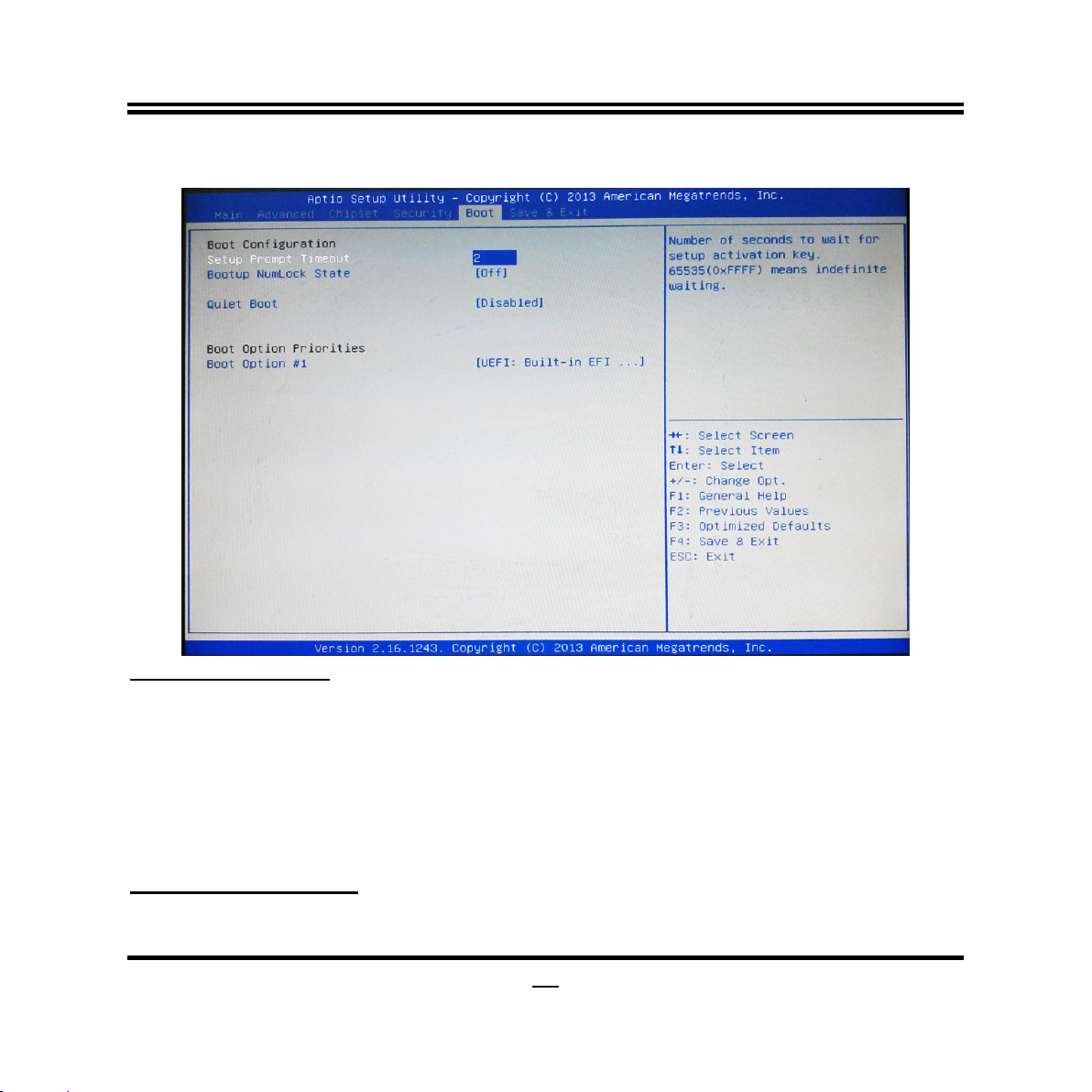

3-10 BOOT MENU ............................................................................................................... 42

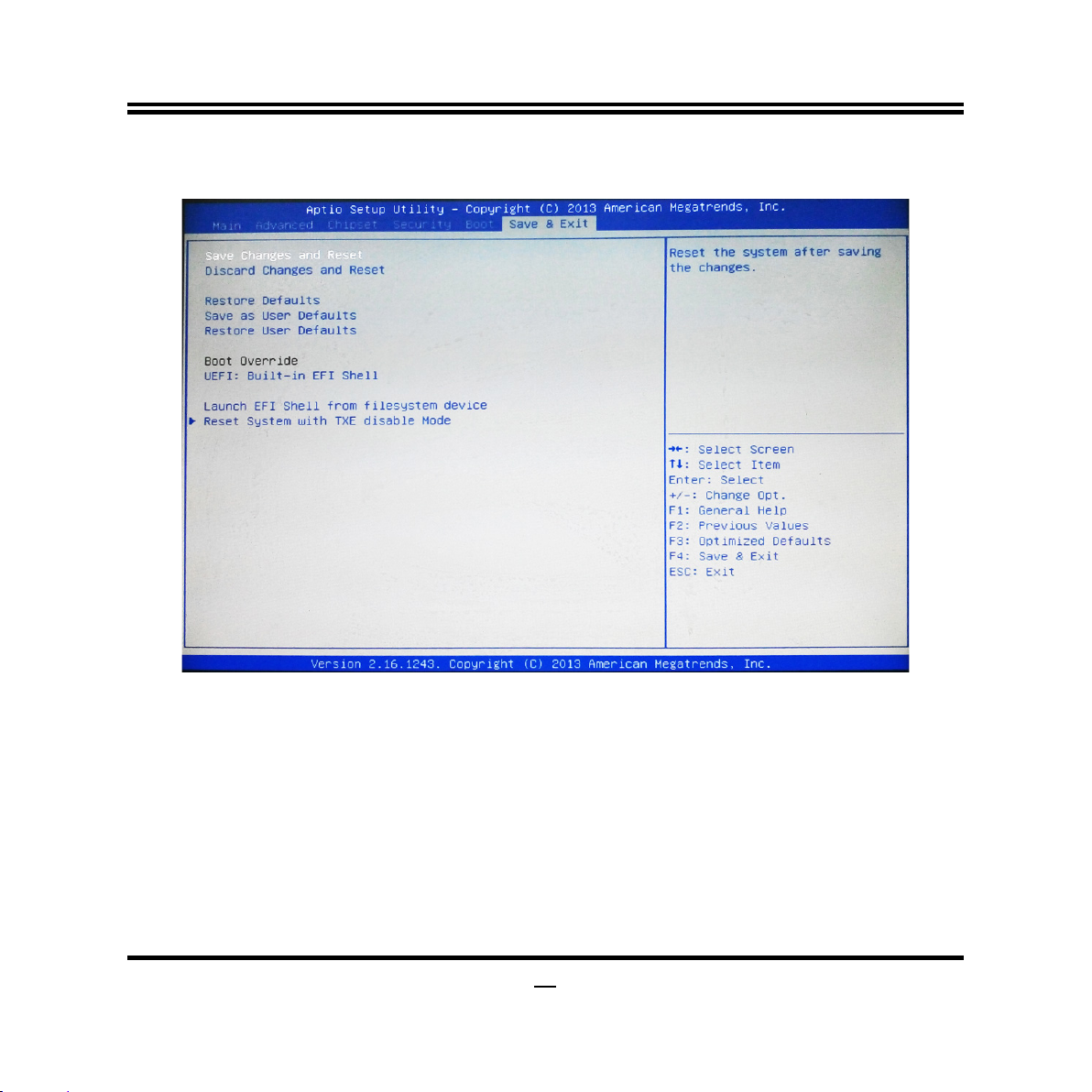

3-11 SAVE & EXIT MENU ................................................................................................... 43
iii
Environmental Safety Instruction
Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
0 to 60 centigrade is th e suitabl e tem perat ure. (The fig ure c omes from the r eques t
of the main chipset)
Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor a s computer instabi lity resulted fr om corrosio n and oxi dation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.
iv
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DES CRIBED IN I T MAY BE REPRO DUCED, TR ANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION RE QU IRED TO USE THIS MOTHER-BOARD SERIES AND WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
2.0 Second Edition October 1, 2019
Item Checklist
Motherboard
Cable(s)
v
1
Chapter 1
Introduction of the Motherboard
1-1 Feature of Motherboard
Onboard Intel® Bay Trail Series Processor, with low power consumption never
denies high performance
Support 2 * DDR3L SO-DIMM 1066/1333 MHz up to 8GB
Support Mini-PCIE connector
Support m-SATA connector
Support 2 * SATAII device
Integrated with 1 * 24-bit dual channel LVDS header
Support HDMI & VGA display output
Support USB 3.0 data transport demand
Support CPU Smart FAN
Compliance with ErP standard
Support Watchdog function
2
Spec
Description
Design
6 layers; PCB size: 17x 17 cm
Integrated with Intel® Bay Trail-D/M/I series CPU
2 * DDR3L SODIMM Slot for un-buffered dual channel DDR3L
Dual channel function supp or ted
1* Full-size Mini-PCIE slot (MPE)
1* PCIE x1 slot (PCI-E)
Integrated with Intel I211AT PCI-E Gigabit LAN chip
10/100/1000Mbps Ethernet dat a tra nsfer rate
2* SATAI I port (SATA1/2)
1* Full-size mSATA slot (MSATA: shares with SATA2)
AMI 64MB Flash ROM
1* DC 12V power-in connector
Audio Line Out port x1
1* 20-pin ATX type internal main power connector
1* Front panel audio header
1-2 Specification
Embedded CPU
Memory Slot
Expansion Slot
LAN Chip
Storage
BIOS
Rear I/O
Internal I/O
1066/1333 MHz SDRAM, expandable to 8GB in total
Support Fast Ethernet LAN func ti on of prov i di ng
1* PS/2 keyboard & 1* PS/2 mouse port
1* VGA port
1* COM1 port
1* HDMI port
1* RJ-45 LAN port
3* USB 2.0 port
1* USB 3.0 port
1* 2-pin DC 12V internal power connector
1* SATA Power connector
1* CPU FAN connector & 2* SYSFAN connector
3
1* SPDIF Out header
1*Jetway daughter board expansion slot header (CN1/CN2)
Line-Out Port
USB 2.0 Port
RJ-45 LAN Port
USB 3.0 Port
12V DC-in
Power Connector
USB 2.0 Ports
VGA Port
COM1 Port
HDMI Port
PS/2
Keyboard Port
PS/2
Mouse Port
1* SPEAK_CON header
1* CDIN header & 1* Line In header
1* Front panel header
1* Power LED & speaker header
2* USB 2.0 header (Expansible to 4* USB 2.0 ports)
1* Serial port header
1* Parallel port header
1* GPIO_CON hea der
1* SMBUS header
1* LAN LED activity header
1* LVDS header
1* LVDS inverter header
1-3 Layout Diagram

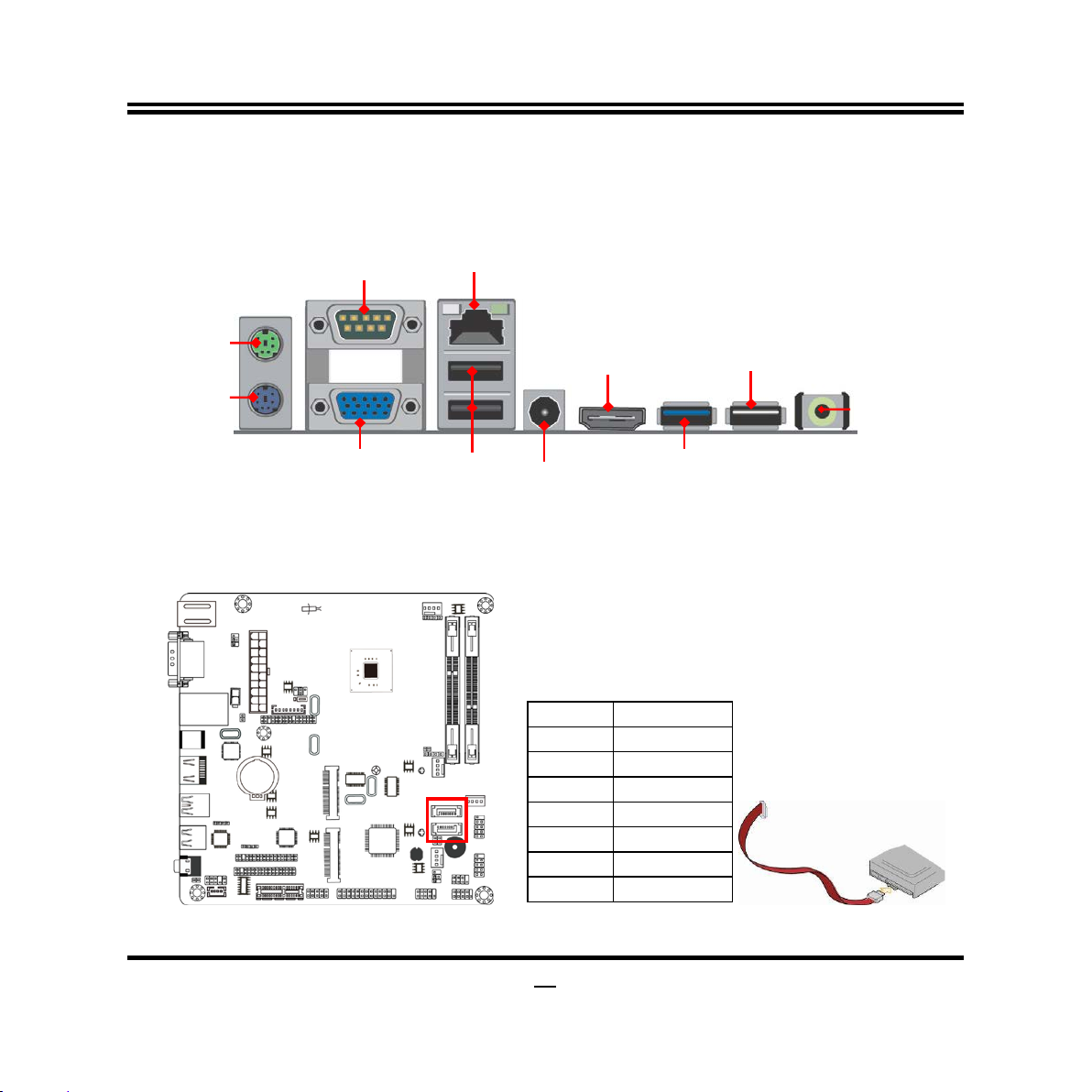

Rear IO Panel Diagram:
4
Internal ATX Type
Power connector
Intel CPU
PCI Express x1 Slot
CPUFAN Header
Front Panel
Audio Header
Front Panel Header
LVDS Inverter
Serial Port H eader
GPIO Header
SATA Hard Disk
Power-Out Connector
Speaker
Connector
USB 2.0 Headers
LVDS Header
SATAII Ports
SYSFAN2 Header
SYSFAN1 Header
LAN_LED Header
*DDR3L SODIMM Slot
(SODIMM1/2)
Parallel Port Header
SMBUS Header
Power LED Header
Full-size
Mini-PCIE Slot (MPE)
PS/2 Mouse Port
M-SATA Slot
COM1 Port over
VGA Port
USB 2.0 Port
HDMI Port
Line-Out Port
RJ-45 LAN Port
Over USB 2.0 Ports
12V DC-In
Power connector
USB 3.0 Port
Line-In
CDIN
Daughter Board
Header(CN1/CN2)
Internal 12V
HDMI_SPDIF Out
Header
Motherboard Internal Diagram
Over
PS/2 Keyboard Port
Power connector
Header
Header
& Speaker Header
Note: 1. Priority should be given to SODIMM1 slot when installing only one compatible memory
modules. 2. The module should be DDR3L 1.35V SODIMM and not exceeding 8GB total capacity. 3.
MSATA slot shares function with SATA2 port; i.e. only one can function at a time.
5
JP1
JP3
JBAT
JP2
AT-MODE & COPEN
JP5
Jumper Position:
6
Jumper
Name
Description
JBAT
Pin 1-2: CMOS RAM Clear Function Setting
Pin 3-4: Clear ME RTC Function Setting
4-Pin Block
AT_COPEN
Pin 1-2: ATX Mode & AT Mode Select
Pin 3-4: Case Open Message Display Function
4-Pin Block
JP2
LVDS PVCC 5V/3.3V /12V Select
4-Pin Block
JP3
INVERTER Back Light 5V/12V Select
3-Pin Block
JP1
COM1 Port Pin9 Function Select
4-Pin Block
JP5
COM2 Header Pin9 Function Sel ec t
4-Pin Block
Connector
Name
DCIN
DC 12V Power–in Power Connector
ATXPWRIN

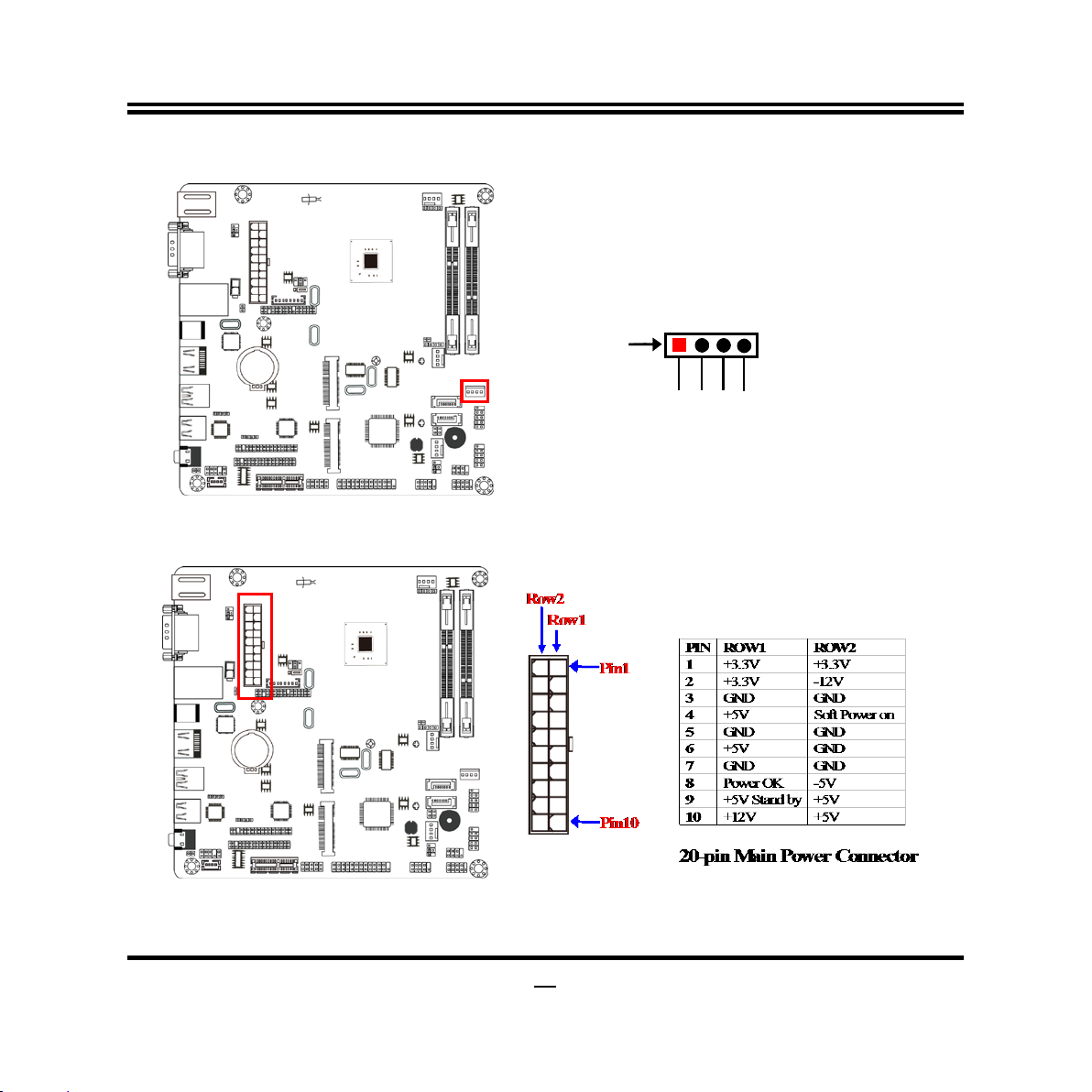

20-Pin Internal Main Power Connector

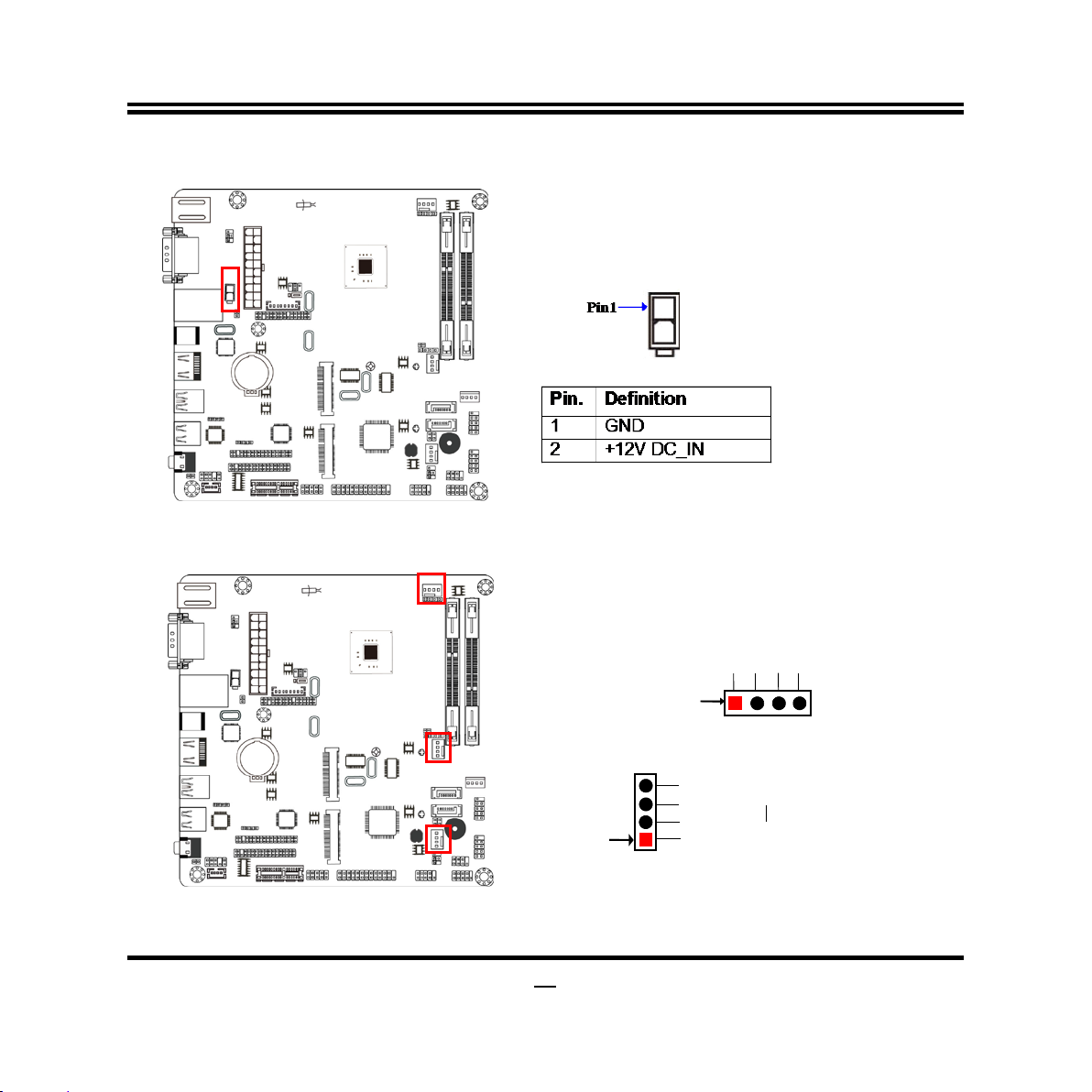

ATX2P
2-Pin Internal DC 12V Power–in Connector
SATAPW
SATA Power out Connector
SATA1/SATA2
SATAII Port Connector X2
CPUFAN/SYSFAN1/SYSFAN2
FAN Connector X3
KBMS (Top)
PS/2 Mouse Port Connector
KBMS ( Bottom)
PS/2 Keyboard Port Connector
VGA_COM1 (Top)
Serial Port Connector
VGA_COM1 (Bottom)
VGA Port Connector
LAN2_USB20 (Top)
RJ-45 LAN Port Connector
LAN2_USB20 (Bottom)
USB 2.0 Port Connector X2
HDMI
HDMI Port Connector
USB30
USB 3.0 Port Connector
USB20
USB 2.0 Port Connector
AUDIO
Audio Line Out Port Connector
Jumper
Connectors
7
Header
Name
Description
FP_AUDIO
Front Panel Audio Header
9-pin Block
SPDIF
SPDIF Out Header
2-pin Block
SPEAK_CON
Speaker Header
4-pin Block
CD_IN
CD Audio In Header
4-pin Block
LINE_IN
Line In Header
4-pin Block
JW_FP
Front Panel Header(PWR LED/
9-pin Block
SPK-LED
Power LED & Speaker Header
7-pin Block
FP_USB1/FP_USB2
USB 2.0 Header X2
9-pin Block

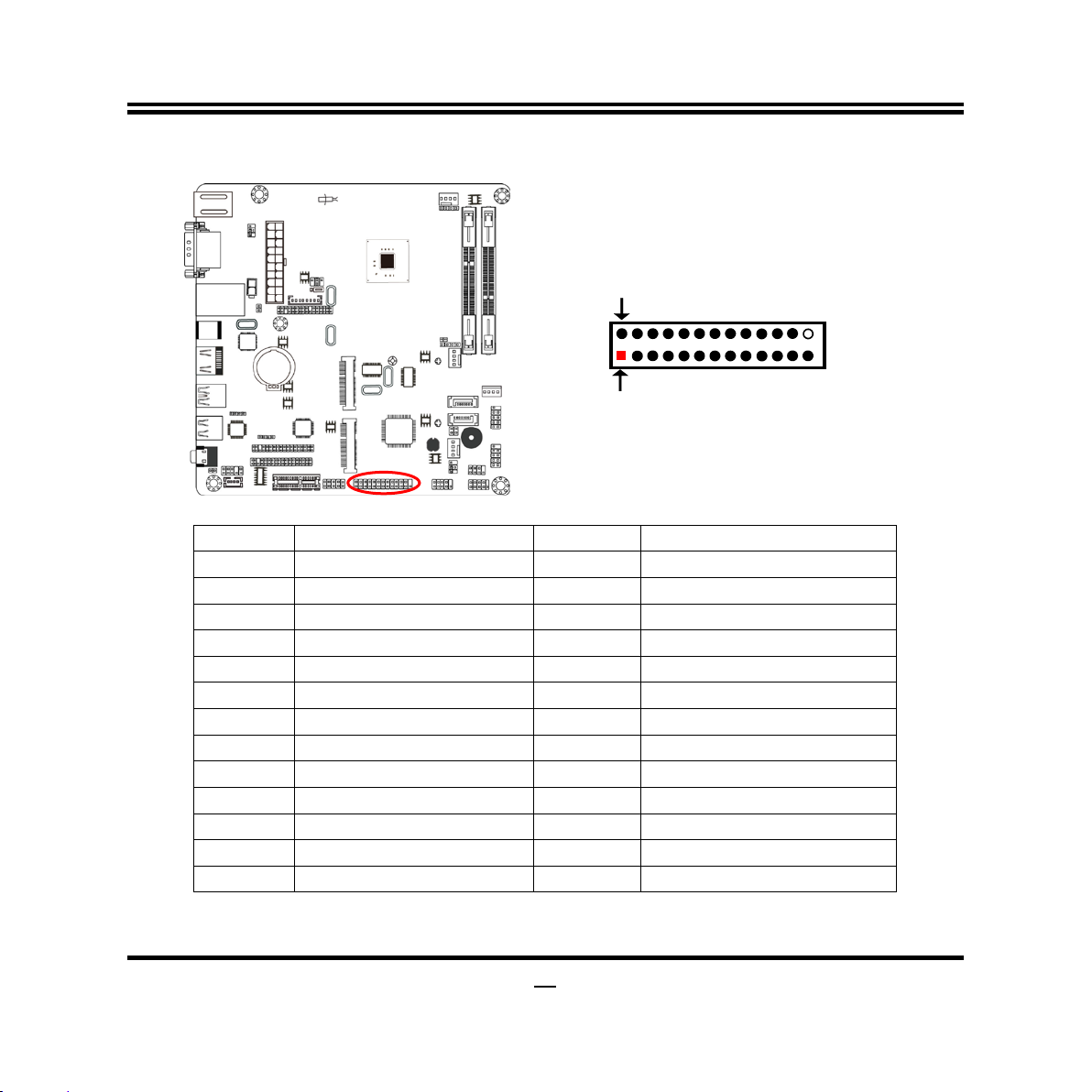

LPT
Parallel Port Header
25-pin Block
COM2
Serial Port Header
9-pin Block
GPIO_CON
GPIO Header
10-pin Block
SMBUS
SMBUS Header
4-pin Block
LAN_LED
LAN Activity LED Header
2-pin Block
LVDS
LVDS Header
30-pin Block

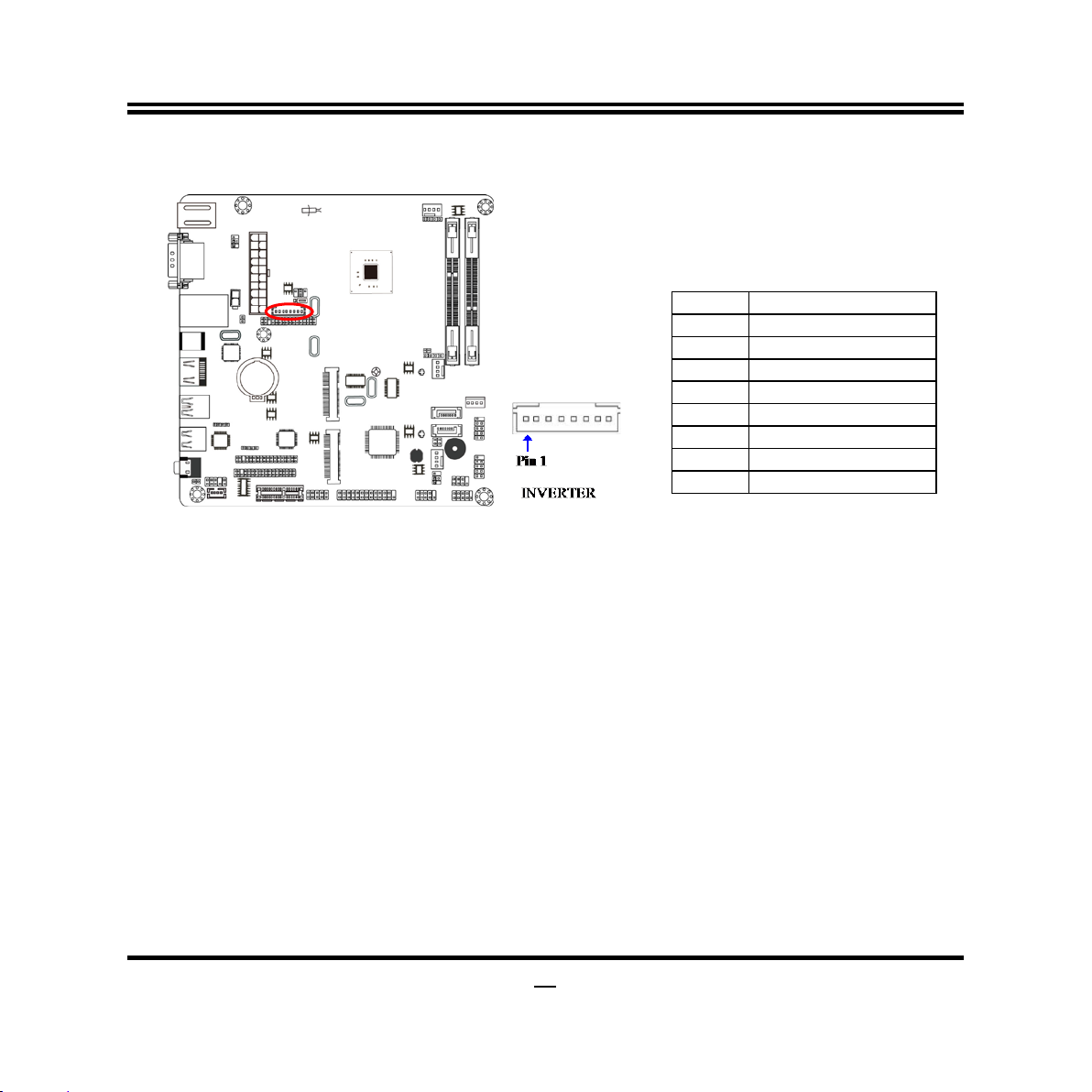

INVERTER
LVDS Inverter Header
8-pin Block
CN1/CN2
Jetway Daughter Board Header
35-pin Block
Headers
HDD LED/Power Button /Reset)
8
2-3 Close：Clear CMOS.
JBAT(Pin1&2)→Clear CMOS
1-2 Open: Normal；
1 1 2
2
3-4Close：Clear ME_RTC.
JBAT(Pin3&4)→Clear ME_RTC
3-4 Open: Normal；
3 3 4
4
Chapter 2
Hardware Installation

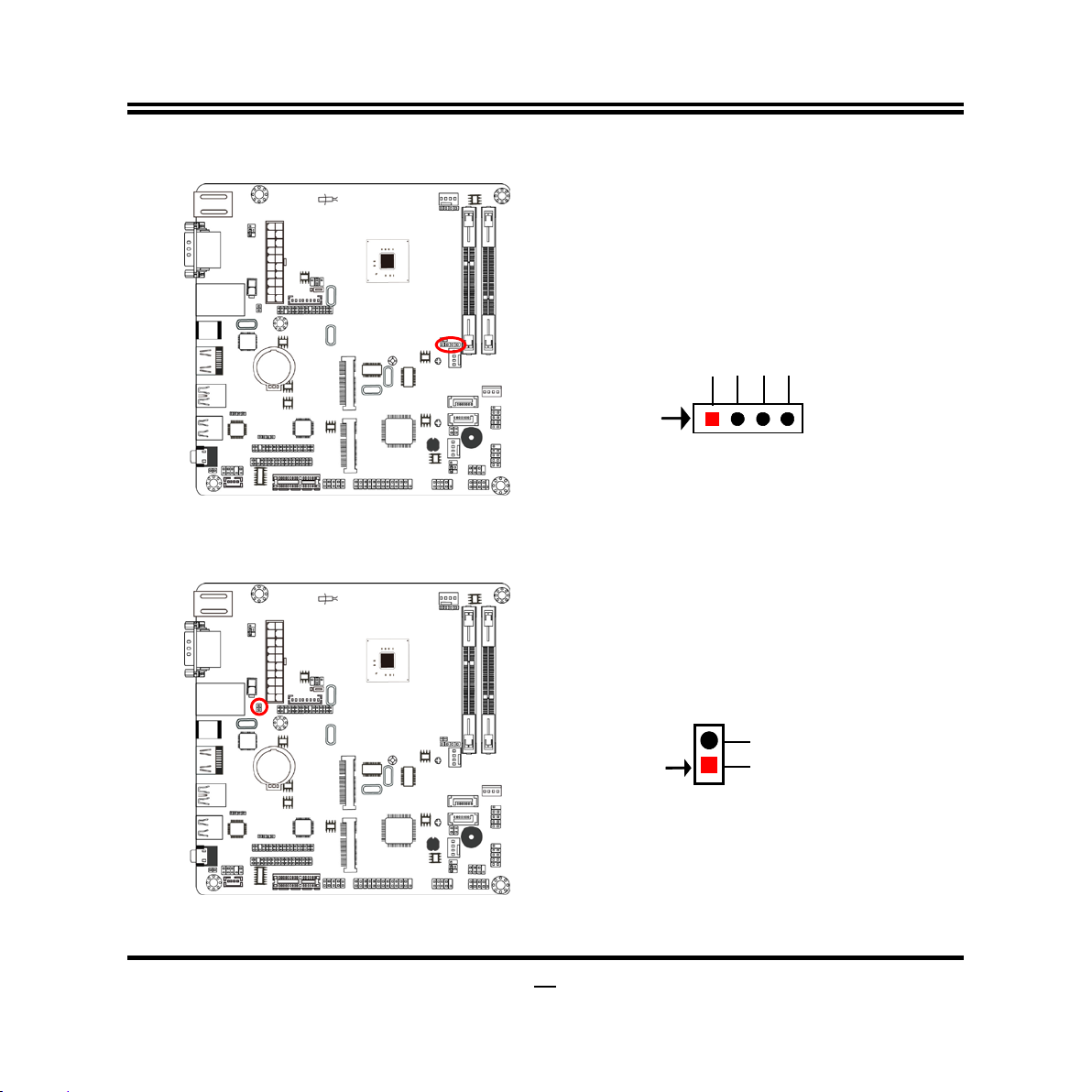

2-1 Jumper Setting
Pin 1 & 2 of JBAT (4-pin): Clear CMOS Setting
Pin 3 & 4 of JBAT (4-pin): Clear ME_RTC Function Setting
9
AT_COPEN(Pin 1&2)→AT Mode Select
1-2 Close: AT Mode Selected.
1-2 Open: ATX Mode Selected;
Pin 1
2
2
4
4
3
Pin 1
3
AT_COPEN (Pin 3&4)→Case Open Function Select
3-4 Close: Case Open Function Selected (One Touch).
3-4 Open: Normal;
Pin 1
2
2
4
4
3
Pin 1
3
Pin 1 & 2 of AT_COPEN (4-pin): AT Mode Function Select
*ATX Mode Selected: Press power button to power on after power input ready;
AT Mode Selected: Directly power on as power input ready.
Pin 3 & 4 of AT_COPEN (4-pin): Case Open Message Display Function Select
Pin 3-4 Close: When Case open function pin short to GND, the Case open function
was detected. When Used, needs to enter BIOS and enable ‘Case Open Detect’
10

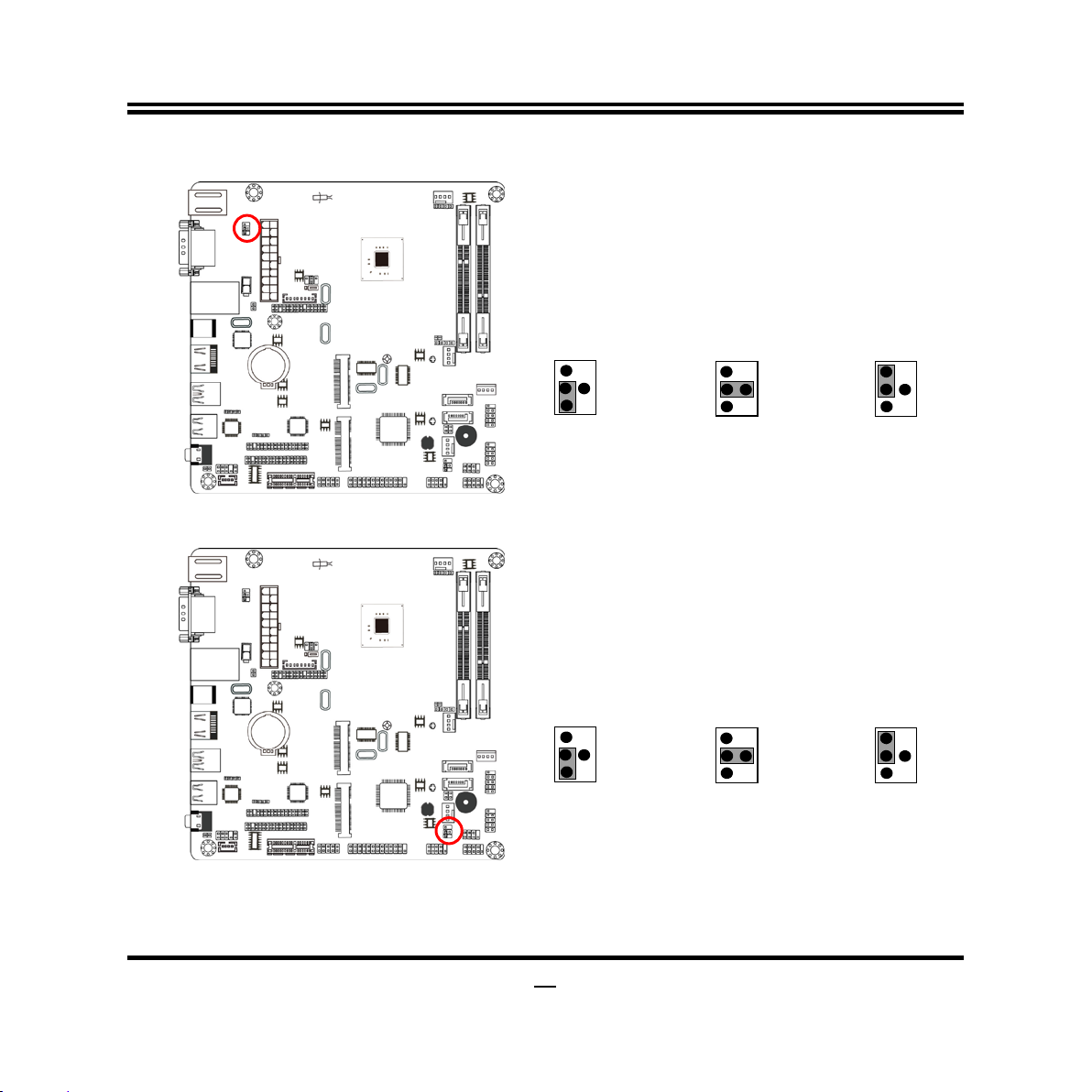

JP2→LVDS PVCC
4-6 Closed: LVDS
PVCC= 12V.
6 4 2
3-4 Closed: LVDS
PVCC= 5V;
2-4 Closed: LVDS
PVCC= 3.3V;
3
1
5
1
3
5
2
4
6
1
3
5
2
4
6
2-3 Closed: INVERTER Back Light 12V Selected.
JP3→INVERTER Back Light VCC
1-2 Closed: INVERTER Back Light 5V Selected;
1
3
1
3
function. In this cas e if your case is removed, next ti me when you restar t your computer,
a message will be displayed on screen to inform you of this.
JP2 (4-pin): LVDS PVCC 3.3V/5V/12V Select
JP3 (3-pin): INVERTER Back Light VCC 5V/12V Select
11
JP1→COM1 Port
4-6 Closed:
RI= +12V.
1
3
5
3-4 Closed:
RI= +5V;
2-4 Closed:
RI=RS232;
4
6
2
6
5
3
1
4
2
5
3
1
6
4
2
JP5→COM2 Header
4-6 Closed:
RI= +12V.
1
3
5
3-4 Closed:
RI= +5V;
2-4 Closed:
RI=RS232;
4
6
2
6
5
3
1
4
2
5
3
1
6
4
2
JP1 (4-pin): COM1 Port Pin9 Function Select
JP5 (4-pin): COM2 Header Pin9 Function Select
12
Pin No.
Definition
1
GND
2
TXP
3
TXN
4
GND
5
RXN
6
RXP
7
GND
Line-Out Port
USB 2.0 Port
RJ-45 LAN Port
USB 3.0 Port
12V DC-in
Power Connector
USB 2.0 Ports
VGA Port
COM1 Port
HDMI Port
PS/2
Keyboard Port
PS/2
Mouse Port
2-2 Connectors and Headers 2-2-1 Connectors
(1) Rear I/O Connectors
(2) SATAII Por t c onnector: SATA1/SATA2
These are high-speed SATAII ports that support 3GB/s transfer rate.
* Note: SATA2 shares with MSATA1(Mini-SATA slot).
13
Pin 1
+5V
GND
+12V
GND
(3) SATA Power Connector (4-pin): SATAPW
(4) ATXPWRIN (20-pin block): Power Connector
14
Control
Fan Speed
+12V Fan Power
Pin1
GND
GND
+12V Fan Power
Fan Speed
Control
CPUFAN/SYSFAN2:
SYSFAN1:
Pin1
(5) ATX2P (2-pin block): Internal DC 12V Power-in Connector
(6) CPUFAN/SYSFAN1/SYSFAN2 (4-pin): Fan Connectors
15
Line-Out, MIC Header
Pin 1
MIC2-L
LINE OUT-L
MIC2-R
LINE OUT-R
SENSE
GND
LINE_OUT_JD
MIC_JD
DETECT
2
Pin1
SPDIF
GND
2-2-2 Headers

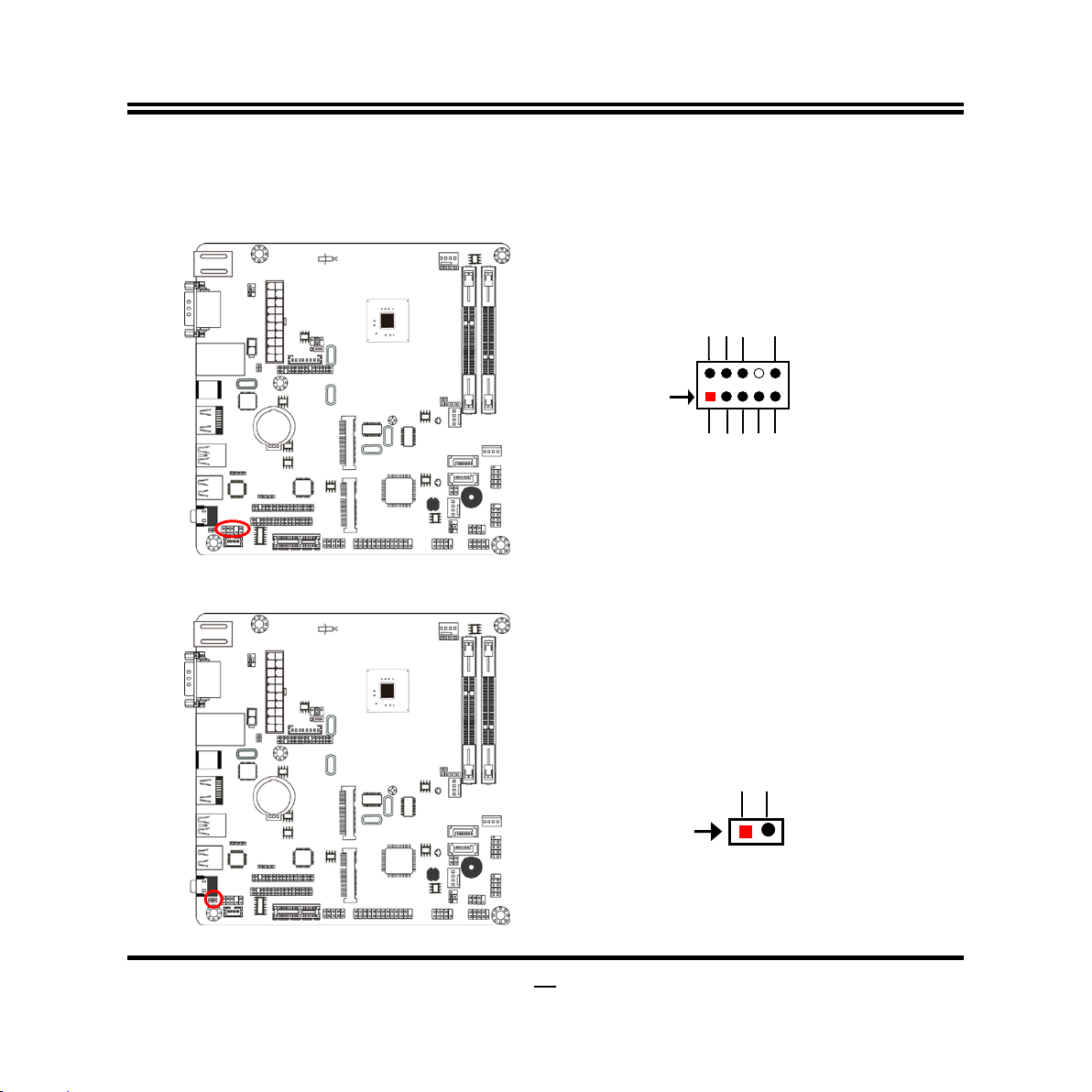

(1) FP_AUDIO (9-pin): Line-Out, MIC-In Header
This header connects to Front Panel Line-out, MIC-In connector with cable.
(2) SPDIF (2-pin): HDMI_SPDIF Out Header
16
Pin No.
Definition
1
L
-
2
L+
3
R+
4
R-
CDIN_L
Pin1
GND
GND
CDIN_R

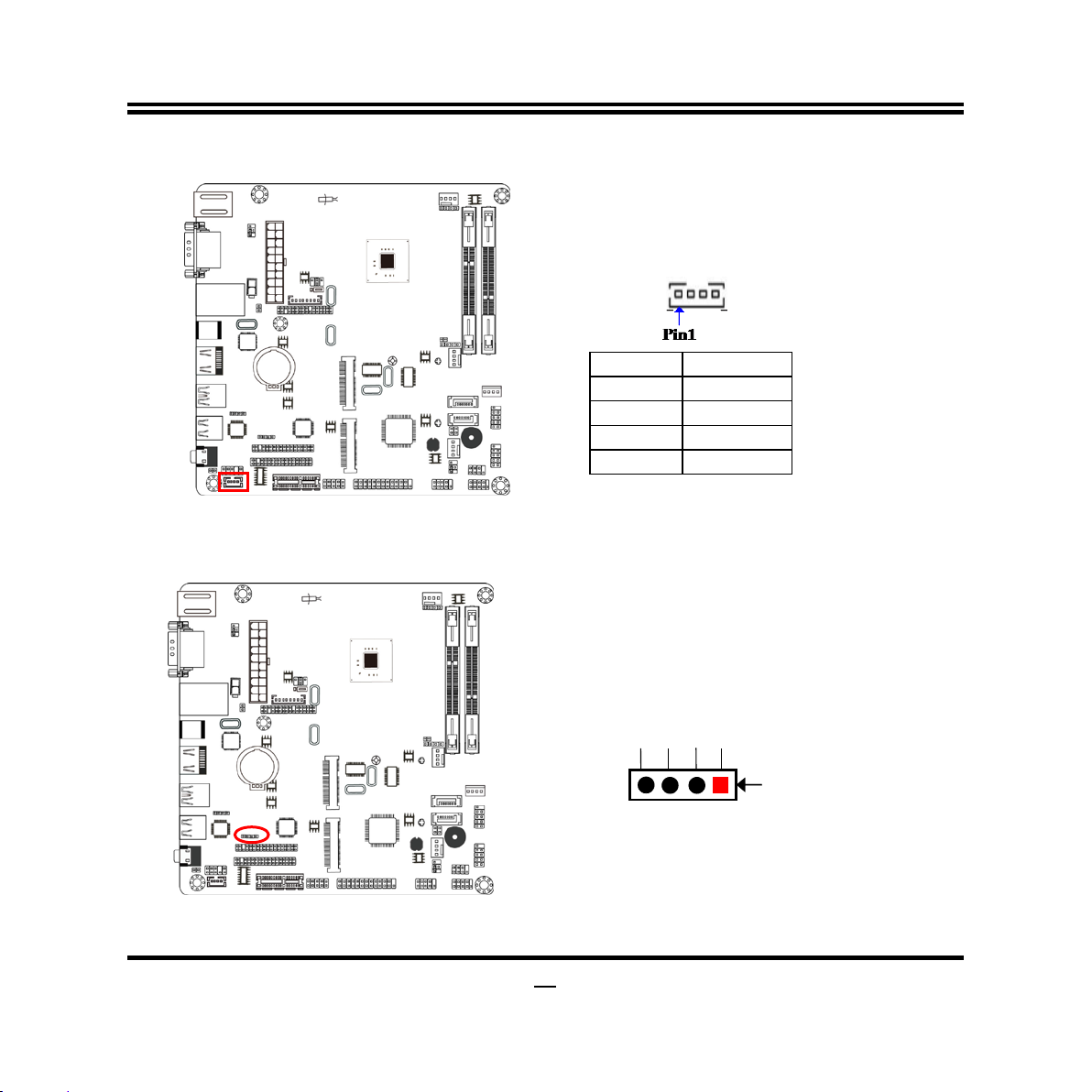

(3)SPEAK_CON (4-pin): Speaker Connector
(4)CD_IN (4-pin): CD Audio In Header
17
LINEIN_L
Pin1
GND
GND
LINEIN_R
HDLED
RESET
HDDLED+
GND
PWRLED+
PWRBTN
GND
PWRLED-
HDDLED-
RSTSW
VCC
PWRBT
Pin 1
2
PWR LED

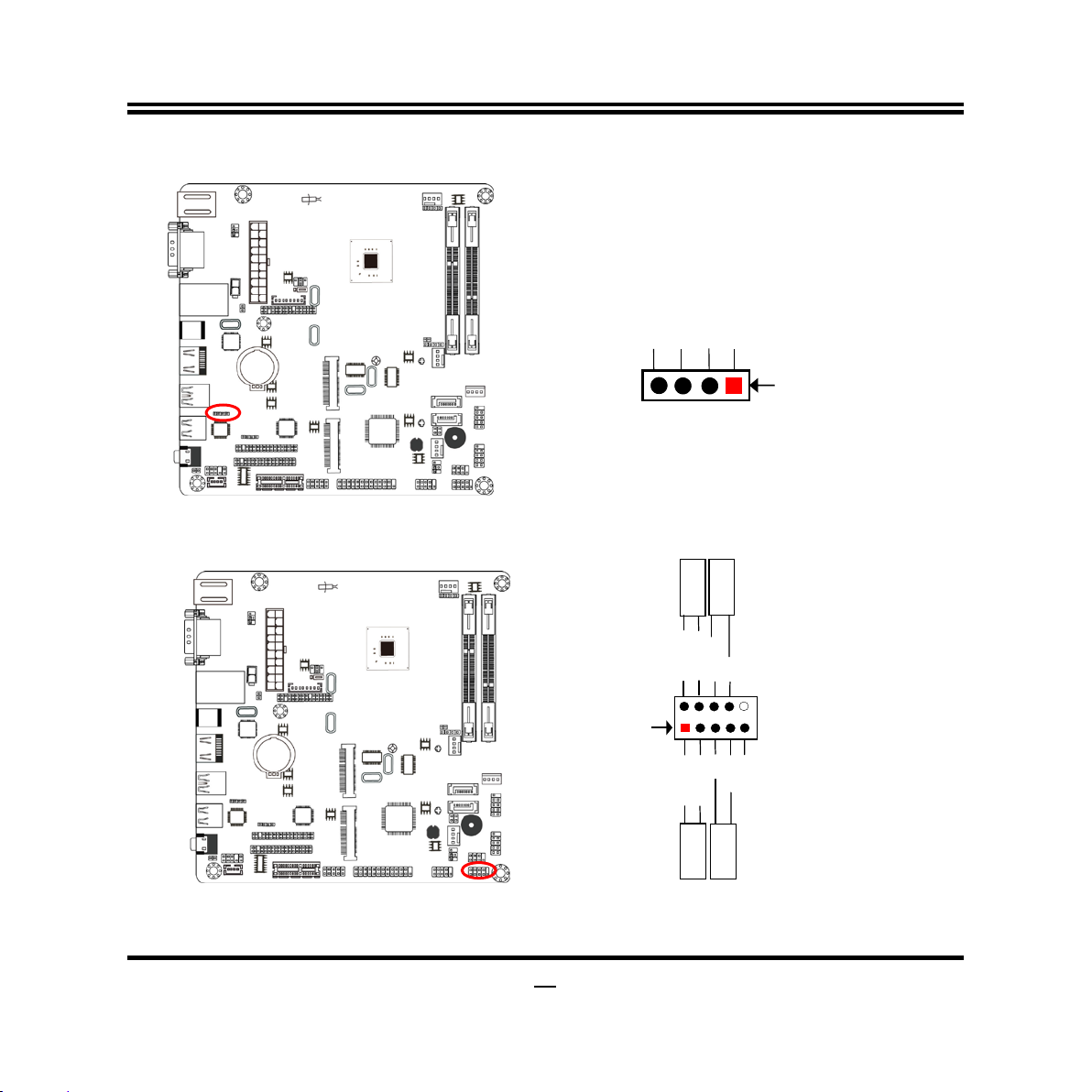

(5)LINE_IN (4-pin): Line In Header
(6) JW_FP (9-pin): Front Panel Header
18
SPK+
NC
NC
PWRLED-
2
Pin 1
SPK-
PWRLED+
PWRLED-
DATA
-
NC
GND
GND
DATA-
VCC
DATA+
Pin 1
DATA+
VCC
2

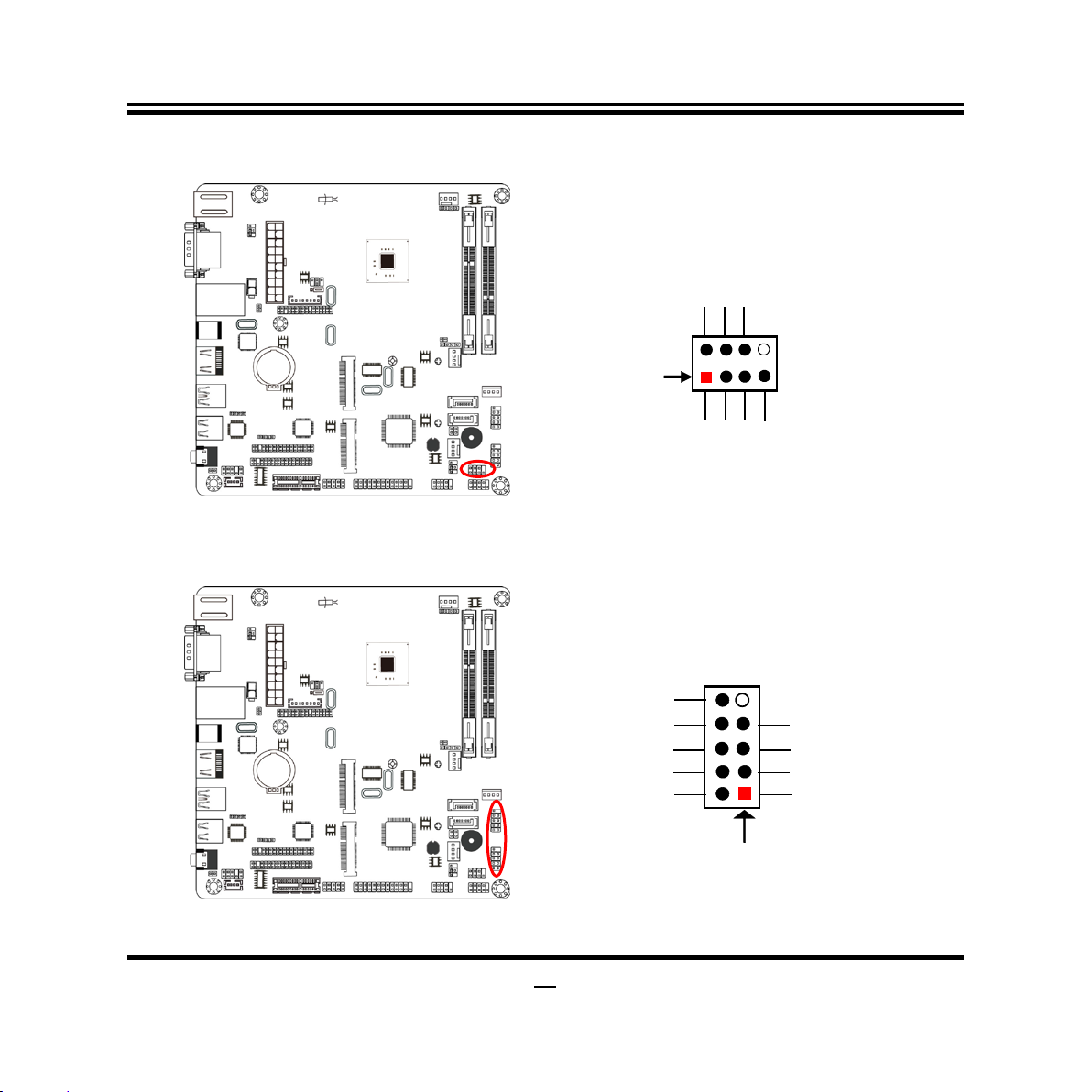

(7) SPK-LED (7-pin): Speaker Header & PWR LED Header
(8) FP_USB1/FP_USB2 (9-pin): US B 2.0 Port Header
19
Pin1
Pin14
Pin NO.
Pin Definition
Pin NO.
Pin Definition
Pin 1
STB-
Pin 14
AFD-
Pin 2
PRD0
Pin 15
ERR-
Pin 3
PRD1
Pin 16
INIT-
Pin 4
PRD2
Pin 17
SLIN-
Pin 5
PRD3
Pin 18
GND
Pin 6
PRD4
Pin 19
GND
Pin 7
PRD5
Pin 20
GND
Pin 8
PRD6
Pin 21
GND
Pin 9
PRD7
Pin 22
GND
Pin 10
ACK-
Pin 23
GND
Pin 11
BUSY
Pin 24
GND
Pin 12
PE
Pin 25
GND
Pin 13
SLCT
(9) LPT (25-pin): Parallel Port Header
20
DCD
Pin1
Pin6
SIN
SOUT
DTR
GND
DSR
RTS
CTS
RI
GPIO30
GND
GPIO32
GPIO34
GPIO36
GPIO31
GPIO33
2
Pin 1
VCC
GPIO35
GPIO37

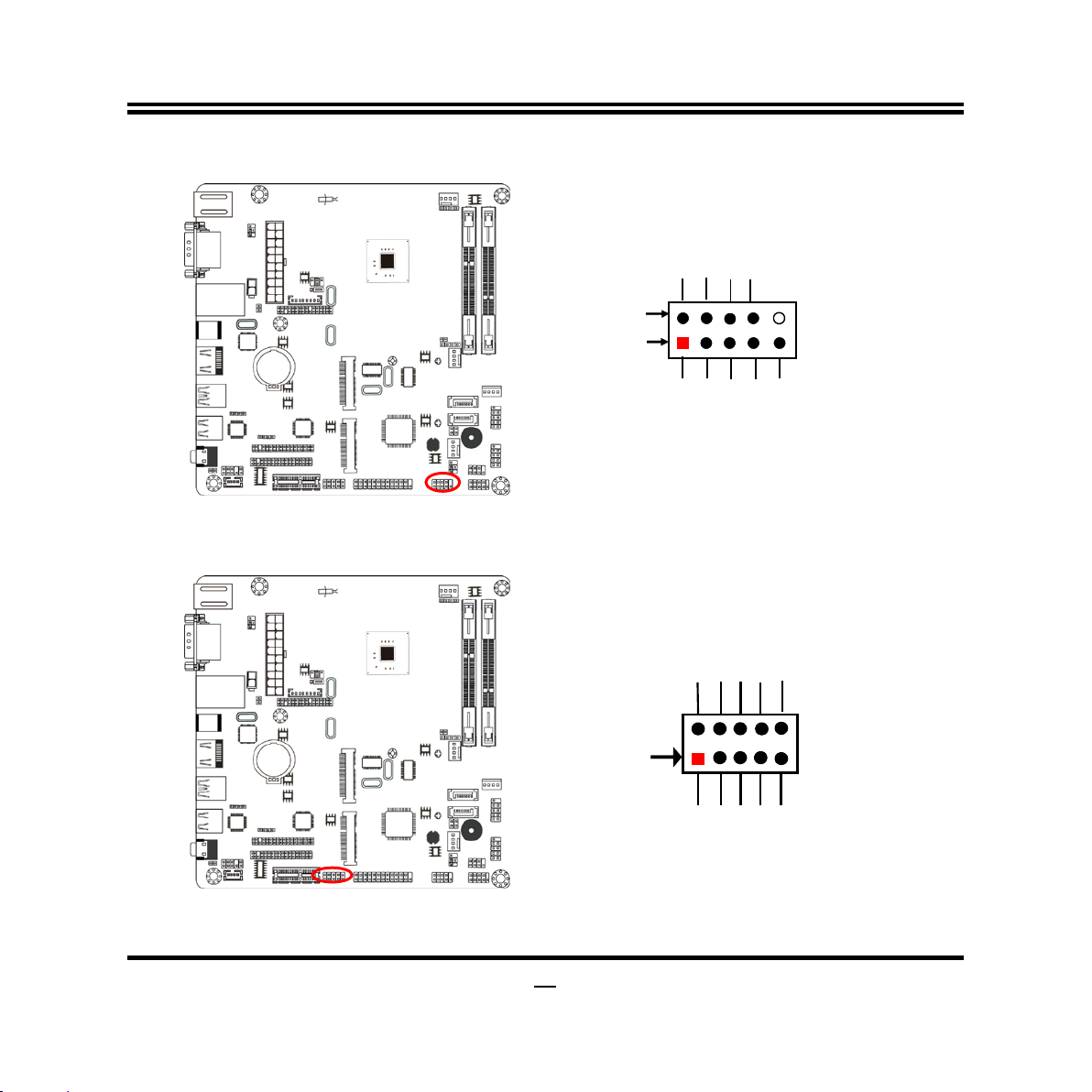

(10) COM2(9-pin): Serial Port Header
(11) GPIO_CON (10-pin): GPIO Header
21
SMBUS_CLK
NC
Pin1
SMBUS_DATA
GND
Pin1
LED+
LED-
(12) SMBUS (4-Pin): SM BUS Header
(13)LAN_LED (2-pin): LAN Activity LED Header
22
Pin 2
Pin 1
Pin NO.
Pin Define
Pin NO.
Pin Define
Pin 1
LVDSB_DATAN3
Pin 2
LVDSB_DATAP3
Pin 3
LVDS_CLKBN
Pin 4
LVDS_CLKBP
Pin 5
LVDSB_DATAN2
Pin 6
LVDSB_DATAP2
Pin 7
LVDSB_DATAN1
Pin 8
LVDSB_DATAP1
Pin 9
LVDSB_DATAN0
Pin 10
LVDSB_DATAP0
Pin 11
NC
Pin 12
NC
Pin 13
N/A
Pin 14
GND
Pin 15
GND
Pin 16
GND
Pin 17
LVDSA_DATAP3
Pin 18
LVDSA_DATAN3
Pin 19
LVDS_CLKAP
Pin 20
LVDS_CLKAN
Pin 21
LVDSA_DATAP2
Pin 22
LVDSA_DATAN2
Pin 23
LVDSA_DATAP1
Pin 24
LVDSA_DATAN1
Pin 25
LVDSA_DATAP0
Pin 26
LVDSA_DATAN0
Pin 27
PVDD
Pin 28
N/A
Pin 29
PVDD
Pin 30
PVDD
Pin 31
GND
Pin 32
GND

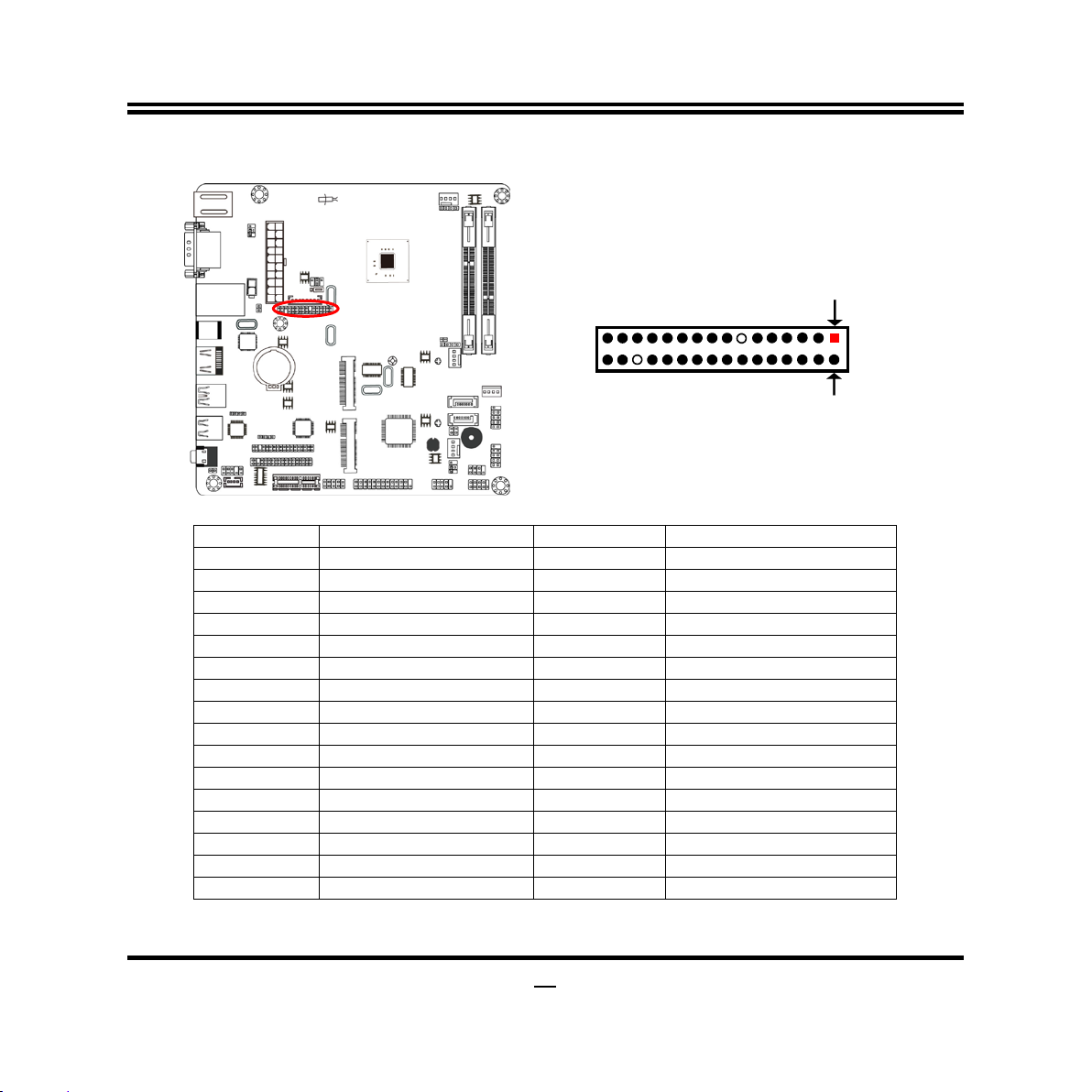

(14) LVDS (30-pin): 24-bit Dual Channel LVDS Header
23
Pin No.
Definition
1
Backlight Enable
2
Backlight PWM
3
Backlight VCC
4
Backlight VCC
5
GND
6
GND
7
Backlight
Up SW
8
Backlight Down SW
(15) INVERTER (8-pin): LVDS Inverter
24
Chapter 3
Introducing BIOS
Notice! The BIOS options in this manual are for reference only. Different
configurations may lead to difference in BIOS screen and BIOS
screens in manual s ar e usu ally the first BIOS v ersion w hen th e b oar d is
released and may be different from your purchased motherboard.
Users are welcome to download the latest BIOS version form our
official website.
The BIOS is a program locat ed on a Fl ash Me mory on the motherbo ard. This program
is a bridge between motherboard and operating system. When you start the computer,
the BIOS program will gain control. The BIOS first operates an auto-diagnostic test
called POST (power on self test) for all the necessary hardware, it detects the e ntire
hardware device and configures the parameters of the hardware synchronization.
Only when these tasks are completed done it gives up control of the computer to
operating system (OS). Since the BIOS is the only channel for hardware and software
to communicate, it is the key factor for system stability, and in ensuring that your
system performance as its best.
3-1 Entering Setup
Power on the comput er and by pr essi ng < Del> immedi ately allow s you to ent er Set up.
If the message disappears before your respond and you still wish to enter Setup,
restart the system to try again by turning it OFF then ON or pressing the “RESET”
button on the system case. You may also restart by simultaneously pressing <Ctrl>,
<Alt> and <Delete> keys. If you do not press the keys at the correct time and the
system does not boot, an err or messag e w ill be display ed and y ou w ill ag ain be as ked
to
Press <Del> to enter Setup; press < F7> for Pop Menu.
25
Menu Bar
Menu Items
Current Setting Value
3-2 BIOS Menu Screen
The following diagram show a general BIOS menu screen:
General Help Items
3-3 Function Keys
In the above BIOS Setup main menu of, you can see several options. We will explain
these options step by step in the following pages of this chapter, but let us first see a
short description of the function keys you may use here:
Press←→ (left, right) t o select screen;
Press ↑↓ (up, down) to choose, in the main menu, the option you want to confirm
or to modify.
Function Keys
26
Main
To change system basic configuration
Advanced
To change system advanced configuration
Chipset
To change chipset configuration
Security
Password settings
Boot
To change boot settings
Save & Exit
Save setting, loading and exit options.
Press <Enter> to select.
Press <+>/<–> keys when you want to modify the BIOS parameters for the active
option.
[F1]: General help.
[F2]: Previous value.
[F3]: Optimized defaults.
[F4]: Save & Exit.
Press <Esc> to quit the BIOS Setup.
3-4 Getting Help
Main Menu
The on-line description of the highlighted setup function is displayed at the top right
corner the screen.
Status Page Setup Menu/Option Page Setup Menu
Press [F1] to pop up a small help window that describes the appropriate keys to use
and the possible selections for the highlighted item. To exit the Help Window, press
<Esc>.
3-5 Menu Bars
There are six menu bars on top of BIOS screen:
User can press the right or left arrow key on the keyboard to switch from menu bar.
The selected one is highlighted.
27
3-6 Main Menu
Main menu screen includes some basic system information. Highlight the item and
then use the <+> or <-> and numerical keyboard keys to select the value you want in
each item.
System Date
Set the date. Please use [Tab] to switch between data elements.
System Time
Set the time. Please use [Tab] to switch between time elements.
28
3-7 Advanced Menu
OS Selection
The optional settings: [Android]; [Windows 8.X]; [Windows 7].
*Note: User needs to go to this item to select OS before ins tal li ng OS.
If Windows Embedded standard 8, please select [Windows 8x] and set “USB 3.0
Support” as [Disabled], “USB 2.0 Support” as [Enabled] (refer to Page 40).
ACPI Settings
Press [Enter] to make setti ng s for t he fol lowing sub-item:
ACPI Settings
ACPI Sleep State
Use this item to select the highest ACPI sleep state the system will enter when the
suspend button is pressed.
29
The optional settings are: [Suspend Disabled]; [S3 (Suspend to RAM)].
Wakeup Function Settings
Press [Enter] to make setti ng s for t he fol lowing sub-items:
Wake-up System with Fixed Time
Use this item to enable or disable system wake-up on alarm event.
The optional settings: [Disabled]; [Enabled].
When set as [Enabled], system will wake on the hour/min/sec specified.
Wake-up System with Dynamic Time
Use this item to enable or disable system wake-up on alarm event.
The optional settings: [Disabled]; [Enabled].
When set as [Enabled], system will wake on the current time + increased
minute(s).
PS2 (S3-~S5) /USB (S3/S4) Wake-up
Use this item to enable or disable PS2 (S3-~S5) /USB (S3/S4) Wake-up.
The optional settings: [Disabled]; [Enabled].
*This item is only supported when ‘ERP Support’ is set as [Disabled].
Super I/O Configuration
Press [Enter] to make setti ng s for t he fol lowing sub-items:
Super IO Configuration
ERP Function
The optional settings: [Disabled]; [Auto].
This item should be set as [Disabled] if you wish to have all active wake-up
functions.
Serial Port 1 Configuration / Serial Port 2 Configuration
Press [Enter] to make settings for the fol l owing items:
Serial Port
Use this item to enable or disable serial port (COM).
Change Settings
Use this item to select an optimal setting for super IO device.
Serial Port FIF0 Mode
30
The optional setting s a re: [16-Byte FIF0]; [32-Byte FIF0]; [64-Byte FI F0]; [128-Byte
FIF0].
Parallel Port Configuration
Press [Enter] to make settings for the fol l owing items:
Parallel Port
Use this item to enable or disable parallel port (LPT/LPTE).
Change Settings
Use this item to select an optimal setting for super IO device.
Device Mode
The optional settings are: [STD Printer Mode]; [SPP Mode]; [EPP-1.9 and SPP
Mode]; [EPP-1.7 and SPP Mode]; [ECP Mode]; [ECP and EPP 1.9 Mode]; [ECP
and EPP 1.7 Mode].
WatchDog Timer
Use this item to enable or disable WatchDog Timer Control. When set as
[Enabled], the following sub-items shall appear:
WatchDog Timer Value
User can set a value in the range of [4] to [255].
WatchDog Timer Unit
The optional settings are: [Sec.]; [Min.].
WatchDog Wake-up Timer in ERP
This item support WDT wake-up while ERP function is set as [Auto].
The optional settings are: [Enabled]; [Disabled].
When set a s [Enabled], the following sub-items shall appear:
WatchDog Timer Value in ERP
User can set a v al ue i n the range of [10] to [4095] when ‘ WatchDog Timer Unit’ is
set as [Sec.]; or i n the rang e of [ 1] to [4095] when ‘WatchDog Timer Unit’ is set as
[Min].
WatchDog Timer Unit
The optional settings are: [Sec.]; [Min.].
ATX Power Emulate AT Power
31
This item displays current Emulate AT Power Status, motherboard power On/Off
control by power supply. User needs to select ‘AT or AT X Mode’ on MB jumper at
first (refer to Page 8~9, Jumper AT_MODE for ATX Mode & AT Mode Select).
Case Open Detect
This item controls detect case open function.
The optional settings are: [Enabled]; [D i sabl e d].
PC Health Status
Press [Enter] to view current hardware health status and make further sett ings in
‘SmartFan Configuration’.
SmartFan Configuration
Press [Enter] to make setti ng s for Smar tFan Configuration:
SmartFan Configuration
CPUFAN / SYSFAN1/ SYSFAN2 Smart Mode
The optional settings are: [Disabled]; [Enabled].
When set a s [Enabled], the following sub-items shall appear:
CPUFAN / SYSFAN1/ SYSFAN2 Full-Speed Temperature
Use this item to set CPUFAN/SYSFAN1/ SYSFAN2 full speed temperature. Fan
will run at full speed when above this pre-set temperature.
CPUFAN / SYSFAN1/ SYSFAN 2 Full-Speed Duty
Use this item to set CPUFAN/SYSFAN1/ SYSFAN2 full speed duty. Fan will run
at full speed when above the pre-set duty.
CPUFAN / SYSFAN1/ SYSFAN 2 Idle-Speed Temperature
Use this item to set CPUFAN/SYSFAN1/ SYSFAN2 idle speed temper atur e. Fan
will run at idle speed when below this temperature.
CPUFAN / SYSFAN1/ SYSFAN2 Idle-Speed Duty
Use this item to set CPUFAN/SYSFAN1/ SYSFAN2 idle speed duty. Fan will run
at idle speed when below the pre-set duty.
Shutdown Temperature Configuration
Use this item to select system shutdown temperature.
The optional settings are: [Disabled]; [70oC/158oF]; [75oC/167oF]; [80oC/176oF];
32
[85oC/185oF].
Serial Port Consol Redirection
Press [Enter] to make setti ng s for serial port redirection settings:
COM1
Console Redirection
The optional settings are: [Enabled]; [Disabled].
When set a s [Enabled], user can make further settings in:
Console Redirection Settings
The settings specify how the host computer and the remote computer (which the
user is using) will exchange data. Both computers should have the same or
compatible settings.
Press [Enter] to make setti ng s for t he fol lowing sub-items.
Terminal Type
The optional settings are: [VT100]; [VT100+]; [VT-UTF8]; [ANSI].
Bits per second
The optional settings are: [9600]; [19200]; [38400]; [57600]; [115200].
Data Bits
The optional settings are: [7]; [8].
Parity
The optional settings are: [None]; [Even]; [Odd];[Mark]; [Space].
Stop Bits
The optional settings are: [1]; [2].
Flow Control
The optional settings are: [None]; [Hardware RTS/CTS].
VT-UTF8 Combo Key Support
The optional settings are: [Enabled]; [Disabled].
Recorder Mode
The optional settings are: [Enabled]; [Disabled].
Resolution 100x31
The optional settings are: [Enabled]; [Disabled].
Legacy OS Redirection Resolution
33
The optional settings are: [80x24]; [80x25].
Putty Keyp ad
The optional settings are: [VT100]; [LINUX]; [XTERMR6]; [SCO]; [ESCN];
[VT400].
Redirection After BIOS POST
The optional settings are: [Always Enable]; [BootLoader].
Serial Port for Out-of-Band Management/
Windows Emergency Management Services (EMS)
Console Redirection
The optional settings are: [Enabled]; [Dis able d].
When set a s [Enabled], user can make further settings in ‘Cons ol e Redi r ect ion
Settings’:
Console Redirection Settings
The settings specify how the host computer and the remote computer (which the
user is using) will exchange data. Both computers should have the same or
compatible settings.
Press [Enter] to make setti ng s for t he fol lowing sub-items.
Out-of-Band Mgmt Port
The default setting is: [COM1].
*This item may or may not show up, depending on different configuration.
Terminal Type
The optional settings are: [VT100]; [VT100+];[VT-UTF8];[ANSI].
Bits per second
The optional settings are: [9600]; [19200]; [57600]; [115200].
Flow Control
The optional settings are: [None] ; [Hardware RTS/CTS]; [Softwar e X on/ X off].
Data Bits
The default setting is: [8].
*This item may or may not show up, depending on different configuration.
Parity
34
The default setting is: [None].
*This item may or may not show up, depending on different configuration.
Stop Bits
The default setting is: [1].
*This item may or may not show up, depending on different configuration.
CPU Configuration
Press [Enter] to v iew curr ent CPU con figurati on and make settings for the followi ng
sub-items:
Limit CPUID Maximum
The optional settings: [Disabled]; [Enabled].
This item should be set as [Disabled] for Windows XP.
Execute Disable Bit
The optional settings: [Disabled]; [Enabled].
Hardware Prefetcher
The optional settings are: [Disabled]; [Enabled].
Use this item to turn on/off the Mid Level Cache (L2) streamer prefetcher.
Adjacent Cache Line Prefetch
The optional settings are: [Disabled]; [Enabled].
Use this item to turn on/off prefetching of adjacent cache lines.
Intel Virtualization Technology
The optional settings: [Enabled]; [Disabled].
When set as [Enabled], a VMM can utilize the additional hardware capabilities
provided by Vanderpool Technology.
EIST
The optional settings: [Disabled]; [Enabled].
Use this item to enable or disable Intel SpeedStep.
CPU C6 Report
Use this item to enable or disable CPU C6 (ACPI C3) report to OS.
The optional settings: [Disabled]; [Enabled].
Package C-state Limit
The optional settings: [C0]; [C1]; [C3] [C6]; [C7]; [No Limit].
35
SATA Configuration
Press [Enter] to make settings for the fol l owing sub-items:
SATA Configuration
SATA Port
The optional settings: [Disabled]; [Enabled].
SATA Mode
The optional settings are: [IDE Mode]; [AHCI Mode].
SATA Speed Support
The item is for user to set the maximum speed the SATA controller can support.
The optional settings are: [Gen1]; [Gen2].
SATA Port1
The optional settings are: [Enabled]; [Disabled].
SATA Port2
The optional settings are: [Enabled]; [Disabled].
Network S t ack Configuration
Press [Enter] to go to ‘Network Stack’ screen to make further settings.
Network S t ack
The optional settings are: [Enabled]; [Disabled].
When set a s [Enabled], the following sub-items shall appear:
Ipv4 PXE Support
The optional settings are: [Disabled]; [Enabled].
Use this item to e nabl e Ipv 4 PX E Boot S upp ort. When set as [D isa ble d], I PV4 PXE
boot optional will not be created.
Ipv6 PXE Support
The optional settings are: [Disabled]; [Enabled].
Use this item to e nabl e Ipv 6 PXE Boot Support. When set as [Di sa bled] , IPV6 PX E
boot optional will not be created.
PXE boot wait time
Use this item to set wait time to press [ESC] key to abort the PXE boot.
CSM Configuration
Press [Enter] to make settings for the fol l owing sub-items:
36
Option ROM execution order
Network
This item controls the execution of UEFI and legacy PXE OpROM.
The optional settings are: [Do not launch]; [UEFI only]; [Legacy only].
Storage
This item controls the execution of UEFI and Legacy Storage OpROM.
The optional setti ngs are: [Do not launch ] ; [UEFI only]; [Legacy only]; [Legacy first];
[UEFI first].
Other PCI devices
This item determines OpROM execution policy for devices other than Network,
storage or video.
The optional settings are: [UEFI first]; [Legacy Only].
USB Configuration
Press [Enter] to make setti ng s for t he following sub-items:
USB Configuration
Legacy USB Support
The optional settings are: [Enabled]; [Disabled]; [Auto].
[Enabled]: To enable legacy USB support.
[Disabled]: To keep USB devices available only for EFI specification,
[Auto]: To disable legacy support if no USB devices are connected.
XHCI Hand-off
This is a workaround for OSes without XHCI hand-off support. The XHCI
ownership change should be claimed by XHCI driver.
The optional settings are: [Enabled]; [Disabled].
EHCI Hand-off
This is a workaround for OSes without EHCI hand-off support. The EHCI
ownership change should be claimed by EHCI driver.
The optional settings are: [Disabled]; [Enabled].
USB Mass Storage Driver Support
The optional settings are: [Disabled]; [Enabled].
37
USB hardware delay and time-outs:
USB Transfer time-out
Use this item to set the time-out value for control, bulk, and interrupt transfers.
The optional settings are: [1 sec]; [5 sec]; [10 sec]; [20 sec].
Device reset time-out
Use this item to set USB mass storage device start unit command time-out.
The optional settings are: [10 sec]; [20 sec]; [30 sec]; [40 sec].
Device power-up delay
Use this item to set maximum time the device will take before it properly reports
itself to the host cont roller. ‘Auto’ uses defa ult value: for a root port i t i s 100 ms, for
a hub port the delay is taken from hub descriptor.
The optional settings: [Auto]; [Manual].
Select [Manual] you can set value for the following sub-item: ‘Device Power-up
delay in seconds’.
Device Power-up delay in seconds
The delay range is from [1] to [40] seconds, in one second increments.
Intel(R) I211 Gigabit Network Connection (XX:XX:XX:XX…)
Use this item to get driver information and configure gigabit ethernet device
parameter.
38
3-8 Chipset Menu
North Bridge
Press [Enter] to view current using memory information and make settings for the
following sub-items:
Intel IGD Configuration
PAVC
Use this item to enable or disable protected audio video control.
The optional settings are: [Disabled]; [LITE Mode]; [SERPENT Mode].
DVMT Pre-Allocated
Use this item to select DVMT 5.0 pre-allocated (fixed) graphics memory size used
by the internal graphics device.
The optional settings are: [64M]; [96M]; [128 M]; [160M]; [192M]; [224M]; [256M];
39
[288M]; [320M]; [352M]; [384M]; [416M]; [448M]; [480M]; [512M].
DVMT Total Gfx Mem
Use this item to select DVMT 5.0 total graphics memory size used by the internal
graphics device.
The optional settings are: [128M]; [256M]; [MAX].
Aperture Size
The optional settings are: [128MB]; [256MB]; [512MB].
GTT Size
The optional settings are: [1MB]; [2MB].
IGD Turbo Enable
The optional settings are: [Enabled]; [Disabled].
Spread Spectrum Clock
The optional settings are: [Enabled]; [Disabled].
IGD Boot Type
Use this item to select preference display interface used when system boot.
The optional settings are: [Auto]; [CRT]; [HDMI]; [LVDS].
* Note: User needs to set ‘Active LVDS’ as [Enabled], otherwise the optional
setting [LVDS] will not be available.
Active LVDS
The optional settings are: [Disabled]; [Enabled].
[Disable]: VBIOS disable LVDS .
[Enable]: VBIOS enable LVDS.
* Note: When set as ‘Enabled’, user can make further settings in ‘LVDS Panel
Type’.
LVDS Panel Type
Use this item to manually select LVDS panel type.
The optional setting are: [800x 600 18bit Single]; [800x 600 24bit Single]; [1024 x
600 18bit Single]; [800x 480 18bit Single]; [1024 x 768 18bit Single]; [1024 x 768
24bit Single]; [12 80 x 768 24bi t Singl e]; [1280 x 1024 24bi t Dual]; [1366 x 768 18bit
Single]; [1366 x 76 8 24 bit S ingl e]; [ 1440 x 900 18bit D ual]; [ 14 40 x 90 0 24 bit Dual ];
[1280 x 800 18bit Single]; [1280 x 800 24bit Single]; [1680 x 1050 24bit Dual];
40
[1920 x 1080 24bit Dual].
South Bridge
Press [Enter] to set south bridge parameters.
USB Configuration
Press [Enter] to make setting s for the fol l owing sub-items:
USB Configuration
USB 3.0 Support
The optional settings are: [Enabled]; [Disabled]; [Auto]; [Smart Auto].
* Note: When set as [Disable], USB 2.0 Support is applicable, for user to make
further settings.
USB 3.0 Link Power Management
The optional settings are: [Enabled]; [Disabled].
* Note: This item only show up when ‘USB 3.0 Support’ set as [Enabled], [Auto] or
[Smart Auto].
USB 2.0 Support
The optional settings are: [Auto]; [Disabled].
Audio Controller
The optional settings are: [Disabled]; [Enabled]
Azalia HDMI Codec
Use this item to enable or disable internal HDMI codec for Azalia.
The optional settings are: [Disabled]; [Enabled].
PCI-E Slot Speed
The optional settings are: [Auto]; [Gen2]; [Gen1].
Onboard Lan1 Controller
The optional settings are: [Enabled]; [Disabled].
Mini PCIE
The optional settings are: [Enabled]; [Disabled].
Speed
The optional settings are: [Auto]; [Gen2]; [Gen1].
System State after Power Failure
Use this item to select AC power state when power is re-applied after a power
41
failure.
The optional settings are: [Always Off]; [Always On]; [Former State].
3-9 Security Menu
Security menu allow users to change administrator password and user password
settings.
42
3-10 Boot Menu
Boot Configuration
Setup Prompt Timeout
Use this item to set number of seconds to wait for setup activation key.
Bootup Numlock State
Use this item to select keyboard numlock state.
The optional settings are: [On]; [Off].
Quiet Boot
The optional settings are: [Disabled]; [Enabled].
Boot Option Priorities
Boot Option
The optional settings are: [UEFI: Built-in EFI Shell]; [Disabled].
43
3-11 Save & Exit Menu
Save Changes and Reset
This item allows user to reset the system after saving the changes.
Discard Changes and Reset
This item allows user to reset the system without saving any changes.
Restore Defaults
Use this item to restore /load default values for all the setup options.
Save as User Defaults
Use this item to save the changes done so far as user defaults.
Restore User Defaults
Use this item to restore defaults to all the setup options.
Boot Override
44
UEFT: Built-in EFI Shell
Launch Internal EFI shell application (shell.efi).
Lauch EFI Shell from filesystem device
Use this item to launch EFI shell application (shell.efi) from one of the available
filesystem device.
Reset System with TXT disable Mode
Press [Enter] for TXE to run into the temporary disable mode. Ignore if TXE Ignition
FW.
Loading...
