Page 1
NF3AE Series User Manual
NO. G03-NF3AE-F
Revision: 1.0
Release date: June 28, 2017
Trademark:
* Specifications and Informati on cont a ined in t his docu me nt ation are furnished for informatio n u se only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
Page 2
ii
Environmental Pr otecti on Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection o f mother ear th, please recycle.
Page 3
iii
ENVIRONMENTAL SAFETY INSTRUCTION ........................................................................... iv
USER’S NOTICE ....................................................................................................................... v
MANUAL REVISION INFORMATION ....................................................................................... v
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD ................................................................................ 1
1-2 SPECIFICATION ......................................................................................................... 2
1-3 LAYOUT DIAGRAM .................................................................................................... 3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING ..................................................................................................... 9
2-2 CONNECTORS AND HEADERS ................................................................................ 15
2-2-1 CONNECTORS ............................................................................................. 15
2-2-2 HEADERS ..................................................................................................... 17
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERING SETUP ..................................................................................................... 24

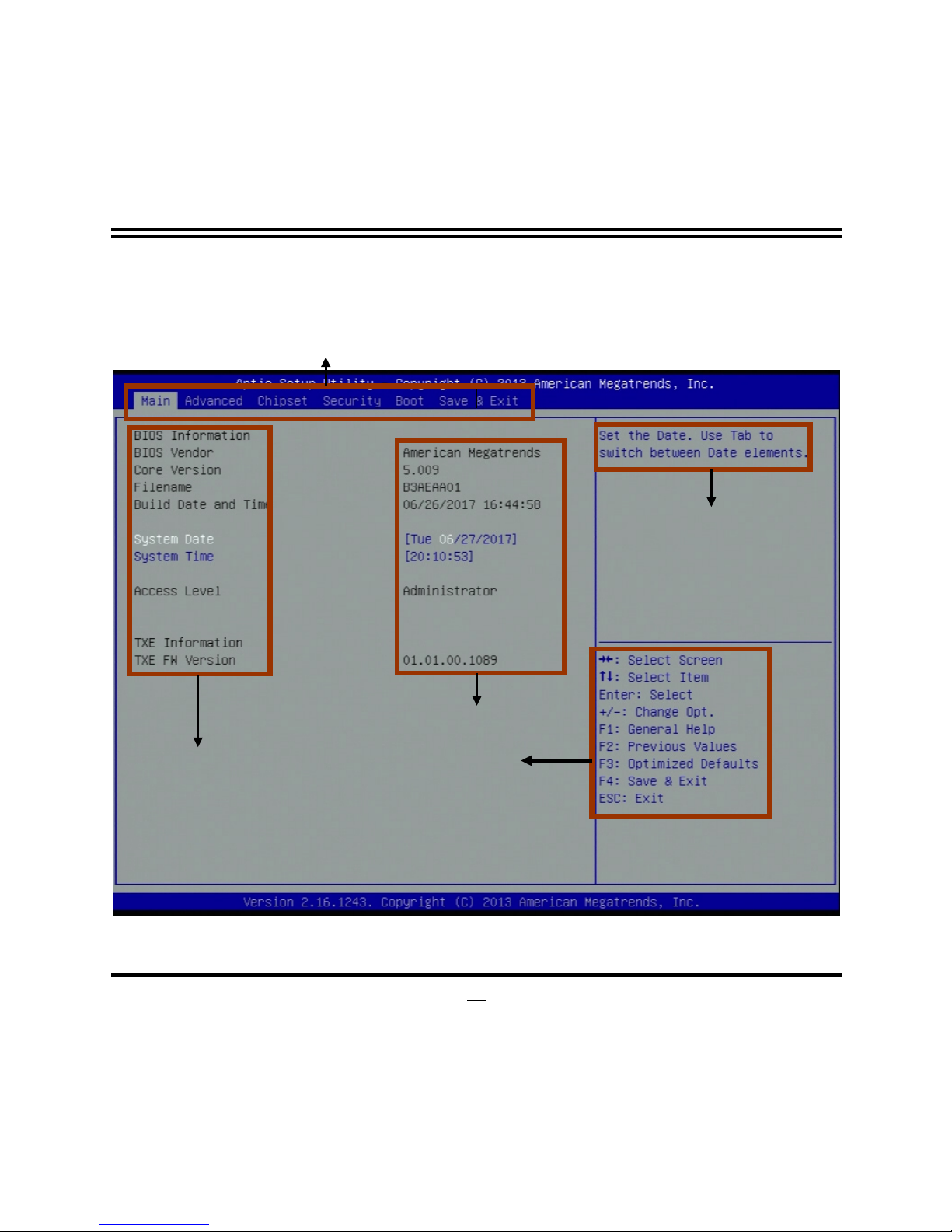

3-2 BIOS MENU SCREEN ................................................................................................ 25
3-3 FUNCTION KEYS ....................................................................................................... 26
3-4 GETTING HELP .......................................................................................................... 26
3-5 MEMU BARS ............................................................................................................... 27

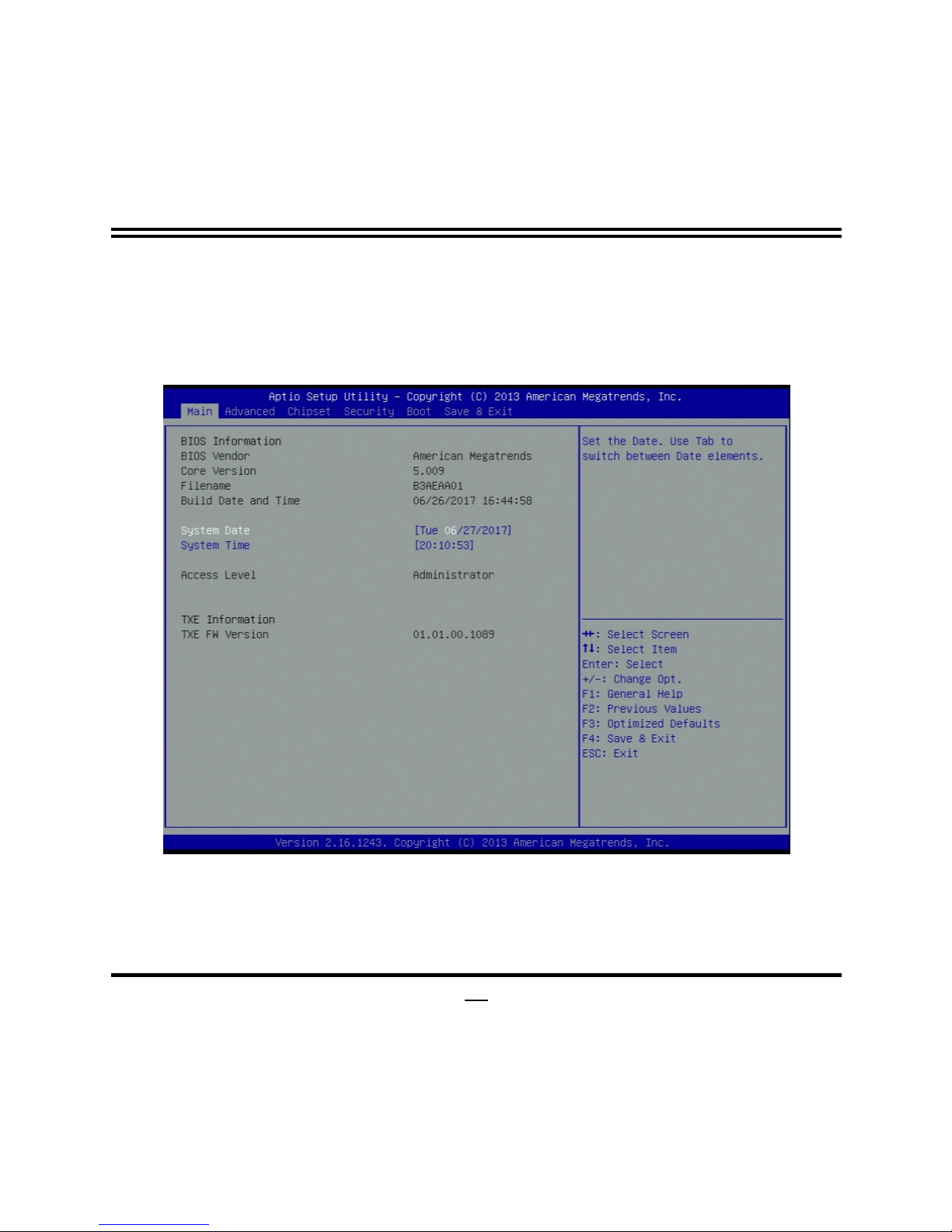

3-6 MAIN MENU ................................................................................................................ 28

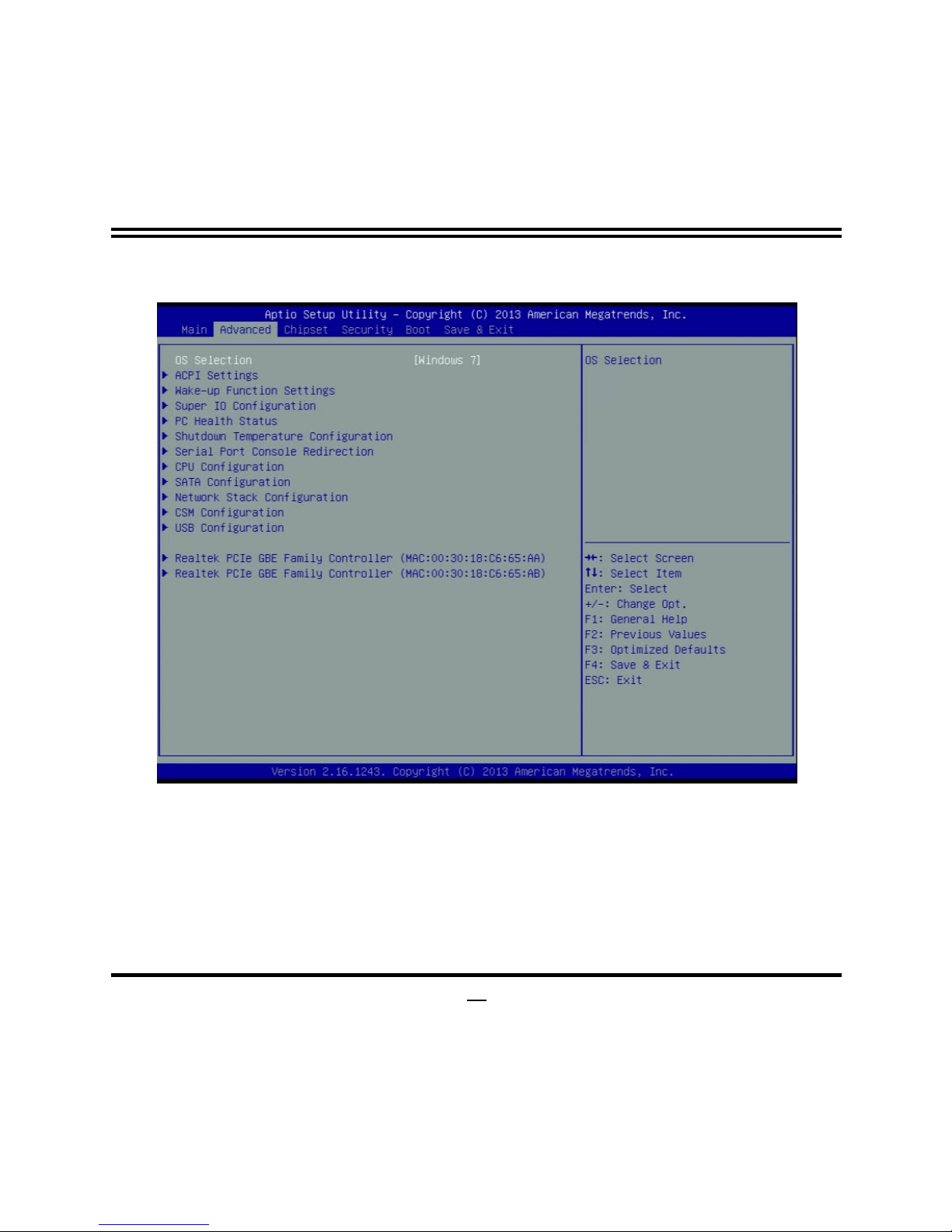

3-7 ADVANCED MENU ..................................................................................................... 29

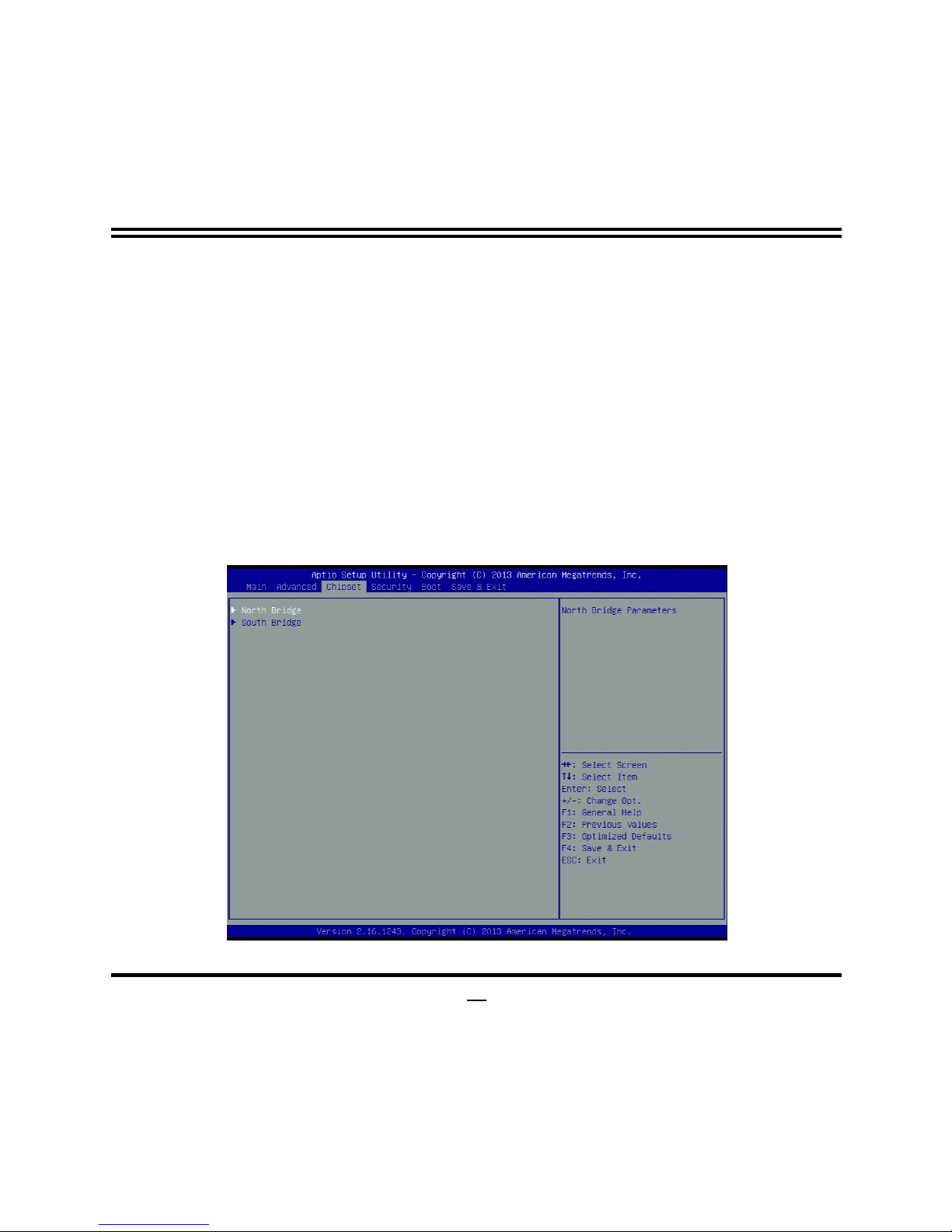

3-8 CHIPSET MENU .......................................................................................................... 40
3-9 SECURITY MENU ....................................................................................................... 43

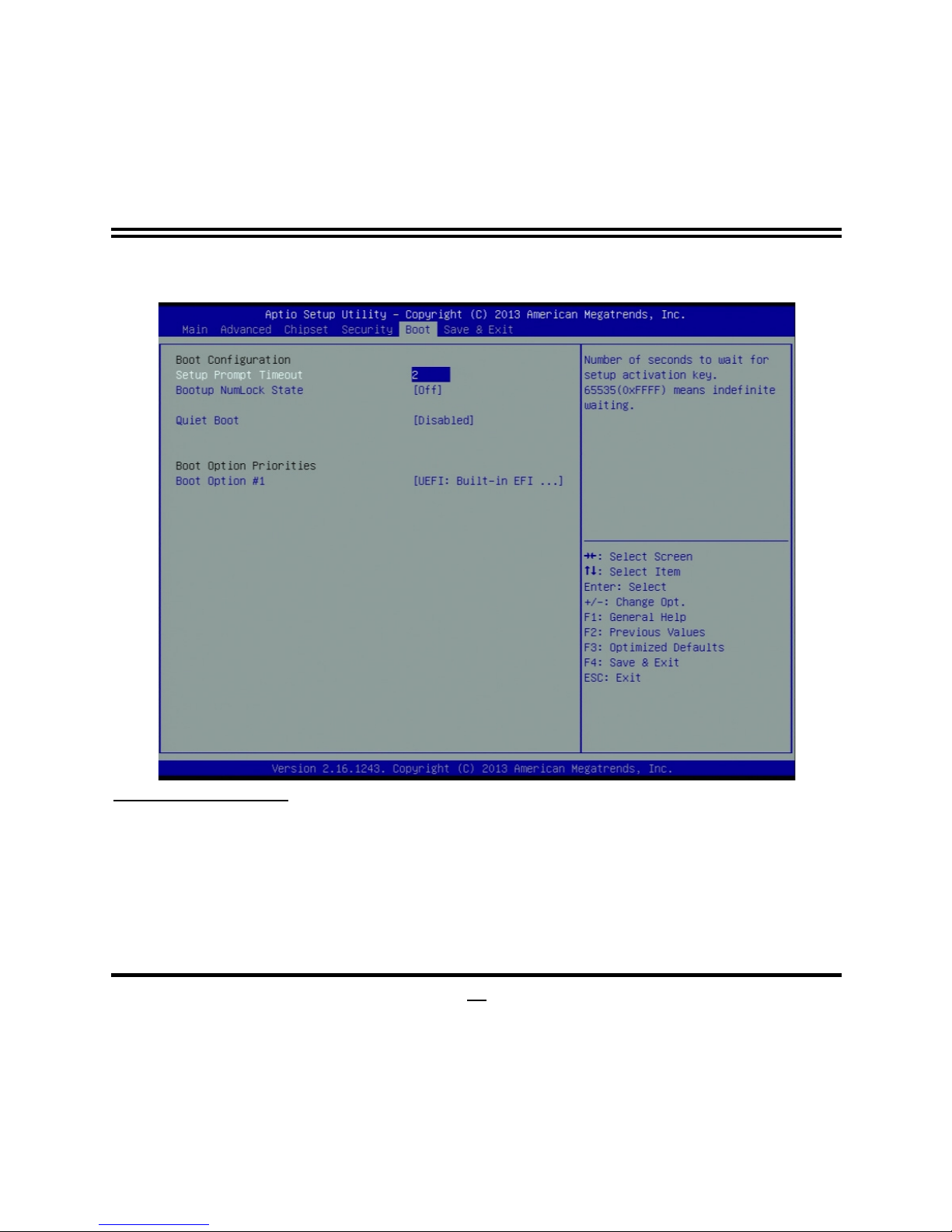

3-10 BOOT MENU ............................................................................................................... 44

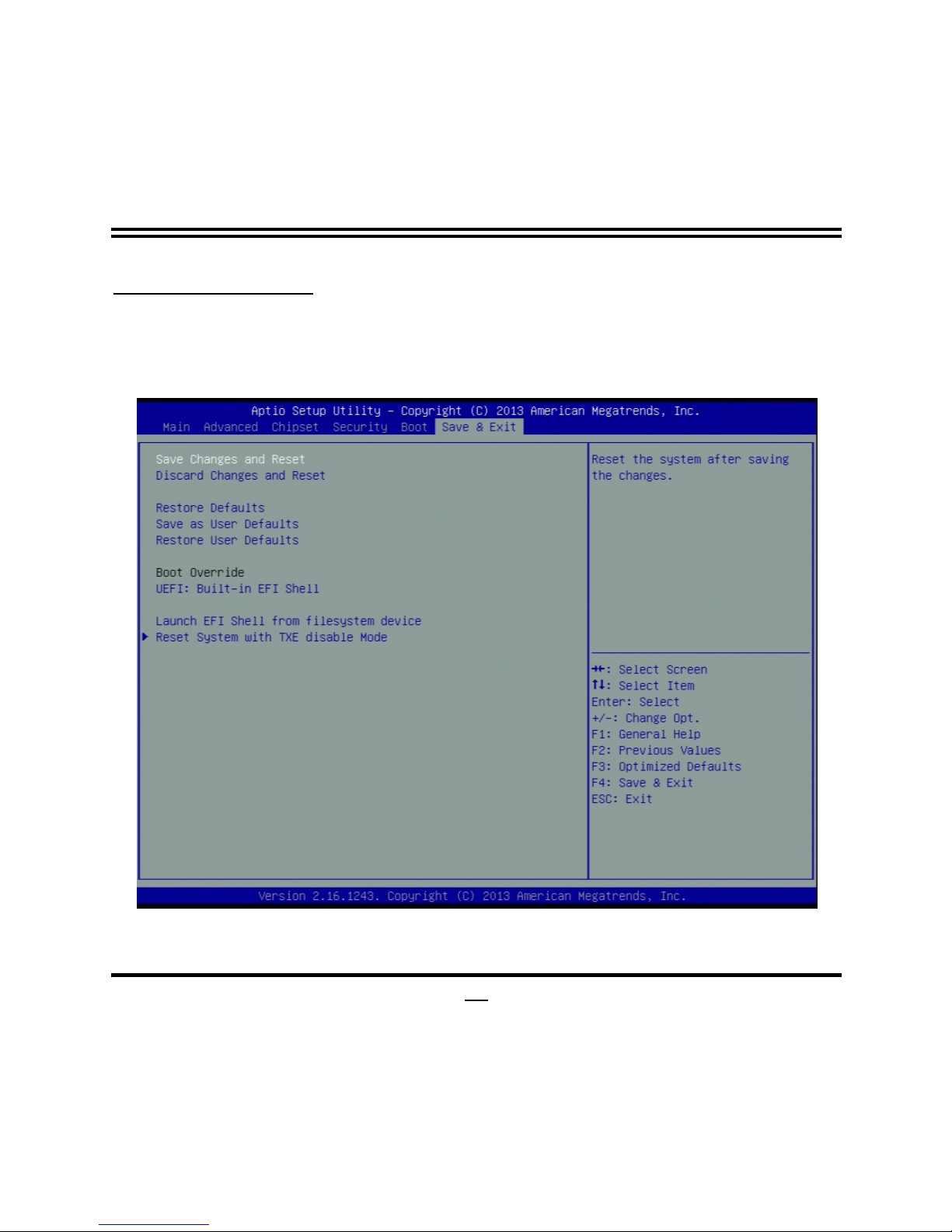

3-11 SAVE & EXIT MENU ................................................................................................... 45
TABLE OF CONTENT
Page 4
iv
Environmental Safety Instruction
Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
0 to 60 centigrade is th e suitabl e tem perat ure. (The figure c omes from the r eques t
of the main chipset)
Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor a s computer instabi lity resulted fr om corrosi on and oxi dation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.
Page 5
v
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTW ARE DESCRIBED I N IT MAY BE REPRO DUCED, T RANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AND WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
1.0 First Edition June 28, 2017
Page 6
1
Chapter 1
Introduction of the Motherboard
1-1 Fea ture of Motherboard
Onboard Intel® Bay Trail Series Processor, with low power consumption never
denies high performance
Support single channel DDR3L 1333 MHz SODIMM, up to 8GB
Support 1 * SATAII device
Onboard one full-size mSATA/ Mini-PCIE s lot
Onboard one half-size Mini-PCIE slot
Onboard 2 * RJ-45 gigabit Et hernet LAN port
Integrated with 1 * 24-bit dual channel LVDS header
Integrated with 4-Lane eDP header
Support VGA output
Support USB 3.0 data transport demand
Support CPU Smart FAN
Compliance with ErP standard
Support Watchdog function
Page 7
2
1-2 Specification
Spec
Description
Design
3.5”SBC; 6 layers; PCB size: 14.8x 10.2 cm
Embedded
CPU
Intel® Bay Trail-D/M/I series CPU
*CPU model varies from different IPC options. Please consult your dealer for
more information of onboard CPU.
Memory Slot
1 * DDRIIIL SODIMM Slot for un-buffered Single Channel
DDRIIIL 1333 MHz SDRAM, up to 8GB
Expansion
Slot
Full-size Mini-PCIE/mSATA slot x1
Half-size Mini-PCIE slot x1
LAN Chip
Integrated with dual Realtek RTL8111G PCI-E Gigabit LAN
chips
Support Fast Ether ne t LAN func ti on of providing
10/100/1000Mbps Ethernet data transfer rate
BIOS
AMI 64MB Flash ROM
Rear I/O
3* USB 2.0 port
2* RJ-45 LAN port
1* VGA port
1* USB 3.0 port
Audio Line Out port x1
9V~24V DC Jack
Internal I/O
1* SATAII 3Gb/s port
1* SATA Po wer connector
1* CPU FAN header
1* LVDS inverter
1* Front panel audio header
1* SPDIF Out header
Page 8
3
4* Serial port header
2* 9-pin USB 2.0 header (Expansible to 4* USB 2.0 ports)
1* GPIO header
1* SM_BUS header
1* PS2KBMS header
1* Front panel header
2* LAN LED activity header
1* LVDS header
1* 4-Lane eDP header
1-3 Layout Diagram

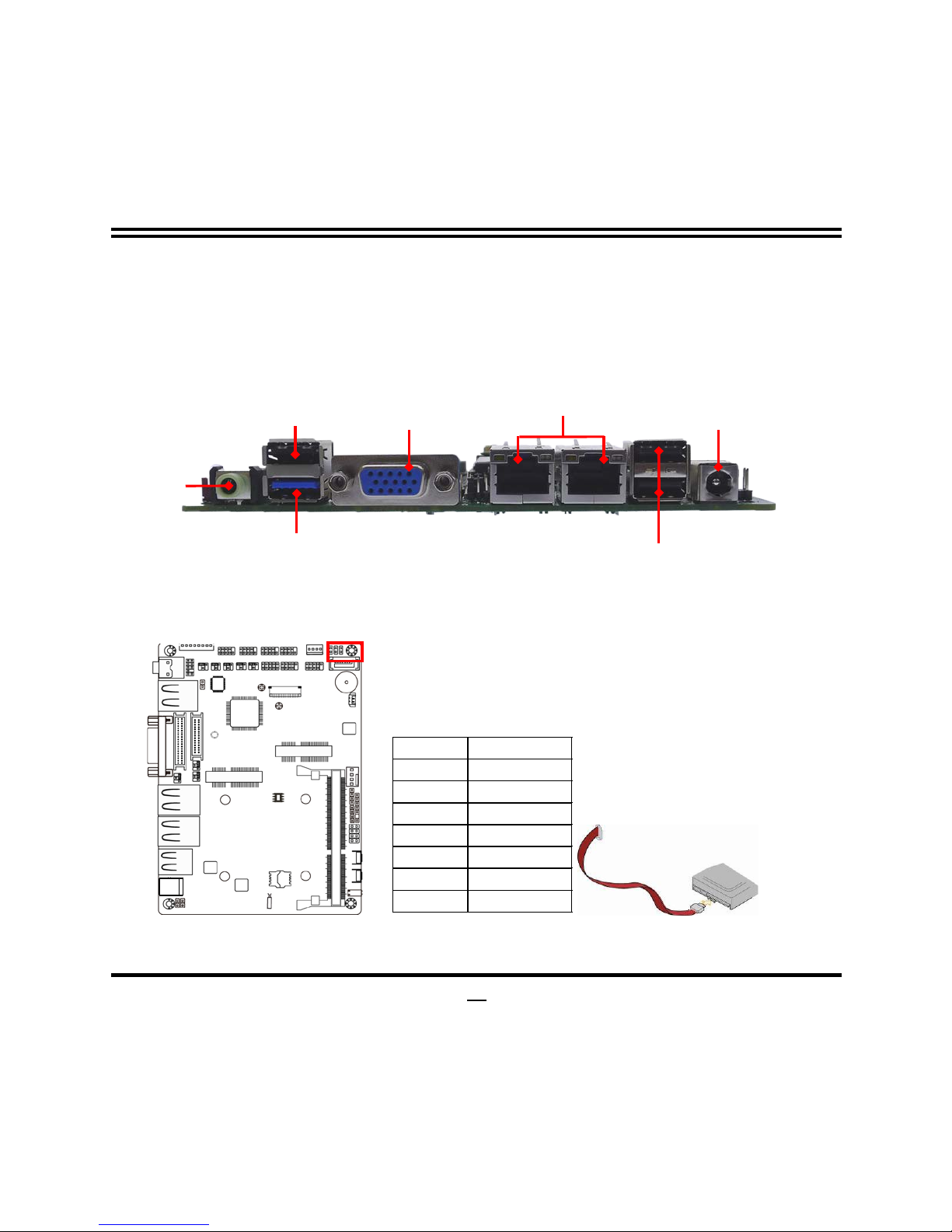

Rear IO Panel Diagram:
Line-Out
Port
USB 3.0 Port
USB 2.0 Port
VGA Port
RJ-45 LAN Ports
USB 2.0 Ports
DC Jack
Page 9
4
Internal Diagram-Front Side:
LANLED Headers
SATAII Port
CPUFAN Header
Front Panel Header
DDR3L
SODIMM Slot
Reset Button
Power Switch Button
USB 3.0 Port
Over USB 2.0 Port
VGA Port
SMBUS Header
INVERTER
LVDS Header
Full-size
Mini-PCIE/mSATA Slot
USB 2.0 Ports
Line-Out Port
RJ-45 LAN Port
RJ-45 LAN Port
Serial Port Header
(COM4/3/2/1)
GPIO Header
USB 2.0 Header
Front Panel
Audio Header
SATA
Power Connector
SPDIF Out
Header
PS2KBMS Header
Half-size
Mini-PCIE Slot
EDP Header
9V ~24V
DC Jack
Page 10
5
Internal Diagram-Back Side:
Intel CPU
Page 11
6
Jumper Position:
JP8
JP3
JP2
JP4
JP5
JP6
JBAT
COPEN
AT-MODE
JP7
JP1
JP9
Page 12
7
Jumper
Jumper
Name
Description
JP1
LVDS LCD VCC 3.3V/5V/12V Select
4-Pin Block
JP2
LVDS INVERTER VCC 5V/12V/Adapter
VCC Select
4-Pin Block
JP8
eDP LCD VCC 3.3V/5V/12V Select
4-Pin Block
JP9
eDP Backlight VCC 5V/12V/ Adapter VCC
Select
4-Pin Block
JP3
COM4 Header Pin9 Functi on Selec t
4-Pin Block
JP4
COM3 Header Pin9 Functi on Sel ect
4-Pin Block
JP5
COM2 Header Pin9 Functi on Selec t
4-Pin Block
JP6
COM1 Header Pin9 Functi on Select
4-Pin Block
JBAT
CMOS RAM Clear Function Setting
2-Pin Block
COPEN
Case Open Message Display Function
2-Pin Block
AT_MODE
AT Mode Function Select
2-Pin Block
JP7
Security Measure Function Select
2-Pin Block
Connectors
Connector
Name
SATA1
SATAII Port Connector
PWOUT1
SATA Power out Connector
CPUFAN
CPUFAN Connector
INVERTER
LVDS Inverter Connector
USB1/USB3(Top)
USB 2.0 Port Connector X3
USB3(Bottom)
USB 3.0 Port Connectors X1
LAN1/2
RJ-45 LAN Port Connector X2
VGA
VGA Port Connector
AUDIO
Audio Line Out Connector
Page 13
8
Headers
Header
Name
Description
FP_AUDIO
Front Panel Audio Header
9-pin Block
SPDIFOUT
SPDIF Out Header
2-pin Block
COM1/2/3/4
Serial Port Header X4
9-pin Block
GPIO
GPIO Header
10-pin Block
USB3/ USB4
USB 2.0 Header
9-pin Block
SMBUS
SMBUS Header
4-pin Block
PS2KBMS
PS2KBMS Header
6-pin Block
FP Front Panel Header(PWR LED/
HDD LED/Power Button /Reset)
8-pin Block
LAN1LED/LAN2LED
LAN Activity LED Headers
2-pin Block

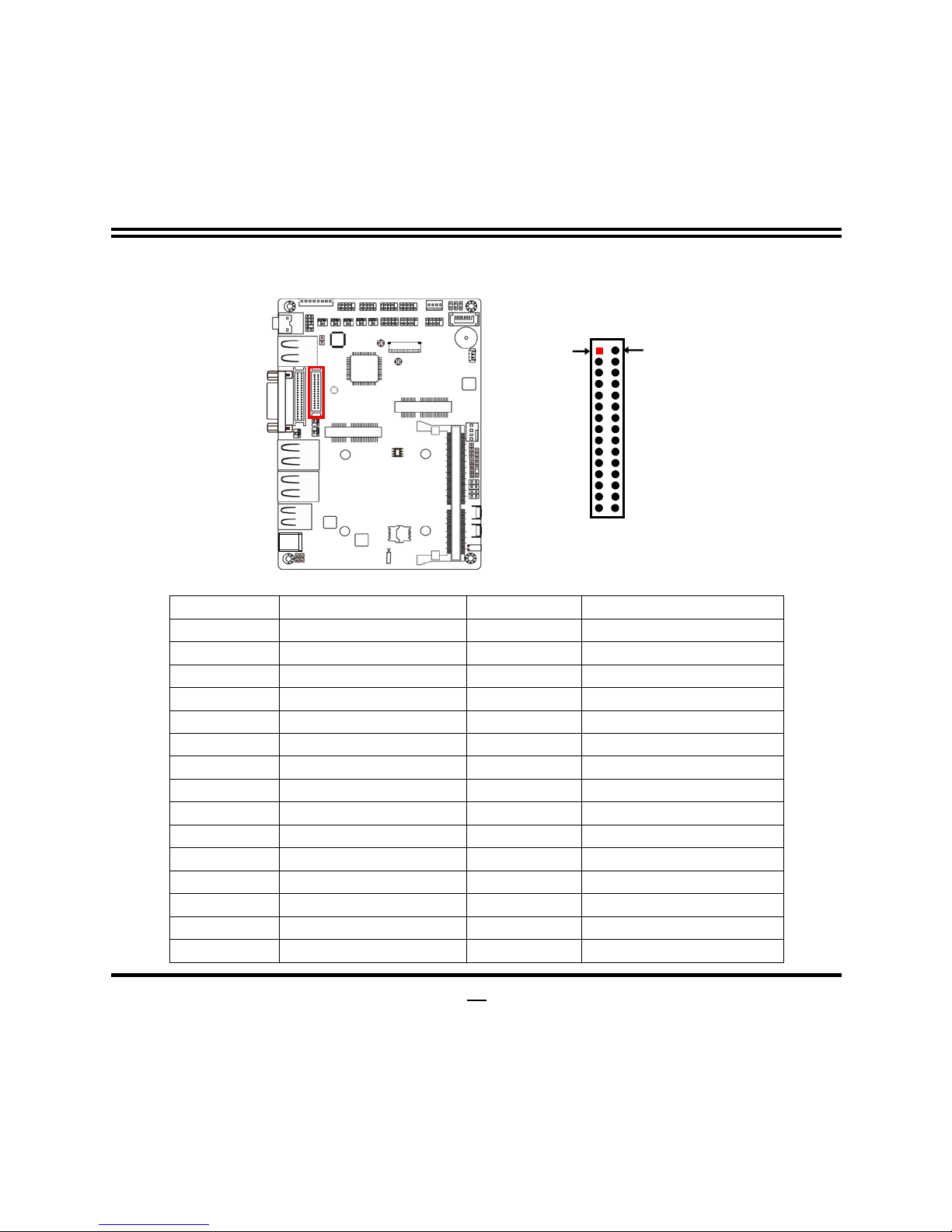

LVDS
24-bit LVDS Header
30-pin Block

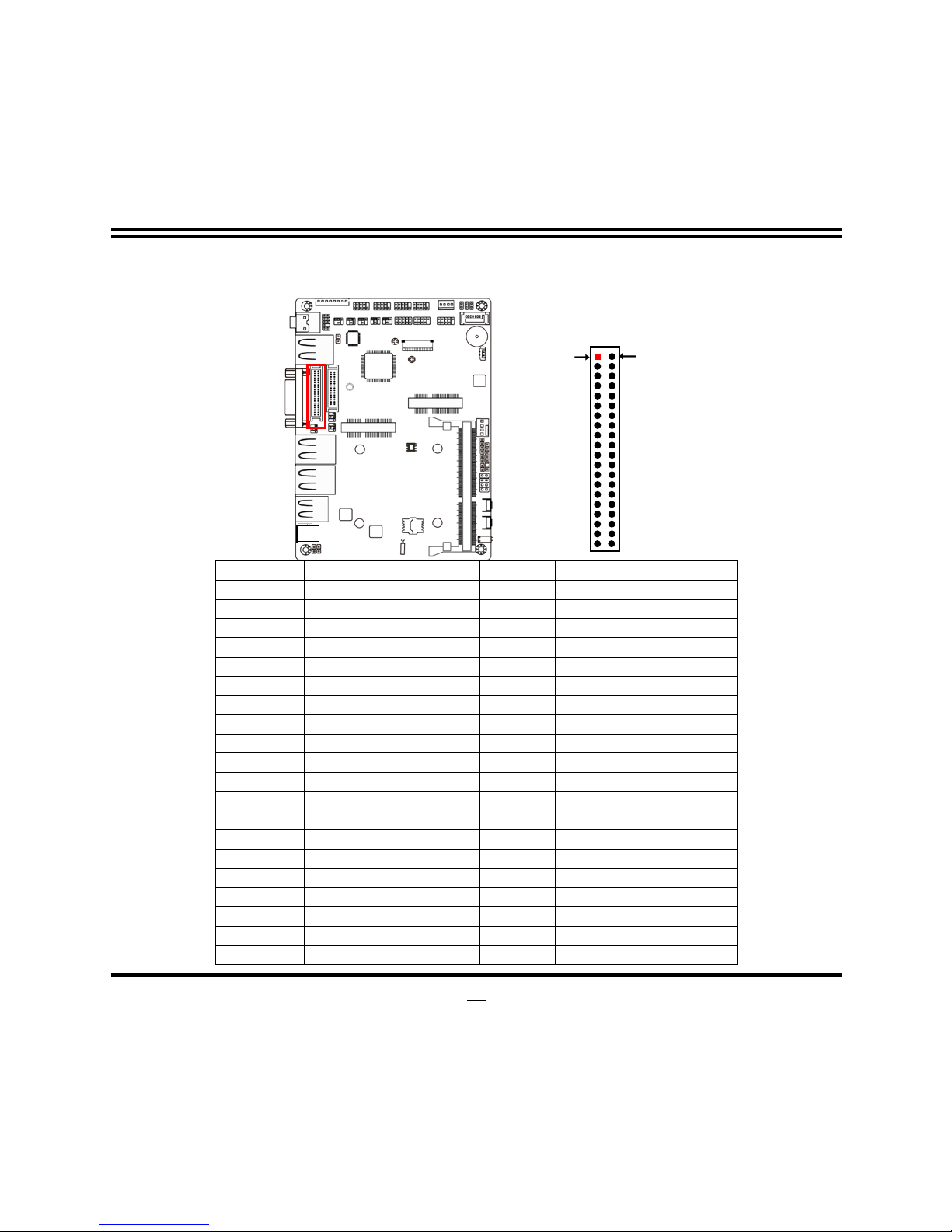

EDP
4-Lane eDP Header
40-pin Block
Page 14
9
Chapter 2
Hardware Installation
2-1 Jumper Setting

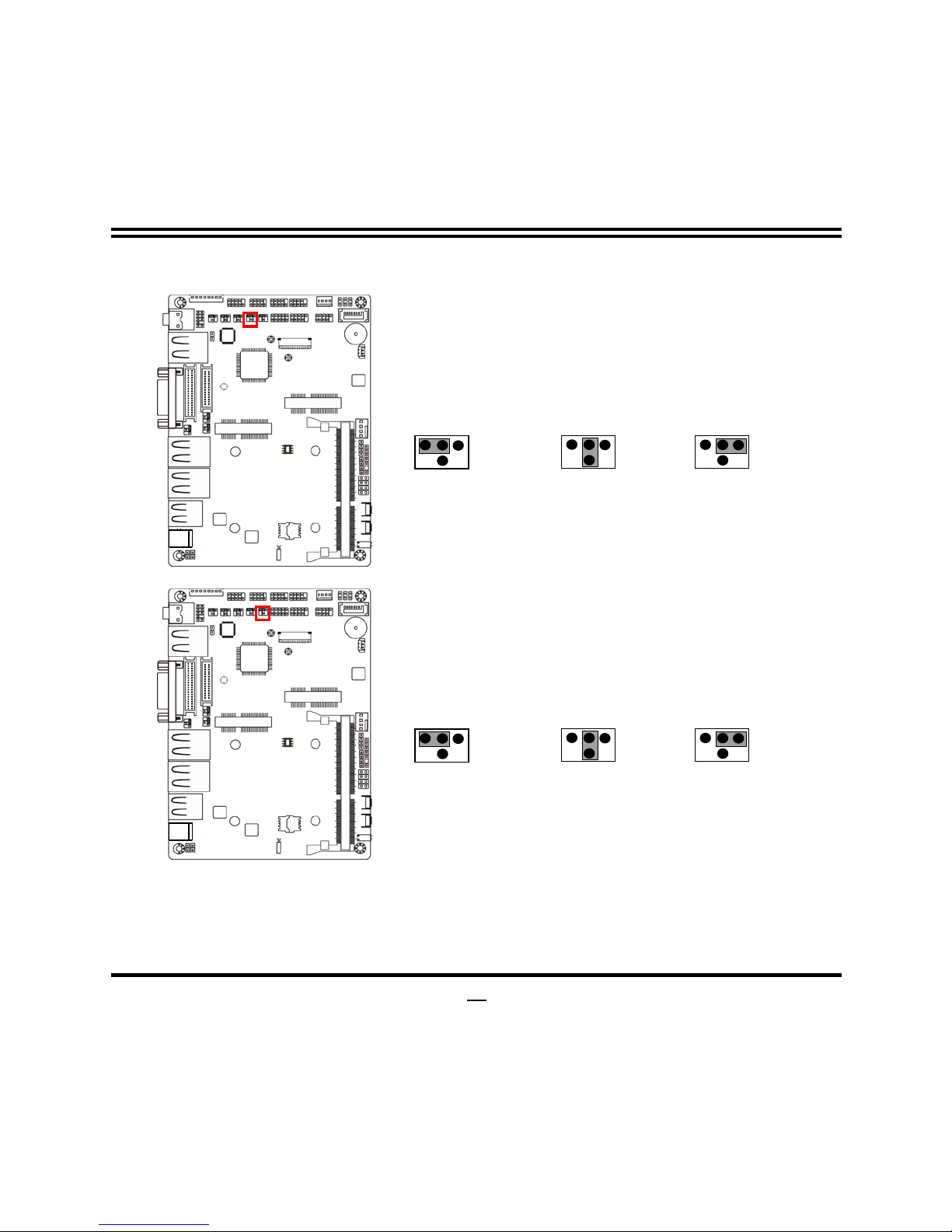

(1) JP1 (4-pin): LVDS LCD VCC 3.3V/5V/12V Select
JP1→LVDS LCD VCC
4-6 Closed: LVDS
LCD VCC= 12V.
2
4
6
3-4 Closed: LVDS
LCD VCC= 5V;
2-4 Closed: LVDS
LCD VCC= 3.3V;
3
5 1 5
6
4
2
3
1
6
4 2 5
3
1
(2) JP2 (4-pin): LVDS INVERTER VCC 5V/12V/Adapter VCC Select
JP
2→LVDS Inverter VCC
3-4 Closed:
Inverter VCC
=Adapter VCC.
6 4 2
3-4 C
losed
:
Inverter VCC =12V;
2
-4 C
losed:
Inverter VCC =5V;
3
1
5
1
3
5
2
4
6
1
3
5
2
4
6
Page 15
10
(3) JP8 (4-pin): eDP LCD VCC 3.3V/5V/12V Select
JP8→eDP LCD VCC
4-6 Closed: eDP
LCD VCC= 12V.
2
4
6
3-4 Closed: eDP
LCD VCC= 5V;
2-4 Closed: eDP
LCD VCC= 3.3V;
3
5 1 5
6
4
2
3
1
6
4 2 5
3
1
(4) JP9 (4-pin): eDP Backlight VCC 3.3V/5V/Adapter VCC Select
JP9→eDP Backlight
VCC
4-6 Closed:
eDP Backlight VCC
= Adapter VCC.
2
4
6
3-4 Closed: eDP
Backlight VCC= 12V;
2-4 Closed: eDP
Backlight VCC= 5V;
3
5 1 5
6
4
2
3
1
6
4
2
5 3 1
Page 16
11
(5) JP3 (4-pin): COM4 Header Pin9 Function Select
JP3→COM
4
4-6 Closed:
RI= 12V
.
6 4 2
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
3
1
5
1
3
5
2
4 6 1
3
5
2
4
6
(6) JP4 (4-pin): COM3 Header Pin9 Function Select
JP4→COM3
4-6 Closed:
RI= 12V.
6 4 2
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
3
1
5
1
3
5
2
4
6
1
3
5
2
4
6
Page 17
12
(7) JP5 (4-pin): COM2 Header Pin9 Function Select
JP5→COM2
4-6 Closed:
RI= 12V.
6 4 2
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
3
1
5
1
3
5
2
4
6
1
3
5
2
4
6
(8) JP6 (4-pin): COM1 Header Pin9 Function Select
JP6→COM1
4-6 Closed:
RI= 12V.
6 4 2
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
3
1
5
1
3
5
2
4
6
1
3
5
2
4
6
Page 18
13

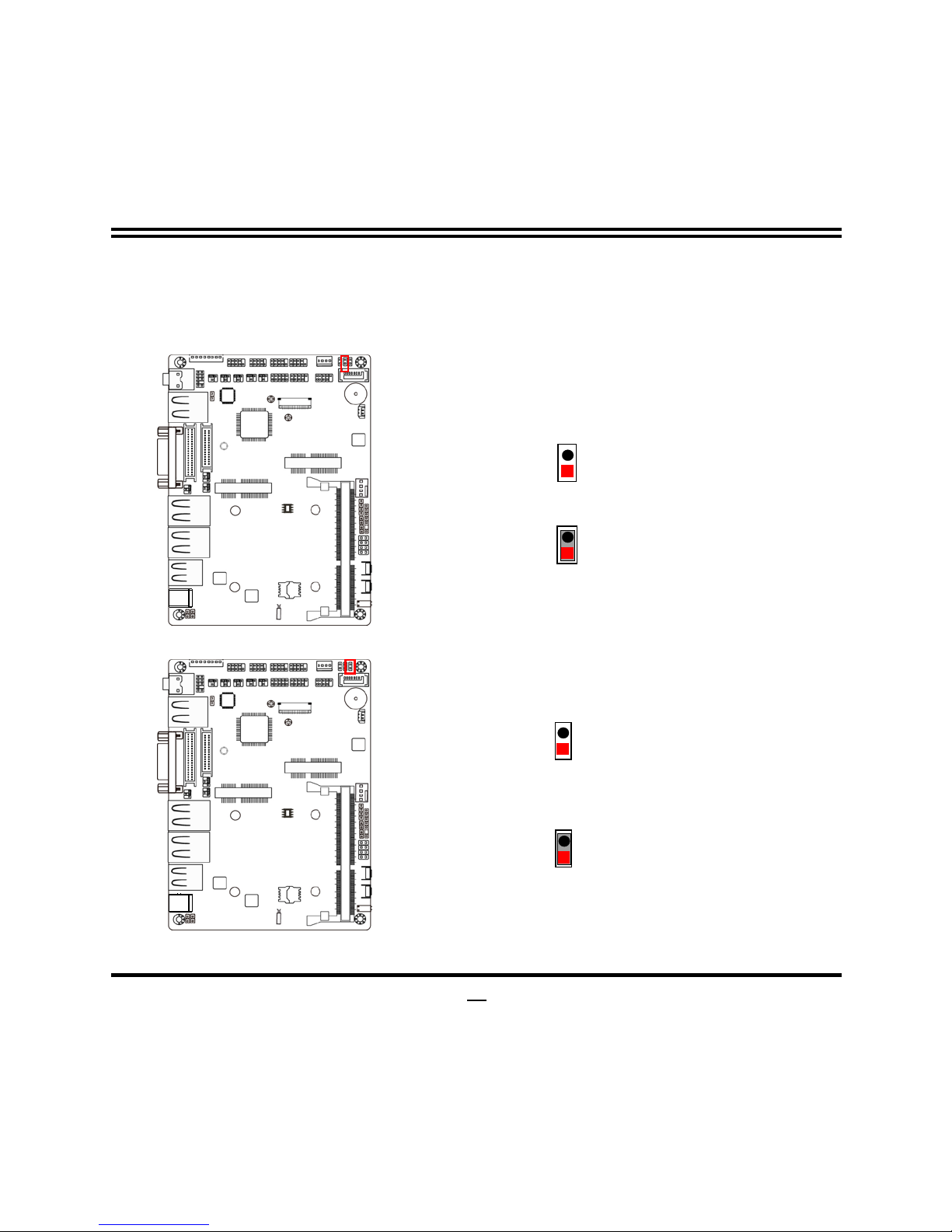

(9) JBAT (2-pin): Clear CMOS
CMOS Clear Setting
1-
2 Closed：Clear CMOS
JBAT
1-2 Open: Normal
；
1
(10)COPEN (2-pin): Case Open Message Display Function Select
COPEN
1
Case open function
GND
Pin 1-2 Closed: When Case open function pin short to GND, the Case open function
was detected. When Used, needs to enter BIOS and enable ‘Case Open Detect’
function. In this c ase if your case is remov ed, next time when you res tart your computer ,
a message will be displayed on screen to inform you of this.
Page 19
14

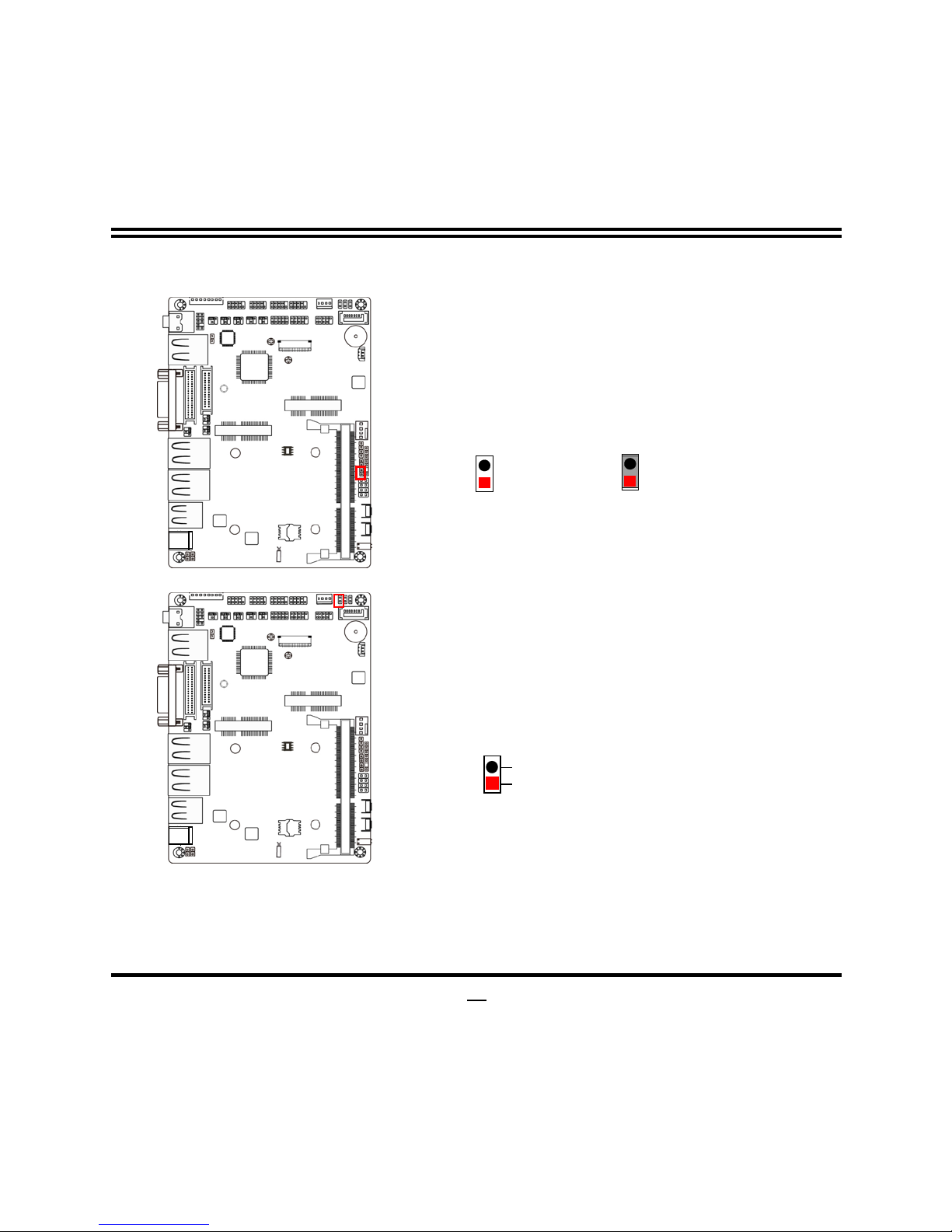

(11)AT_MODE (2-pin): AT Mode Function Select
Pin 1-2 closed: AT_MODE function is enabled. In this case your computer will
automatically turns on after a sudden power failure when power supply resumes.
1
-2 Closed: AT Mode Selected
AT_MODE
1
2
1-2 Open: ATX Mode Selected;
1
2
(12)JP7 (2-pin): Security Measure Function Select
1-2 Closed: Disable Security Measures
in the Flash Descriptor(O ver ride).
JP7
1
1-2 Open:Enable Security Measures
in the Flash Descriptor(De f a ult);
1
Page 20
15
2-2 Connectors and Headers
2-2-1 Connectors
(1) Rear I/O Connectors
(2) SATA1(7-pin): SATAII Port connec tor
SATA1 port is a high-speed SATAII port that supports 3GB/s transfer rate.
Pin No.
Definition
1
GND
2
TXP
3
TXN
4
GND
5
RXN
6
RXP
7
GND
Line-Out
Port
USB 3.0 Port
USB 2.0 Port
VGA Port
RJ-45 LAN Ports
USB 2.0 Ports
DC Jack
Page 21
16
(3) PWOUT (4-pin): SATA Power Connector
Pin 1
+12V
GND
+5V
GND
(4) CPUFAN (4-pin): CPUFAN Connector
CPUFAN1
GND
Pin1
VCC
Fan Clock
Control
Page 22
17
(5) INVERTER (8-pin): LVDS Inverter Connector
Pin 1
Pin No.
Definition
1
Backlight Enable
2
Backlight PWM
3
PVCC
4
PVCC
5
GND
6
GND
7
Backlight Up SW
8
Backlight Down SW

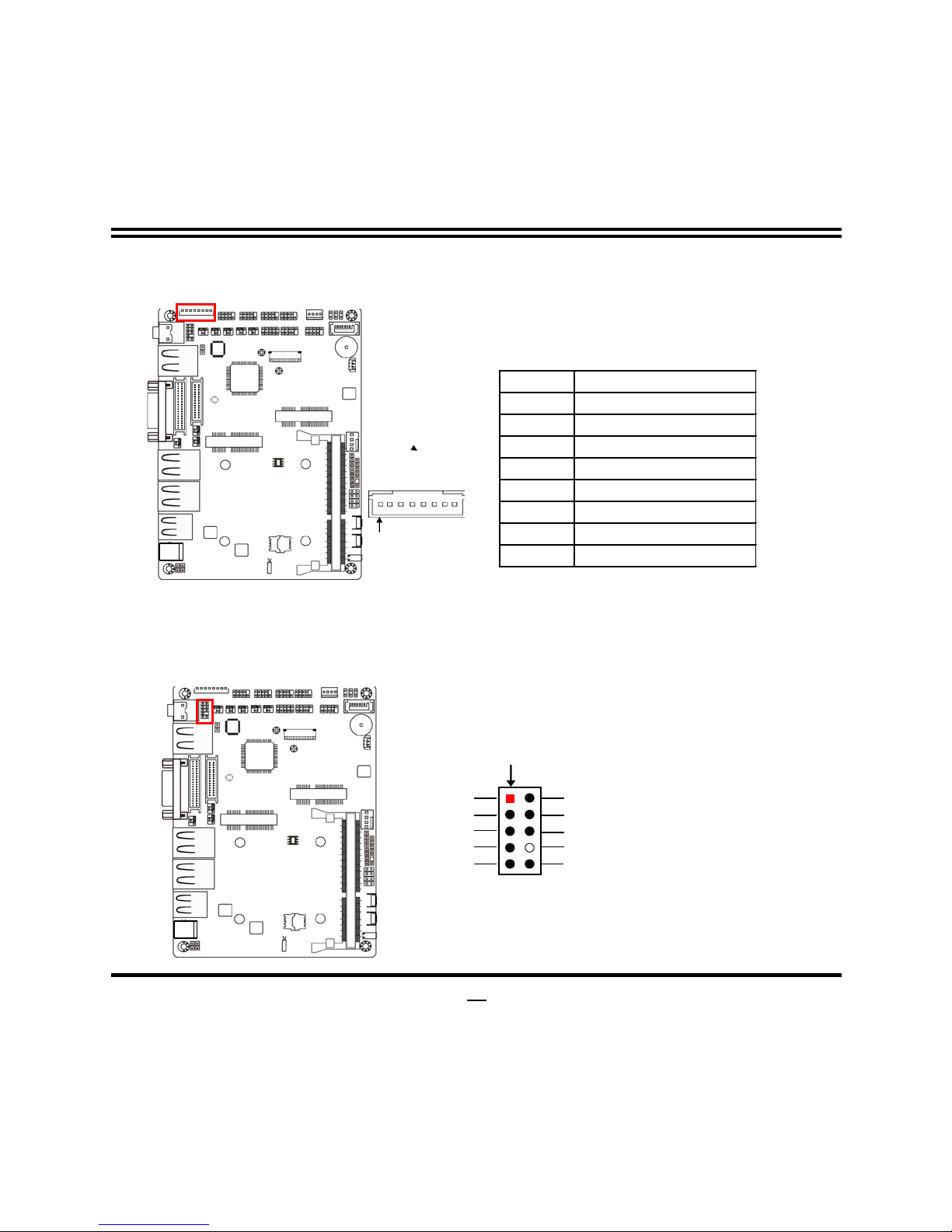

2-2-2 Headers
(1) FP_AUDIO (9-pin): Line-Out, MIC-In Header
This header connects to Front Panel Line-out, MIC-In connector with cable.
Line-Out, MIC Header
Pin 1
2
MIC-R
MIC-L
Lineout-R
Lineout-L
GND
NC
NC
KEY
NC
NC
Page 23
18

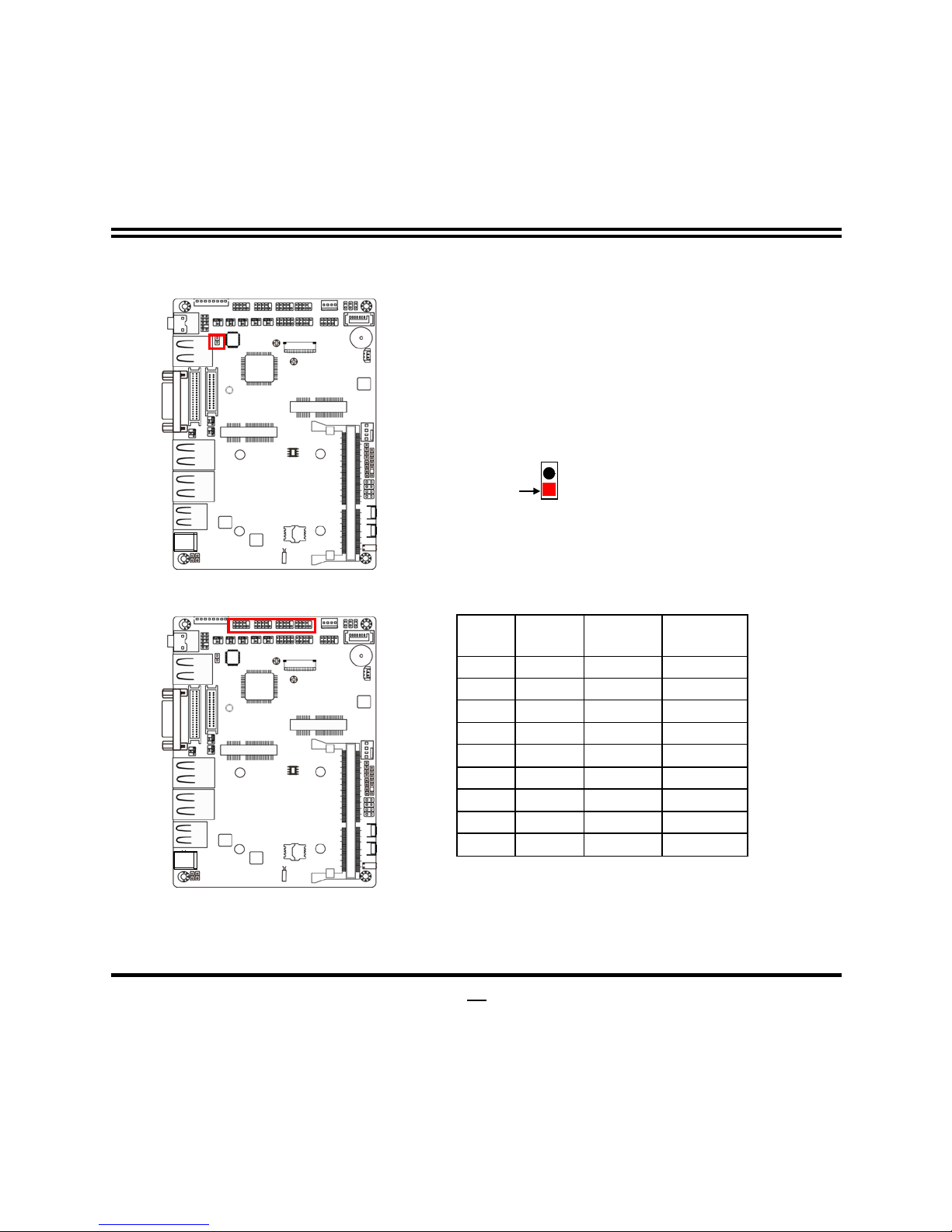

(2) SPDIFOUT (2-pin): SPDIF Out Header
Pin1
SPDIFOUT
GND
(3) COM4/3/2/1 (9-pin): Serial Port Headers
Pin NO.
RS232
*RS422
(for COM1)
*RS485
(for COM1)
Pin 1
DCD
TX-
DATA-
Pin 2
RXD
TX+
DATA+
Pin 3
TXD
RX+
NC
Pin 4
DTR
RX-
NC
Pin 5
GNG
GND
GND
Pin 6
DSR
NC
NC
Pin 7
RTS
NC
NC
Pin 8
CTS
NC
NC
Pin 9
RI
NC
NC
*Notice: RS422, RS485 function is supported by COM1 header only, with compatible
COM cable for RS422 or RS 485 function. User also needs to go to BIOS to set
‘Transmission Mode Select’ for COM1 (refer to Page 32).
Page 24
19
(4) GPIO (10-pin): GPIO Header
GPIO_80
GND
GPIO_82
GPIO_84
GPIO_86
GPIO_81
GPIO_83
2
Pin 1
VCC
GPIO_85
GPIO_87

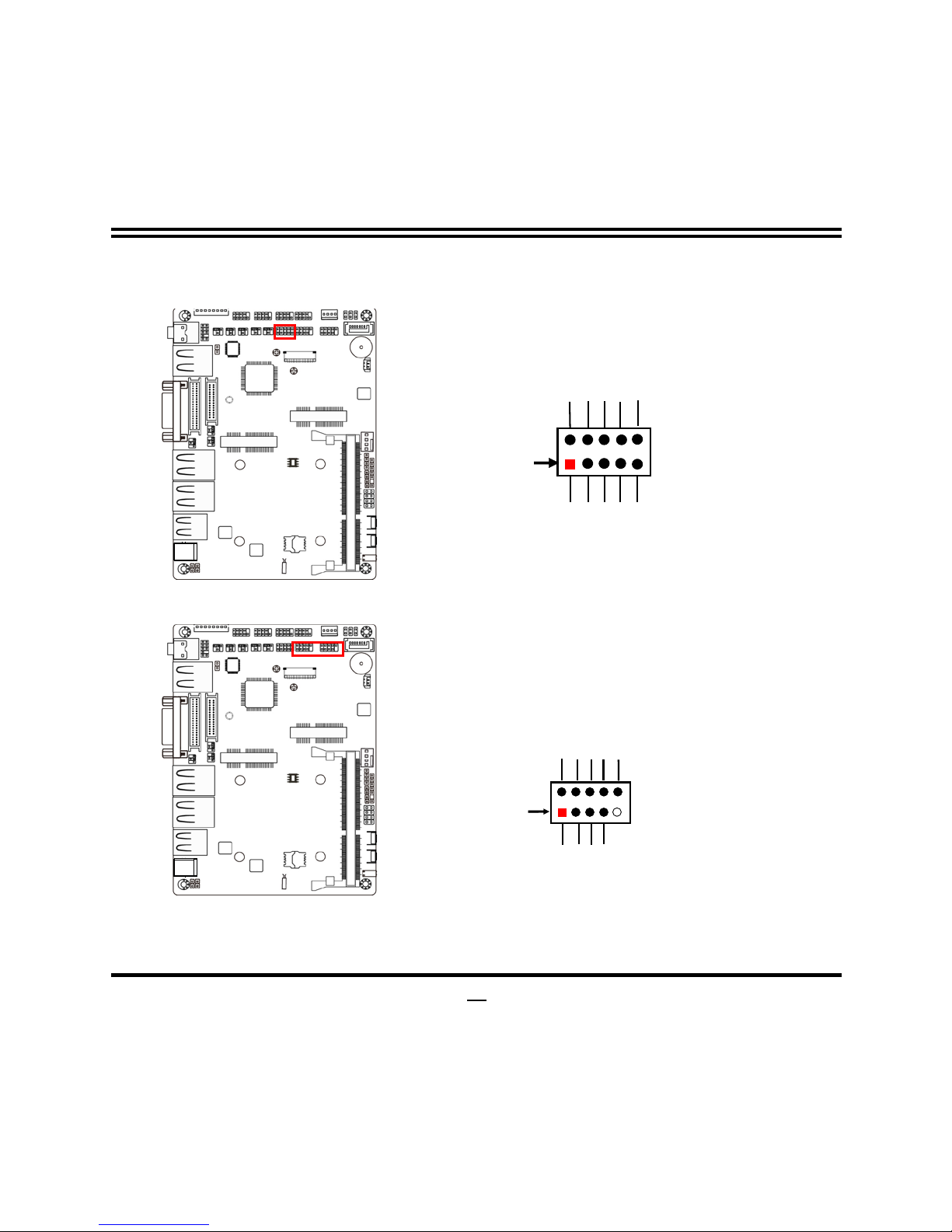

(5) USB2/USB4 (9-pin): USB 2.0 Port Header
Pin 1
VCC
-DATA
GND
+DATA
VCC
NC
-DATA
GND
+DATA
Page 25
20

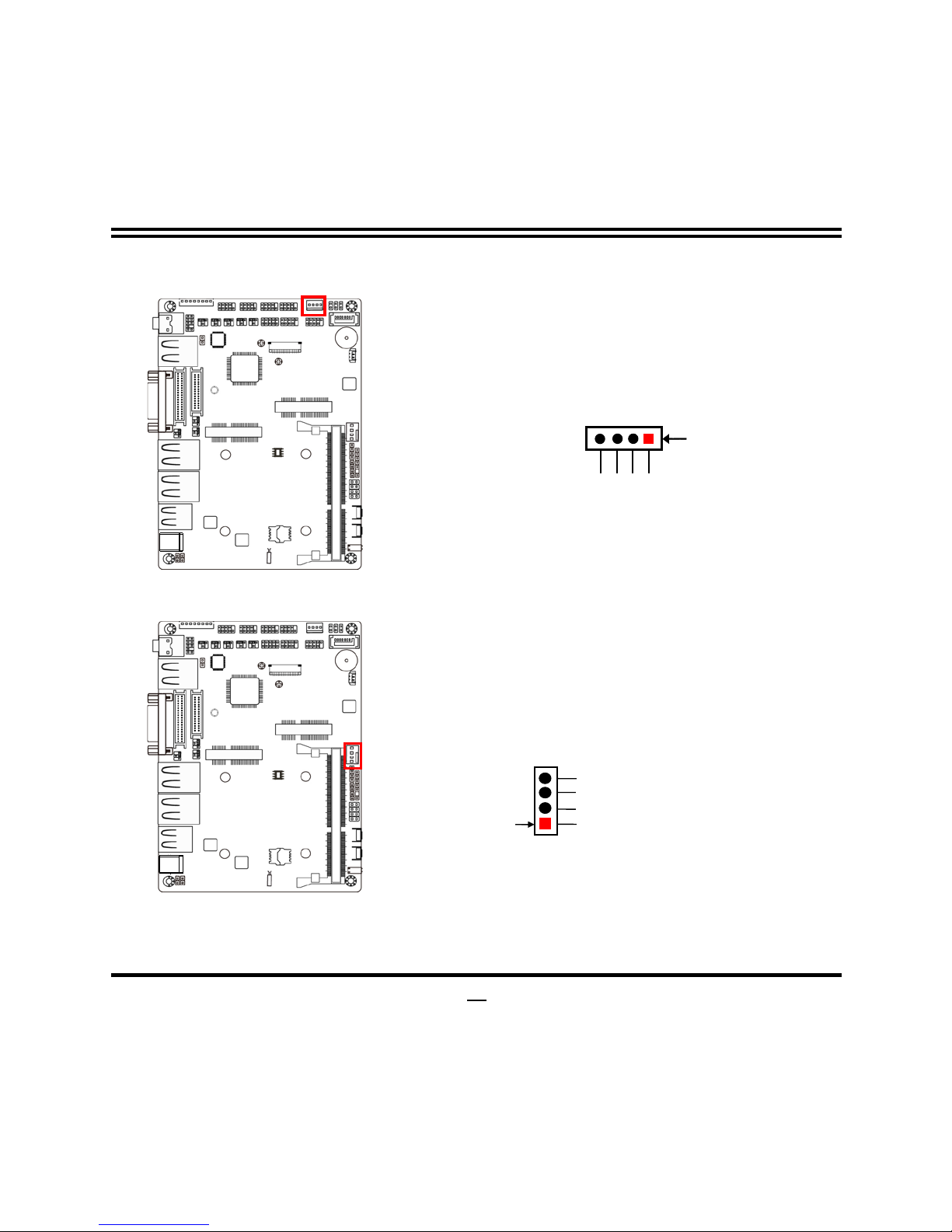

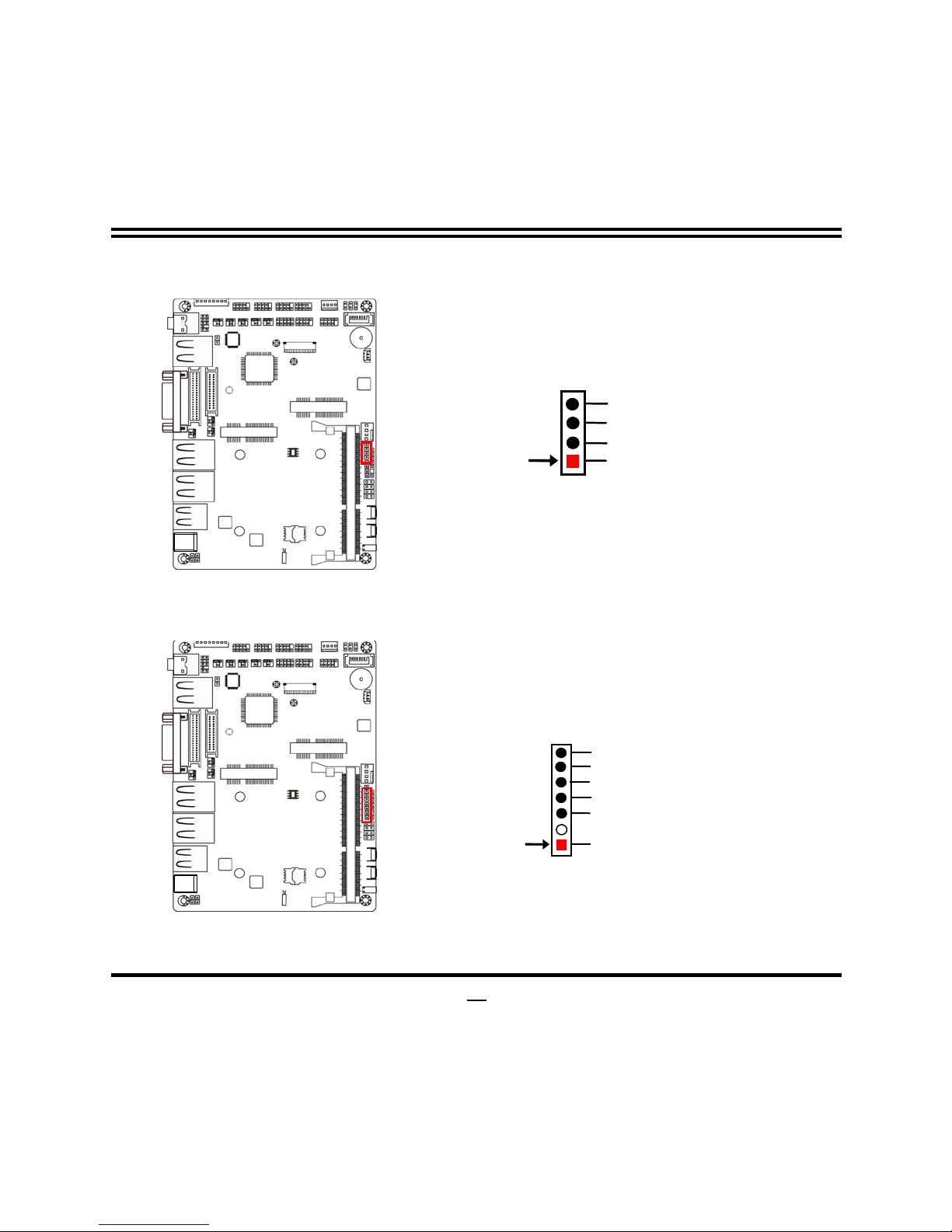

(6) SMBUS (4-Pin): SM BUS Header
Pin 1
SMBUS_DATA
GND
SMBUS_CLK
VCC
(7) PS2KBMS (6-pin): PS/2 Keyboard & Mouse Header
Pin 1
KB_DATA
GND
KB_CLK
VCC
MS_CLK
MS_DATA
Page 26
21

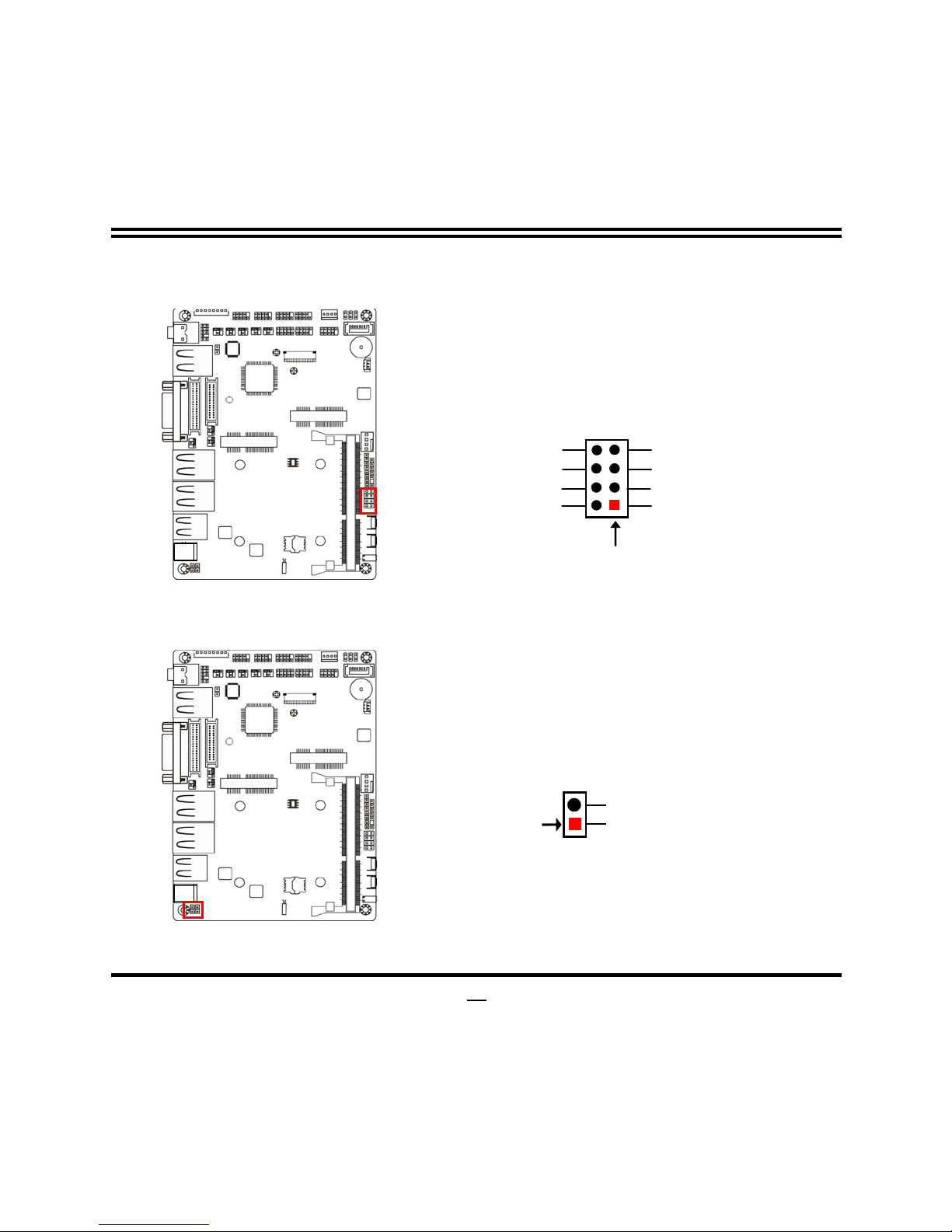

(8) FP: (8-pin) Front Panel Header
HDDLED+
GND
PWRLED+
GND
PWRLED -
HDDLED-
RSTSW
PWRBTN
Pin 1
2
(9)LAN1LED/LAN2LED (2-pin): LAN Activity LED Headers
LAN1LED/LAN2LED
Pin1
LED+
LED-
Page 27
22
(10) LVDS (30-pin): 24-bit Dual Channel LVDS Header
Pin 1
Pin2
Pin NO.
Pin Define
Pin NO.
Pin Define
Pin 1
LVDSB_DATAN3
Pin 2
LVDSB_DATAP3
Pin 3
LVDS_CLKBN
Pin 4
LVDS_CLKBP
Pin 5
LVDSB_DATAN2
Pin 6
LVDSB_DATAP2
Pin 7
LVDSB_DATAN1
Pin 8
LVDSB_DATAP1
Pin 9
LVDSB_DATAN0
Pin 10
LVDSB_DATAP0
Pin 11
NC/DDC_DATA
Pin 12
NC/DDC_CLK
Pin 13
GND
Pin 14
GND
Pin 15
GND
Pin 16
GND
Pin 17
LVDSA_DATAP3
Pin 18
LVDSA_DATAN3
Pin 19
LVDS_CLKAP
Pin 20
LVDS_CLKAN
Pin 21
LVDSA_DATAP2
Pin 22
LVDSA_DATAN2
Pin 23
LVDSA_DATAP1
Pin 24
LVDSA_DATAN1
Pin 25
LVDSA_DATAP0
Pin 26
LVDSA_DATAN0
Pin 27
PVCC
Pin 28
PVCC
Pin 29
PVCC
Pin 30
PVCC
Page 28
23
(10) eDP (40-pin): eDP Header
Pin 1
Pin21
Pin NO.
Pin Define
Pin NO.
Pin Define
Pin 1
NC
Pin 21
NC
Pin 2
GND
Pin 22
NC
Pin 3
Lane3_N
Pin 23
GND
Pin 4
Lane3_P
Pin 24
GND
Pin 5
GND
Pin 25
GND
Pin 6
Lane2_N
Pin 26
GND
Pin 7
Lane2_P
Pin 27
HPD
Pin 8
GND
Pin 28
GND
Pin 9
Lane1_N
Pin 29
GND
Pin 10
Lane1_P
Pin 30
GND
Pin 11
GND
Pin 31
GND
Pin 12
Lane0_N
Pin 32
BL_ENABLE
Pin 13
Lane0_P
Pin 33
BL_PWM_DIM
Pin 14
GND
Pin 34
NC
Pin 15
AUX_CH_P
Pin 35
NC
Pin 16
AUX_CH_N
Pin 36
BL_PWR
Pin 17
GND
Pin 37
BL_PWR
Pin 18
LCD_VCC
Pin 38
BL_PWR
Pin 19
LCD_VCC
Pin 39
BL_PWR
Pin 20
LCD_VCC
Pin 40
NC
Page 29
24
Chapter 3
Introducing BIOS
Notice! The BIOS options in this manual are for reference only. Different
configurations may lead to difference in BIOS screen and BIOS
screens in manual s ar e usu ally the first BIOS v ersi on when t he b oar d is
released and may be different from your purchased motherboard.
Users are welcome to download the latest BIOS version form our
official website.
The BIOS is a progra m loc ated on a Fl ash Me mory on the mother board. This pr ogr am
is a bridge between motherboard and operating system. When you start the computer,
the BIOS program will gain control. The BIOS first operates an auto-diagnostic test
called POST (power on self test) for all the necessary hardware, it detects the entire
hardware device and configures the parameters of the hardware synchronization.
Only when these tasks are completed done it gives up control of the computer to
operating system (OS). Since the BIOS is the only channel for hardware and software
to communicate, it is the key factor for system stability, and in ensuring that your
system performance as its best.
3-1 Entering Setup
Power on the comput er and by pressi ng < Del> immedi ately all ows you to ent er Set up.
If the message disappears before your respond and you still wish to enter Setup,
restart the system to try again by turning it OFF then ON or pressing the “RESET”
button on the system case. You may also restart by simultaneously pressing <Ctrl>,
<Alt> and <Delete> keys. If you do not press the keys at the correct time and the
system does not boot, an err or messag e w ill be display ed and y ou w ill again be as ked
to
Press <Del> to enter Setup; press < F7> for Popup Menu.
Page 30
25
3-2 BIOS Menu Screen
The following diagram show a general BIOS menu screen:
BIOS Menu Screen
Menu Bar
Menu Items
Current Setting Value
Function Keys
General Help Items
Page 31
26
3-3 Function Keys
In the above BIOS Setup main menu of, you can see several options. We will explain
these options step by step in the following pages of this chapter, but let us first see a
short description of the function keys you may use here:
Press←→ (left, right) to select screen;
Press ↑↓ (up, down) to choose, in the main menu, the option you want to confirm
or to modify.
Press <Enter> to select.
Press <+>/<–> keys when you want to modify the BIOS parameters for the active
option.
[F1]: General help.
[F2]: Previous value.
[F3]: Optimized defaults.
[F4]: Save & Exit.
Press <Esc> to quit the BIOS Setup.
3-4 Getti ng H elp
Main Menu
The on-line description of the highlighted setup function is displayed at the top right
corner the screen.
Status Page Setup Menu/Option Page Setup Menu
Press F1 to pop up a small help window that describes the appropriate keys to use
and the possible selections for the highlighted item. To exit the Help Window, press
<Esc>.
Page 32
27
3-5 Menu Bars
There are six menu bars on top of BIOS screen:
Main
To change system basic configuration
Advanced
To change system advanced configuration
Chipset
To change chipset configuration
Security
Password settings
Boot
To change boot settings
Save & Exit
Save setting, loading and exit options.
User can press the right or left arrow key on the keyboard to switch from menu bar.
The selected one is highlighted.
Page 33
28
3-6 Main Menu
Main menu screen includes some basic system information. Highlight the item and
then use the <+> or <-> and numerical keyboard keys to select the value you want in
each item.
System Date
Set the date. Please use [Tab] to switch between date elements.
System Time
Set the time. Please use [Tab] to switch between time elements.
Page 34
29
3-7 Advanced Menu
OS Selection
The optional settings: [Linux/Android]; [Windows 8.X]; [Windows 7].
In the case that OS selection is set as [Windows 7], XHCI & EHCI mode will be au to
configuration.
*Note: User need to go to this item to select the OS mode before installing
corresponding OS driver, otherwise problems will occur wh en ins tal l ing t he dr iv er .
ACPI Settings
Press [Enter] to make setti ng s for the fol l owing sub-item:
Page 35
30
ACPI Sleep State
Use this item to select the highest ACPI sleep state the system will enter when the
suspend button is pressed.
The optional settings are: [Suspend Disabled]; [S3 (Suspend to RAM)].
Wake-up Function Settings
Press [Enter] to make setti ng s for the fol l owing sub-items:
Wake-up System with Fixed Time
Use this item to enable or disable system wake on alarm event. When set as
[Enabled], system will wake on the hour/min/sec specified.
The optional settings: [Disabled]; [Enabled].
Wake System with Dynamic Time
Use this item to enable or disable system wake on alarm event. When set as
[Enabled], system will wake on the current time + increase minute(s).
The optional settings: [Disabled]; [Enabled].
PS2 KB/MS Wakeup
The optional settings: [Disabled]; [Enabled].
Use this item to enable or disable PS2 KB/MS wakeup from S3/S4/S5 state.
*Note: This item will only show when ‘ERP Support’ is set as [Disabled].
USB S3/S4 Wake-up
Use this item to enable or disable USB S3/S4 wake-up.
*Note: *This item will only show when ‘ERP Support’ is set as [Disabled].
USB S5 Power
Use this item to enable or disable USB power after system shutdown.
*Note: *This item will only show when ‘ERP Support’ is set as [Disabled].
Super I/O Configuration
Press [Enter] to make setti ng s for the fol l owing sub-items:
ERP Function
The optional settings: [Disable]; [Auto].
This item should be set as [Disabled] if you wish to have all active wake-up
functions.
Page 36
31
Serial Port 1 Configuration
Press [Enter] to make settings for the f oll owing items:
Serial Port
Use this item to enable or disable serial port (COM).
Change Settings
Use this item to select an optimal setting for super IO device.
The optional settings are: [Auto]; [IO=3F8h; IRQ=4;]; [IO=3F8h;
IRQ=3,4,5,6,7,9,10,11]; [IO=2F8h; IRQ=3,4,5,6,7,9,10,11]; [IO=3E8h;
IRQ=3,4,5,6,7,9,10,11]; [IO=2E8h; IRQ=3,4,5,6,7,9,10,11].
Transmission Mode Select
The optional settings are: [RS422]; [RS232]; [RS485].
Mode Speed Select
The optional settings are: [RS232/RS422/RS485=250kbps]; [RS232=1Mbps,
RS422/RS485=10Mbps].
Serial Port FIFO Mode
The optional settings are: [16-Byte FIFO]; [32-Byte FIFO]; [64-Byte FIFO];
[128-Byte FIFO].
Serial Port 2 Configuration
Press [Enter] to make settings for the f oll owing items:
Serial Port
Use this item to enable or disable serial port (COM).
Change Settings
Use this item to select an optimal setting for super IO device.
The optional settings are: [Auto]; [IO=2F8h; IRQ=3;]; [IO=3F8h;
IRQ=3,4,5,6,7,9,10,11]; [IO=2F8h; IRQ=3,4,5,6,7,9,10,11]; [IO=3E8h;
IRQ=3,4,5,6,7,9,10,11]; [IO=2E8h; IRQ=3,4,5,6,7,9,10,11].
Serial Port FIFO Mode
The optional settings are: [16-Byte FIFO]; [32-Byte FIFO]; [64-Byte FIFO];
[128-Byte FIFO].
Page 37
32
Serial Port 3 Configuration
Press [Enter] to make settings for the f oll owing items:
Serial Port
Use this item to enable or disable serial port (COM).
Change Settings
Use this item to select an optimal setting for super IO device.
The optional settings are: [Auto]; [IO=3E8h; IRQ=10;]; [IO=3F8h;
IRQ=3,4,5,6,7,9,10,11]; [IO=2F8h; IRQ=3,4,5,6,7,9,10,11]; [IO=3E8h;
IRQ=3,4,5,6,7,9,10,11]; [IO=2E8h; IRQ=3,4,5,6,7,9,10,11]; [IO=3E0h;
IRQ=3,4,5,6,7,9,10,11]; [IO=2E0h; IRQ=3,4,5,6,7,9,10,11].
Serial Port FIFO Mode
The optional settings are: [16-Byte FIFO]; [32-Byte FIFO]; [64-Byte FIFO];
[128-Byte FIFO].
Serial Port 4 Configuration
Press [Enter] to make settings for the f oll owing items:
Serial Port
Use this item to enable or disable serial port (COM).
Change Settings
Use this item to select an optimal setting for super IO device.
The optional settings are: [Auto]; [IO=2E8h; IRQ=10;]; [IO=3F8h;
IRQ=3,4,5,6,7,9,10,11]; [IO=2F8h; IRQ=3,4,5,6,7,9,10,11]; [IO=3E8h;
IRQ=3,4,5,6,7,9,10,11]; [IO=2E8h; IRQ=3,4,5,6,7,9,10,11]; [IO=3E0h;
IRQ=3,4,5,6,7,9,10,11]; [IO=2E0h; IRQ=3,4,5,6,7,9,10,11].
Serial Port FIFO Mode
The optional settings are: [16-Byte FIFO]; [32-Byte FIFO]; [64-Byte FIFO];
[128-Byte FIFO].
OS Select For Serial Port
Use this item to select serial port support for Windows or Linux .
The optional settings: [Windows]; [Lunix].
WatchDog Timer
Use this item to enable or disable WatchDog Timer Control. When set as
Page 38
33
[Enabled], the following sub-items shall appear:
WatchDog Timer Value
User can set a value in the range of 4 to 255.
WatchDog Timer Unit
The optional settings are: [Sec.]; [Min.].
WatchDog Wake-up Timer in ERP
This item support WDT wake-up while ERP function is set as [Auto].
The optional settings are: [Disabled]; [Enabled].
When set as [Enabled], the following sub-items shall appear:
WatchDog Timer Value in ERP
User can set a value in the range of [10] to [4095] seconds, or [1] to [4095]
minutes.
WatchDog Timer Unit
The optional settings are: [Sec.]; [Min.].
ATX Power Emulate AT Power
This item support Emulate AT power function, MB power On/Off control by power
supply. Use needs to select ‘AT or ATX M o de ’ on MB jumper at first (ATX Mode &
AT Mode Select).
Case Open Detect
This item controls detect case open function.
The optional settings are: [Disabled]; [Enabled].
PC Health Status
Press [Enter] to view current hardware health status & make further settings in
‘Smart Configuration’.
SmartFan Configuration
Press [Enter] to make setti ng s for S martFan Configuration:
CPU Fan Type
The optional settings are: [4-Pin]; [3-Pin].
CPUFAN Smart Mode
Page 39
34
The optional settings are: [Disabled]; [Enabled].
When set as [Enabled], the following sub-items shall appear:
CPUFAN Full-Speed Temperature
Use this item to set CPUFAN full speed temperature. Fan wil l r un at ful l spe ed
when above the pre-set temperature.
CPUFAN Full-Speed Duty
Use this ite m to set CPUFAN full speed duty. Fan will run at full speed when
above the pre-set duty.
CPUFAN Idle-Speed Temperature
Use this item to set CPUFAN idle speed temperature. Fan will run at idle
speed when below the pre-set temperature.
CPUFAN Idle-Speed Duty
Use this item to set CPUFAN idle speed duty. Fan will run at idle speed when
below the pre-set duty.
Shutdown Temperature Configuration
Use this item to select system shutdown temperature.
The optional settings are: [Disabled]; [70o C/158 o F]; [75 o C/167 o F]; [80 o C/176 o
F]; [85 o C/185 o F].
Serial Port Consol Redirection
Press [Enter] to make setti ng s for serial port redirection settings:
COM1
Console Redirection
The optional settings are: [Disabled]; [Enabled].
When set as [Enabled], user can make further settings in:
Console Redirection Settings
The settings specify how the host computer and the remote computer (which the
user is using) will exchange data. Both computers should have the same or
compatible settings.
Press [Enter] to make setti ng s for the fol l owing sub-items.
Terminal Type
Page 40
35
The optional settings are: [VT100]; [VT100+]; [VT-UTF8]; [ANSI].
Bits per second
The optional settings are: [9600]; [19200]; [38400]; [57600]; [115200].
Data Bits
The optional settings are: [7]; [8].
Parity
The optional settings are: [None]; [Even]; [Odd]; [Mark]; [Space].
Stop Bits
The optional settings are: [1]; [2].
Flow Control
The optional settings are: [None]; [Hardware RTS/CTS].
VT-UTF8 Combo Key Support
The optional settings are: [Disabled]; [Enabled].
Recorder Mode
The optional settings are: [Disabled]; [Enabled].
Resolution 100x31
The optional settings are: [Disabled]; [Enabled].
Legacy OS Redirection Resolution
The optional settings are: [80x24]; [80x25].
Putty Keypad
The optional settings are: [VT100]; [LINUX]; [XTERMR6]; [SCO]; [ESCN];
[VT400].
Redirection After BIOS POST
The optional settings are: [Always Enable]; [BootLoader].
Legacy Console Redirection
Legacy Console Redirection Settings
The settings specify how the host computer and the remote computer (which the
user is using) will exchange data. Both computers should have the same or
compatible settings.
Press [Enter] to s elect a C OM port to display redirec tiojn o f Legacy OS and Legacy
OPROM Messages.
Page 41
36
The optional setting is: [COM1].
Serial Port for Out-of-Band Management/
Windows Emergency Management Services (EMS)
Console Redirection
The optional settings are: [Disabled]; [Enabled].
When set as [Enabled], user can make further settings in ‘Cons ol e R edi r ecti on
Settings’:
Console Redirection Settings
The settings specify how the host computer and the remote computer (which the
user is using) will exchange data. Both computers should have the same or
compatible settings.
Press [Enter] to make setti ng s for the fol l owing sub-items.
Out-of-Band Mgmt Port
This item may or may not show up, depending on different configuration.
Terminal Type
The optional settings are: [VT100]; [VT100+]; [VT-UTF8]; [ANSI].
Bits per second
The optional settings are: [9600]; [19200]; [57600]; [115200].
Flow Control
The optional settings are: [None]; [Hardware RTS/CTS]; [Software Xon/Xoff].
Data Bits
The default setting is: [8].
*This item may or may not show up, depending on different configuration.
Parity
The default setting is: [None].
*This item may or may not show up, depending on different configuration.
Stop Bits
The default setting is: [1].
*This item may or may not show up, depending on different configuration.
CPU Configuration
Page 42
37
Press [Enter] to view cur rent CPU con figurati on and make setting s for the followi ng
sub-items:
Limit CPUID Maximum
The optional settings: [Disabled]; [Enabled].
This item should be set as [Disabled] for Windows XP.
Execute Disable Bit
The optional settings: [Disabled]; [Enabled].
Hardware Prefetcher
The optional settings are: [Disabled]; [Enabled].
Use this item to turn on/off the Mid Level Cache (L2) streamer prefetcher.
Adjacent Cache Line Prefetch
The optional settings are: [Disabled]; [Enabled].
Use this item to turn on/off prefetching of adjacent cache lines.
Intel Virtualization Technology
The optional settings: [Disabled]; [Enabled].
When set as [Enabled], a VMM can utilize the additional hardware capabilities
provided by Vanderpool Technology.
EIST
The optional settings: [Disabled]; [Enabled].
Use this item to enable or disable Intel SpeedStep.
SATA Configuration
Press [Enter] to make setti ng s for the fol l owing sub-items:
SATA Configuration
SATA Port
The optional settings: [Enabled]; [Disabled].
SATA Mode
The optional settings are: [IDE Mode]; [AHCI Mode].
SATA Speed Support
The item is for user to set the maximum speed the SATA controller can support.
The optional settings are: [Gen1]; [Gen2].
SATA Port
Page 43
38
The optional settings are: [Enabled]; [Disabled].
mSATA
The optional settings are: [Enabled]; [Disabled].
Network Stack Configuration
Press [Enter] to go to ‘Network Stack’ screen to make further settings.
Network Stack
The optional settings are: [Disabled]; [Enabled].
When set as [Enabled], the following sub-items shall appear:
Ipv4 PXE Support
The optional settings are: [Disabled]; [Enabled].
Use this item to enable Ipv4 PXE Boot Support. When set as [Disabled], Ipv4 boot
optional will not be created.
Ipv6 PXE Support
The optional settings are: [Disabled]; [Enabled].
Use this item to enable Ipv6 PXE Boot Support. When set as [Disabled], Ipv4 boot
optional will not be created.
PXE boot wait time
Use this item to set wait time to press [ESC] key to abort the PXE boot.
CSM Configuration
Press [Enter] to make settings for the f oll owing sub-items:
Option ROM execution order
Network
This item controls the execution of UEFI and legacy PXE OpROM.
The optional settings are: [Do not launch]; [UEFI only]; [Legacy only].
Storage
This item controls the execution of UE FI and Legacy Storage OpROM.
The optional settings are: [Do not l a unc h ]; [UEFI only]; [Leg acy only]; [Legacy first];
[UEFI first].
Other PCI devices
This item determines OpROM execution policy for devices other than Network,
storage or video.
Page 44
39
The optional settings are: [UEFI first]; [Legacy Only].
USB Configuration
Press [Enter] to make setti ng s for the fol l owing sub-items:
USB Configuration
Legacy USB Support
The optional settings are: [Enabled]; [Disabled]; [Auto].
[Enabled]: To enable legacy USB support.
[Disabled]: To keep USB devices available only for EFI specification,
[Auto]: To disable legacy support if no USB devices are connected.
XHCI Hand-off
This is a workaround for OSes without XHCI hand-off support. The XHCI
ownership change should be claimed by XHCI driver.
The optional settings are: [Enabled]; [Disabled].
EHCI Hand-off
This is a workaround for OSes without EHCI hand-off support. The EHCI
ownership change should be claimed by EHCI driver.
The optional settings are: [Disabled]; [Enabled].
USB Mass Storage Driver Support
The optional settings are: [Disabled]; [Enabled].
USB hardware delay and time-outs:
USB Transfer time-out
Use this item to set the time-out value for Control, Bulk, and Interrupt transfers.
The optional settings are: [1 sec]; [5 sec]; [10 sec]; [20 sec].
Device reset time-out
Use this item to set USB mass storage device Start Unit command time-out.
The optional settings are: [10 sec]; [20 sec]; [30 sec]; [40 sec].
Device power-up delay
Use this item to set maximum time the device will take before it properly reports
itself to the host c ontr o l ler . ‘Aut o’ us es default value: for a r o ot p or t i t i s 100 ms, for
a hub port the delay is taken from hub descriptor.
The optional settings: [Auto]; [Manual].
Page 45
40
Select [Manual] you can set value for the following sub-item: ‘Device Power-up
delay in seconds’.
Device Power-up delay in seconds
The delay range is from 1 to 40 seconds, in one second increments.
Reltek PCIe GBE Family Control ler (MAC:XX:XX:XX:XX:XX:XX)
Use this item to get driver information and configure Realtek ethernet controller
parameter.
Reltek PCIe GBE Family Control ler (MAC:XX:XX:XX:XX:XX:XX)
Use this item to get driver information and configure Realtek ethernet controller
parameter.
3-8 Chipset Menu
Page 46
41
North Bridge
Press [Enter] to view current using memory information and make settings for the
following sub-items:
Intel IGD Configuration
PAVC
Use this item to enable or disable Protected Audio Video control.
The optional settings are: [Disabled]; [LITE Mode]; [SERPENT Mode].
DVMT Pre-Allocated
Use this item to select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size
used by the Internal Graphics Device.
The optional settings are: [64M]; [96M]; [128M]; [160M]; [192M]; [224M]; [256M];
[288M]; [320M]; [352M]; [384M]; [416M]; [448M]; [480M]; [512M].
DVMT Total Gfx Mem
Use this item to select DVMT 5.0 Total Graphics Memory size used by the Internal
Graphics Device.
The optional settings are: [128M]; [256M]; [MAX].
Aperture Size
The optional settings are: [128MB]; [256MB]; [512MB].
GTT Size
The optional settings are: [1MB]; [2MB].
IGD Turbo Enable
The optional settings are: [Enabled]; [Disabled].
Spread Spectrum Clock
The optional settings are: [Enabled]; [Disabled].
IGD Boot Type
Use this item to select preference display interface used when system boot.
The optional settings are: [CRT]; [eDP+CRT]; [LVDS+CRT].
*Note: In the case that ‘IGD Boot Type’ is set as [LVDS+CRT], user can make
further settings in ‘LVDS Panel Type’
LVDS Panel Type
Use this item to select LVDS panel resolution.
Page 47
42
The optional setting are: [800 x 480 24bit Single]; [800x 600 18bit Single]; ; [800x
600 24bit Single]; [1024 x 600 18bit Single]; [1024 x 768 18bit Single]; [1024 x 768
24bit Single]; [1280 x 768 24bit Single]; [1280 x 800 18bit Single]; [1280 x 800
24bit Single]; [1366 x 768 18bit Single]; [1366 x 768 24bit Single]; [1440 x 900
18bit Dual]; [1440 x 900 24bit Dual]; [1280 x 1024 24bit Dual]; [1680 x 1050 24bit
Dual]; [1920 x 1080 24bit Dual].
South Bridge
Press [Enter] to further setting USB device configuration.
USB Configuration
Press [Enter] to make setti ng s for the fol l owing sub-items:
USB Configuration
USB 3.0 Support
The optional settings are: [Enabled]; [Disabled]; [A uto]; [Smart Auto].
USB 3.0 Link Power Management
The optional settings are: [Enabled]; [Disabled].
USB 2.0 Support
The optional settings are: [Auto]; [Disabled].
*Note: ‘USB 2.0 Support’ is only applicable when ‘USB 3.0 Support’ is set as
‘Disabled’.
Audio Controller
Use this item to control detection of the Azalia device.
The optional settings are: [Disabled]; [Enabled].
[Disabled]: Azalia will be unconditionally disabled;
[Enabled]: Azalia will be unconditionally enabled;
MMPE Slot Speed
The optional settings are: [Auto]; [Gen2]; [ Gen1].
MPE Controller
The optional settings are: [Enabled]; [Disabled].
Speed
The optional settings are: [Auto]; [Gen2]; [ Gen1].
Page 48
43
Onboard Lan1 Controller
The optional settings are: [Enabled]; [Disabled].
Onboard Lan2 Controller
The optional settings are: [Enabled]; [Disabled].
System State after Power Failure
Use this item to select AC power state when power is re-applied after a power
failure. The optional set tings are: [Always Off]; [Always On]; [Former State].
3-9 Security Menu
Security menu allow users to change administrator password and user password
settings.
Page 49
44
3-10 Boot Menu
Boot Configuration
Setup Prompt Timeout
Use this item to set number of seconds to wait for setup activation key.
Bootup Numlock State
Use this item to select keyboard numlock state.
The optional settings are: [On]; [Off].
Quiet Boot
The optional settings are: [Disabled]; [Enabled].
Page 50
45
Boot Option Priorities
Boot Option
The optional settings are: [UEFI: Built-in EFI Shell]; [Disabled].
3-11 Save & Exit Menu
Save Changes and Reset
This item allows user to reset the system after saving the changes.
Page 51
46
Discard Changes and Reset
This item allows user to reset the system without saving any changes.
Restore Defaults
Use this item to restore /load default values for all the setup options.
Save as User Defaults
Use this item to save the changes done so far as user defaults.
Restore User Defaults
Use this item to restore defaults to all the setup options.
Boot Override
UEFI: Built-in EFI Shell
Press this item and a dialogue box shall appear to ask if user wish to save
configuration and reset.
Lauch EFI Shell from filesystem device
Use this item to launch EFI shell application (shell.efi) from one of the available
filesystem device.
Reset System with TXE disable Mode
Press [Enter] for TXE to run into the temporary disable mode. Ignore if TXE Igni tion
FW.
Loading...
