JETWAY NC9E-F, NC9E Technical Manual
TECHNICAL MANUAL
Of
Intel Pine Trail D & NM10 Chipset
Based
Mini-ITX M/B for ATOM Processor
NO. G03-NC9E-F
Revision: 1.0
Release date: February, 2012
Trademark:
* Specifications and Information contained in this docume ntation ar e furnishe d for inf ormation us e only , and ar e
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
i
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.
ii
ENVIRONMENTAL SAFETY INSTRUCTION...........................................................................iii
USER’S NOTICE .......................................................................................................................iv
MANUAL REVISION INFORMATION.......................................................................................iv
ITEM CHECKLIST.....................................................................................................................iv
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD................................................................................1
1-2 SPECIFICATION.........................................................................................................2
1-3 LAYOUT DIAGRAM....................................................................................................3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING.....................................................................................................8
2-2 CONNECTORS AND HEADERS................................................................................12
2-2-1 CONNECTORS .............................................................................................12
2-2-2 HEADERS .....................................................................................................13
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERNING SETUP...................................................................................................23
3-2 GETTING HELP ..........................................................................................................23

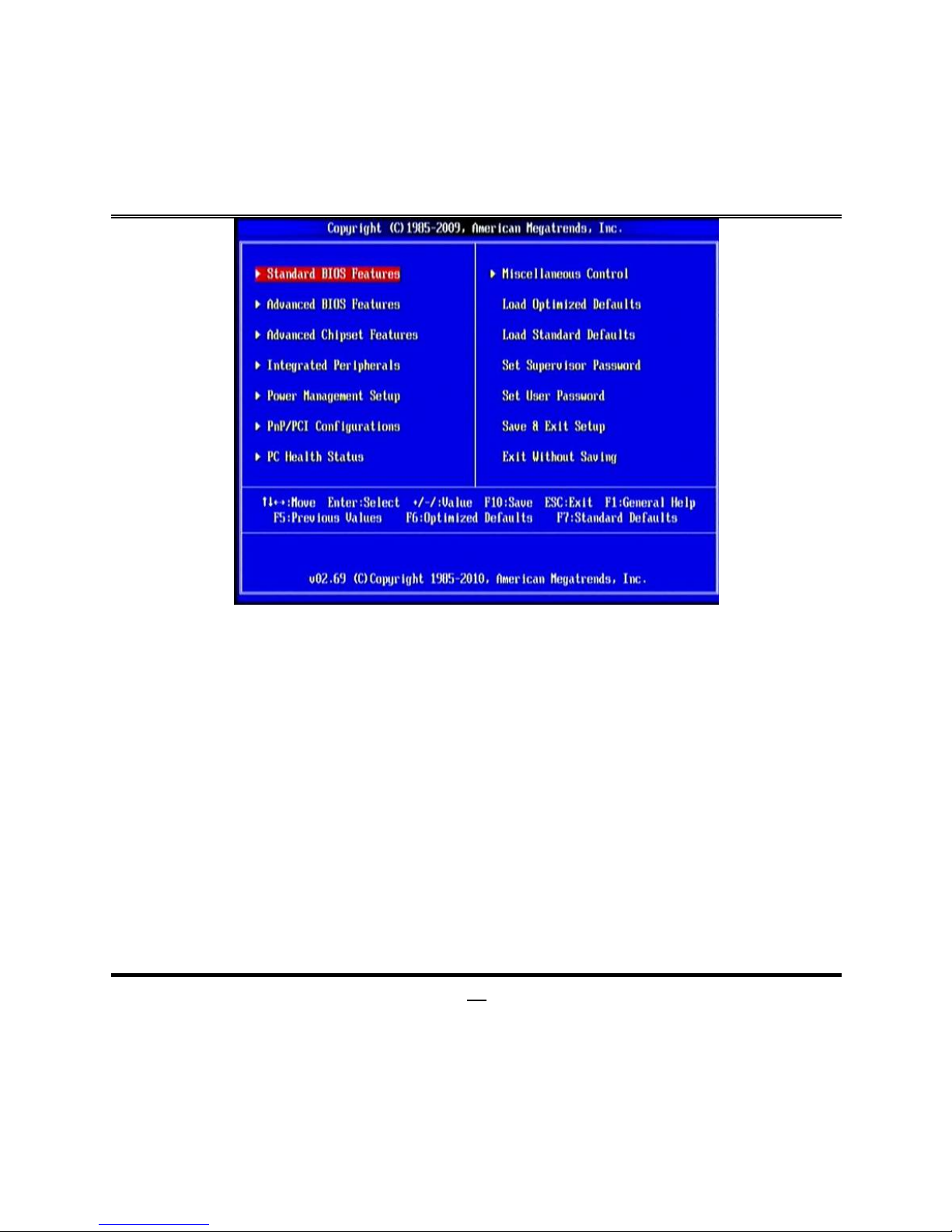

3-3 THE MAIN MENU........................................................................................................23

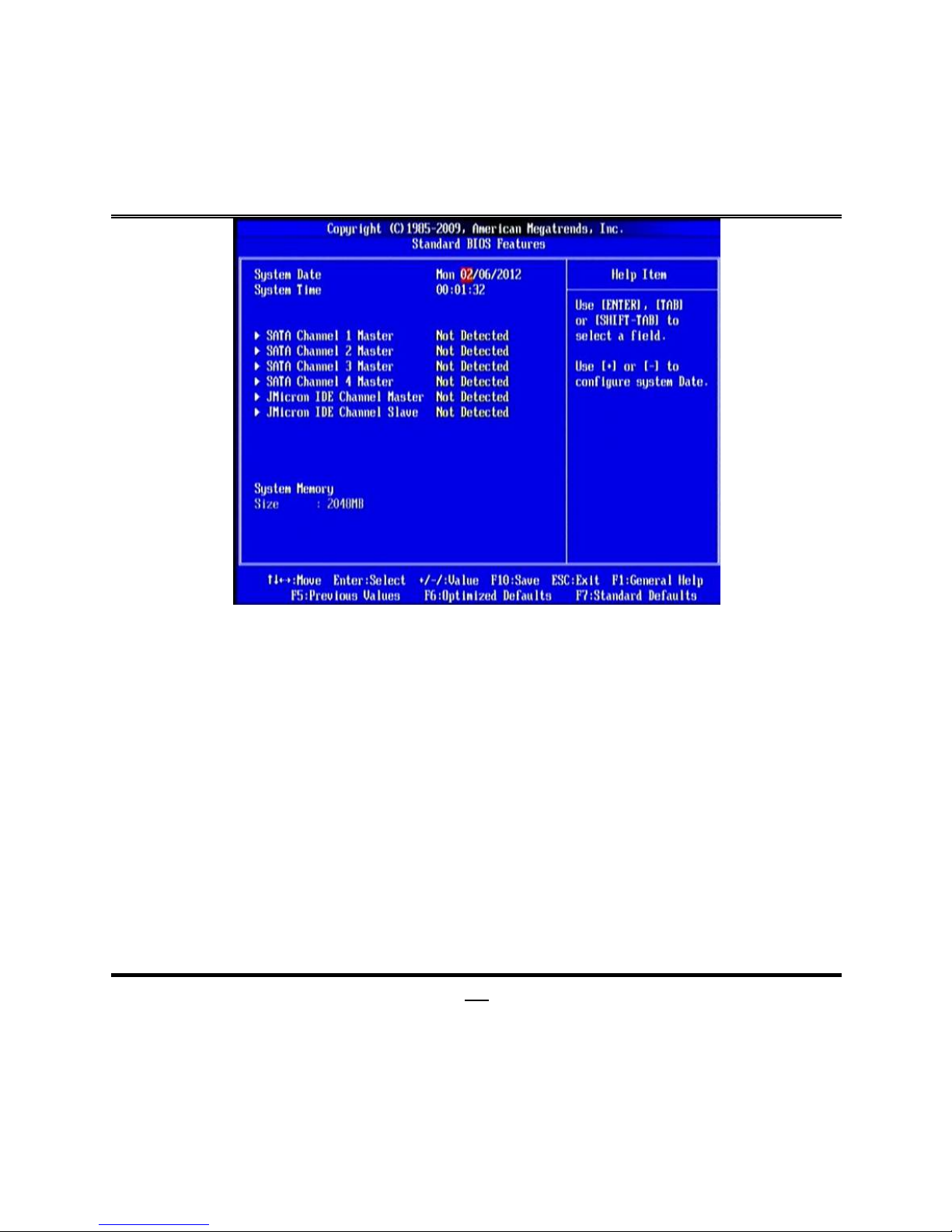

3-4 STANDARD BIOS FEATURES ..................................................................................25

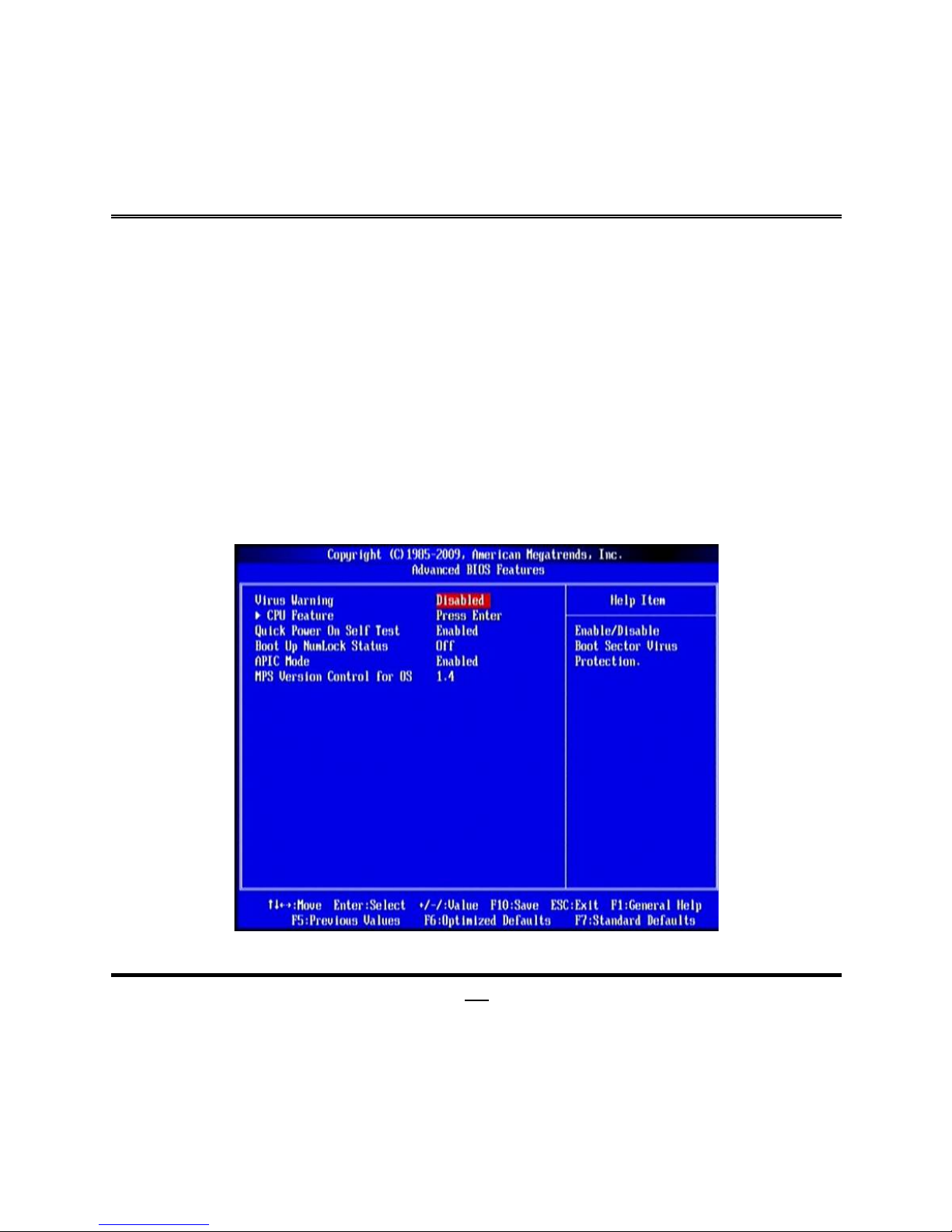

3-5 ADVANCED BIOS FEATURES..................................................................................27

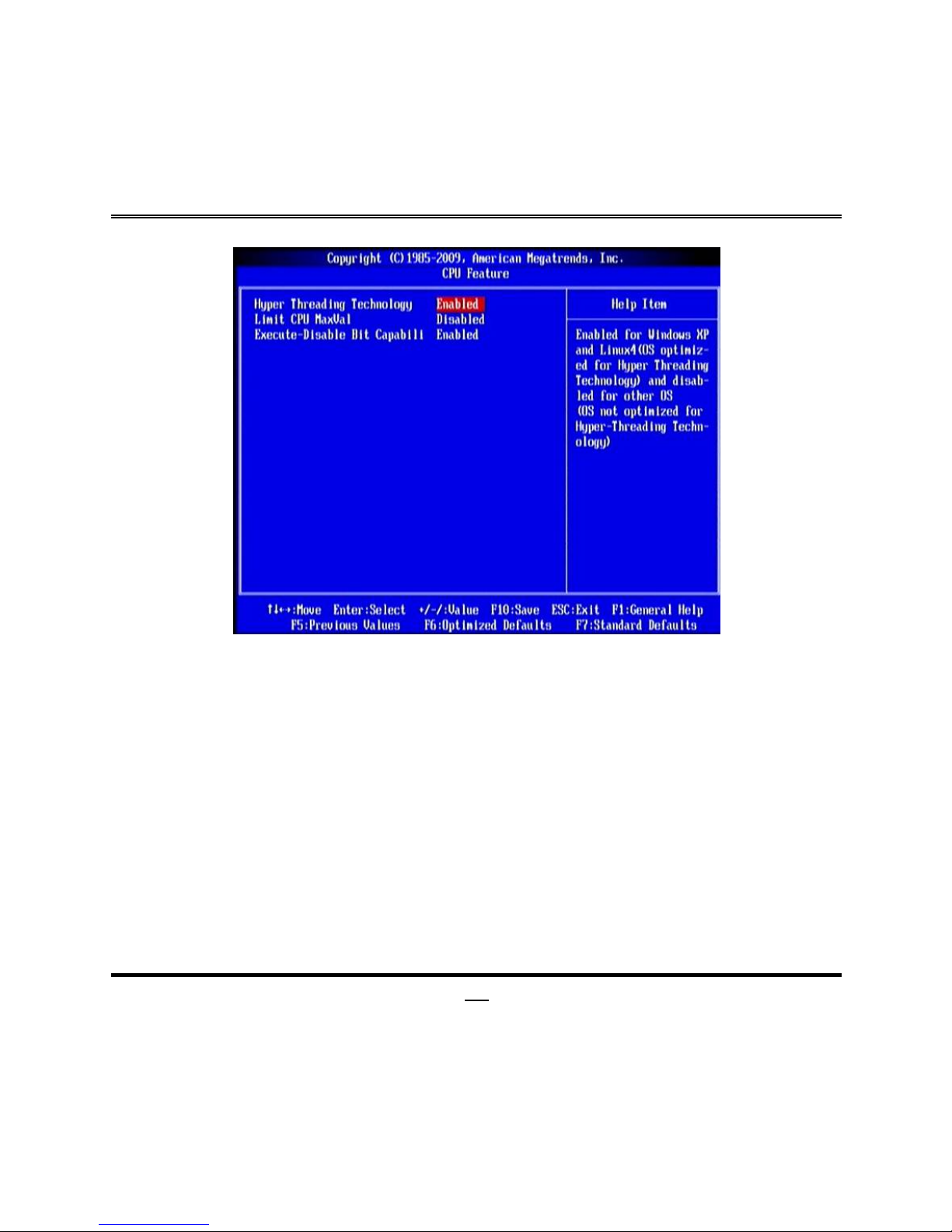

3-5-1 CPU FEATURE...............................................................................................29

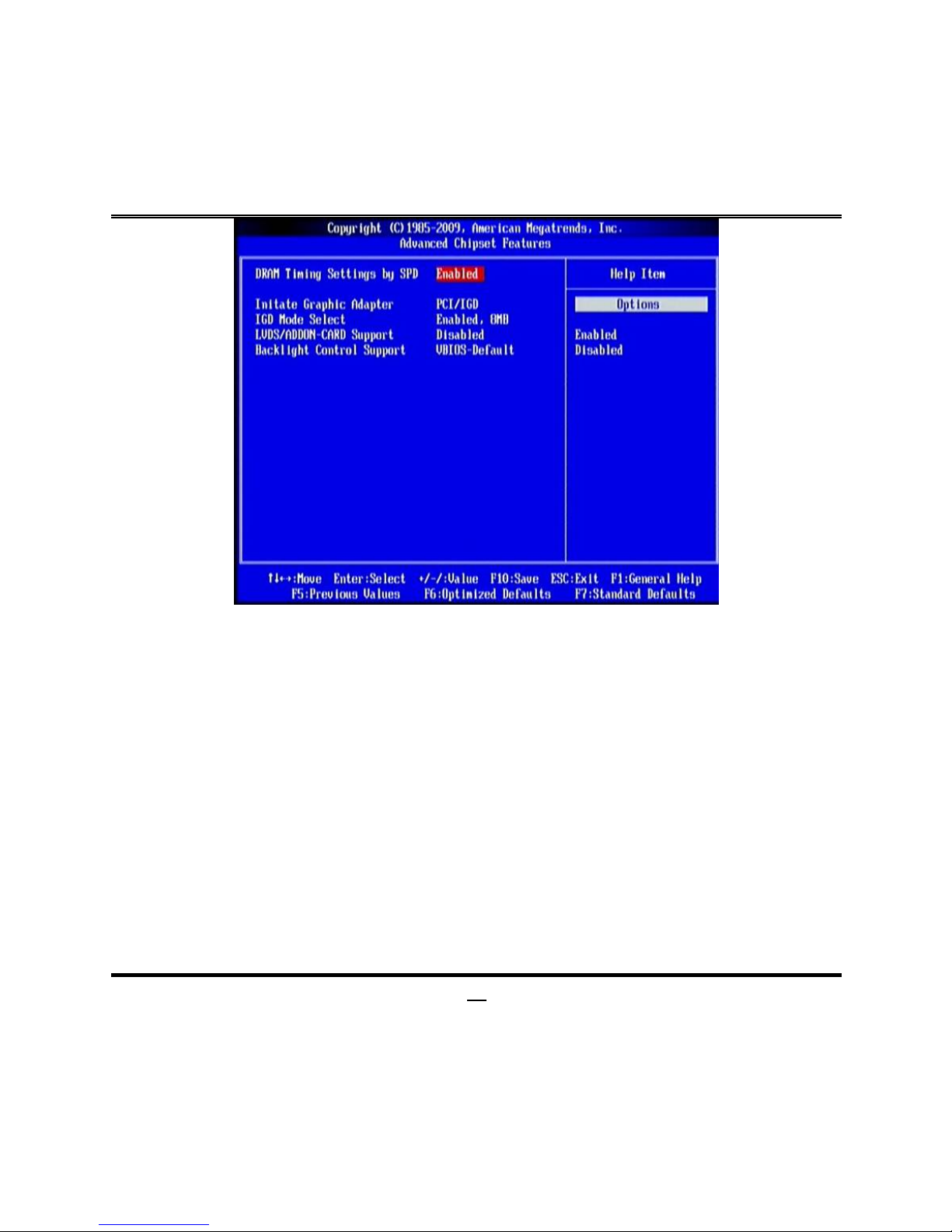

3-6 ADVANCED CHIPSET FEATURES...........................................................................29

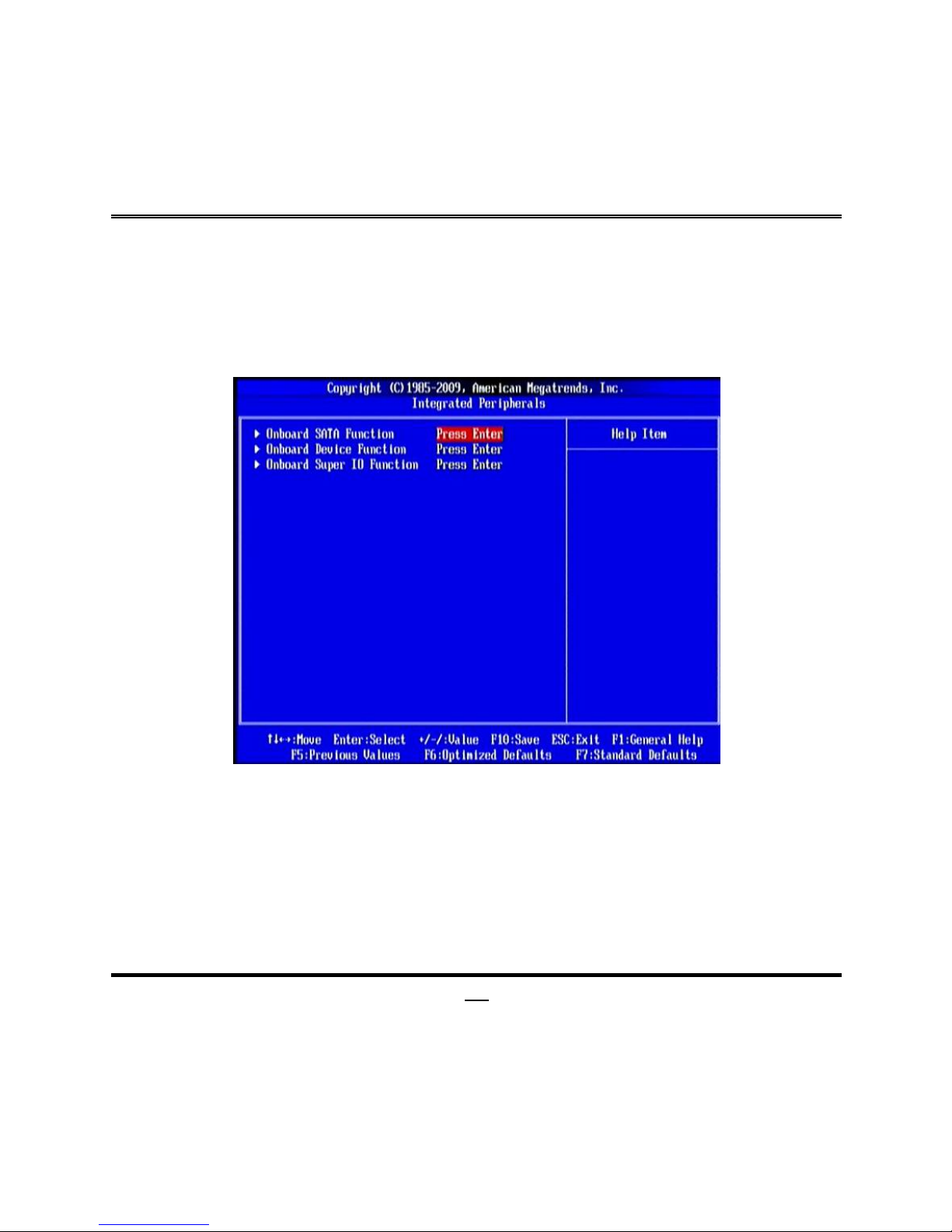

3-7 INTEGRATED PHERIPHRALS ..................................................................................31

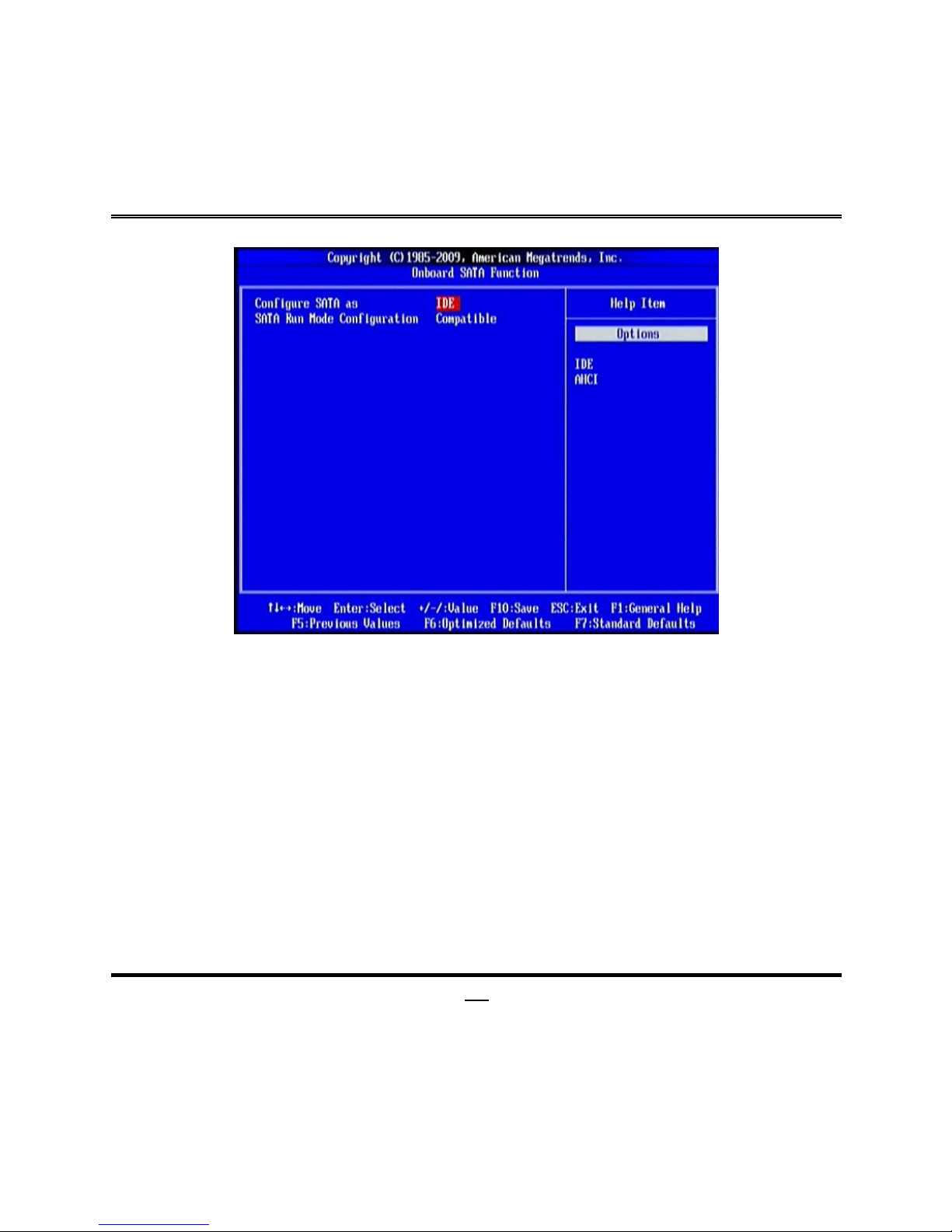

3-7-1 ONBOARD SATA FUNCTION ........................................................................32

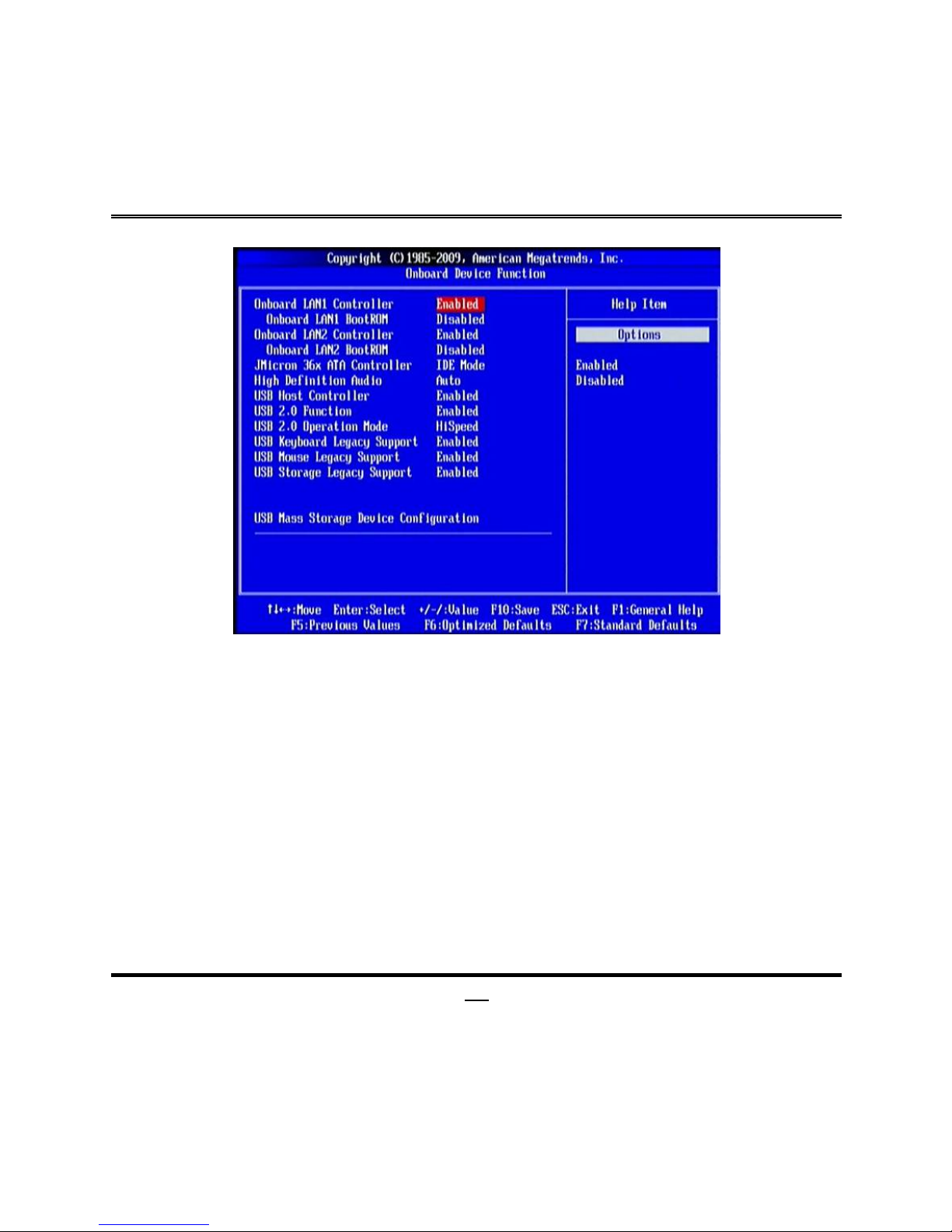

3-7-2 ONBOARD DEVICE FUNCTION.....................................................................33

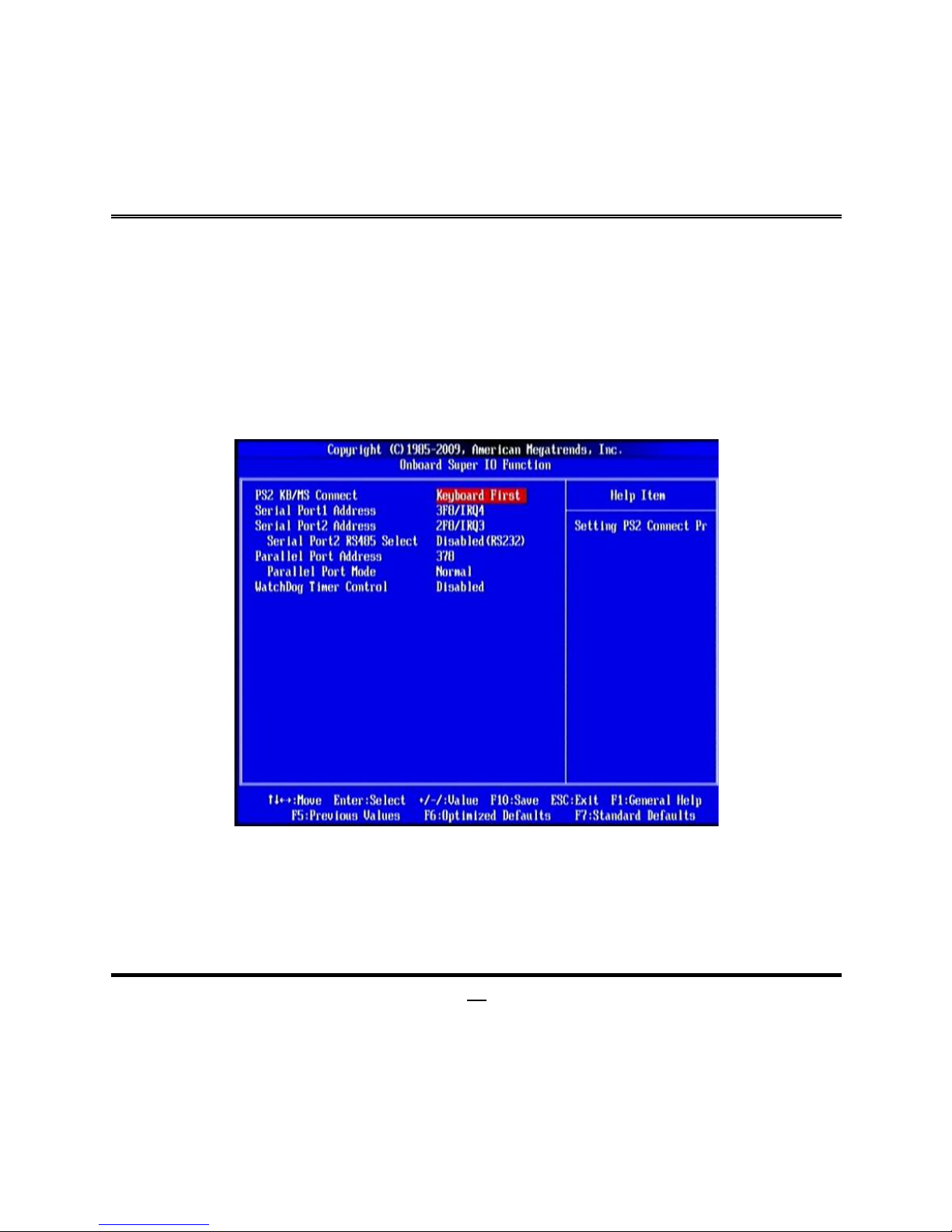

3-7-3 ONBOARD SUPER IO FUNCTION.................................................................34

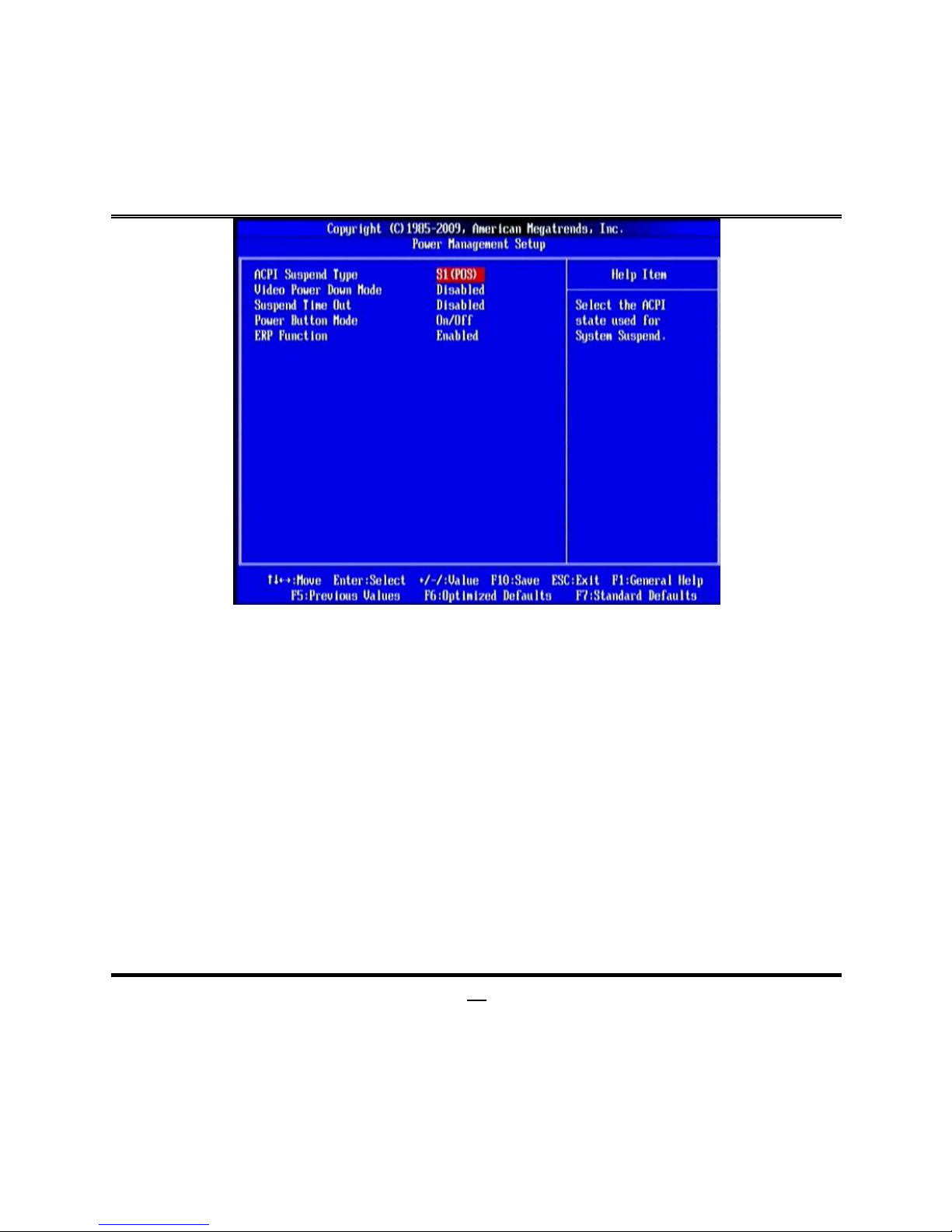

3-8 POWER MANAGEMENT SETUP...............................................................................35

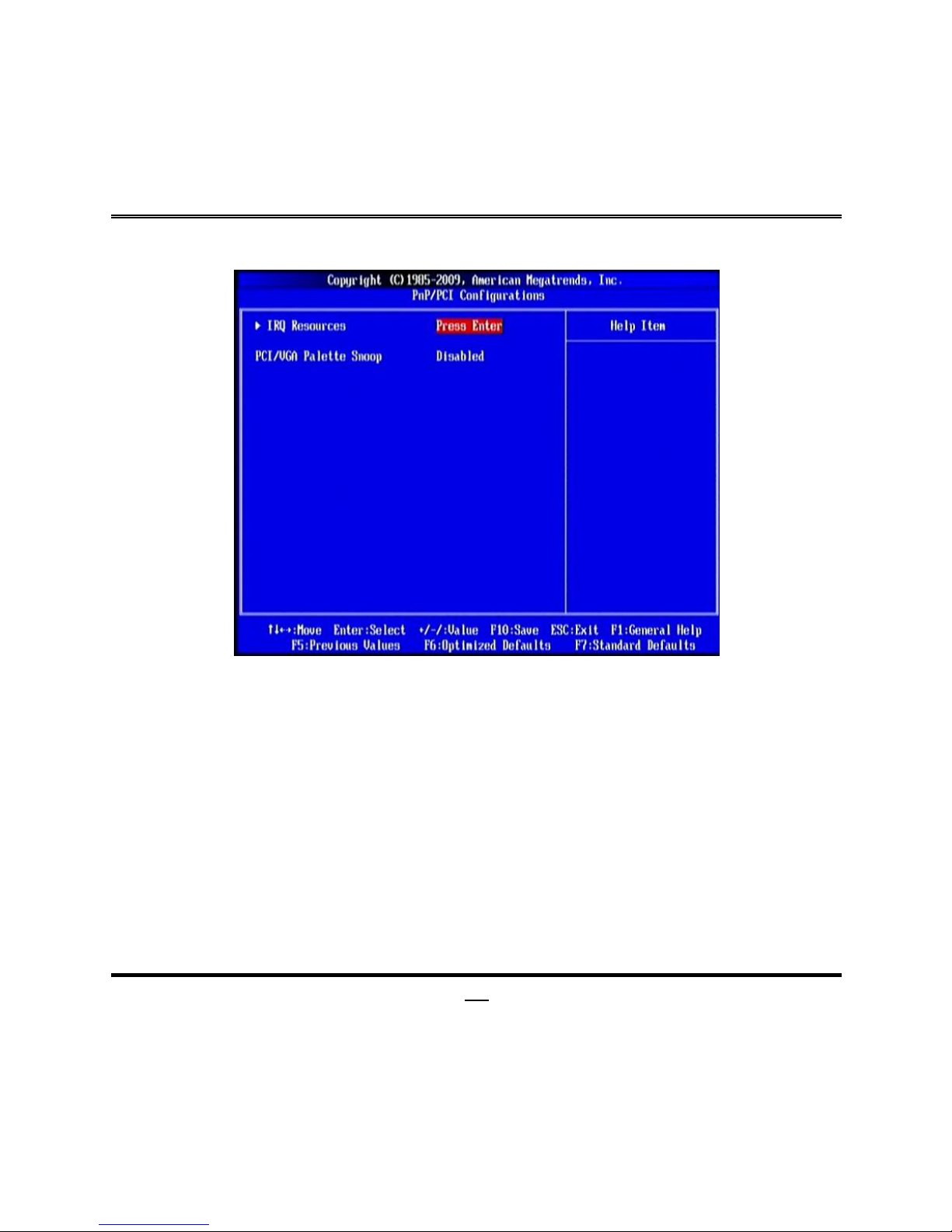

3-9 PNP/PCI CONFIGURATIONS.....................................................................................37

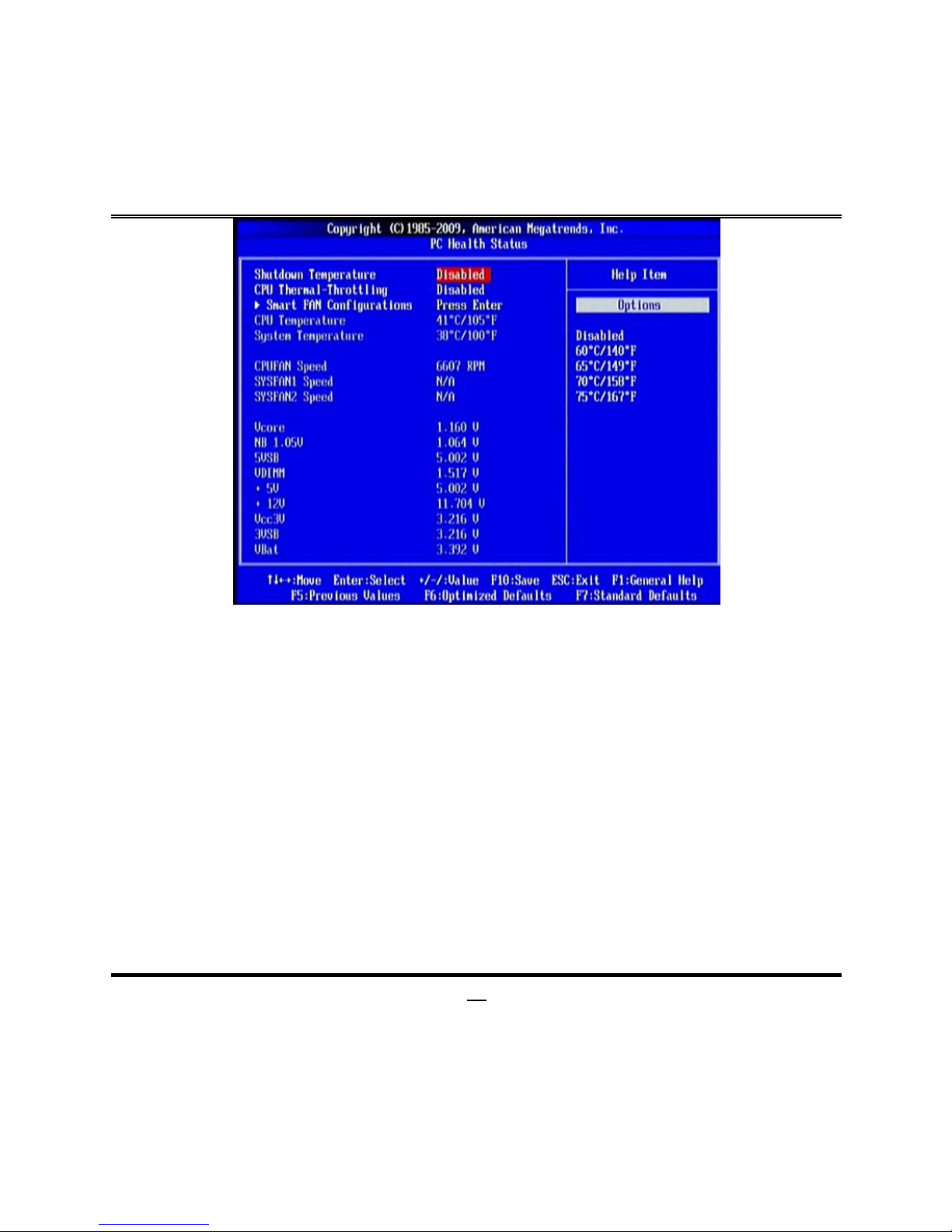

3-10 PC HEALTH STATUS.................................................................................................37

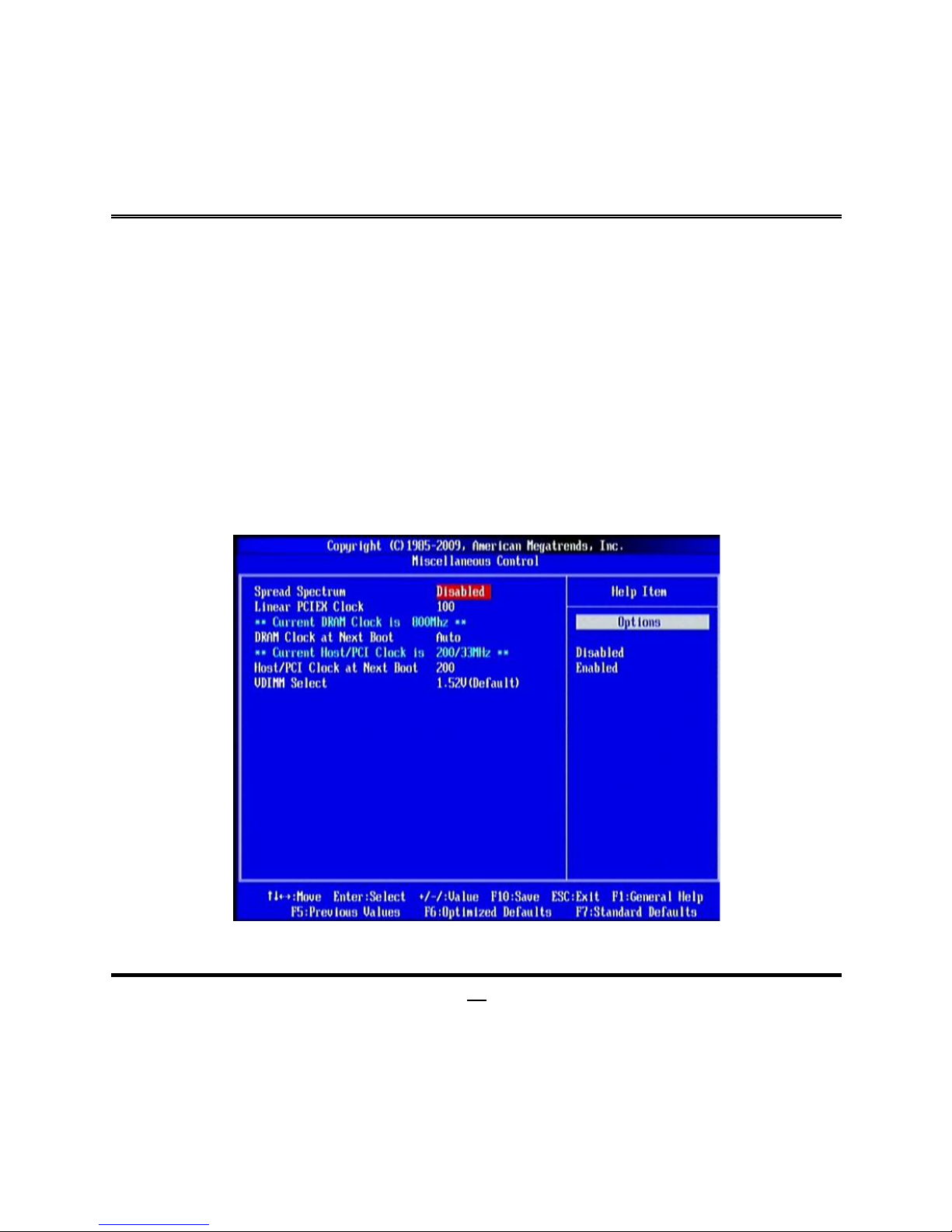

3-11 MISCELLANEOUS CONTROL...................................................................................39
3-12 PASSWORD SETTING...............................................................................................40

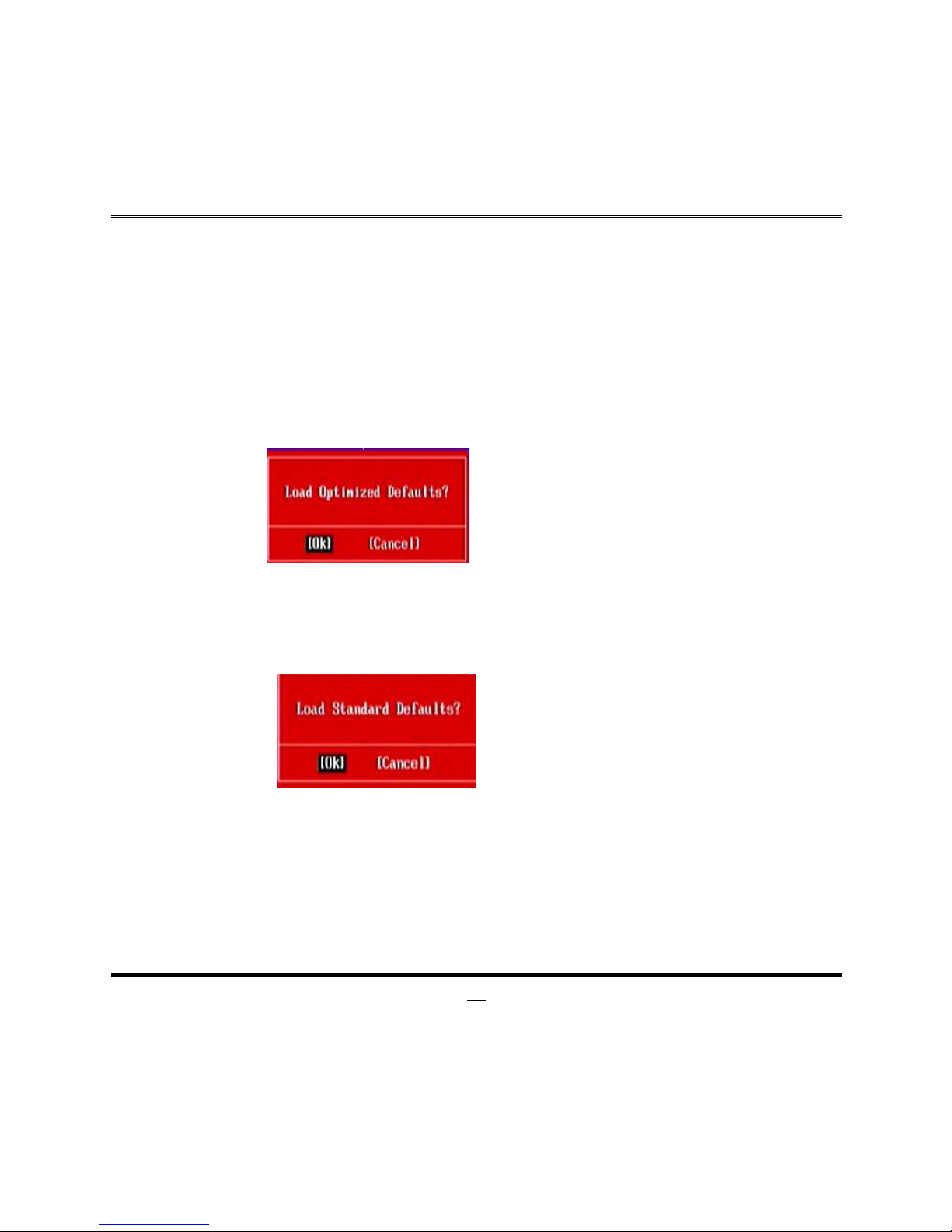

3-13 LOAD OPTIMIZED /STANDARDDEFAULTS ............................................................41

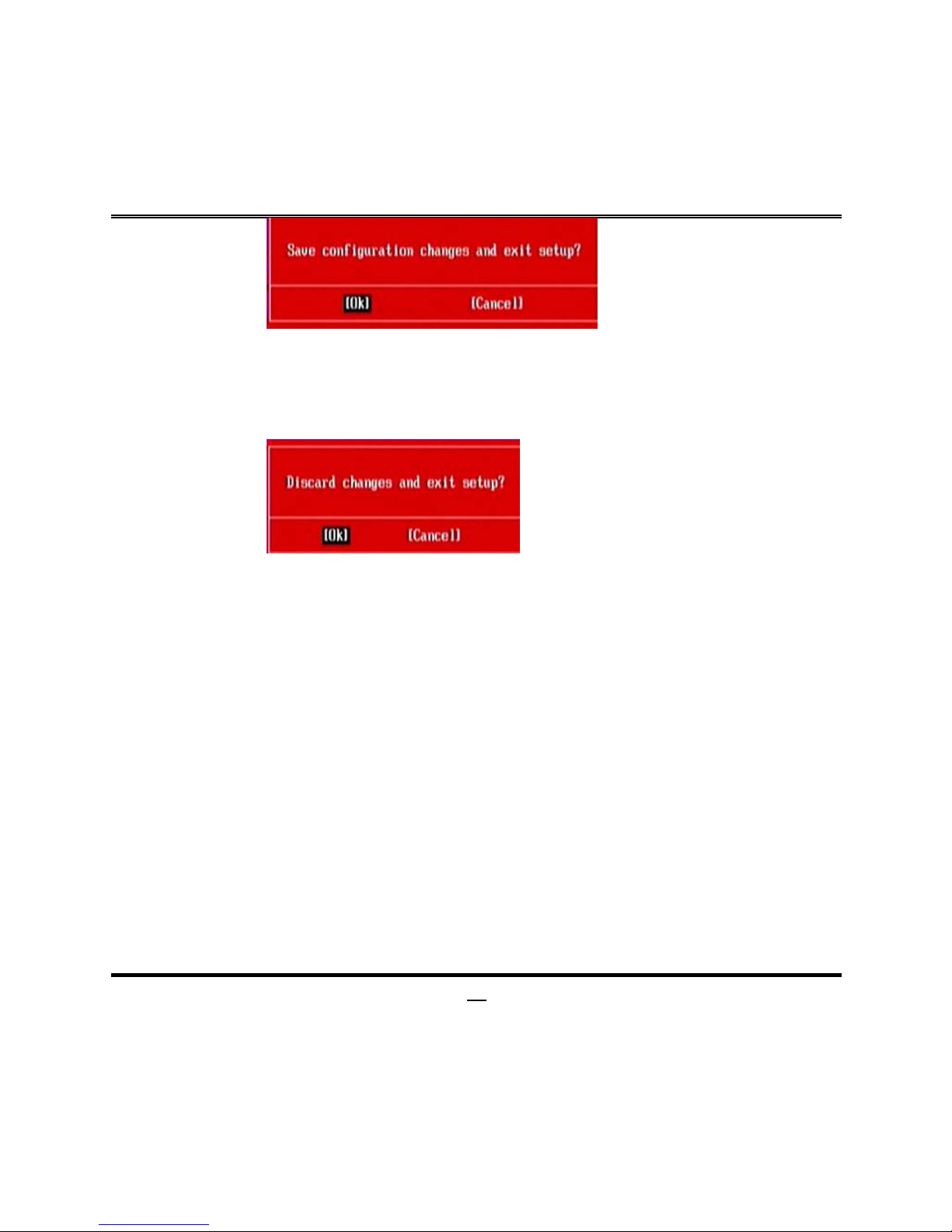

3-14 SAVE AND EXIT SETUP/EXIT WITHOUT SAVING ...................................................41
TABLE OF CONTENT
iii
Environmental Safety Instruction
z Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
z 0 to 60 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
z Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor as computer instability resulted from corrosion and oxidation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
z The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
z Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.
iv
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AN D WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
1.0 First Edition February, 2012
Item Checklist
5
Motherboard
5
User’s Manual
5
DVD for motherboard utilities
5
Cable(s)
5
I/O Back panel shield
1
Chapter 1
Introduction of the Motherboard
1-1 Feature of Motherboard
z
Intel Pine Trail-D and NM10 chipset, with low power consumption never denies
high performance
z
Support two DDRIII SODIMM 800 MHz up to 4GB
z
Support 4 * Serial ATAII (3Gb/s) Devices
z
Onboard dual Realtek RTL 8111EVL Gigabit Ethernet LAN chips
z
Integrated ALC662 6-channel HD audio CODEC
z
Support USB 2.0 data transport demands
z
Support RS232/422/485
z
Support PCI slot and Mini-PCIE slot
z
Support CPU Smart FAN
z
Supports ACPI S3 Function
z
Support Watchdog function
z
Support daughter board expansion
2
1-2 Specification
Spec Description
Design
z
Mini-ITX form factor; PCB size: 17.0x17.0cm
Chipset
z
Intel® NM10 Express chipset
Embedded CPU
z
Intel Atom CPU
Memory Slot
z
DDRIII SODIMM slot x2
z
Support two un-buffered Single Channel DDRIII 800 MHz
SO-DIMM with memory capacity expandable to 4GB
Expansion Slot
z
32-bit PCI slot x 1
z
Mini-PCIE slot x1
Dual LAN Chip
z
Integrated with two Realtek RTL8111EVL PCI-E Gigabit
LAN chips
z
Support Fast Ethernet LAN function of providing
10/100/1000Mbps Ethernet data transfer rate
Audio Chip
z
Realtek ALC662 6-channel Audio Codec integrated
z
Audio driver and utility included
BIOS
z
AMI 8MB DIP Flash ROM
Multi I/O
z
PS/2 keyboard & Mouse combo port x1
z
Serial port x1
z
VGA port x1
z
RJ-45 LAN connector x2
z
USB 2.0 port x4
z
Audio connector x3 (Line-in, Line-out, MIC)
z
ATX power connector x 1
z
SATAII x4
z
Front panel audio header x1
z
CDIN header x1
z
Serial port header x1
z
RS422/RS485 header x1
z
4-pin USB 2.0 header x1
z
9-pin USB 2.0 header x1
z
Speaker header x1
3
z
PWRLED header x1
z
Front panel header x1
z
LVDS header x1 and LVDS inverter x1
z
GPIO header x1
z
Parallel header x1
z
IDE hard disk header x1
z
Expansion daughter board header x2
1-3 Layout Diagram

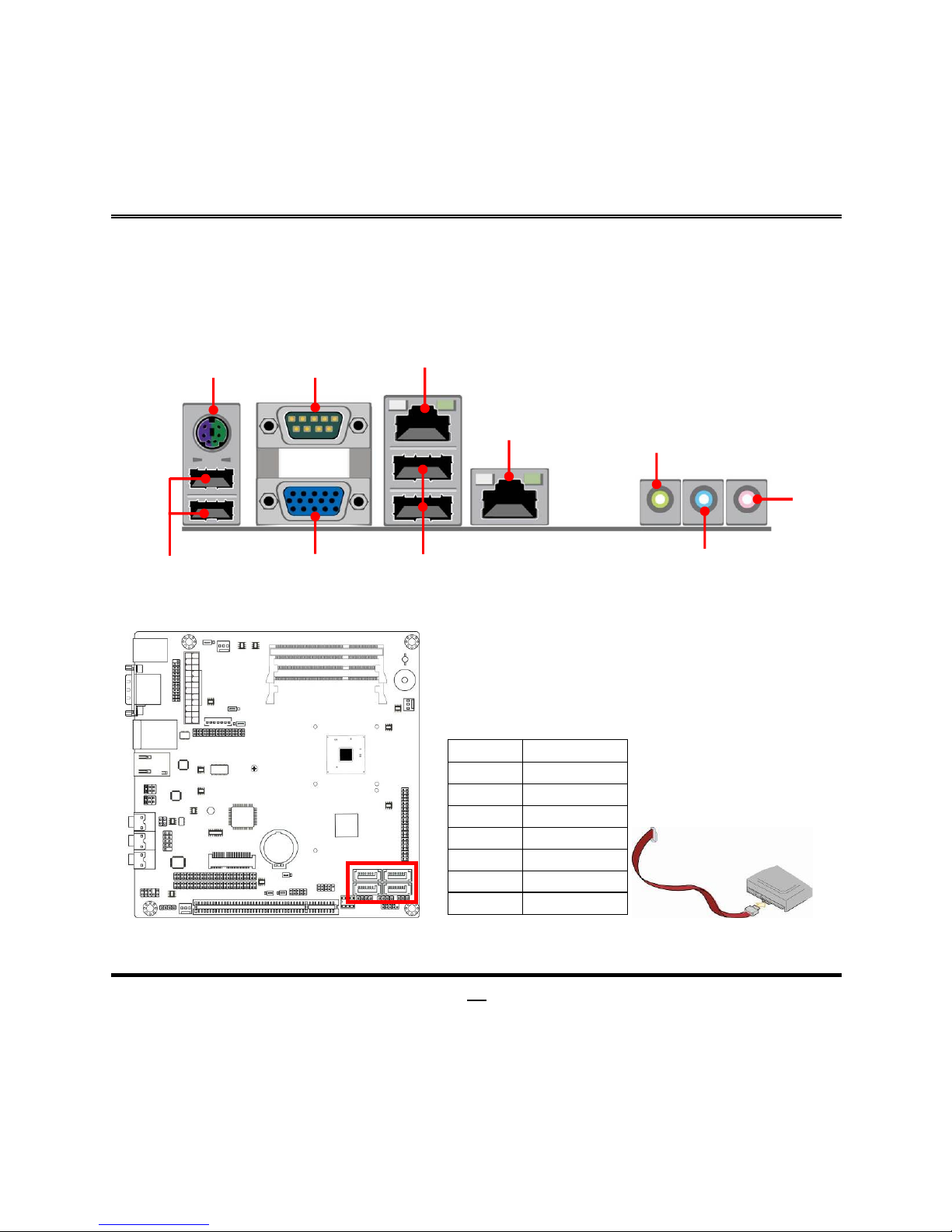

Rear IO Diagram
MIC-IN
VGA Port
Line-OUT
PS/2 KB&MS
Combo Port
COM Port
RJ-45 LAN Port
USB 2.0 Port
RJ-45 LAN Port
USB 2.0 Port
Line-IN
4
Motherboard Internal Diagram
ATX Powe
r
Connector
PCI slot
CPUFAN Heade
r
SATAII Ports
PWRLED Heade
r
Front Panel
Audio Heade
r
SYSFA
N
1 Heade
r
TX-RX COM Header
SpeakerHeader
DDRIII SODIMM Slot
(SODIMM1)
Min
i
-PCIE Slot
Serial Port over
VGA Port
LVDS Heade
r
LVDS Inverte
r
DDRIII SODIMM Slot (SODIMM2)
Intel CPU
Intel NM 10 Chipset
PS/2 KB & MS over
USB 2.0 Port
RJ-45 LAN Port over
USB 2.0 Ports
RJ-45 LAN port
Line-OUT
Line-IN
MIC-IN
Parallel Header
CDIN Header
SYSFAN2 Heade
r
Daughter Board Connectors
GPIO Header
USB 2.0 Heade
r
(
USB3
)
IDE Hard dis
k
Header
Front Panel Heade
r
USB 2.0 Heade
r
(
USB2
)
COM2 Header
5
Motherboard Jumper Position
JP6
J
P1
J
P3
JP5
JP10
J
P2
JP9
JBAT
6
Jumper
Jumper Name Description
JBAT CMOS RAM Clear Function Setting 3-pin Block
JP1 K/B, USB Power On Function Setting 3-pin Block
JP2 LVDS PVCC 5V/3.3V Select 3-pin Block
JP3 Inverter VCC 12V/5V Select 3-pin Block
JP5 USB 2/3 Header Power On Function Setting 3-pin Block
JP6 Mini PCI-E Power VCC3.3V /Dual 3.3V Select 3-pin Block
JP9 COM2 Header Power RS232 Power Function Select 6-pin Block
JP10 COM2 RS232/422/485 Function Select 6-pin Block
Connectors
Connector Name Description

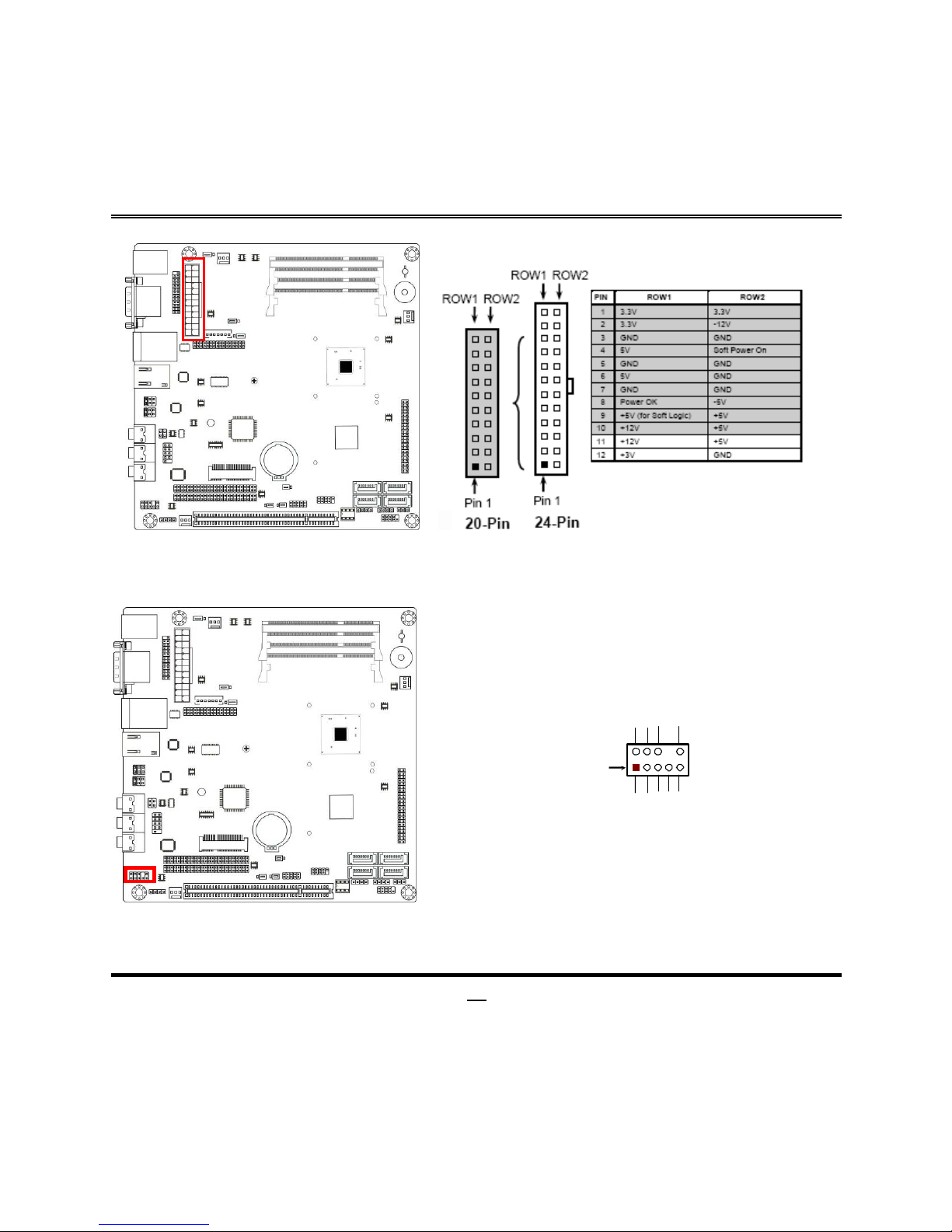

ATXPWR ATX Power Connector 24-pin Connector
KB & MS combined
connector from UK1
PS2 Keyboard & Mouse Combo
Connector
6-pin Female
VGA Video Graphic Attach Connector 15-pin Female
COM1 Serial Port COM Connectors 9-pin Connector
LAN from UL1,LAN1 RJ-45 LAN Connectors 8-pin Connector
USB from UK1, UL1 USB Port Connectors 4-pin Connector
LINE-OUT Audio Line Out Connector 1 Phone JACK
LINE-IN Audio Line In /MIC Connector 1 Phone JACK
MIC-IN Audio MIC Audio Connector 1 Phone JACK
SATA1,2,3,4 Serial ATAII Connectors 7-pin Connector
7

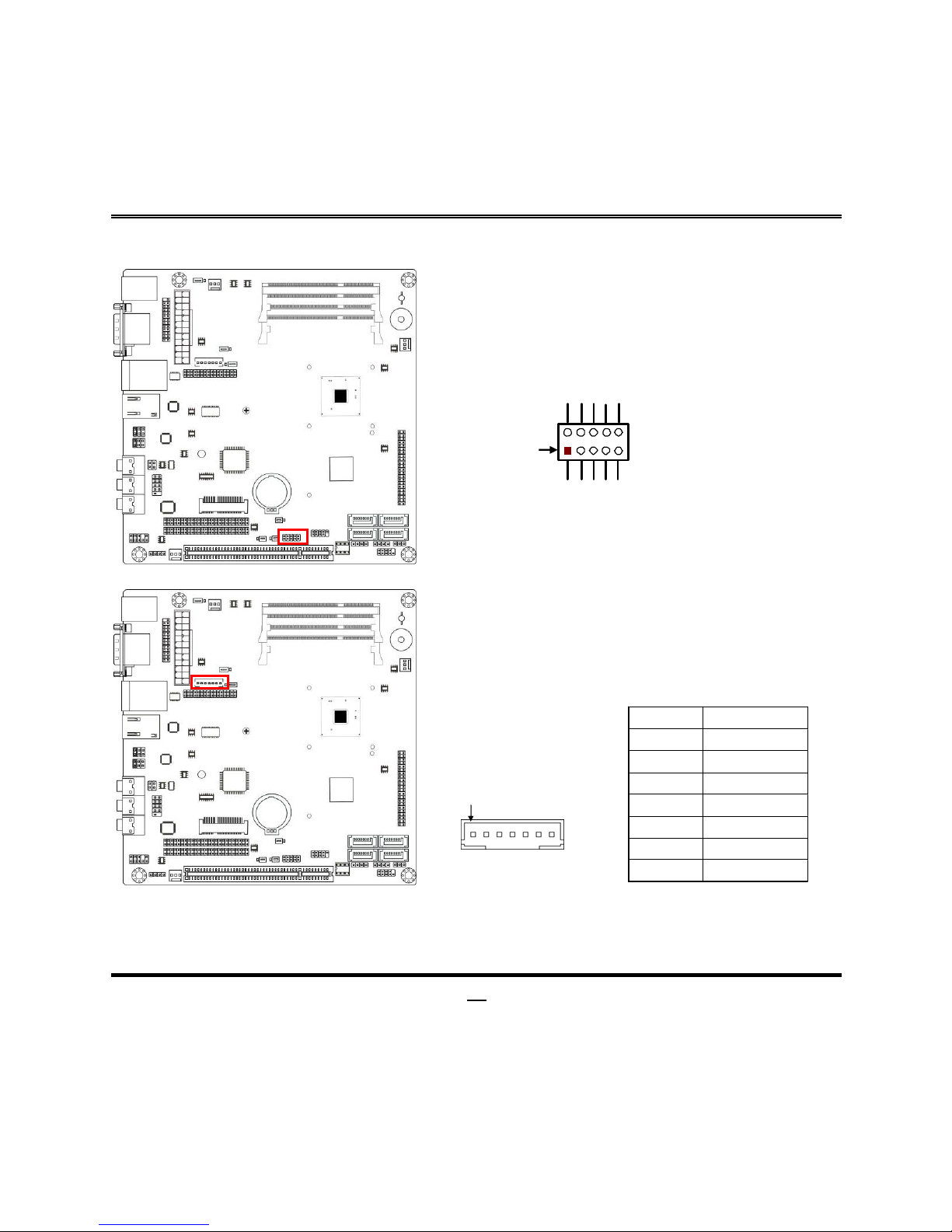

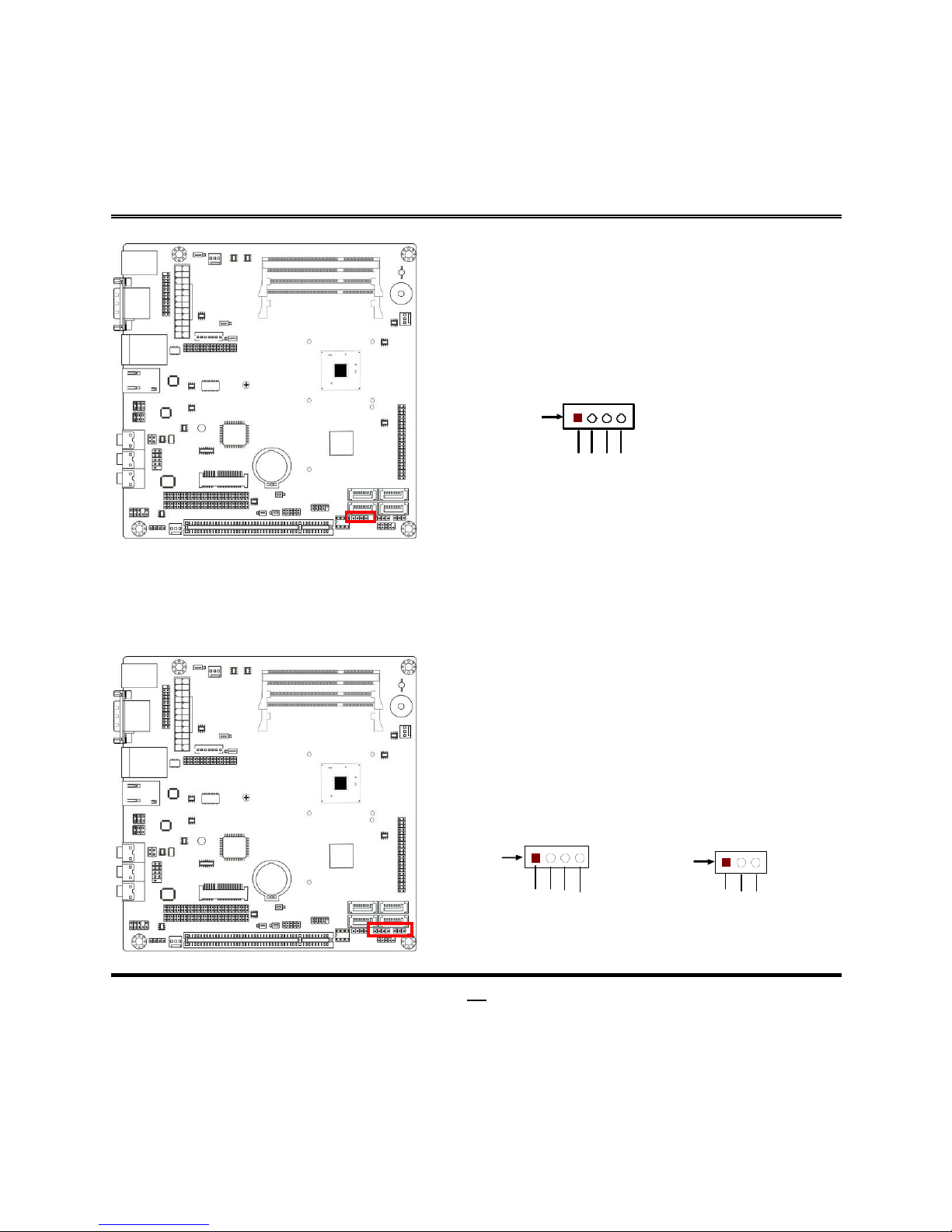

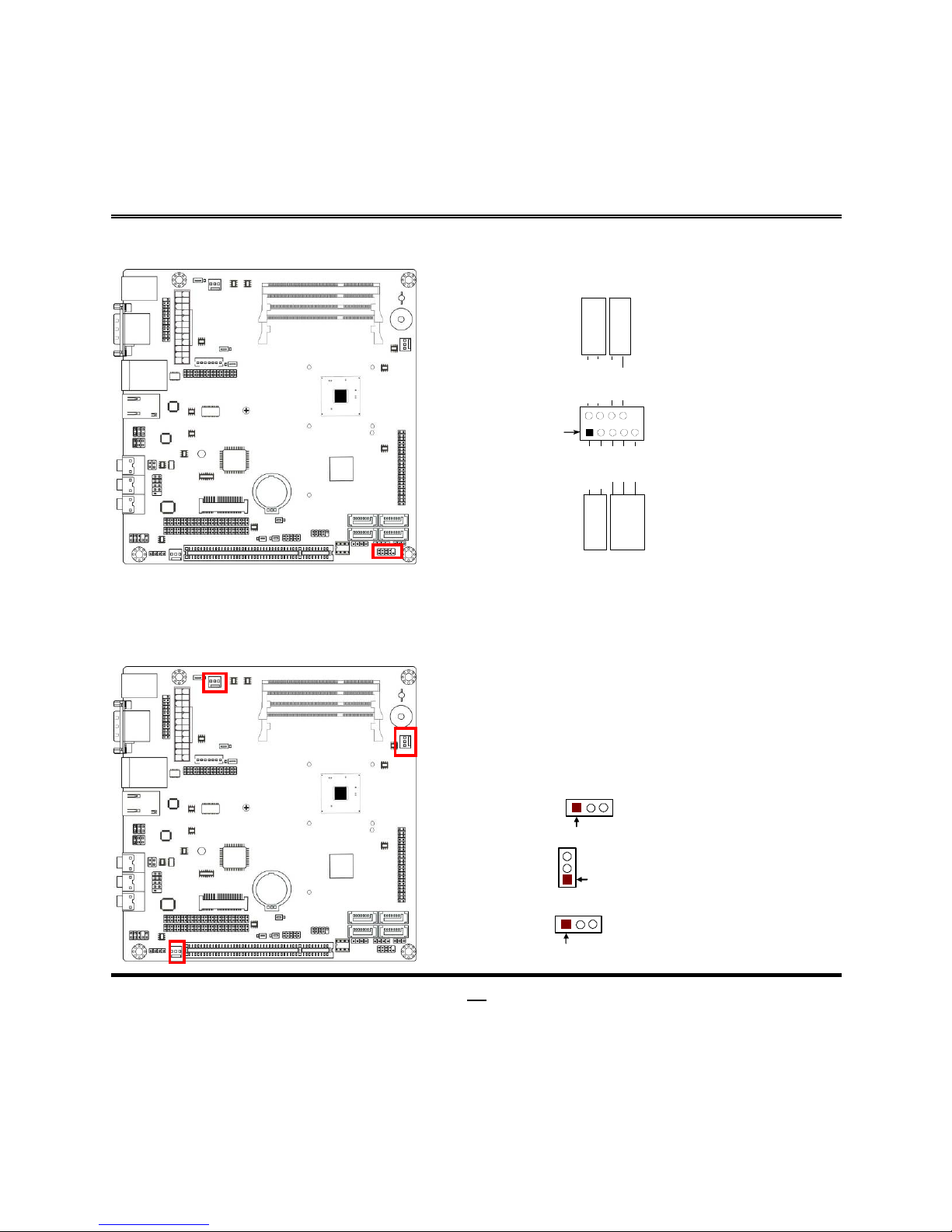

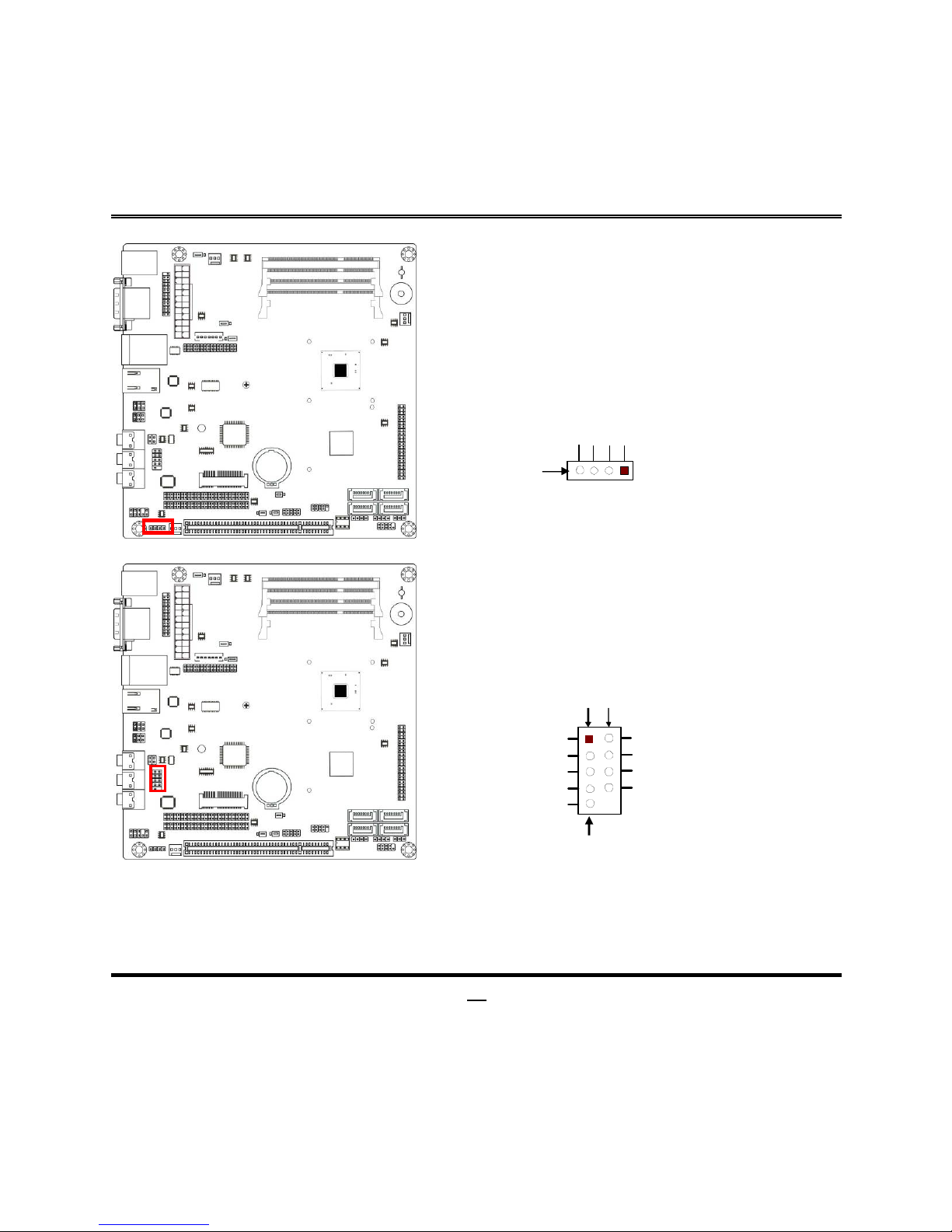

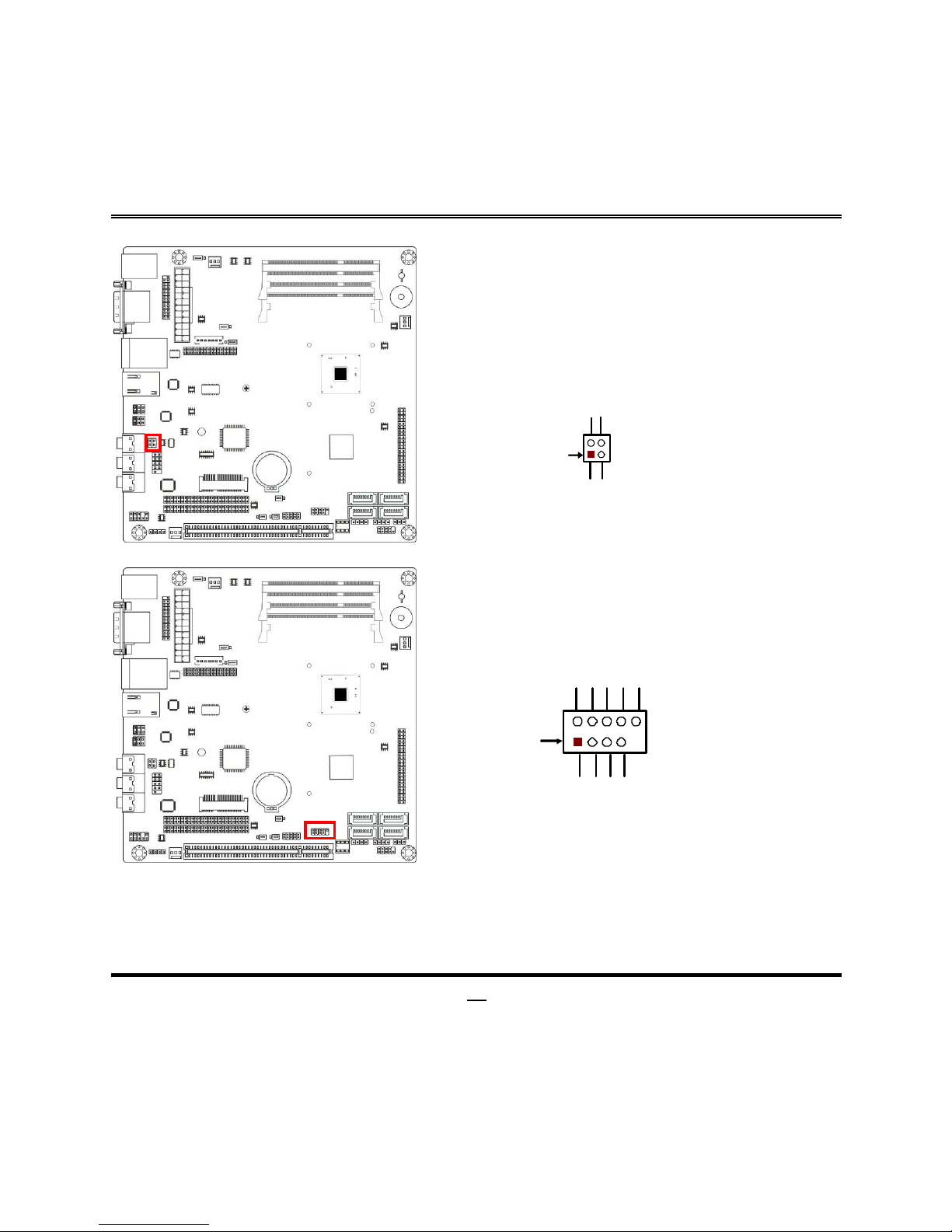

Headers
Header Name Description
FP-AUDIO Front panel audio Header 9-pin block
CDIN CD Audio-In Header 4-pin Block
COM2 Serial Port Header 9-pin Block
TX-RXCOM RS 422/485 port header 4-pin block
USB3 USB Header 9-pin Block
USB2 USB Header 4-pin Block
SPEAK Speaker Header 4-pin Block
PWR LED Power LED 3-pin Block
JW_FP
Front Panel Header(PWR LED/
HD LED/ /Power Button /Reset)
9-pin Block
CPUFAN,SYSFAN1/2 FAN Speed Headers 3-pin Block
GPIO-CON GPIO Header 10-pin Block
INVERTER LVDS Inverter Connector 7-pin Block

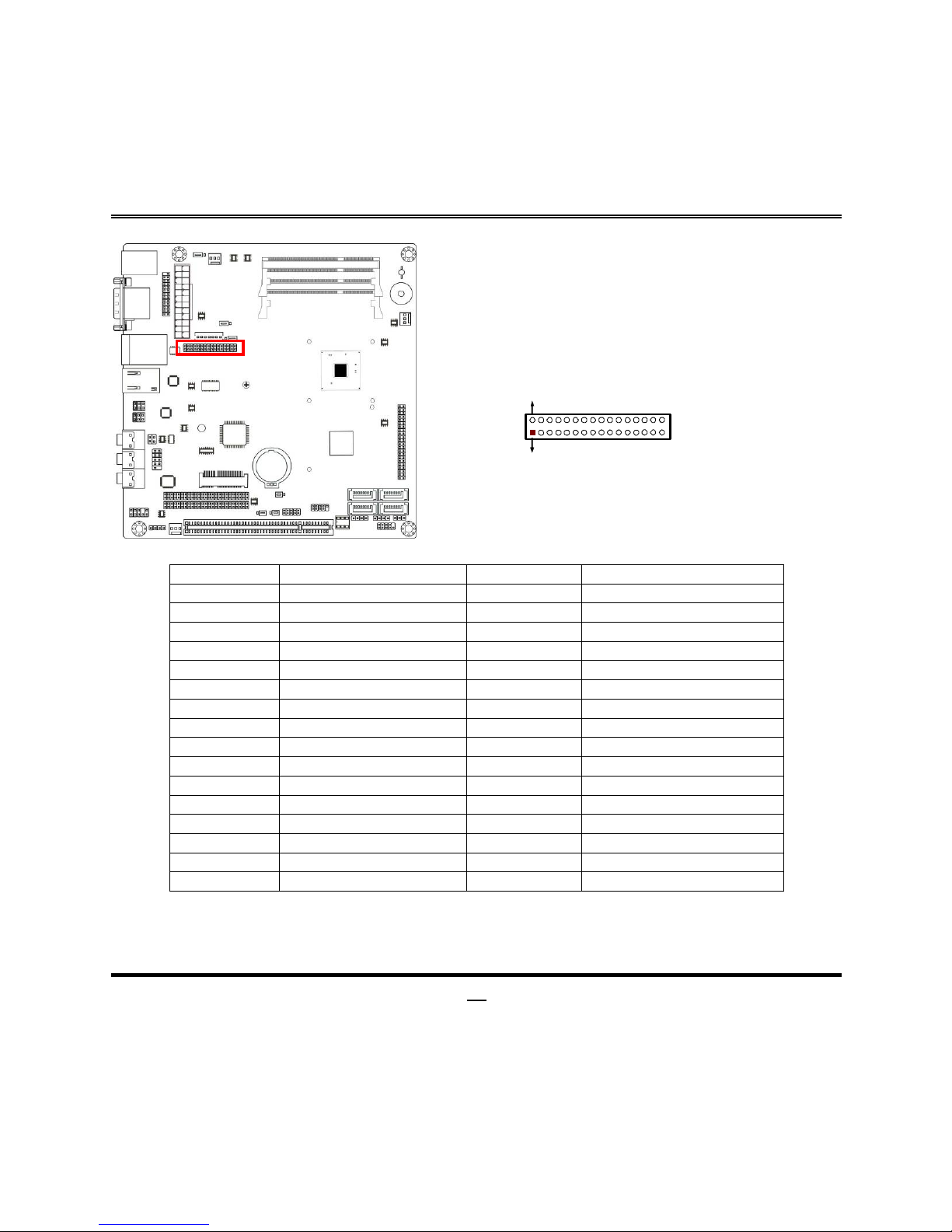

LVDS LVDS Header 32-pin Block

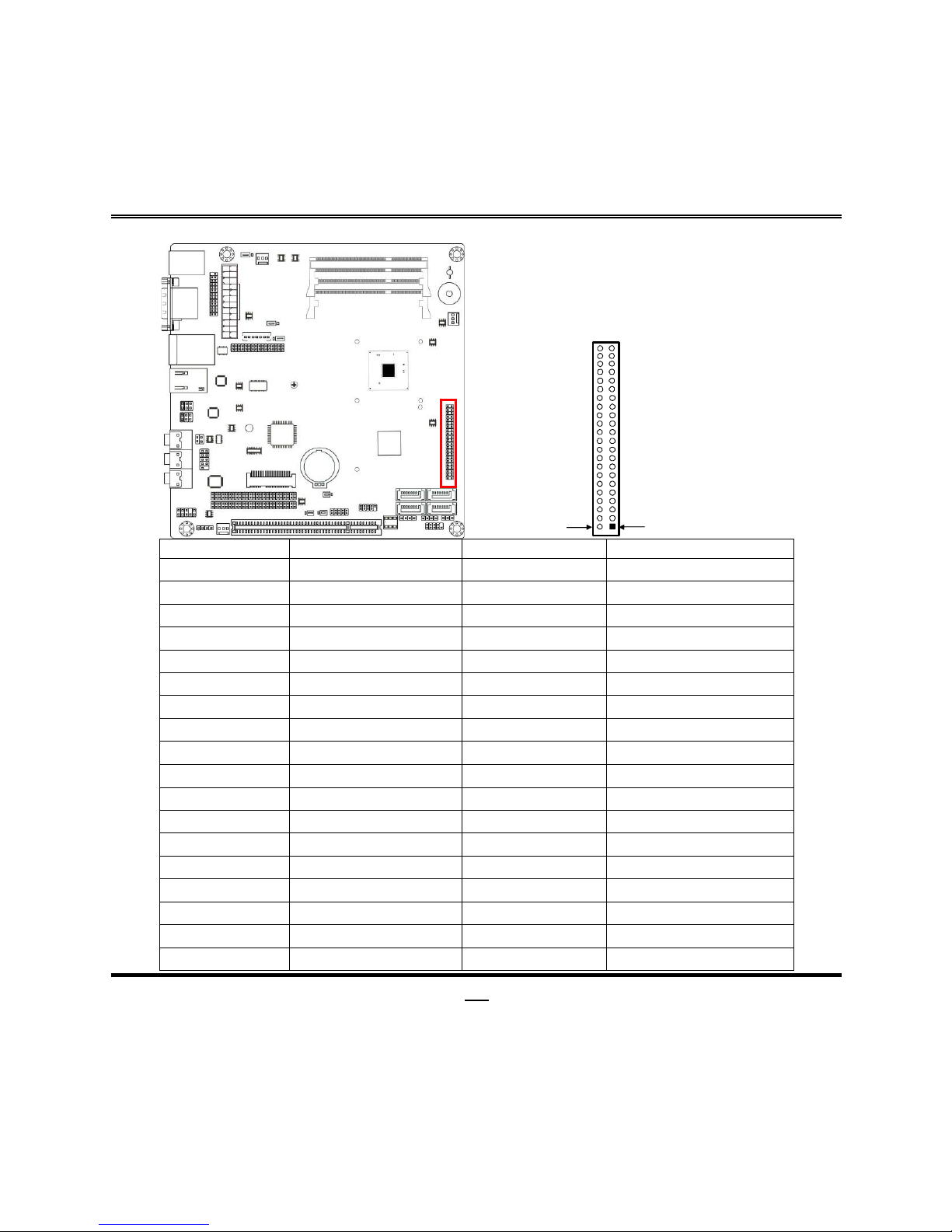

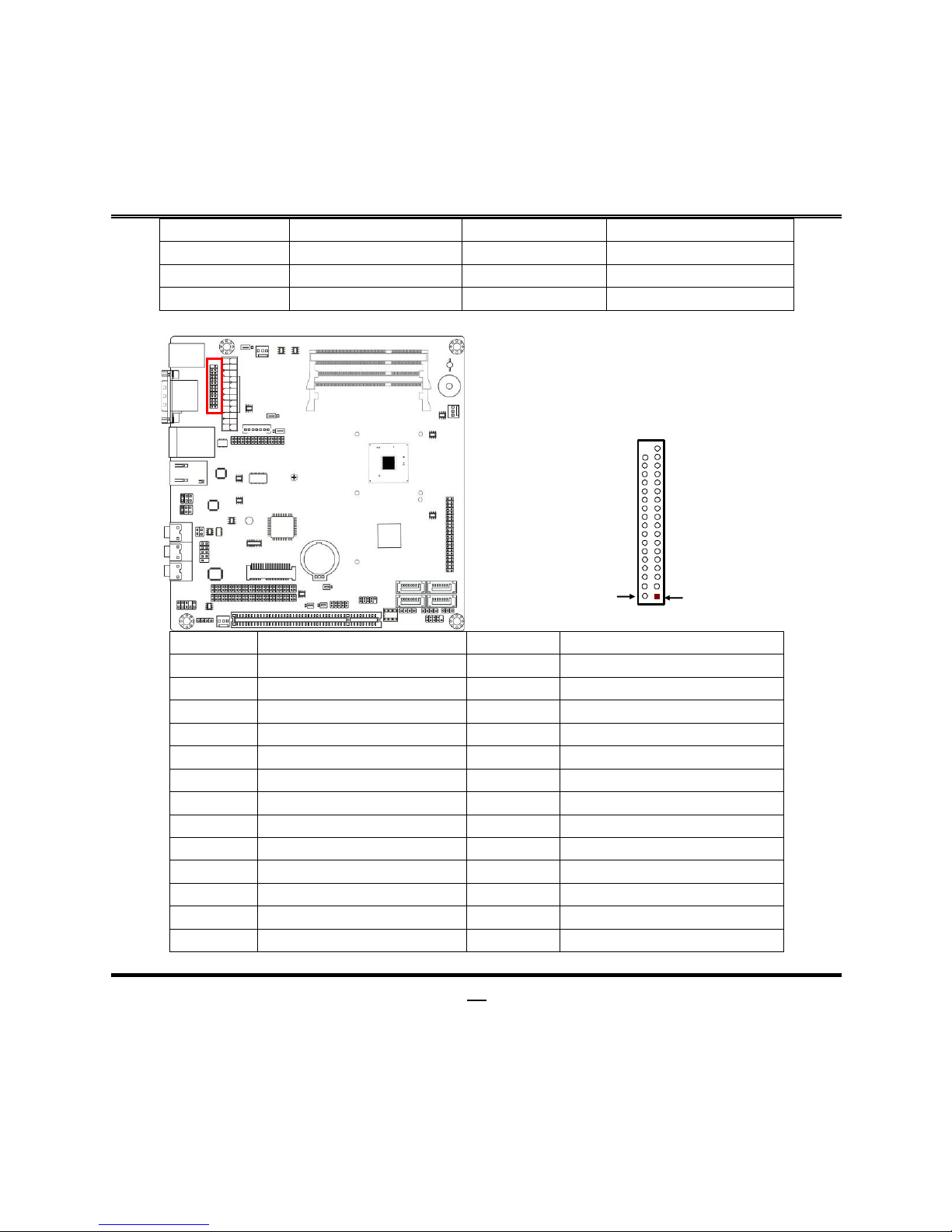

IDE IDE Hard Disk Drive header 44-pin block
PARALLEL Parallel Port Header 25-pin Block
CN1; CN2 Jetway Daughter Card Connector 50-pin *2 Block
8
Chapter 2
Hardware Installation
2-1 Jumper Setting

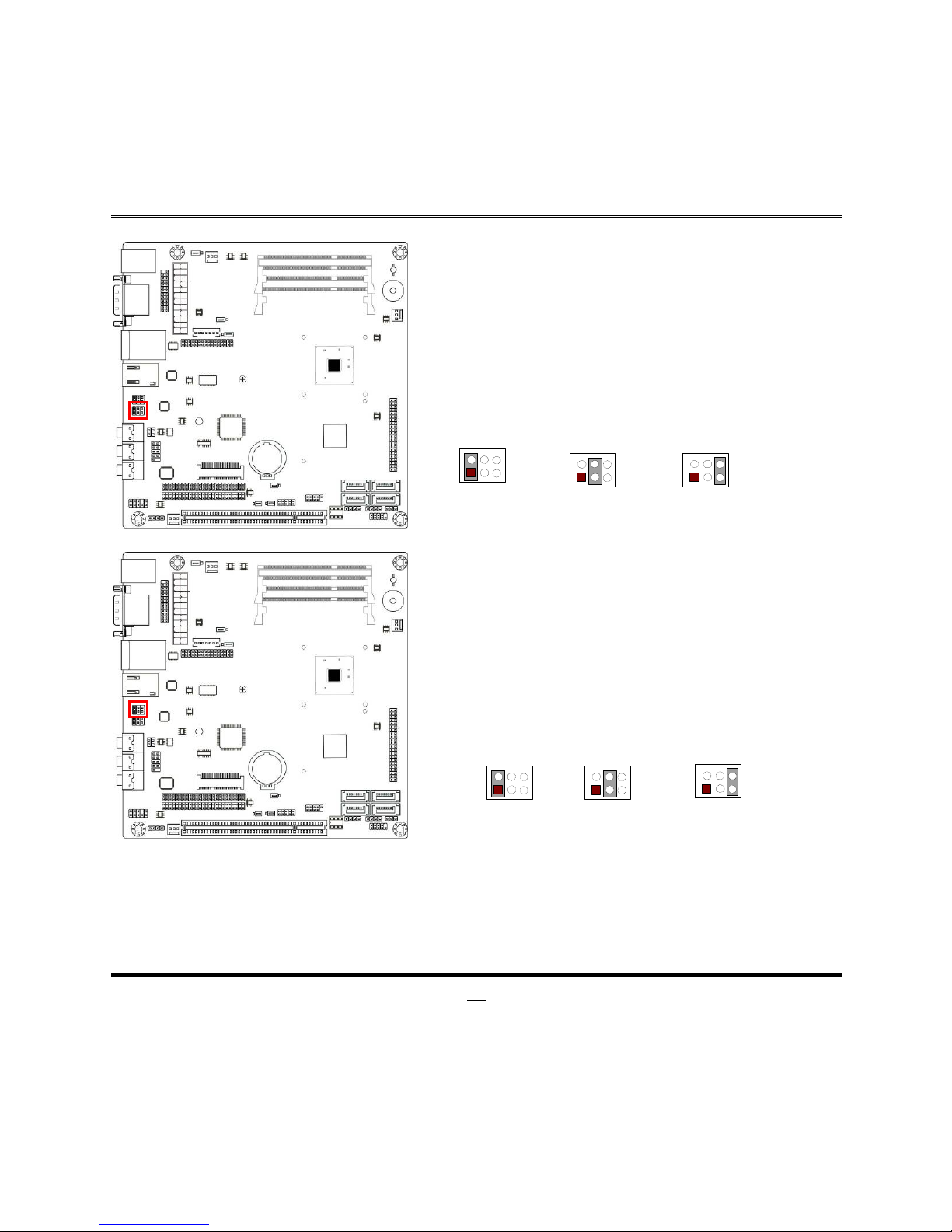

(1) JBAT (3-pin): Clear CMOS Function Setting
2-3 closed : Clear CMOS
JBATJBAT
1
3
1-2 closed: Normal;
1
3
(2) JP1 (3-pin): K/B, USB Power on Function Setting
2-3 Closed : K/B, USB Power- O n Enabled
JP1
JP1
1-2 Closed: K/B, USB Power -On Disabled(defau lt);
1
3
1
3
9
(3) JP2 (3-pin): LVDS PVCC 5V/3.3V Select
2-3 Cosed : LVDS PVCC=3.3V
JP2JP2
1-2 Closed: LVDS PVCC= 5V;
1
1 3
3
(4) JP3 (3-pin): Inverter VCC 12V/5V select
2-3 Closed : Inverter 5V Select
JP3JP3
1-2 Closed: Inverter 12V Select;
1
3
1
3
10
(5) JP5 (3-pin): USB2/3 Header Power on Function Setting
2-3 Closed: USB2/3 Header Power-On Enabled
JP5
JP5
1-2 Closed: USB2/3 Header Power-On Disabled(default);
1
3
1
3
(6) JP6 (3-pin): Mini PCI-E VCC3.3V/ Dual 3.3 V Select
2-3 Closed ： MINI PCI-E VCC= Dual 3.3V Select
JP6
1-2 Closed ： M INI PCI -E VCC= 3.3 V Se lect；
1
3
JP6
13
