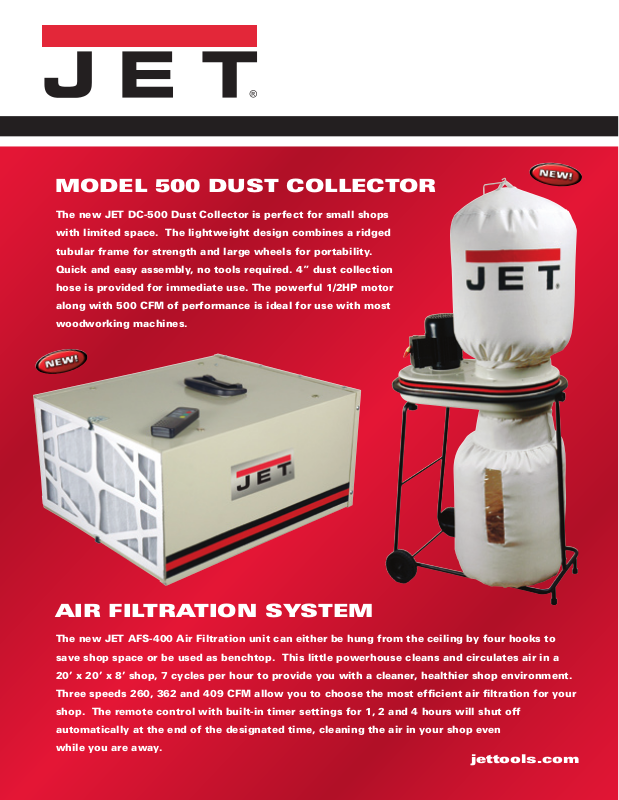

MODEL 500 DUST COLLECTOR
The new JET DC-500 Dust Collector is perfect for small shops
with limited space. The lightweight design combines a ridged
tubular frame for strength and large wheels for portability.
Quick and easy assembly, no tools required. 4” dust collection
hose is provided for immediate use. The powerful 1/2HP motor
along with 500 CFM of performance is ideal for use with most
woodworking machines.
AIR FILTRATION SYSTEM
The new JET AFS-400 Air Filtration unit can either be hung from the ceiling by four hooks to
save shop space or be used as benchtop. This little powerhouse cleans and circulates air in a
20’ x 20’ x 8’ shop, 7 cycles per hour to provide you with a cleaner, healthier shop environment.
Three speeds 260, 362 and 409 CFM allow you to choose the most efficient air filtration for your
shop. The remote control with built-in timer settings for 1, 2 and 4 hours will shut off
automatically at the end of the designated time, cleaning the air in your shop even
while you are away.
jettools.com
MODEL 500 DUST COLLECTOR
& AIR FILTRATION SYSTEM
C
A
D
Tool-less Frame a.
Quick Install Collection Bagb.
Features
•
Quick, tool-less assembly
•
Rigid, lightweight frame
•
Quick install filter and collection bags
•
Large wheels for mobility
•
500 CFM performance for efficient dust collection
•
30 micron filtration for cleaner air
speciFications
Stock Number
Model Number
Remote Control
Blower Wheel Diameter (in.)
Sound Rating (dB)
1-Hose Connection Diameter (in.)
Bag Diameter (in)
Filter Bag/Canister Length (in.)
Collection Bag Capacity (cu. ft.)
Collection Bag Length (in.)
Air Flow @ 4" (CFM)
Amps
Motor HP
Motor Phase
Motor Voltage
Prewired
Net Weight (lbs.)
accessories
Replacement 30 Micron Filter Bag
Replacement 30 Micron Collection Bag
115V RF Remote (Includes Transmitter)
Transmitter for RF Remote
B
Quick Install Filter Bagc.
Easy Roll Around Designd.
708660
DC-500
No
9.5
65
4
14
24
1.9
21
500
4.5
1/2HP
1Ph
115V
115V
36
708385
708386
708636C
708636T
C
A
B
Easy Carrying Handlea.
Electrostatic Outer Filterb.
Features
•
Remote control has built-in timer with 1, 2 and 4 hour settings;
automatically shuts system off at the end of the time setting
•
Select from three speeds 273, 333, 381 CFM for the most efficient
air filtration
•
Disposable electrostatic outer filter attracts more dust particles than
standard filters
•
Inner pocket filter is removable for cleaning out with ease
•
Rubber feet prevent marring of surface when placed on workbench
•
Four hooks let you hang unit from shop ceiling
•
Easy grip handle for portabilility
speciFications
Stock Number
Model Number
Speeds (CFM)
Filter Cycle (min.)
Cycles per Hour (20' x 20' x 8')
Timer Settings (hours)
Outer Filter (microns)
Inner Filter (microns)
Motor Amps
Motor HP
Motor Phase
Motor Voltage
Prewired
Net Weight (lbs.)
accessories
AFS-400 Replacement Inner Pocket Filter
AFS-400 Replacement Electrostatic Outer Filter
AFS-400 Replacement Remote Control
Remote Controlc.
710612
AFS-400
273, 333, 381
8.4
7
1, 2 and 4
5
1
0.9
1/8
1
115V
115V
31
710621
710622
710623
708385 708386
