Jet Spray J15 User Manual

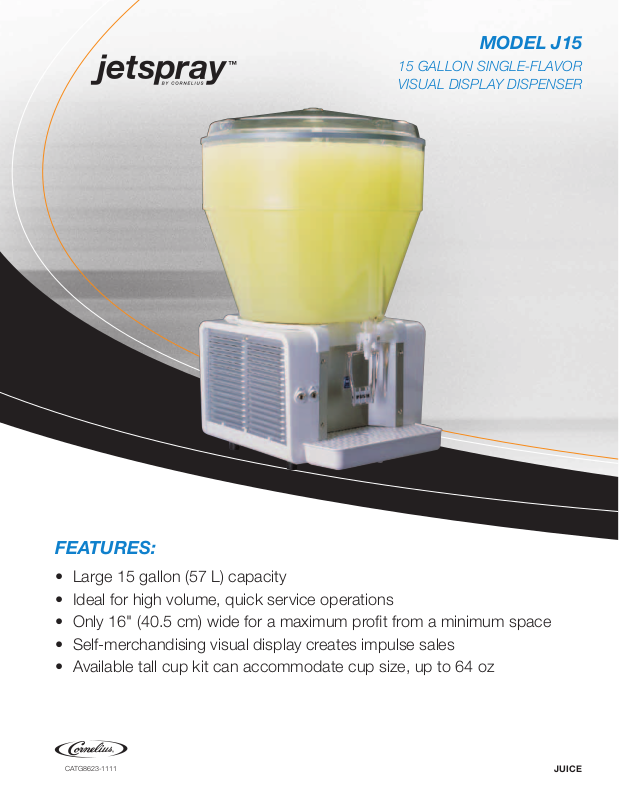

ModEl J15

15 GALLON siNGLe-fLAvOr
visUAL DisPLAY DisPeNser

FEATURES:

• Large 15 gallon (57 L) capacity

• Ideal for high volume, quick service operations

• Only 16" (40.5 cm) wide for a maximum profit from a minimum space

• Self-merchandising visual display creates impulse sales

• Available tall cup kit can accommodate cup size, up to 64 oz

CATG8623-1111

juice

31"

(79 cm)

18"

(46 cm)

Part Number DescriPtioN

A8661 Cold Beverage Dispenser J15, Visual Single Bowl, 15 Gallon Spray Type, 115V / 60Hz

TECHNICAl SPECIFICATIoNS:

BEVERAGE BOWL & COVER . . . . Transparent, virtually

unbreakable LEXAN®
resin

BOWL DIAMETER . . . . . . . . . . . . . 20" (50.8 cm)

CABINETRY. . . . . . . . . . . . . . . . . . White plastic and

stainless steel

BEVERAGE CAPACITY . . . . . . . . . 15 gal (57 L)

CUP CLEARANCE. . . . . . . . . . . . . 9"

REFRIGERATION. . . . . . . . . . . . . . JetSpray 1/4 HP

hermetically sealed
system R134a

16"

(41 cm)

NET WEIGHT . . . . . . . . . . . . . . . . . 61 lb (28 kg)

SHIPPING WEIGHT . . . . . . . . . . . . Bowl: 17 lb (8 kg)

Base: 62 lb (28 kg)

CARTON VOLUME. . . . . . . . . . . . . Bowl: 7.2 cu ft (0.20 cuM)

Base: 3.8 cu ft (0.11 cuM)

AGENCY LISTINGS . . . . . . . . . . . .
