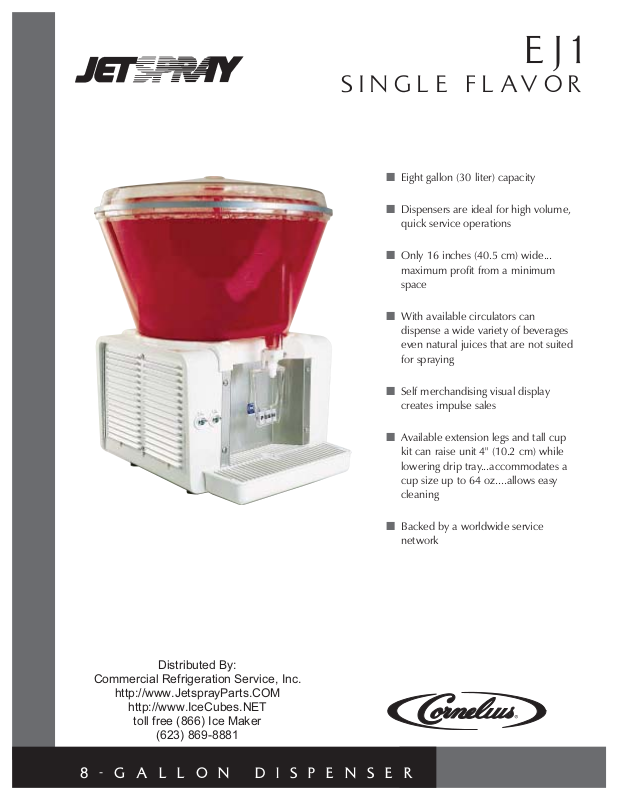

EJ1

SINGLE FLAVOR

■ Eight gallon (30 liter) capacity

■ Dispensers are ideal for high volume,

quick service operations

■ Only 16 inches (40.5 cm) wide...

maximum profit from a minimum
space

■ With available circulators can

dispense a wide variety of beverages
even natural juices that are not suited
for spraying

Distributed By:

Commercial Refrigeration Service, Inc.

http://www.JetsprayParts.COM

http://www.IceCubes.NET

toll free (866) Ice Maker

[phone]

■ Self merchandising visual display

creates impulse sales

■ Available extension legs and tall cup

kit can raise unit 4" (10.2 cm) while
lowering drip tray...accommodates a

cup size up to 64 oz....allows easy

cleaning

■ Backed by a worldwide service

network

8-GALLON DISPENSER

SPECI FICATIONS

DESCRIPTION

Model EJ1 EJ1-W25 (Export) EJ1-W26 (Export)
Volts 115V 60 Hz 220/240V 50 Hz 220V 60 Hz
Watts 575 575 575
Amps 5.0 2.5 2.5

DISPENSER DIMENSIONS

Height . . . . . . . . . . . . . . . . . . . . . . . . .251⁄2" (64 cm)

Width . . . . . . . . . . . . . . . . . . . . . . . . . . .16" (41 cm)

Depth . . . . . . . . . . . . . . . . . . . . . . . . . . .18" (46 cm)

BEVERAGE BOWL & COVER

Transparent, virtually unbreakable LEXAN®resin

BOWL DIAMETER . . . . . . . . . . . . .20" (50.8 cm)

CABINETRY

White plastic and stainless steel

BEVERAGE CAPACITY

8 U.S. gallons (30 liters)

REFRIGERATION

Jet Spray 1/5 h.p. hermetically sealed system R134A

NET WEIGHT . . . . . . . . . . . . . . . .58 lbs. (26 kg)

SHIPPING WEIGHT

Bowl . . . . . . . . . . . . . . . . . . . . . . . . . . .13 lbs. (6 kg)

Base . . . . . . . . . . . . . . . . . . . . . . . . . .59 lbs. (27 kg)

EJ1

SINGLE FLAVOR

CARTON VOLUME

Bowl . . . . . . . . . . . . . . . . . . .4.0 cu.ft. (0.112 cu.m.)

Base . . . . . . . . . . . . . . . . . . . .3.8 cu. ft. (0.11 cu.m.)

AGENCY LISTINGS

ACCESSORIES

• Circulator adds
flexibility for products
not suited for spraying.
Replace spray system
with easy-to-insert
device.

• Locking device prevents
unauthorized use of
dispenser when
unattended.

• “Non-cup contact” push
handle replaces the
standard handle to
meet all hygiene and
sanitary requirements.

• 4" (10.2 cm) Extension
legs available where
required.

FOODSERVICE GROUP

CATJ 8622

251⁄2"

(64 cm)

For more information or to
place an order, contact
your sales representative or
authorized distributor.

©1999 IMI Cornelius

18"

(46 cm)

Distributed By:

Commercial Refrigeration Service, Inc.

http://www.JetsprayParts.COM

http://www.IceCubes.NET

toll free (866) Ice Maker

[phone]

16"

(41 cm)

IMI CORNELIUS FOODSERVICE GROUP

One Cornelius Place
Anoka, MN 55303-6234
Tel: [phone]
Fax [phone]
