JET OPTOELECTRONICS 3010DABOX02 Users Manual

3010-DADA P/N. : 620004

USER'S MANUAL

一、 Wiring ：Power Supply 12~16 DCV

MODULE Connection instructional diagram

1 This product is car audio and video control box
2 Recommendations Please installation by professional technicians
3

Will pick a good line monitor A and monitor B、

each placed within the head restraint is being co-pilot。

4

Will take a good line Ccontrol Box，

Placed in the bottom of the co-pilot seat chairs。

3010-DADA P/N. : 620004

Page 1

3010-DADA User’s manual

二、Explanation & Specification：

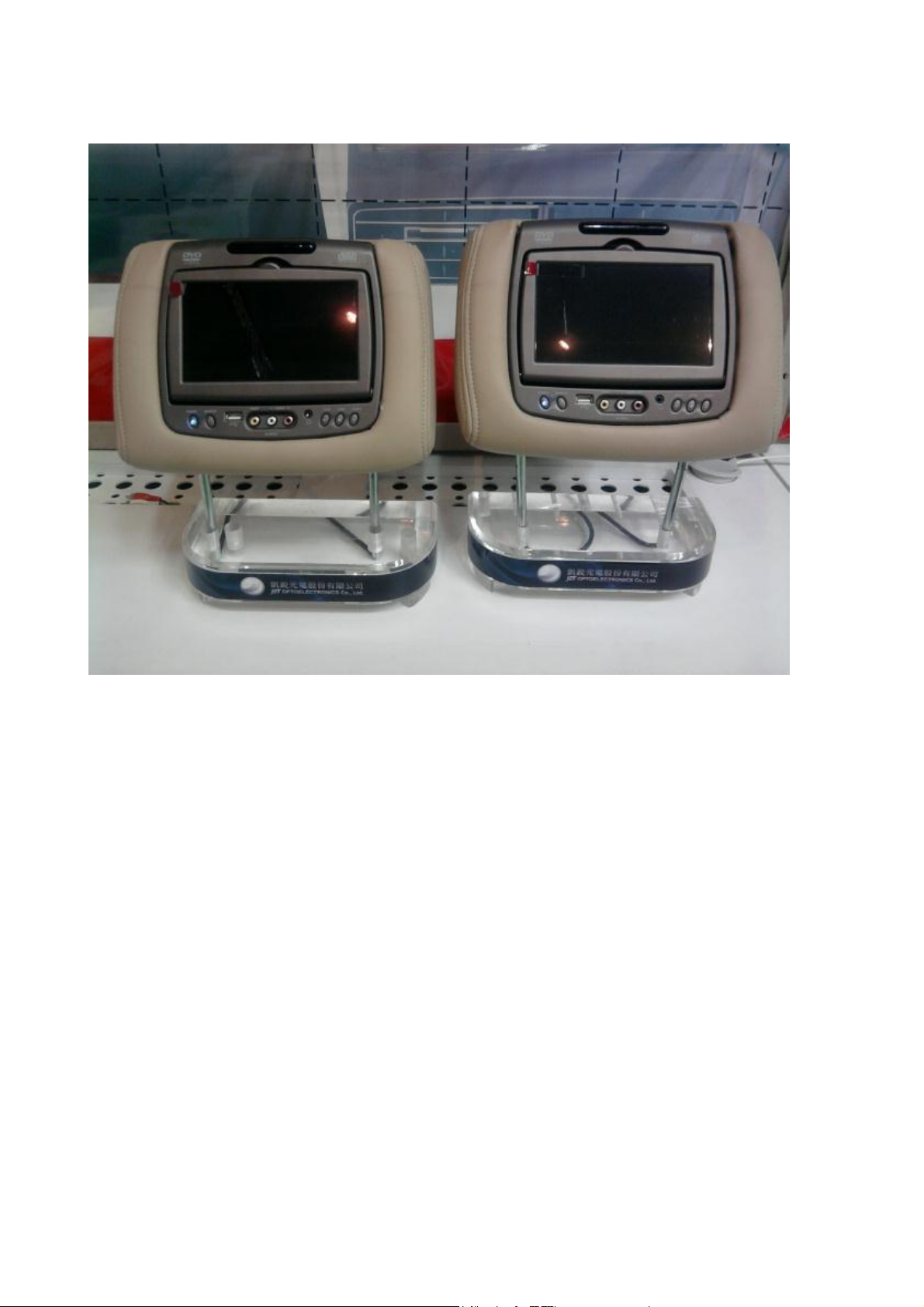

Monitor A Monitor B

3010-DADA P/N. : 620004

Page 2

Monitor A

Monitor B
