JETOP IHB613B User Manual

Download

USER’S GUIDE

V: 781-01

IHB613B

Bluetooth Wireless, CD, Radio, Home Music System

For the most up-to-date version of this User’s Guide, go to

www.iLiveElectronics.com

Warnings and Precautions

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• WARNING:To reduce the risk of re or electric shock,

do not expose this apparatus to rain or moisture.

• AveRTIssemeNT: Pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l’humidité.

• CAUTION: Use of any controls or adjustments or performance of procedures other than those herein

specied may result in hazardous radiation exposure.

• WARNING: Do not place this unit directly onto furniture surfaces with any type of soft, porous, or

sensitive nish. As with any rubber compound made with

oils, the feet could cause marks or staining where the feet reside. We recommend using a protective barrier such as a cloth or a piece of glass between the unit and the surface to reduce the risk of damage and/or staining.

• WARNING: Use of this unit near uorescent lighting

may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from

any uorescent lighting, as it may be the cause.

• CAUTION:Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• PRÉCAUTION: Danger d’explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l’équivalent.

• WARNING:The battery, batteries, and battery pack shall not be exposed to excessive heat such as sunshine,

re, or the like.

WARNING: The remote control supplied with this product contains a button-cell battery that could be accidentally ingested by children. Do not leave buttoncell batteries accessible to children. If swallowed, promptly see doctor and call (202) 625-3333.

WARNING: This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna.

• WARNING:Lithium batteries, like all rechargeable batteries are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never be incinerated since they might explode.

• WARNING: Shock hazard - Do Not Open.

• AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

Mains Plug or Direct plug-in adapter is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the Mains Plug or Direct plug-in adapter should be disconnected from the mains socket outlet completely.

La che d’alimentation ou adaptateur de courant est utilisé comme dispositif de déconnexion et doit rester accessible pendant l’utilisation. Pour mettre l’appareil hors tension, la che ou adaptateur de courant doit être débranché de la prise de courant.

Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

No mezcle baterías viejas y nuevas. No mezcle baterías alcalinas, estándar (carbono-zinc) o recargables (ni-cad, ni-mh, etc.).

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION

RISQUE D' ÉLECTROCUTION

NE PAS OUVRIR

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning ash with arrowhead symbol,

within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's

enclosure that may be of sufcient magnitude to

constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

This product utilizes a Class 1 laser to read Compact Discs. This laser Compact Disc Player is equipped with safety switches to avoid exposure when the CD door is open and the safety interlocks are defeated. Invisible laser radiation is present when the CD Player’s lid is open and the system’s interlock has failed or been defeated. It is very important that you avoid direct exposure to the laser beam at all times. Please do not attempt to defeat or bypass the safety switches.

Important Safety Instructions

1. Read these Instructions.

2. Keep these Instructions.

3. Heed all Warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug

does not t into your outlet, consult an electrician

for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories

specied by the manufacturer.

12.

Use only with a cart, stand, tripod,

bracket, or table specied by the

manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Special note: When placing your unit on a lacquered or natural nish, protect your furniture with a cloth or other protective material.

FCC Warnings

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

RF Exposure Statement

To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna.

Additional Warnings

• The apparatus shall not be exposed to dripping or splashing and that no objects lled with liquids,

such as vases, shall be placed on apparatus.

L’appareil ne doit pas être exposé aux écoulements

ou aux éclaboussures et aucun objet ne contenant de liquide, tel qu’un vase, ne doit être placé sur l’objet.

• Battery shall not be exposed to excessive heat such as sunshine, re or the like.

Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à

la lumière du soleil, au feu ou autres choses de semblable.

• Caution marking is located at the rear or bottom of the apparatus.

Attention marquage est situé sur le paneau

arrière ou inférieur de l’unité.

• The marking information is located at the rear or bottom of apparatus.

Le marquage est situé sur le paneau arrière ou inférieur de l’unité.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

Customer Support: 1-888-999-4215 3

IHB613B

Features Included

• Supports Bluetooth v2.0

• CD player: CD, CD-R/RW

• Digital FM Radio (PLL)

• Station memory presets (10 FM)

• 3.5mm audio input

• Digital volume control

• Top-load disc player

• USB port for mobile phone charging

• Last user’s setting memory

• Digital clock

• LCD display

• Sleep timer

• Alarm

• LED pairing indicator

• Full-function remote

• Wireless range: 33 feet

• Preset EQ

• Pairing button

• 2 channel stereo sound

• Metal speaker grill

• Wooden speaker enclosure

• AC power: built-in AC power cable

• Remote control: requires a

CR2025 battery (pre-installed)

Table of Contents

IHB613B .......................................................................... 4

Features Included

Table of Contents .................................................................. 5

Introduction ...................................................................... 6

Setup ............................................................................. 8

Power Remote

Connecting the Speakers and RCA Audio Inputs .................................... 8

Connecting the Speakers

Clock, Alarm, & Sleep Timer ........................................................ 9

Setting the Clock Setting the Sleep timer Setting the Alarm

Bluetooth & Charging ............................................................10

Pairing a Bluetooth Device Playing Audio Wirelessly Charging a Device

CD, FM Radio & Line In ............................................................11

Loading a CD Playing a CD Programming a CD Playing the Radio Radio Reception Saving a Radio Station as a Preset Tuning to a Saved Preset Station Using the Line input

Company Information ............................................................12

International Support Contact Information Warranty Green Initiative

Customer Support: 1-888-999-4215 5

Introduction

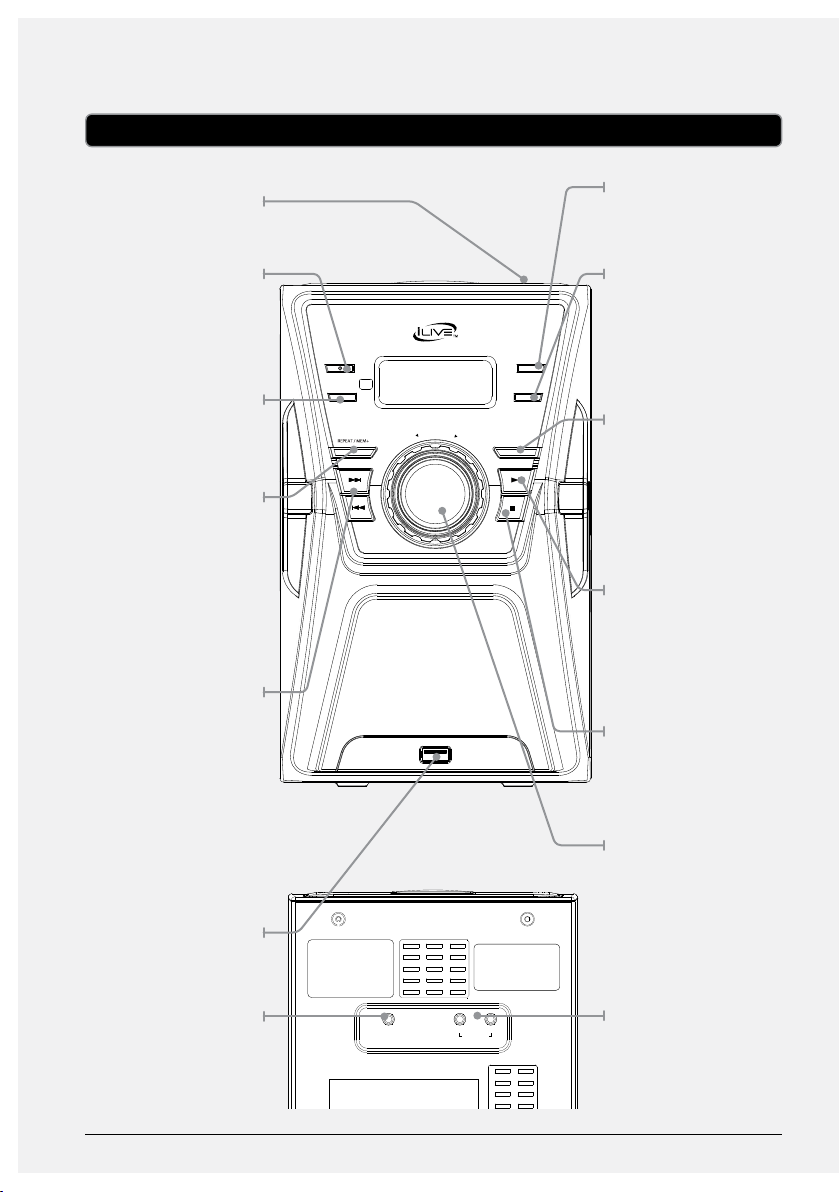

Open/Close

Press to open or

close the CD door.

Power

Press to power

the music system

o or on.

Pair

Press to begin

connecting a

Bluetooth device.

Repeat/Mem+

Press to repeat

the current track

or an entire CD.

Press to cycle

through saved

radio stations.

Skip/Search

Tune (+/-)

Press to skip

between tracks .

Press and hold to

search through an

individual track. Press

to tune the FM radio.

Press and hold to

search for the next

available station.

Source

Press to switch between sources.

Press to adjust the preset EQ to Rock, Classic, Jazz,

POWER

PAIR

SOURCE

Pop, or Bass.

Program/Memory

Press to program

PROGRAM / MEMORY

TUNE +

tracks to play in a specic order. In FM Radio mode, press to begin saving

TUNE –

CLK SET

a station as a preset.

Play/Pause

Press to play or pause a connected Bluetooth device or a loaded CD.

Stop/Clk Set

Press to stop a

USB CHARGING

CD during play. In o mode, press to begin setting the clock.

Volume

Turn to adjust the volume.

USB Charger

Connect a USB

device to charge.

Line In

LINE IN

SPEAKER

Speaker Outputs

Power

Press to turn the

unit on or o.

Repeat/Mem +

Press to repeat

the current track

or an entire CD.

Press to cycle

through saved

radio stations.

Stop

Press to stop a

CD during play.

Source

Press to switch between

Line in, iPod and

Bluetooth modes.

POWER

SOURCE

REPEAT/

MEM+

TUNE –

TUNE +

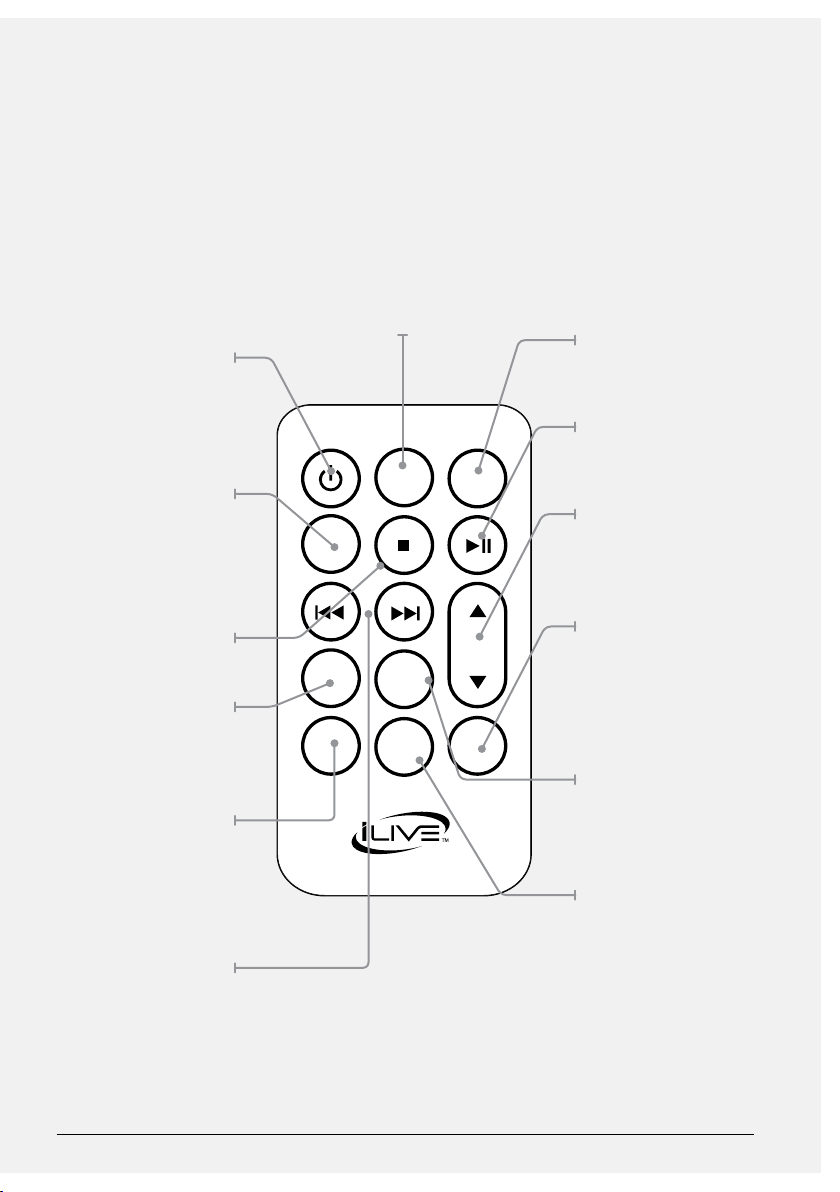

Mute

Press to mute the volume.

Play/Pause

Press to play or pause a track.

MUTE

Volume

Press to adjust the volume.

Alarm

In o mode, press

to begin setting

the alarm.

ALARM

VOLUME

CLK SET

Press to adjust the preset EQ to Rock, Classic, Jazz, Pop, or Bass.

Sleep

In on mode, press

to begin setting

the sleep timer.

SLEEP

PROG/

MEM

Clk Set

In o mode, press to begin setting the clock.

Skip/Search/

Tune +/-

Press to skip between

tracks, or press

and hold to search

through tracks.

Press to tune the

radio. Press and hold

Program/Memory

Press to program tracks to play in a specic order. In FM Radio mode, press to begin saving a station as a preset.

to search for the next

available station.

Customer Support: 1-888-999-4215 7

Setup

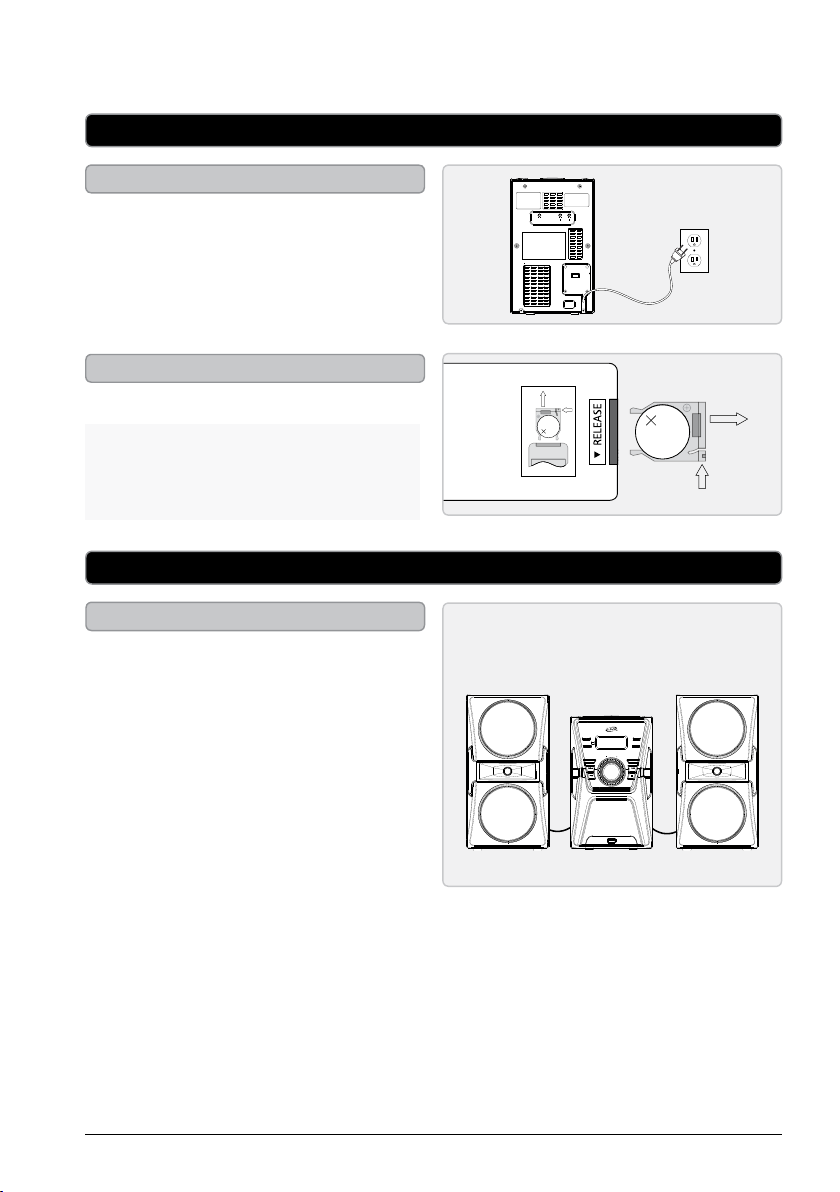

Power

AC power input: requires an AC

LINE IN

power cable (included)

Remote

Requires 1, CR2025, battery (pre-installed).

WARNING: The remote control’s button cell battery contains mercury. Do not put in the trash, instead recycle or dispose of as hazardous waste.

CR2025

Connecting the Speakers and RCA Audio Inputs

OPEN

SPEAKER

AC IN ~

PUSH

CR 2025

LITHIUM BATTERY

CR2025

CR 2025

LITHIUM BATTERY

OPEN

PUSH

Connecting the Speakers

Connect the included speakers to the corresponding speaker connections on the back of the speaker system.

Left

Speaker

(L)

Right

Speaker

(R)

SOURCE

POWER

PAIR

PROGRAM / MEMORY

REPEAT

TUNE +

CLK SET

TUNE –

USB CHARGING

Clock, Alarm, & Sleep Timer

Setting the Clock Setting the Alarm

1. Press the Power button to turn the music system o.

2. Press the CLK Set button on the music system.

The hour will begin to blink on the display.

3. Press the Skip/Search buttons to adjust the hour.

An “AM” indicator will appear on the display when the time is set to the AM. A “PM” indicator will appear on the display when the time is set to the PM.

4. Press the CLK Set button to set the adjusted hour.

The minute will begin to blink on the display.

5. Press the Skip/Search buttons to adjust the minute.

6. Press the CLK Set button to nish setting the clock.

Setting the Sleep timer

1. Press the Power button to power the unit on.

2. Press the Sleep button repeatedly to set the sleep timer to the desired time.

3. Once the set sleep time has expired the clock radio will automatically power off.

1. With the unit powered o, press the Alarm button on the remote.

The display will ash.

2. Press the Skip/Search buttons to adjust the alarm source.

OFF, Buzzer or FM

3. Press the Alarm button to set the alarm source.

The hour will begin to blink on the display.

An “AM” indicator will appear on the display when the time is set to the AM.

A “PM” indicator will appear on the display when the time is set to the PM.

4. Press the Skip/Search buttons to adjust the hour.

5. Press the Alarm button to set the adjusted hour.

The minute will begin to blink on the display.

6. Press the Skip/Search buttons to adjust the minute.

7. Press the Alarm button to set the adjusted minute.

The alarm source will begin to blink on the display.

8. Press the Alarm button to nish setting the alarm.

9. The unit will power on when the set time is reached.

Customer Support: 1-888-999-4215 9

Bluetooth & Charging

Pairing a Bluetooth Device

1. Power on the unit by pressing the Power button.

2. Press the Source button to switch to Bluetooth Mode.

The display will show the “BT”.

3. Press the Pair button.

4. “BT”will ash quickly on the display.

When pairing, remain within 3 feet of the unit.

5. Using the native controls on your Bluetooth device, select the “IHB613” in your Bluetooth settings to pair.

If your device requests a password, enter the default password “ 0 0 0 0 ”.

Refer to the user’s manual for your specic device for instructions on pairing and connecting Bluetooth devices.

When successfully paired and connected, “BT” wills top ashing and audio will be heard through the speakers.

After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the device.

If your device should become unpaired, follow the above steps again.

If any pairing issues should occur, unpair the unit on your Bluetooth device and follow the above steps again.

Playing Audio Wirelessly

1. Follow the instructions for Pairing a Bluetooth Device.

2. Use the native controls on the connected Bluetooth Device to select a track.

3. To play, pause or skip the selected track, use the native controls on the connected Bluetooth Device or press the Play/Pause or Skip/Search buttons.

4. Audio played through the connected Bluetooth device will now be heard through the speakers.

Charging a Device

1. Make sure the unit is plugged into the wall.

2. Using the appropriate USB charging cable (not included), connect one end to the device and the other to the USB Charger on the unit.

Refer to the user’s manual for your specic device for manufacturers required charging amperage as well as determining the appropriate cable for your device before charging.

Note: This device uses a USB charging port with a 1A maximum charging capacity.

3. The device will now charge.

CD, FM Radio & Line In

Loading a CD

1. Open the Disc Door.

2. Place a CD into the unit, label side facing up.

3. Close the Disc Door.

Playing a CD

1. Follow the instructions for Loading a CD.

2. Press the Source button to switch to CD mode.

3. Press the Play/Pause button to begin playing the loaded CD.

Programming a CD

1. Follow the instructions for Loading a CD and Playing a CD.

2. Press the Stop button to stop the CD during play.

3. Press the Program button on the remote.

4. Use the Skip/Search buttons to enter the desired track number.

5. Repeat step 3 until the desired number of CD tracks are programmed.

6. Press the Play/Pause button on the remote to begin playing the programmed tracks.

Playing the Radio

1. Press the Source button to switch to FM Radio mode.

2. Press the Tune+/- buttons to tune

the radio. Press and hold to search for the next available station.

Radio Reception

Adjust the position of the antenna to improve FM radio reception.

Saving a Radio Station as a Preset

1. Follow the instructions for Playing the Radio.

2. Press and hold the Memory button on the remote or the unit.

3. Press the Tune+/- buttons on the remote to select a preset number.

Up to 20 stations may be preset.

4. Press the Memory button to save the current station to the selected preset.

Tuning to a Saved Preset Station

1. In FM Radio mode, press the Repeat/Mem+ button to cycle through saved presets.

Using the Line input

Requires a 3.5mm audio cable (not included)

1. Connect a 3.5mm audio cable to the 3.5mm Audio Input and the audio output on an MP3 player or other audio device.

2. Press the Source button to switch to Line In mode.

3. Use the native controls on the connected MP3 player or other audio source to play your audio through the unit.

Customer Support: 1-888-999-4215 11

JETOP IHB613B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
