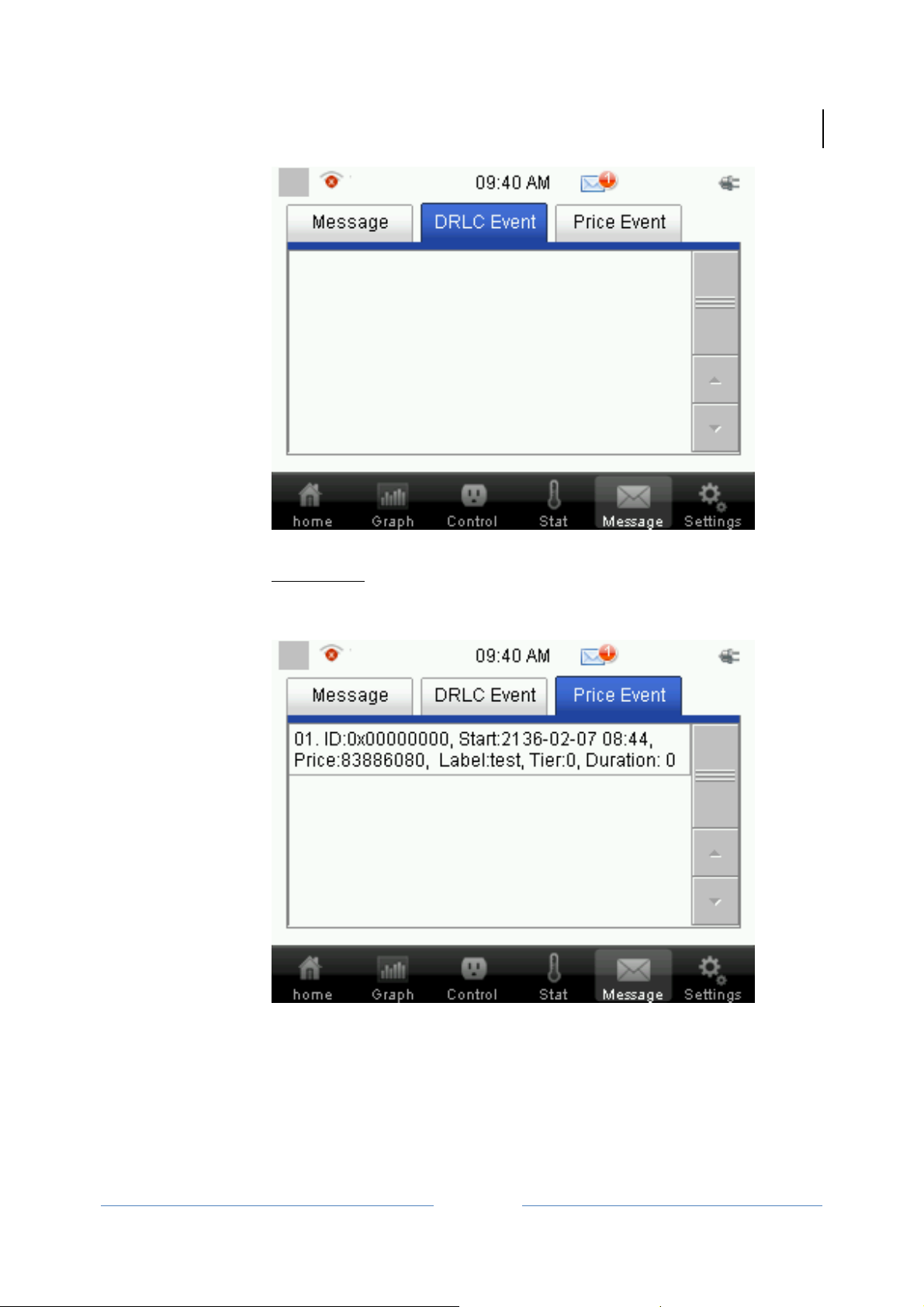

Figure 13: IHD DRLC event.......................................................................................................... 17
Figure 14: IHD Price Event........................................................................................................... 17
Figure 15: IHD Home .................................................................................................................... 18

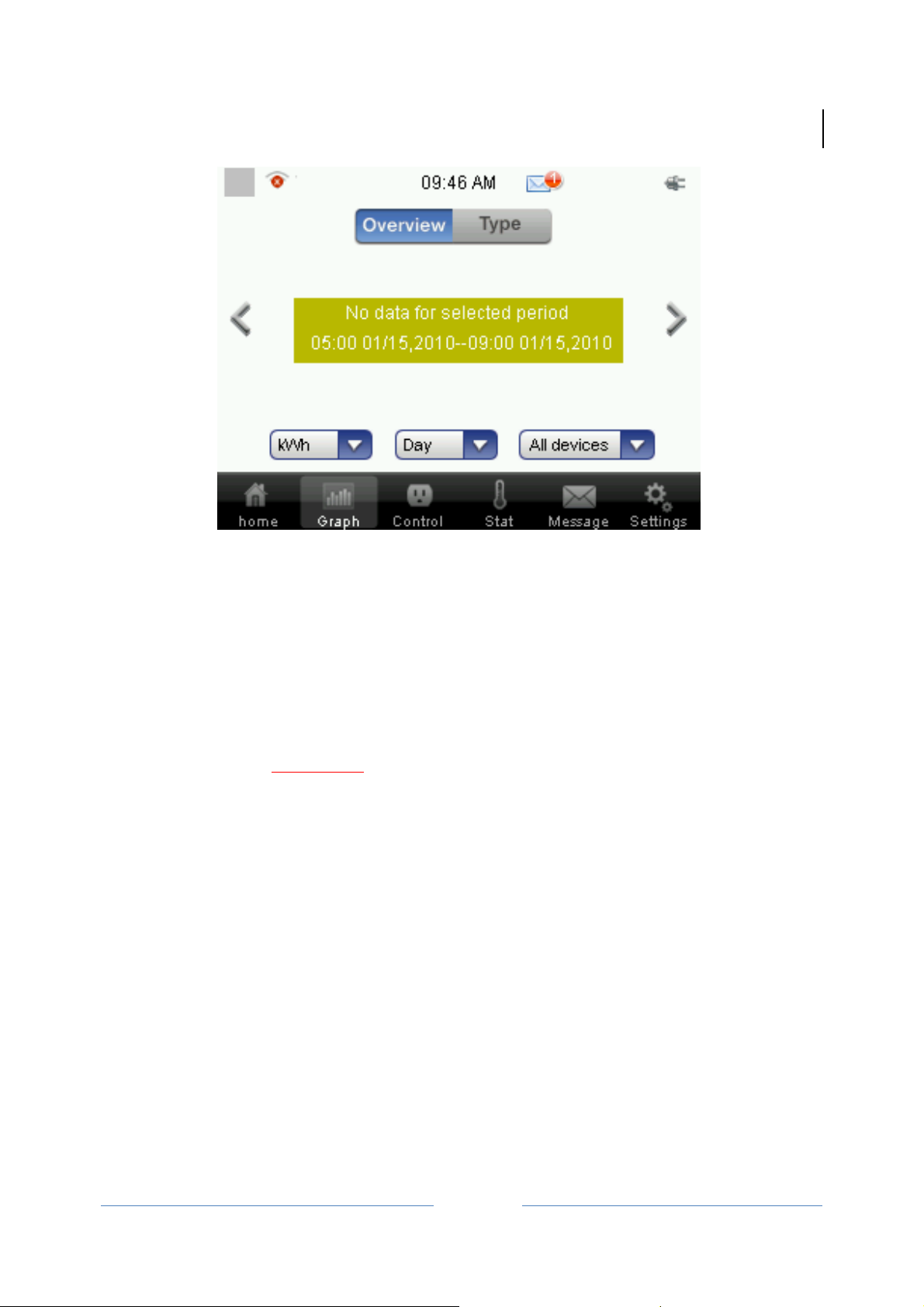

Figure 16: IHD Graph Overview ...................................................................................................19

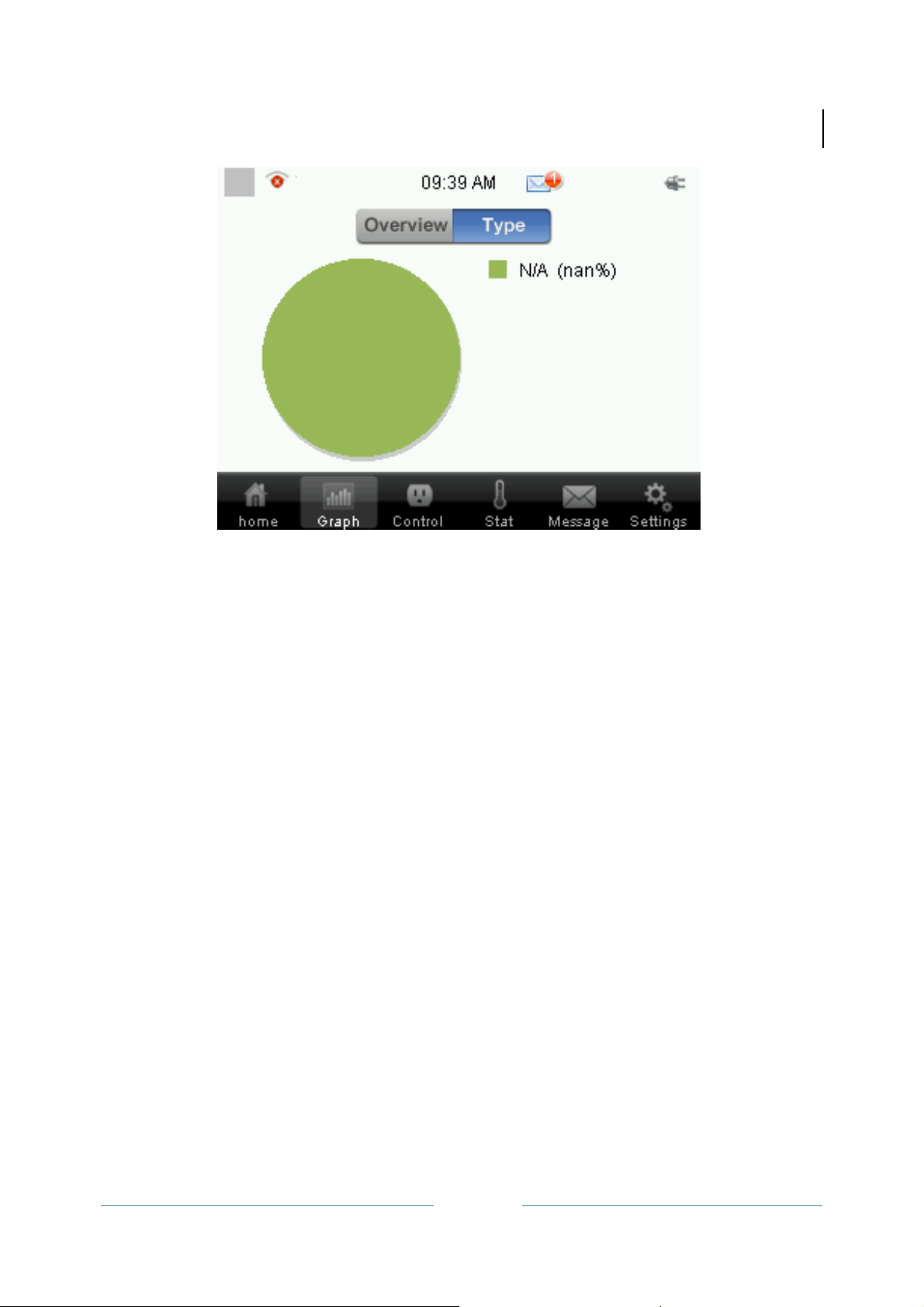

Figure 17: IHD Graph Type .......................................................................................................... 20
List of Tables
Table 1: Where to find information in this User Guide ................................................................... 5
Table 2: Icon descriptions............................................................................................................... 5
Table 3: Front Panel LED Description............................................................................................7
Table 4: Back Panel Description .................................................................................................... 7
4
RD77723
1.0 ABOUT THIS GUIDE
1.1 Becoming familiar with this User Guide
1.1 Quick Reference
The Jetlun In Home Display (RD77723) User Guide describes the following:
Table 1: Where to find information in this User Guide
Planning and Installing the Jetlun In Home Display Chapter 2 and 3
Configuring and maintaining the In Home Display Chapter 4 and 5
1.2 Icon Descriptions
While reading through the User Guide, you may see various icons that call attention to
specific items. Below is a description of these icons:
Table 2: Icon descriptions
NOTE: This mark indicates that there is a note of interest and is
something that you should pay attention to while using the
product.
IMPORTANT: This mark identifies an indication that you should
watch for, or reiterates something that you should always keep
in mind.
WARNING: This exclamation point indicates that there is a
caution or warning and may be something that could damage
your property or project.
Jetlun Corporation
Jetlun IHD User Guide rev 1.0 DRAFT
5
1.3 Getting Additional Help
To get information or assistance for problems that you encounter, please contact Jetlun
Technical Support by emailing support@jetlun.com
.
Please always include with all inquiries the following information:
• Product name, model number, part number (if applicable) and serial number
• A description of the devices connected to your In home Display or a system
configuration
• The circumstances surrounding the error or failure
• A detailed description of the problem and what has been done to try to resolve it
1.4 Sending Feedback regarding this Documentation
We welcome your feedback on Jetlun IHD documentation. This includes feedback on the
structure, content, accuracy, or completeness of our documents, and any other comments you
may have. Please send your comments to docs@jetlun.com
RD77723
.
Jetlun Corporation
Jetlun IHD User Guide rev 1.0 DRAFT
2.0 PRODUCT OVERVIEW
Thank you for choosing the Jetlun In Home Display (RD77723). The JIM In-Home Display
(IHD) from Jetlun communicates with Smart Meters that gives consumers unprecedented
insight into their energy usage and costs. It provides power utility providers a low-cost way to
send messages and alerts to customers on upcoming demand response events or on various
ways to save energy.
Empowering consumers with information, consumers can make conscious decisions on
when and how they can be more energy efficient and lowering their monthly energy bill.
Studies have shown that instantaneous feedback can reduce energy consumption by up to
20%. The JIM IHD provides a simple interface for consumer to easily view its current tariff
rate and opt in to participate in various energy efficiency programs offered by power utilities
to recognize further cost savings.
The JIM IHD features a color 3.5” color touch screen backlit display, a ZigBee® wireless
connectivity, and an option for WiFi. An extra USB expansion port is available to upgrade
the firmware. The JIM IHD can either be wall mounted or use the included stand for placing
on a counter top.
6
2.1 Package Contents
When you first open the box, please check and confirm that the following items are all
included:
• 1x IHD RD77723
• 1x Universal Power Supply
• 1x Quick Installation Guide
If any of the parts are incorrect, missing or damaged, contact the retailer where you
made your purchase. Keep the carton, including the original packaging materials in case
you need to return the unit for repair.
2.2 Front Panel
RD77723
Jetlun Corporation
7
Jetlun IHD User Guide rev 1.0 DRAFT
Figure 1: IHD front panel
Power LED
2.3 Back Panel
Table 3: Front Panel LED Description
The Power LED lights up GREEN and will stay on while the IHD
is powered on.
The Power LED lights up Green and Orange when the IHD is
charged battery and is powered on
Figure 2: IHD back panel
Table 4: Back Panel Description
DC IN
Power supply for IHD, voltage 5.0V, current 1.5A
USB Provide the USB port to upgrade the firmware
RD77723
Jetlun Corporation
Jetlun IHD User Guide rev 1.0 DRAFT
3.0 INSTALLING THE JETLUN IHD
Follow these quick steps to install your Jetlun IHD.
3.1 Connecting the IHD to Jetlun Gateway Pro
There are three ZigBee profile types in the jetlun products, HA, SE without SEECC and
SE with SEECC. The join process for each profile has some differents
3.1.1 Join to gateway pro with HA or SE without SEECC profile
1. Form your ZigBee network, go to gateway pro website Setup > Zigbee and follow the
steps below in the column A:
8
A
B
Figure 3: Gateway Pro HA ZigBee Setup
 STEP 1: Click the Leave button. This will disconnect any and all ZigBee devices that
were connected to the Gateway.
 STEP 2: Enter Channel ID, Power Level and Pan ID if you have more than one ZigBee
network. Otherwise, you can leave it in its Default setting.
NOTE: If you have more than one ZigBee Networks,
please ensure that each ZigBee network have a different
Channel ID and PAN ID.
Notes: The PAN ID must be 4 Hex characters. (From
0000 to FFFF.)
 STEP 3: Click the Form button.
2. To configure the ZigBee network join permissions, follow the steps under column B:
 STEP 1: Select the permission choice:
RD77723
• The DENY option prohibits any ZigBee devices to join to the Gateway.
• The Join Any Time option allows any ZigBee devices to join to the Gateway
at any time.
• The Deny after XX seconds option allows you to configure the amount of
time you allow ZigBee devices to join to the Gateway. After XX seconds, no
ZigBee devices can join to the Gateway.
 STEP 2: Click the Execute button.
3. Enter the IHD LCD settings > Network> ZigBee tab, Click the join button in the LCD.
(The details operation refer to part 4.2.1.1 )
3.1.2 Join to gateway profile with the SE with SEECC
1. Form your ZigBee network, go to gateway pro website Setup > Zigbee and follow the
steps below in the column A:
Jetlun Corporation
Jetlun IHD User Guide rev 1.0 DRAFT
9
A
C
B
Figure 4: Gateway Pro SEECC ZigBee setup
 STEP 1: Click the <Leave> button, if there are devices in the Zigbee network, they
all leave the former network.
 STEP 2: Enter Channel ID, Power Level and Pan ID.
Notes: The PAN ID must be 4 Hex characters. (From 0000 to FFFF)
 STEP 3: Click the <Form> button. All Zigbee devices join the same network will
show up in the Home Area Network.
2. Create the Link key in column B:
 STEP 1: Input the device EUI and Install code.
Get the EUI and install code from the rating plate in the device.
 STEP 2: Click the Add (Edit) button
 STEP 3: The Link key will be shown in the link key table.
3. Configure the permission in column C:
RD77723
Jetlun Corporation
Jetlun IHD User Guide rev 1.0 DRAFT
 STEP 1: Select the permission choice:
Deny----------------Phobit zigbee devices join the network .
Join any time-----Allow zigbee devices join the network all the time
Deny after XX seconds-----Allow zigbee devices join the network within XX seconds.
(It recommends selecting this choice.)
 STEP 2: Click <Execute> button.
4. After the procedure from 1 to 3 the zigbee network is formed. You can join the IHD to
the zigbee network.
 STEP 1: Enter the IHD LCD tab settings > Network> ZigBee tab, Click the join button in
the LCD. (The details operation refer to part 4.2.1.1)
3.2 Connecting to the Smart Meter
The ZigBee profile for smart meter is SEECC, Please refer part 3.1.2
NOTE: The operation interface may be different with it in
the jetlun gateway pro, But the main operation process is
almost the same.
10
RD77723
4.0 CONFIGURING THE IHD
4.1 IHD LCD Navigation Guide
The user interface is divided into six main categories:
• Home. The Home tab provides an overview of your Jetlun In Home Display for the
current day.
• Graph. The Graph tab provides a detailed view of your IHD by device and provides
an expanded view of your historical energy usage information.
• Control. No function for this firmware.
• Stat. No function for this firmware
• Message. The message tab provides a detailed view of your IHD receives Message
events, DRLC events and Price events.
• Setting. The Settings tab allows you to join ZigBee and WIFI network, configure
background LED status, change the performances and upgrade the firmware.
At the top of each screen is a time link to configure the time zone, date and time, a
ZigBee icon to indicate join/leave zigbee network, a WIFI icon to indicate join/leave WIFI
network, a message icon to display the quantity of your unread messages and a power
type icon to display the power type.
Jetlun Corporation
Jetlun IHD User Guide rev 1.0 DRAFT
11
Figure 5: IHD Main board
4.2 Configuration and Maintenance
4.2.1 Setttings
4.2.1.1 Network
The Settings > Network screen allows you to join the ZigBee network and
WIFI network.
ZigBee Network
RD77723
Loading...
