Jetlun RD77720 User Manual

Jetlun Three Phase Zigbee Panel Meter User Guide
RD77724
rev 1.0
88 PARKGROVE DRIVE | SOUTH SAN FRANCISCO | CA | 94080 | USA
+
+
© 2009 Jetlun Corporation. All rights reserved.
Notice: No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or stored in a database or retrieval system for any purpose without the express written permission of Jetlun Corporation.
Jetlun Corporation reserves the right to make changes to this user’s guide at any time without notice and assumes no responsibility for its use. Jetlun products and services can only be ordered under the terms and conditions of Jetlun Corporation's applicable agreements. All of the features described in this user’s guide may not be currently available. Refer to the most recent product announcement for information about feature and product availability.
This user’s guide contains the most current information available at the time of publication. When new and/ or revised information becomes available, this entire user’s guide is updated and distributed to all registered users.
Trademarks, Product Names, and Service Names
Jetlun, the stylized J logo, and the Jetlun logo are either trademarks or registered trademarks of Jetlun Corporation. All other product or service names are property of their respective owners.
http://www.jetlun.com
Jetlun Corporation
Jetlun Three Phase Zigbee Panel Meter User Guide rev 1.0
Table of Contents
1.0 ABOUTTHISGUIDE....................................................................................................................5
1.1BECOMINGFAMILIARWITHTHISUSERGUIDE .............................................................................5
1.1.1QuickReference........................................................................................................................5
1.1.2IconDescriptions......................................................................................................................5
1.1.3RelatedDocumentation ............................................................................................................5
1.1.4GettingAdditionalHelp...........................................................................................................5
1.1.5SendingFeedbackregardingthisDocumentation ....................................................................6
1.2IMPORTANTSAFETYINFORMATION ...................................................................................... 6
2.0PRODUCTOVERVIEW ............................................................................................................... 7
2.1PACKAGECONTENTS.....................................................................................................................7
2.2FRONTPANEL.................................................................................................................................8
2.3LEFTPANEL ....................................................................................................................................9
2.4RIGHTPANEL.................................................................................................................................9
3
3.0INSTALLINGTHEPANELMETER .............................................................................................10
3.1ADDITIONALINSTRUCTIONS ...........................................................................................................12
4.0 LEGALANDREGULATORYNOTICES................................................................................. 12
4.1IMPORTANTNOTEOFMODIFICATIONS ......................................................................................12
4.2NATIONALANDREGIONALREGULATORYNOTICES.................................................................12
4.2.1U.S.FederalCommunicationsCommission(FCC)Notifications.................................12
4.2.2DeclarationsofConformity...............................................................................................13

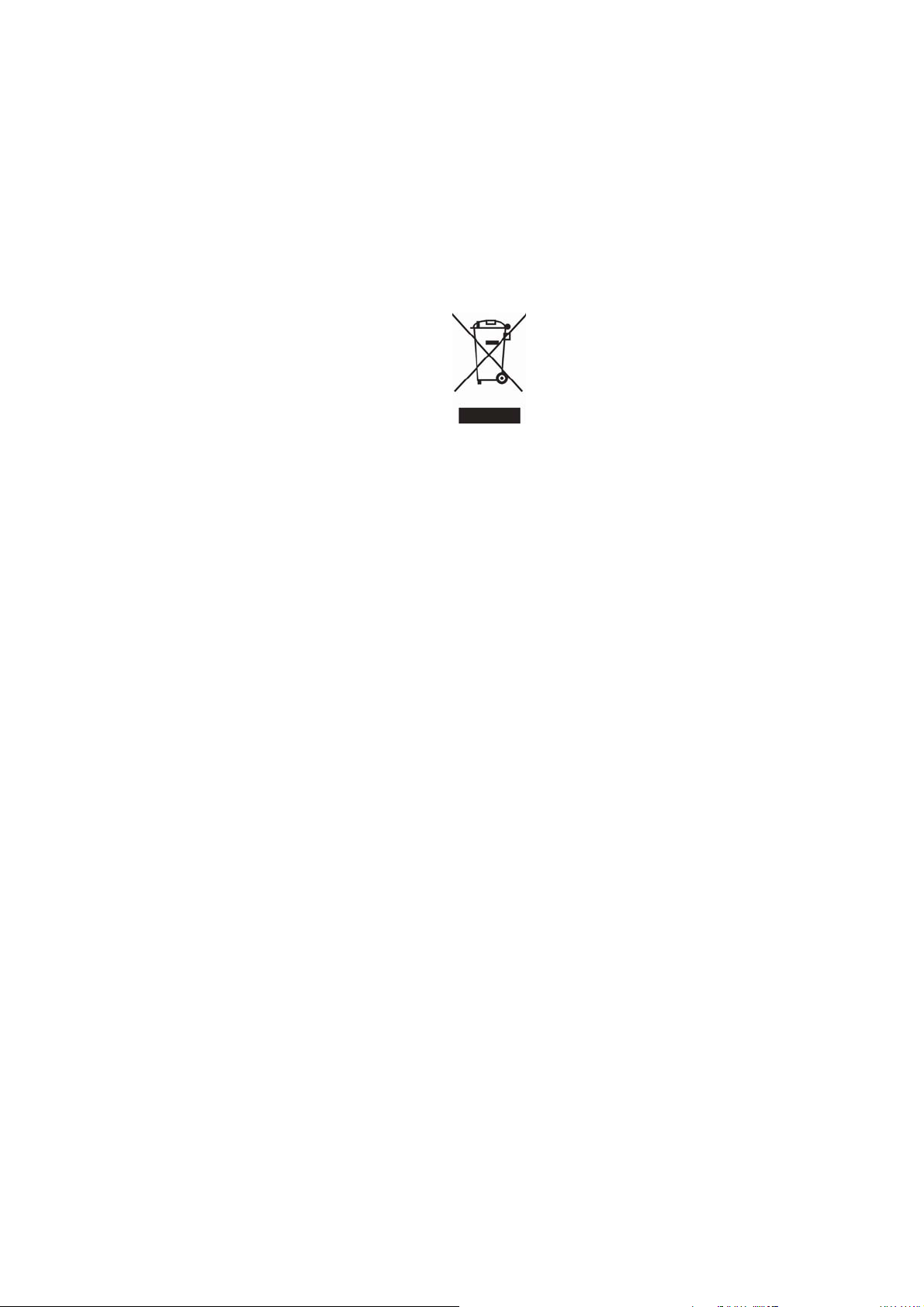

4.3USERINFORMATIONFORCONSUMERPRODUCTSCOVEREDBYEUDIRECTIVE2002/96/ECON
WASTEELECTRICANDELECTRONICEQUIPMENT(WEEE) ................................................................15
4.4LEGALNOTICES............................................................................................................................21
4.4.1SoftwareLicenseTermsandConditions ................................................................................ 21
4.4.2HardwareWarrantyinU.S. ..................................................................................................24
4.4.3LimitofLiability..................................................................................................................... 24
5.0TROUBLESHOOTING ............................................................................................................... 25
6.0TECHNICALSPECIFICATIONS ..................................................................................................26
NOTES ......................................................................................................................................................27
Figures
Figure 1: Front Panel of Panel Meter ............................................................................................. 8
Figure 2: Left view of Panel Meter.................................................................................................. 9
Figure 3: Side view of Panel Meter ................................................................................................ 9
Figure 4: Right view of the Panel Meter .........................................................................................9
DOC No: UG-RD77724-1.0
Jetlun Corporation
Jetlun Three Phase Zigbee Panel Meter User Guide rev 1.0
Tables
Table 1: Where to find information in this User Guide ................................................................... 5
Table 2: Icon descriptions............................................................................................................... 5
Table 3: Front Panel LED Description............................................................................................8
4
DOC No: UG-RD77724-1.0
Jetlun Three Phase Zigbee Panel Meter User Guide rev 1.0
1.0 ABOUT THIS GUIDE
1.1 Becoming familiar with this User Guide
1.1.1 Quick Reference
The Jetlun Zigbee Panel Meter (RD77724) User Guide describes the following:
Table 1: Where to find information in this User Guide
Planning and Installing the Jetlun Zigbee Panel Meter Chapter 2 and 3
1.1.2 Icon Descriptions
While reading through the User Guide, you may see various icons that call attention to specific items. Below is a description of these icons:
Table 2: Icon descriptions
NOTE: This mark indicates that there is a note of interest and is
something that you should pay attention to while using the product.
IMPORTANT: This mark identifies an indication that you should
watch for, or reiterates something that you should always keep in mind.
WARNING: This exclamation point indicates that there is a
caution or warning and may be something that could damage your property or project.
Jetlun Corporation
5
1.1.3 Related Documentation
General Jetlun Intelligent Management (JIM) Information
• Site Survey Questionnaire
• Gateway (RD75606) User Guide
1.1.4 Getting Additional Help
To get information or assistance for problems that you encounter, please contact Jetlun Technical Support by emailing support@jetlun.com
.
Please always include with all inquiries the following information:
• Product name, model number, part number (if applicable) and serial number
• A description of the devices connected to your Gateway or a system configuration
• The circumstances surrounding the error or failure
• A detailed description of the problem and what has been done to try to resolve it
DOC No: UG-RD77724-1.0
Jetlun Corporation
Jetlun Three Phase Zigbee Panel Meter User Guide rev 1.0
1.1.5 Sending Feedback regarding this Documentation
We welcome your feedback on Jetlun Gateway documentation. This includes feedback on the structure, content, accuracy, or completeness of our documents, and any other comments you may have. Please send your comments to docs@jetlun.com
.
1.2 IMPORTANT SAFETY INFORMATION
WARNING: These installation instructions are for use by a licensed electrician only. To avoid electrical shock, do not perform any servicing other than what is contained in this User Guide unless you are a licensed electrician and qualified to do so. Read, understand, and follow all instructions in the User Guide including all warnings, cautions, and precautions before installing and using the product
The following precautions should be taken when using this product:
• Read all instructions before installing and operating this product.
• Jetlun recommends that a licensed electrician install the Panel Meter.
• Jetlun recommends that the Panel Meter be installed either in an electrical enclosure
(panel or junction box) or in a limited access electrical room.
• Verify that circuit voltages and currents are within the proper range for the Panel Meter.
• Jetlun recommends using only current transformers (CTs) from Jetlun, which has been
calibrated to work with the Panel Meter. Using off-the-shelf UL CTs from third parties will affect the accuracy of the measurements.
• Before turning on power to the Panel Meter, ensure that all the wires are securely installed by tugging on each wire.
• Equipment must be disconnected from the HAZARDOUS LIVE voltage before access.
• Do not place more than one line voltage wire in a screw terminal.
• Do not install the Panel Meter where it may be exposed to temperatures below 30°C or
above 55°C, excessive moisture, dust, salt spray, or other contamination.
• Do not drill mounting holes using the Panel Meter as a guide; the drill chuck can damage the Panel Meter housing or screw terminals.
• If the Panel Meter is installed incorrectly, the safety protections may be impaired.
6
DOC No: UG-RD77724-1.0
2.0 PRODUCT OVERVIEW
Thank you for choosing the Jetlun Panel Meter (RD77724). The Panel Meter is an integrated Zigbee enabled metering device that provides phase-based energy measurement. Removing the guesswork, the Jetlun Panel Meter provides a detailed breakdown of your entire home’s energy usage in real-time helping you understand where your energy is being used and if you have renewable energy sources, the Panel Meter calculates how much energy you are adding back to the grid in real-time so you know where your money is going. It measures energy usage from within existing electric service panels avoiding the costly installation of subpanels and associated wiring. The Panel Meter is designed for use in demand side management (DSM), sub-metering, and energy monitoring applications.
The Jetlun Panel Meter works with 0.333 VAC solid-core and split-core current transformers (CTs). Split-core CTs offer greater ease of installation, because they can be installed without disconnecting the circuit being measured. Solid-core CTs are more compact, generally more accurate, and less expensive, but installation requires that the measured circuit be disconnected. Although you can source and use off-the-shelf CTs with the Jetlun Panel Meter, it is highly recommended to use CTs from Jetlun because those CTs have been calibrated and tested to work with the Jetlun Panel Meter. Using third-party CTs will affect the accuracy of the measurements.
Jetlun Corporation
Jetlun Three Phase Zigbee Panel Meter User Guide rev 1.0
7
2.1 Package Contents
When you first open the box, please check and confirm that the following items are all included:
If any of the parts are incorrect, missing or damaged, contact the retailer where you made your purchase. Keep the carton, including the original packaging materials in case you need to return the unit for repair.
1x Panel Meter RD77724
1x din rail mounting bracket 2x mounting screws
DOC No: UG-RD77724-1.0
2.2 Front Panel
Jetlun Corporation
Jetlun Three Phase Zigbee Panel Meter User Guide rev 1.0
8
Figure 1: Front Panel of Panel Meter
Table 3: Front Panel LED Description
Constant Green Successfully connected to zigbee
Blinking Green Search the zigbee network
Blinking Yellow Actively sending or receiving data over
A, B,C
Constant Green No Power but Voltage is Live.
Constant yellow Low power factor (pf < 0.5, this value is
Blinking Green The Power is positive.
Blinking Red
network
the network
The voltage for panel meter is normal and no devices use the energy in the network.
calculated every one hour)
The Power is negative. If there is no generating plant connects to panel meter network, this means the CT is in the wrong direction.
DOC No: UG-RD77724-1.0
2.3 Left Panel
Jetlun Corporation
Jetlun Three Phase Zigbee Panel Meter User Guide rev 1.0
9
Figure 2: Left view of Panel Meter
A，B，C
2.4 Right Panel
Figure 4: Right view of the Panel Meter
Power
Current transformer (CT) inputs. These indicate the positions of the screw terminals
for the current
transformers connections.
Figure 3: Side view of Panel Meter
This is power supply input. One is connect to Line and another is connected to Neutral
2.5 Side Panel
Figure 5: Side view of the Panel Meter
The Zigbee Network button is applied for panel meter to join or leave the zigbee network. Press and hold the Zigbee Network button for 5 seconds to join the network if the meter is not in the network. To leave the meter from the network, press and hold the Zigbee Network button for 7-10 seconds.
DOC No: UG-RD77724-1.0
