Jetlun Corporation
Jetlun Gateway User Guide rev 0.3 DRAFT
2
!
!
!
RD75606
!
© 2009-2010 Jetlun Corporation. All rights reserved.
Notice: No part of this publication may be reproduced or transmitted in any form or by any
means, electronic or mechanical, including photocopying and recording, or stored in a database
or retrieval system for any purpose without the express written permission of Jetlun Corporation.
Jetlun Corporation reserves the right to make changes to this userʼs guide at any time without
notice and assumes no responsibility for its use. Jetlun products and services can only be
ordered under the terms and conditions of Jetlun Corporation's applicable agreements. All of the
features described in this userʼs guide may not be currently available. Refer to the most recent
product announcement for information about feature and product availability.
This userʼs guide contains the most current information available at the time of publication.
When new and/ or revised information becomes available, this entire userʼs guide is updated
and distributed to all registered users.
Trademarks, Product Names, and Service Names
Jetlun, the stylized J logo, and the Jetlun logo are either trademarks or registered trademarks of
Jetlun Corporation. All other product or service names are property of their respective owners.
http://www.jetlun.com
Jetlun Corporation
Jetlun Gateway User Guide rev 0.3 DRAFT
3
!
!
!
RD75606
!
Table of Contents
1.0! ABOUT THIS GUIDE........................................................................................................... 5!
1.1! BECOMING FAMILIAR WITH THIS USER GUIDE....................................................................... 5!
1.1! Quick Reference........................................................................................................... 5!
1.2! Icon Descriptions .......................................................................................................... 5!
1.3! GETTING ADDITIONAL HELP ................................................................................................5!
1.4! SENDING FEEDBACK REGARDING THIS DOCUMENTATION .....................................................5!
2.0 ! PRODUCT OVERVIEW ...................................................................................................... 6!
2.1! PACKAGE CONTENTS .........................................................................................................6!
2.2! FRONT PANEL ....................................................................................................................6!
2.3 BACK PANEL .........................................................................................................................7!
3.0! INSTALLING THE JETLUN GATEWAY ............................................................................. 9!
3.1 ! CONNECTING THE JETLUN GATEWAY TO YOUR ROUTER......................................................9!
3.2! CONNECTING TO THE JETLUN GATEWAY IN ABSENCE OF A ROUTER ..................................... 9!
3.3 ! ACCESSING THE GATEWAYʼS WEB UTILITY ....................................................................... 10!
4.0! CONFIGURING THE GATEWAY ...................................................................................... 11!
4.1! GATEWAY WEB-UTILITY NAVIGATION GUIDE ..................................................................... 11!
4.2! CONFIGURATION AND MAINTENANCE.................................................................................11!
4.2.1! Administration.......................................................................................................... 11!
4.2.2 Setup .......................................................................................................................... 18!
4.2.3 Home Area Network ................................................................................................... 24!
4.2.4 Dashboard .................................................................................................................. 26!
4.2.5 Trends......................................................................................................................... 27!
5.0! LEGAL AND REGULATORY NOTICES........................................................................... 30!
5.1! IMPORTANT NOTE OF MODIFICATIONS............................................................................... 30!
5.2! NATIONAL AND REGIONAL REGULATORY NOTICES............................................................. 30!
5.2.1! U.S. Federal Communications Commission (FCC) Notifications............................. 30!
5.2.2 ! Declarations of Conformity ..................................................................................... 31!
5.3! USER INFORMATION FOR CONSUMER PRODUCTS COVERED BY EU DIRECTIVE 2002/96/EC
ON WASTE ELECTRIC AND ELECTRONIC EQUIPMENT (WEEE)..................................................... 33!
5.4! LEGAL NOTICES ...............................................................................................................39!
5.4.1! Software License Terms and Conditions ................................................................. 39!
5.4.2! Hardware Warranty in U.S....................................................................................... 42!
5.4.3! Limit of Liability ........................................................................................................ 42!
6.0 ! TECHNICAL SPECIFICATIONS ...................................................................................... 44!
List of Figures
Figure 1: Front Panel of the Gateway........................................................................................... 6!
Figure 2: Back Panel of the Gateway ...........................................................................................7!
Jetlun Corporation
Jetlun Gateway User Guide rev 0.3 DRAFT
4
!
!
!
RD75606
!
Figure 3: Top menu screenshot.................................................................................................. 11!
Figure 4: Administration > Management screenshot .................................................................. 12!
Figure 5: Administration > Alerts screenshot.............................................................................. 13!
Figure 6: Administration > Logs screenshot ...............................................................................14!
Figure 7: Administration > Factory Default screenshot............................................................... 15!

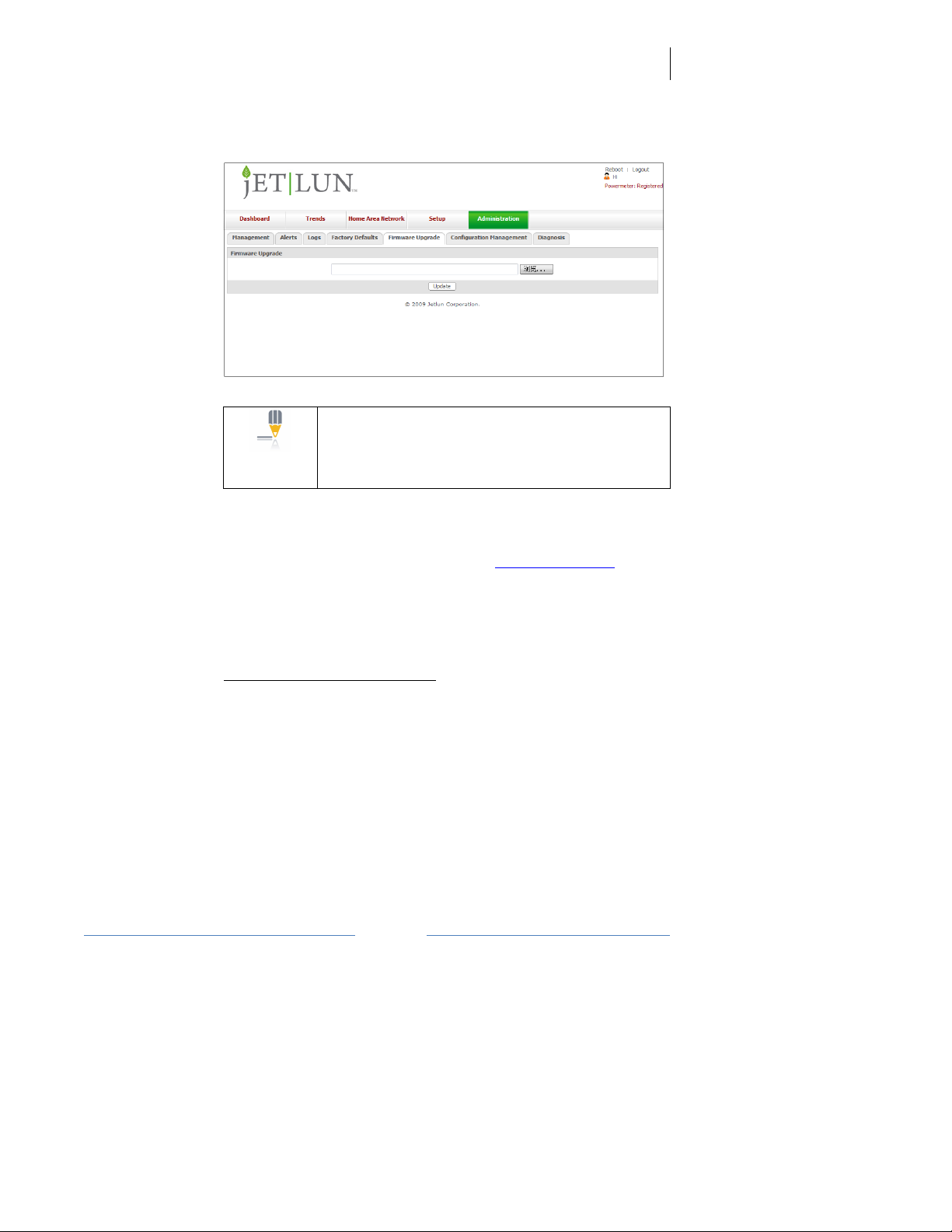

Figure 8: Administration > Firmware Upgrade screenshot ......................................................... 16!

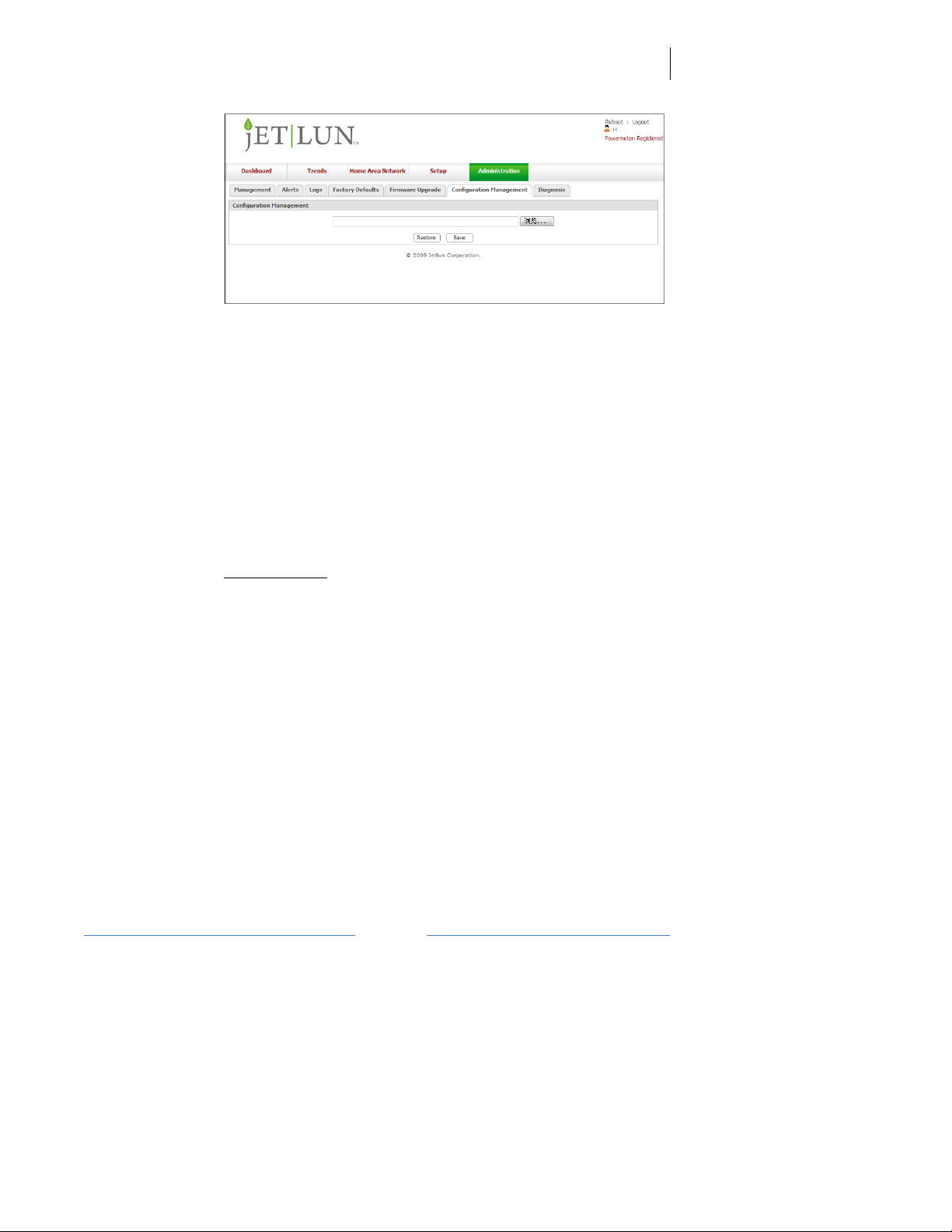

Figure 9: Administration > Configuration Management screenshot............................................ 17!

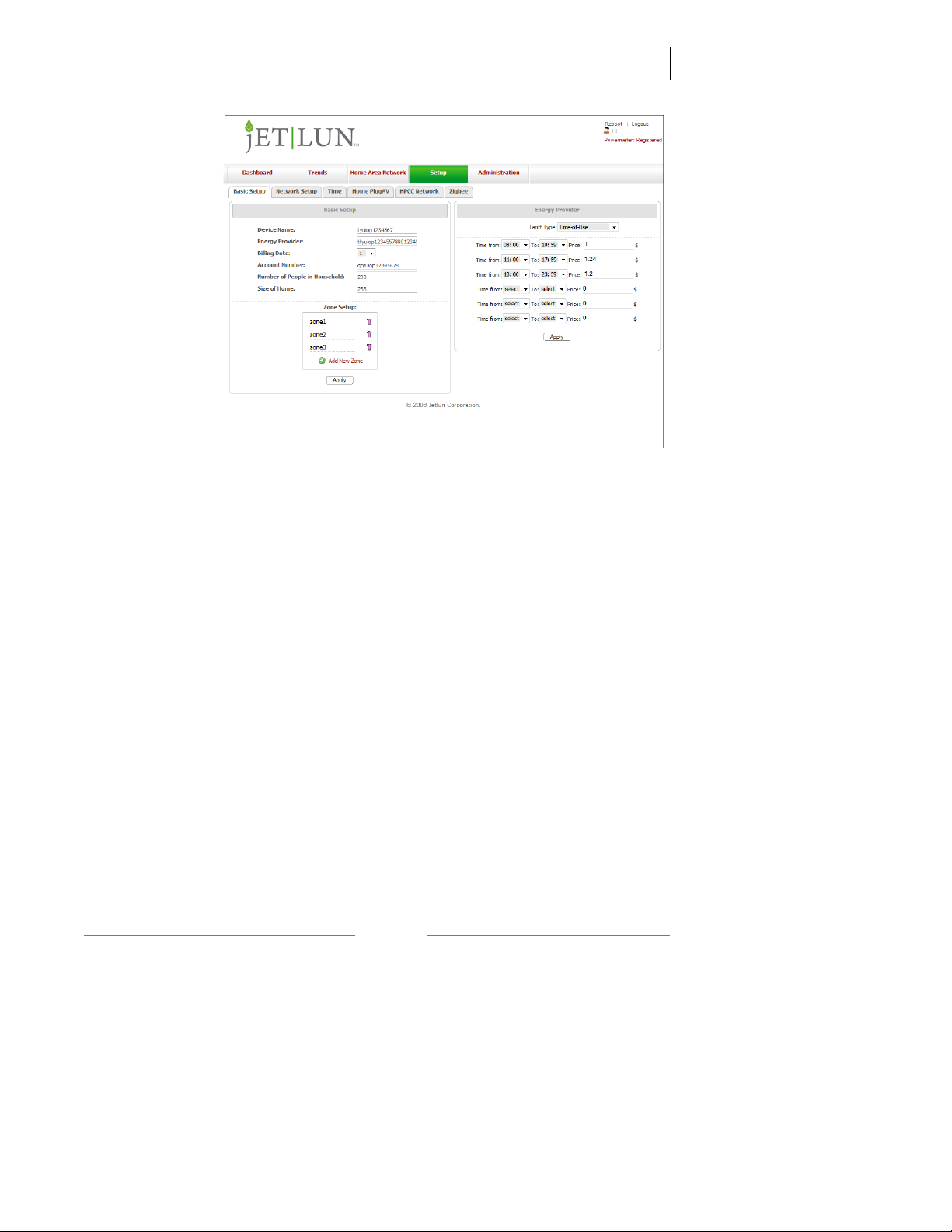

Figure 10: Setup > Basic Setup screenshot................................................................................ 19!

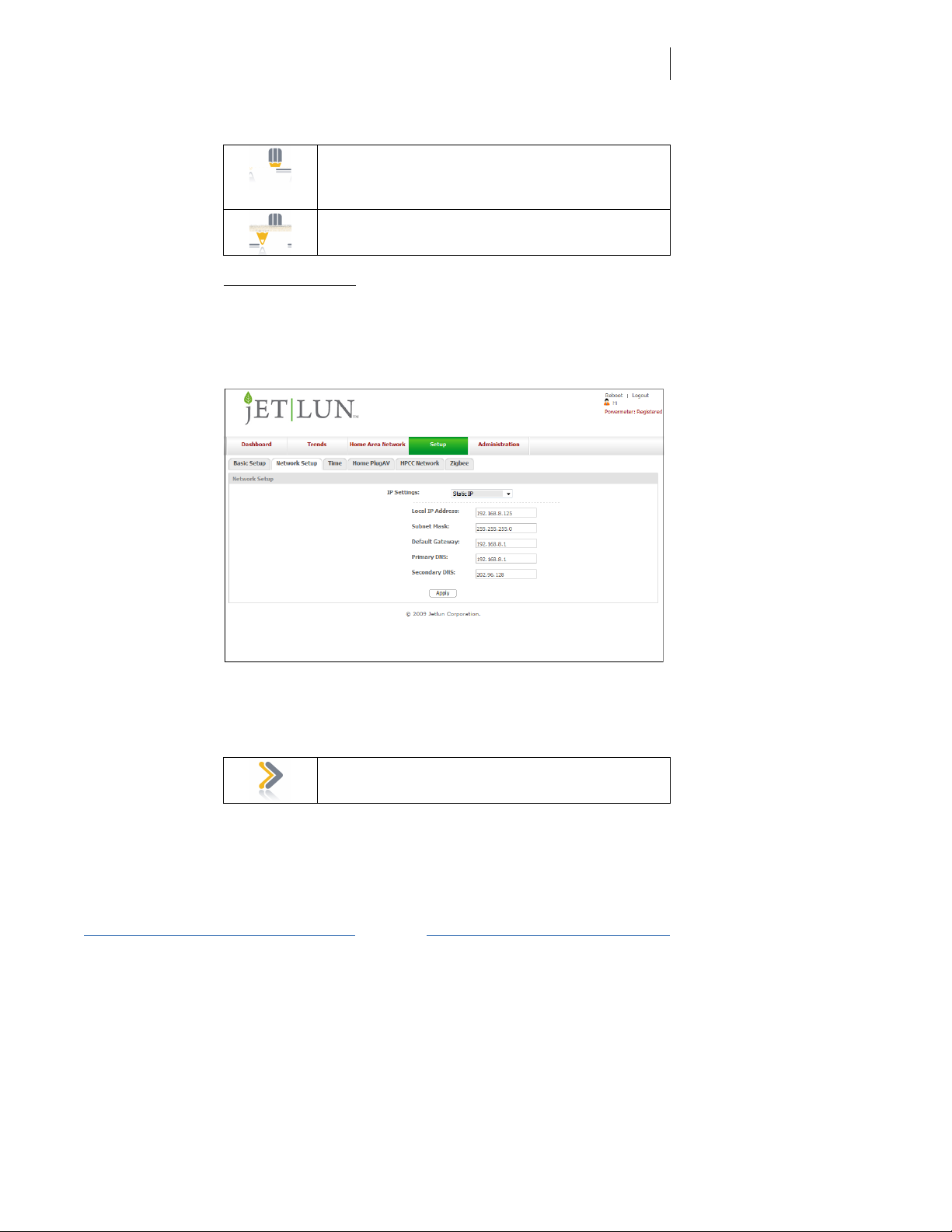

Figure 11: Setup > Network screenshot......................................................................................20!

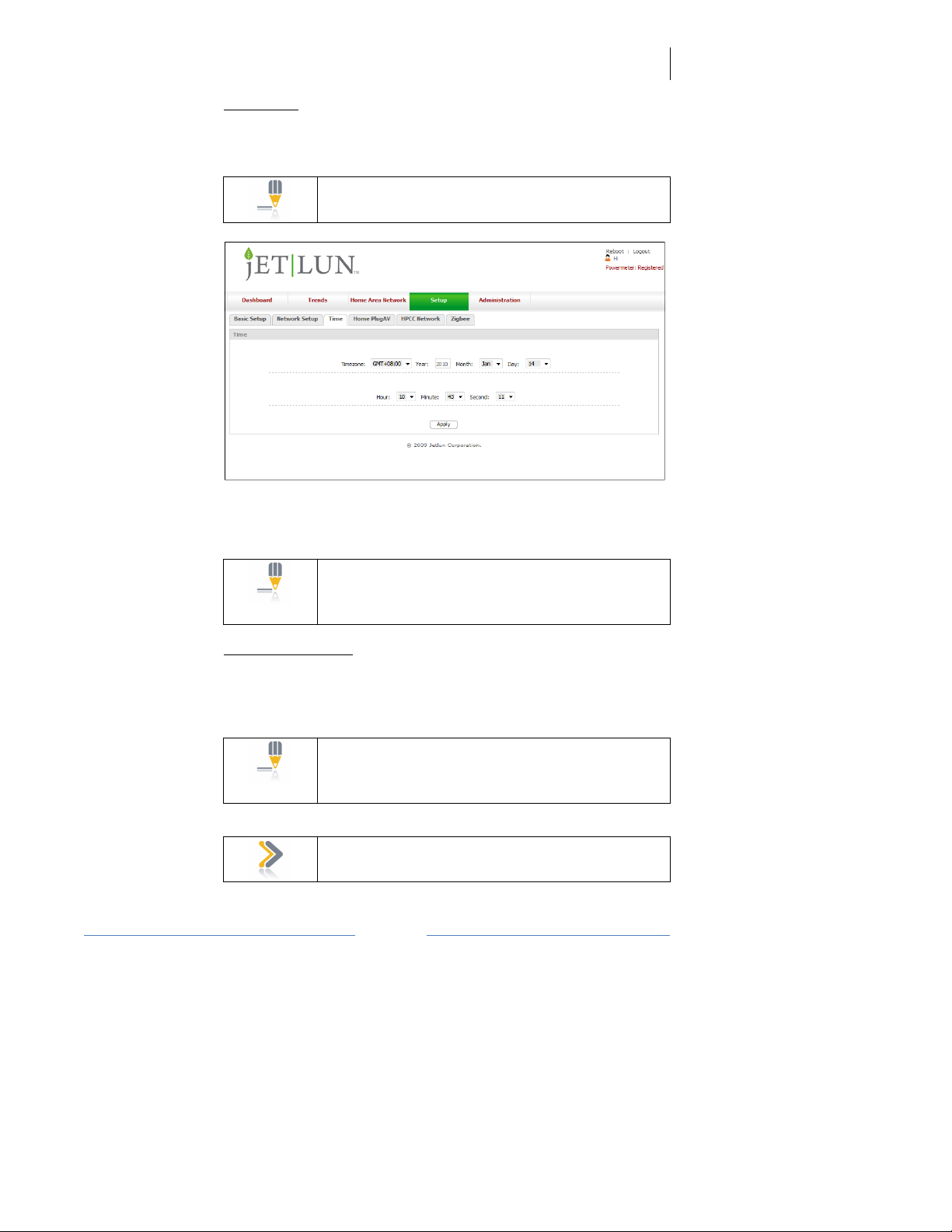

Figure 12: Setup > Time screenshot........................................................................................... 21!

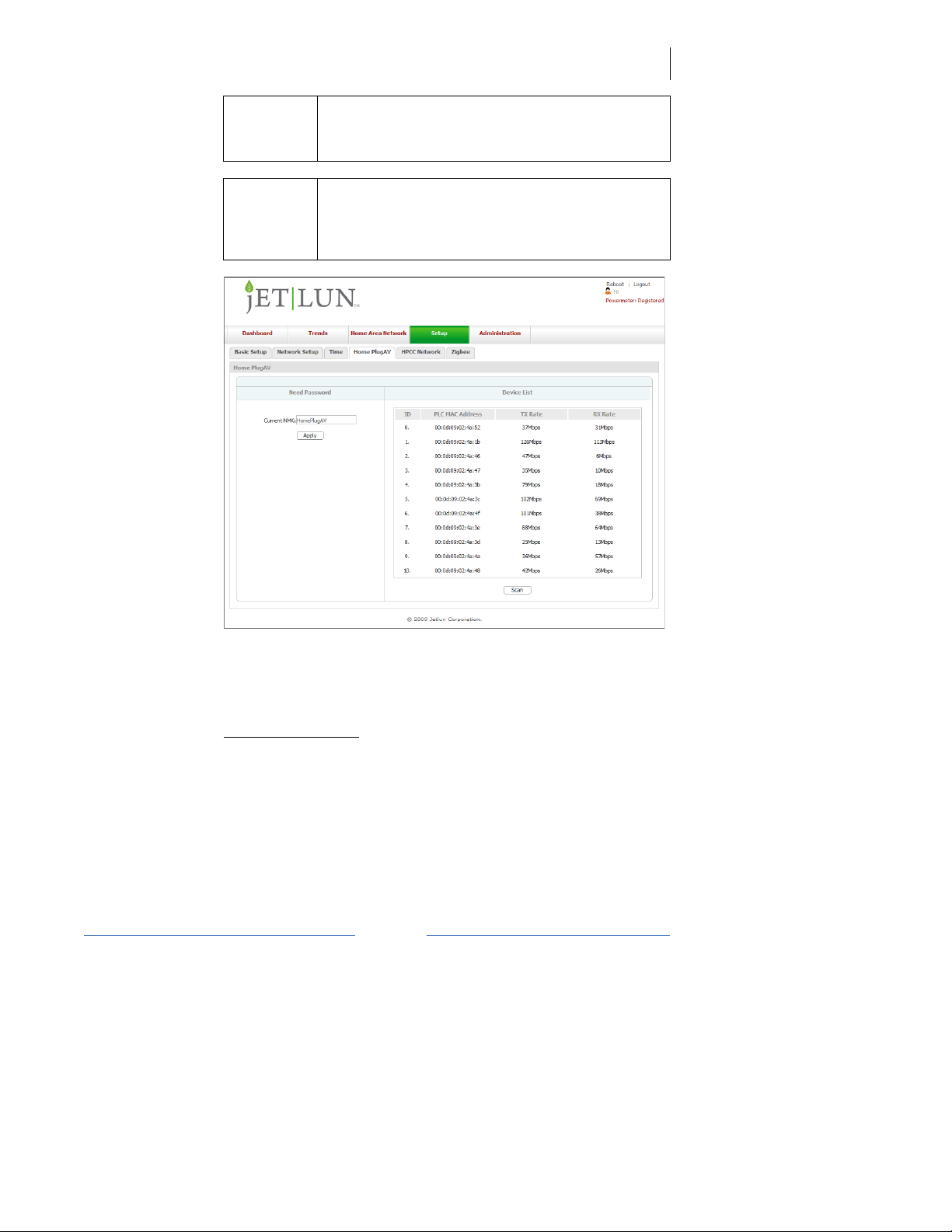

Figure 13: HomePlug AV NEK screenshot ................................................................................. 22!
Figure 14: HPCC Network screenshot........................................................................................ 23!

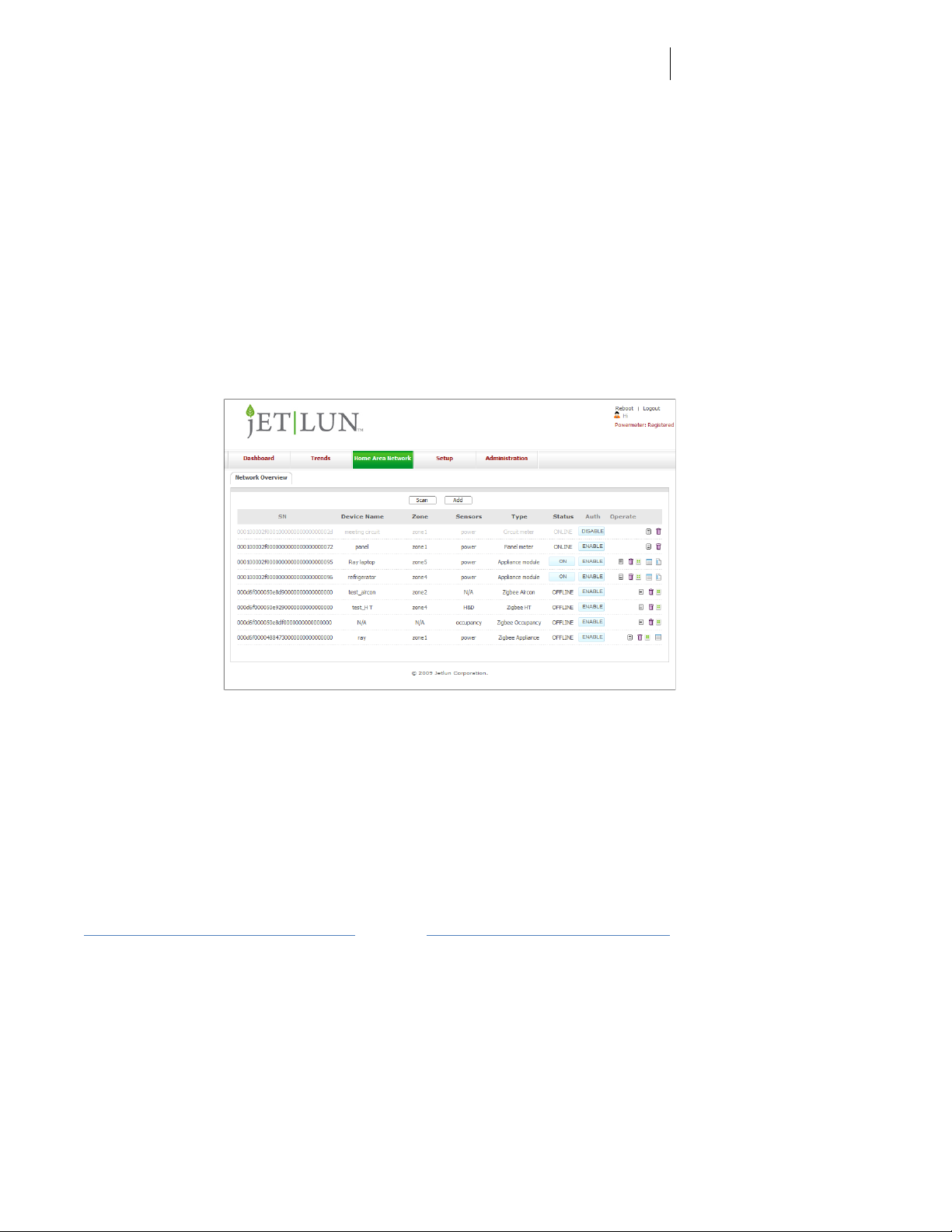

Figure 15: Home Area Network screenshot................................................................................ 24!

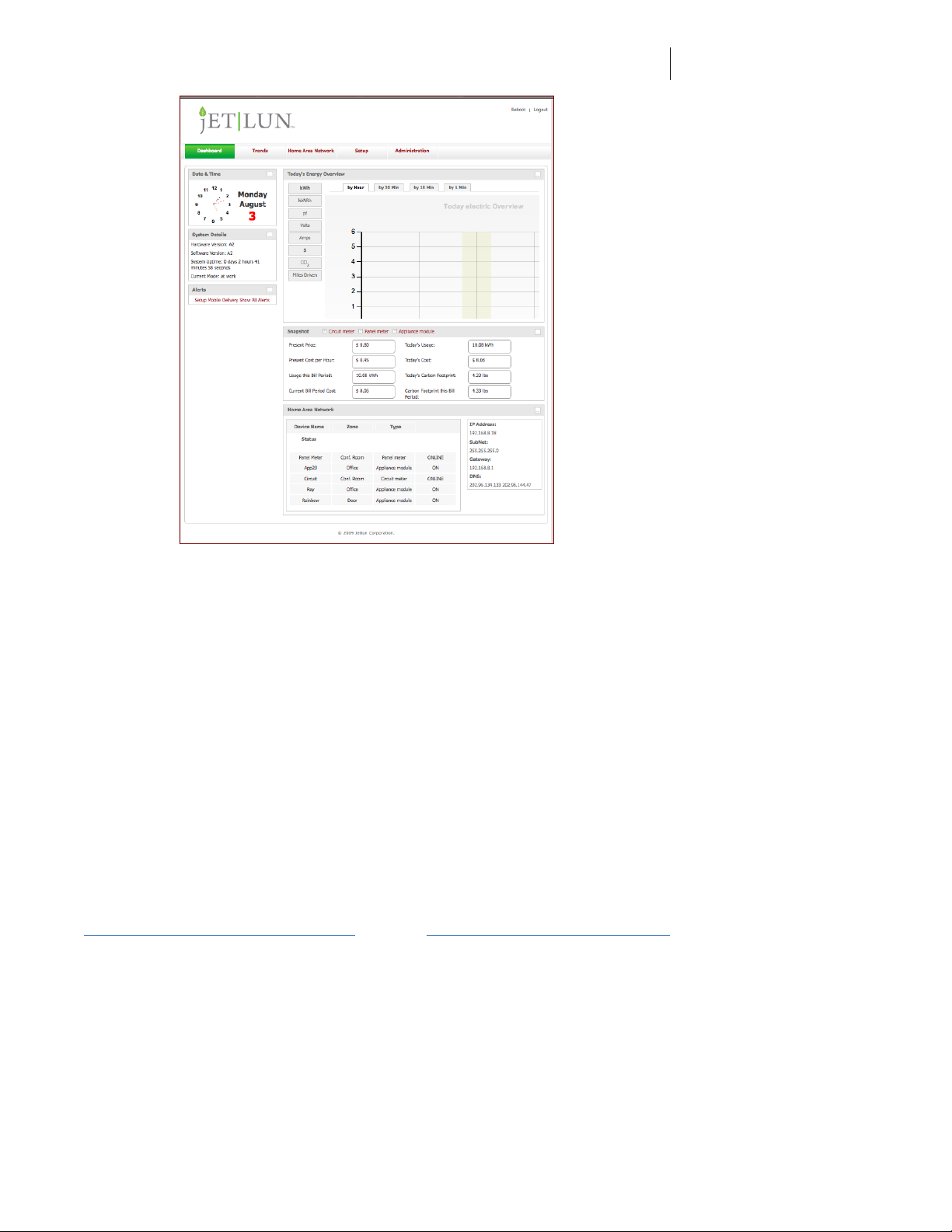

Figure 16: Dashboard screenshot............................................................................................... 27!

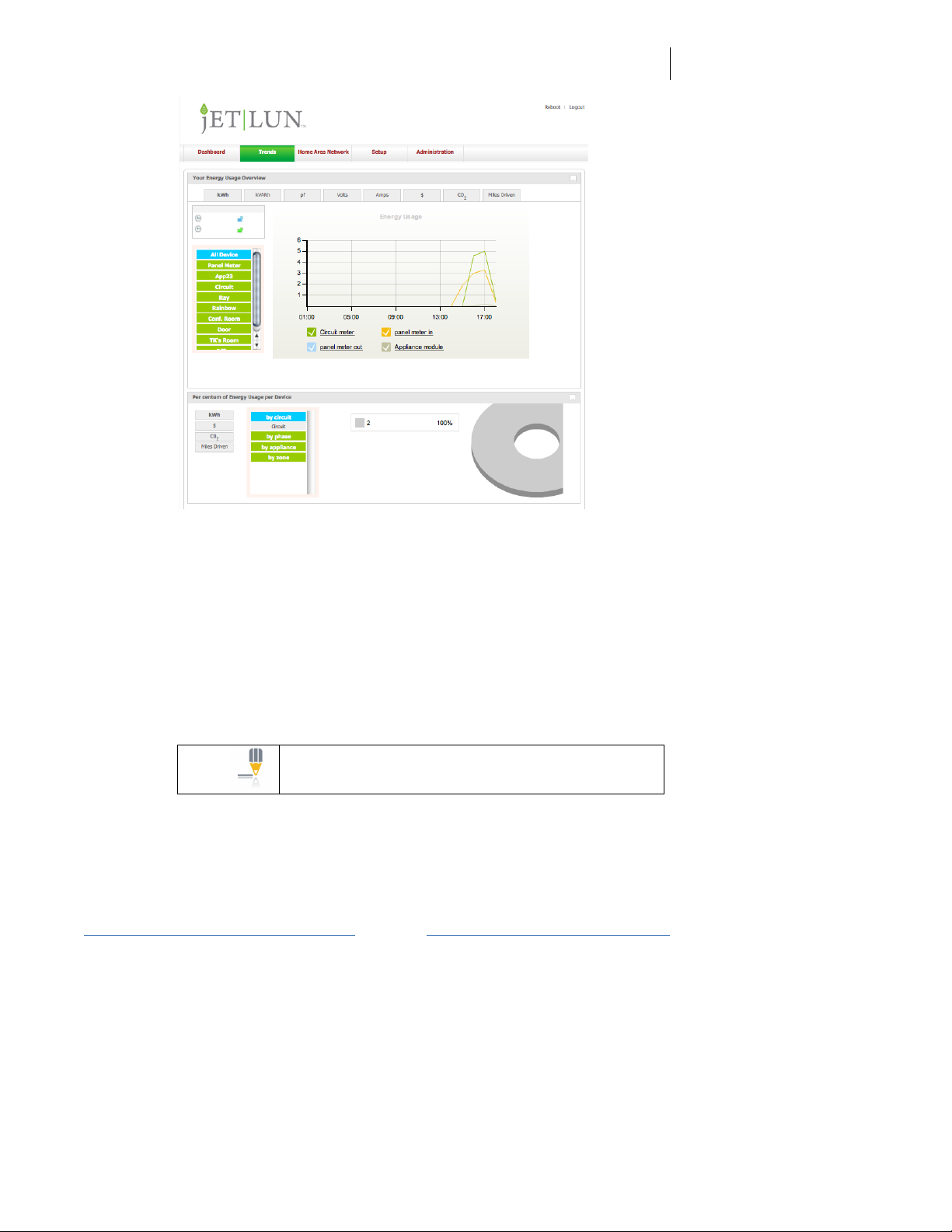

Figure 17: Trends Snapshot .......................................................................................................28!
List of Tables
Table 1: Where to find information in this User Guide .................................................................. 5!
Table 2: Icon descriptions............................................................................................................. 5!
Table 3: Front Panel LED Description ..........................................................................................6!
Table 4: Back Panel of the Gateway Description..........................................................................8!
Jetlun Corporation
Jetlun Gateway User Guide rev 0.3 DRAFT
5
!
!
!
RD75606
!
1.0 ABOUT THIS GUIDE
1.1 Becoming familiar with this User Guide
1.1 Quick Reference
The Jetlun Gateway (RD75606) User Guide describes the following:
Table 1: Where to find information in this User Guide
Planning and Installing the Jetlun Gateway
Chapter 2 and 3
Configuring and maintaining the Jetlun Gateway
Chapter 4 and 5
1.2 Icon Descriptions
While reading through the User Guide, you may see various icons that call attention to
specific items. Below is a description of these icons:
Table 2: Icon descriptions
NOTE: This mark indicates that there is a note of interest and is
something that you should pay attention to while using the
product.
IMPORTANT: This mark identifies an indication that you should
watch for, or reiterates something that you should always keep
in mind.
WARNING: This exclamation point indicates that there is a
caution or warning and may be something that could damage
your property or project.
1.3 Getting Additional Help
To get information or assistance for problems that you encounter, please contact Jetlun
Technical Support by emailing support@jetlun.com.
Please always include with all inquiries the following information:
• Product name, model number, part number (if applicable) and serial number
• A description of the devices connected to your Gateway or a system configuration
• The circumstances surrounding the error or failure
• A detailed description of the problem and what has been done to try to resolve it
1.4 Sending Feedback regarding this Documentation
We welcome your feedback on Jetlun Gateway documentation. This includes feedback on the
structure, content, accuracy, or completeness of our documents, and any other comments you
may have. Please send your comments to docs@jetlun.com.
Jetlun Corporation
Jetlun Gateway User Guide rev 0.3 DRAFT
6
!
!
!
RD75606
!
2.0 PRODUCT OVERVIEW
Thank you for choosing the Jetlun Gateway (RD75606). The Gateway collects and
stores all the energy usage information collected from the other Jetlun devices on your
network. You can also use the Gateway to centrally manage and control the Jetlun
devices on your network. When the Gateway is connected to a residential router, it can
be configured for remote access.
The Jetlun Gateway is a powerful energy management system that integrates four types
of network connectivity technologies: (1) standard Ethernet operating up to 100 Mbps;
(2) Zigbee® wireless operating at up to 250 Kbps; (3) HomePlug® Command and
Control operating over the existing home wiring at up to 7.5 Kbps; and (4) HomePlug AV
operating over the existing home wiring at up to 200 Mbps. By integrated these four
network connectivity technologies, the Jetlun Gateway provides the utmost flexibility in
installation and the most pervasive network solution for your home.
2.1 Package Contents
When you first open the box, please check and confirm that the following items are all
included:
• 1x Gateway RD75606
• 1x Universal Power Supply
• 1x 6 ft Ethernet cable
• 1x Quick Installation Guide
If any of the parts are incorrect, missing or damaged, contact the retailer where you
made your purchase. Keep the carton, including the original packaging materials in case
you need to return the unit for repair.
2.2 Front Panel
Figure 1: Front Panel of the Gateway
Table 3: Front Panel LED Description
The Power LED lights up GREEN and will stay on while the
Gateway is powered on. When the Gateway goes through its
self-diagnostic mode during every boot-up, this LED will flash
GREEN. When the diagnostic cycle is complete, the LED will be
Jetlun Corporation
Jetlun Gateway User Guide rev 0.3 DRAFT
7
!
!
!
RD75606
!
GREEN and solidly lit.
The Battery LED lights up GREEN when you turn on the battery
and the battery is full. When the Gateway has no external power
and is operating on the battery power, this LED will flash RED.
When the Gateway has external power and is recharging the
battery, this LED will flash GREEN.
The SD LED lights up GREEN when you have an SD memory
card plugged into the memory slot located on the back of the
Gateway. When there is no SD memory card plugged in, this
LED will NOT be lit.
1, 2, 3, 4
These numbed LEDs, corresponding with the numbered ports on
the Gatewayʼs back panel, serve two purposes. If the LED is
continuously lit GREEN, the Gateway is successfully connected
to a device through that port. A flashing LED indicates network
activity over that port.
The HPCC LED continuously lights up GREEN when the
Gateway is successfully connected to another HPCC
(narrowband powerline) device on the network. If the LED is
flashing, the Gateway is actively sending or receiving data over
the network. If the LED is flashing RED, the Gateway is
experiencing collisions on the network.
The HPAV LED continuously lights up GREEN when the
Gateway is successfully connected to another HPAV (broadband
powerline) device on the network. If the LED is flashing, the
Gateway is actively sending or receiving data over the network. If
the LED is flashing RED, the Gateway is experiencing collisions
on the network.
The Zigbee LED continuously lights up GREEN when the
Gateway is successfully connected to another Zigbee device on
the network. If the LED is flashing, the Gateway is actively
sending or receiving data over the network. If the LED is flashing
RED, the Gateway is experiencing collisions on the network.
2.3 Back Panel
Figure 2: Back Panel of the Gateway
Jetlun Corporation
Jetlun Gateway User Guide rev 0.3 DRAFT
8
!
!
!
RD75606
!
Table 4: Back Panel of the Gateway Description
The Power port is where you will connect the power adapter.
There are two ways to reset the Routerʼs factory defaults. Either
press and hold the Reset Button for approximately five seconds,
or restore the defaults with your computer from Administration >
Factory Defaults in the Gatewayʼs web-based utility.
The Battery switch is where you turn on/off the backup battery in
the Gateway. By default, the Gateway battery is turned OFF. It is
recommended that you turn the battery to the ON position during
installation.
The SD/MMC port is where you will plug in an SD memory card.
These Ethernet ports (1, 2, 3, 4) connect the Gateway to PCs on
your wired network and other Ethernet network devices.
Jetlun Corporation
Jetlun Gateway User Guide rev 0.3 DRAFT
9
!
!
!
RD75606
!
3.0 INSTALLING THE JETLUN GATEWAY
Follow these quick steps to install your Jetlun Gateway.
3.1 Connecting the Jetlun Gateway to your Router
STEP 1: Connect the supplied Ethernet cable to an available port on your router
and connect the other end of the Ethernet cable to one of the four ports
on the back of the Gateway.
STEP 2: Turn off your PC or laptop. Then, using an Ethernet cable, connect your
PC or laptop to one of the three other available ports on the back of the
Gateway.
STEP 3: Connect the Gateway Universal Power Supply to the Power port on the
back of the Gateway and plug in to a nearby power outlet. Wait about 30
seconds for the lights to stop blinking.
IMPORTANT: Plug the Jetlun Gateway directly into an electrical
outlet. Do not plug the Gateway into a UPS, power strip, or other
similar device with surge protection. The Gateway has its own
power filter for protection against surges.
STEP 4: Now, you can turn on your PC or laptop.
STEP 5: Locate the Gateway IP address from your Router Local Area Network
(LAN) client list.
STEP 6: To access the Gatewayʼs web-based utility, launch the web browser on
your computer, and enter the assigned IP address of the Gateway from
your router in the Address field. Then, press Enter.
3.2 Connecting to the Jetlun Gateway in absence of a Router
STEP 1: Turn off your PC or laptop. Then, using an Ethernet cable, connect your
PC or laptop to one of the three other available ports on the back of the
Gateway.
STEP 2: Connect the Gateway Universal Power Supply to the Power port on the
back of the Gateway and plug in to a nearby power outlet. Wait about 30
seconds for the lights to stop blinking.
IMPORTANT: Plug the Jetlun Gateway directly into an electrical
outlet. Do not plug the Gateway into a UPS, power strip, or other
similar device with surge protection. The Gateway has its own
Jetlun Corporation
Jetlun Gateway User Guide rev 0.3 DRAFT
10
!
!
!
RD75606
!
power filter for protection against surges.
STEP 3: Now, you can turn on your computer.
STEP 4: Set a static IP address on your computer to 192.168.1.97.
STEP 5: To access the Gatewayʼs web-based utility, launch the web browser and
enter the following Gateway default IP address 192.168.1.230, in the
Address field. Then, press Enter.
3.3 Accessing the Gatewayʼs Web Utility
STEP 1: Upon bringing up the Gateway login page, enter your user ID and
password. The first time you open the web-based utility, use the default
user ID admin and the default password admin. (You can set a new
password from the Administration tabʼs Management screen.) Click Login
to continue.
When you first log in, the Dashboard screen will be displayed.
Jetlun Corporation
Jetlun Gateway User Guide rev 0.3 DRAFT
11
!
!
!
RD75606
!
4.0 CONFIGURING THE GATEWAY
4.1 Gateway Web-Utility Navigation Guide
The user interface is divided into five main categories:
• Dashboard. The Dashboard tab provides an overview of your Jetlun Intelligent
Management (JIM) System for the current day.
• Trends. The Trends tab provides a detailed view of your JIM system by device and
provides an expanded view of your historical energy usage information.
• Home Area Network. The Home Area Network tab provides a list of Jetlun devices
on the network. Its status and allows you to control it.
• Setup. The Setup tab allows you to change basic settings, set or change date and
time information, and configure the network.
• Administration. The Administration tab allows you to change passwords, backup the
settings, reboot the system, view log information, and upgrade the Gateway
firmware.
At the top of each screen is a Reboot link to restart the Gateway, a Logout link to log out
of the Gateway and a link to sign up for Googleʼs PowerMeter service.
Figure 3: Top menu screenshot
4.2 Configuration and Maintenance
4.2.1 Administration
4.2.1.1 Management
The Administration > Management screen allows you to change the login
User Name and Password to the Gateway. Changing the Gateway User
Name and Password ensures security to your Gateway. The default User
Name is admin and the default Password is admin.
Jetlun Corporation
Jetlun Gateway User Guide rev 0.3 DRAFT
12
!
!
!
RD75606
!
Figure 4: Administration > Management screenshot
NOTE: Please note that the User ID and Password to the
web-utility is case sensitive.
4.2.1.2 Alerts
The Administration > Alerts screen allows you to configure Alerts to
receive an email or text message to your mobile phone based on an
event.
Jetlun Corporation
Jetlun Gateway User Guide rev 0.3 DRAFT
13
!
!
!
RD75606
!
Figure 5: Administration > Alerts screenshot
To configure Alerts, follow these steps:
STEP 1: Under Alert Frequency, select Every Day.
STEP 2: Enter your email address.
STEP 3: Enter your full Mail Server address.
STEP 4: Enter your User Name for your email.
STEP 5: Enter your Password to your email account.
STEP 6: Enter your email address registered in the mail server.
STEP 7: Click Apply.
Then, specify whether you would like to receive an email or a text
message to your mobile phone according to an event, select either Email
or Mobile or Both under each event.
4.2.1.3 Logs
The Administration > Logs screen keeps a record of your Gateway
activities. It can be configured to email you copies of your log files directly
if the Gateway is connected to the Internet.
Jetlun Corporation
Jetlun Gateway User Guide rev 0.3 DRAFT
14
!
!
!
RD75606
!
Figure 6: Administration > Logs screenshot
To configure logs to be emailed to you on a regular basis, follow these
steps:
STEP 1: Select Enabled from the Email Logs field.
STEP 2: Enter your full email address under Email Address for Logs
(i.e. johndoe@gmail.com)
STEP 3: Enter your full Mail Server address.
STEP 4: Enter your User Name for your email.
STEP 5: Enter your Password to your email account.
STEP 6: Enter your email address registered in the mail server.
STEP 7: Enter the log queue length. By default, the log queue is set
to 20.
STEP 8: Select the type of logs you would like to keep a record of.
STEP 9: Click Apply.
Jetlun Corporation
Jetlun Gateway User Guide rev 0.3 DRAFT
15
!
!
!
RD75606
!
NOTE: The email log function will not work if the
Gateway is not connected to the Internet.
4.2.1.4 Factory Defaults
The Administration > Factory Defaults screen allows you to restore the
Gatewayʼs configuration to its factory default settings.
Figure 7: Administration > Factory Default screenshot
NOTE: Do not restore the factory defaults unless you are
having difficulties with the Gateway and have exhausted
all other troubleshooting measures. Once the Gateway is
reset, you will have to re-enter all of your configuration
settings.
To restore to Factory Default settings, follow these steps:
STEP 1: Check the box, Restore Default Configuration.
STEP 2: Check the box, Clear Historical Records (optional).
NOTE: Clear Historical Records will delete the energy
usage information off your Gateway. Uncheck this box if
you want to retain your usage information.
STEP 3: Click on Apply.
4.2.1.5 Firmware Upgrade
The Administration > Firmware Upgrade screen allows you to upgrade the
Gatewayʼs firmware. Do not upgrade the firmware unless you are
Loading...
