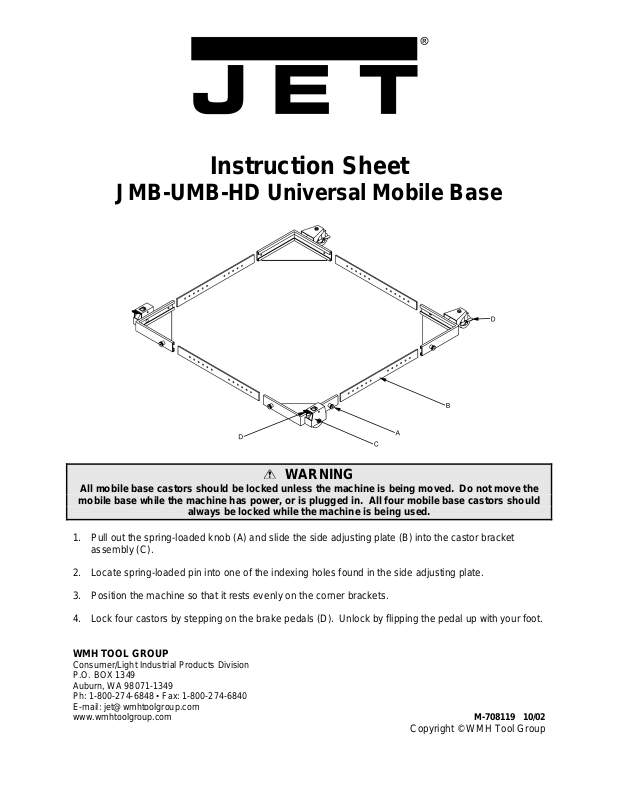

JET EQUIPMENT & TOOLS JMB-UMB-HD User guide

Instruction Sheet

JMB-UMB-HD Universal Mobile Base



WARNING

All mobile base casto rs should be locked unless the machine is being moved. Do not move the

mobile base while the mach in e has power, or i s plugg ed in . All four mobil e base castors should

always be locked whil e the machi ne is being used.

1. Pull out the spring- loaded knob (A) and slide the side adjusting plate (B) into the castor brack et
assembly (C).

2. Locate spring-loaded pin into one of the indexing holes found in the side adjusting plat e.

3. Position the mac hine so that it rests evenly on the corner brack ets.

4. Lock four castors by stepping on the brake pedals (D). Unlock by fli pping the pedal up with your foot.

WMH TOOL GROUP

Consumer/Light Industrial Products Division
P.O. BOX 1349
Auburn, WA 98071-1349

▪

Ph: 1-800-274-6848
E-mail: jet@wmhtoolgroup. co m
www.wmhtoolgroup.com M-708119 10/02

Copyright © WMH Tool Group

Fax: [phone]

JMB-UMB-HD Parts Breakdown

Part’s List for the JMB-UMB-HD Universal Mobile Base

Index Part
No. No. Description Size Qty.

1.......... JMBUMB-01HD............Fixed Castor Bracket - Right.............................. ...................................1

2.......... JMBUMB-02HD............Fixed Castor Bracket - Left................................. ................................... 1

3.......... JMBUMB-03HD............Swivel Castor Bracket - Left............................... ...................................1

4.......... JMBUMB-04HD............Swivel Castor Bracket - Right............................. ...................................1

5.......... JMBUMB-05HD............Side Adjusting Plate........................................... ...................................4

............ 708116......................... Side Adjusting Plate...........................................36”................................

............ 708117......................... Side Adjusting Plate...........................................50”................................

6.......... JMBUMB-06.................Knob.................................................................. ...................................8

7.......... JMBUMB-07.................Spring................................................................ ...................................8

8.......... JMBUMB-08.................Index Pi n ........................................................... ...................................8

9.......... JMBUMB-09HD............Swivel Castor..................................................... ...................................2

10........TS-0720111................. Lock Wash e r......................................................1/2”.............................2

11........JMBUMB-11HD............Hex Nut............................................................. 1/2”-12UNC................2

12........JMBUMB-1 2 H D ............Fixed Wheel ...................................................... ...................................2

13........TS-0640091................. Lock Nut............................................................ 3/8”-16UNC................2

14........JMBUMB-14HD............Bolt (Special)..................................................... 3/8” x 2-9/16”..............2
