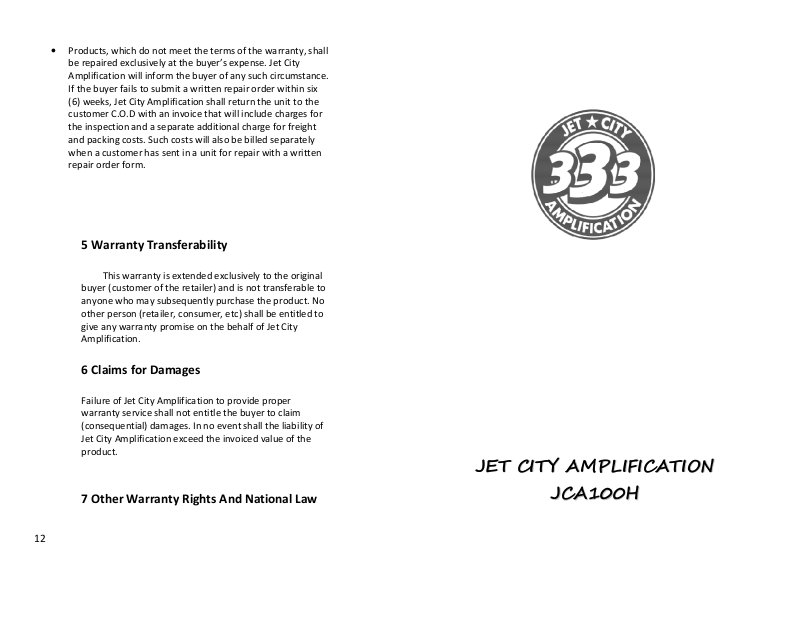

Jet City JCA100H User Manual

• Products, which do not meet the terms of the warranty, shall

be repaired exclusively at the buyer’s expense. Jet City
Amplification will inform the buyer of any such circumstance.
If the buyer fails to submit a written repair order within six
(6) weeks, Jet City Amplification shall return the unit to the
customer C.O.D with an invoice that will include charges for
the inspection and a separate additional charge for freight
and packing costs. Such costs will also be billed separately
when a customer has sent in a unit for repair with a written
repair order form.

5 Warranty Transferability

This warranty is extended exclusively to the original
buyer (customer of the retailer) and is not transferable to
anyone who may subsequently purchase the product. No
other person (retailer, consumer, etc) shall be entitled to
give any warranty promise on the behalf of Jet City
Amplification.

6 Claims for Damages

Failure of Jet City Amplification to provide proper
warranty service shall not entitle the buyer to claim
(consequential) damages. In no event shall the liability of
Jet City Amplification exceed the invoiced value of the
product.

7 Other Warranty Rights And National Law

JJEETT CCIITTYY AAMMPPLLIIFFIICCAATTIIOONN

JJCCAA110000HH

12

OOWWNNEERR’’SS MMAANNUUAALL

• DANGER: RISK OF ELECTRIC SHOCK, DO NOT
OPEN

• ATTENTION: RISQUE DE CHOC ELECTRIQUE!
NE PAS OUVIRIR!

• ACHTUNG: STROMSHLAG GEFÄHRDUNG, NICHT
AUFMACHEN!

CAUTION: To reduce the risk of electric shock, do not
remove cover or open rear panel. No user serviceable parts
inside: refer handling to qualified personnel.

WARNING: To reduce the risk of fire or electric shock, do not
expose this amplifier to rain or moisture.

• Tubes and loudspeaker drivers are considered maintenance
items and are excluded from all warranty claims.

• If the product needs to be modified or adapted in order to
comply with technical or safety standards on a national or
local level, in any country which is not the country for which
the product was not originally developed and manufactured,
this modification/adaptation shall not be considered a defect
in materials or workmanship. This warranty does not cover
any such modification/adaptation, irrespective of whether it
was executed properly or not. Under the terms of this
warranty Jet City Amplification shall not be held responsible
for any cost resulting from such a modification/adaptation.

Warranty Regulation / Exclusions (Continued)

• Free inspections and maintenance/ repair work are expressly
excluded from this warranty, in particular, if caused by
improper handling of the product by the user. This applies to
defects caused by normal wear and tear of items such as
knobs, tolex and similar parts.

• Damages caused by the following conditions are not covered
by warranty:

• Improper handling, neglect or failure to operate the unit in
compliance with the instructions given in the Jet City
Amplification user manual.

• Connection or operation of the unit in any way that does not
comply with the technical or safety regulations applicable in
the country where the product is used.

• Damages/defects caused by force majeure or any other
condition that is beyond the control of Jet City Amplification

• Any repair or opening of the unit by unauthorized personnel
(user included) will void the warranty.

• In an inspection of the product by Jet City Amplification
shows that the defect in question is not covered by warranty,
the inspection costs are payable by the customer.

2

11

used which constitutes an improvement, Jet City Amplification
may, at its discretion, charge the customer for these parts.

2. If the warranty claim proves to be justified, the product will be
returned to the customer freight prepaid.

3.

Warranty claims other than those indicated above are expressly

excluded.

3 Return Authorization Number

• To obtain warranty service, the buyer (or his authorized dealer)
must call Jet City Amplification or Authorized Jet City
Amplification Distributor (current list and contact information

can be found at (
business hours before returning the product.

• All inquiries must be accompanied by a description of the
problem. Jet City Amplification will then issue a Return
Authorization Number (RA Number).

• Once the RA Number has been obtained, the product must be
returned in its original shipping carton. The return Authorization
Number must be printed clearly on the shipping label on the
outside of the box, and included with the returned product. Both
the product in its original package and the Return Authorization
Number must be shipped to the address indicated by Jet City
Amplification at the time the call is made.

• Shipments without prepaid freight will not be accepted.

www.jetcityamplification.com

) during normal

4 Warranty Regulation / Exclusions

• Warranty services will not be furnished if the product is not

returned with the original sales receipt.

This symbol, wherever it appears, alerts you to the
presence of uninsulated dangerous voltage inside the
enclosure – voltage that may be sufficient to constitute a risk of
shock.

This symbol, wherever it appears, alerts you to the
important operating and maintenance instructions in the
following document.

IMPORTANT SAFETY INSTRUCTIONS:

1. Read and keep these instructions

2. Heed all warnings and follow all instructions

3. Do not operate near water

4. Clean only with a dry cloth

5. Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions

6. Do not install near heat sources such as radiators, heat
registers, stoves, or other apparatus that produce heat.

7. Protect the power cable from being walked on or pinched at
the plugs, convenience receptacles, and the point where
they exit the unit.

8. Do not defeat the safety purposes of the polarized or
grounding type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The third prong is
provided for your safety. If the provided plug does not fit

10

3

into your outlet, consult an electrician for replacement of the
outdated/obsolete outlet.

9. Use only attachments/ accessories specified by the
manufacturer.

10.

Unplug the amplifier during lighting storms or when unused

for long periods of time.

11. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power cable or plug damage, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.

CONGRATULATIONS!

You have just purchased the legendary and mysterious ‘333’
tone that many refer to as the ‘voice of god’.

Your JCA100H was designed by the world-renowned tube
amp designer Mike Soldano, in SEATTLE WASHINGTON, and
meticulously assembled to assure that it meets the highest
quality standards and value.

Whatever your musical taste may be, you will enjoy the
versatility, portability, and long-term durability of this kick
ass, tube driven, rock tone factory (uh oh, we said ass.).

Wait, huh, what? You didn’t buy the JCA48S - 4x12 extension
cabinet yet? Huh? No half-stack? What will your new ‘333’
head sit on?

Please go back and buy one, you deserve the whole enchilada
my friend. You’ve come this far, we know you can do it. The
JCA48S is loaded up with Eminence Legend speakers, which

• REMEMBER TO TURN IT UP YO

“Well, when I, when I want to rock steady, I know, I got to get
ready…” Bad Co.

WARRANTY

1 Register Your Product Online

Please visit www.jetcityamplification.com within 30 days from the
date of purchase as listed on the buyer’s receipt to register your
product. Doing so will enable you to receive the most current
information about our company and products, directly from Jet City.

2 Warranty

1. Jet City Amplification warrants the mechanical and electronic
components of this product to be free of defects in material and
workmanship for a period of one (1) year from the original date
of purchase, in accordance with the warranty regulations
described below. If this product shows any defects within the
specified warranty period that are not excluded under this
warranty as described in section 4, Jet City Amplification shall, at
its discretion, either replace or repair the product using suitable
new or reconditioned parts. In the case in which other parts are

4

9

• NORMAL Master Volume: will let you adjust how loud the NORMAL

Channel’s output will be.

• OVERDRIVE Master Volume: will let you adjust how loud the

OVERDRIVE Channel’s output will be, independent of the NORMAL

Master Volume.

• PRESENCE: adds an overall brightness, which can be handy when

trying to cut through in a ‘dead’ room.

“Let me see you rock, Let me see you roll, Let me see you burn,
rock fever... “ Rainbow – Ronnie & Ritchie yaaaaahhhhhhhh

AMPS, SPEAKERS AND IMPEDANCE

The JCA100H performs optimally with a 16ohm load. You may
also operate this amplifier in conjunction with additional speaker
cabinets for total ohm loads of 8ohms or 4ohms.

QUICK SETTINGS FOR SELECTED TONES

• CLEAN SETTINGS: Set the NORMAL Master to about 6 to
maximize the amplifiers extended headroom. Now simply
use the NORMAL Preamp control to achieve the desired tone
and volume.

• HIGH GAIN SETTINGS: Switch to the OVERDRIVE channel.
Initially, the OVERDRIVE Master should be set to a low level
(somewhere between 1-3) and the OVERDRIVE Preamp
turned up to give the desired gain and distortion. Then
return to the MASTER control to set the desired loudness.

• REMEMBER TO EXPERIMENT: This is how you will get the
most out of your new amplifier.

8

as we all know, are the preferred speakers of our beloved
designer.

Thank you for purchasing a JET CITY AMPLIFICATION product.

“How years ago, in days of old, when magic filled the air.” Led
Zeppelin

BEFORE YOU ROCK

Back to some serious stuff rock boy or rock girl. Before operating
your JCA100H please make sure of the following:

WARNING: If a speaker or suitable “dummy load” is not plugged into
the speaker jack, output transformer failure will occur. OUCH! This is
not good and NOT covered under warranty.

• First, plug the JCA100H head into a speaker cabinet.

• Plug the power cable into the back panel and plug the cable

into a power receptacle. Turn on the power switch on the amplifier
and wait about 30 seconds for the tubes to warm up.

• Turn on the standby switch.

• Turn up your volume switch on your guitar and impress your

friends with your amazing new tone.

5

“He was turned to steel, in the great magnetic field.” Black Sabbath

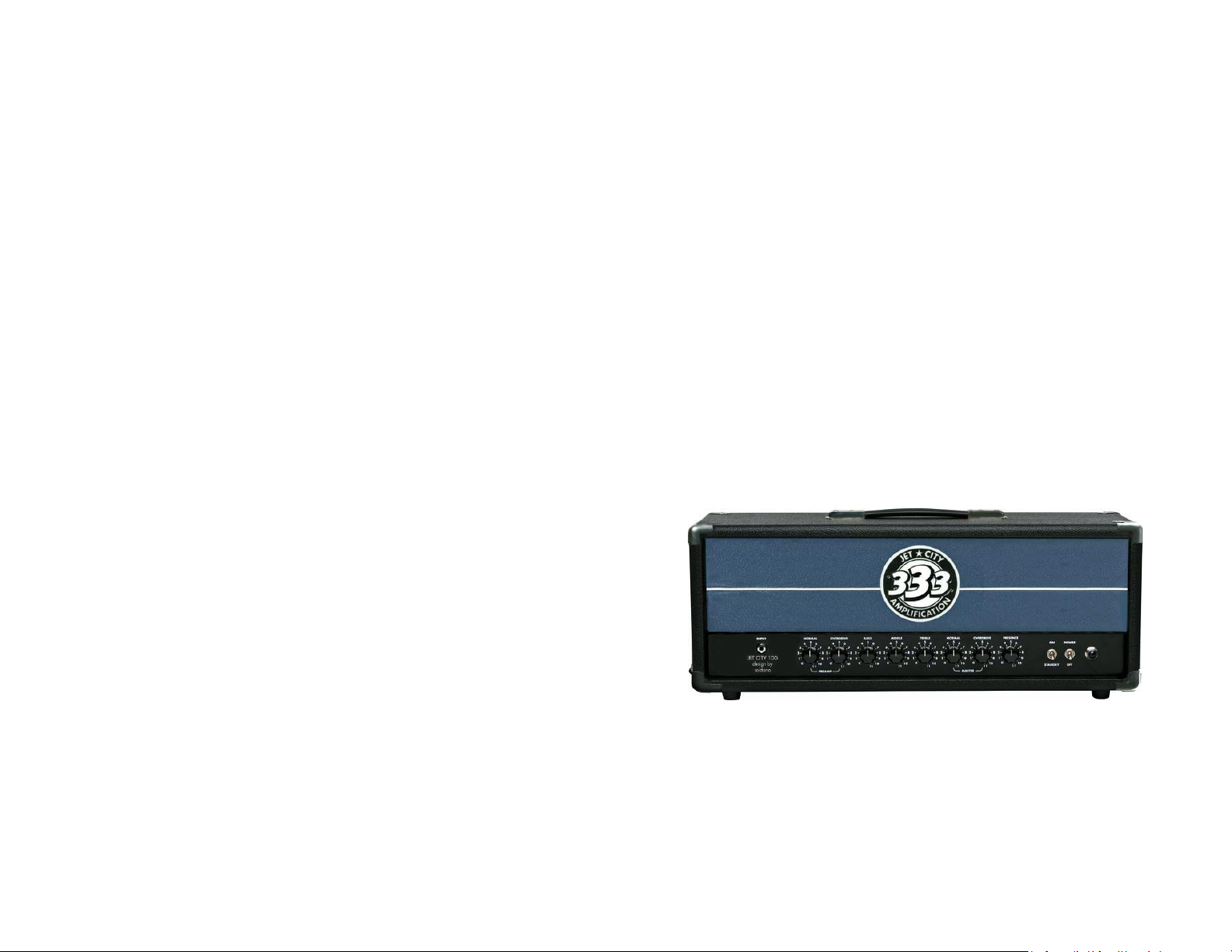

WELCOME TO THE JET CITY JCA100H – 100W
HEAD

The Jet City Amplification JCA100H is a 100 watt, 2-channel

guitar amp head with independent preamp and master volume

controls for each channel.

The tone controls shape the sound of both channels and

are interactive — meaning each control will affect the

others. This gives you the flexibility to dial in all the unique

and subtle tones you've been searching for.

The Jet City Amplification JCA100H 100 amp head also has

a global presence control that lets you add high-end

sparkle to both channels. Other features include a line

level series effects loop, multiple speaker impedance

outputs, and a channel footswitch jack (footswitch

included).

6

“It’s close to midnight and something evil’s lurking in the dark”
MJ – RIP from ‘333’

GENERAL OPERATION

The JCA100H’s shared EQ controls allow you to dial up the
right tone for you and your guitar no matter what your
gain and output levels. The two independent preamp and
master controls give you great stage versatility by allowing
you control over each channel’s gain level, AND individual
output levels.

FEATURES

• 2-Channels with independent preamp and master volume

controls Normal and Overdrive

• 100 Watts of Tube Power

• Tube-buffered serial effects loop

• Multiple speaker impedance outputs

• Footswitch for channel switching

• NORMAL Preamp Gain: Adjust the amount of gain (distortion) that

the amplifier produces in the NORMAL Channel.

• OVERDRIVE Preamp Gain: Adjust the amount of gain (distortion) in

the OVERDRIVE Channel. The higher the preamp setting the more

overdriven the sound will be.

• BASS, MIDDLE and TREBLE: allow you to control the tone.

7

The warranty does not exclude or limit the buyer’s

8 90

6 92

4 95

3 97

0.25

115

statutory rights provided by national law, in particular, any
such rights against the seller that arise from a legally
effective purchase contract.
The warranty regulations mentioned herein are applicable
unless they constitute an infringement of national
warranty law.

Protect Your Hearing

The US Government's Occupational Safety and Health
Administration (OSHA) has specified the following
permissible noise level exposures:

Duration Per Day In Hours

Sound Level dBA, Slow
Response

2 100

1.5 102

1.0 105

0.5 110

According to OSHA, any exposure in excess of the above
permissible limits could result in hearing loss. Ear plug

13

14

protectors in the ear canals or over the ears must be
worn when operating this amplification system in order
to prevent a permanent hearing loss if exposure is in
excess of the limits set forth above. To ensure against
potentially dangerous exposure to high sound pressure
levels, it is recommended that all persons exposed to
equipment capable of producing high pressure sound
levels such as this amplification system be protected by
hearing protection while this unit is in operation.

Specifications

Pre-amp

• 5 x 12AX7

Power Amp

• 100w Output,

• Class A/B, Fixed Bias (Internally Adjustable)

• 4 x 6L6

Controls

• Pre-amp – Normal, Overdrive

• EQ – Bass, Middle, Treble

• Master Volume – Normal, Overdrive

• Presence – Presence Depth

• Stand-by switch - Toggle

• Power Switch – Toggle

Footswitch

• FS-1 included for channel switching
Power Transformer

• Input Voltage – 100v/120v/230v/240v

Dimensions

• Unit – 25”W x 9.5”H x 9.5”D

Construction Material

• Multi-ply Hardwood (it’s plywood mate)

Chassis Material –

• 16ga Rolled Steel “…similar what like the kind they used on
them big ships…” Nigel

OK, time to take her for a ride.

15

Technical specifications and appearance are subject to
change without notice. The information contained herein
is correct at the time of printing. The names of companies,
institutions or publications pictured or mentioned and
their respective logos are registered trademarks of their
respective owners. Their use neither constitutes a claim of
the trademarks by Jet City Amplification nor the
affiliation of the trademark owners with Jet City
Amplification. Jet City Amplification accepts no
liabilities for any loss, which may be suffered by any
person who relies wholly, are part upon any description,
photograph or statement contained herein. Colors and
specifications may vary slightly from product. Products are
sold through Authorized Re-Sellers only. Distributors and
dealers are not agents of Jet City Amplification and have
no authority to bind Jet City Amplification by any
expressed or implied undertaking or representation.

16

17
