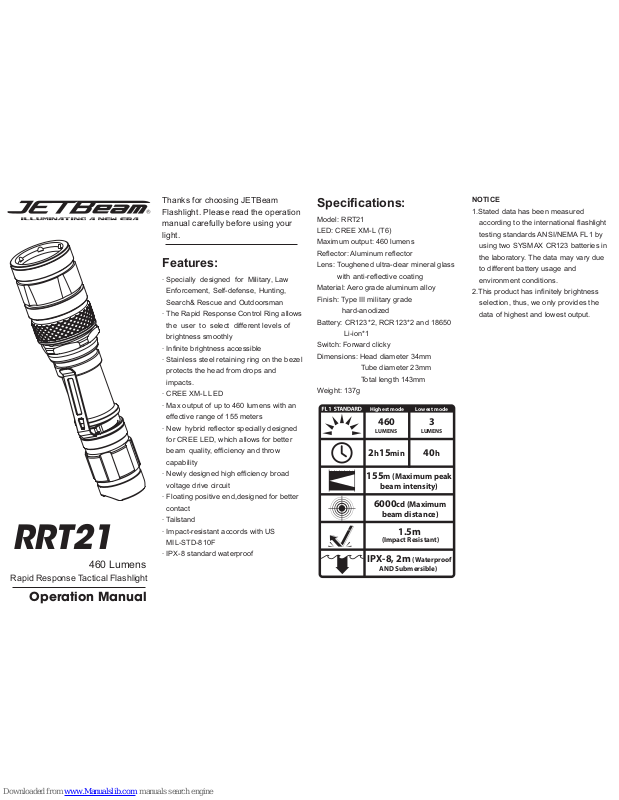

RRT21
Operation Manual
Thanks for choosing JETBeam
Flashlight. Please read the operation
manual carefully before using your
light.
Features:
· Specially designed for Military, Law
Enforcement, Self-defense, Hunting,
Search& Rescue and Outdoorsman
· The Rapid Response Control Ring allows
the user to select different levels of
brightness smoothly
· Infinite brightness accessible
· Stainless steel retaining ring on the bezel
protects the head from drops and
impacts.
· CREE XM-L LED
· Max output of up to 460 lumens with an
effective range of 155 meters
· New hybrid reflector specially designed
for CREE LED, which allows for better
beam quality, efficiency and throw
capability
· Newly designed high efficiency broad
voltage drive circuit
· Floating positive end,designed for better
contact
· Tailstand
· Impact-resistant accords with US
MIL-STD-810F
· IPX-8 standard waterproof
Specifications:
Model: RRT21
LED: CREE XM-L (T6)
Maximum output: 460 lumens
Reflector: Aluminum reflector
Lens: Toughened ultra-clear mineral glass
with anti-reflective coating
Material: Aero grade aluminum alloy
Finish: Type III military grade
hard-anodized
Battery: CR123*2, RCR123*2 and 18650
Li-ion*1
Switch: Forward clicky
Dimensions: Head diameter 34mm
Tube diameter 23mm
Total length 143mm
Weight: 137g
NOTICE
1.Stated data has been measured
according to the international flashlight
testing standards ANSI/NEMA FL1 by
using two SYSMAX CR123 batteries in
the laboratory. The data may vary due
to different battery usage and
environment conditions.
2.This product has infinitely brightness
selection, thus, we only provides the
data of highest and lowest output.
460 Lumens
Rapid Response Tactical Flashlight
LUMENS
40h2h15min
3
6000cd (Maximum
beam distance)
155m (Maximum peak
beam intensity)
IPX-8, 2m
(Waterproof
AND Submersible)
1.5m
(Impact Resistant)
Highest mode
LUMENS
460
Lowest mode
Page 2
Operation Instructions:

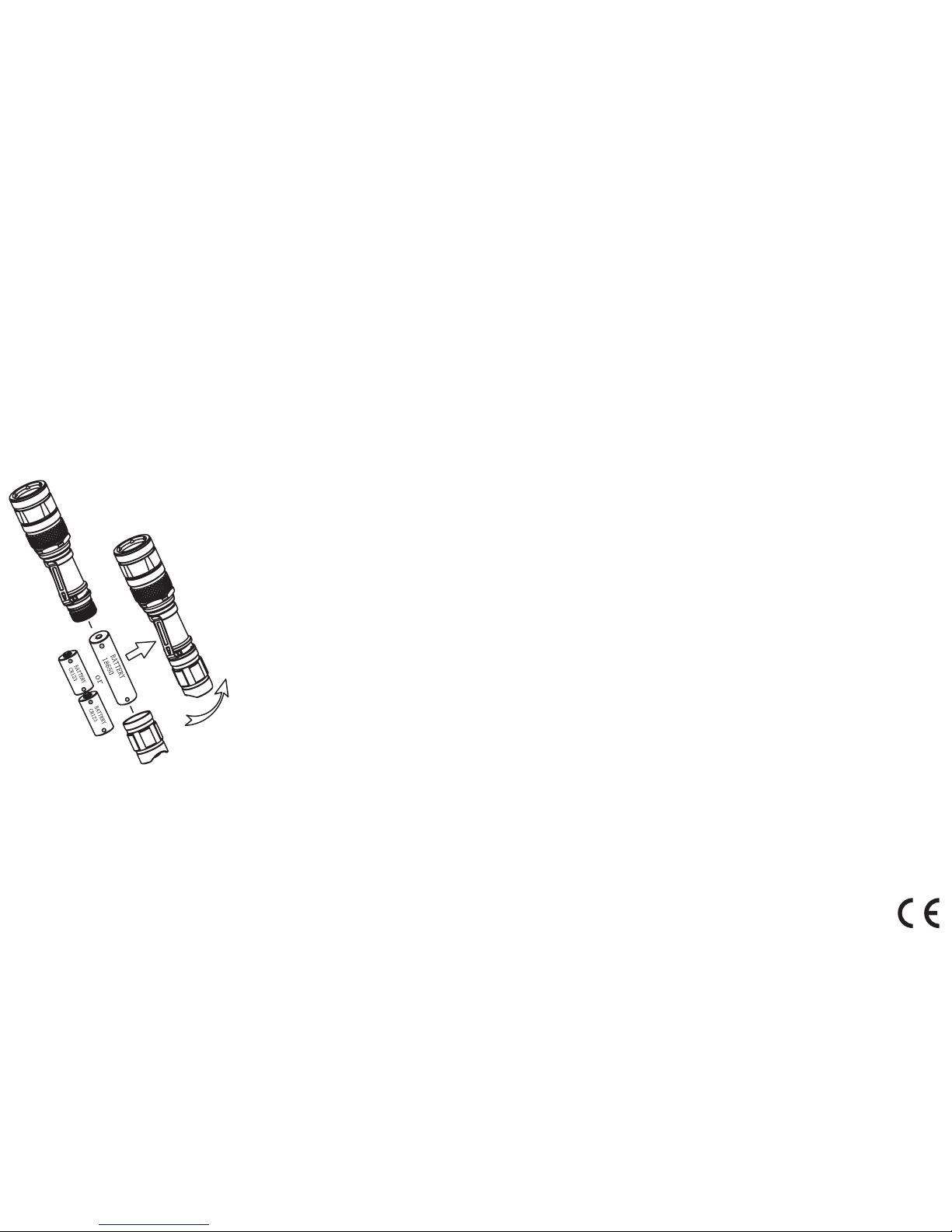

Battery Installation
1. Screw the body off the flashlight in
counter-clockwise direction.
2. Put in battery, with the positive pole of
the battery pointing to the light head.
3. Screw the body back on the flashlight
tightly.
Tactical lighting
Lightly press the button at the tail cap, the
flashlight is turned on;
Release the button at the tail cap, the
flashlight is turned off.
Permanent lighting
ON/OFF Switching
Switch ON: Press the button at the tail
cap until a “click” sound is heard and
illumination starts;
Switch OFF: Press the button at the tail
cap until a “click” sound is heard and
illumination ends.
Adjusting Output: With the light turned on
(either momentary or constant) slowly
rotate the Rapid Response Control Ring
(adjacent to the bezel) in a
counter-clockwise direction to
incrementally increase brightness to a
desired setting.
Alternatively, rotate the Rapid Response
Control Ring in a clockwise direction and
the output will incrementally decrease.
RRT21 can sustain continuous use for up
to 40 hours on its lowest setting and 2
hours 15 minutes on maximum.
Strobe mode
Rotate the Rapid Response Control Ring
in a clockwise direction until the light turns
off. In this position the Rapid Response
Control Ring will no longer rotate freely.
Continue to rotate the Rapid Response
Control Ring past this point and the light
will enter strobe mode.
Hidden SOS mode
When the light is on, rapidly rotate the
Rapid Response Control Ring back and
forth three times within one second to
access to SOS mode.
Maintenance
Please clean the threads twice a year with
a clean cloth and coat with Silicone
grease.
NOTE: DO NOT use petroleum-based
lubricants as they may damage the
O-rings and void the product warranty
Warranty Service
All JETBeam products are warranted for
quality. Any malfunctioning products can
be exchanged for replacements from local
distributor/dealer within the first 14 days
after receipt of the light. This product can
enjoy free warranty service within 18
months from the date of purchase. After
18 months, the warranty covers labor
cost and maintenance, with the exclusion
on the cost of accessories or repair parts.
The warranty is nullified in any of the
following situations:
1. The product(s) is/are broken down,
reconstructed and/or modified under
unauthorized conditions.
2. The product(s) is/are damaged through
improper use.
3. The product(s) is/are damaged by
leakage of batteries.
For more details of warranty service,
please contact regional distributor/dealer
or E-mail to [email protected]
JETBeam Service Center
Tel: 0086-20-83862000
Fax: 0086-20-83882723
E-mail: [email protected]
http://www.JET-Beam.com
Address: Rm 1407-08, Glorious Tower,
850 East Dong Feng Road,
Guangzhou, China 510600
