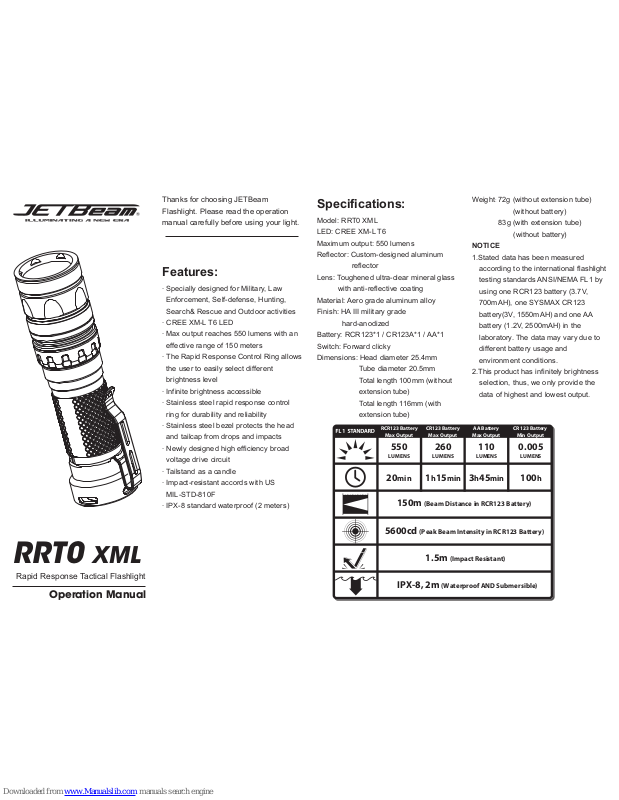

Operation Manual
Thanks for choosing JETBeam
Flashlight. Please read the operation
manual carefully before using your light.
Features:
· Specially designed for Military, Law
Enforcement, Self-defense, Hunting,
Search& Rescue and Outdoor activities
· CREE XM-L T6 LED
· Max output reaches 550 lumens with an
effective range of 150 meters
· The Rapid Response Control Ring allows
the user to easily select different
brightness level
· Infinite brightness accessible
· Stainless steel rapid response control
ring for durability and reliability
· Stainless steel bezel protects the head
and tailcap from drops and impacts
· Newly designed high efficiency broad
voltage drive circuit
· Tailstand as a candle
· Impact-resistant accords with US
MIL-STD-810F
· IPX-8 standard waterproof (2 meters)
Specifications:
Model: RRT0 XML
LED: CREE XM-L T6
Maximum output: 550 lumens
Reflector: Custom-designed aluminum
reflector
Lens: Toughened ultra-clear mineral glass
with anti-reflective coating
Material: Aero grade aluminum alloy
Finish: HA III military grade
hard-anodized
Battery: RCR123*1 / CR123A*1 / AA*1
Switch: Forward clicky
Dimensions: Head diameter 25.4mm
Tube diameter 20.5mm
Total length 100mm (without
extension tube)
Total length 116mm (with
extension tube)
Rapid Response Tactical Flashlight
Weight: 72g (without extension tube)
(without battery)
83g (with extension tube)
(without battery)
NOTICE
1.Stated data has been measured
according to the international flashlight
testing standards ANSI/NEMA FL1 by
using one RCR123 battery (3.7V,
700mAH), one SYSMAX CR123
battery(3V, 1550mAH) and one AA
battery (1.2V, 2500mAH) in the
laboratory. The data may vary due to
different battery usage and
environment conditions.
2.This product has infinitely brightness
selection, thus, we only provide the
data of highest and lowest output.
RRT0 XML
LUMENS
1h15
min
20
min
260
5600cd
(Peak Beam Intensity in RCR123 Battery)
150m
(Beam Distance in RCR123 Battery)
IPX-8, 2m
(Waterproof AND Submersible)
1.5m
(Impact Resistant)
LUMENS
550
LUMENS
3h45
min
110
LUMENS
100
h
0.005
RCR123 Battery
Max Output
CR123 Battery
Max Output
AA Battery
Max Output
CR123 Battery
Min Output
Page 2
Operation Instructions:
Battery Installation
1.Screw the tailcap off the flashlight in
counter-clockwise direction.
2.Insert one battery, with the positive pole
of the battery pointing to the head.
3.Screw the tailcap back on the flashlight
tightly.
Tactical lighting
Half press the button at the tailcap, the
flashlight is turned on;
Release the button at the tailcap, the
flashlight is turned off.
Permanent lighting
ON/OFF Switching
Switch ON: Press the button at the
tailcap until a “click” is heard and
illumination starts;
Switch OFF: Press the button at the
tailcap until a “click” is heard and
illumination ends.
Brightness selection: With the light turned
on (either momentary or constant), slowly
rotate the Rapid Response Control Ring in
a counter-clockwise direction to
incrementally increase brightness to a
desired level.
Alternatively, rotate the Rapid Response
Control Ring in a clockwise direction and
the output will incrementally decrease.
With one CR123 battery, RRT0 has a
maximum runtime of up to 100 hours on
its lowest output and 1 hour 15 minutes on
maximum output.
Strobe Selection: Rotate the Rapid
Response Control Ring in a clockwise
direction until the light is turned off.
Continue to rotate the ring and the light
will enter into strobe mode.

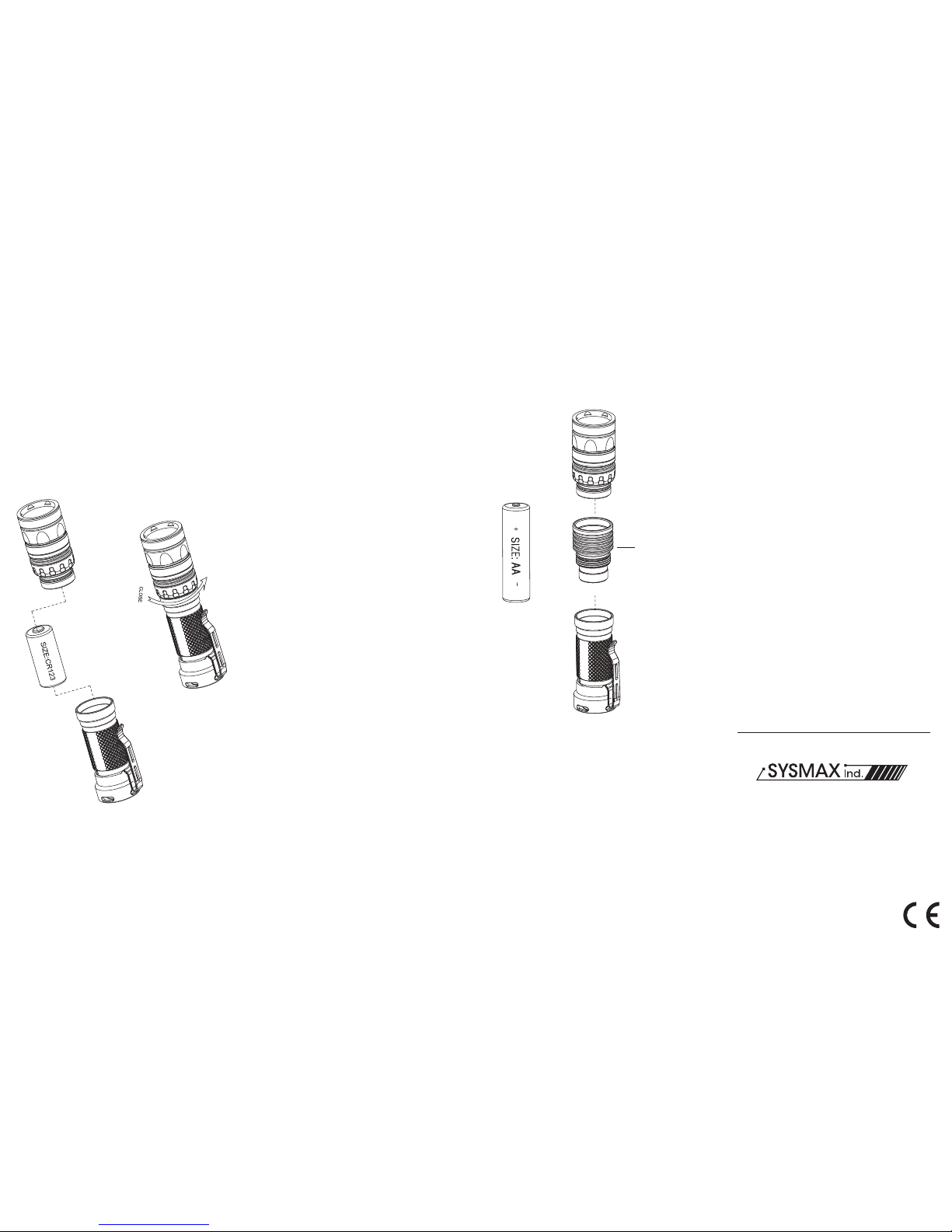

Using AA extension tube
This light can utilize one AA extension
tube. Please follow the diagram to
assemble the body, and you can use one
AA battery to power the light.
Warranty Service
All JETBeam products are warranted for
quality. Any malfunctioning products can
be exchanged for replacements from local
distributor/dealer within the first 14 days
after receipt of the light. This product can
enjoy free warranty service within 18
months from the date of purchase. After
18 months, the warranty covers labor
cost and maintenance, with the exclusion
on the cost of accessories or repair parts.
The warranty is nullified in any of the
following situations:
1. The product(s) is/are broken down,
reconstructed and/or modified under
unauthorized conditions.
2. The product(s) is/are damaged through
improper use.
3. The product(s) is/are damaged by
leakage of batteries.
Details of warranty service, please contact
regional distributor/dealer or send an
email to [email protected]
SYSMAX Industry Co.,Ltd.
Rm 1407-08, Glorious Tower,
850 Dongfeng Road East,
Yuexiu District, Guangzhou, Guangdong,
China 510600
Tel: +86 20 83862000
Fax: +86 20 83882723
E-mail: [email protected]
Maintenance
Every 6 months , the threads should be
wiped with a clean cloth followed by a thin
coating of silicon-based lubricant.
NOTE: DO NOT use petroleum-based
lubricants as they may damage the
O-rings and void the product warranty
AA extension
tube
