JetBeam PC20 User Manual

PC20

User Manual

ANSI

Lumens

CREE XM-L LED

Reverse Polarity Protection

Anti-roll Ring

HA III Military Grade Hard Anodized

Tactical Forward Clicky

Aero Grade Aluminum Alloy

Thanks for choosing JETBeam Flashlight. Please
read the user manual carefully before using your

light.

Features

Premium CREE XM-L T6 LED

Maximum output of 410 lumens

Maximum runtime of up to 65 hours

Special designed user interface for tactical

applications

Rapidly switch between Tactical mode and

User-dened mode

User-defined mode allows for customized

brightness levels and a multitude of functions

Anti-roll design

Newly designed high efciency broad voltage

drive circuit

Reverse polarity protection

Equips removable stainless steel tactical clip

Lightweight design, weighing only 61g

(without battery)

IPX-8 standard waterproof (two meters)

Specications

LED: CREE XM-L T6

Max output: 410 lumens

Reector: Aluminum reector

Lens: Toughened ultra-clear mineral

glass with anti-reective coating

Material: Aero grade aluminum alloy

Finish: HA III Military grade hard anodized

Battery: 2xCR123(RCR123) batteries

Switch: Forward clicky

Waterproof: IPX-8 standard waterproof

Dimensions: Tube diameter 22.5mm

Total length 128mm

Weight: 61g (without battery)

Accessories: Lanyard, spare rubber tailcap

switch cover, spare O-ring and
holster

LUMENS

6

h

2

h

130

3700cd

(Peak Beam Intensity)

121m

(Beam Distance)

IPX-8, 2m

(Waterproof AND Submersible)

1.5m

(Impact Resistant)

HIGH

LUMENS

410

MID LOW LOWER LOW

LUMENS

16

h

45

LUMENS

65

h

6

Tip: Stated data has been measured according to the

international flashlight testing standards ANSI/NEMA
FL1 by using quality two SYSMAX CR123(3V) batteries
in the laboratory. The data may vary due to different
battery usage and environment conditions.

Operation Instructions:

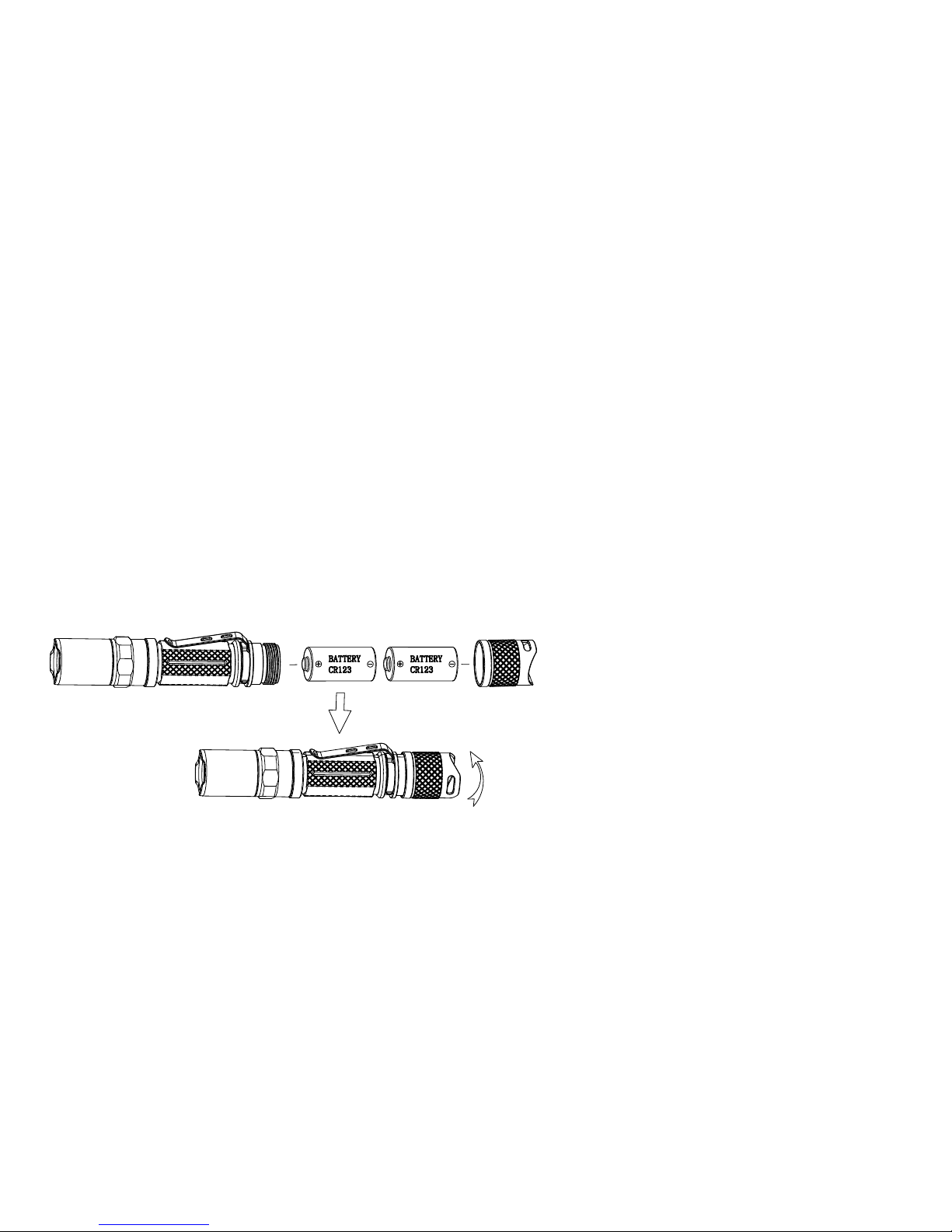

Battery installation

1. Unscrew the tailcap in counter-clockwise
direction.

2. Insert two CR123/RCR123 batteries with the
positive pole of the battery pointing to the
light head.

3. Screw the tailcap back on the flashlight
tightly.Tactical lighting/Momentary mode
Lightly press the button at the tailcap. The
flashlight is turned on; Release the button at
the tailcap. The ashlight is turned off.

WARNING

Insert batteries with the positive (+) end pointing
to the head. The PC20 will not work when
incorrectly insert the batteries.

ON/OFF Switching:

Switch ON: Press the button at the tailcap until
tailcap “click” on.

Switch OFF: Press the button at the tailcap until a
second “click” is heard. Light is now off.

Mode switching

Users can select Tactical mode and User-dened
mode smoothly. To access Tactical mode, simply
tighten the head.

Alternatively, loosen the head to access User­dened mode. In User-dened mode, users can
choose customized brightness levels and a
multitude of functions.

Tactical mode

Tightening the head, the PC20 access Tactical
mode, emitting a continuous maximum output
of 410 lumens. In this mode, the flashlight has
tactical lighting function.

Lightly press the button at the tailcap. The
ashlight is turned on. Release the button to turn
it off. Moreover, the output will not be changed
even in long term use.

User-dened mode

Slightly loosening the flashlight head, the PC20
access User-defined mode. In this mode, lightly
press the switch rapidly to choose brightness
and functions from “Mid-Low-Lower low-Strobe-

SOS” circularly. Press the switch all the way down
when reach to a desired mode. User-defined
mode has memory function. It will memorize
the brightness/Strobe automatically each time
when you turn off the light.

Maintenance

Every 6 months , the threads should be wiped
with a clean cloth followed by a thin coating of
silicon-based lubricant.

NOTE: DO NOT use petroleum-based lubricants as they may

damage the O-rings and void the product warranty.

Warranty Service

All JETBeam products enjoy a warranty service
after sale. Any malfunctioning products can
be exchanged for replacements from local
distributor/dealer within the first 14 days after
receipt of the light. This product can enjoy free
warranty service within 18 months from the date
of purchase. After 18 months, the warranty covers
labor cost and maintenance, with the exclusion
on the cost of accessories or repair parts.

The warranty is nullified in any of the following
situations:

1. The product(s) is/are broken down,

reconstructed and/or modified under
unauthorized conditions.

2. The product(s) is/are damaged through
improper use.

3. The product(s) is/are damaged by leakage
of batteries.

Details of warranty service, please contact
regional distributor/dealer or send an email to
[email protected]

SYSMAX Industry Co.,Ltd.

Rm 1407-08, Glorious Tower,

850 Dongfeng Road East, Yuexiu District,

Guangzhou, Guangdong, China 510600

Tel: [phone]

Fax: [phone]

E-mail: [email protected]

www.JET-Beam.com
