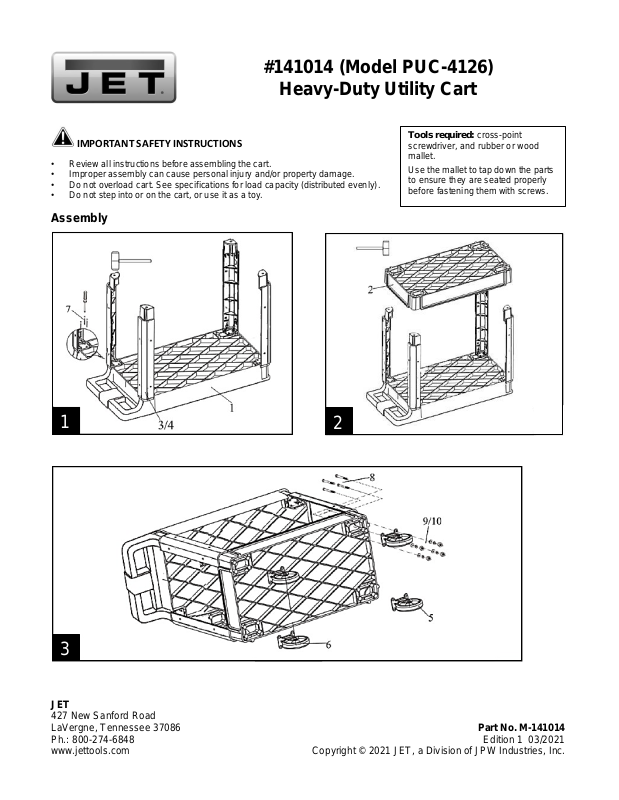

JET PUC-4126 User guide

JET

427 New Sanford Road
LaVergne, Tennessee 37086 Part No. M-141014
Ph.: 800-274-6848 Edition 1 03/2021
www.jettools.com Copyright © 2021 JET, a Division of JPW Industries, Inc.

IMPORTANT SAFETY INSTRUCTIONS

• Review all instructions before assembling the cart.

• Improper assembly can cause personal injury and/or property damage.

• Do not overload cart. See specifications for load capacity (distributed evenly).

• Do not step into or on the cart, or use it as a toy.

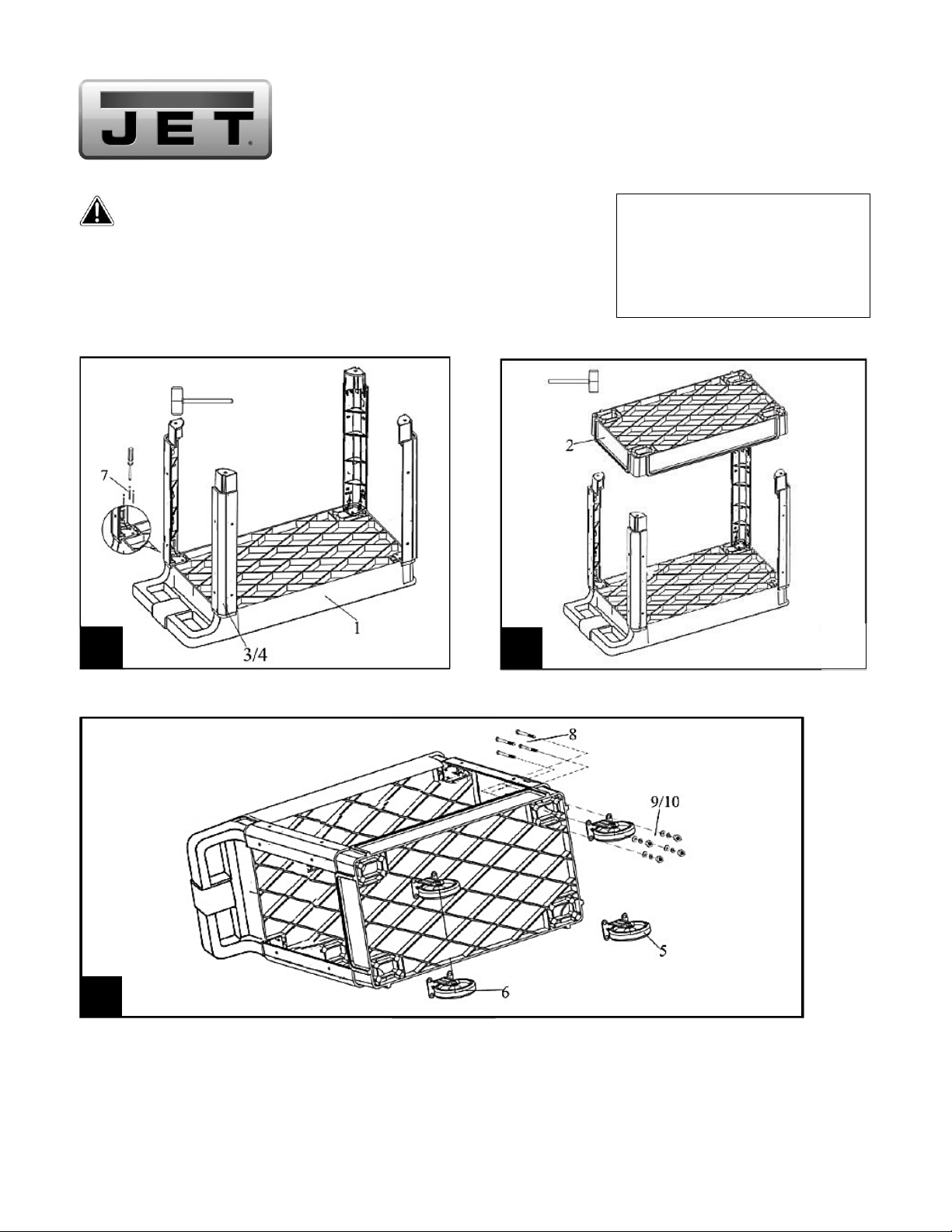

Assembly

#141014 (Model PUC-4126)

Heavy-Duty Utility Cart

Tools required: cross-point
screwdriver, and rubber or wood
mallet.

Use the mallet to tap down the parts
to ensure they are seated properly
before fastening them with screws.

1

2

3

WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer

and birth defects or other reproductive harm. For more information go to http://www.p65warnings.ca. gov.

2

Parts Breakdown

Index

no.

Part no.

Description

Qty.

1

PUC4126-01

Upper Platform 104x65

1 2 PUC4126-02

Bottom Platform 95x65

1 3 PUC4126-07

Left Leg

2

4

PUC4126-06

Right Leg

2 5 PUC4325-FCA

Fixed Caster Assembly 5in

2

6

PUC4325-SCA

Swivel Caster Assembly 5in

2 7 PUC4126-03

Cross Head Screw M6x25

12 8 PUC3117-17

Carriage Bolt M8x45mm

16

9

TS-2361081

Spring Washer 8mm

16

10

TS-1540061

Hex Nut M8

16

Specifications

Stock number

141014

Model number

PUC-4126

Load capacity

550 lb (250 kg)

Upper platform size (L x W)

41 x 26 in. (104 x 66 mm)

Upper platform height from floor

33-1/2 in. (85 cm)

Lower platform height from floor

5-7/8 in. (15 cm)

Height between platforms

19-5/8 in. (50 cm)

Caster size (OD x W)

5 x 1 in. (12.5 x 2.6 cm)

Overall dimensions (L x W x H)

41 x 26 x 33-1/2 in.
(103.5 x 65 x 85 cm)

Net weight (approx.)

40.1 lb (18.2 kg)

Shipping weight (approx.)

44.5 lb (20.2 kg)

Cart material

Polypropylene

To order parts visit www.store.jettools.com, or call 1-800-274­6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Having
the Model Number and Serial Number of your unit available when
you call will allow us to serve you quickly and accurately.

Non-proprietary parts, such as fasteners, can be found at local
hardware stores, or may be ordered from JET.

Some parts are shown for reference only, and may not be
available individually.
