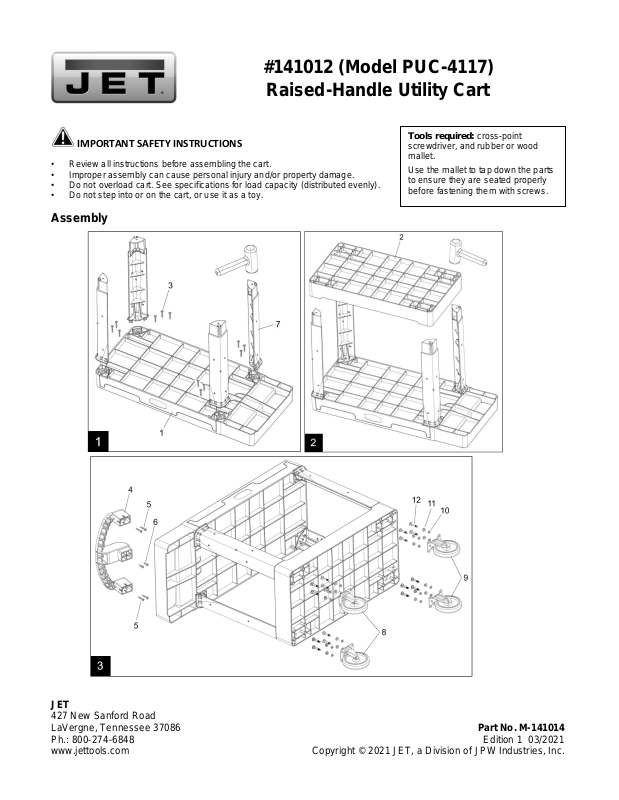

Page 1
JET
427 New Sanford Road
LaVergne, Tennessee 37086 Part No. M-141014
Ph.: 800-274-6848 Edition 1 03/2021
www.jettools.com Copyright © 2021 JET, a Division of JPW Industries, Inc.
IMPORTANT SAFETY INSTRUCTIONS
• Review all instructions before assembling the cart.
• Improper assembly can cause personal injury and/or property damage.
• Do not overload cart. See specifications for load capacity (distributed evenly).
• Do not step into or on the cart, or use it as a toy.

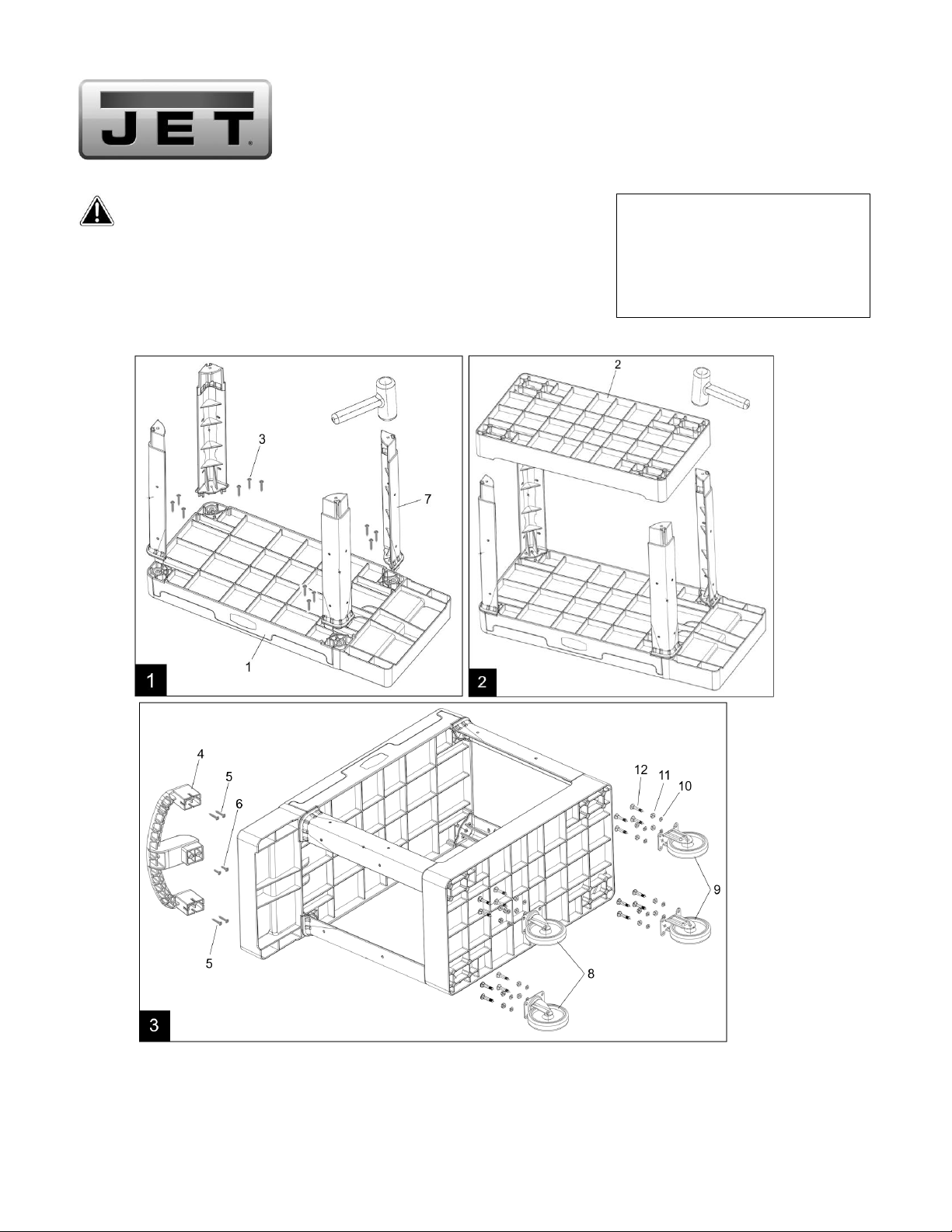

Assembly
#141012 (Model PUC-4117)
Raised-Handle Utility Cart
Tools required: cross-point
screwdriver, and rubber or wood
mallet.
Use the mallet to tap down the parts
to ensure they are seated properly
before fastening them with screws.
Page 2
WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer
and birth defects or other reproductive harm. For more information go to http://www.p65warnings.ca. gov.
2

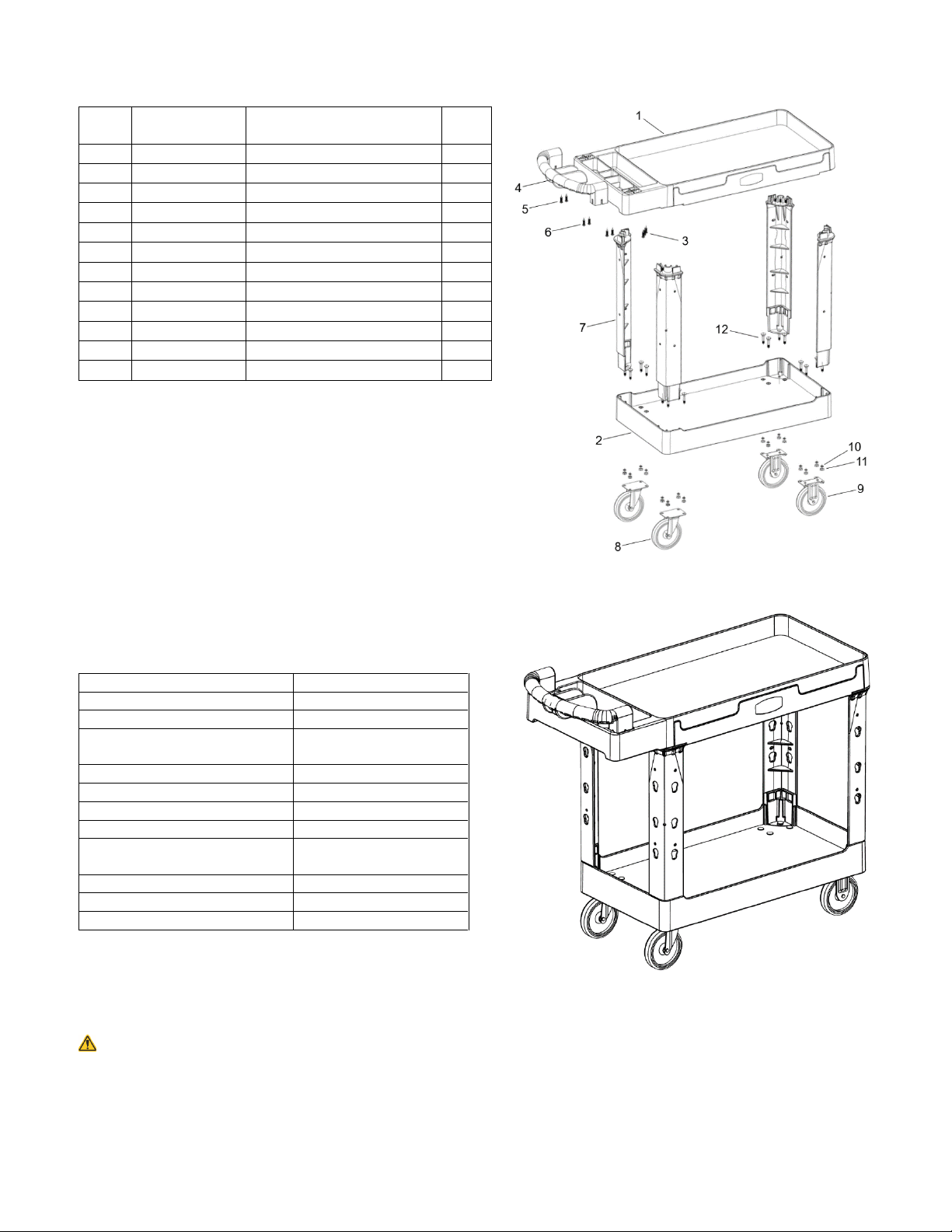

Parts Breakdown
Index
no.
Part no.
Description
Qty.
1
PUC4117-01
Upper Platform 38x17 in.
1
2
PUC4117-02
Bottom Platform 30x16 in.
1
3
PUC4117-03
Cross Head Screw M6x25
12 4 PUC4117-04
Handle
1 5 PUC4117-05
Handle Screw 40mm
4 6 PUC4117-06
Handle Screw 25mm
2
7
PUC4117-07
Leg
4
8
PUC4325-SCA
Swivel Caster Assembly
2
9
PUC4325-FCA
Fixed Caster Assembly
2
10
TS-2361081
Spring Washer M8
16
11
TS-1540061
Hex Nut M8
16
12
991517
Carriage Bolt M8x40
16
Specifications
Stock number
141012
Model number
PUC-4117
Load capacity
550 lb (250 kg)
Upper platform size,
including handle (L x W)
41 x 17 in. (105 x 42.5 cm)
Upper platform height from floor
32-1/2 in. (82.7 cm)
Lower platform height from floor
5-7/8 in. (15 cm)
Height between platforms
19-5/8 in. (50 cm)
Caster size (OD x W)
5 x 1 in. (12.5 x 2.6 cm)
Overall dimensions (L x W x H)
41 x 17 x 34-1/2 in.
(105 x 42.5 x 88 cm)
Net weight (approx.)
30.9 lb (14 kg)
Shipping weight (approx.)
34.2 lb (15.5 kg)
Cart material
Polypropylene
To order parts visit www.store.jettools.com, or call 1-800-2746848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Having
the Model Number and Serial Number of your unit available when
you call will allow us to serve you quickly and accurately.
Non-proprietary parts, such as fasteners, can be found at local
hardware stores, or may be ordered from JET.
Some parts are shown for reference only, and may not be
available individually.
