Page 1

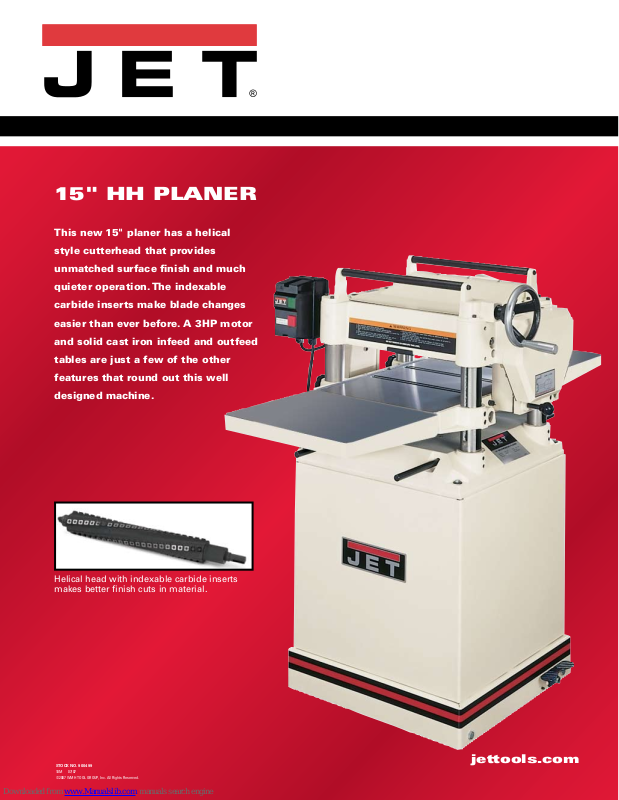

15" HH PLANER
This new 15" planer has a helical
style cutterhead that provides
unmatched surface finish and much
quieter operation. The indexable
carbide inserts make blade changes
easier than ever before. A 3HP motor
and solid cast iron infeed and outfeed
tables are just a few of the other
features that round out this well
designed machine.
Helical head with indexable carbide inserts
makes better finish cuts in material.
STOCK NO. 900499
10M 07/07
©2007 WMH TOOL GROUP, Inc. All Rights Reserved.
jettools.com
Page 2
15" HH PLANER
Solid Cast
Iron Table
Extension
Heavy-Duty
Closed
Steel Stand
Industrial
Magnetic
Controls
Helical
cutterhead
Return
Rollers
Solid
Cast Iron
Construction
Height
Adjustment
Handwheel
15" PLANER, HELICAL HEAD
• Heavy-duty cast iron and steel contruction for added strength
and durability
• Two-speed gear box with automatic chain tensioner lets you
adjust the feed rate to meet your needs
• Helical cutterhead with indexable carbide inserts for a
superior finish and quieter cut.
• Powerful 3 HP TEFC induction motor with three V-belt
transmssion for smooth and consistent power
• Two-speed gear box lets you adjust the feed rate to meet
your needs
• Large handwheel with positive gear drive allows for quick
and accurately table adjustments
• Solid cast iron infeed and outfeed extension tables
2 Speed Gear Box
Helical head with indexable carbide inserts makes
better finish cuts in material.
STOCK NUMBER 708543
Model Number JWP-15HH
Net Weight (lbs.): 540
Maximum Planing Width (in.):
Maximum Planing Thickness (in.):
Maximum Full Width Depth of Cut
(in.):
Minimum Planing Length (in.):
Cutterhead Diameter (in.): 2-7/8
Cutterhead Speed (RPM):
Feed Rate (FPM):
Number of Knives: 68 carbide inserts
Dust Port Diameter (OD/in.): 4
Dust Collection Minimum CFM
Required:
Blade Size: 150 x 1 x 1/8
Amps: 14
Motor HP:
Motor Phase:
Motor Voltage:
14-7/8
6
1/8
8
4500
16 and 20
400
3HP
1
230V
jettools.com
