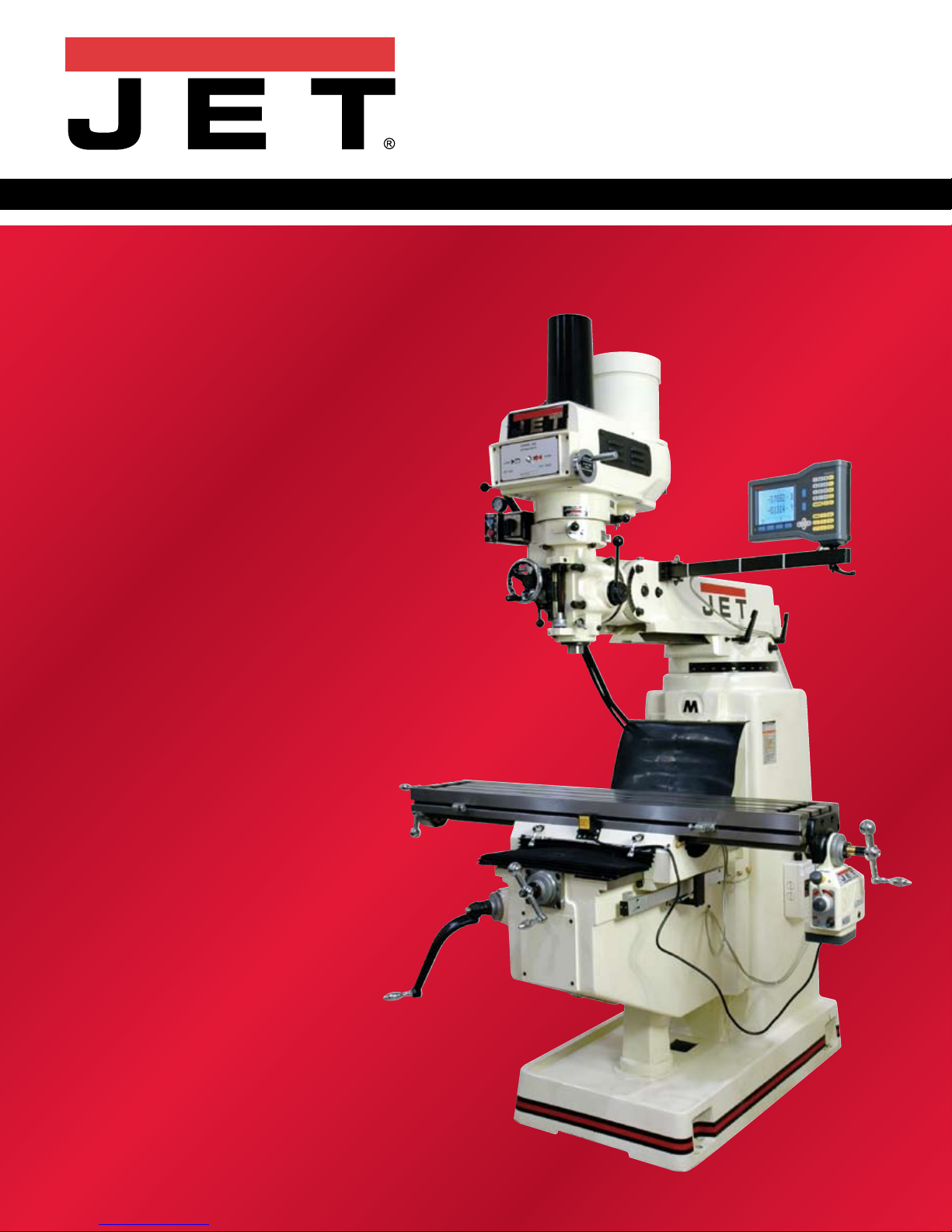

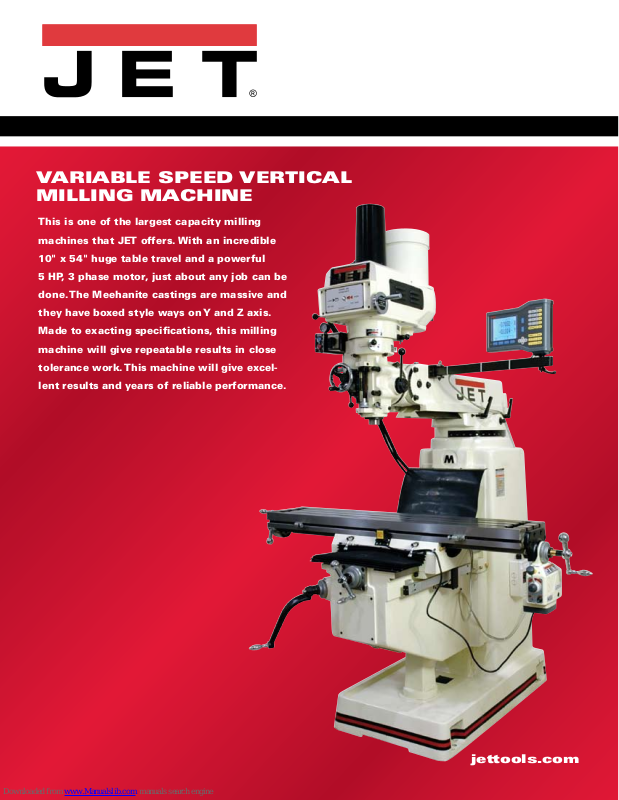

VARIABLE SPEED VERTICAL
MILLING MACHINE
This is one of the largest capacity milling
machines that JET offers. With an incredible
10" x 54" huge table travel and a powerful
5 HP, 3 phase motor, just about any job can be
done. The Meehanite castings are massive and
they have boxed style ways on Y and Z axis.
Made to exacting specifications, this milling
machine will give repeatable results in close
tolerance work. This machine will give excel-
lent results and years of reliable performance.
jettools.com
Page 2
VARIABLE SPEED VERTICAL
MILLING MACHINE
VARIABLE SPEED VERTICAL
MILLLING MACHINE
•
Meehanite casting
•
Hardened and ground table certified to be 52C
Rockwell hardness
•
Chrome lead screws on X and Y axis
•
Boxed style ways on Y and Z axis
•
Turcite B on X and Y axis
•
Satin chrome finished dials
•
Precision bored and honed milling head
•
Large diameter quill is chromed
•
High precision Class 7 spindle bearings
•
Auxiliary fan cools the spindle head
•
Chrome plated motor shaft has lower bearing support
•
Motor pulleys are ground to increase belt lift
•
One piece quill pinion and shaft
•
Three stage power downfeed with automatic stop
•
Heavy duty spindle brake
•
Locks on all movable surfaces
•
Internal coolant tank built into base for use with
coolant system (coolant pump not included)
•
Tolerance test sheet included
STANDARD EQUIPMENT
•
One shot lubrication system
•
Way covers
•
Draw bar
•
Tool box with tools

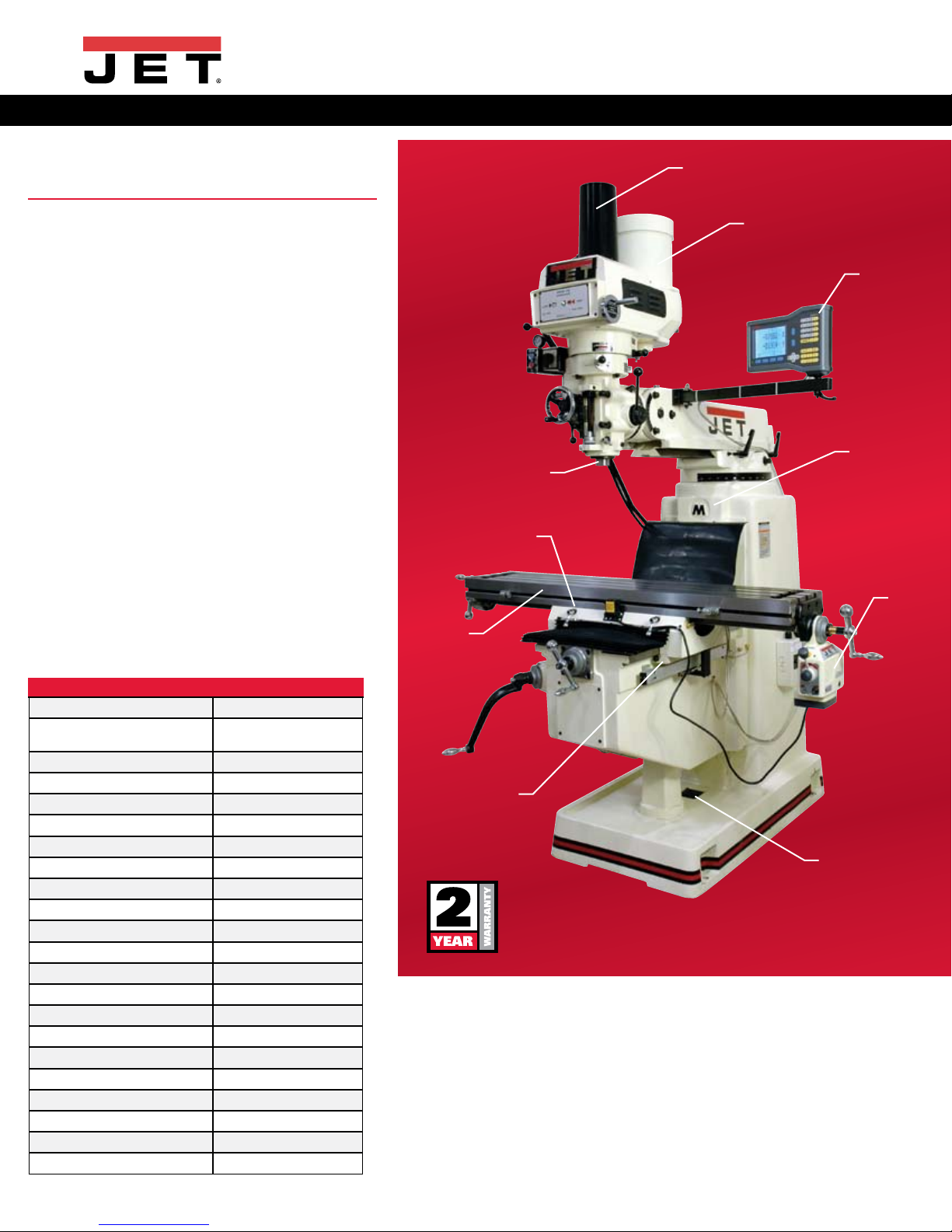

Large
10" x 54"
Table
R8
Spindle
Locks on all
Movable
Surfaces
Optional Power Draw Bar
Heavy Duty 5HP Motor
Optional DRO
Meehanite
Casting
Optional
Power
Feed
STOCK NUMBER 690053
Model Number JTM-1054R
Motor 5 HP, 230/460V, 3 Ph,
Prewired 230V
Number of spindle speeds Variable
Spindle taper R-8
Diameter of quill (in) 4-1/8
Head movement 90° R & L
Distance spindle to table (max-in) 20
Distance spindle to column (max-in) 26
Distance spindle to column 5-1/2
Longitudinal table travel (in) (X-axis) 32
Cross travel (in) (Y-axis) 16
Collet capacity (in) 1/8 – 7/8
T-slot (number & size/in) 3 and 5/8
T-slot centers (in) 2-1/2
Maximum weight of workpiece (lbs) 800
Travel of knee (in) (X-axis) 17-1/2
Travel of Ram (in) 20-1/2
Downfeed of spindle (per/rev/in) .0015 - .003 - .006
Range of spindle speeds (RPM) 80 – 3800
Table size (in) 10 x 54
Overall dimensions (LxWxH) 108 x 80 x 92
Net weight 3300
Box Style
Ways on Y
and Z axis
Internal
Coolant Tank
Built into
the Base
