.JET
EQUIPMENT & TOOLS

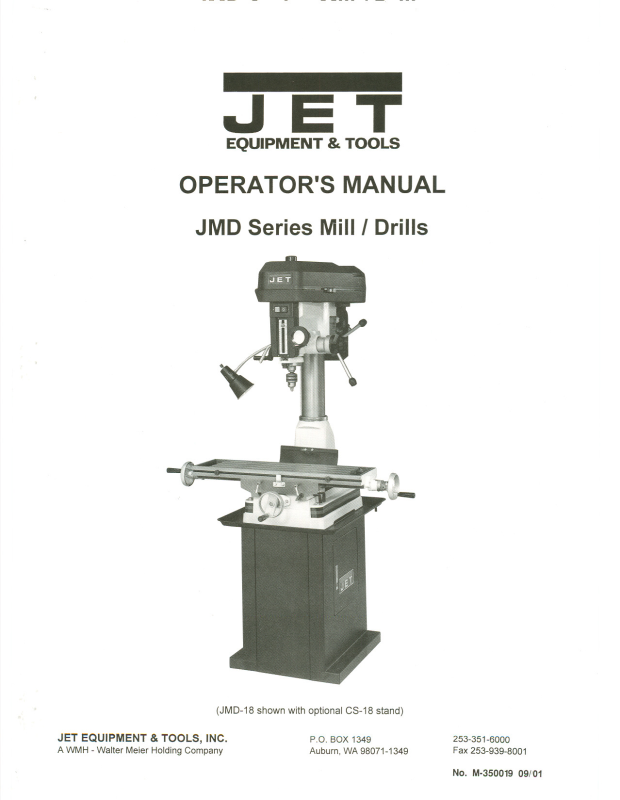

OPERATOR'S MANUAL
JMD Series Mill I Drills
(JMD-18shownwith optional CS-18stand)
JET EQUIPMENT & TOOLS, INC.
A WMH - Walter Meier Holding Company
P.O. BOX 1349
Auburn, WA 98071-1349
253-351-6000
Fax 253-939-8001
No. M.350019 09/'01
Important Information
1-YEAR
LIMITED WARRANTY
JET offers a one-year limited
warranty on this product
REPLACEMENT PARTS
Replacement parts for this tool areavailabledirectlyform JET Equipment&Tools.
To place an order,call 1-800-274-6848. Please have the followinginformationready:
1. Visa, MasterCard, or DiscoverCard number
2. Expirationdate
3. Part number listedwithin thismanual
4. Shipping address otherthan a PostOffice box.
REPLACEMENT PART WARRANTY
JET Equipment & Tools makes every effort to assure that parts meet high quality and durability
standards and warrants to the original retail consumer/purchaser of our parts that each such
part(s) to be free from defects in materialsand workmanshipfor a period of thirty (30) days from
the date of purchase.
PROOF OF PURCHASE
Please retain your dated sales receiptas proofof purchaseto validate the warranty period.
LIMITED TOOL AND EQUIPMENTWARRANTY
JET makes every effort to assure that its products meet high quality and durability standards and warrants
to the original retail consumer/purchaserof our products that each product befree from defects in materials
and workmanship as follows: 1YEAR LIMITED WARRANTYON THISJET PRODUCT. Warranty does not
apply to defects due directly or indirectly to misuse, abuse, negligence or accidents, repairs or alterations
outside our facilities or to a lack of maintenance. JET LIMITS ALL IMPLIED WARRANTIES TO THE
PERIOD SPECIFIED ABOVE FROM THE DATE THE PRODUCT WAS PURCHASED AT RETAIL.
EXCEPT AS STATED HEREIN,ANY IMPLIEDWARRANTIES OR MECHANTABILITYAND FITNESS ARE
EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG THE IMPLIED
WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. JET SHALL IN NO
EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERY OR FOR INCIDENTAL,
CONTINGENT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR
PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO
YOU. To take advantage of this warranty, the product or part must be returned for examination, postage
prepaid, to an authorized service station designated by our Auburn office. Proof of purchase date and an
explanation of the complaint must accompany the merchandise. If our inspection discloses a defect, JET
will either repair or replace the product or refund the purchase price, if we cannot readily and quickly
provide a repair or replacement, if you are willing to accept such refund. JET will return repaired product or
replacement at JET's expense, but if it is determined there is no defect, or that the defect resulted from
causes not within the scope of JET's warranty, then the user must bear the cost of storing and returning the
product. This warranty gives you specific legal rights, and you have other rights, which vary, from state to
state.
JET Equipment &Tools. P.O. Box 1349, Auburn, WA 98071-1349 . (253) 351-6000
~ WARNING
Read and understand the entire contents of
this manual before attempting set-up or
operation of this mill/drill.
.
This machine is designed and intended
for use by properly trained and
experienced personnel only. Ifyou are
not familiar with the proper safe use of
mill/drills, do not use this machine until
proper training and knowledge has been
obtained.
.
Keep guards in place. Safetyguards must
be kept in place and in working order.
.
Remove adjusting keys and wrenches.
Before turning on machine, check to see that
any adjusting wrenches are removed from
the tool.
.
Reduce the risk of unintentional starting.
Make sure switch is in the OFF position
before plugging in the tool.
.
Do not force tools. Always use a tool at
the rate for which itwas designed.
.
Use the right tool. Do not force a tool or
attachment to do a job for which it was not
designed.
.
Maintain tools with care. Keep tools sharp
and clean for best and safest performance.
Follow instructions for lubrication and
changing accessories.
.
Always disconnect the tool from the
power source before adjusting or
servicing.
.
Check for damaged parts. Check for
alignment of moving parts, breakageof
parts, mounting, and any other condition that
may affect the tools operation. A guard or
any part that is damaged should be repaired
or replaced.
.
Turn power off. Never leave a tool
unattended. Do not leave a tool until it
comes to a complete stop.
.
Keep work area clean. Cluttered areas and
benches invite accidents.
.
Do not use in a dangerous environment.
Do not use power tools in damp or wet
locations, or expose them to rain. Keep
work area well lighted.
.
Keep children and visitors away. All
visitors should be kept a safe distance from
the work area.
.
Make the workshop child proof. Use
padlocks, master switches, and remove
starter keys.
.
Wear proper apparel. Loose clothing,
gloves, neckties, rings, bracelets, or other
jewelry may get caught in moving parts.
Non-slip footwear is recommended. Wear
protective hair covering to contain long hair.
Do not wear any type of glove.
.
Always use safety glasses. Every day
glasses only have impact resistant lenses;
they are not safety glasses.
.
Do not overreach. Keep proper footing and
balance at all times.
.
Do not place hands near the cutterhead
while the machine is operating.
.
Do not perform any set-up work while
machine is operating.
.
Read and understand all warnings posted
on the machine.
.
This manual is intended to familiarize you
with the technical aspects of this
mill/drill. It is not, nor was it intended to be,
a training manual.
.
Failure to comply with all of these
warnings may result in serious injury.
Some dust created by power sanding, sawing, grinding, drilling and other construction activities
contains chemicals known to cause cancer, birth defects or other reproductive harm Some
examples of these chemicals are:
. Lead from lead based paint
. crystalline silica from bricks and cement and other masonry products, and
. arsenic and chromium from chemically-treated lumber
Your risk from those exposures varies, depending on how often you do this type of work To reduce
your exposure to these chemicals work in a well ventilated area. and work with approved safety
equipment, such as those dust masks that are specifically designed to filter out microscopic
particles
Specifications:
Stock Number:
JMD-15 350017
JMD-18 , 350018
JMD-18PFN 350020
Drilling Capacity:
JMD-15 1"
JMD-18/18PFN 1-1/4"
Face Mill Capacity:
JMD-15 """"""""""""""""""""""""""""""'''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''' 2-1/2"
JMD-18/18PFN """"""""""""""""""""'"''''''''''''''''''''''''''''''''''''''''''''''''''''''''
End Mill Capacity:
JMD-15 1/2"
JMD-18/18PFN """""""""""'"'''''''''''''''''''''''''''''''''''''''''''''''''''''' """'''''''''''''''''''''''''''''' .3/4"
Swing:
All Models 15-7/8"
Maximum Distance Spindle to Table:
JMD-15 """""""'"'''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''' 15"
JMD-18 '"'''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''' 18"
JMD-18PFN "'''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''' 26"
JMD-15/18/18PFN
3"
Spindle Taper:
All Models , .".. R-8
Spindle Travel:
JMD-15 , 3-1/2"
JMD-18 "'"'''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''' 5"
JMD-18PFN 4-1/4"
Quill Diameter:
JMD-15 """"""""""""""""""""""'''''''''''''''''''''''''''''' .., 2-1/2"
JMD-18/18PFN , ""'"'''''' " 3"
Head Swivel:
All Models ...360°
Column Diameter:
JMD-15 '''''''''''''''''''' '''''''''''''''''''''''''''''''''' 3-5/8"
JMD-18/18PFN 4-1/2"
Numberof Power Downfeeds(JMD-18PFNonly) 3
Range Of Power Downfeeds (JMD-18PFN only) .0.004", .007", .01"
Numberof Spindle Speeds:
All Models 12
Range of Spindle Speeds:
JMD-15 "","""""""""""""""""""""""'" 110-2,580 RPM
JMD-18/18PFN 150- 3,000 RPM
MaximumTable Travel:
JMD-15 , ...14"
JMD-18/18PFN """""""""'"'''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''' ..24"
Cross Travel:
JMD-15 , 6"
JMD-18/18PFN . ... , ...7"
Working Surface of Table:
JMD-15 .. ,... 7-112" X23"
JMD-18/18PFN " 9-1/2" X 32"
Number of T-Slots:
All Models 4
2
T-Slot Size:
JMD-15 ..9/16"
JMD-18/18PFN """'''' """"""""""'"'' 5/8"
T-Slot Centers:
JMD-15 ... ""'" ... ... ...... 1-1/2"
JMD-18/18PFN ... ... ...... ...... ... ... ...... 2-1/16"
Overall Dimensions:
JI\,IID-15 ... """'" ... ... ... ... ...~6-1 /2"L x 37-1/2"W x 35-1/2"H
JMD-18 """""""'''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''' 42-1/2"L x 39-3/4"W x 43-1/2"H
JMD-18PFN """'"'''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''' 42-1/2"L x 39-3/4"W x 51-1/2"H
Base Dimensions:
JMD-15 """"""""'''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''' 12-1/2"
JMD-18/18PFN '"'''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''' 15-3/4" x23-3/4"
Motor (UL Listed):
JMD-15 ""'''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''' 1HP, 1Ph, 115V
JMD-18/18PFN 2 HP, 1Ph, 230Vonly
Net Weight (approx.):
JMD-15 .. ... ......... ...... ... ......... ... "'" 440 Lbs.
JMD-18 . """""'''''''''''''' , 660 Lbs.
JMD-18PFN ""'''''''' """'"'''' """'''''''''''''' "'''''''''''' 700Lbs.
Shipping Weight (approx.):
JMD-15 540 Lbs.
JMD-18 """'"'''''''''''''''''' 760 Lbs.
JMD-18PFN """"'" 800 Lbs.
x 19-3/4"
The specifications in this manual are givenas general informationand are not binding. JET
Equipment and Tools reserves the right to effect, at any time and without prior notice, changes or
alterations to parts, fittings, and accessory equipmentdeemednecessary for any reason
whatsoever.
Table of Contents
Warning 1
Specifications 2-3
Table of Contents "" 3
Contents of the Shipping Container 4
Unpacking and Clean-up 4
Assembly 5
Installation 5
Lubrication 6
Electrical Connections 6
Controls 7-8
Operation 9
Arbor Replacement 9
GibAdjustment ""'''''''''''''''''' 10
Power Feed Operation "'"'''''''''' 11
Parts Lists and Breakdowns 12-31
Electrical Schematic 32-33
3
Contents of the Shipping Container
1 Mill/Drill
Accessory Package:
1
Chuck Arbor (installed)
1
1/2" Drill Chuck w/ Chuck Key
1
Adjustable Carbide Facemill
1
Facemill Arbor
2
Bolts, Nuts, and Washers to
Attach Vise to Table
1
2-1/2" Angle Vise (JMD-15)
1
3-1/2" Angle Vise (JMD-18/18PFN)
Handle Rods
3
Plastic Knobs
3
1
3/8"x1" Hex Socket Cap Screw
3/8" Washer
1
1
Crank Body
1
Crank Handle
3mm Hex Wrench
1
5mm Hex Wrench
1
1
23mm Hex Socket Wrench (JMD-18/18PFN)
3
HandWheels w/ Handles
1
Can Touch-Up Paint
1
Operator's Manual
1
Warranty Card
Unpacking and Clean-up
1. Finish removing the crate from the mill/drill.
Unbolt the machine from the crate bottom.
Report shipping damage, if any, to your
distributor.
2. Remove any protective coating with keroseneor
a mild solvent. Do not use gasoline, paint
thinner, or lacquer thinner. These will damage
painted surfaces.
Tools Needed for Assembly
8" Adjustable Wrench or 1/4" to 1-1/4" Combination
Wrench Set
4
Assembly
1. Screw plastic knob (A, Fig. 1)onto handle shaft
(B, Fig. 1). Screw handle shaft intodownfeed
hub (C, Fig. 1) and tighten. Flatspot on shaft
accommodates a combination or adjustable
wrench. Note: Handle shafts are already
installed into hub on JMD-18PFN.
2. Repeat for other two shaft assemblies.
3. Slide crank (A, Fig. 2) onto shaft andtighten set
screw (B, Fig. 2). Be sure set screw seats on flat
part of shaft.
4. Insert handle (C, Fig. 2) into crank and tighten.
5. Slide handwheel (A, Fig. 3) onto table
handwheel shaft and tighten set screw. Insert
handle (B, Fig. 3) intohandwheel and tighten.
6. Repeat for two remainingtable handwheels.
Installation
1. The location for the mill/drill should be well lit,
dry, and have room enough to allow the headto
rotate 3600.
Fig. 1
Fig. 2
~.
2. Place nylon slings with a load rating exceeding
the weight of the mill/drill around the head so
that the sling will not damage any parts when
tensioned. See Fig.4.
3. Carefully lift the mill/drillto a sturdy stand or work
bench. For best performance, through bolt the
mill/drill to a benchor stand.
4. Before bolting the mill/drillto a bench or stand,
the unit must be level in both directions. Place a
level on the table in both directions.
5. If the table is not level, shim under the low corner
(s) untilleve!. Tighten the fastening bolts.
Check for level again. Adjust as necessary until
Fig. 3 ...
V\
J)
5
the mill/drill is level after the fastening hardware
has been tightened.
Lubrication
Lubricate all ball oilers on the machine once daily
with 20W machine oil.
The spindle bearings are permanentlysealed and
require no lubrication.
Electrical Connections
CURRENT CARRYING PRONGS
w
e
Before making any electrical connections, make sure
the power source available is compatible with the
machine. Also, press the Off switchon the front of
the machine before connecting to the power source.
The JMO-15 is rated at 115/230Vand comes from
the factory prewired at 115V. This mill/drillcomes
with a plug designed for use on a circuitwith an
outlet that looks like (A) in Fig. 5. The JMO-15has a
grounding prong as illustratedin (B). A temporary
adapter (C) may be usedto connect the plugto a
two pole receptacle (0) if a properly grounded outlet
is not available. The temporary adapter should only
be used until a qualified electriciancan install a
properly grounded outlet. The green colored plug
must be securely fastened to the cover platescrew.
To switch the JMO-15 to 230V operation:
1. Disconnectthe machine from the power
source.
2. Removethe junction box cover on the motor.
3. Change the wires according to the diagram on
the inside of the junction box cover.
~
GROUND D.RONG
~~~
,~,,~
I
~ROUNDING
Fig. 5
A/
CZ)
4. Replacethe junction box cover.
5. Change the plugto one that is rated230V or
hardwire the power cord.
6.
Change the overload from 18A to
10A Specification.
6
The JMD-18/18PFN is rated at 230V only. Again, be
sure the power source is compatiblewith the mill/drill
before connecting to the power source.
Controls
c
Longitudinal HandWheels (X-axis)(A, Fig. 6) -
located on either side of the table. Movestable side
to side.
Cross Feed Hand Wheel (Y-axis) (8, Fig.6) -
located on the front of the base. Movestable toward
or away from the column.
Adjustable Table Stops (C, Fig.6) - locatedon
table front. Adjust to stop table at any setting along
the longitudinal axis.
Table Locks (D & E, Fig. 6) - longitudinaltable (0,
Fig. 5) locks are located on front of the table. Cross-
feed table locks (E, Fig. 6) are located on the right
side under the table. Turn clockwise to lock.
Depth Stop (A, Fig.7 - JMD-18) or (A, Fig. 8 - JMD-
15) -located on the left side (JMD-15)or center
(JMD-18) of the quill assembly. Set knurlednuts
(JMD-15) or turn knurled knob (JMD-18) or set the
depth stop on the power down feed assembly (JMD-
18PFN)to desired depth for repetitivedrillingtothe
same depth.
Fig. 6
Fig.7
Downfeed Handle (8, Fig. 7) - locatedon the right
side of the head casting. Counter-clockwise
movement advances the quill toward the table.
Return spring retracts the handle.
Fine Feed Hand Wheel (C, Fig. 7) - located on the
front of the head casting. Toactivate,turn the power
feed speed range dial to zero and pull the down feed
handles away from the column.
Fig. 8
7
Motor Mount Lock Lever (A, Fig. 9) - located on the
right side of the head casting. Locks and unlocks the
motor mounting plate. Loosen to tension v-belts and
then tighten.
Head Pivot Lock (8, Fig. 9) - locatedon the right
rear of the head casting. Loosen two hex nuts to
rotate the head 360°. Tighten two hex nuts to lock
the head.
On-Off Switch (A, Fig. 10) -located on the front of
the head casting. Turns power on and off to the
mill/drill.
Fig. 9
Quill Lock Handle (8, Fig. 10) - located on the front
left of the head casting. Turn clockwise to lockthe
quill inthe desired position. Turn counter-clockwise
to release.
Head Elevating Crank Handle (A, Fig. 11)- located
at left rear of head casting. Loosenhead pivotlock
nuts (8, Fig. 8) and turn handleclockwise to raise
head on the column and counter-clockwiseto lower
head.
Fig. 10
Fig. 11
8
Operation
Changing Spindle Speeds
1. Disconnect the machine from the power
source.
2. Release two catches on the belt cover and open.
3. Loosen the motor mount lock lever(A, Fig, 9)
and pull the motor toward the head casting to
release tension on the v-belts.
4. Arrange the v-belts on the pulleysfor the desired
speed according to the speed chart on the inside
of the belt cover.
5. Tension the v-belts by pushing the motor away
from the head casting and locking the motor
mount lock lever.
Arbor Replacement
1. Disconnect machine from the power source.
2. Release latches on belt cover and open.
3. Hold the spindle pulley (A, Fig. 12)with one
hand (to keep the pulley from moving)while
loosening the drawbar (8, Fig. 12)with the other
using a wrench.
Fig. 12
9
Loading...
