Page 1
JCDC-2
Original:
GB
Operating Instructions
2.0 HP Mobile Cyclone Dust
Collector
JPW (Tool) AG
Tämperlistrasse 5
8117 Fällanden
Switzerland
Phone +41 44 806 47 48
Fax +41 44 806 47 58
www.jettools.com
M-717520M 2016-04
Page 2
2
CE-Conformity Declaration
CE-Konformitätserklärung
Déclaration de Conformité CE
Product / Produkt / Produit:
Dust Collector / Staubfänger / Collecteur de poussière
JCDC-2
( 717520M )
Brand / Marke / Marque:
JET
Manufacturer / Hersteller / Fabricant:
JPW (Tool) AG, Tämperlistrasse 5, CH-8117 Fällanden
Schweiz / Suisse / Switzerland
We hereby declare that this product complies with the regulations
Wir erklären hiermit, dass dieses Produkt der folgenden Richtlinie entspricht
Par la présente, nous déclarons que ce produit correspond aux directives suivantes
2006/42/EC
Machinery Directive / Maschinenrichtlinie / Directive Machines
electromagnetic compatibility / elektromagnetische Verträglichkeit / compatibilité électromagnétique
designed in consideration of the standards
und entspechend folgender zusätzlicher Normen entwickelt wurde
et été développé dans le respect des normes complémentaires suivantes
EN ISO 12100 : 2010
EN 60204-1 : 2006+AC:2010
EN 55014-1:2006+A2:2011
EN 55014-2:2015
Responsible for the Documentation / Dokumentations-Verantwortung / Résponsabilité de Documentation:
Hansjörg Meier
Head Product-Mgmt. / Leiter Produkt-Mgmt. / Resp. Gestion des Produits
2014/30/EU
JPW (Tool) AG
2016-11-14 Alain Schmid, General Manager
JPW (Tool) AG, Tämperlistrasse 5, CH-8117 Fällanden Schweiz / Suisse / Switzerland
Page 3
3
GB - ENGLISH
Operating Instructions
Dear Customer,
Many thanks for the confidence you have shown in us with the purchase of your new JET-product. This manual
has been prepared for the owner and operators of a JET JCDC-2.0 cyclone dust collector to promote safety
during installation, operation and maintenance procedures. Please read and understand the information
contained in these operating instructions and the accompanying documents. To obtain maximum life and
efficiency from your dust collector, and to use it safely, read this manual thoroughly and follow instructions
carefully.
Warranty
The Seller guarantees that the supplied product is free from material defects and manufacturing faults. This
warranty does not cover any defects which are caused, either directly or indirectly, by incorrect use,
carelessness, accidental damage, repair, inadequate maintenance or cleaning and normal wear and tear.
Guarantee and/or warranty claims must be made within twelve months from the date of purchase (date of
invoice). Any further claims shall be excluded.
This warranty includes all guarantee obligations of the Seller and replaces all previous declarations and
agreements concerning warranties.
The warranty period is valid for eight hours of daily use. If this is exceeded, the warranty period shall be
reduced in proportion to the excess use, but to no less than three months.
Returning rejected goods requires the prior express consent of the Seller and is at the Buyer’s risk and
expense.
Further warranty details can be found in the General Terms and Conditions (GTC). The GTC can be viewed at
www.jettools.com or can be sent by post upon request.
The Seller reserves the right to make changes to the product and accessories at any time.
About this manual
This manual is provided by JET, covering the safe operation and maintenance procedures for a JET Model
JCDC-2 Cyclone Dust Collector. This manual contains instructions on installation, safety precautions, general
operating procedures and maintenance instructions. Your machine has been designed and constructed to
provide consistent, long-term operation if used in accordance with the instructions as set forth in this document.
This manual is not intended to be an exhaustive guide to dust removal strategies, installation of shop duct
work, or the use of optional dust collection accessories. Additional knowledge may be obtained from
experienced users or trade articles. Whatever accepted methods are used, always make personal safety a
priority.
If there are questions or comments about this product, please contact your local supplier or JET. JET can also
be reached at our web site: www.jettools.com.
Retain this manual for future reference. If the machine transfers ownership, the manual should accompany it.
Page 4
4
1.0 IMPORTANT SAFETY
INSTRUCTIONS
When using an electrical appliance, basic
precautions should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE USING
THIS DUST COLLECTOR.
WARNING – To reduce the risk of fire,
electric shock, or injury:
1. Read and understand entire owner’s manual
before attempting assembly or operation.
2. Read and understand the warnings posted on
the machine and in this manual.
3. Replace warning labels if they become
obscured or removed.
4. This dust collector is designed and intended
for use by properly trained and experienced
personnel only. If you are not familiar with the
proper and safe operation of a dust collector,
do not use until proper training and knowledge
have been obtained.
5. Do not use this dust collector for other than its
intended use. If used for other purposes, JET
disclaims any real or implied warranty and
holds itself harmless from any injury that may
result from that use.
6. Always wear approved safety glasses/face
shield while using this dust collector. Everyday
eyeglasses only have impact resistant lenses;
they are not safety glasses.
7. Keep hair, loose clothing, fingers, and all parts
of body away from openings and moving parts.
8. Wear hearing protection (plugs or muffs)
during extended periods of operation.
9. Some dust created by power sanding, sawing,
grinding, drilling and other construction
activities contains chemicals known to cause
cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead based paint.
• Crystalline silica from bricks, cement and
other masonry products.
• Arsenic and chromium from chemically
treated lumber.
Your risk of exposure varies, depending on
how often you do this type of work. To reduce
your exposure to these chemicals, work in a
well-ventilated area and work with approved
safety equipment, such as face or dust masks
that are specifically designed to filter out
microscopic particles.
10. Do not operate this machine while tired or
under the influence of drugs, alcohol or any
medication.
11. Make certain the switch is in the OFF position
before connecting the machine to the power
supply. Turn off all controls before unplugging.
12. Make certain the machine is properly
grounded. Connect to a properly grounded
outlet only. See Grounding instructions.
13. Make all machine adjustments or maintenance
with the machine unplugged from the power
source.
14. Remove adjusting keys and wrenches. Form a
habit of checking to see that keys and
adjusting wrenches are removed from the
machine before turning it on.
15. Keep safety guards in place at all times when
the machine is in use. If removed for
maintenance purposes, use extreme caution
and replace the guards immediately after
maintenance is complete.
16. Check damaged parts. Before further use of
the machine, a guard or other part that is
damaged should be carefully checked to
determine that it will operate properly and
perform its intended function. Check for
alignment of moving parts, binding of moving
parts, breakage of parts, mounting and any
other conditions that may affect its operation.
A guard or other part that is damaged should
be properly repaired or replaced.
17. Provide for adequate space surrounding work
area and non-glare, overhead lighting.
18. Keep the floor around the machine clean and
free of scrap material, oil and grease.
19. Keep visitors a safe distance from the work
area. Keep children away.
20. Make your workshop child proof with padlocks,
master switches or by removing starter keys.
21. Give your work undivided attention. Looking
around, carrying on a conversation and “horseplay” are careless acts that can result in
serious injury.
22. The dust collector is intended for indoor use.
To reduce the risk of electric shock, do not use
outdoors or on wet surfaces.
23. Do not use this dust collector for anything
except wood dust. Materials such as liquids,
metal shavings, metal dust, screws, glass,
plastic or rock can cause sparks and/or
damage when coming into contact with any
part of the dust collector.
Page 5
5
24. Do not use to pick up anything that is burning
or smoking, such as cigarettes, matches or hot
ashes.
25. Do not use to pick up flammable or
combustible liquids such as gasoline, or use in
areas where they may be present.
26. Do not pull or carry by cord, use cord as a
handle, close a door on cord, or pull cord
around sharp edges or corners. Do not run
dust collector over cord. Keep cord away from
heated surfaces.
27. Do not use this dust collector with a damaged
cord or plug. If the unit is not working as it
should, has been dropped, damaged, left
outdoors, or dropped into water, return it to a
service center.
28. Do not unplug by pulling on cord. To unplug,
grasp the plug, not the cord.
29. Do not use without dust bag and/or filters in
place.
30. Do not handle plug or machine with wet hands.
31. Do not put any objects into the openings. Do
not use with any opening blocked; keep free of
dust, lint, hair, and anything that may reduce
air flow.
32. Do not operate without hose connected to the
inlet. Place cap on unused inlet port.
Hazardous moving parts inside. Unplug before
removing or connecting inlet or inlet guard.
33. Use recommended accessories; improper
accessories may be hazardous.
34. Maintain tools with care. Follow instructions for
lubricating and changing accessories.
35. Turn off machine and disconnect from power
before cleaning. Use a brush or compressed
air to remove chips or debris; do not use bare
hands.
36. Do not leave the machine when it is plugged in.
Unplug from outlet when not in use and before
servicing.
37. Do not stand on the machine. Serious injury
could occur if the machine tips over.
38. The dust collector is intended for household
use.
Familiarize yourself with the following safety notices used in this manual:
This means that if precautions are not heeded, it may result in minor injury and/or possible
machine damage.
This means that if precautions are not heeded, it may result in serious, or possibly even fatal,
injury.
SAVE THESE INSTRUCTIONS
Page 6
6

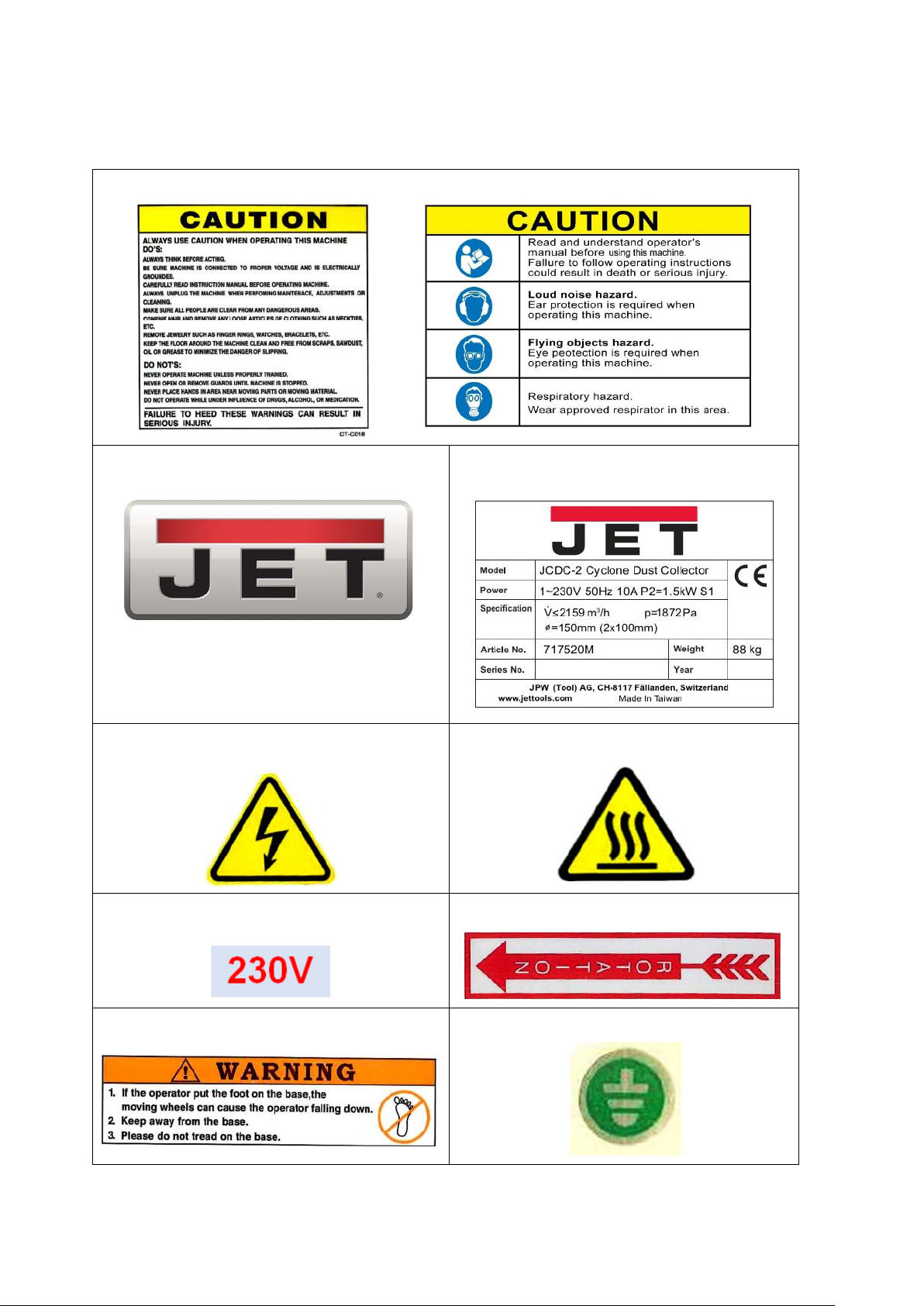

2.0 Direction / Safety Label
Figure 1 Shows the general saftey rules to operate this machine
Figure 2 Product Brand Logo Figure 3 Machine ID label : Shows the
machine’s specifications and series number
Figure 4 Warns user of hazardous voltage, and
should be open up by trained personnel only.
Figure 6 Indicate the main electrical power
supply wire’s location, and the label itself.
Figure 8 Notice the operator do not put the foot
on the base.
Figure 5 Warns user of heated hot surface
hazard
Figure 7 Motor & Fan Rotation Direction
Figure 9 Grounding Notice
Page 7
7
3.0 Specifications
Model number ............................................................................................................................................ JCDC-2
Stock number .............................................................................................................................................. 717520
Motor and electricals:
Motor type ........................................................................ .totally enclosed fan cooled, induction, capacitor start
Horsepower ................................................................................................................................... 2 HP (1.5kW)
Phase .......................................................................................................................................................... single
Voltage ................................................................................................................................................. 230V only
Cycle ............................................................................................................................................................ 50Hz
Listed FLA (full load amps) ........................................................................................................................... 10 A
Start capacitor .......................................................................................................................... 300MFD 125VAC
Run capacitor ..................................................................................................................................... 30µF 250V
On/off switch .............................................................. push-button, magnetic contactor with overload protection
Motor speed ........................................................................................................................................ 2800 RPM
Power cord ........................................................................................................................ H05VV-F, 3G 1.5mm²
Power plug ...................................................................................................... VDE CE Plug 16A/250V installed
Recommended circuit and fuse/breaker size 1 ............................................................................................. 16 A
Sound emission (at 9.84 ft./3m) 2 ................................................................................................................ 76 dB
Remote control system ............................................ radio frequency (FCC approved); range up to 50 ft. (15 m)
RC transmitter battery .................................................................................................................... 2 x AAA, 1.5V
Timer setting ................................................................................................................................ 2, 4, 6, 8 hours
Performance:
Inlet diameter ................................................................................................................................ 6 in. (152 mm)
Inlet adaptors, number of ................................................................................................................................... 2
Inlet adaptors, diameter of ............................................................................................................. 4in. (100 mm)
Filter efficiency ............................................................................................................. 99% of 2 micron particles
Air Flow Rate with filters installed ......................................................... ........................ 1271 CFM (2159 m³/hr)
Air Velocity ............................................................................................ ............................ 6456 FPM (32.8 m/s)
Static pressure loss (WC) ..................................................................... ......................... 4 in-H2O (102 mmH2O)
Maximum static pressure loss (WC) ..................................................... ...................... 7.5 in-H2O (191 mmH2O)
Impeller:
Impeller diameter .................................................................................................................. 14-1/2 in. (368 mm)
Impeller type .......................................................................................................................................... radial fin
Impeller material .......................................................................................................................................... steel
Canister filter:
Filter type ........................................................................................................ cartridge and spunbond polyester
Canister filter diameter ........................................................................................................ 14-9/16 in. (370 mm)
Canister filter length .............................................................................................................. 22-5/8 in. (575 mm)
Filter surface area ................................................................................................................ 27.99 sq. ft. (2.6 m2)
Filter efficiency ............................................................................................................. 99% of 2 micron particles
Cleaning system ............................................................................................................ manual scraper rotation
Collection drum:
Capacity .................................................................................................................................................... 30 gal.
Diameter ........................................................................................................................... 19-11/16 in. (500 mm)
Height ................................................................................................................................... 22-1/4 in. (565 mm)
Material ........................................................................................................................................................ steel
1
Subject to local/national electrical codes. Recommendation based upon dedicated circuit.
2
The specified values are emission levels and are not necessarily to be seen as safe operating levels. As workplace
conditions vary, this information is intended to allow the user to make a better estimation of the hazards and risks
involved only.
Page 8
8
Collection bags:
Bag material ..................................................................................................................................... polyethylene
Drum collection bag size (Dia. x L) ............................................................ 30-11/16 x 32-11/16 (780 x 830 mm)
Canister collection bag size (Dia. x L) ...................................................... 19-11/16 x 23-5/8 in. (500 x 600 mm)
Main materials:
Frame ................................................................................................................................................ steel tubing
Body .................................................................................................................................................. 18 ga. steel
Paint finish ................................................................................................................................... powder coated
Dimensions:
Footprint/base dimensions (L x W) ............................................................. 50-5/8 x 25-7/8 in. (1286 x 658 mm)
Overall dimensions, assembled (L x W x H) ..................... 25-7/8 x 50-5/8 x 72-1/4 in. (658 x 1286 x 1835 mm)
Overall dimensions, shipping carton (L x W x H) .................. 45 x 26-9/16 x 41-3/8 in. (1145 x 675 x 1050 mm)
Weights:
Net weight ..................................................................................................................................... 207 lb. (94 kg)
Shipping weight, approximate ..................................................................................................... 235 lb. (107 kg)
The specifications in this manual were current at time of publication, but because of our policy of continuous
improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring
obligations.
Page 9
9
Read and understand the
entire contents of this manual before
attempting assembly or operation. Failure to
comply may cause serious injury.
4.0 Setup and assembly
4.1 Unpacking and cleanup
Remove all contents from shipping carton and
compare to the contents list in this manual. If
shipping damage or any part shortages are
identified, contact your distributor. Do not discard
carton or packing material until dust collector is
assembled and running satisfactorily.
4.2 Shipping contents – JCDC-2
Main carton (see Figure 1)
1 Main housing – A
1 Funnel – B
1 Base – C
1 Left stand – D1
1 Right stand – D2
1 Canister filter (with bag clamp) – E
1 Drum – F
1 Funnel clamp – G
1 Drum lid – H
1 Inlet adaptor – I
1 Hose – J
2 Hose clamp 12-1/2in. – K
4 Casters (for Base) – L
4 Casters (for Drum) – M
2 Side cap – N
1 Handle – O
1 Canister collection bag – P
1 Drum collection bag – Q
2 Quick lever – R
1 Bag frame – S
(consists of 4 long supports, 4 short supports,
and 2 hoops)
1 Stand support – T
1 Foam tape, 490 mm – U
2 Foam tape, 970 mm – V
1 Foam tape, 1265 mm – W
1 Gasket – X
1 Remote controller with batteries (not shown)
Hardware package (p/n JCDC2-HP)
(see Figure 2)
17 Phillips pan head screw, 3/16x3/8 – HP1
6 Flange head screw, 5/16x1/2 – HP2
8 Phillips pan head screw, M5x8 – HP3
4 Flange head screw, 1/4x1/2 – HP4
1 Open-end wrench, 10/12mm – HP5
1 Hex wrench 4mm – HP6
1 Hex wrench 5mm – HP7
12 Flange head screw, 5/16x3/4 – HP8
6 Nut, 5/16 – HP9
16 Phillips pan head screw, M3x12 – HP10
16 Hex nut M3 – HP11

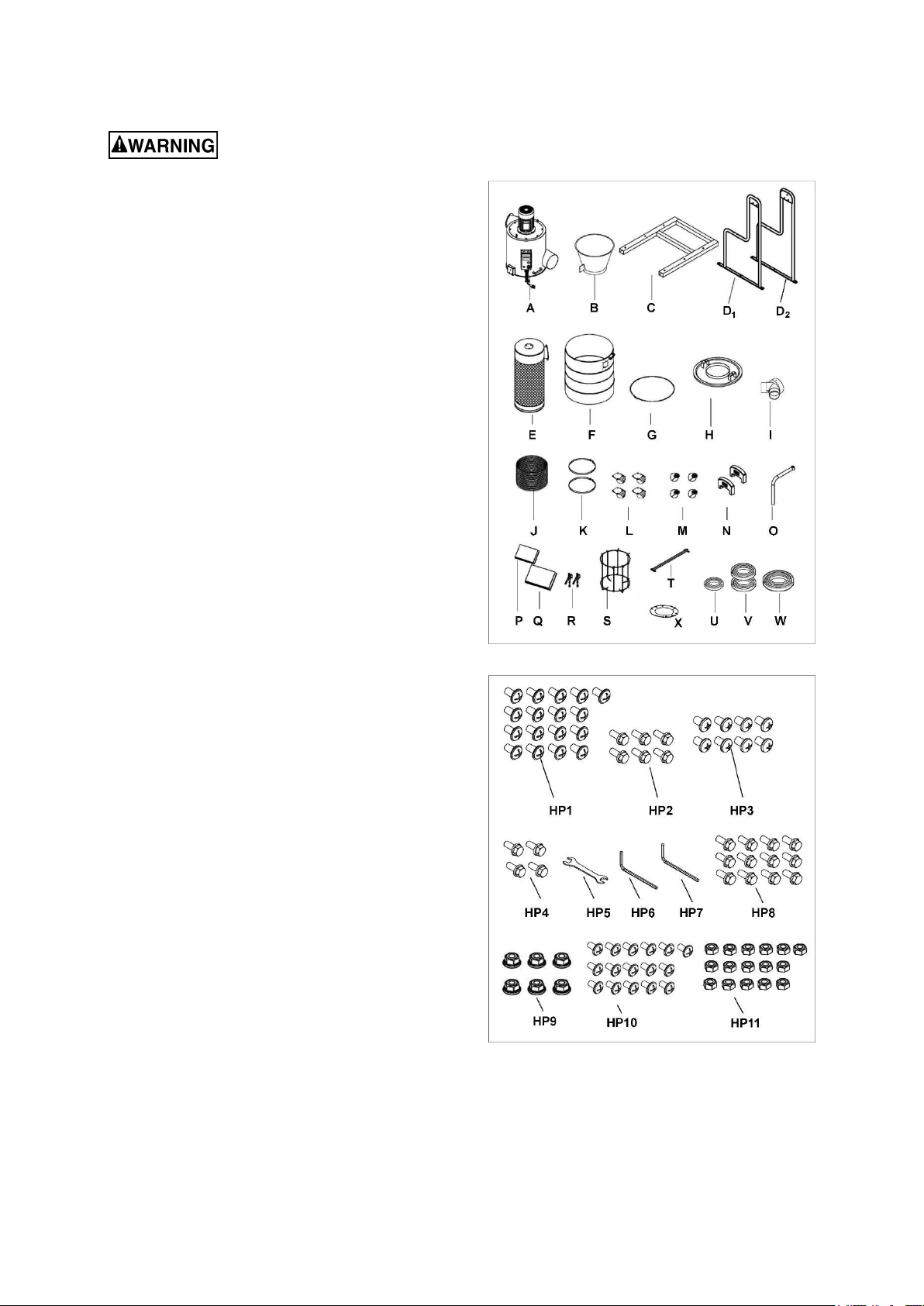

Figure 1: main carton contents (not to scale)
Figure 2: hardware package (not to scale)
Page 10
10
4.3 Tools required for assembly
Hex keys, 4mm and 5mm (provided)
Open-end wrench, 10/12mm (provided)
Cross-point (Phillips) screwdriver
4.4 Assembly

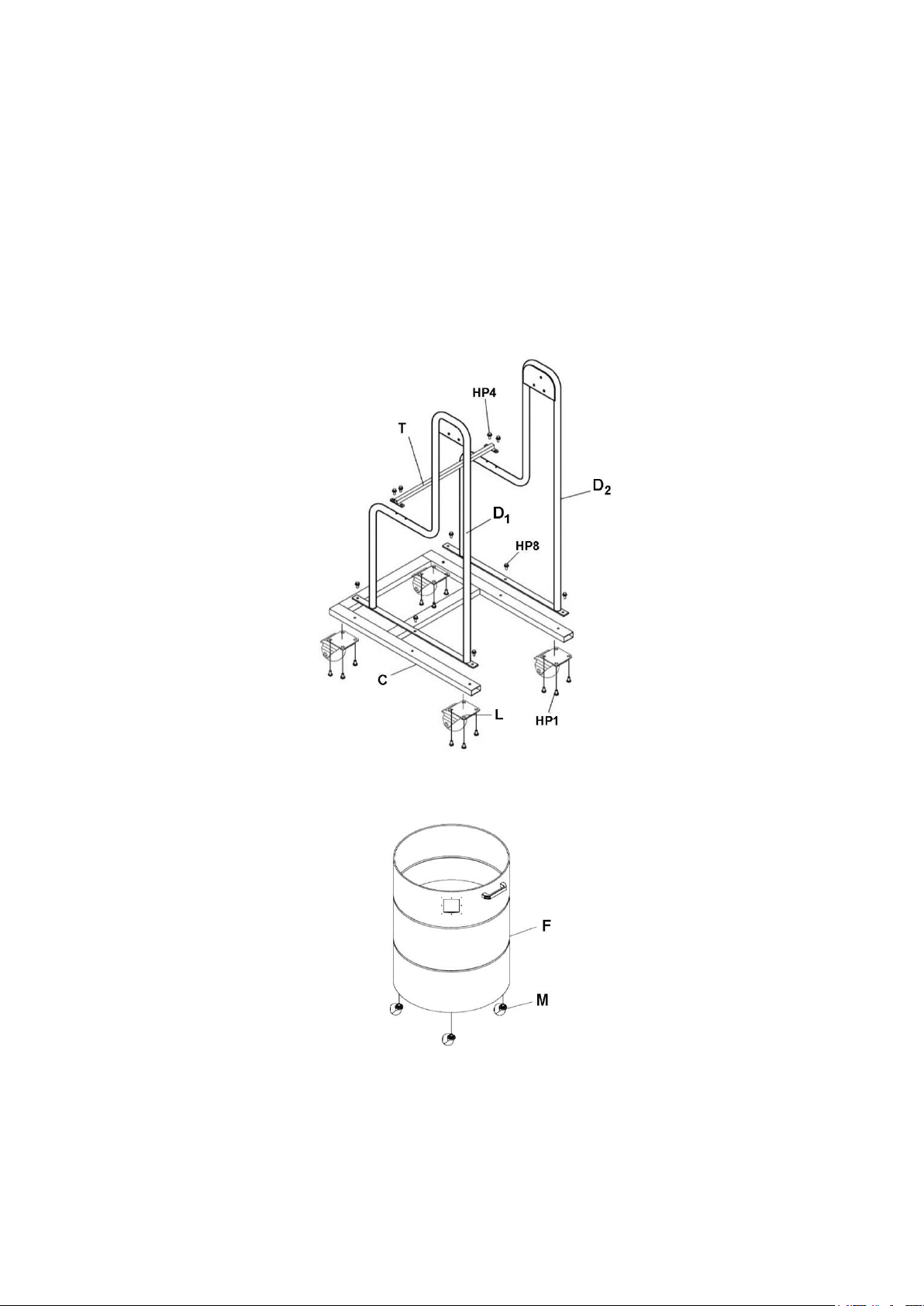

1. Install four casters (L) to base (C) with pan head screws (HP1). See Figure 3.
2. Install left and right stands (D1,D2) to base (C) with flange head screws (HP8).
3. Install stand support (T) to stands with flange head screws (HP4).
Figure 3
4. Install four casters (M) into the threaded nuts beneath drum (F). See Figure 4.
Figure 4
5. Lift main housing (A) using hoist with straps through lifting rings atop main housing. If hoist is not available,
at least 2 persons must lift housing.
Page 11
11
Main housing is heavy. Two-person lift, or use hoist.

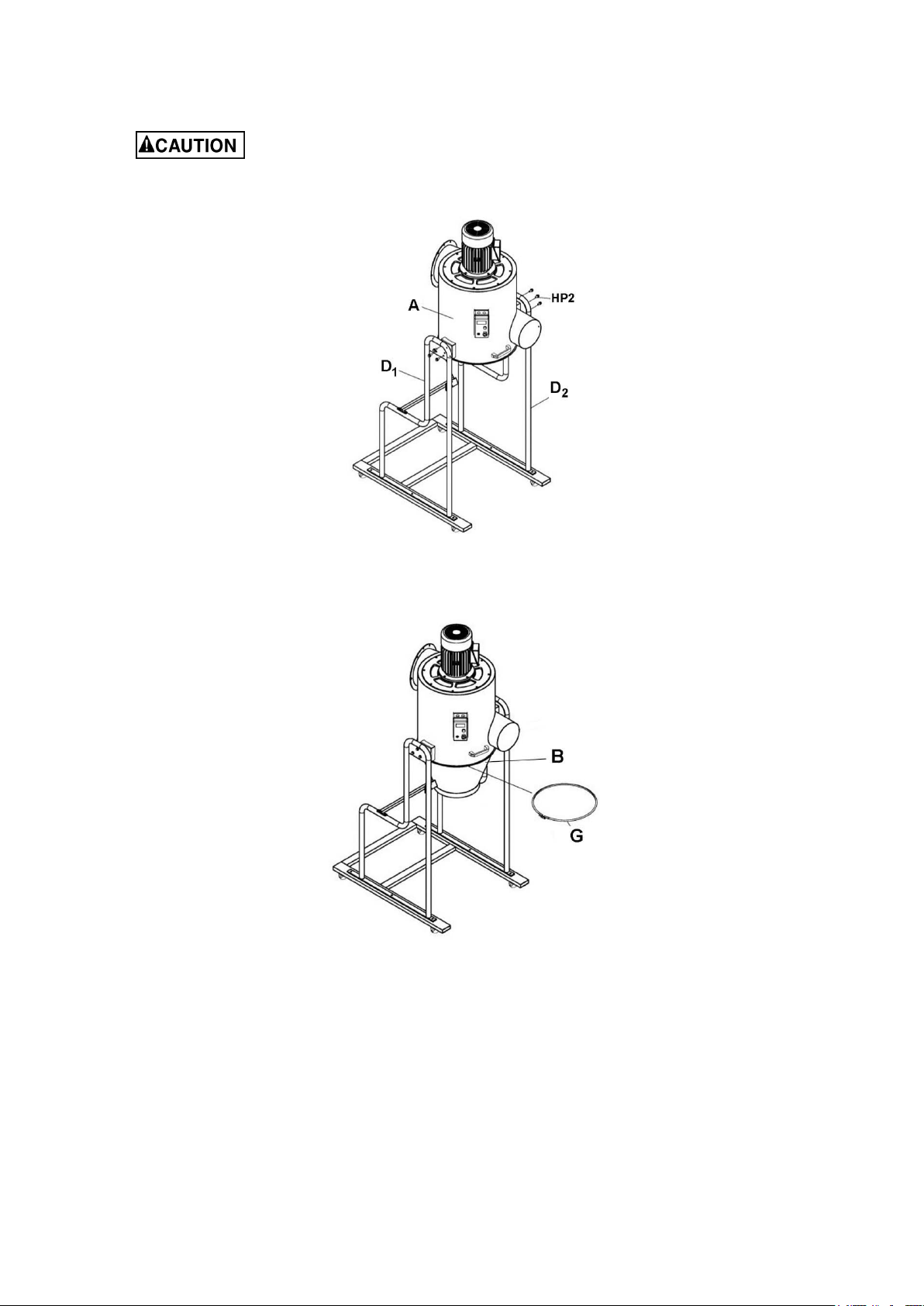

6. Position main housing (A) between left and right stands (D1,D2), and secure with flange head screws (HP2).
See Figure 5.
Figure 5
7. Install funnel (B) beneath main housing. Secure with funnel clamp (G). See Figure 6. Tighten screw on
funnel clamp securely.
Figure 6

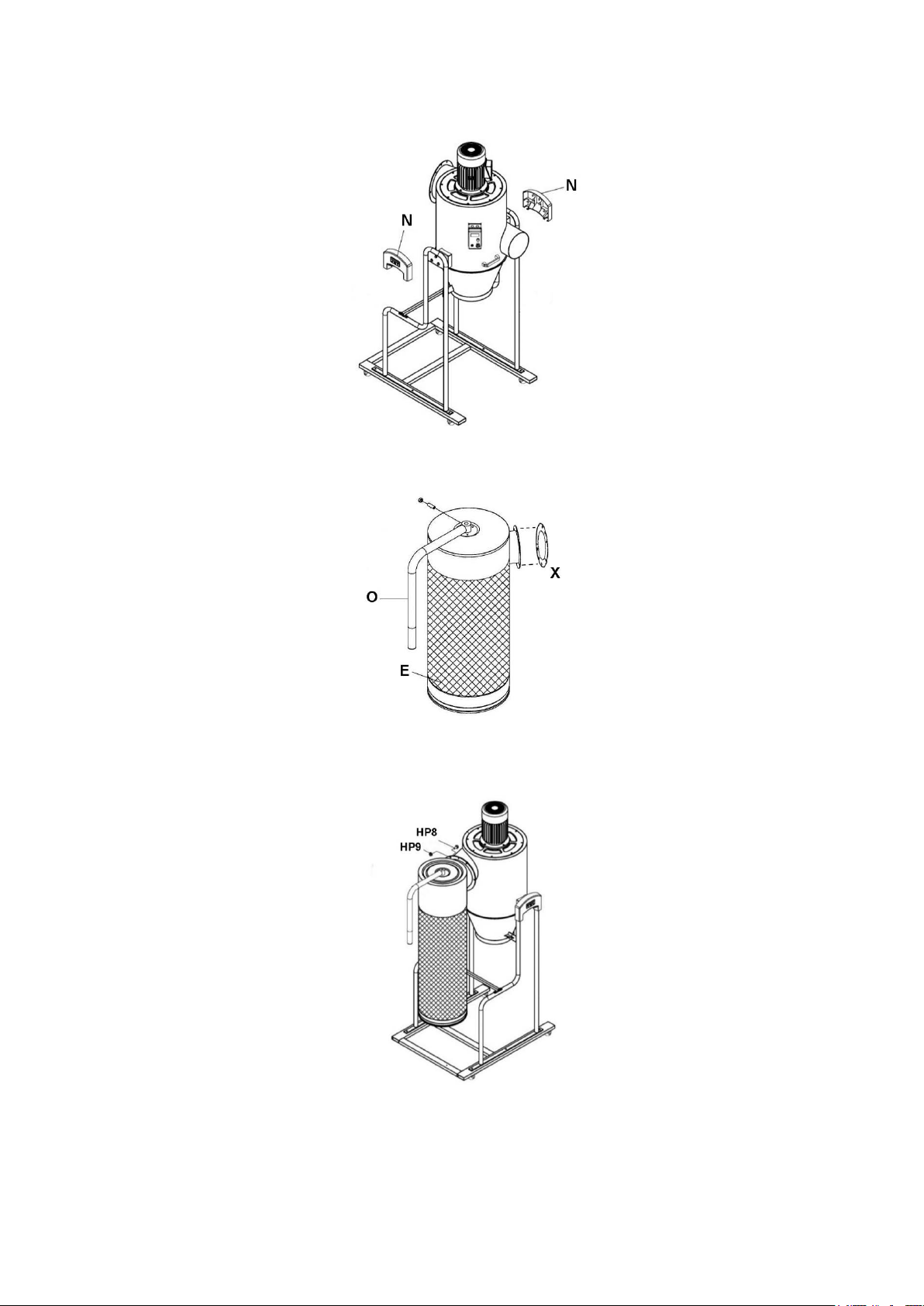

8. Install side cover (N) on left and right stands. See Figure 7.
Page 12
12
Figure 7
9. Install handle assembly (O) to canister filter (E) using set screw and nut. See Figure 8.
Figure 8
10. Place gasket (X) between canister filter and main housing. Install canister filter onto main housing, and
tighten with flange head screws (HP8) and nuts (HP9). See Figure 9.
Figure 9

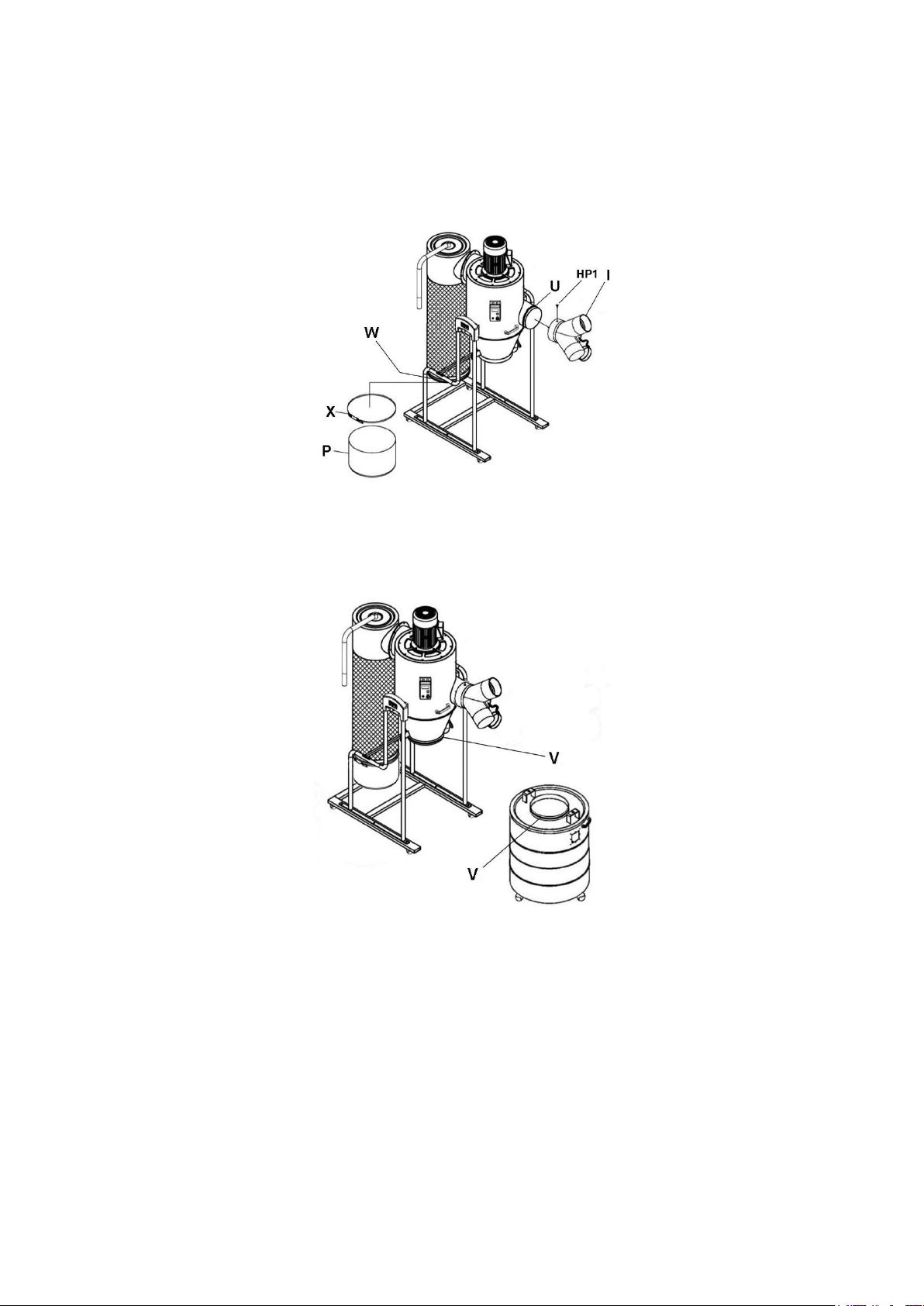

11. Apply foam tape (U) around inlet port near edge. See Figure 10. The foam tape should completely encircle
the port.
Page 13
13
12. Install inlet adaptor (I) on main housing and secure with pan head screw (HP1).
13. Apply foam tape (W) just above lower lip of canister filter. The foam tape should completely encircle the
canister filter.
14. Install collection bag (P) to bottom of canister filter and secure with steel bag clamp (X).
Figure 10
15. Apply foam tape (V) around funnel just above its bottom edge. See Figure 11. The foam tape should
completely encircle the funnel.
16. Apply foam tape (V) around outside lip of drum opening. The foam should completely encircle the lip.
Figure 11
17. Install hose (J) onto cone and drum lid and secure with two hose clamps (K) at top and bottom. See Figure
12.
Page 14
14
Figure 12

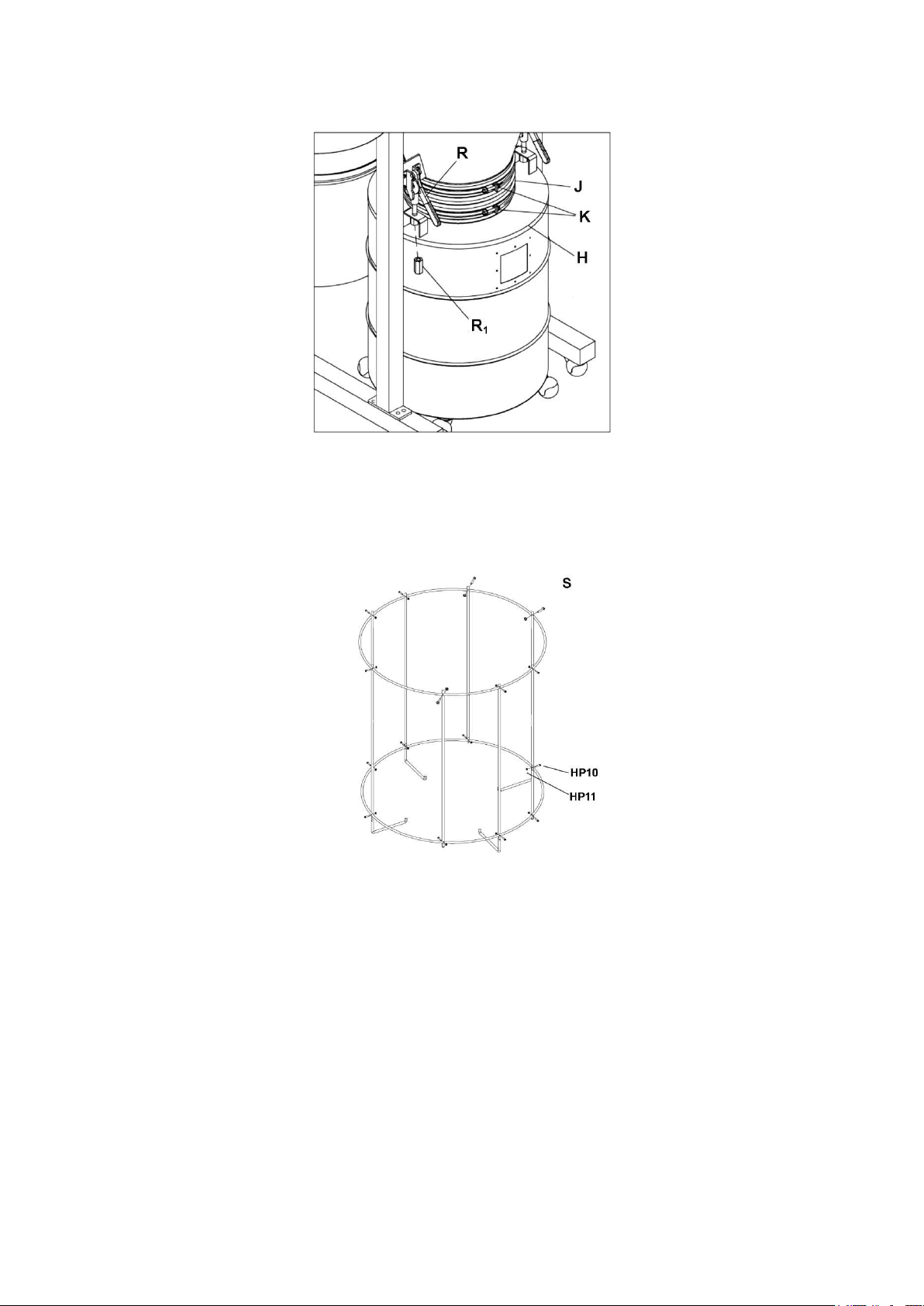

The bag frame maintains the shape of the bag in the negative-pressure environment of the cyclone drum.
Assemble bag frame as follows:
18. Screw the short and long frame supports into the hoops in alternating manner, as shown in Figure 13.
Secure with sixteen pan head screws and hex nuts (HP10,HP11). (Note: The bends on long supports point
inward as shown.)
Figure 13

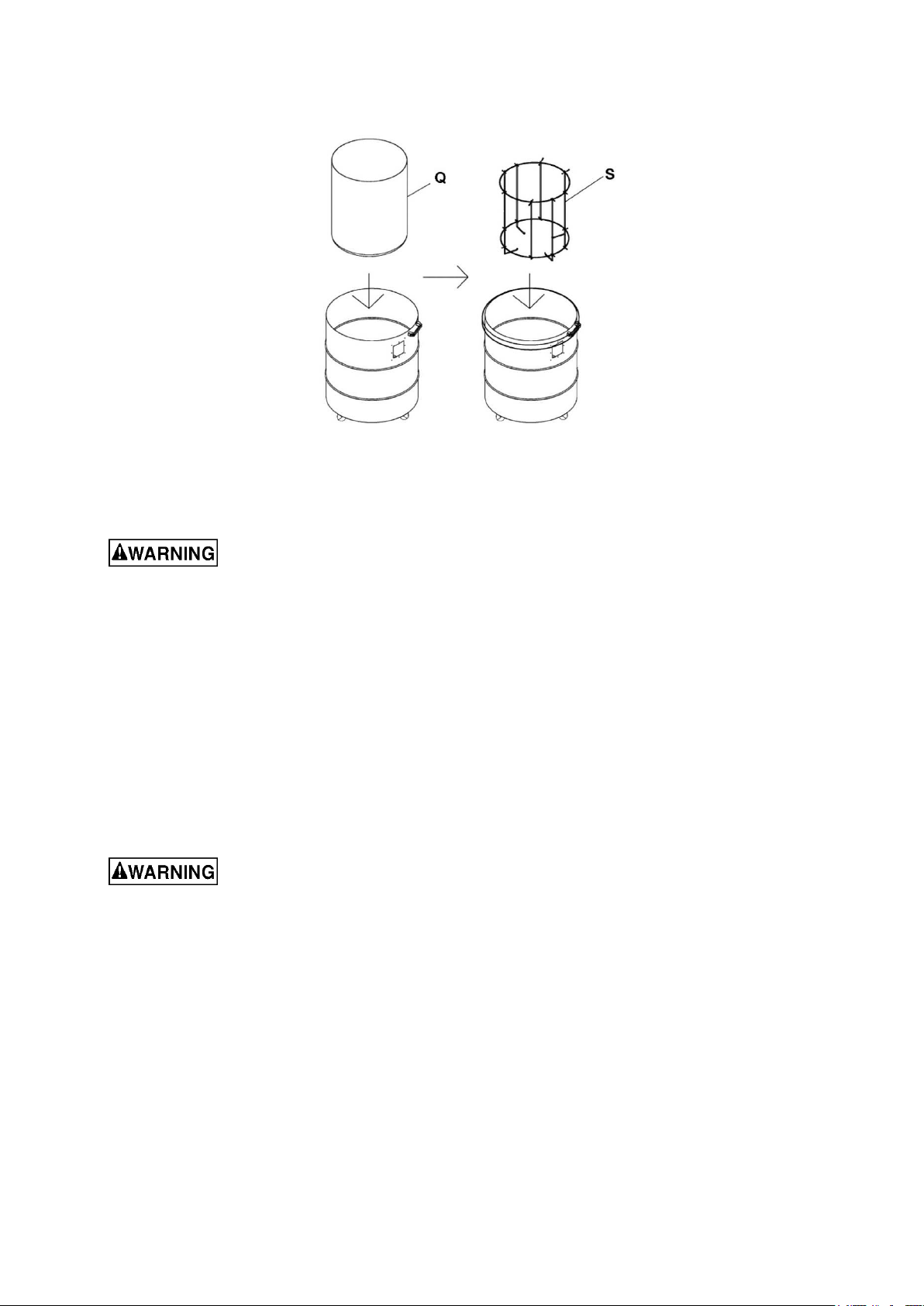

19. Place drum collection bag (Q) into drum with its top edge wrapped around top edge of drum. Place bag
frame (S) inside bag and press down all the way. See Figure 14.
20. Pull down both quick levers (R, Figure 12) then assemble drum lid (H, Figure 12) to quick levers. Tighten
long nut (R1, Figure 12) onto each quick lever.
21. Raise drum lid using quick levers, and position drum beneath lid. Lower quick levers to secure lid upon
drum.
Page 15
15
Figure 14
5.0 Electrical connections
All electrical connections must be done by a qualified electrician in compliance with all
local codes and ordinances. Failure to comply may result in serious injury.
Mains connection and any extension cords used must comply with applicable regulations.
The mains voltage must comply with the information on the machine license plate. The dust collector comes
with a plug designed for use on a circuit with a grounded outlet.
Keep in mind that a circuit being used by other machines, tools, lights, heaters, etc. at the same time will add to
the electrical load. A dedicated circuit to the dust collector will offer best results since dust collectors are
generally used while other tools are running.
Before connecting to power source, be sure switch is in off position.
5.1 GROUNDING INSTRUCTIONS
This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having
an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet
that is properly installed and grounded in accordance with all local codes and ordinances.
Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the
outlet is properly grounded. Do not modify the plug provided with the appliance – if it will not fit the
outlet, have a proper outlet installed by a qualified electrician.
The conductor with insulation having an outer surface that is green with or without yellow stripes is the
equipment-grounding conductor. If repair or replacement of the electric cord or plug is necessary, do not
connect the equipment-grounding conductor to a live terminal.
Repair or replace damaged or worn cord immediately.
Make sure that the appliance is connected to an outlet having the same configuration as the plug. No adapter is
available or should be used with this appliance. If the appliance must be reconnected for use on a different type
of electric circuit, the reconnection should be made by qualified service personnel; and after reconnection, the
appliance should comply with all local codes and ordinances.
Page 16
16
6.0 Operations
6.1 Start/stop

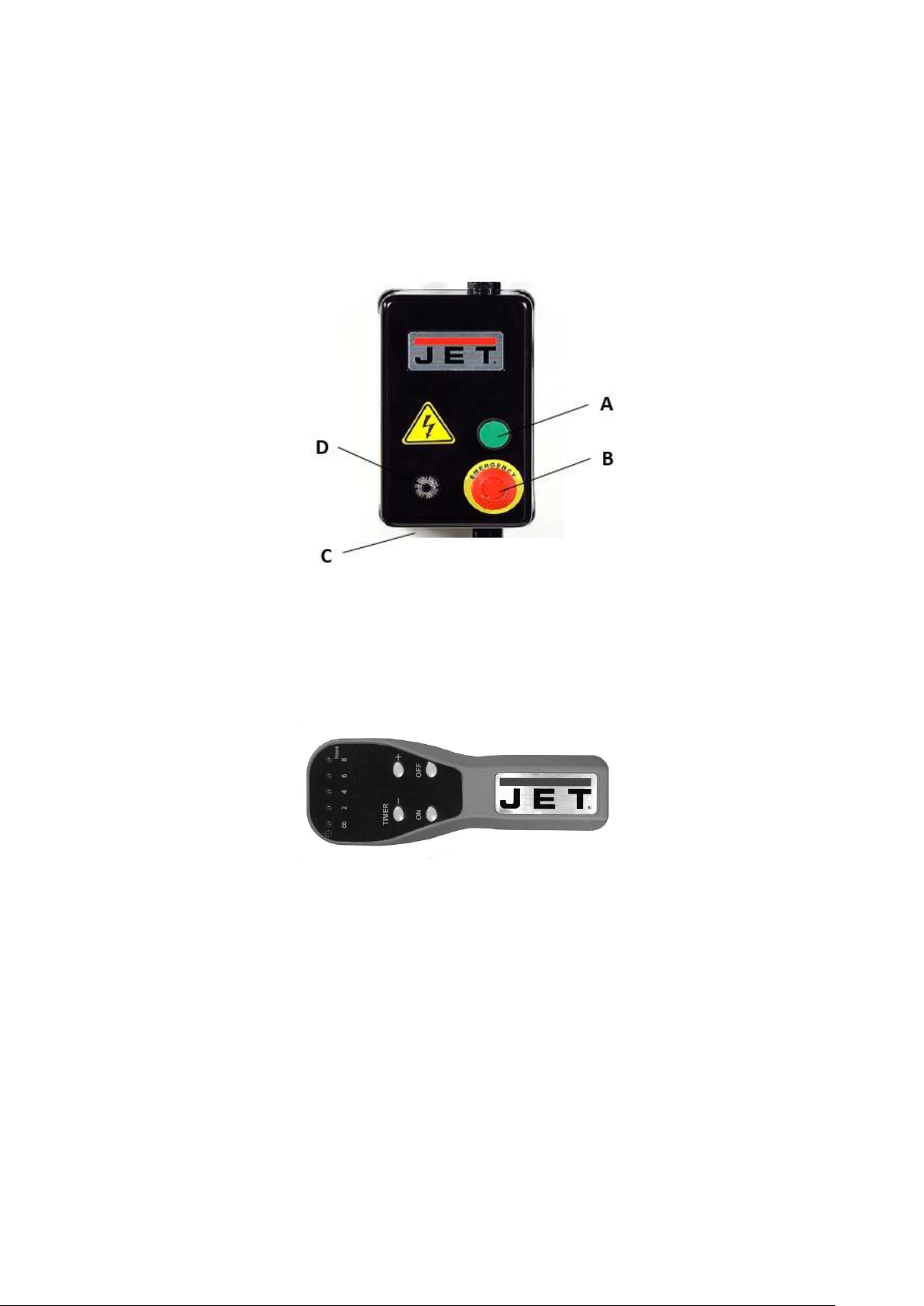

Press green start button (A, Figure 15) to start dust collector. Press red stop button (B) to stop.
The stop button (B) remains engaged after being pushed. To restart dust collector, rotate stop button clockwise
to disengage.
Figure 15
6.2 Remote controller
The RF (radio frequency) remote controller operates on 2 AA batteries (included). The batteries will need
replacing periodically. The remote controller has an effective range up to approximately 50 feet (15 meters).
Press the + or – button to select desired timer setting: 2, 4, 6 or 8 hours. The dust collector will stop
automatically at end of selected period. For continuous operation (no timer) select infinity (
) position.
Figure 16
6.2.1 Remote controller reset
If the remote controller begins to function improperly, it should be cleared and reset.
To clear the remote controller, press and hold reset button (C, Figure 16) for 3 seconds until receiver “beeps” 3
times.
To reset the controller:
1. Press reset button (C, Figure 16) for 1 second until receiver “beeps” once.
2. Press and hold “ON” button on the remote controller until receiver “beeps” twice. (If you are using multiple
remotes, perform step 2 on each remote before proceeding.)
3. Press and hold reset button (C) for 3 seconds until receiver “beeps” 3 times.
The remote controller is now ready.
Page 17
17
6.3 Dust hose connection
Use proper type hose to connect dust collector to machine(s) being operated. Dryer vent hose is not
acceptable for this purpose. Secure hose at both ends with proper clamps.
If an inlet port is not being used, it should remain capped. An open port will diminish the machine’s
efficiency, and may create a safety hazard.
Contact your nearest JET distributor for a line of Dust Collector hoses and accessories. You can customize
your installation and obtain maximum performance with dust hoods, hoses, clamps, fittings, and blast gates.
7.0 User-maintenance
Turn OFF dust collector and remove plug from power source before performing any
adjustments or maintenance. Failure to comply may result in serious injury.
7.1 Thermal overload reset
The switch box contains overload protection to help prevent damage to the motor. The relay will open the
circuit (shut off the dust collector) if the motor is drawing excessive current during extended periods of
operation.
If the overload is tripped, allow the machine to cool down for several minutes. Then press reset button (D,
Figure 15) and restart the dust collector.
7.2 Cleaning and bag inspection
Clean canister filter frequently to keep the collector's performance at its optimum. To clean filter, turn handle a
couple of rotations so dust falls into attached collection bag.
Empty or replace canister and drum collection bags when full.
ATTENTION:
During the changing or cleaning of the filters it’s necessary to use a mask (mask with filtration).
7.3 Motor inspection
Make frequent inspections of motor fan, and blow out (with low pressure air hose) or vacuum any accumulation
of foreign material to maintain normal motor ventilation.
7.4 Additional servicing
No lubrication is required for the dust collector.
Any other servicing should be performed by an authorized service representative.
Page 18
18
8.0 Optional accessories
Part no.
Description
717511
Canister collection bag for JCDC (package of 5)
insulation and shorted wires.
power line.
power source.
cover if damaged.
717521 Drum collection bag for JCDC-2 (package of 5)
Table 2
9.0 Troubleshooting the JCDC-2
9.1 Electrical and motor problems
Symptom Possible Cause Correction*
Motor will not start. No incoming current. Check connections at plug or circuit panel.
Safety key missing from switch. Install safety key.
Low voltage. Check power line for proper voltage.
Motor will not start:
fuse blows or circuit
breaker trips.
Open circuit in motor or loose
connection.
Faulty start switch. Inspect and replace switch if needed.
Faulty start capacitor. Replace capacitor.
Faulty motor. Inspect and replace motor if needed.
Too many machines on shared
circuit.
Short circuit in line cord or plug. Inspect cord or plug for damaged
Inspect all connections to switch box and
motor for loose or open connections.
Connect dust collector to dedicated circuit.
Short circuit in motor or loose
connections.
Incorrect fuse or circuit breaker in
Motor overheats. Motor overloaded. Reduce load on motor.
Air circulation through motor is
restricted.
Motor stalls, resulting
in blown fuses or
tripped circuit.
Loud noise or
vibrations coming from
machine.
Remote controller fails
to activate machine.
Motor overloaded. Reduce load on motor.
Short circuit in motor or loose
connections.
Low voltage. Correct low voltage conditions.
Incorrect fuse or circuit breaker in
power line.
Loose fasteners. Inspect machine and tighten all fasteners.
Motor fan is hitting the cover. Tighten fan or shim cover. Replace fan
Impeller is damaged. Replace impeller.
Stop button still engaged. Disengage stop button.
Batteries drained. Replace batteries.
Remote needs resetting. Follow instructions for clearing and
Inspect all connections on motor for loose
or shorted terminals or worn insulation.
Install correct fuse or circuit breaker at
Clean motor fan with compressed air to
restore normal air circulation.
Inspect connections on motor for loose or
shorted terminals or worn insulation.
Install correct fuse or circuit breaker.
resetting.
* WARNING: Some corrections may require a qualified electrician.
Page 19
19
tight.
9.2 Performance problems
Symptom Possible Cause Correction
Poor performance; lack
of suction.
Excess dust or large
chips backing up into
canister filter.
Hose improperly secured at dust
origination point.
Inlet port is open. Cap unused inlet ports.
Collection bag is full. Empty bag (check sight window).
Collection drum not sealed properly.
Canister filter is dirty. Clean filter.
Wood has excess moisture content. Use lumber with lower moisture content.
Obstruction in dust hose or inlet port. Inspect and clear obstruction.
Dust hose too long. Move collector closer to dust source.
Collection drum not sealed properly.
Collection bag full. Empty bag (check sight window).
Inspect and remedy.
Inspect drum for leaks, make sure lid is
tight.
Inspect drum for leaks, make sure lid is
Loading...
