Thank you for purchasing Jesse Luggage for your motorcycle. Our Luggage,handcrafted in the USA
is designed for those with an interest in finding the most durable and functional luggage for their
adventure touring.Al Jesse has been designing and building aluminum luggage since 1991. He has
traveled in 42 countries on his own motorcycle and knows what it takes to make a good set of
luggage.Jesse Luggage is built in several unusual features,including friction hinged lids and a lid
packer to hold your items in the lids for extra packing space.The angles provide extra strength as
well as clearance in corners and your heels when paddling in deep sand. Powder coating provides a
durable finished look for your boxes. We hope you enjoy your luggage for years to come.
for
Jesse Luggage
Systems
Products
Page 2
2012 SUZUKI 650 V-STROM
MOUNTING SYSTEM
INSTALL MANUAL
Page 3

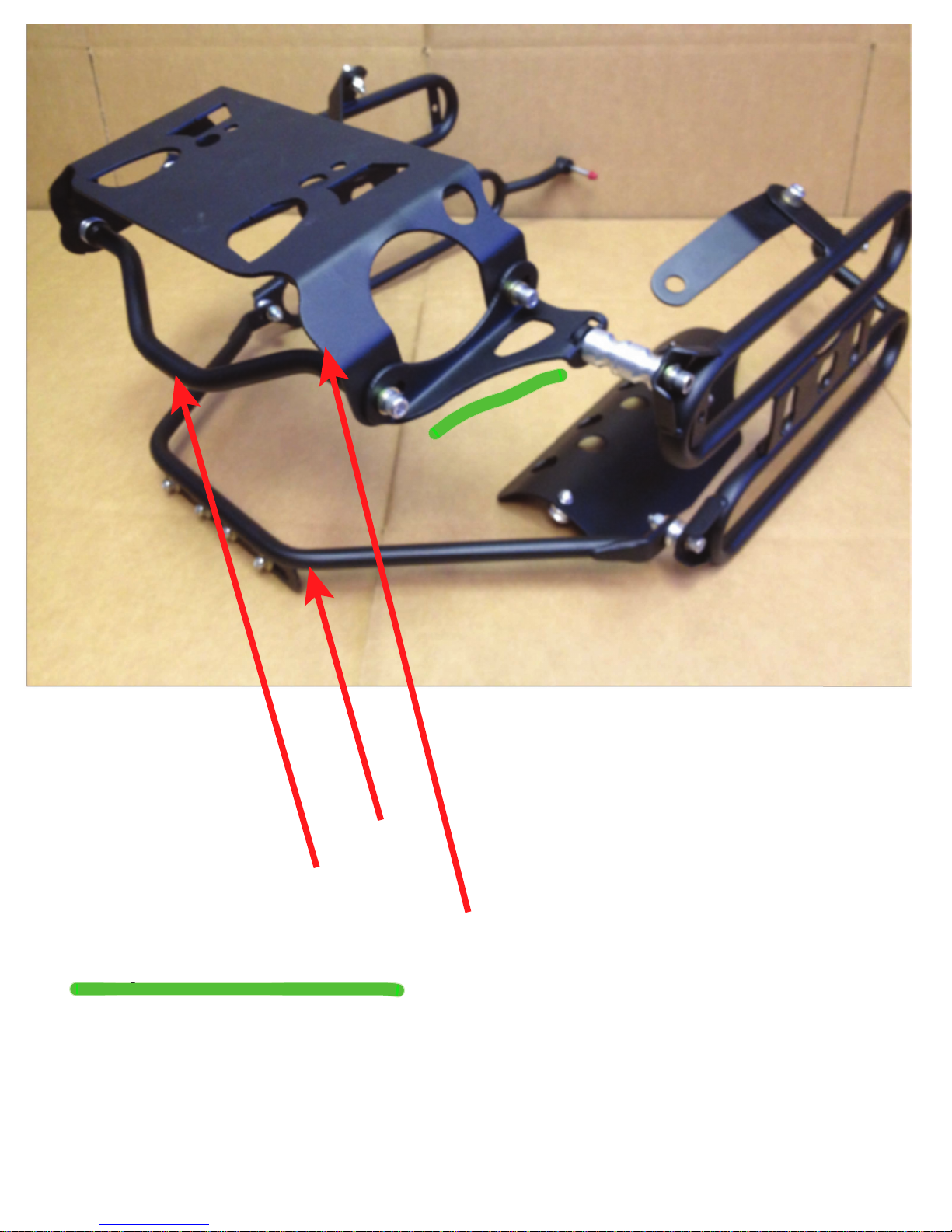

1) Right main
1) Left main
1) lower crossover
1) upper crossover
1) main upper support
1) right T mount
1) left T mount
1) muffler guard
TOOLS NEEDED
4-5-6 mm allen
10 mm wrench
13 mm wrench
Page 4

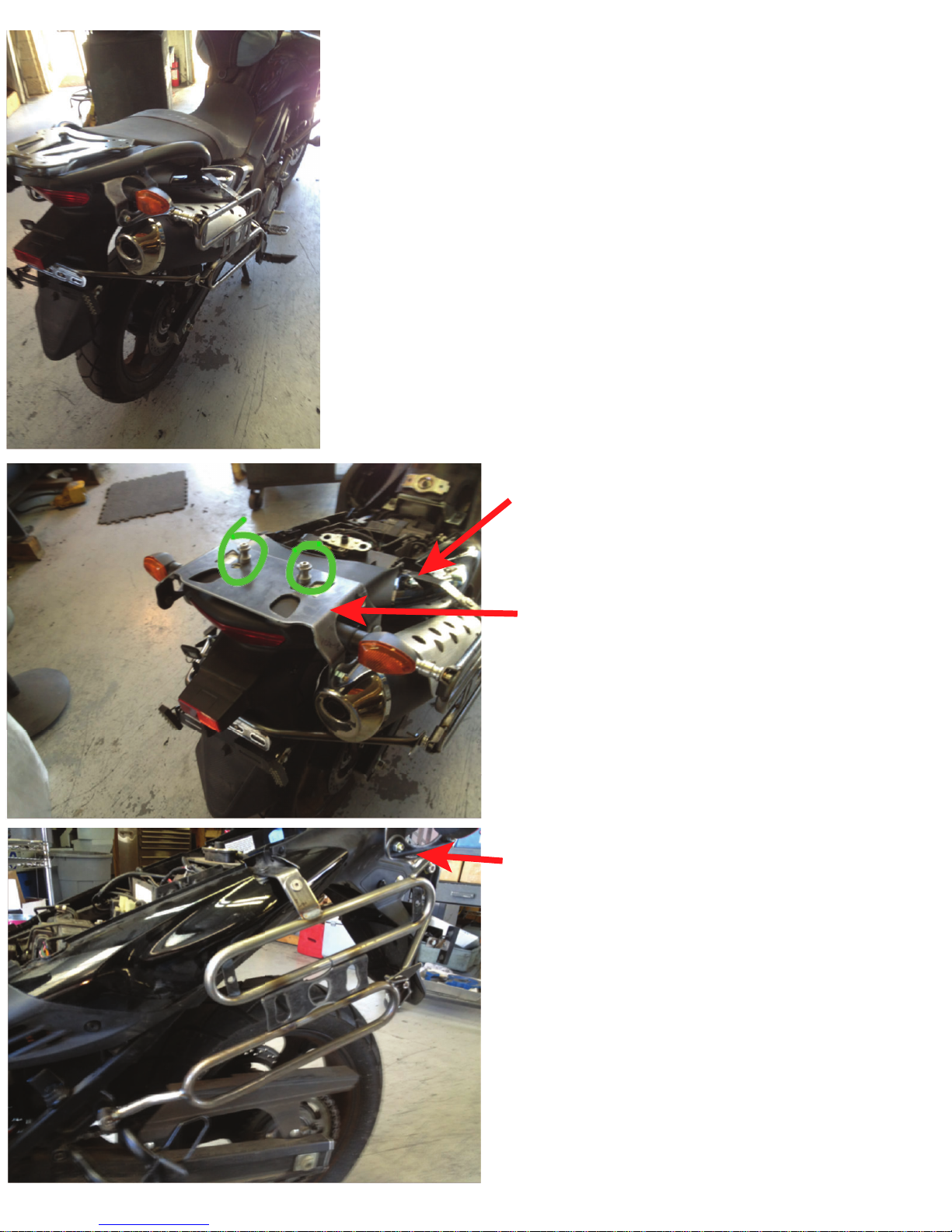

Remove seat
Remove rear rack
(4 bolts with 10mm wrench)
Install front upper mains
Install main upper support
Reinstall stock rear rack
with 4- stock bolts
used for photo
only!
stock rack
bolts here
Install left T mount with bolts
provided
Install left main
Page 5

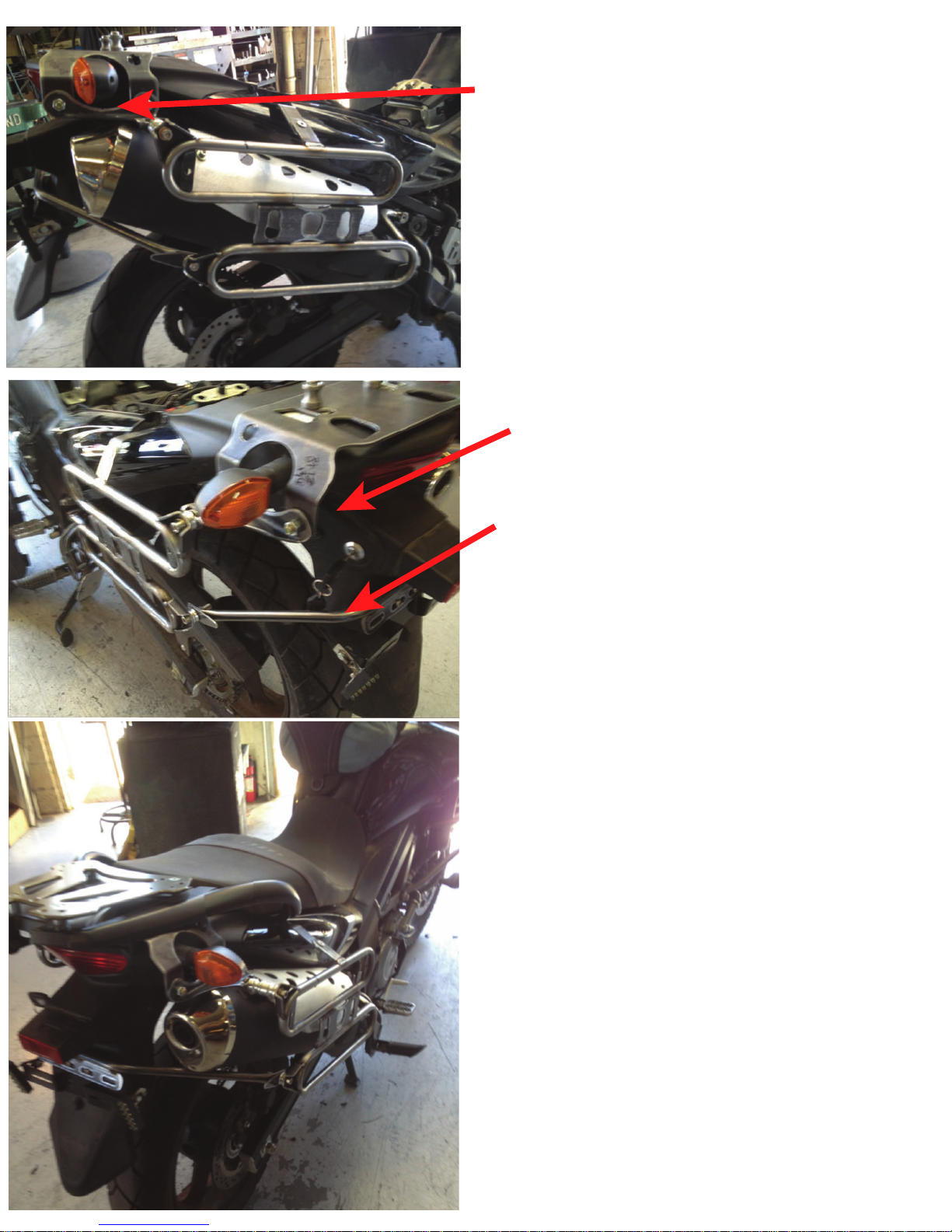

Install right T mount
Install right main
Install upper rear support
install lower rear support
Now that you have
everything in place
tighten all bolts
from top - down
Now you are ready to
put your boxes on and
go for a ride!

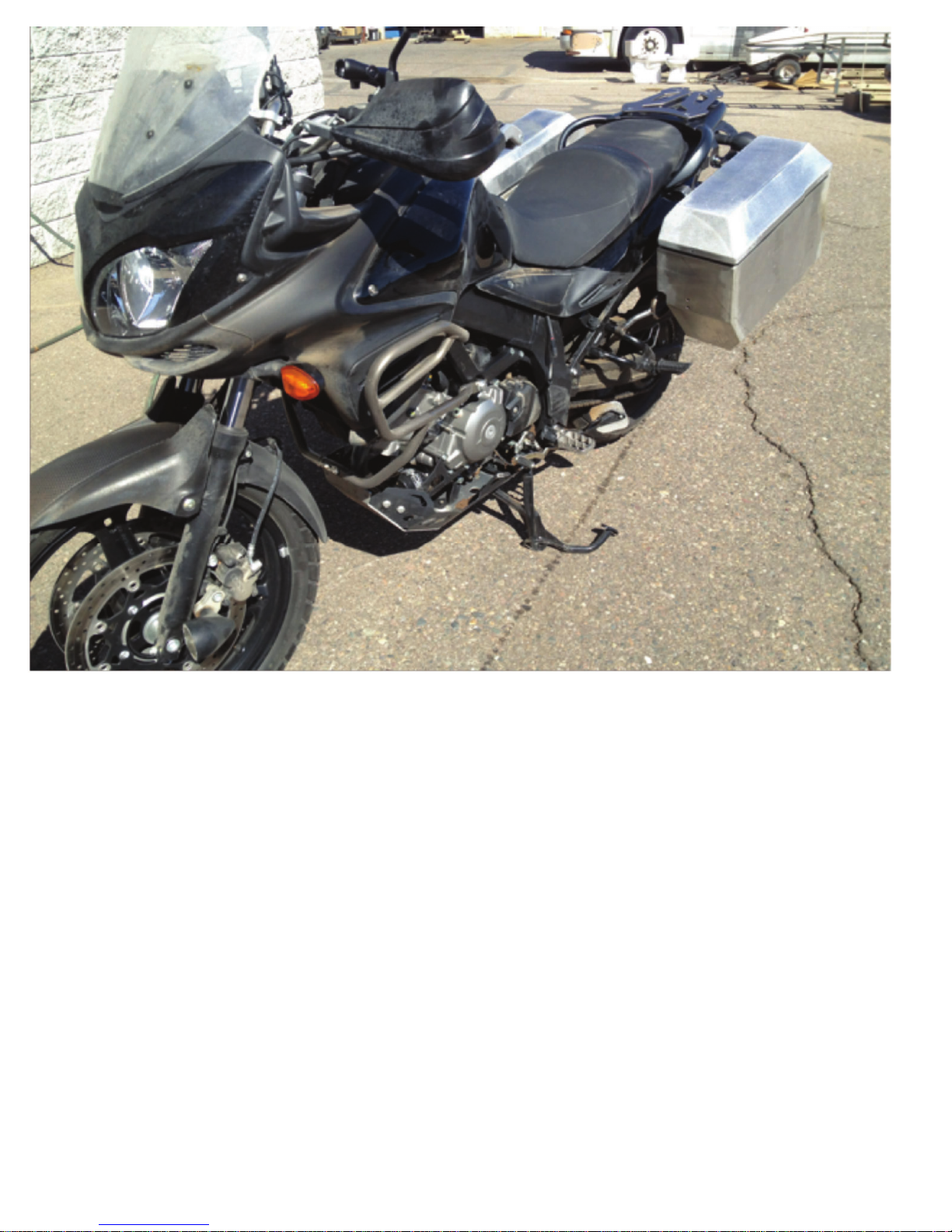

Page 6
Page 7

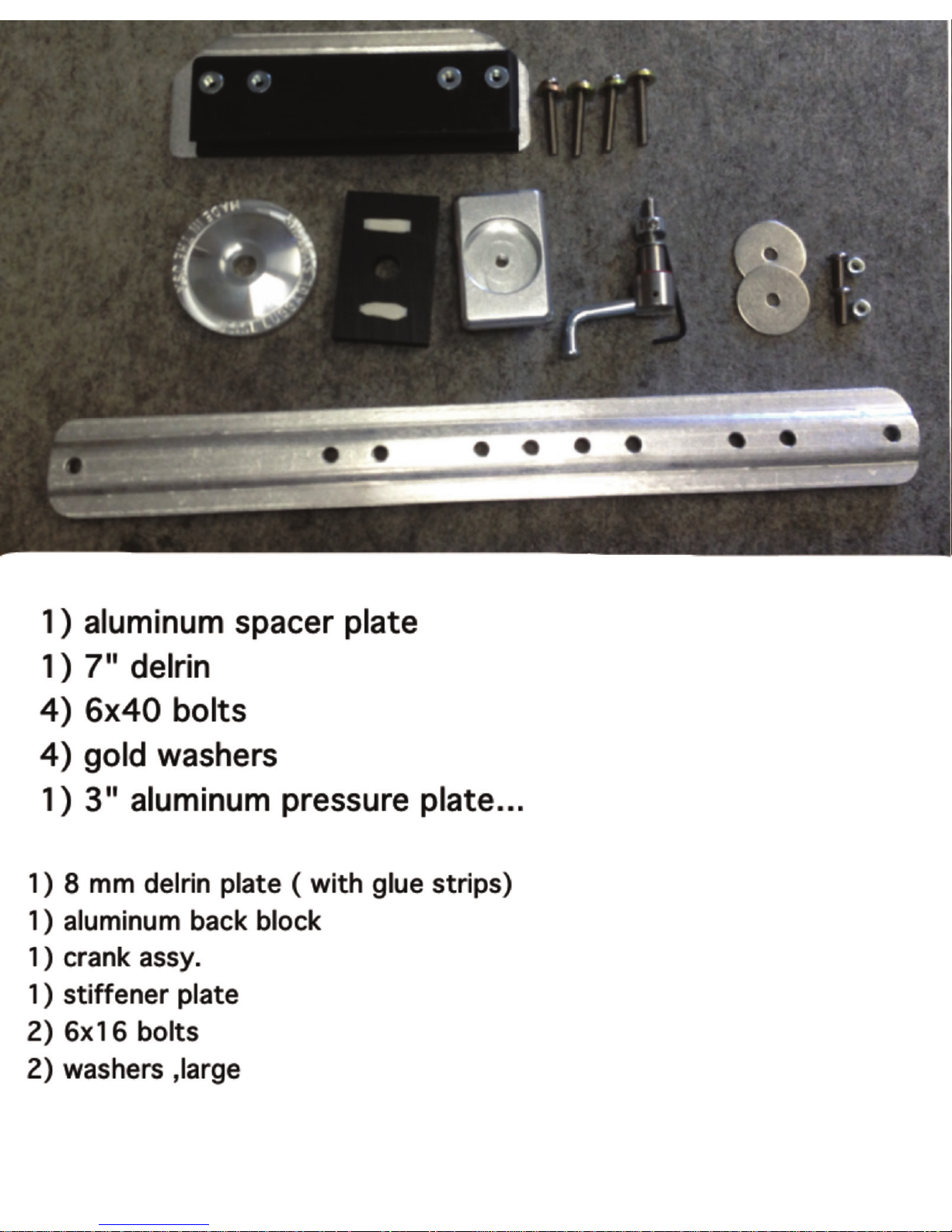

Install delrin plate with glue strips to box. Install crank thru pressure
plate and screw on back block.

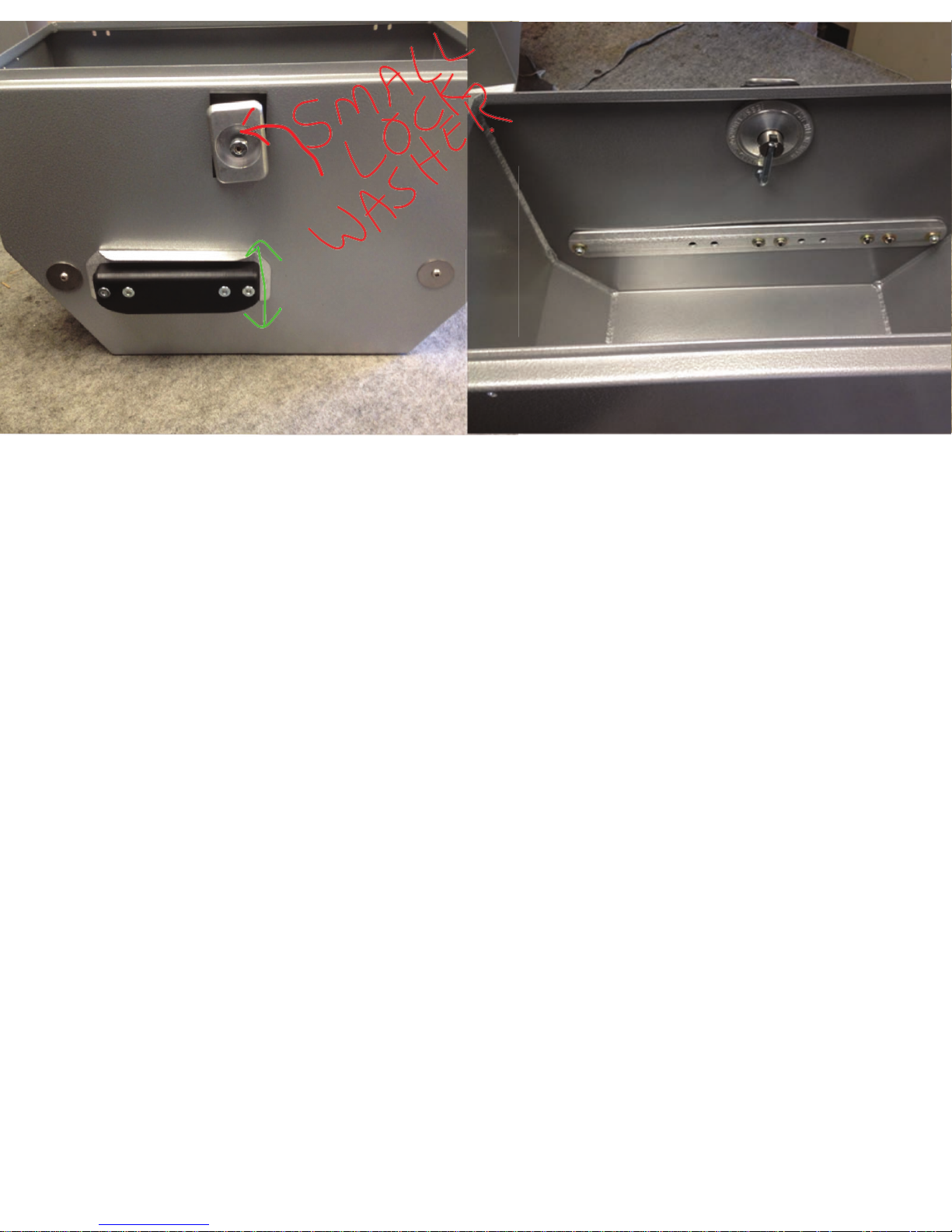

Install bottom 7" delrin with stiffener plate inside of box. The 2 end
screws are installed backwards from the 4 that hold the main delrin in
place. Install boxes on the mounts and firm up crank first.
Grab bags and make parallel , push spacer plate up and delron down
on lower mount. Tighten all bolts and go for a long ride!
