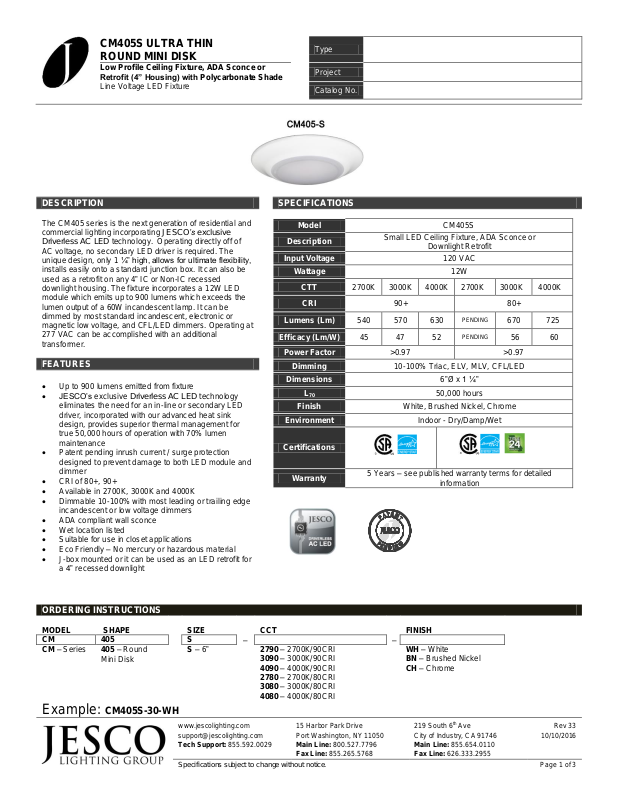

Page 1
CM405S ULTRA THIN
ROUND MINI DISK
Type
Low Profile Ceiling Fixture, ADA Sconce or
Retrofit (4” Housing) with Polycarbonate Shade
Project
Line Voltage LED Fixture
Catalog No.
www.jescolighting.com
15 Harbor Park Drive
219 South 6th Ave
Rev 33
Port Washington, NY 11050
City of Industry, CA 91746
10/10/2016
Tech Support: 855.592.0029
Main Line: 800.527.7796
Main Line: 855.654.0110
Fax Line: 855.265.5768
Fax Line: 626.333.2955
Specifications subject to change without notice.
Page 1 of 3
DESCRIPTION
SPECIFICATIONS
The CM405 series is the next generation of residential and
commercial lighting incorporating JESCO’s exclusive
Driverless AC LED technology. Operating directly off of
AC voltage, no secondary LED driver is required. The
unique design, only 1 ¼” high, allows for ultimate flexibility,
installs easily onto a standard junction box. It can also be
used as a retrofit on any 4” IC or Non-IC recessed
downlight housing. The fixture incorporates a 12W LED
module which emits up to 900 lumens which exceeds the
lumen output of a 60W incandescent lamp. It can be
dimmed by most standard incandescent, electronic or
magnetic low voltage, and CFL/LED dimmers. Operating at
277 VAC can be accomplished with an additional
transformer.
Model
CM405S
Description
Small LED Ceiling Fixture, ADA Sconce or
Downlight Retrofit
Input Voltage
120 VAC
Wattage
12W
CTT
2700K
3000K
4000K
2700K
3000K
4000K
CRI
90+
80+
Lumens (Lm)
540
570
630
PENDING
670
725
Efficacy (Lm/W)
45
47
52
PENDING
56
60
Power Factor
>0.97
>0.97
Dimming
10-100% Triac, ELV, MLV, CFL/LED
Dimensions
6”Ø x 1 ¼”
L70
50,000 hours
Finish
White, Brushed Nickel, Chrome
Environment
Indoor - Dry/Damp/Wet
Certifications
Warranty
5 Years – see published warranty terms for detailed
information
FEATURES
Up to 900 lumens emitted from fixture
JESCO’s exclusive Driverless AC LED technology
eliminates the need for an in-line or secondary LED
driver, incorporated with our advanced heat sink
design, provides superior thermal management for
true 50,000 hours of operation with 70% lumen
maintenance
Patent pending inrush current / surge protection
designed to prevent damage to both LED module and
dimmer
CRI of 80+, 90+
Available in 2700K, 3000K and 4000K
Dimmable 10-100% with most leading or trailing edge
incandescent or low voltage dimmers
ADA compliant wall sconce
Wet location listed
Suitable for use in closet applications
Eco Friendly – No mercury or hazardous material
J-box mounted or it can be used as an LED retrofit for
a 4” recessed downlight
ORDERING INSTRUCTIONS
MODEL
SHAPE
SIZE
CCT FINISH
CM
405 S – –
CM – Series
405 – Round
Mini Disk
S – 6”
2790 – 2700K/90CRI
3090 – 3000K/90CRI
4090 – 4000K/90CRI
2780 – 2700K/80CRI
3080 – 3000K/80CRI
4080 – 4000K/80CRI
WH – White
BN – Brushed Nickel
CH – Chrome
Example: CM405S-30-WH
Page 2
CM405S ULTRA THIN
ROUND MINI DISK
Type
Low Profile Ceiling Fixture, ADA Sconce or
Retrofit (4” Housing) with Polycarbonate Shade
Project
Line Voltage LED Fixture
Catalog No.
www.jescolighting.com
15 Harbor Park Drive
219 South 6th Ave
Rev 33
Port Washington, NY 11050
City of Industry, CA 91746
6/3/2016
Tech Support: 855.592.0029
Main Line: 800.527.7796
Main Line: 855.654.0110
Fax Line: 855.265.5768
Fax Line: 626.333.2955
Specifications subject to change without notice.
Page 2 of 3

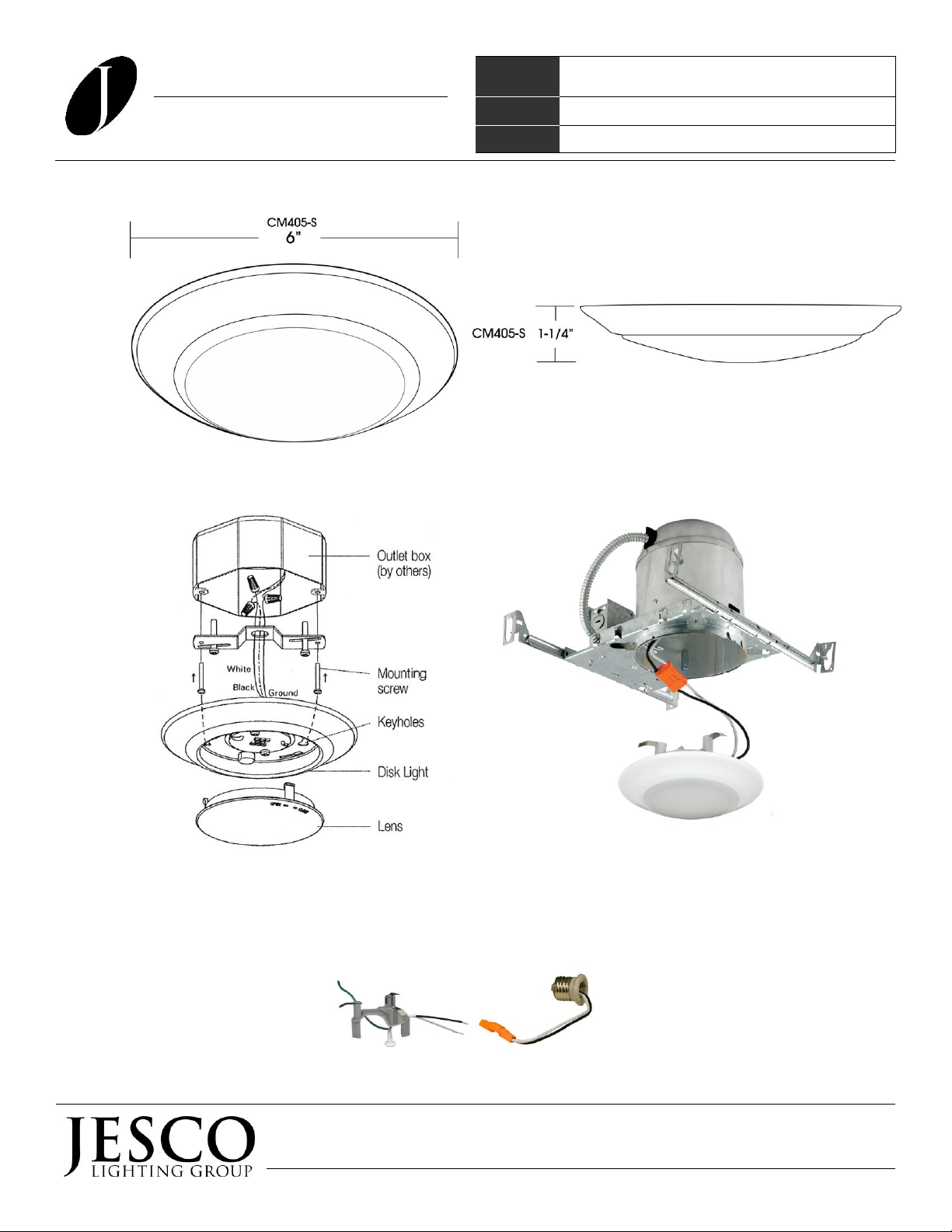

DIMENSIONS
J-Box Mounting
4” Downlight Retrofit Mounting
OPTIONAL ACCESSORY
CM405S-MK Mounting Kit for 4” Retrofit includes:
Mounting Clip
Adapter
Page 3
CM405S ULTRA THIN
ROUND MINI DISK
Type
Low Profile Ceiling Fixture, ADA Sconce or
Retrofit (4” Housing) with Polycarbonate Shade
Project
Line Voltage LED Fixture
Catalog No.
www.jescolighting.com
15 Harbor Park Drive
219 South 6th Ave
Rev 33
Port Washington, NY 11050
City of Industry, CA 91746
6/3/2016
Tech Support: 855.592.0029
Main Line: 800.527.7796
Main Line: 855.654.0110
Fax Line: 855.265.5768
Fax Line: 626.333.2955
Specifications subject to change without notice.
Page 3 of 3
COMPATIBLE JESCO LINE VOLTAGE HOUSINGS
OTHER COMPATIBLE LINE VOLTAGE HOUSINGS
MODEL
DESCRIPTION
HALO
H99T, H99RT, H99ICT
RS2000B,
RS2000BA,
RS2000IC,
RS2000ICA
4” Line Voltage
New Construction
ALL-PRO
ET400, ET400R, ET400AT
JUNO
TC1, TC1R,
CAPRI
R4, RR4, R4ASIC
LITHONIA
L3, L3R
THOMAS
PS4, PS4RM, PS4ASIC
RS2000R,
RS2000RA
4” Line Voltage
Remodel
COMPATIBLE DIMMERS
MANUFACTURER
STYLE
MODEL NUMBER
TYPE
Lutron
Diva
DVCL-153P
(CFL/LED)
Diva
DVELV-303P
(Electronic Low Voltage)
Diva
DVLV-600P
(Magnetic Low Voltage)
Maestro
MACL-153M
(CFL/LED)
Maestro
MFR2-6DN-120
(Spec Grade)
Skylark
SELV-300P
(Electronic Low Voltage)
Skylark
S-600
(Incandescent)
Skylark Contour
CTCL-153P
(CFL/LED)
Leviton
Acenti
Ate06-1LW
(Electronic Low Voltage)
Trimatron
705
(Incandescent)
Cooper
Devine
D106P
(Incandescent/Magnetic/Low Voltage)
Pass & Seymour
Harmony
(Incandescent 600W)
